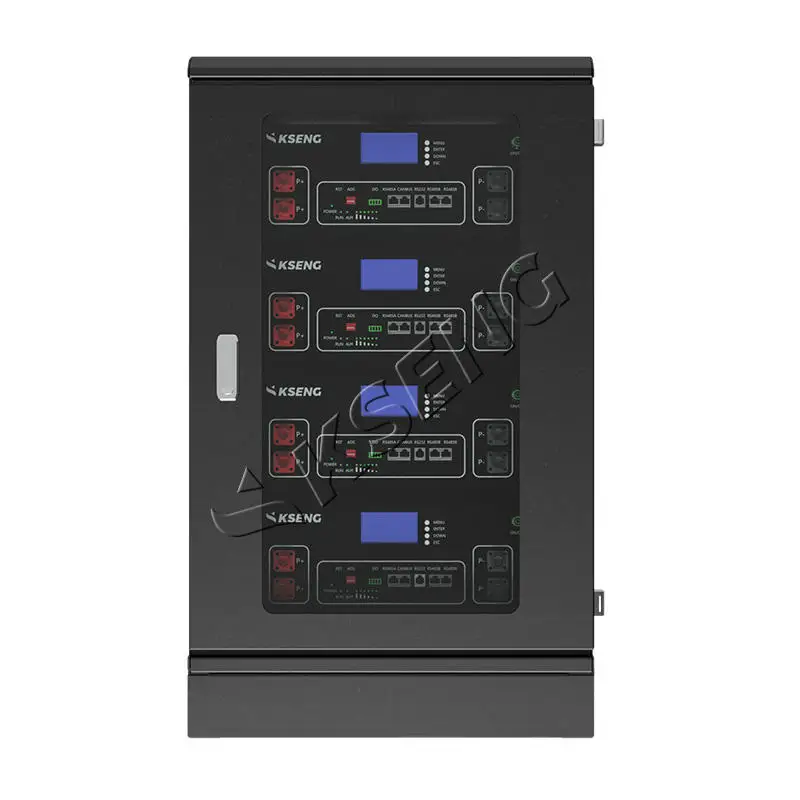

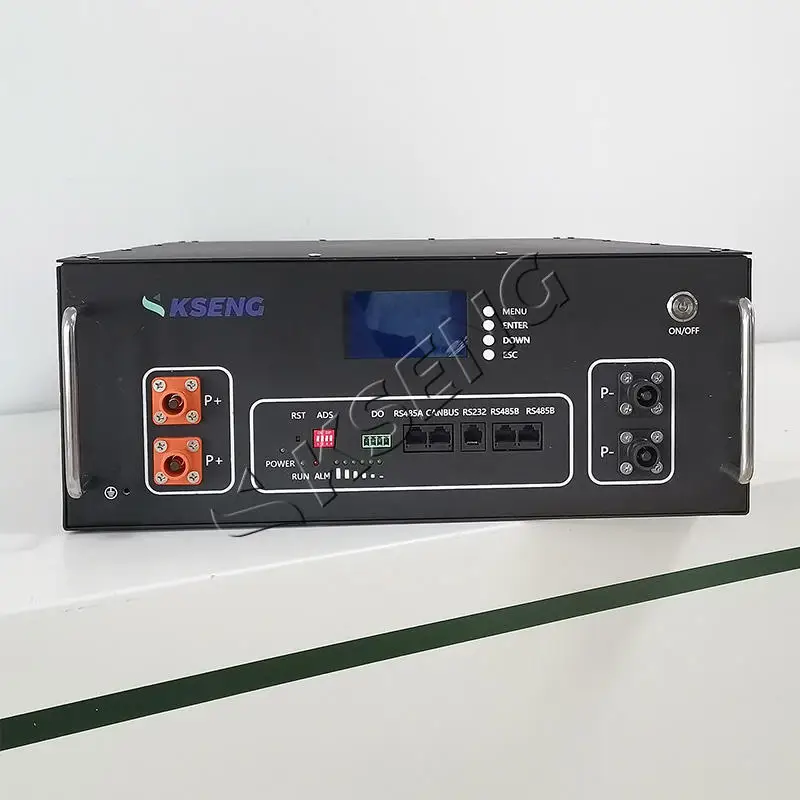

51.2V 100Ah 5Kwh Rechargeable Solar Home Energy Storage Battery 48V 10Kwh Lithium Battery With Smart BMS
- Category: >>>
- Supplier: Xiamen Kseng New Energy Co. Ltd.
Share on (1601219853239):
Product Overview
Description
Product Description
PERFORMANCE SPECIFICATIONS
Model | KSS-05KWH512V100A-GF |
Nominal Voltage | 51.2V(16series) |

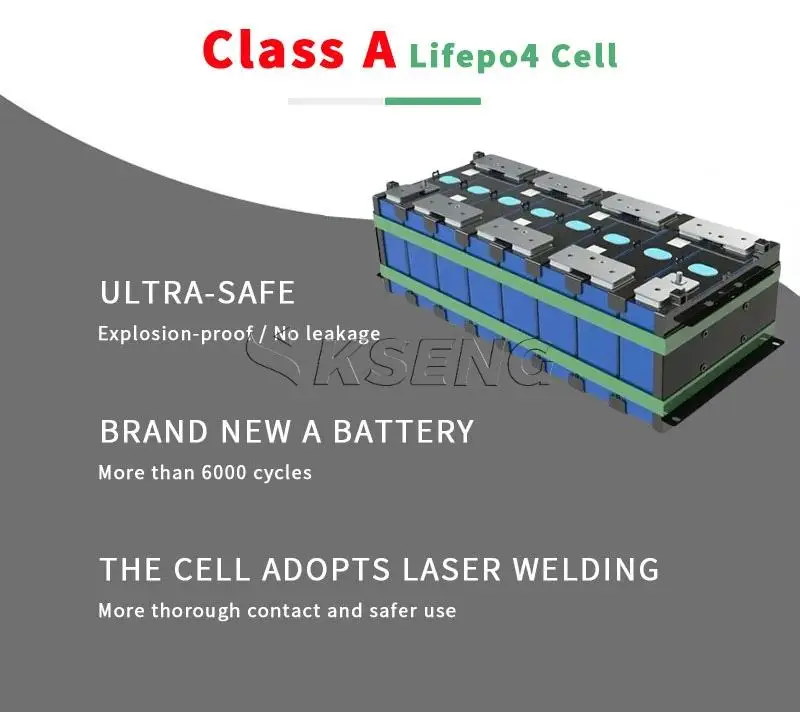

Cell model/Configuration | 3.2V100Ah/16S1P(51.2V) |
Capacity(Ah) | 100AH |
Rated Energy(KWH) | 5.12KWH |
Usable Energy(KWH) | 4.6KWH |
Max.Charge/Discharge Current(A) | 50A /100A |
Voltage Range(Vdc) | 48-56.5V |
Scalability | Up to 10 parallel |
Scalability Communieation | RS232-PC,RS485-Inverter,Canbus-Inverter |
Cycle Life | ≥6000cycles@25℃,90% DOD,60%EOL |
Design Life | ≥15 Years(25℃) |
MECHANICAL SPECIFICATIONS
Weight(Approx)(KG) | 55kg |
Dimension (W/D/H)(mm) | 457*139*621mm |
Installation Mode | Stack |
IP Grade | Ip21 |
SECURITY AND CERTIFICATION
Safety(Pack) | UN38.3,MSDS |
Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 |
Safety(Cel Protection | BMS |
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(℃) | Charge:-10℃~50℃;Discharge:-20℃-50℃ |
Altitude (m) | ≤2000 |
Humidity | ≤95%(Non-condensing) |

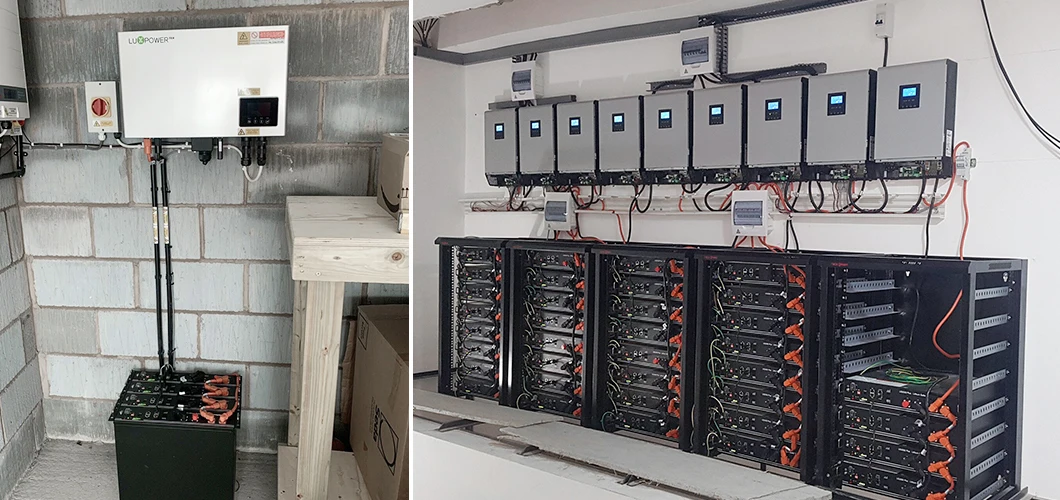

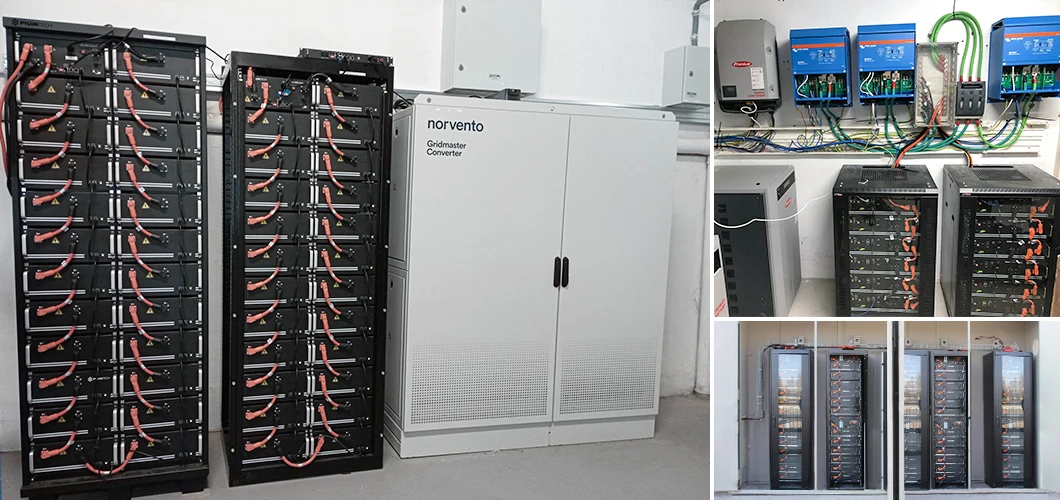

Project Gallery

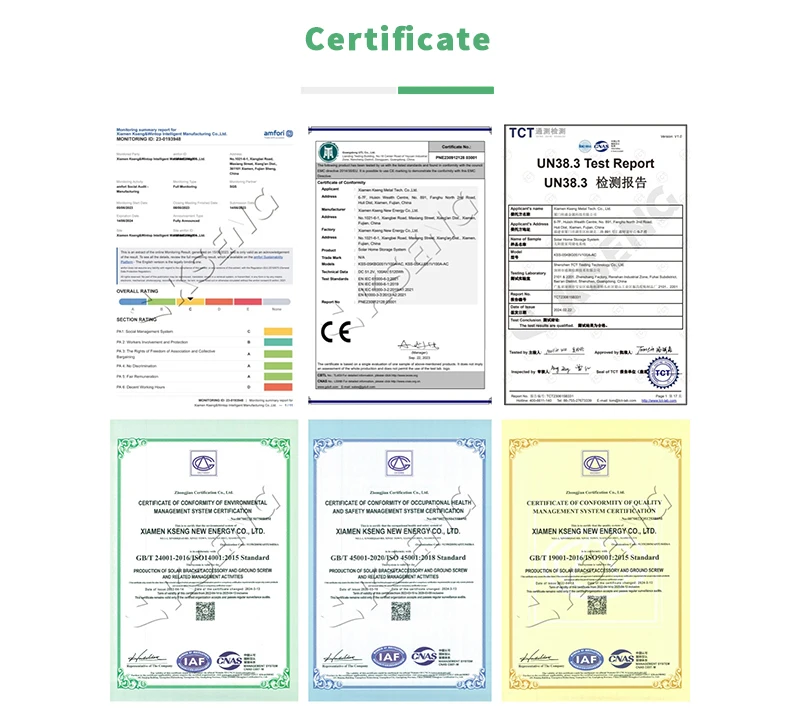

Certifications

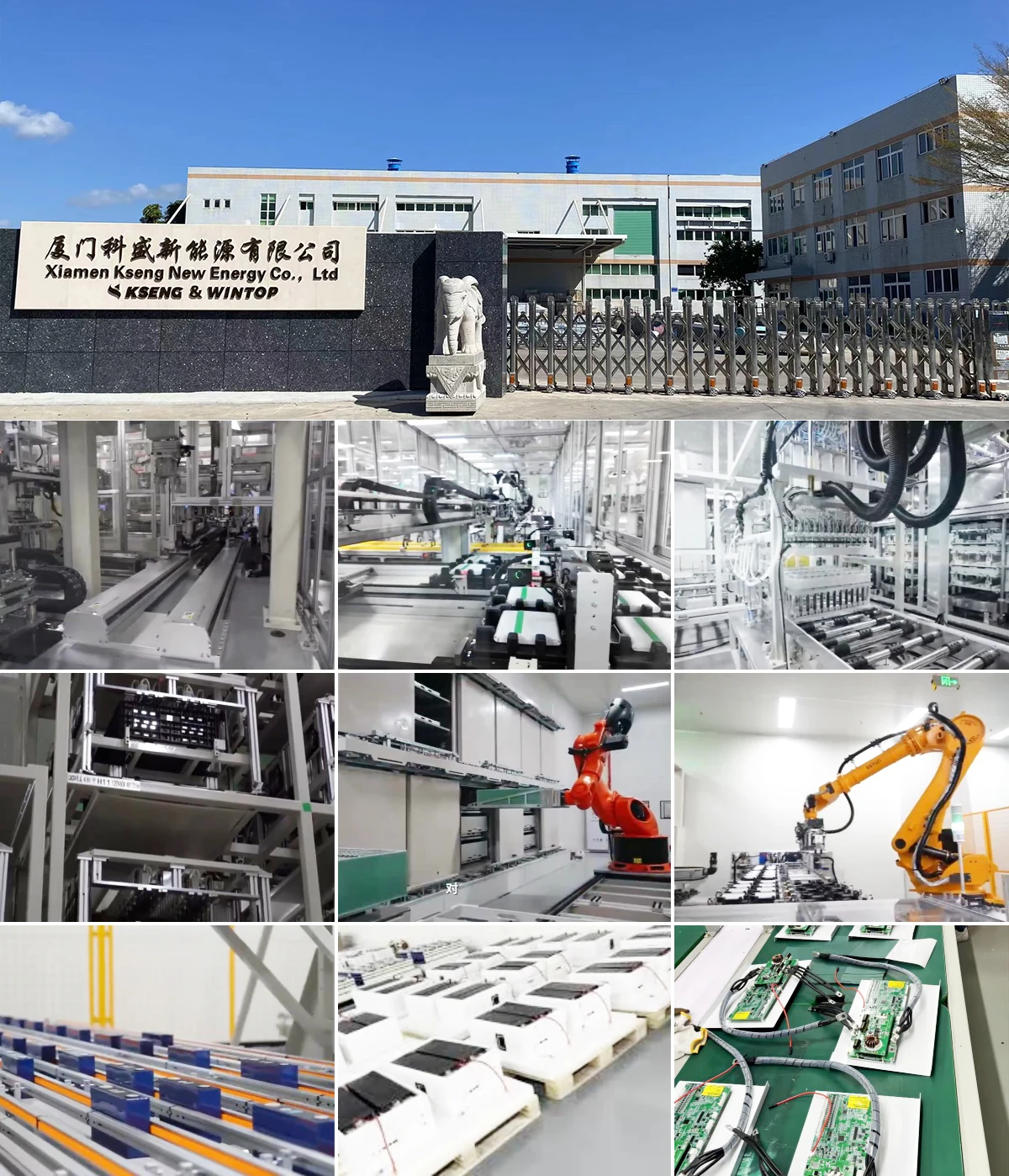

Company Profile
