2.5m 8ft Large Format Roll Up banner Big Photo Canvas Print Machines flex banner printing machine
- Category: >>>
- Supplier: Shanghai Yindao Digital Technology Co. Ltd.
Share on (1601219854260):
Product Overview
Description
Product Description
8ft i3200 dx11 i1600 Print head eco solvent printer plotter pvc vinyl printing machine manufacturer
Wish you Enjoy your Most Assured Purchasing From DosignTec Printing Machines.
Description:

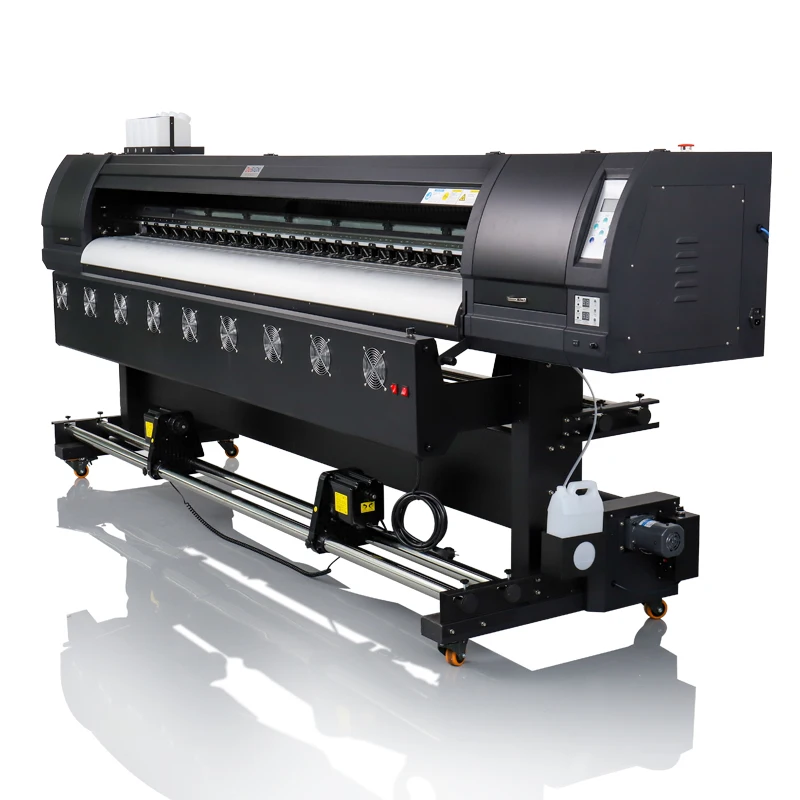

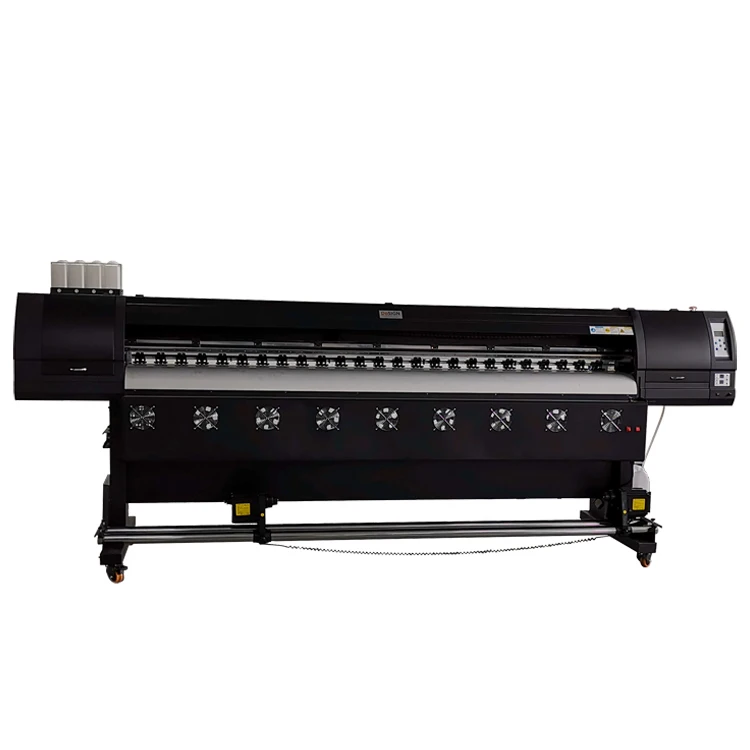

2.5M DS-980SJ 3.2m DS-1260SJ are high-precision Eco-solvent printers with a width of 2.5m, 3.2 meters, The print heads are using dual DX5 / DX7/ XP600 DX11 i3200 Heads, It can be used for indoor and outdoor advertising signs printing business.
DX5 XP600 Vinyl Plotter Eco Solvent Printer for Outdoor Printing Machine | ||||||
Model | DS-980SJ DS-1260SJ | |||||
Printhead | 2 Pieces DX5 DX7 XP600 DX11 for option | |||||
Printing width | 2.5M or 3.2m printing size | |||||
Printing speed | Speed Mode | 3 Pass 46 sq.m/h | ||||
Standard Mode | 6 Pass 30 sq.m/h | |||||
Precision mode | 8 Pass 23 sq. m/h | |||||
Ink | Type | Eco Solvent ink / Sublimation ink | ||||
Color | 4 colors C M Y K+C M Y K | |||||
Ink supply | 2 liters big capacity Automatic Continuous Ink Supply System | |||||
Printing media | Vinyl sticker(SAV), One way vision window film, PVC banner, PP paper, Wall Paper, Sublimation Paper etc. | |||||
RIP software | Maintop / Photoprint software for option | |||||
Data interface | USB 2.0 | |||||
Value-added Option | Media feed & take-up system | Automatic media feeding and take-up system | ||||
Heating | Stage hearing system include back, front hearing and dry fan | |||||

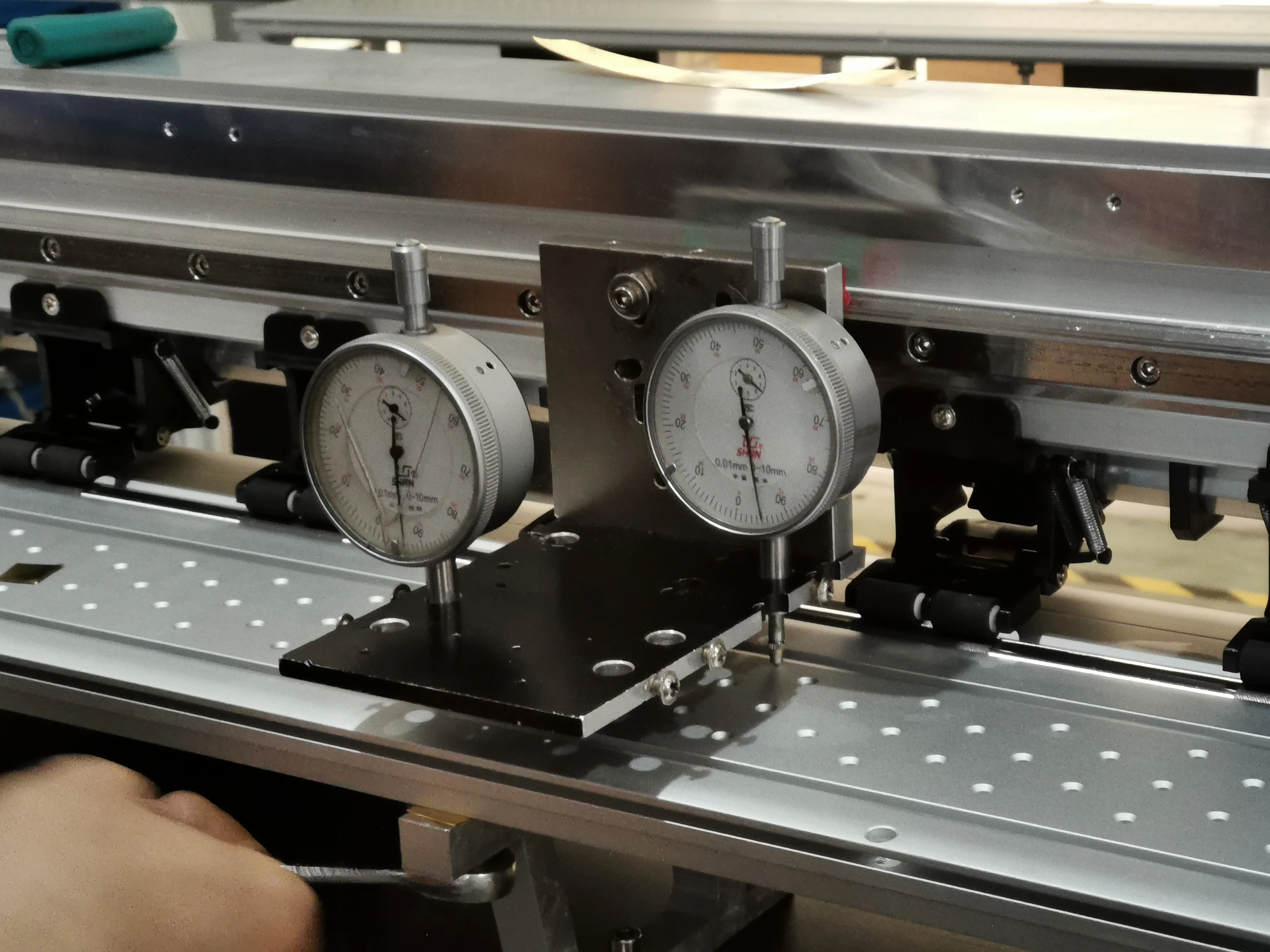

Carriage | 2-5mm distance to the printing platform, adjustable | |||||
Cleaning system | One button cleaning, easliy to start printing for operators | |||||
Other | Inside LED Light strip | |||||
Detailed Images
Advanced board system
Our this printer adpot the most advanced board system.
The best stable board designed for industrial printing with fastest printing speed, it is the best boards system than Hoson boards system.
On other hand, system board is more stable no destroy.

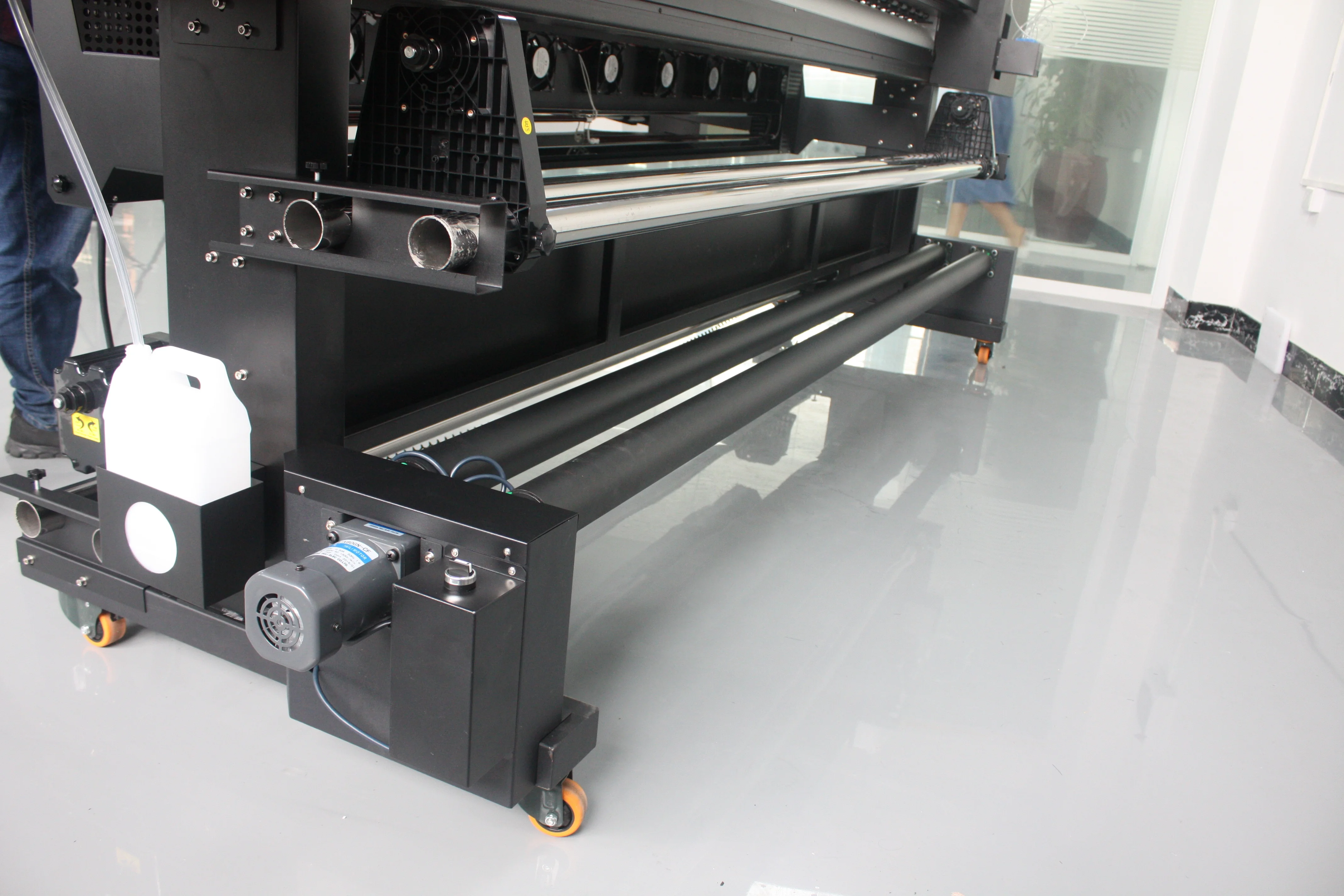

Dual feeding systems
The printer comes with free 2 media feeding systems
1, For vinyl sticker(SAV) Roll feeding with 2 motors
2, For heavy Flex banner feeding system below
These dual feeding systems come with the printer, it is good print for both light and heavy medias.

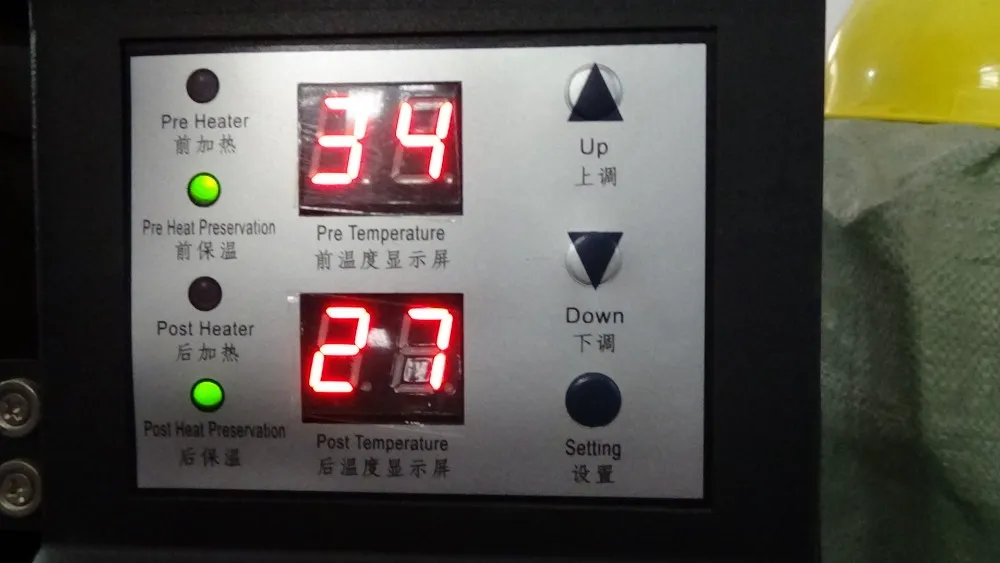

Three part heating control system

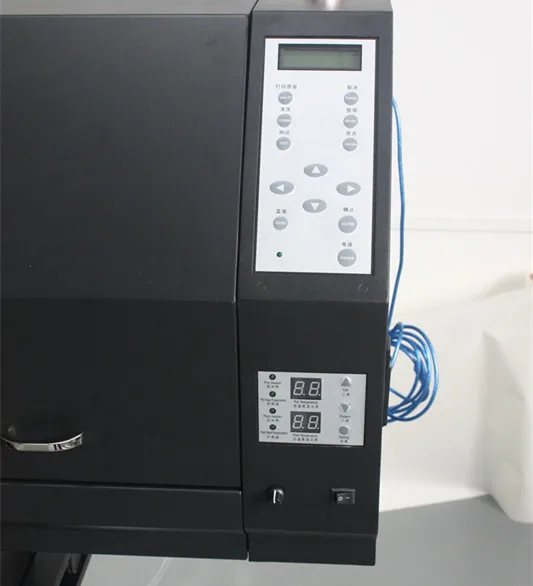

Temperature adjustment panel: three heating parts controlled by a temperature meter. this buttons is to adjust heating system temperature according to working temperature,

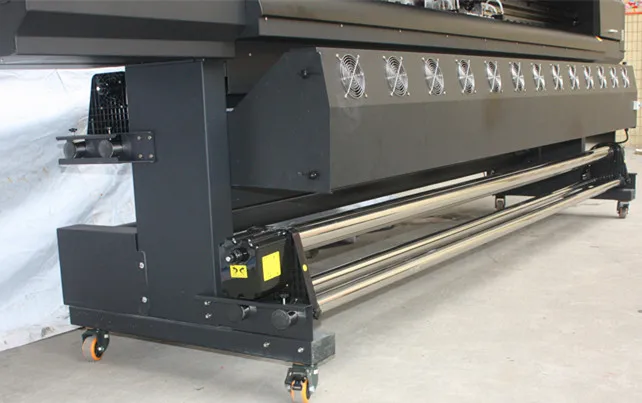

Free Front Dry Fan system with
This system consist of 16 pieces Suction fan, Controllable front dry fan comes with the printer free of charge for speeding-up drying the printed medias

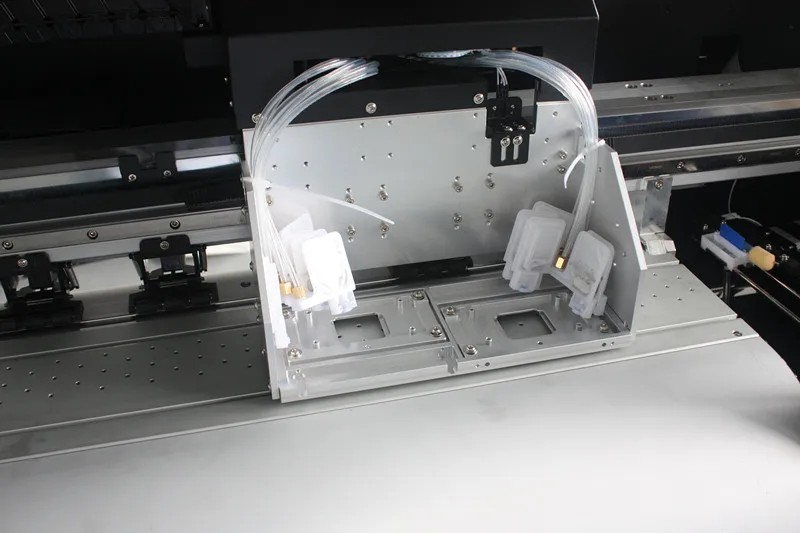

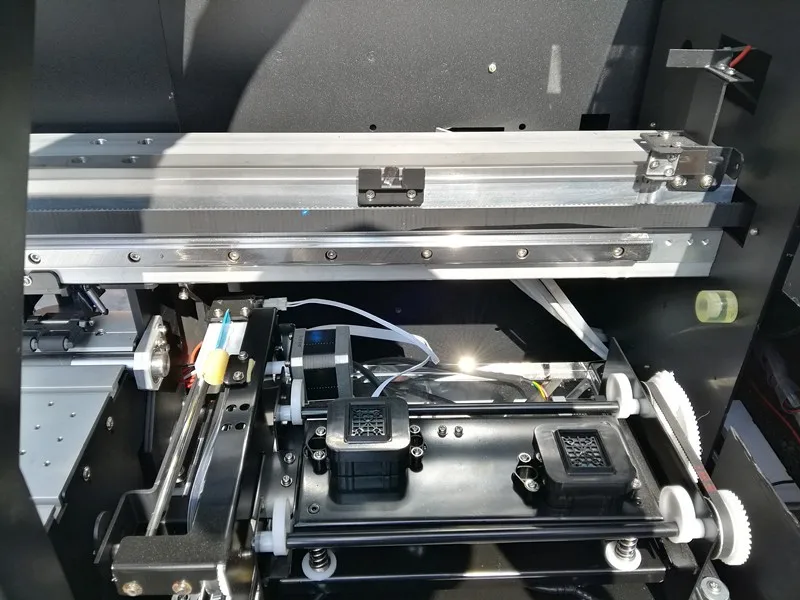

Automatic up & down capping
With 2 pieces capping top, and whole capping up and down automatically, then can clean and suck all printhead nozzles
Full Aluminum Carriage
2.6m large format printer Adopts full aluminum alloy structure carriage, stable and durable for carriage move for high quality printing

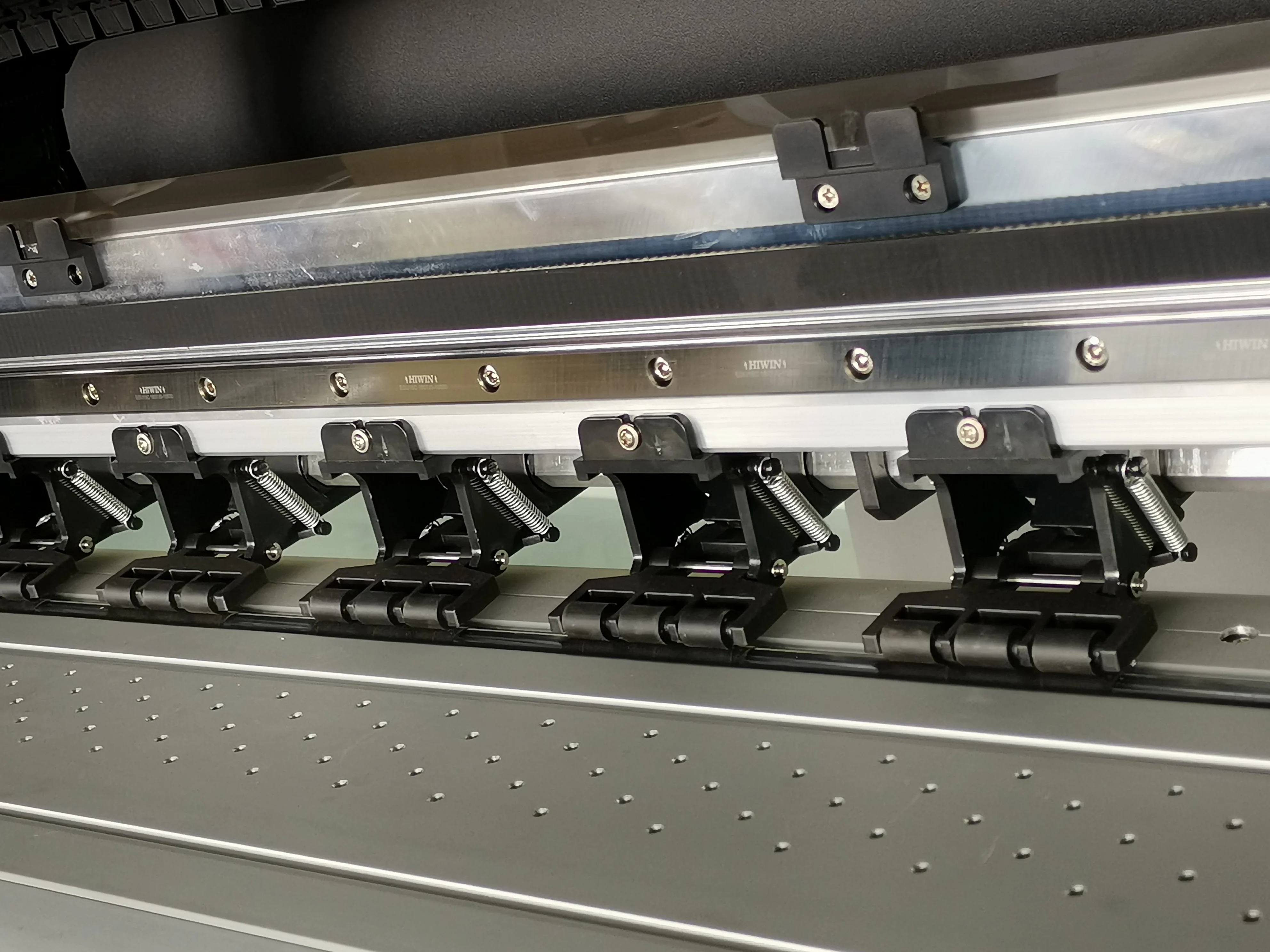

Use mute Linear rail
2.6m large format printer use Imported HIWIN Linear rail guide, without noise and with much straight and durable for carriage moving

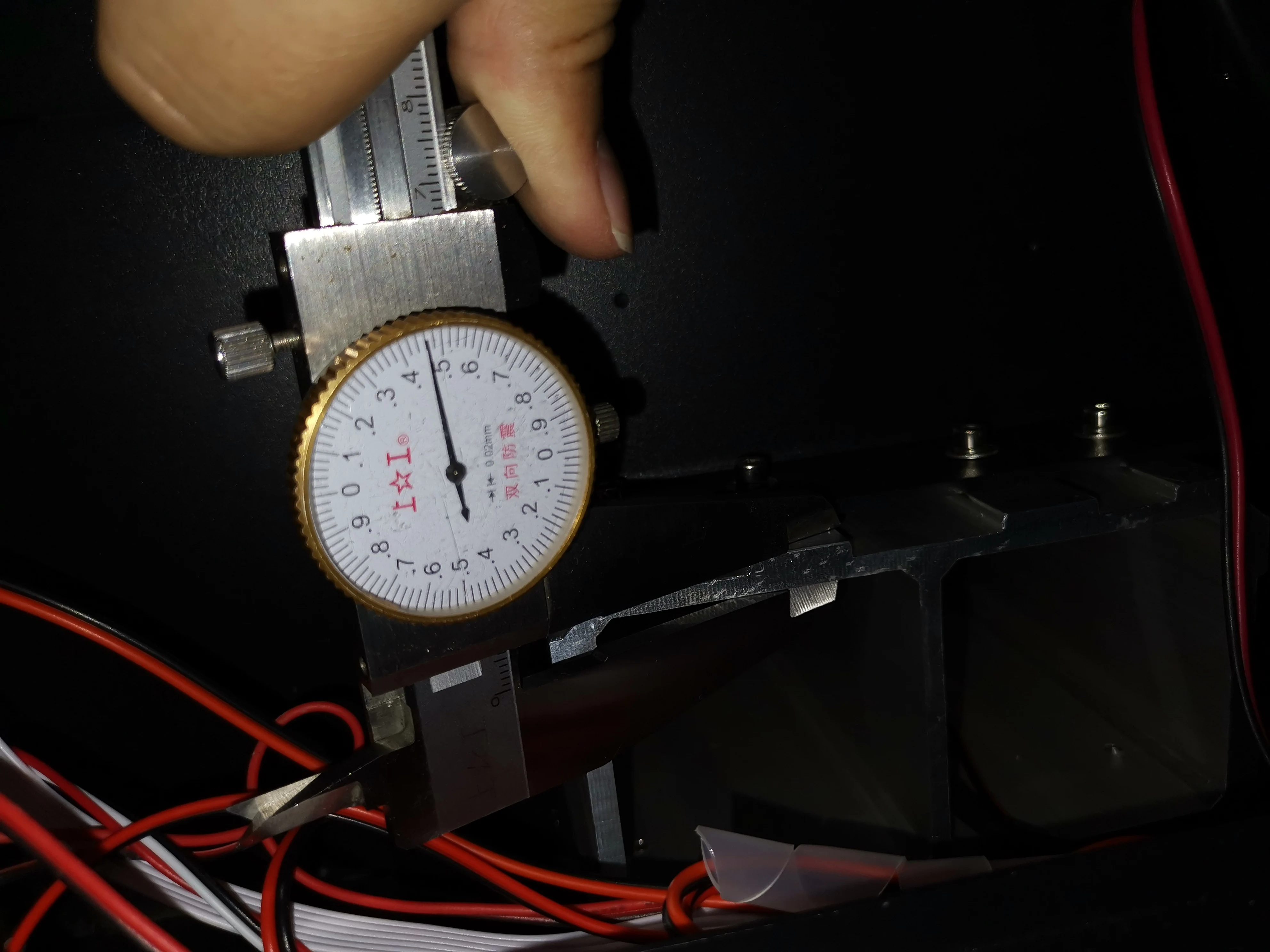

Strong carriage Beam
2.6m large format printer is using strong enhanced very thick Aluminum alloy beams to bear with carriage fast moving
Vacuum printing table
2.6M Printer uses vacuum table to suck printing materials keep flat on the printing platform, no scratch printhead, no curl for smooth printing
Applications
Printing Shows
Packing & Delivery
Packaging | ||
Size | 400cm*90cm*75cm | |
Weight | 380KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Feedbacks
FAQ
(1) Q: 1.How long is your delivery time?
A: Generally it's 5 days to made and tested well the machines for you, and then arrange shipment for you.
(2) Q: 2. How about the products quality?
A: To ensure our quality, all product have to go through and pass series of tests, including printing test, life test,etc.
(3) Q: 3. Can you provide OEM service for the customer?
A: Yes, we provide OEM service for our customers.
(4) Q: 4. What's your terms of payment?
A: Payment within $1000, 100% in advance. Payment more than $1000, 30% T/T, balance before shipment.
(5) Q: 5. Can I get printing sample from you?
A: Yes, free printing samples will be prepared well for you. If the materials not in hand in demo place, you'd better let your
China supplier send the materials to us. And the courier freight is on your side.
