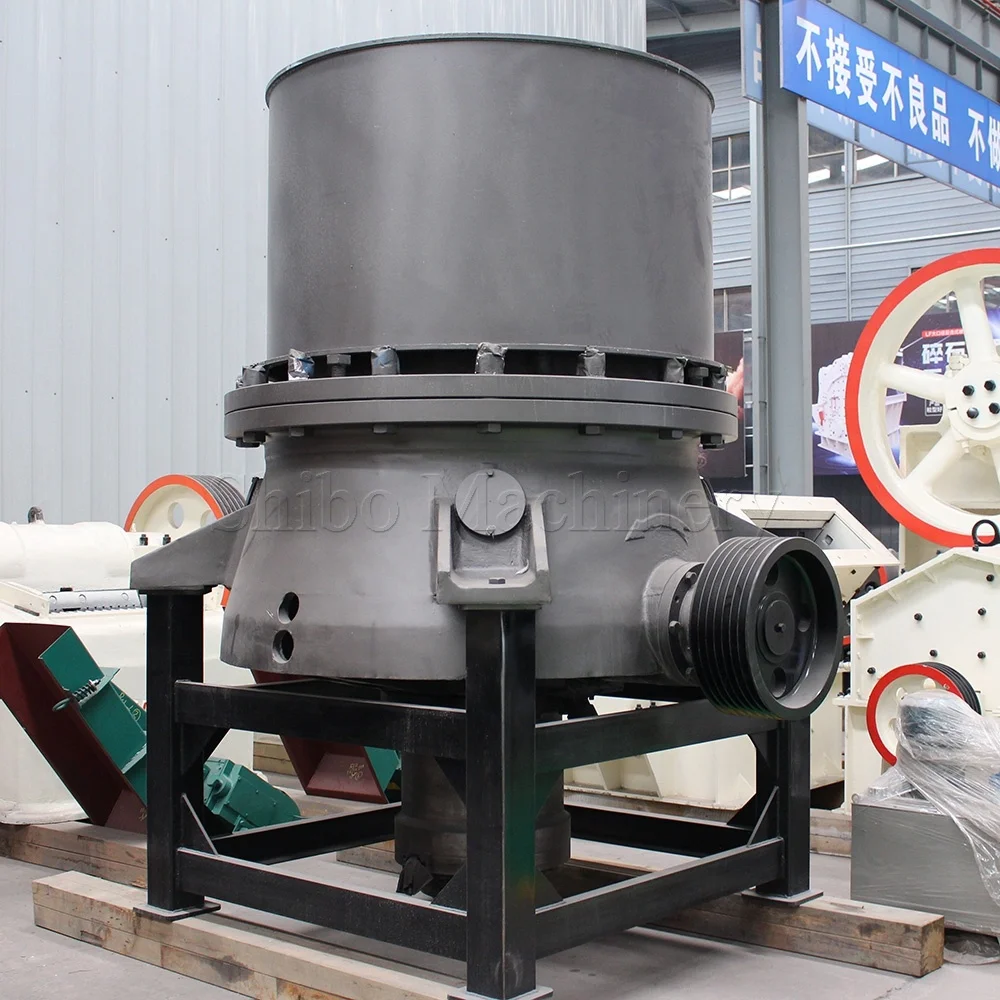

Superior quality small hp500 cone crushing copper gold iron ore basalt single cylinder hydraulic cone crusher
- Category: >>>
- Supplier: Henan Shibo Mechanical Engineering Co. Ltd.
Share on (1601219856543):
Product Overview
Description
Top Selling Model 3FT Symons Conical Crusher 3 Feet Stone Cone Crushing Machine Price

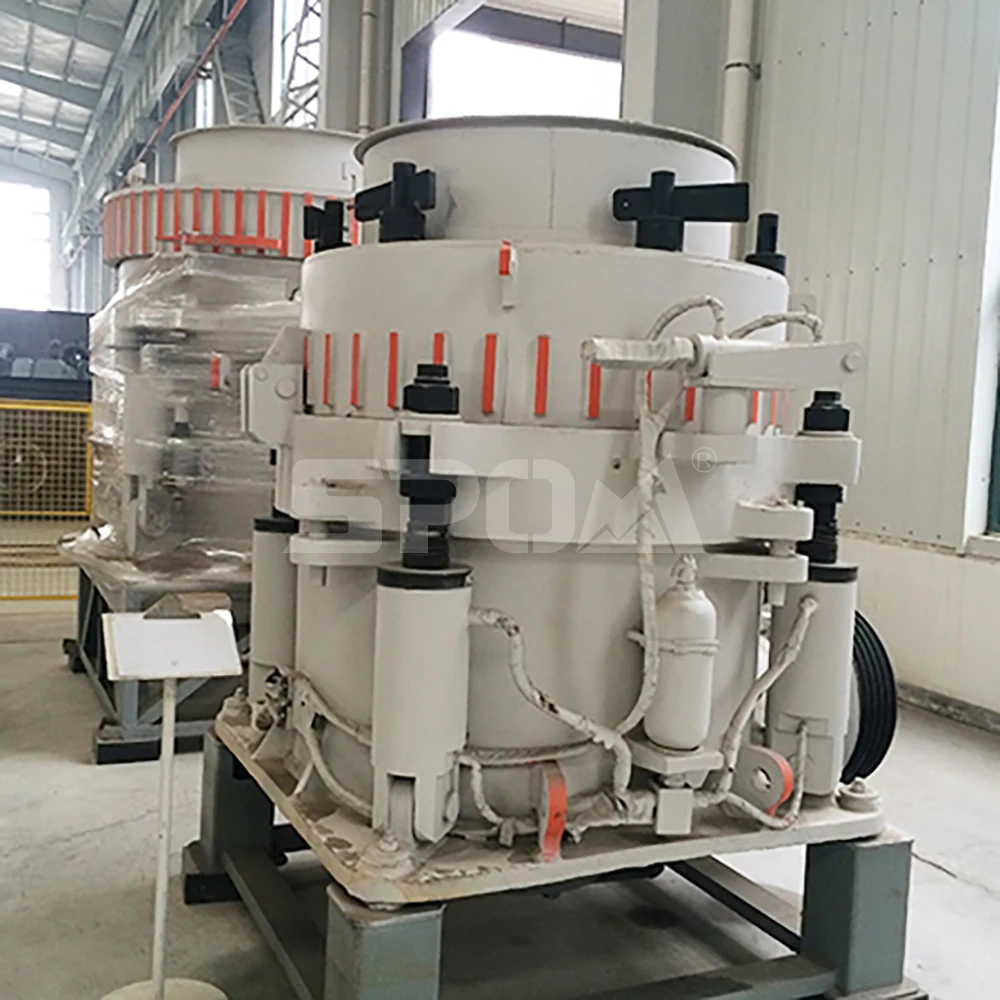

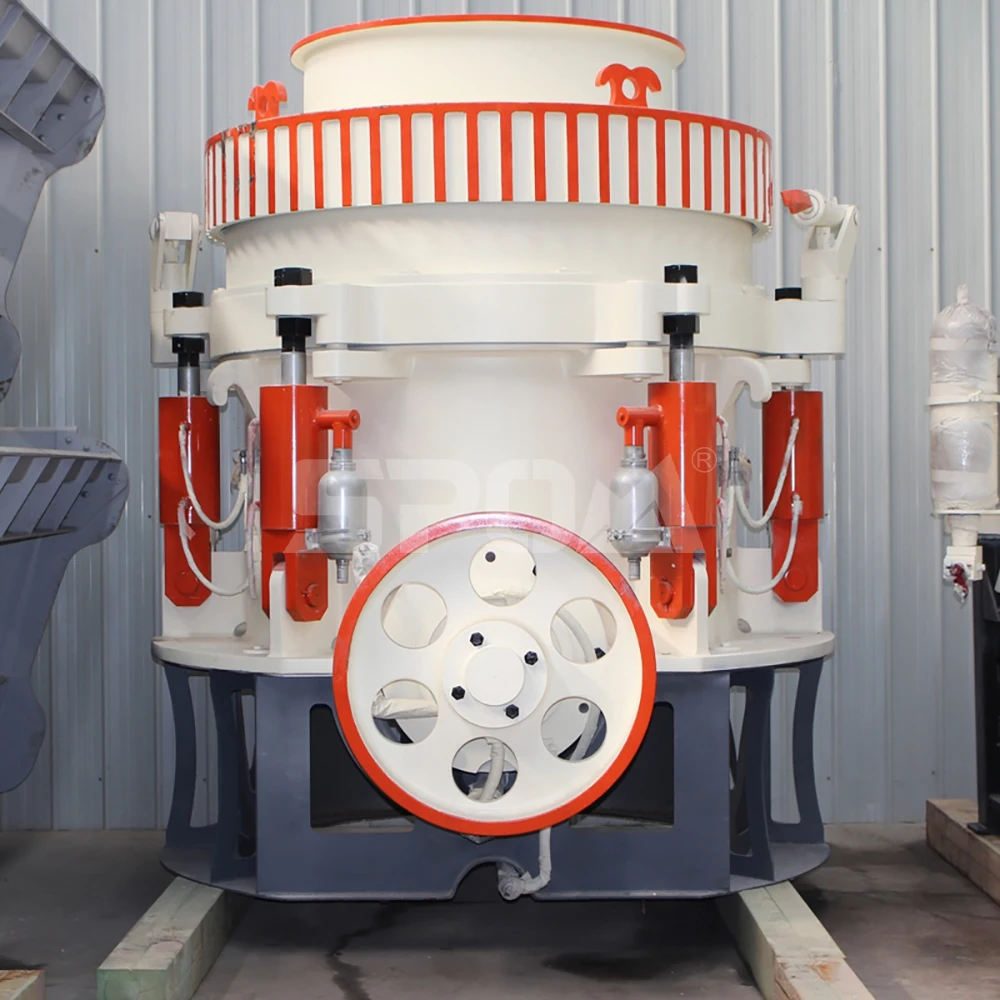

Symons cone crusher is also named compound cone crusher. It's semi hydraulic and semi spring stone cone crusher, which can crush materials of above medium hardness. When used with jaw crusher, it can be used as secondary, tertiary or quaternary crushing. 3 ft cone crusher has the cone diameter of 900mm, it's very popular cone crusher model in Peru, Mexico, Chile, etc.
Model | Movable Cone Diameter(mm) | Cavity type | Feeding size (mm) | Discharge size (mm) | Capacity) (t/h) | Motor Power(kw) |
CS75 | 910mm | Fine | 83 | 9-22 | 45-91 | 75kw |
Coarse | 159 | 13-38 | 59-163 | |||
CS110 | 1200mm | Fine | 127 | 9-31 | 63-188 | 110kw |
Medium | 156 | 13-38 | 100-200 | |||
Coarse | 178 | 19-51 | 141-308 | |||
CS160 | 1295mm | Fine | 109 | 13-31 | 109-181 | 160kw |
Medium | 188 | 16-38 | 132-253 | |||
Coarse | 216 | 19-51 | 172-349 | |||
CS220 | 1395mm | Fine | 155 | 19-45 | 180-285 | 220kw |
Medium | 188 | 22-50 | 215-330 | |||
Coarse | 230 | 25-65 | 230-570 | |||
CS250 | 1650mm | Fine | 188 | 16-38 | 181-327 | 250kw |
Medium | 213 | 22-51 | 528-417 | |||
Coarse | 241 | 25-64 | 299-635 | |||
CS315 | 2134mm | Fine | 253 | 19-38 | 281-726 | 315kw |
Medium | 303 | 25-51 | 608-998 | |||
Coarse | 334 | 31-64 | 789-1270 |
Application | Mining, quarry, construction, road, etc. | |||
Materials | Granite, aggregate, rock, gold stone, gravel, basalt, ore, slag, etc. | |||
Hot Models | 3 FT (CS75), 4 FT (CS110), 4 1/4 FT (CS160), 5 1/4 FT ( CS250), 7 FT (CS315) |
Generally speaking, the standard type of Symons cone crusher is applied to medium crushing. The medium type is applied to fine crushing. The short head type is applied to coarse fine crushing. As casting steel technique is adopted, the machine has good rigidity and large high strength.
Features of Symons Cone Crusher
1, Multi-cylinder crushing chamber can used more flexible,the broken cavity used more adaptable.
2, Support large crushing ratio.
3, Easy operation, reduce downtime, low power consumption, a reasonable allocation.
4, The parts selection and structure were designed more reasonable,and have a long service life.
5, Good products size composition
6, Good stability
2, Support large crushing ratio.
3, Easy operation, reduce downtime, low power consumption, a reasonable allocation.
4, The parts selection and structure were designed more reasonable,and have a long service life.
5, Good products size composition
6, Good stability
7, Easy maintenance and operation
8, Low production costs
8, Low production costs
Cone Crusher Types
We also have other 3 kinds of cone crusher with different capacity & cost can meet your requirements

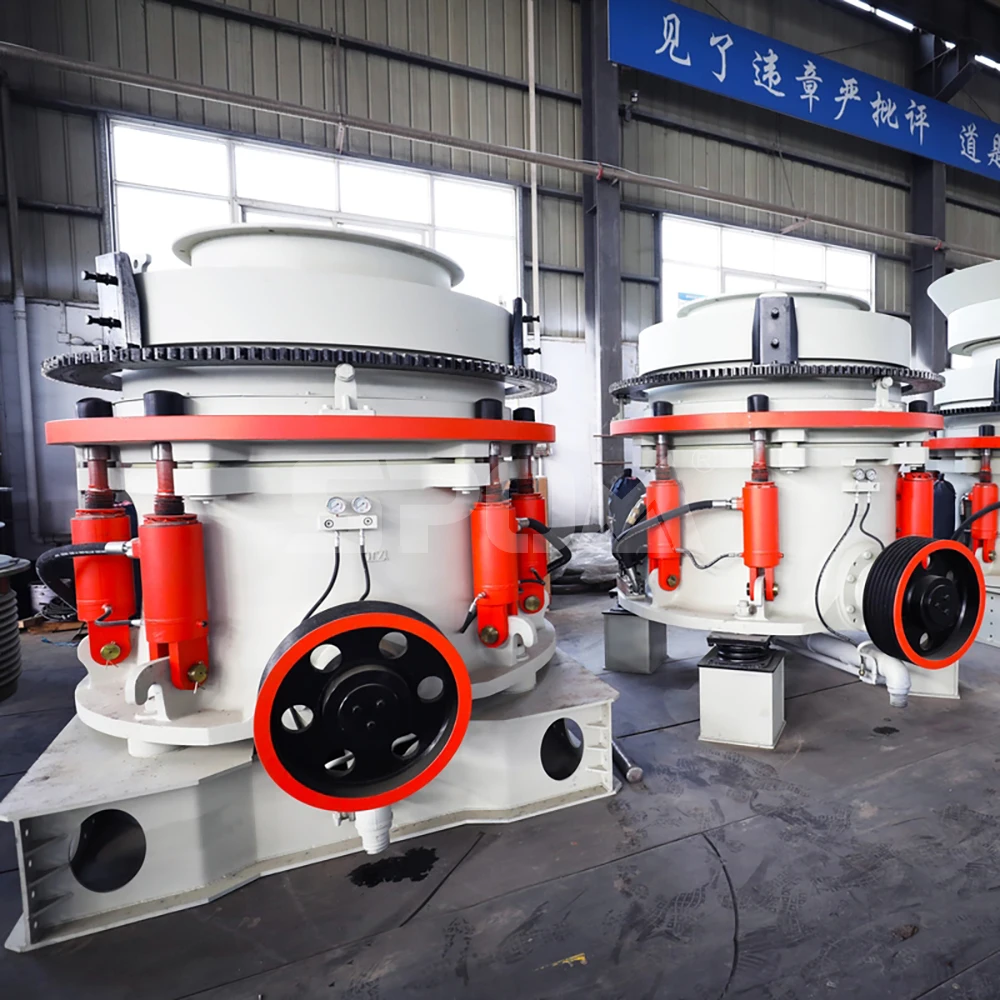

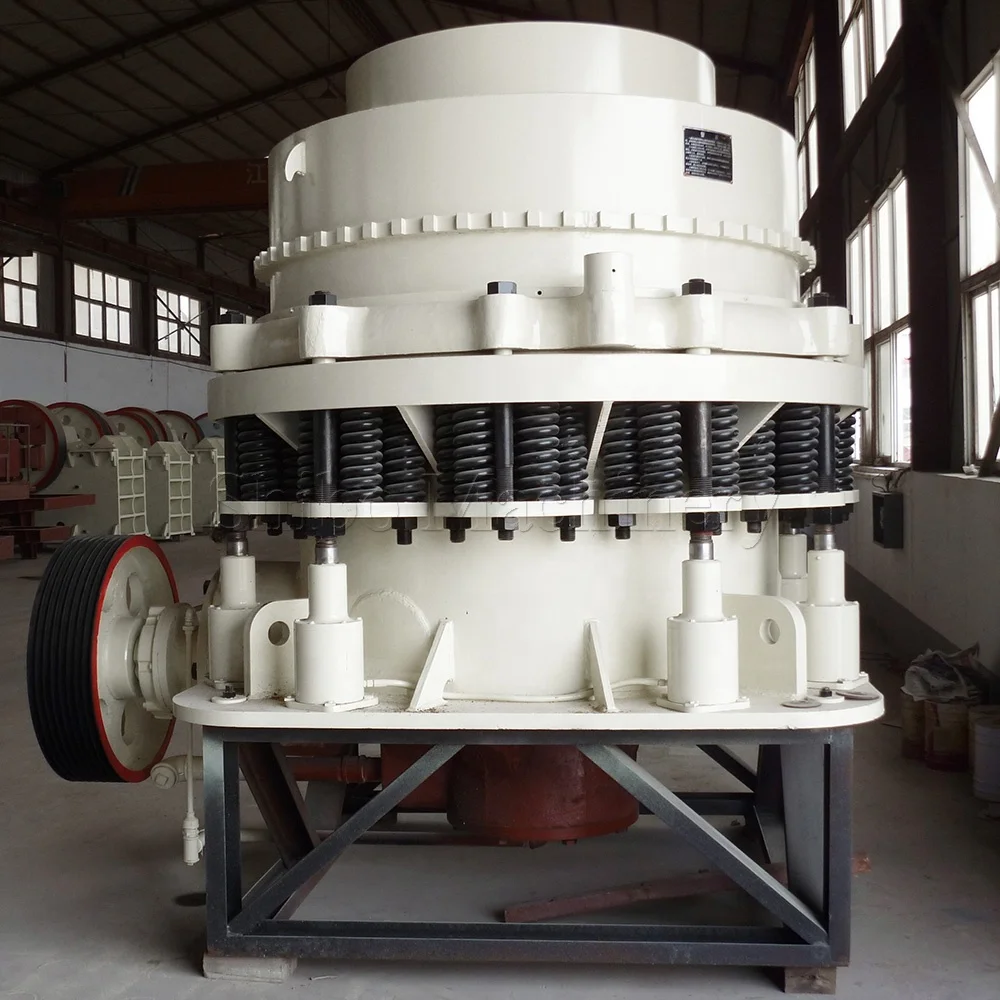

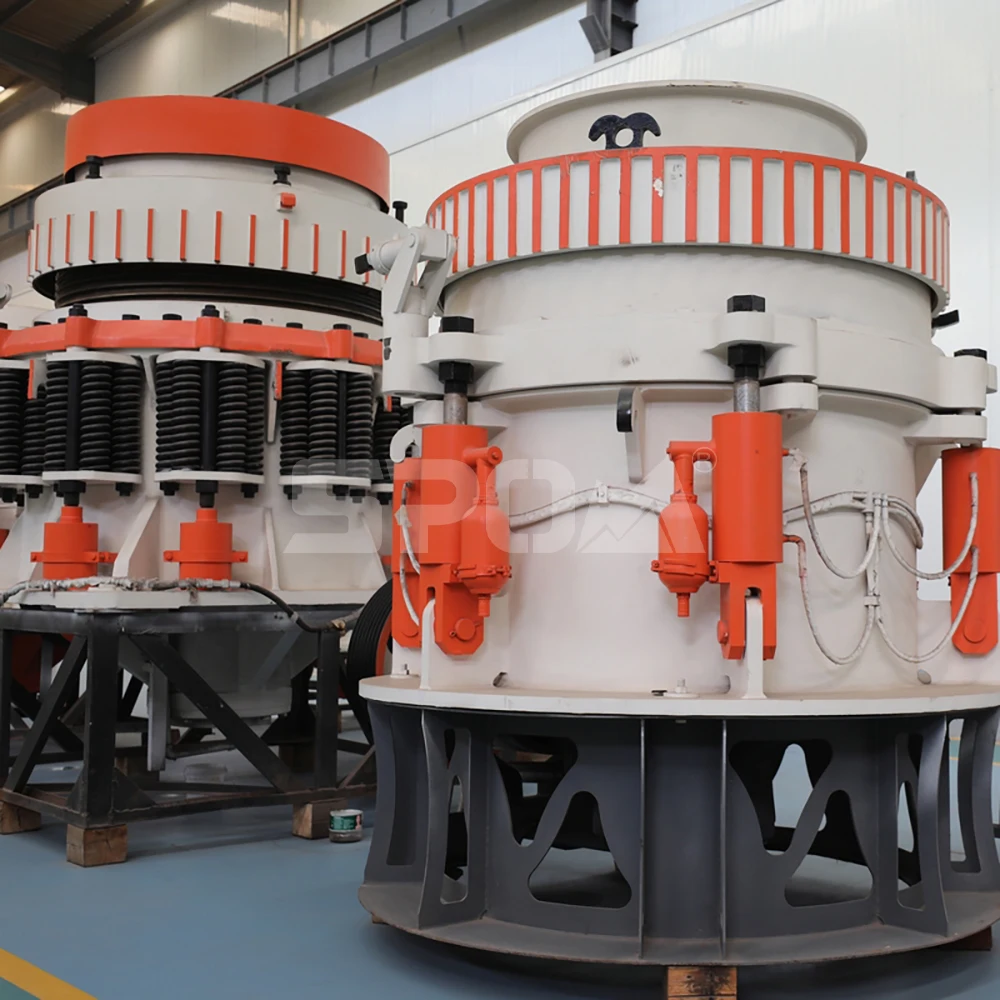

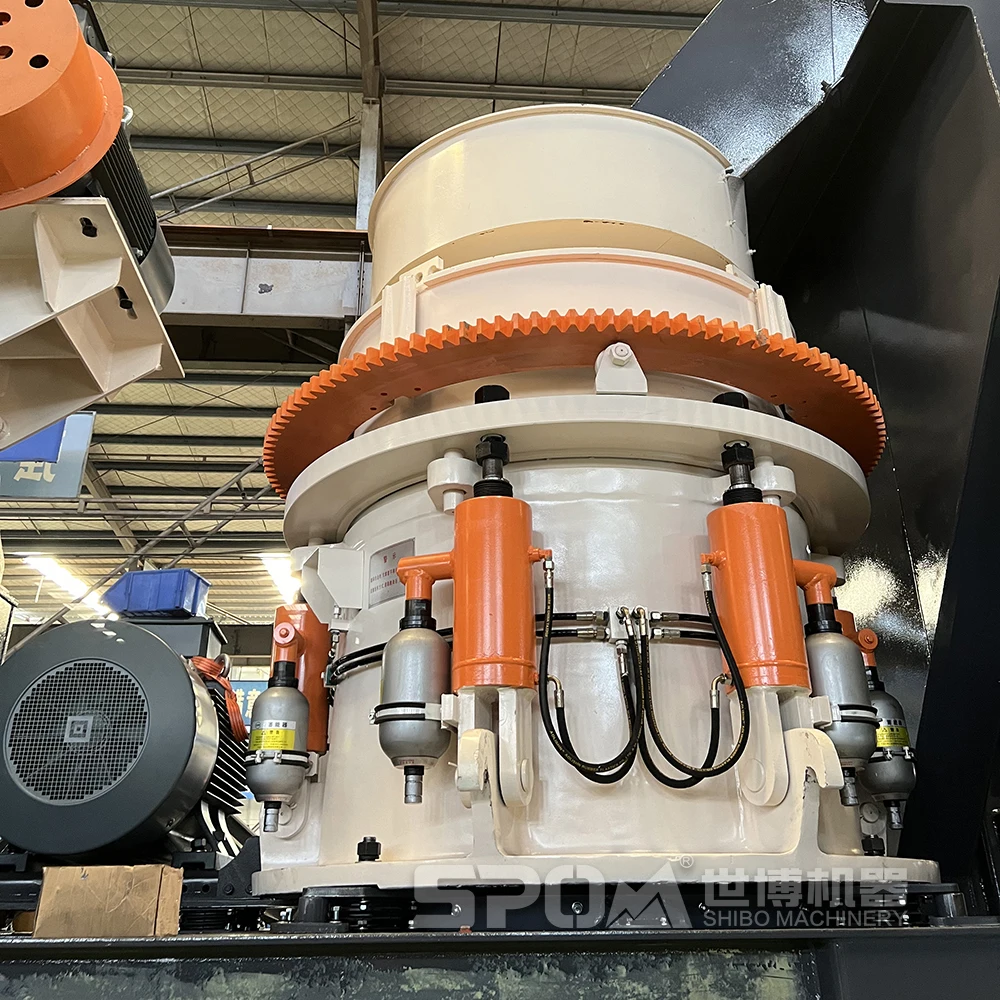

Spring cone crusher Multi cylinder hydraulic cone crusher
Model : PYB600 PYB900 PYB1200 PYB1750 PYB2200 Model : HP200 ,HP300 , HP400 , HP500 , HP800
Model : SH420 ,SH430 ,SH440 , SH660

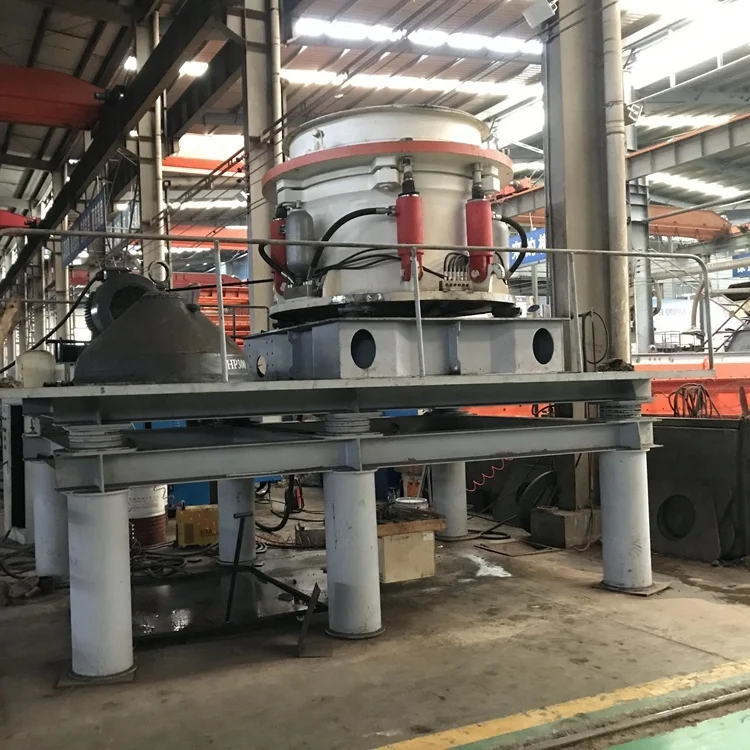

Detailed Images
In the working process of the cone crusher, the motor drives the eccentric sleeve to rotate through the drive, and the moving cone is rotating and swinging under the forced motion of the eccentric shaft. The moving cone is close to the section of the static cone and becomes the crushing chamber. The material is broken by the multiple extrusion and impact of the moving cone and the static cone. When the moving cone is away from the section, it has been crushed to the required size, and the material is falling under its own gravity and discharged from the cone bottom.
Mantie and concave are the main spare parts of symons cone crusher

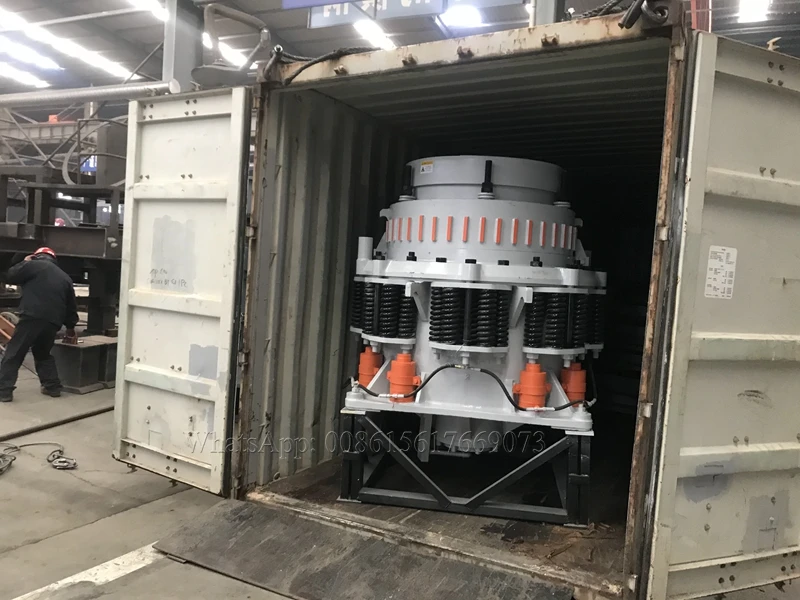

Packing&Shipping

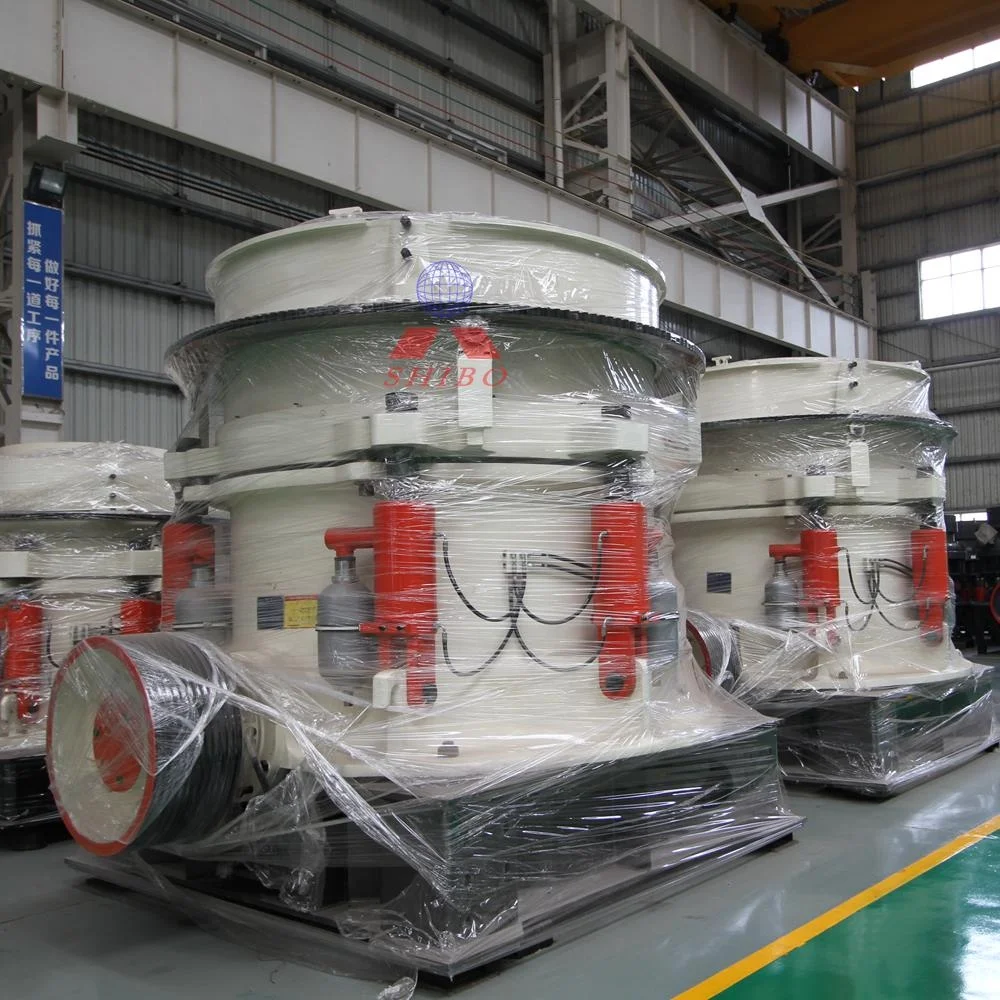

The main machine is nude packing , motor , v-belt , Lubrication system and other small parts are packing in wooden box

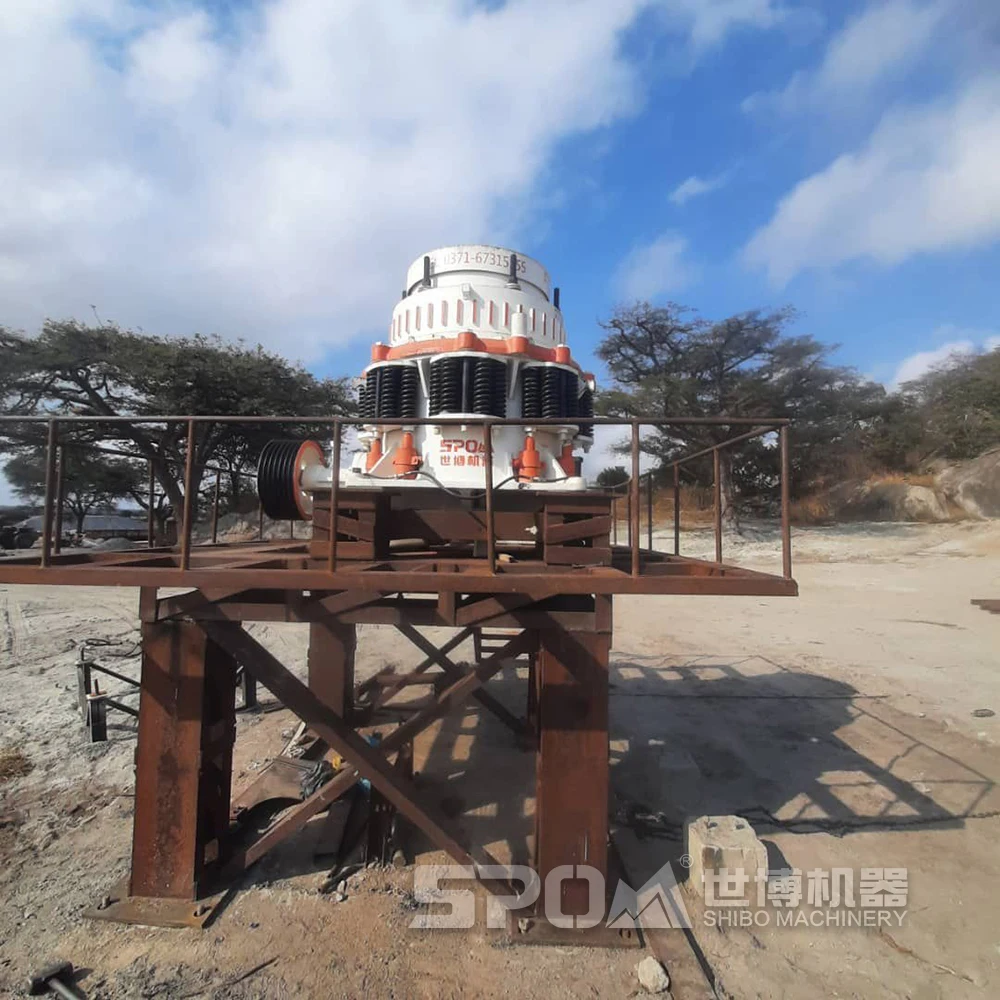

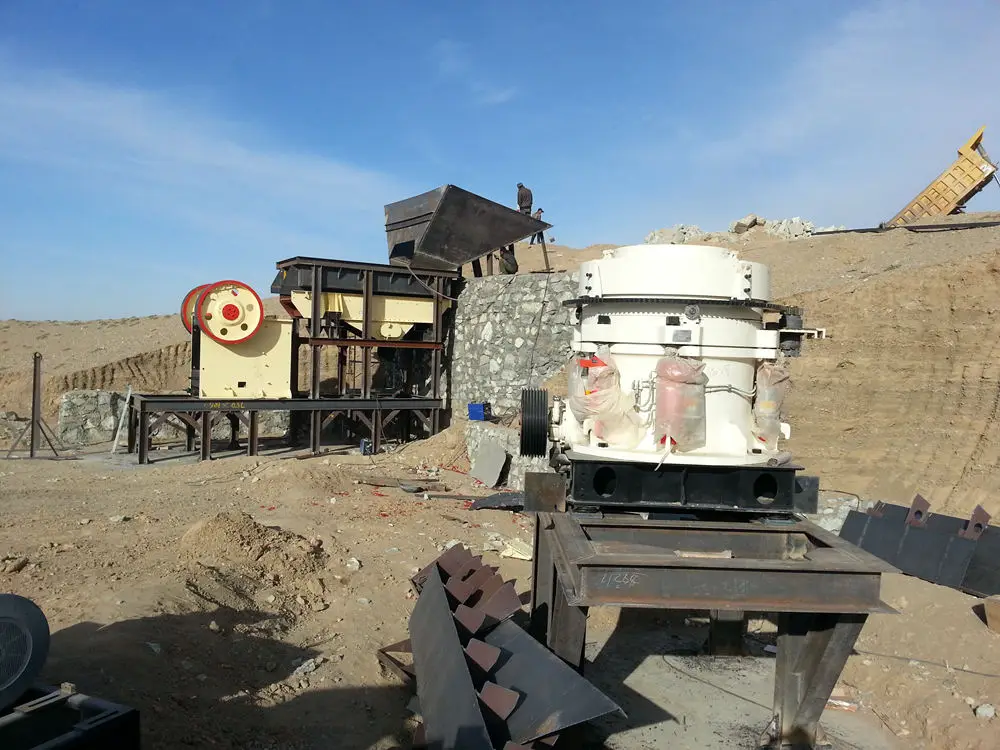

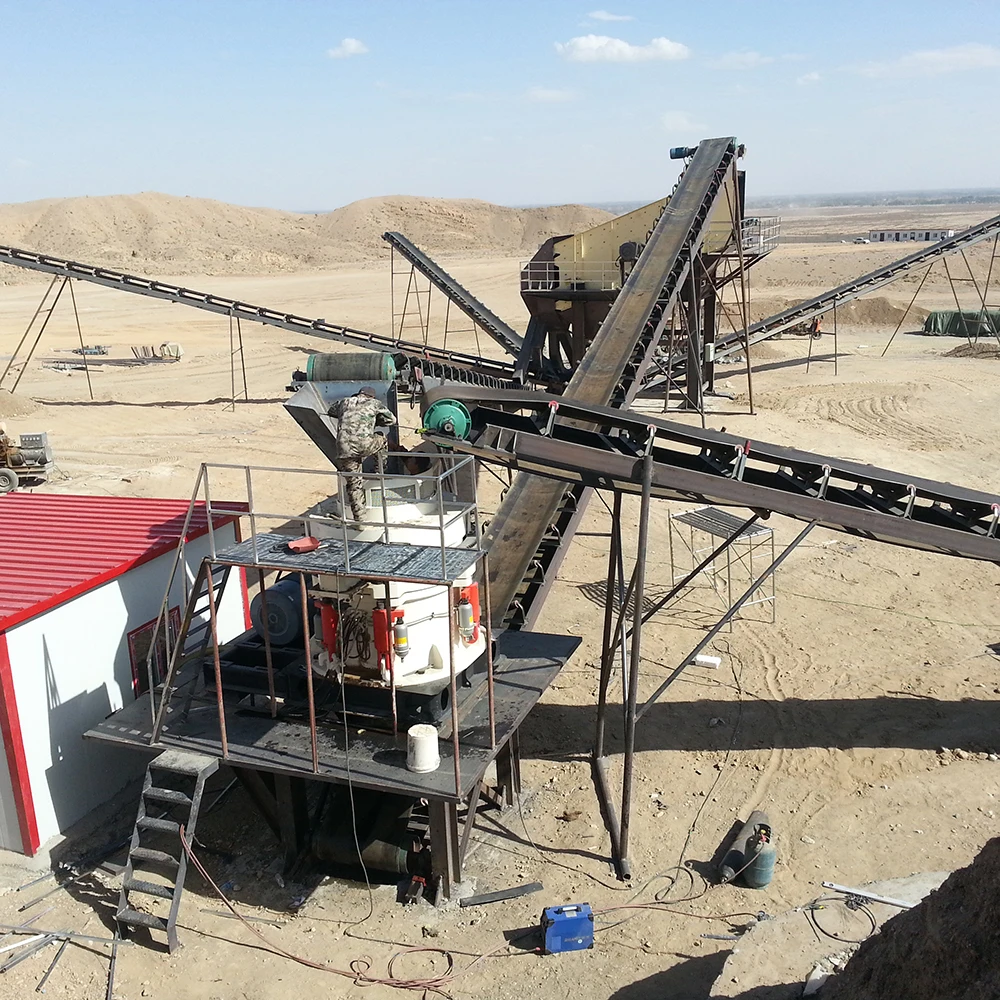

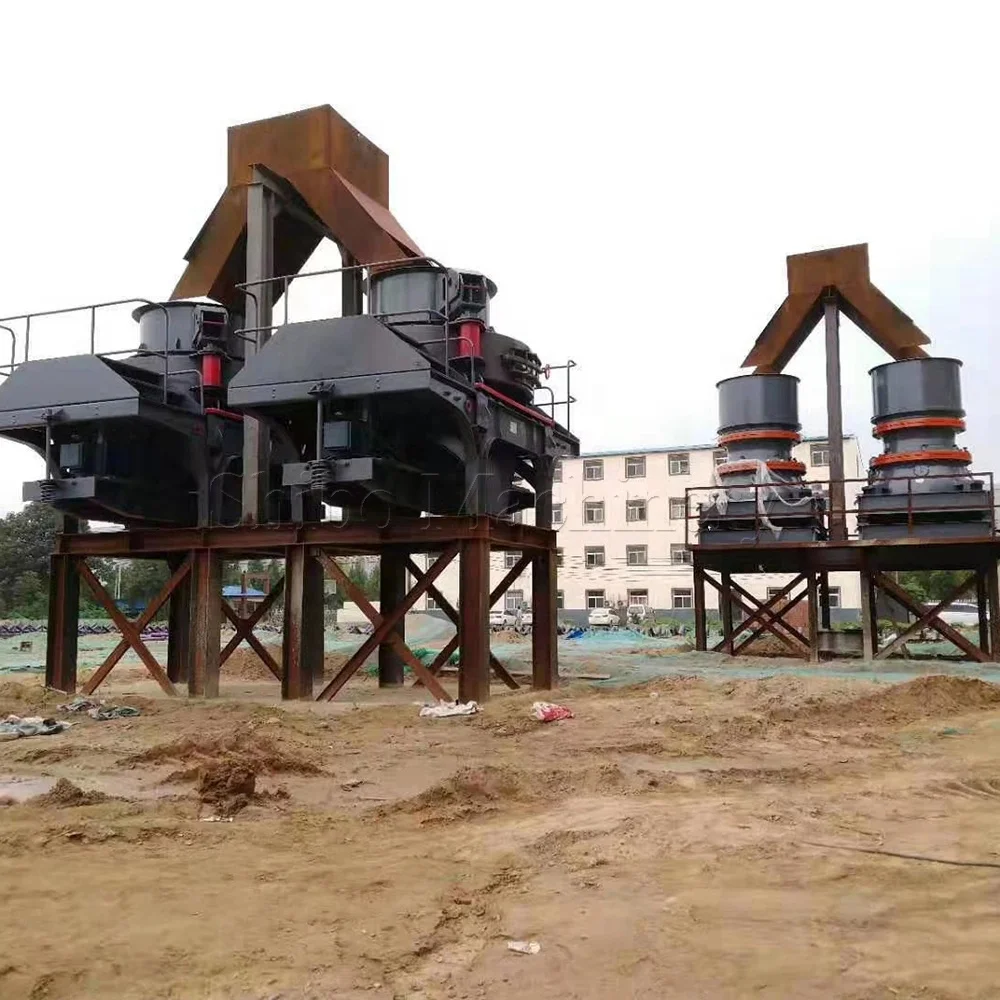

Project Case

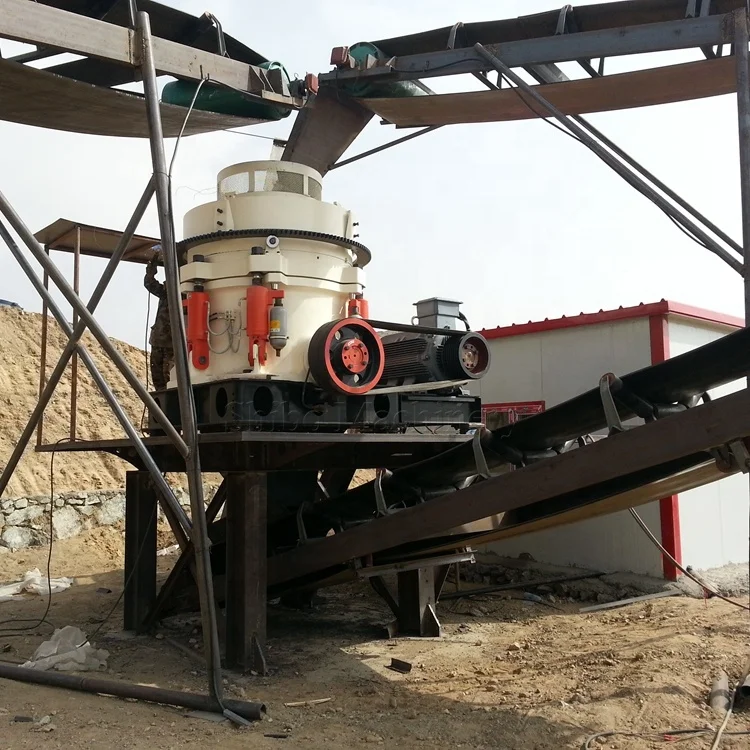

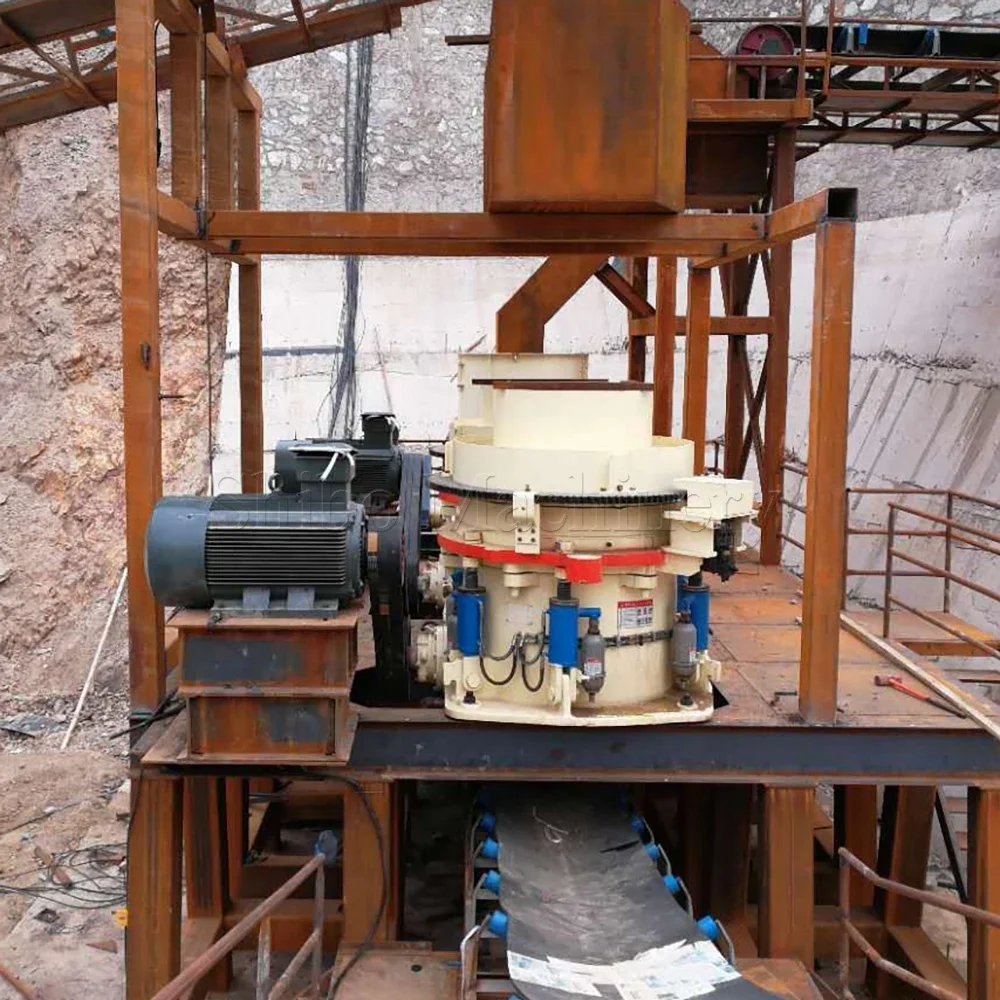

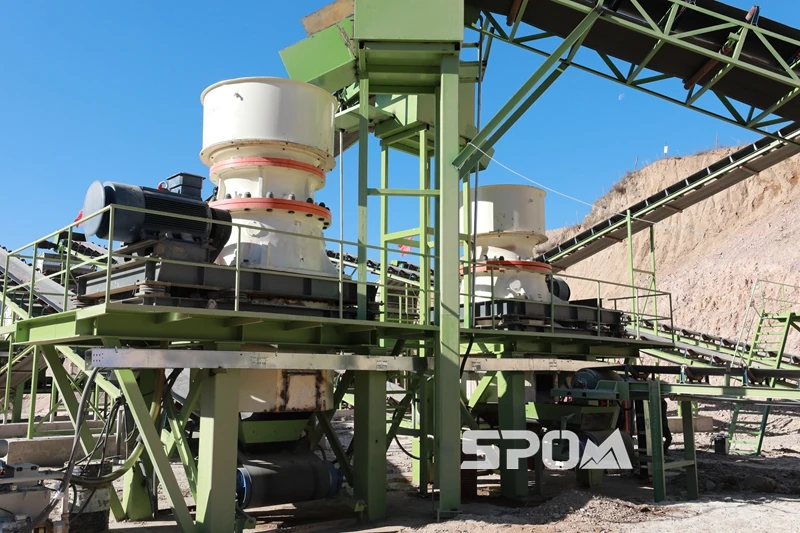

400TPH stone crushing plant in Mongolia
200TPH stone crushing plant in Nigeria

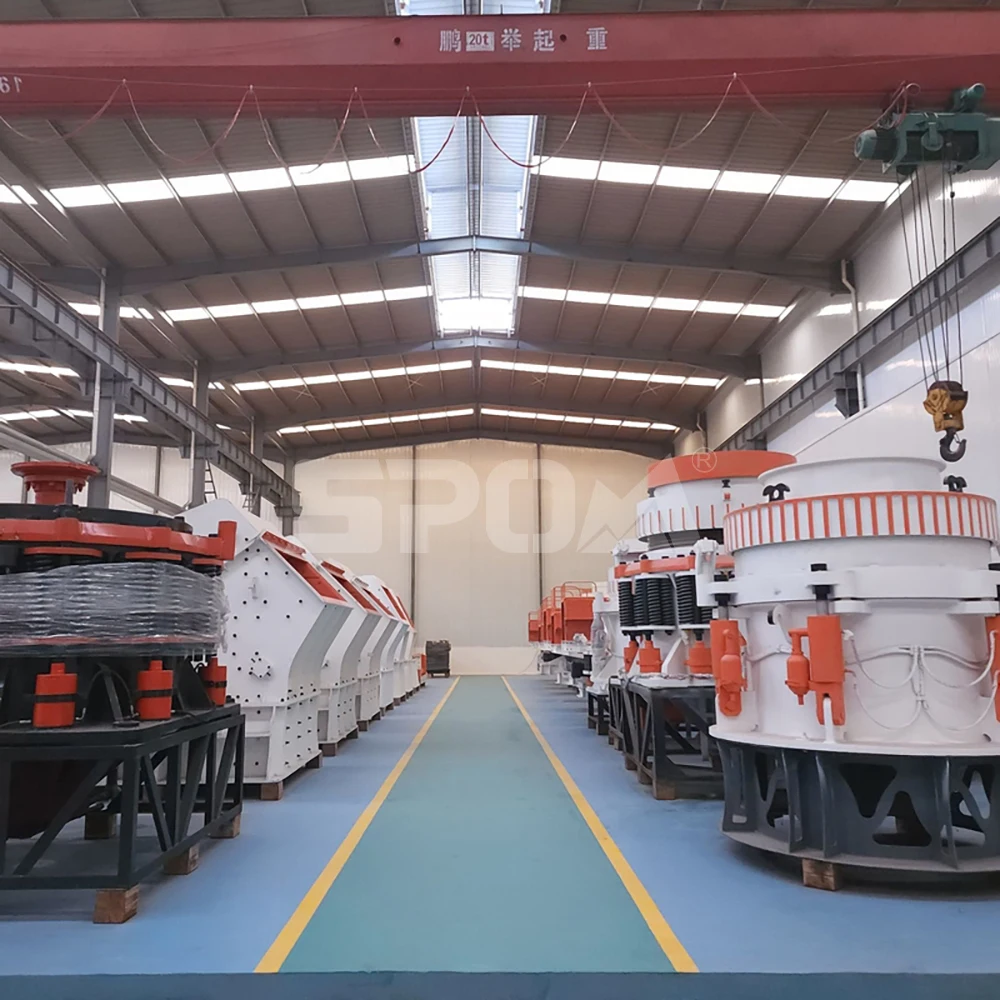

Company Introduction

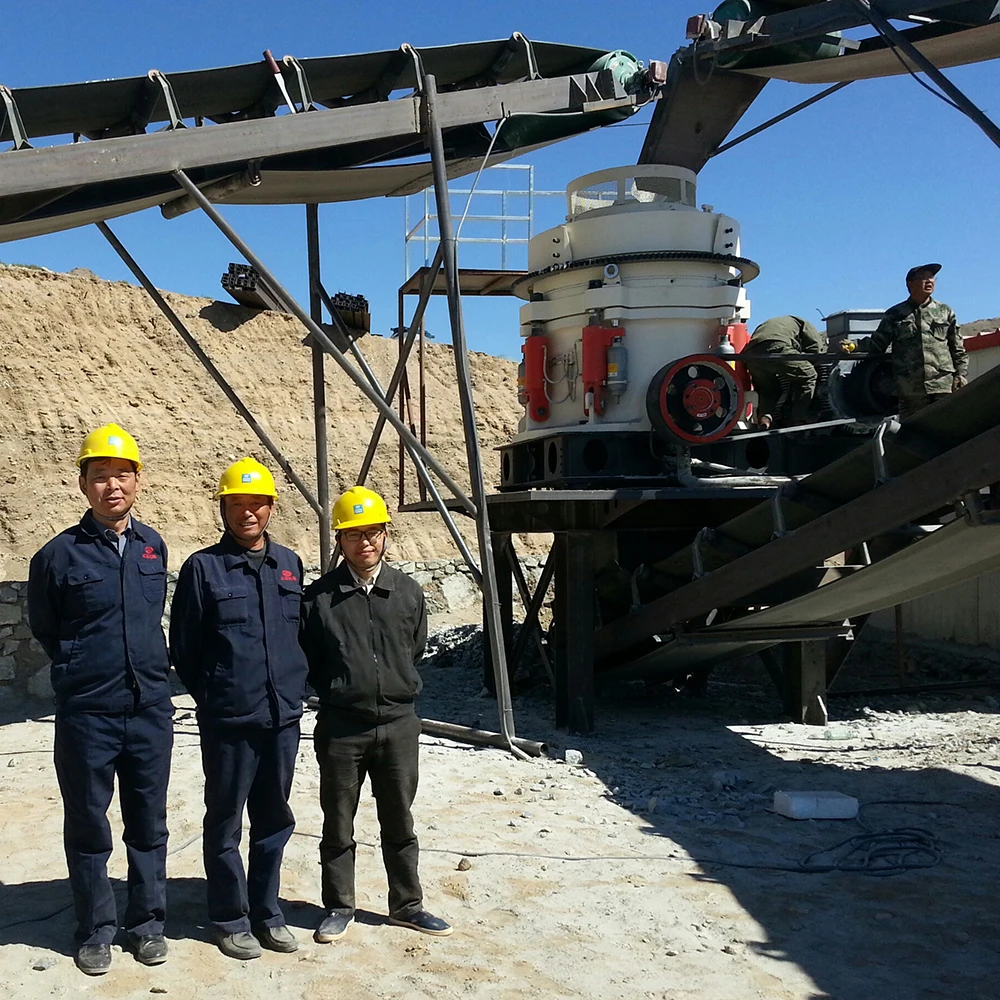

Customer Photos
After more than 30 years development , now we have more than 100 world markets and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
FAQ
Q: what is the payment terms ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the cone crusher?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the cone crusher?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of stone do you want to crush ? such as granite ? limestone ?
2. what's the size of your stone before crush ? how many inch or mm ?
3. what's your requirements of final product size ? how many inch or mm ?
4. what's your requirements of production capacity ? how many ton per hour ?
