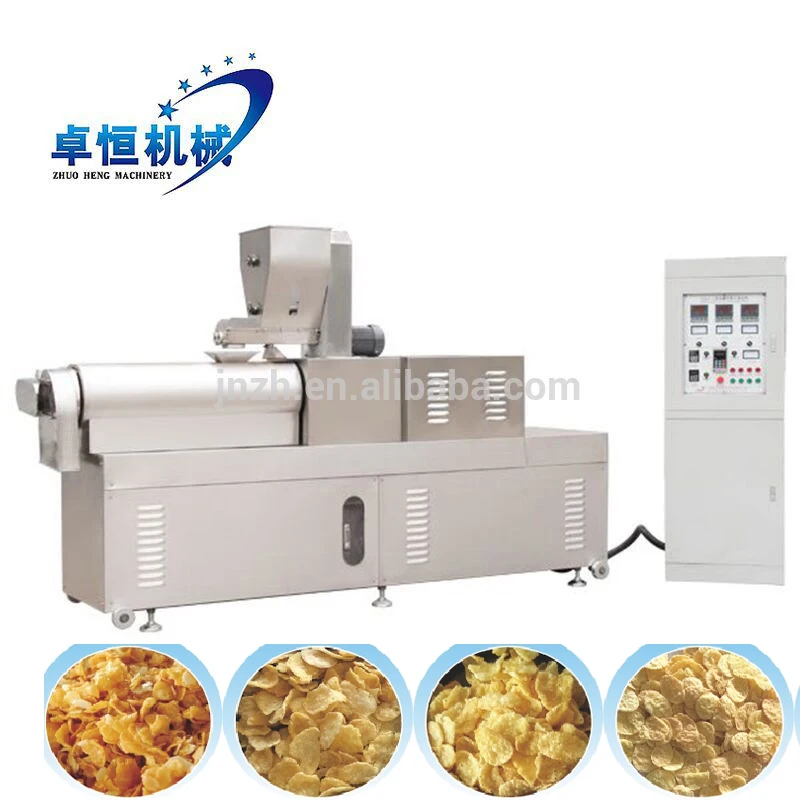

Hot Sale Industrial breakfast cereal corn flakes flaking making machine full automatic breakfast cereal making machine
- Category: >>>
- Supplier: Jinan Zhuoheng Extrusion Machinery Co. Ltd.
Share on (1601219968252):
Product Overview
Description
Products Description

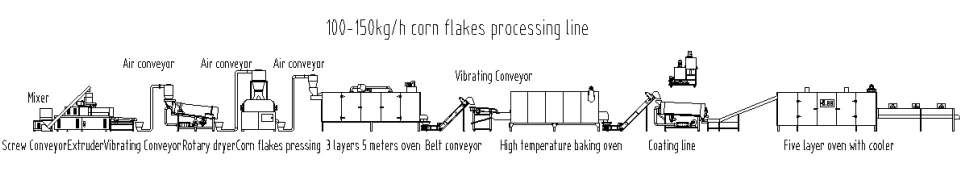

1.Corn flakes/breakfast cereals are a kind of breakfast with high nutritional value. They usually use corn powder and other
cereals as main raw material, through mixing,extruding,flaking,drying,high temperature baking,flavoring and cooling., to get crispy flakes. It

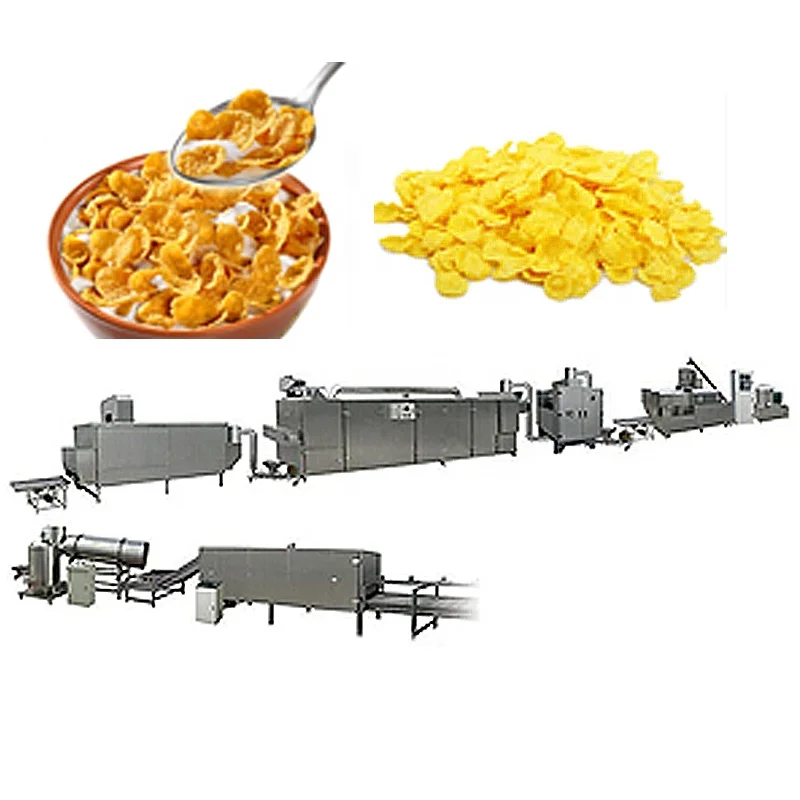

always service as breakfast cereal mixed with milk of coffee. But it can also be a kind of leisure snacks. This process line can also make other shapes of cereals such as rings, balls, chocos, curls etc
2. Raw materials :
corn powder and other cereals
3. Capacity :
120-150kg/h,200-250kg/h,400-500kg/h
4. Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
7. Machines Materials:
All the machines are made by stainless stell 201 or 304.customized by you
cereals as main raw material, through mixing,extruding,flaking,drying,high temperature baking,flavoring and cooling., to get crispy flakes. It
always service as breakfast cereal mixed with milk of coffee. But it can also be a kind of leisure snacks. This process line can also make other shapes of cereals such as rings, balls, chocos, curls etc
2. Raw materials :
corn powder and other cereals
3. Capacity :
120-150kg/h,200-250kg/h,400-500kg/h
4. Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
7. Machines Materials:
All the machines are made by stainless stell 201 or 304.customized by you
Smaples made by our machines
The main raw material for corn flakes breakfast cereal is corn flour ,or corn grits ,or wheat flour ,corn starch ,it can make different shapes and size by change the moulds .

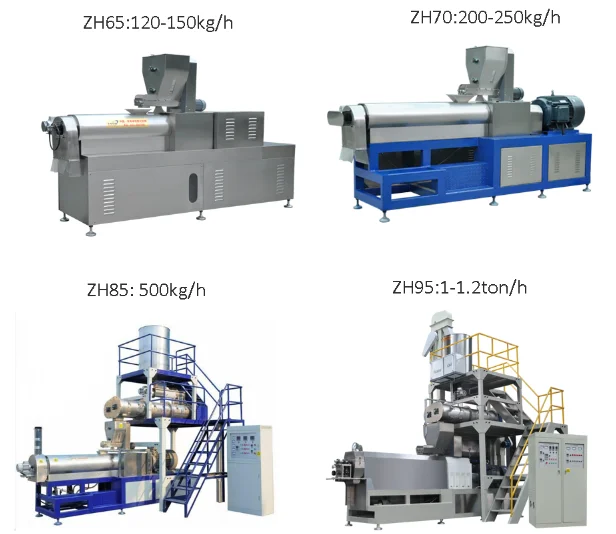

Product Paramenters
Model | Installed power | Power consumption | Capacity | Szie |
ZH65 | 310kw | 186kw | 120-150kg/h | 45*3*3 |
ZH70 | 348kw | 208kw | 200-250kg/h | 50*3*3 |
ZH85 | 425kw | 255kw | 400-500kg/h | 55*3*3 |
Details Images
Mixer
1. Adopted the speed reducer motor connected directly with the mixing wings, then bring the mixing blade high efficiency take rounds to mix the flour flakes material inside of mixer.
2. The transmission efficiency of 100%, increase the torque.Then higher the mixing quantity up to 50-60kg per batch with stronger power.
3. Equipped with the high precisionreducer to avoid motor burn out and longer the motor service life.
3. Equipped with the high precisionreducer to avoid motor burn out and longer the motor service life.

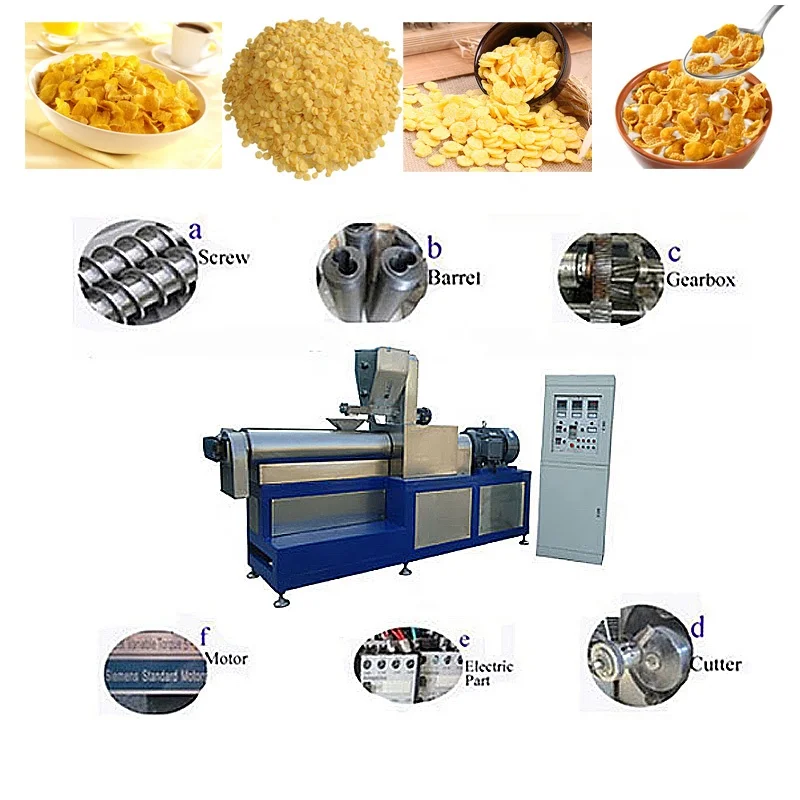

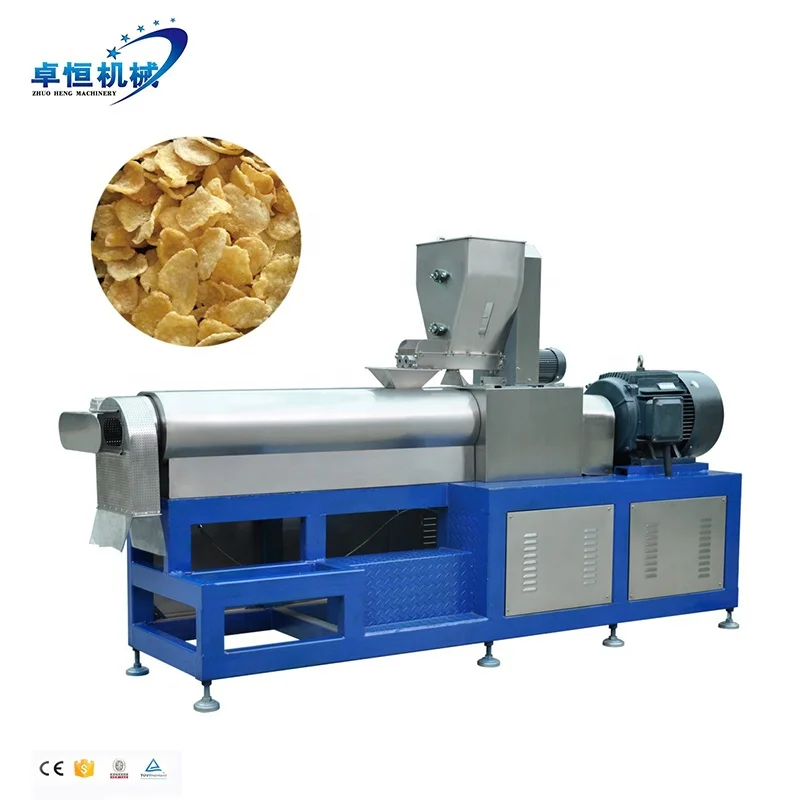

Double screw extruder
1. Feeding, main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.
2.. Screw is made of alloy steel with long life. Segmental assembled screws are applied to more kinds of materials and products.
3. Double-screw extruder can clean itself automatically.
3. Double-screw extruder can clean itself automatically.
4.specia design of our gearbox by our company .long service life
Corn flakes machine
1 Special heat-treated alloy steel roller is wearable, corrosion resistant and conglutination-proof.
2 Diversion discharging device puts the granules between rollers equally without block and conglutination.3 Adjustable for gap between rollers, rotation speed, flake thickness and capacity.
4.two gearbox for four rollers , two rollers as one unit ,this design is more better than other suppliers
High temperature oven
The high temperature oven can inflate the corn flakes directly, we use the electric as the energy to heat the inside air of the
high temperature oven arrive to 270 degree, then the corn flakes will be inflated directly., the high temperature has new
technology, no air pollution.
high temperature oven arrive to 270 degree, then the corn flakes will be inflated directly., the high temperature has new
technology, no air pollution.
spraying coating line
This machine with sugar melting and sugar spraying part. Mix sugar, water and oil with certain ratio then put into sugar melting tank, with certain setting temperature (normally 60℃),It will mixed well with mixer stir. The function of mixer stir is to melting quickly and stable. After mixed well, it will be liquid, through a tube it will be convey to spray system. Then through the screw pump presser, liquid will be vaporific, then go to tomizing nozzle, it will spray well.
Dryer with conveyor and cooling.
Heat with infrared ray heating tube, raise and lower down temperature quickly, small heat inertia and high heat efficiency. Adjustable transit speed of net belt with accurate temperature control device.Sliding board bottom of dryer for easy cleaning.
.Hot wind cycle device makes heating energy equally in the dryer . Double-roller chain and chain drive make stable and smooth running.
.Hot wind cycle device makes heating energy equally in the dryer . Double-roller chain and chain drive make stable and smooth running.
Company information
Jinan Zhuoheng Extrusion Machinery Co.,LTD established in 2008, has always been the professional manufacturer and the leader for advanced and high efficient extrusion food machinery in this field all over the world.
Our screw extrusion technique has been widely applied to produce the following products:
1-Extursion floating and sinking fish feed, pet food ,
2-Pasta macaroni,
3-leisure snacks food ,
4-breakfast cereal food and corn flakes,
5-fried flour food, bread crumb,
6-textured soya protein and vegetarian meat, etc.
More than twenty production line can be chosen. And we can also provide customized service for special requirements.
Our Customers
Our company has already exported countries:
Asia { Thailand, Indonesia, East Timor, South Korea, India, Bangladesh, Iran, Saudi Arabic, Turkey, Iraq, Israel, Kazakhstan, Tajikistan, Uzbekistan, Turkmenistan }
Africa { Nigeria, Benin, Algeria, Egypt, Ethiopia, Ghana, Namibia, Uganda, Zimbabwe}
Europe { Russia, Bulgaria, Ukraine.Poland }
North America { Canada }
South America { Brazil, Bolivia }
Oceania { New Zealand }
Russia kurstans Sweden East Timor
our service
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service:
* Training how to instal the machine
* Supply the formula
* Engineers available to service machinery overseas
FAQ
Q1. Are you a manufacturer or a trading company?
Answer: a professional manufacturer of food & feed extrusion machine.
We have own factory and R&D department. SGS has certified our company on site.
Q2. What is your payment terms?
Answerhigly recommend to use Alibaba's Trade Assurance.
T/T :30% prepayment,70% before delivery. L/C at sight is available. Other payment is negotiable.
Q3. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q4. What about the lead time?
A: Regular products:20-30 working days
Customizable products:30-40 working days.
Q5. Can you provide food or feed formula ?
A: We can provide basic formula for produce the food etc.
And help customer to produce new products according to customer's formula.
Q6. What after-services do you provide?
A: Send engineers for installation, trial running and training workers at customer's site.
Handling the problems occurred during use. Supply spare and wearing parts on discount.
Help customers to solve any other problems .
Q7. Is configuration(allocation) fixed standard?
Answer: No, it is flexible, we will equip machines based on your requirement.
Q8. Can I come to check your company(Jinan Zhuoheng extrusion machinry co,.ltd)
Answer: Welcome to visit us! We will show our machines in our factory.
Q9. Do you have shipping agent for delivery?
Answer: Yes, we have reliable shipping agent. They can offer a good freight and take care the process very well.
Q10. Can you test our formulation with your extruder?
Answer: As long as you trust on us, we can test your basic formula, then you can see the outcome and place order without any hesitation.
Q11. Why the price in the web is a range?
Answer: As we have many models, and the production lines' configuration are various. So we will equip machines based on customers' specific requirement. So, the price range is for reference.
