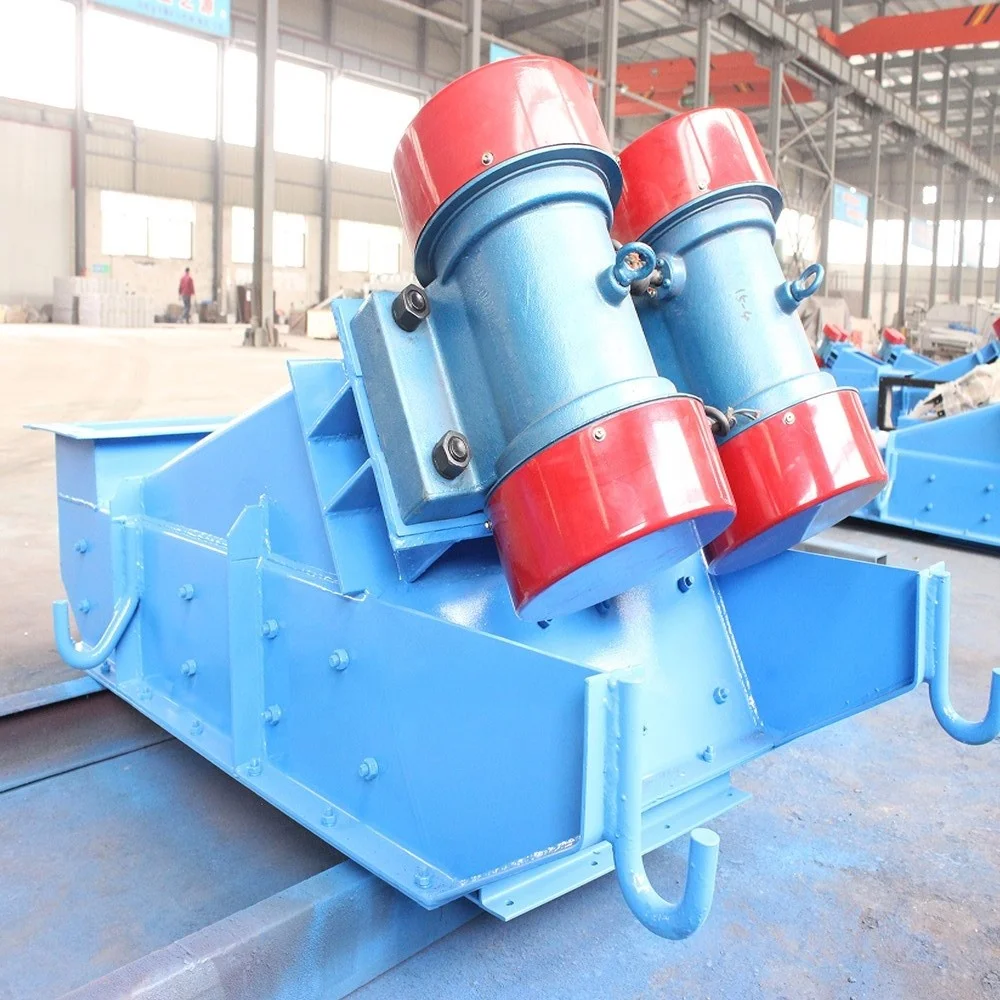

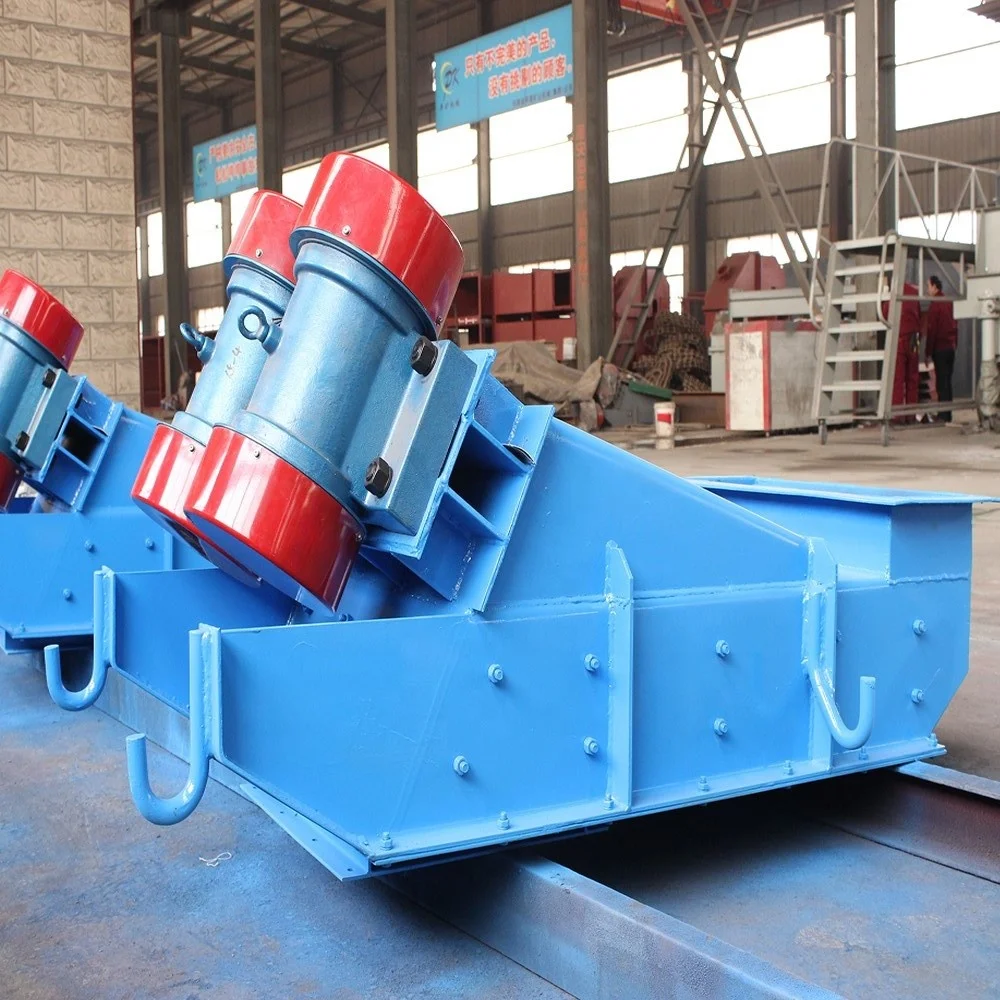

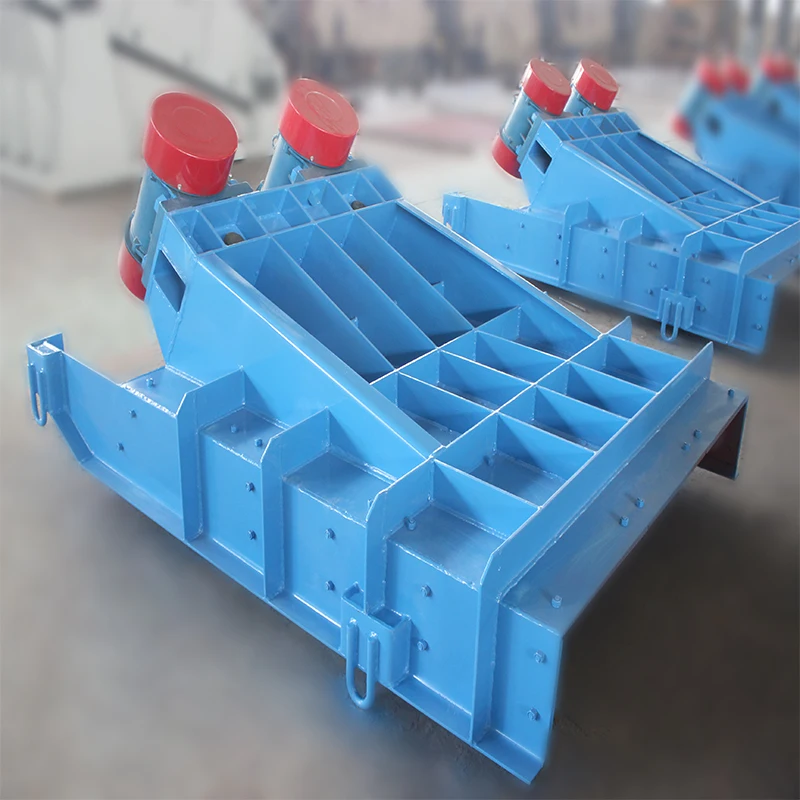

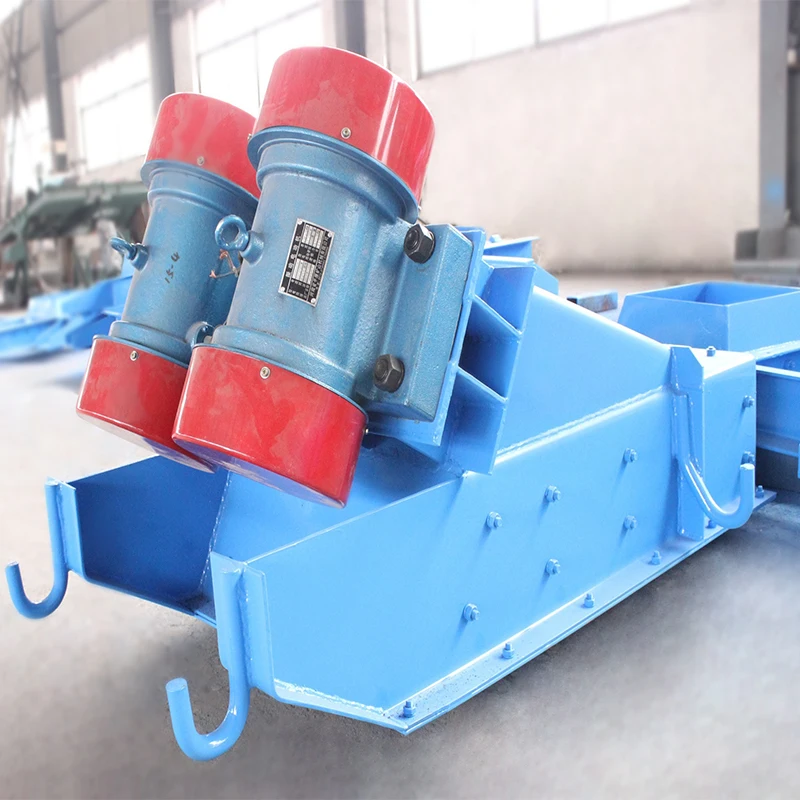

Vibrating Specification Cement Feeder Hopper vibrating feeder for belt conveyor
- Category: >>>
- Supplier: Henan Pingyuan Mining Machinery Co. Ltd.Henan Ltd.
Share on (1601219980261):
Product Overview
Description
Specification
item | value |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Gearbox, Motor |
Condition | New |
Power Type | Electric |
Capacity(t/h) | large |
Place of Origin | China |
Brand Name | pk |
Weight | 90KG |
Warranty | 1 Year |
Type: | Vibrating feeder |
Application: | stone, rock, coal, ore, etc |
Model | ZG25/30/60/80/100/200/300/400/500/750/1200/1800/2000 |
Feeding Size | 60-420 mm |
RPM | 1500 or 1000 r/min |
Double Amplitude | 2-8 mm |
Vibrating Force | 5000-150000 N |
Model of Vibrating Motor | YZO-2.5-4, YZO-5-4, YZO-8-4, YZO-17-4, YZO-30-6, YZO-75-6 |
Product Description
Introduction

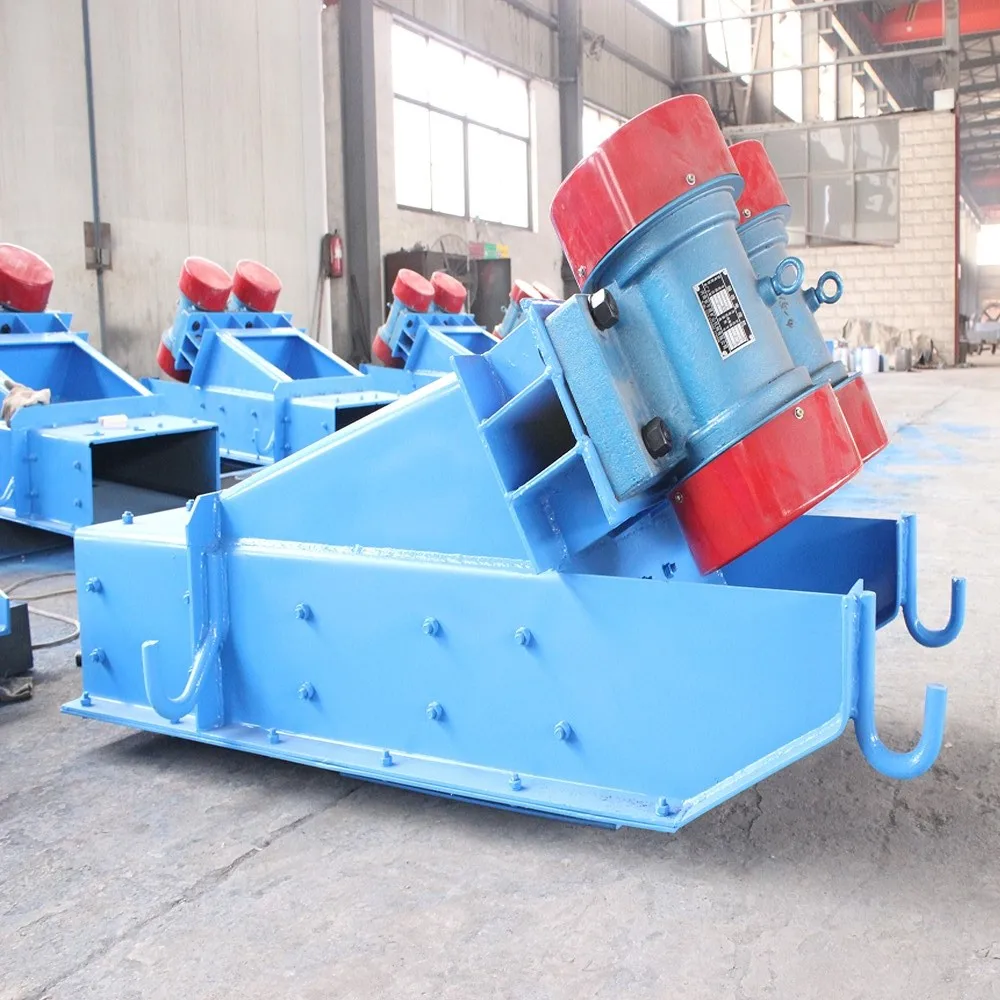

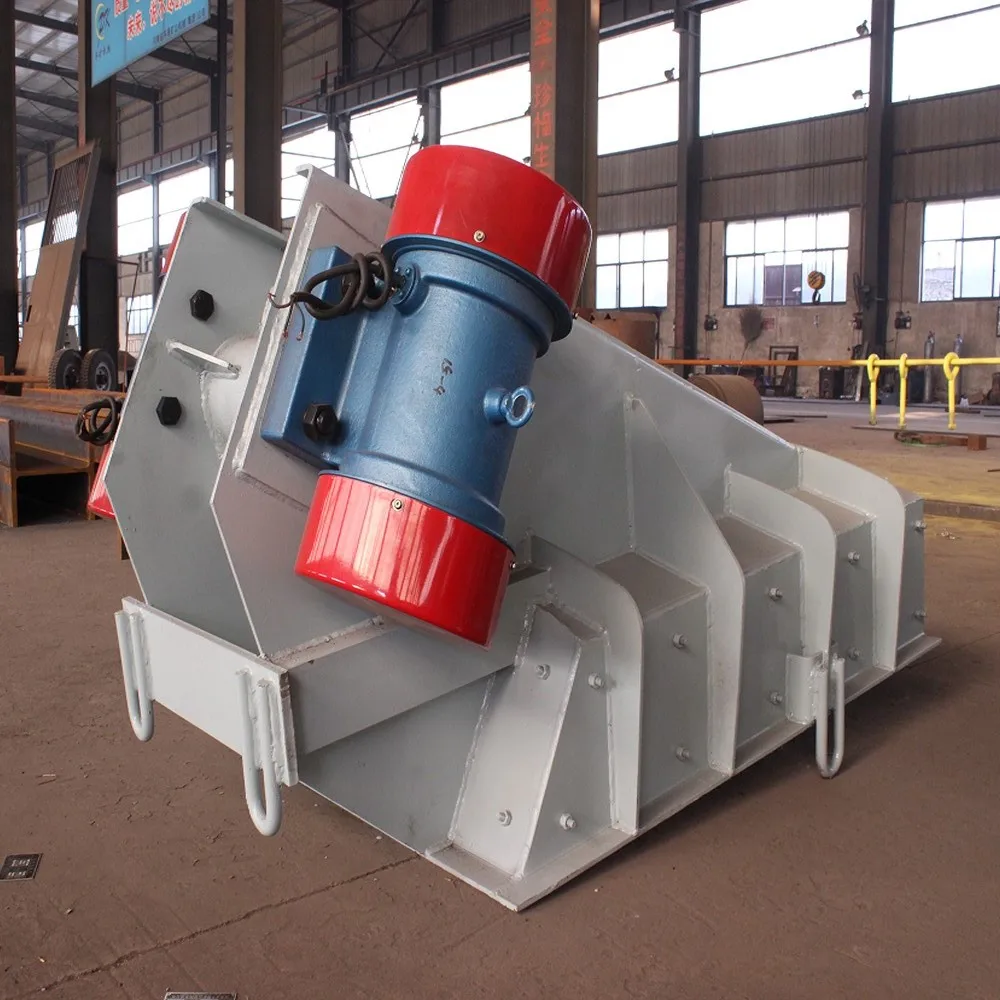

Vibrating Feeder is a kind of linear direction feeding equipment, It consists of feed spout, vibration body, vibrating motor, damping device. It can feed material for belt conveyor, vibrating conveyor, bucket elevator, vibrating screen, crusher etc.
Working Principle and Application
The feed process of the vibrating feeder is achieved by the feed spout do line reciprocating vibration periodically which is forced by the special vibrating motor. When the vertical component of the feed spout vibrates, the accelerated speed is bigger than the gravitational acceleration, the material will be upthrow and jumping forward along a parabolic path. Due to the continuous exciting of the vibrating motor, the feed spout will vibrate continuously and the material in the feed spout will jumping forward continuously, so that the purpose of feeding material is achieved.
Product features
1.Smooth operation, large feeding capacity with high efficiency
2.Low energy consumption,stable vibration,long service life
3.Characterized by even feeding, excellent continuity and adjustable vibrating force
4.Eccentric block as the main source of vibration
5.easy maintenance and the enclosed type can prevent dust pollution
6.Simple structure
2.Low energy consumption,stable vibration,long service life
3.Characterized by even feeding, excellent continuity and adjustable vibrating force
4.Eccentric block as the main source of vibration
5.easy maintenance and the enclosed type can prevent dust pollution
6.Simple structure
Product Paramenters
Model | Feeding Size (mm) | Processing Capacity (t/h) | Model of Vibrating Motor | Model of Vibrating Motor | RPM (r/min) | Double Amplitude (mm) | Vibrating Force (N) |
ZG-25 | 60 | 25 | YZO-2.5-4 | 0.25x2 | 1500 | 2-3 | 5000 |
ZG-30 | 60 | 30 | YZO-2.5-4 | 0.25x2 | 1500 | 2-3 | 5000 |
ZG-60 | 90 | 60 | YZO-5-4 | 0.4x2 | 1500 | 2-4 | 10000 |
ZG-80 | 160 | 80 | YZO-5-4 | 0.4x2 | 1500 | 2-4 | 10000 |
ZG-100 | 210 | 100 | YZO-8-4 | 0.75x2 | 1500 | 2-5 | 16000 |
ZG-200 | 270 | 200 | YZO-8-4 | 0.75x2 | 1500 | 2-5 | 16000 |
ZG-300 | 300 | 300 | YZO-17-4 | 0.75x2 | 1500 | 2-5 | 34000 |
ZG-400 | 300 | 400 | YZO-17-4 | 0.75x2 | 1500 | 3-5 | 34000 |
ZG-500 | 300 | 500 | YZO-17-4 | 0.75x2 | 1500 | 3-5 | 34000 |
ZG-750 | 400 | 750 | YZO-30-6 | 2.5x2 | 1000 | 4-6 | 60000 |
ZG-1200 | 400 | 1200 | YZO-30-6 | 2.5x2 | 1000 | 4-6 | 60000 |
ZG-1800 | 420 | 1800 | YZO-75-6 | 5.5x2 | 1000 | 5-8 | 150000 |
ZG-2000 | 420 | 2000 | YZO-75-6 | 5.5x2 | 1000 | 5-8 | 150000 |

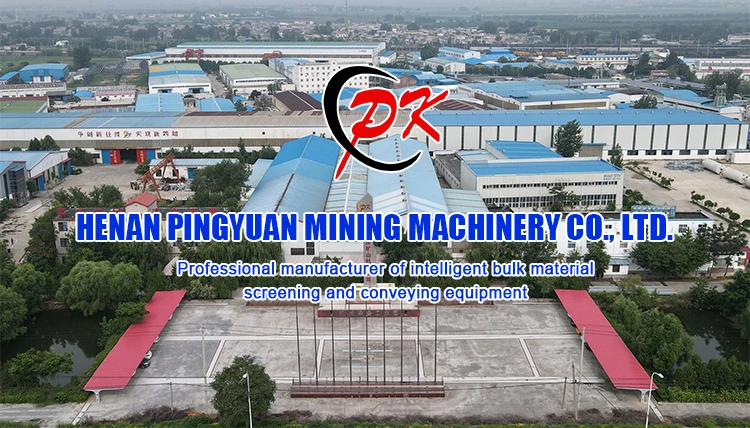

Henan Pingyuan Mining Machinery Co., Ltd.

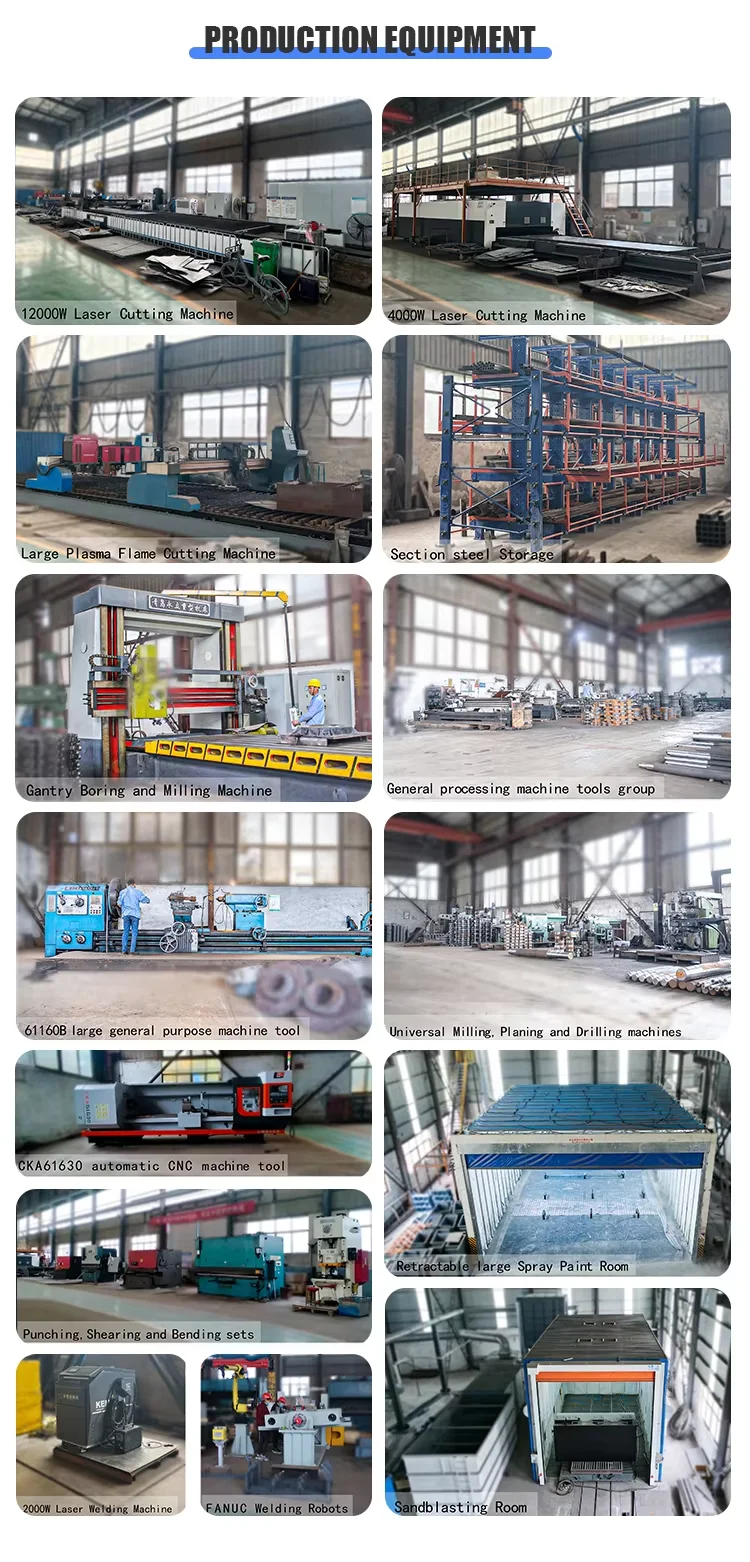

Established in 1960, Henan Pingyuan Mining Machinery Co., Ltd. Has enjoyed more than 50 steady years of successful growth to become an international company employing over 200 directemployees with annual sales exceeding $1,200 million.lt is located at 289 yellow river road of Xinxiang, China with an area of 88,400 m2 which includes 16,200 m2 of standard heavy duty industrial workshop.
We understand that our customers’ bulk conveying systems and processing equipment must be operated at peak performance at all times. That is why we're fully committed to giving our customers value before, during and even after the sale. One of the most important aspects of the services offered by PK machinery is the quick and easy provision of spare parts.PK machinery offers a full range of engineering and management services for designing and supplying systems and equipment.
lf you should ever have a need for service of your equipment, you can count on PK machinery to be there. Our understanding of quality is not limited to providing reliable systems and equipment.but also offering excellent customer services as well.
We understand that our customers’ bulk conveying systems and processing equipment must be operated at peak performance at all times. That is why we're fully committed to giving our customers value before, during and even after the sale. One of the most important aspects of the services offered by PK machinery is the quick and easy provision of spare parts.PK machinery offers a full range of engineering and management services for designing and supplying systems and equipment.
lf you should ever have a need for service of your equipment, you can count on PK machinery to be there. Our understanding of quality is not limited to providing reliable systems and equipment.but also offering excellent customer services as well.
Q1：Are you factory or trade company?
A: We are factory
Q2：Where your products have been exported before?
A: Our products have been sold to South Asia, Africa, South America, middle East and so
on.
on.
Q3：How will you help the customer to install the equipment?
A: Our senior engineer will guide the installation and commissioning as well as the initialproduction at
Q4：How about the wear parts supply?
A: We offer wear parts to our customer with our most favorable price. lf there are problemsyoucould not handle, we will send our technicians to your place and you are therefore.responsible for all thecost involved.
Q5：What about the payment method?
A: T/T, L/C Paypal is available
Q6：What about after-sale service?
A:12 months warranty for all kinds of products
