3hp submersible pump motor pump water irrigation machine solar powered pump

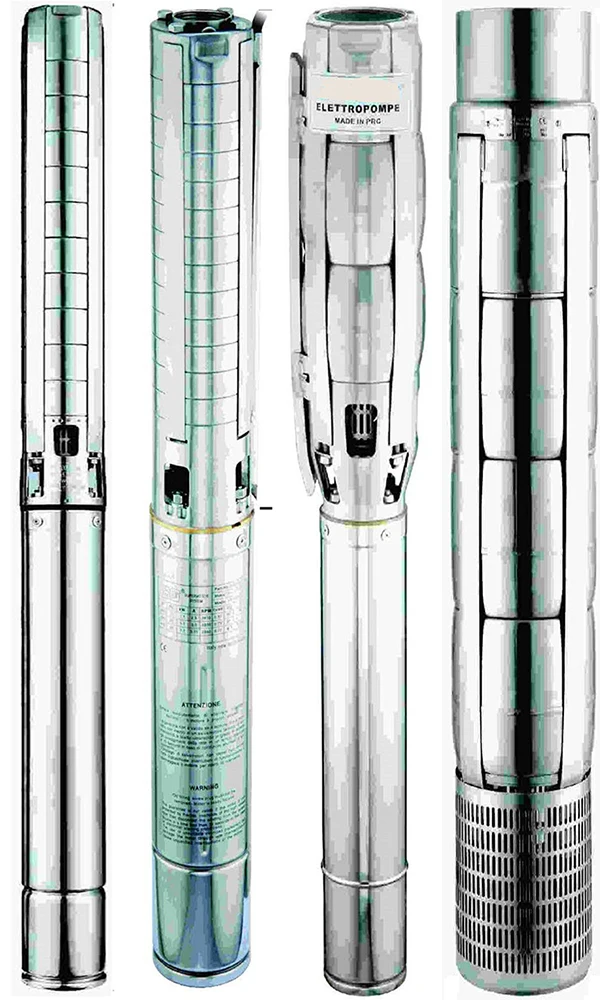

 AISI304 SP Series Solar deep well water pump

Water source

• Raising clean water from deep wells,river,lake,primary water supply tanks and reservoirs

Powered by

• Solar energy


• Mains power


• Generator

Applications

• For pumping clean water.


• For agrilculture irrigation.


• For domestic,civil and industrial applications,including for water supply,washdown system and pressure boosting.

Operation conditions

• Water temperature:from 1 ℃ to 35 ℃


• Maximum premissible content of suspended sand: 100g/m³


• Maximum submerged depth:150m


• Maximum starts per hour:30


• Continuous or intermittent duty.

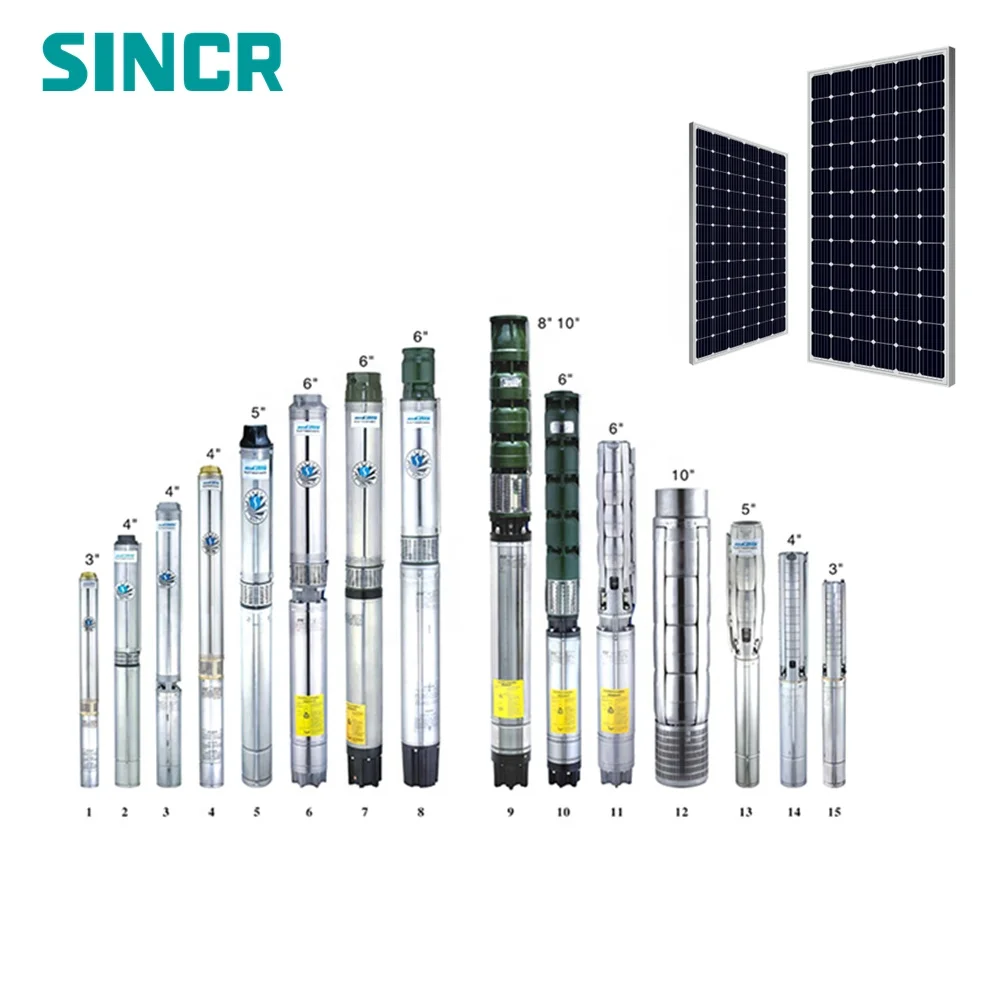

Full types of solar deep well water pumps

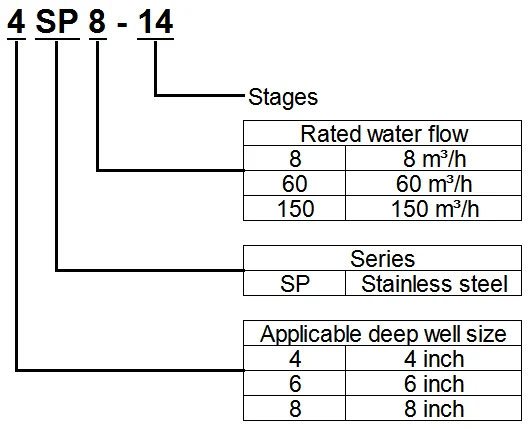

Model Identification

Note: 1 m³=1,000 litres

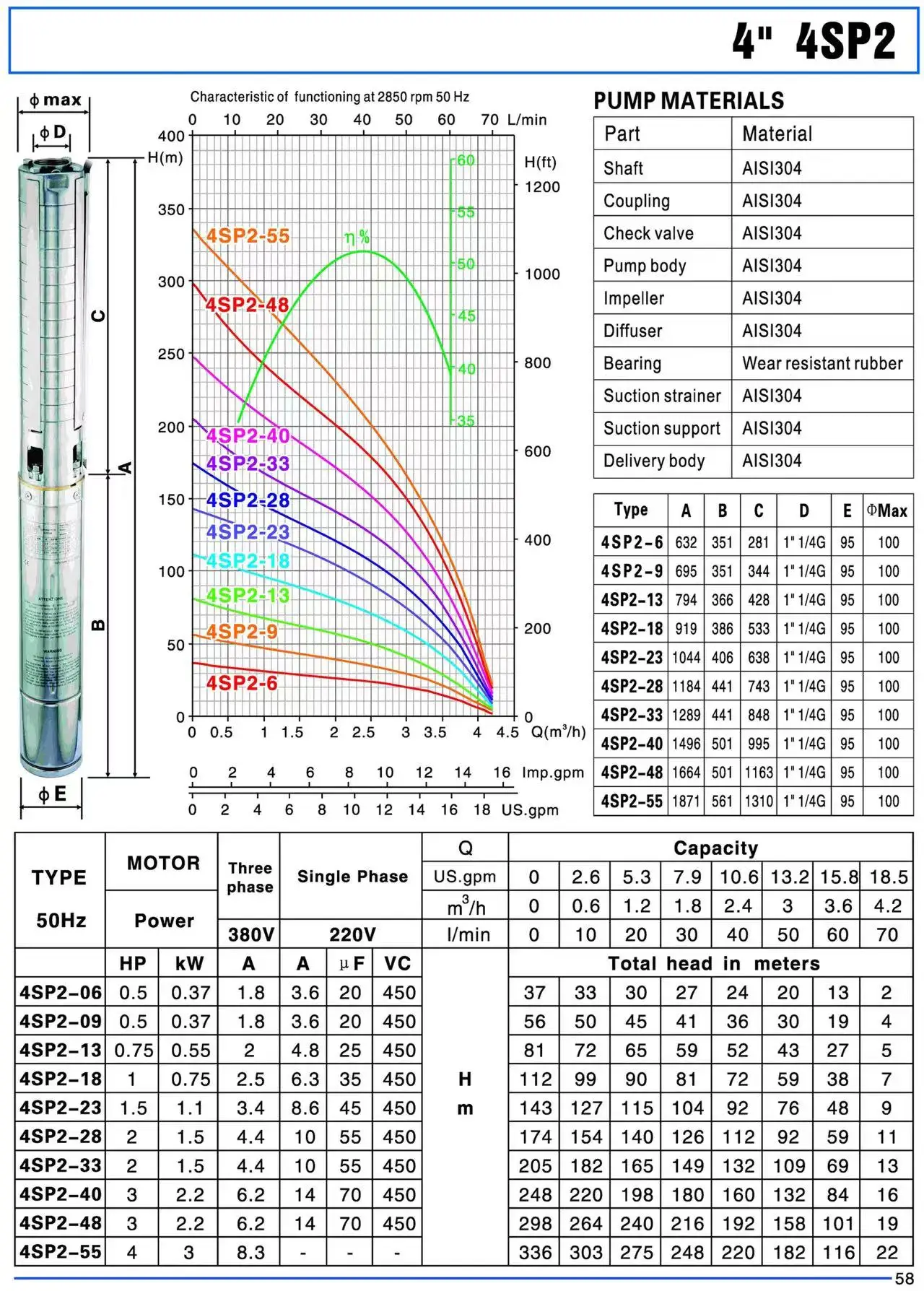

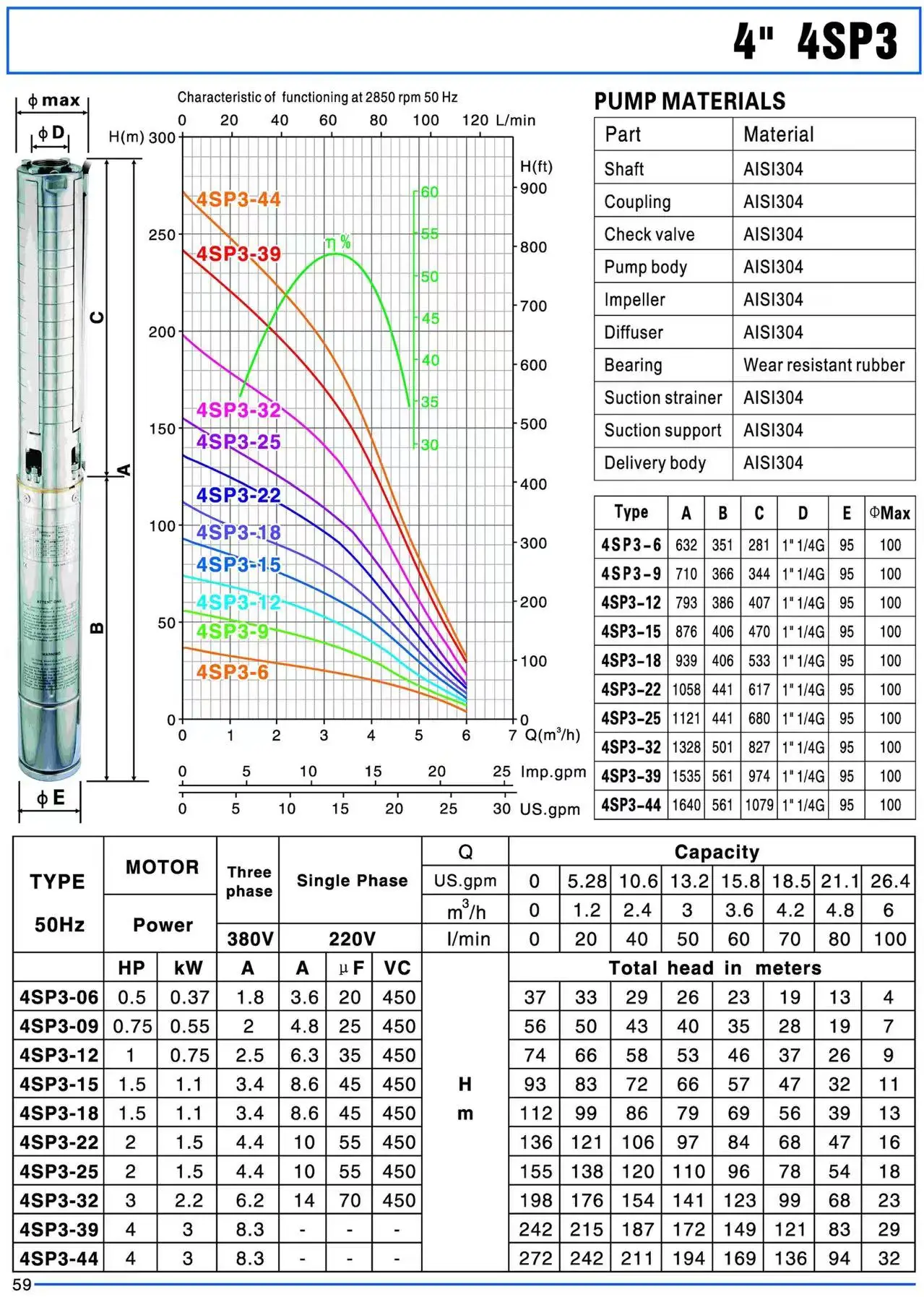

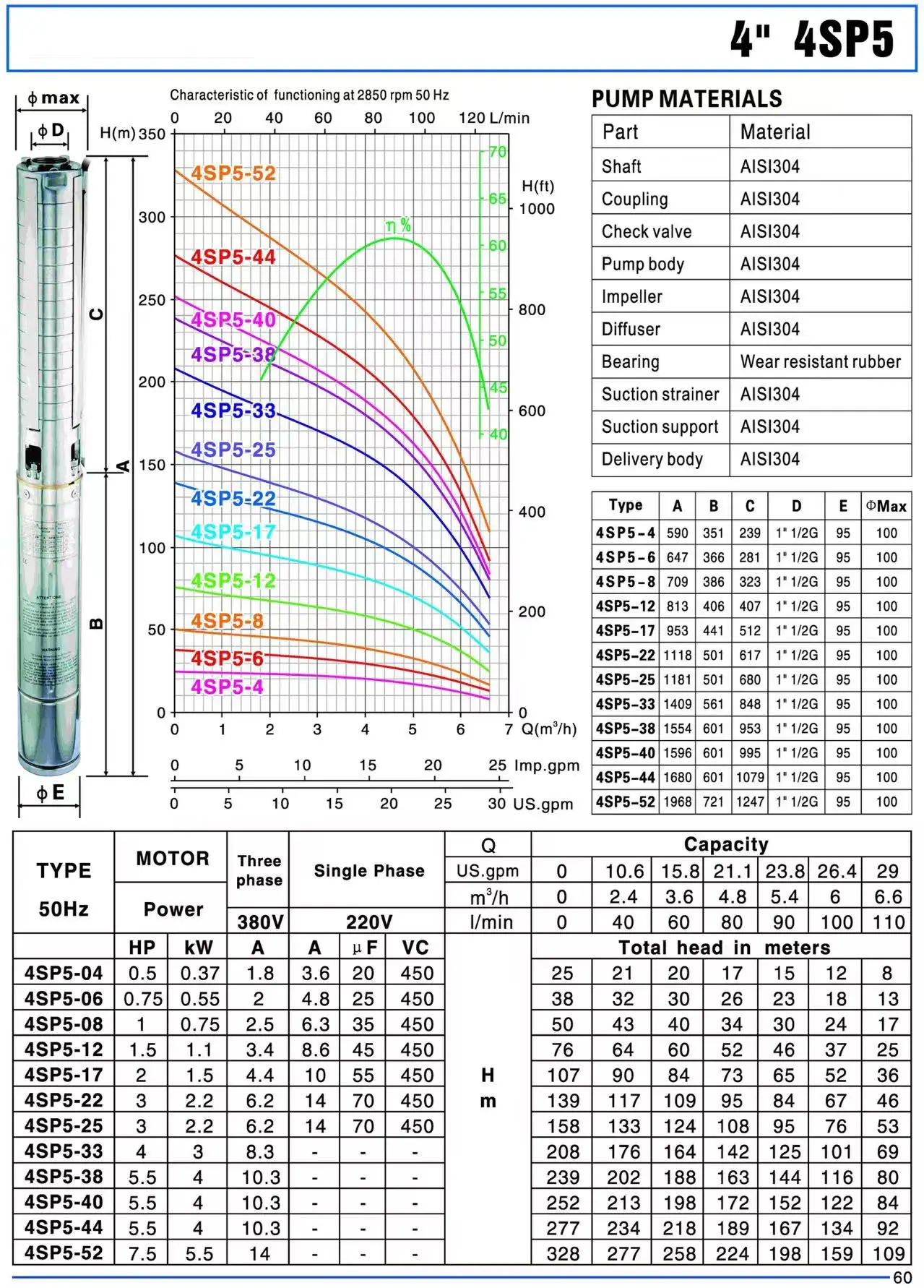

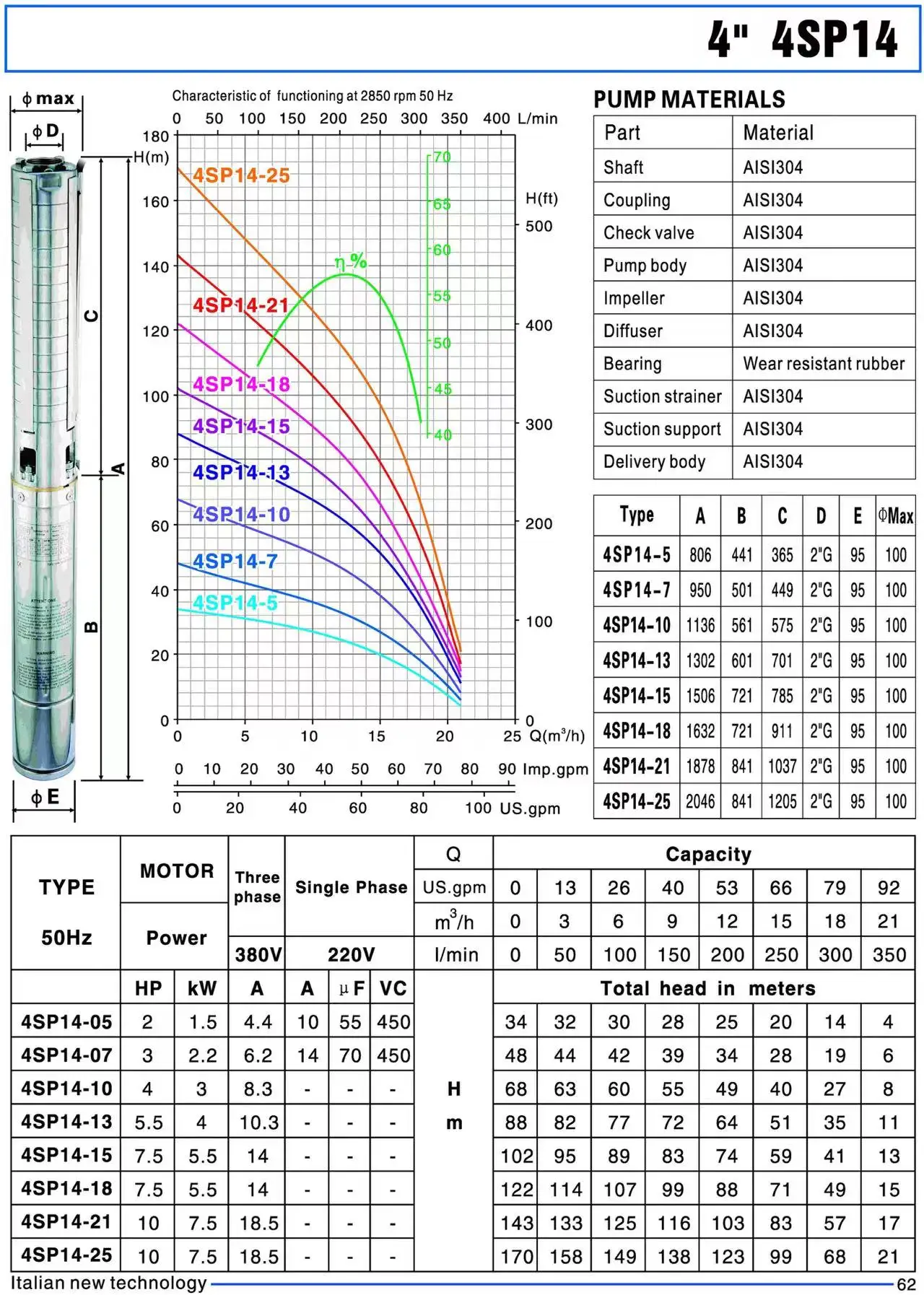

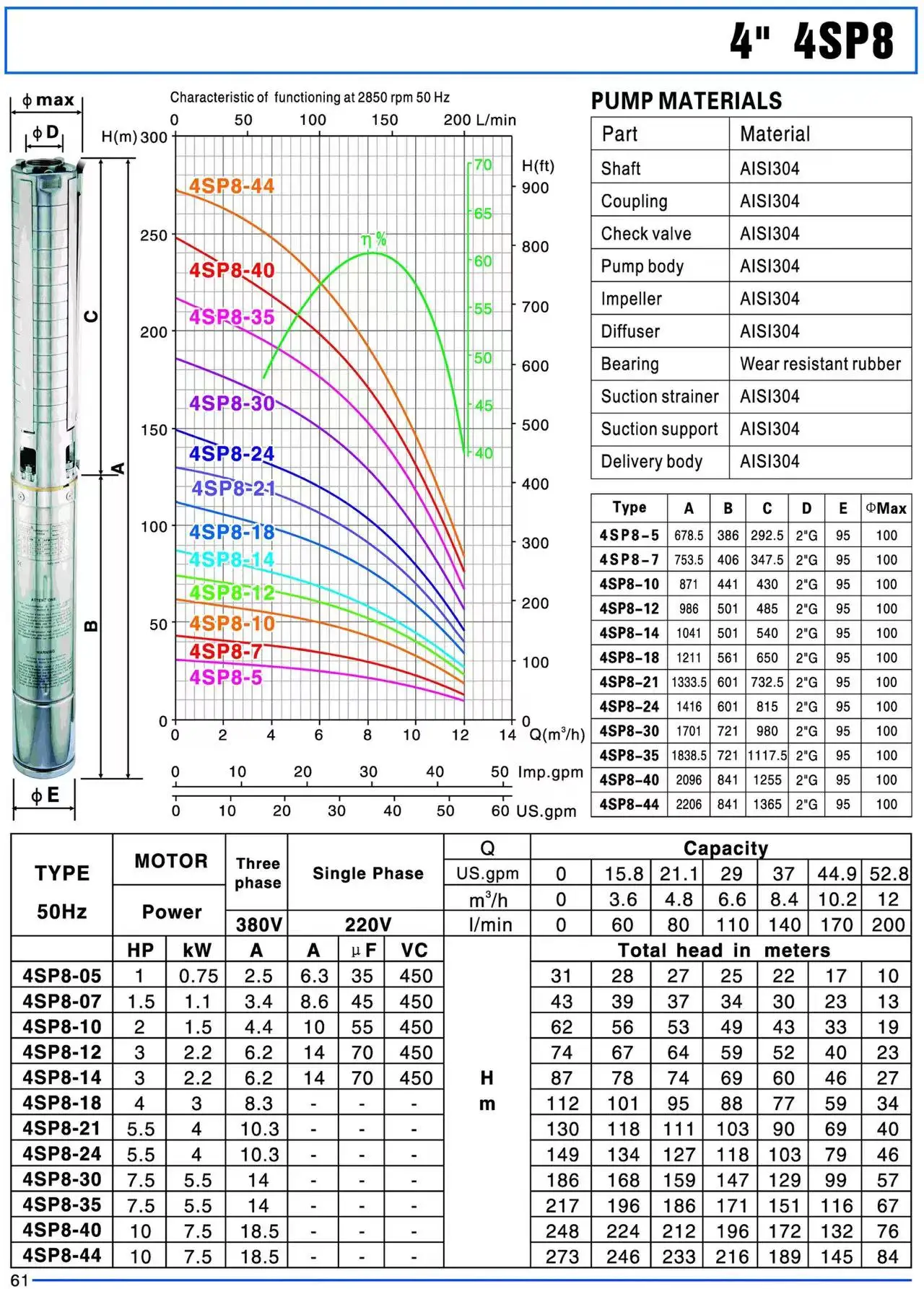

4SP series Head & Flow performance curve

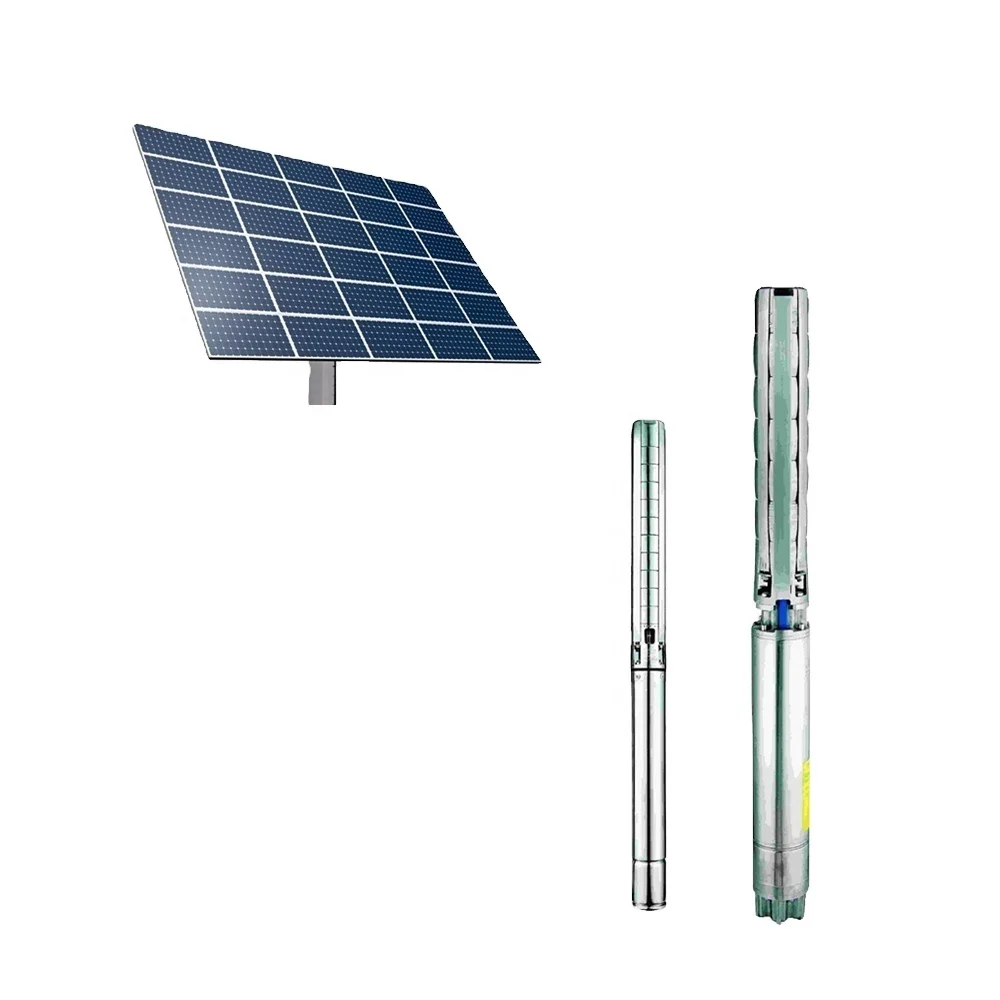

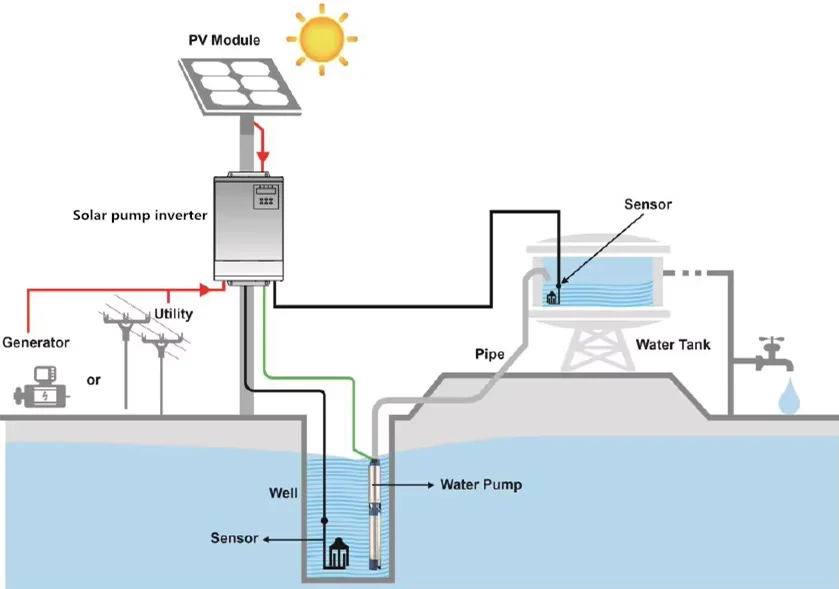

Solar Pump System Introduction

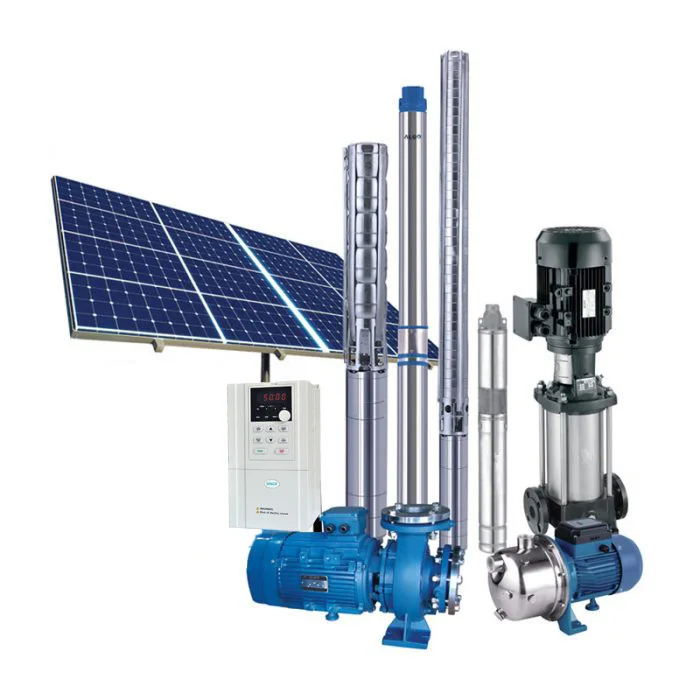

The solar pump system is mainly composed of solar panel, solar pump inverter, water pump, PV combiner boxe, mounting bracket, cables , water level sensor and other necessary accessories. The photovoltaic generation technology is used to solve the problem of power supply and water supply on the spot. The initial investment cost is less than 2KM and the long-distance erection grid. The comprehensive cost is lower than diesel generator after two years of continuous working. It is widely used in photovoltaic agricultural irrigation, irrigation station reconstruction,household water supply and desert greening,where there is no electricity or insufficient electricity supply.

The photovoltaic array is made up of many solar panels connected in series and in parallel, and the solar energy is converted into electric energy by absorbing the solar radiation energy to provide power for the solar pump system;

The solar pump inverter transfer the solar DC to be AC, drives the water pump to supply water, with the functions of MPPT maximum power tracking, water level control, AC/DC switching, fully automatic operation, etc., to control and adjust the whole system operation;

The solar pumps are deep well pump, submersible pump, horizontal centrifugal pump, vertical multistage centrifugal pump, driven by single-phase or three-phase AC motors, pumping water from deep well, river and lake, injecting pool or tank, or agricultural irrigation and domestic water supply.

The mounting bracket provides fixed and supporting for the solar panel. It is installed at the best angle according to the latitude of different regions to achieve the maximum power generation efficiency of solar modules. It has good performances of earthquake resistance, wind resistance and corrosion resistance, and solar panels can be installed on the roof,or the ground.

The accessories are mainly DC and AC cables, water pipes, sensors for control water level, wire rope for hanging deep well pump, multimeter for measuring current and voltage, MC4 connectors, filter, reactor, etc.

Sincr are not just factory, but also service providers to solve problems. From providing solutions to production to installation of solar pump inverter system, we use professional expertise to prove our strength.

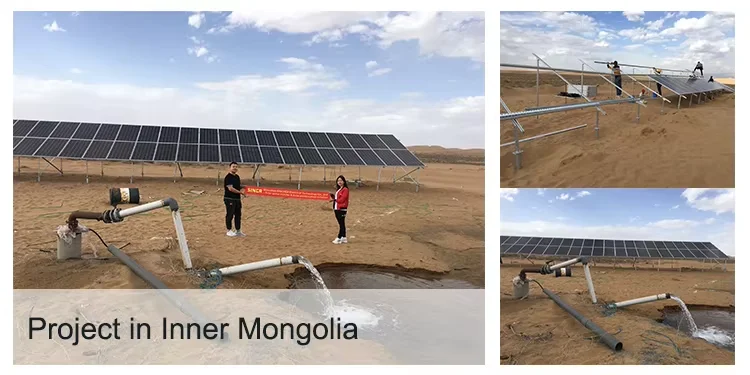

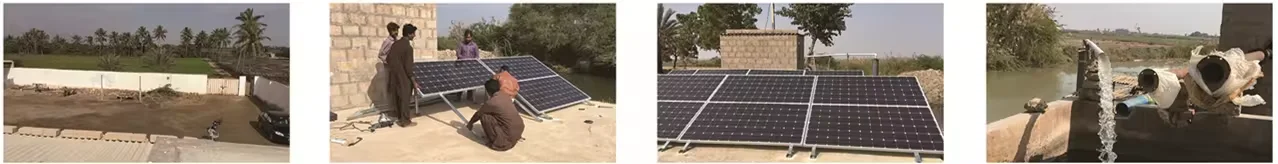

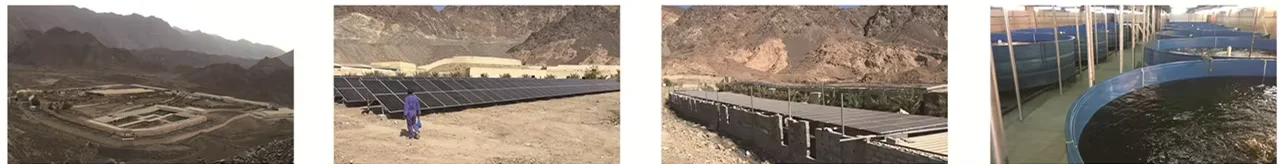

Product Application

Q1.what's your payment terms?

A:We accept  L/C,T/T,Western Union,Money Gram,CNY.

Q2.How long does it take to deliver the goods?

A:If the stocks, usually sized orders are sent out within 14 working days.

Q3.How do you usually make delivery?How long?.

A:Courier delivery ( FedEx,DHL,UPS,EMS,TNT) takes 3-6 days depending on your destination.

Q4.How do you ship the products?

A:Sea Freight & Air Mail & Bulk Air Freight.

Q5.Do you support the oem business?

A:Yes,Including LOGO, outer packaging, graphics and user manual.Please email us that what you want to print.

Q6.How to choose right inverters and solar water pump?

A:Please tell us your requirements and questions, we will answer you as soon as possible.And we will consult our engineers and adjust the right equipment for you.

(Your other questions can leave a message.)
