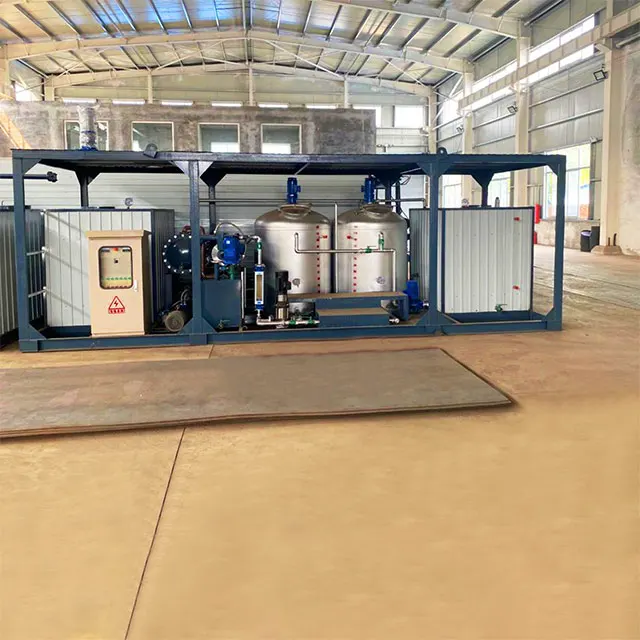

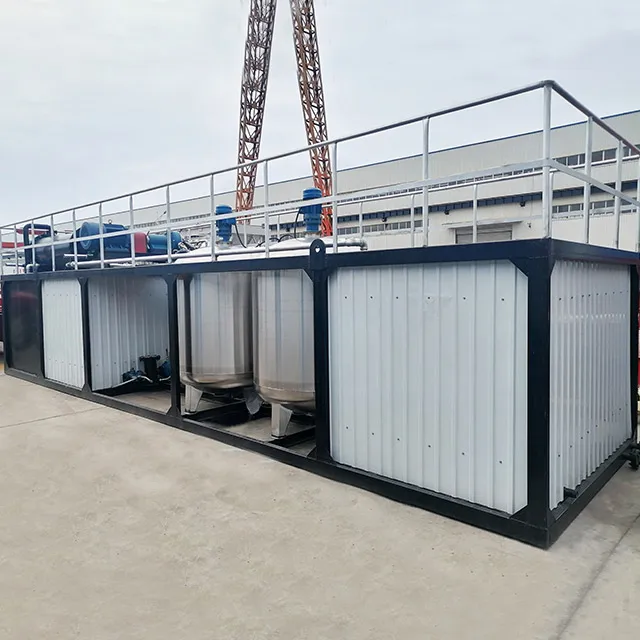

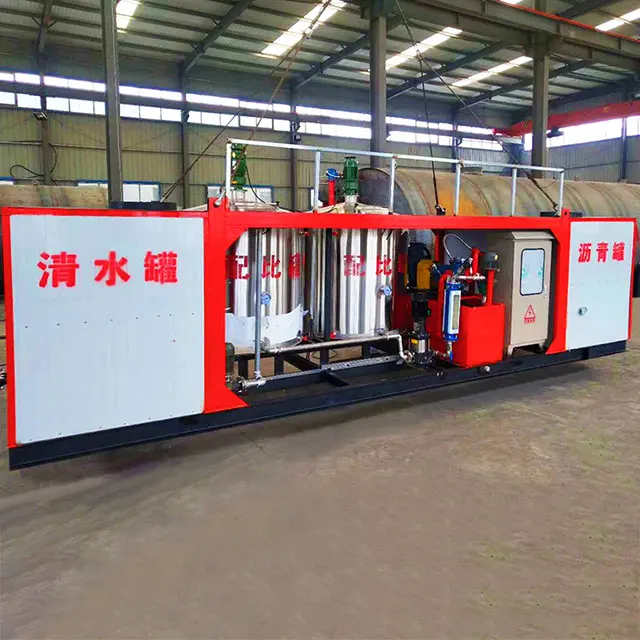

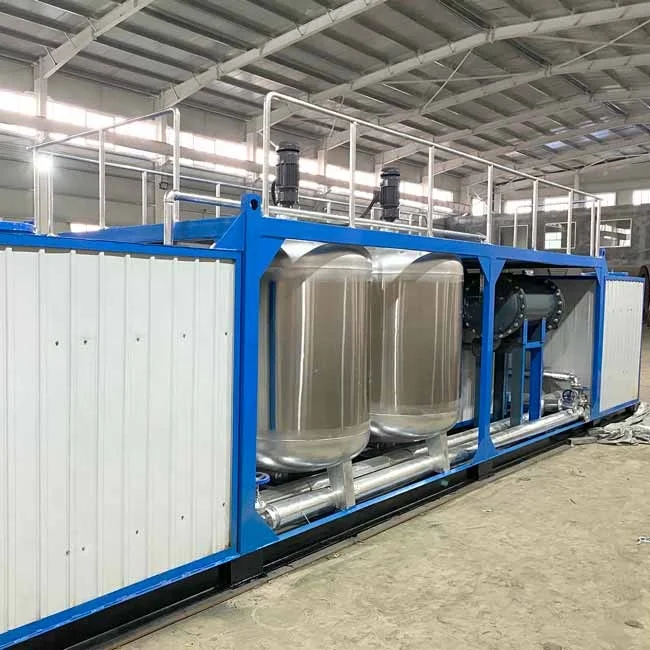

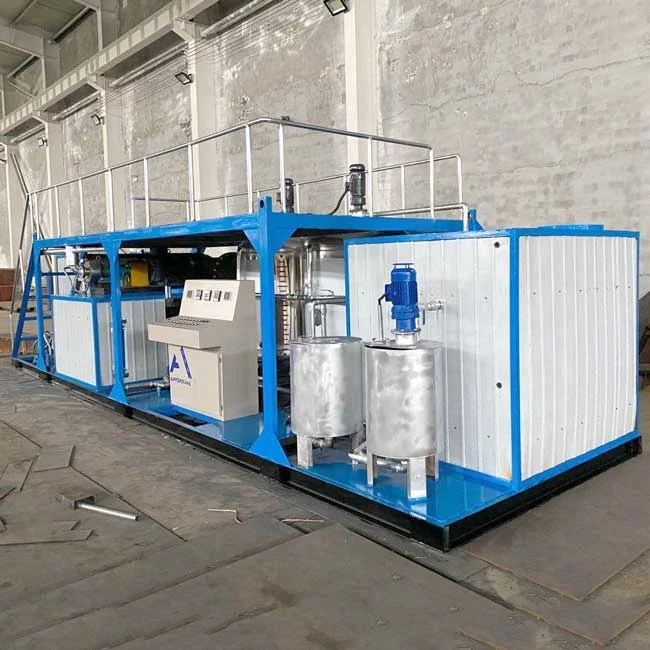

6 10TPH Asphalt Bitumen Emulsion Plant

The bitumen emulsifying equipment developed by our company has the advantages of simple structure, convenient operation, wide range of bitumen content, stable quality, and can meet the requirements of different construction technologies. It has been widely used in highway construction and highway maintenance projects.

Performance characteristics

• The equipment adopts automatic control and double emulsion tank to achieve continuous production, saving manpower and reducing labor intensity.

• The emulsified bitumen production core component emulsifier (ie colloid mill) is developed by our company and adopts a unique stator-rotor clearance adjustment structure to maintain a very small stable gap.

• Equipped with a high-efficiency heat exchanger, the finished emulsified bitumen is cooled to normal temperature by a heat exchanger, which improves its storage stability and provides possibilities for continuous large-scale micro-surface construction.

• Adopt PLC control to precisely control the bitumen content (oil-water ratio) of emulsified bitumen.

• The heat transfer oil heating system is convenient, efficient and efficient, and can realize automatic temperature control.

• All materials in contact with the emulsion are made of high quality stainless steel.

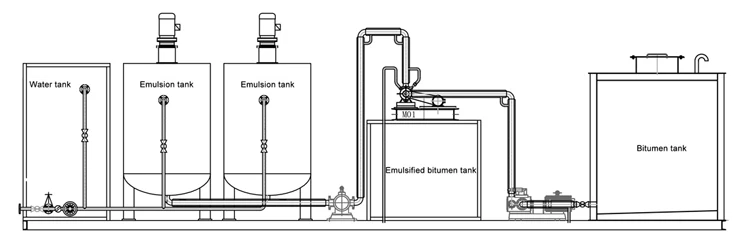

Structure composition of emulsified bitumen equipment

1. Clear water system--It is composed of water tank, water pump, pipeline, etc.

2. Emulsion system--It is composed of emulsion tank AB, flowmeter, emulsion pump, regulating valve, etc.

3. Additive System (Selection)

4. Bitumen Supply System--It is composed of asphalt tank, asphalt pump, asphalt pipeline, asphalt tank, etc.

5. Emulsified bitumen System--It consists of emulsifier, sampling valve, heat exchanger, etc.

6. Heat Exchange System--It consists of heat exchanger, emulsified asphalt discharge pipeline, submersible pump (or sewage pump) and cooling water inlet and outlet pipeline.

7. Heat Conducting Oil System--The system is a closed-circuit system with automatic temperature control. Under the action of the heat conducting oil pump, the heated heat conducting oil heates the parts that need to be heated, and finally returns to the heat conducting oil pump.

8. Pneumatic control system (Selection)--The system uses air compressor as power source and controls five pneumatic valves (normally closed) to open and close through five solenoid valves, which facilitates the opening and closing of water injection and drainage pipelines.

9. Electrical Control System

The electrical control system of the equipment includes two control systems: manual control and automatic control.

The bitumen pump is controlled by frequency converter to realize infinite speed change and to control the bitumen flow conveniently and accurately.

Each motor has an overload protection device.

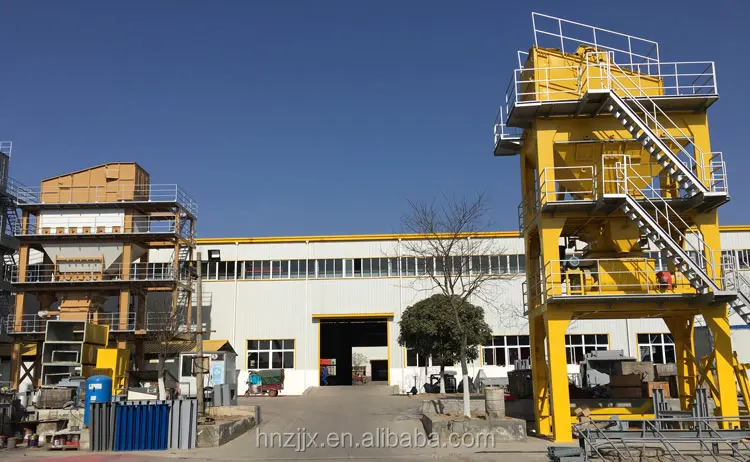

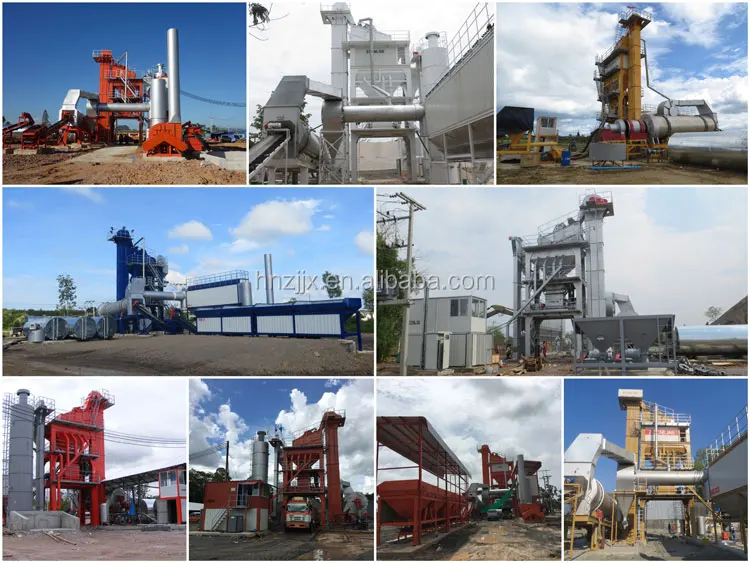

Our asphalt mixing plant have been used in highways, high-grade highways, urban roads and airport construction and got high reputation for their excellent performance.
