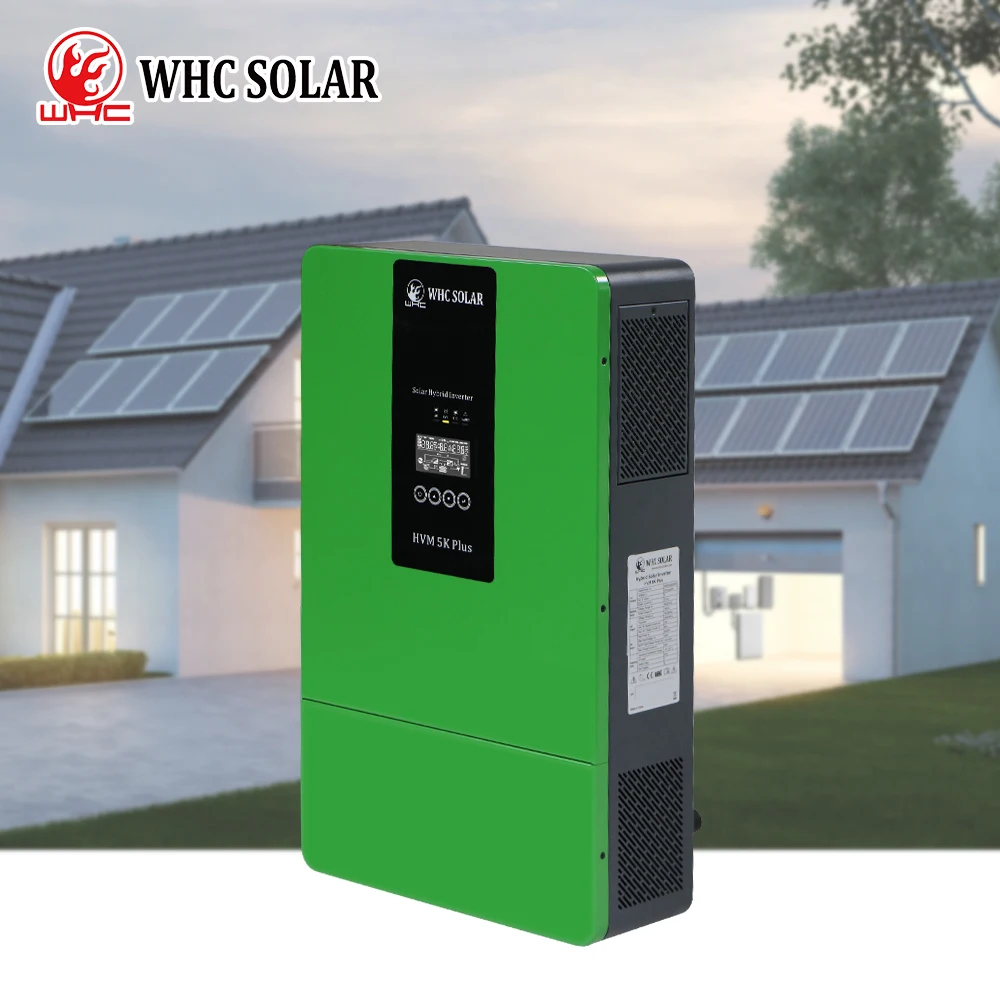

Waterproof Low Frequency Inverter Mppt 48V To 220V 3.6Kw 5Kv Hybrid Inverter Direct Stock
Waterproof Low Frequency Inverter Mppt 48V To 220V 3.6Kw 5Kv Hybrid Inverter Direct Stock
Waterproof Low Frequency Inverter Mppt 48V To 220V 3.6Kw 5Kv Hybrid Inverter Direct Stock
Waterproof Low Frequency Inverter Mppt 48V To 220V 3.6Kw 5Kv Hybrid Inverter Direct Stock
Waterproof Low Frequency Inverter Mppt 48V To 220V 3.6Kw 5Kv Hybrid Inverter Direct Stock
Waterproof Low Frequency Inverter Mppt 48V To 220V 3.6Kw 5Kv Hybrid Inverter Direct Stock
Waterproof Low Frequency Inverter Mppt 48V To 220V 3.6Kw 5Kv Hybrid Inverter Direct Stock

Waterproof Low Frequency Inverter Mppt 48V To 220V 3.6Kw 5Kv Hybrid Inverter Direct Stock

Share on (1601220122037):


Price:$253.00 - $280.50

Quantity:


Product Overview

Description

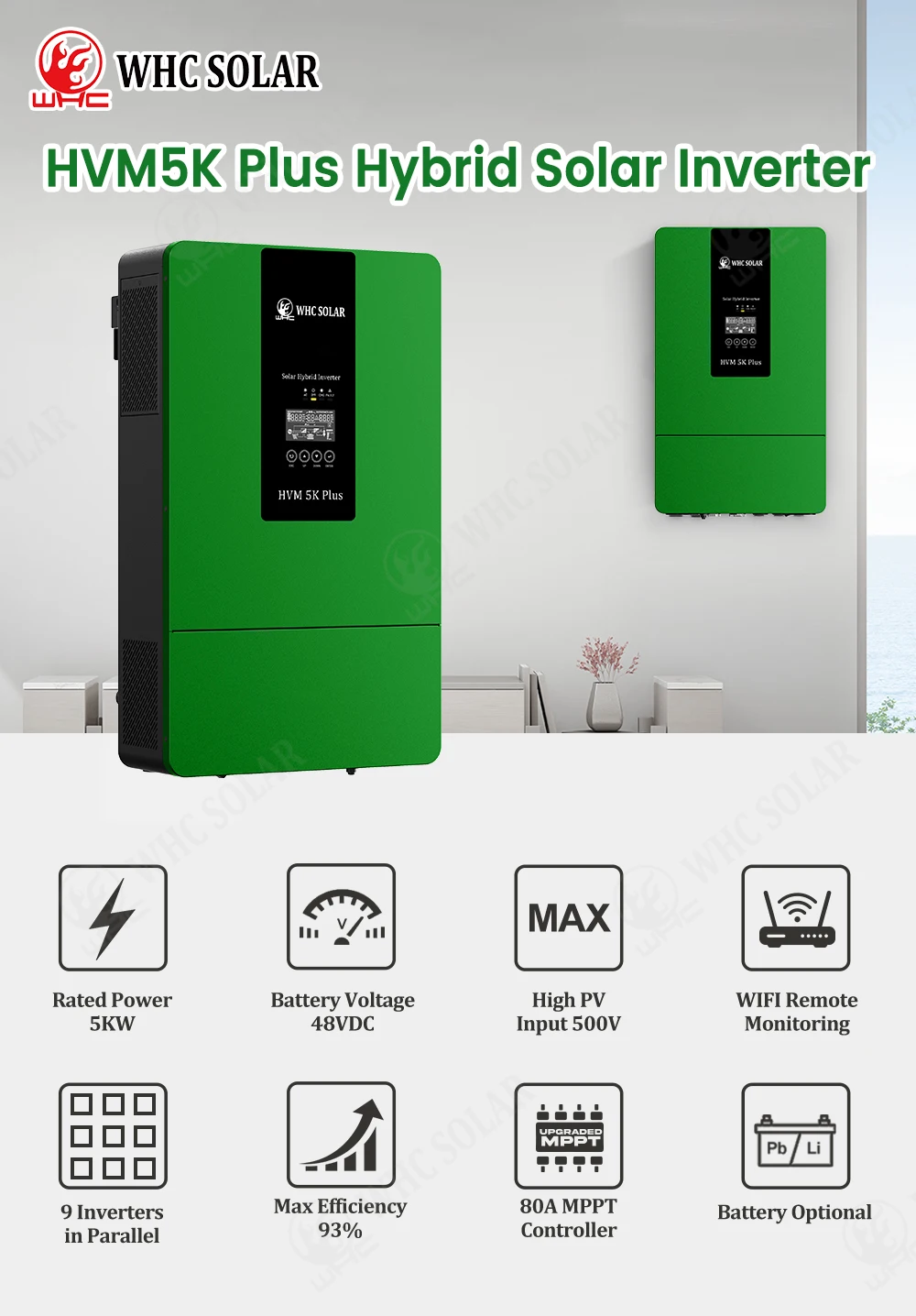

Product Features:
1. Only 0.3% defective rate
2. Waterproof, dustproof and insect-proof design
3. Each product undergoes an aging test for no less than 2 hours before shipment
4. Use high-quality raw materials to prevent corrosion and extend service life
5.Pure sine wave solar inverter
6. High PV input voltage range
7. 9 Inverters in Parallel
8. Built-in MPPT solar controller
9. Battery equalization function to optimize battery performance and extend lifecycle.
10. Inverter running without battery
11. WIFI/GPRS remote monitoring
12. RS485 communication for BMS(optional)

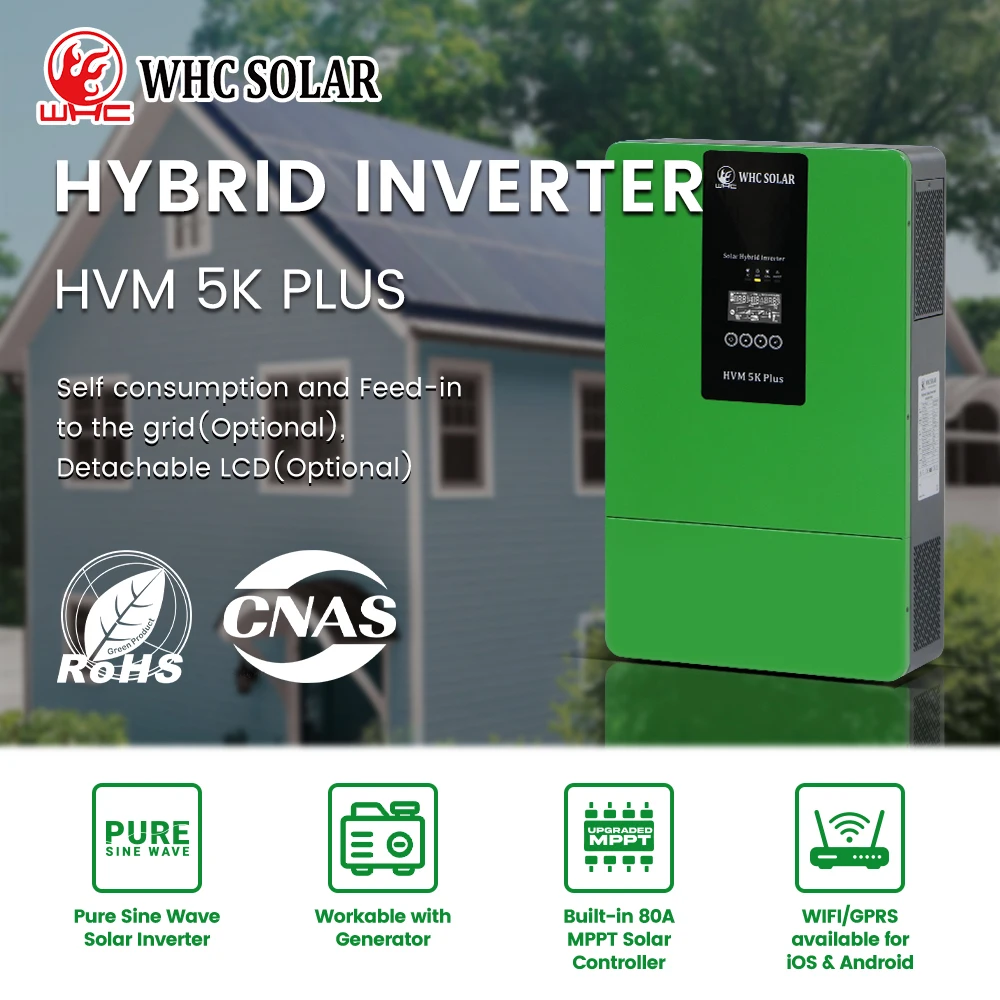

13. Self consumption and feed-in to the grid(optional)




Model
HVM 3.6K PLUS
HVM 5K Plus
Capacity
3.6KW
5KW
Parallel Capability
No
Yes, 9unit
AC Input
Rated Input Voltage (VAC)
208 / 220 / 230 / 240; L+N+PE
Voltage Range (VAC)
90~280±3 (normal mode); 170~280±3 (UPS mode)
AC Output
Rated Capacity (kW)
3.6
5
Surge Power (kVA)
5.7
10
Voltage (VAC)
208 / 220 / 230 / 240
Frequency
50 / 60Hz±0.1%
Wave Form
Pure Sine Wave
Overload Capacity (Battery Mode)
60s@102%~110% load; 10s@110%~130% load;
3s@130%~150% load; 0.2s@>150% load
Max. Efficiency (Battery Mode)
92.7%@24VDC
93%@48VDC
Charger (PV /AC)
Solar Charger Type
MPPT
Max PV input Current /Input Power
18A / 5000W
18A / 6000W
MPPT Range@Operating Voltage (VDC)
40~450
120~450
Max PV 0pen Circuit Voltage (VDC)
500
500
Max PV Charge Current (A)
100
80
Max AC Charge Current (A)
100
80
Max. Charge Current (PV + AC)(A)
100
80
Battery
Rated Voltage (VDC)
24
48
Overcharge Protection (VDC)
30.5
61
Battery Type
Lithium and Lead-acid
Interface
Interface
RS485 / RS232 / USB / DryContact
Monitoring
WiFi (Optional)
General Data
Ingress Protection
IP21
Net Weight (kg)
6.4
9.5
Dimensions (W*H*D)
490*306*115mm(without bracket)
510*306*115mm(without bracket)

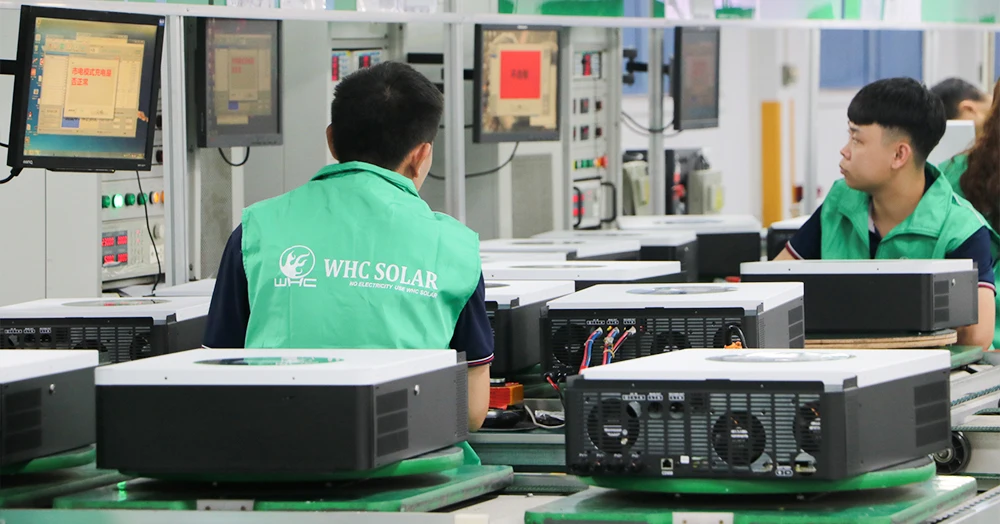

WHC Factory




ABOUT FACTORY

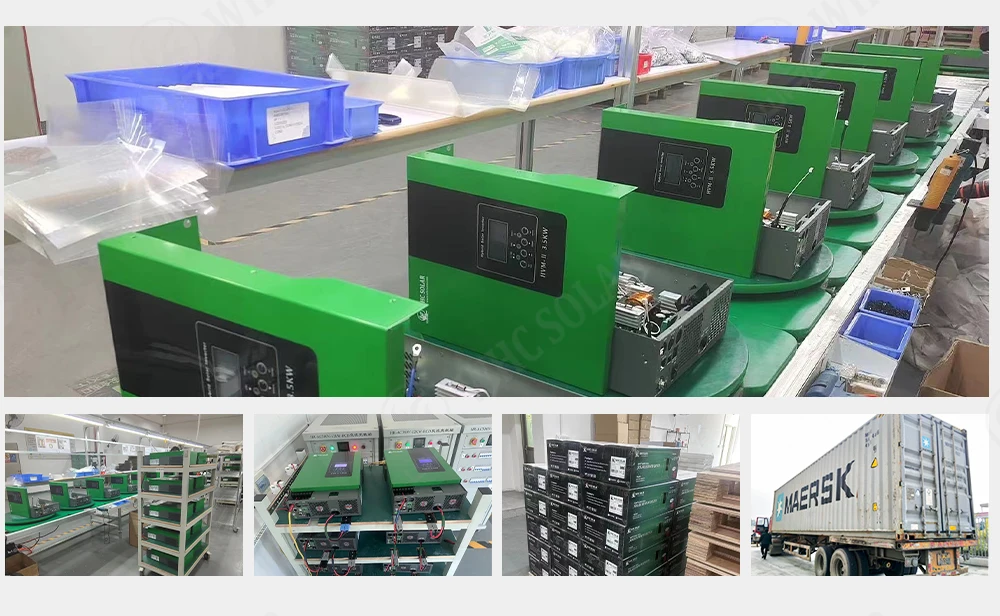

Our factory has a total area of 200,000 square meters,use the advanced automatic production lines to ensure the quality of our products and save the production cost, which make our price more competitive in the market. All of our products certifed by CE and lEc, and a ful set of cerificates for gel and lithium batteries is also available, such as UN38.3, MsDs, etc

OUR MISSION:
Let the world not lack of electricity.

OUR VISION:
To be the No.1 Solar Battery Brand in Africa.
To Help 300 agents succeed in their solar business career.




Shipping




Certifications








Company Profile




Guangzhou WHC Solar Technology Co.,Ltd was founded in 2009, which is a professional manufacturer specializing in the solar field for more than 15 years, including solar batteries, solar inverters, solar panels, solar controllers, solar street lights and solar water pump etc.
Our trademark“WHC SOLAR”has registered in 37 countries around the world. And we own 11 invention patents, providing customers with original market protection. We often attend solar energy industry exhibitions in German, USA, South Africa, Nigeria, Philippines, etc.
