Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00
High Quality Multifunction Adhesive Sticker Flexo Label Printing Machine For 6 Colors Labels Paper Roll To Roll
- Category: >>>
- Supplier: Zhejiang Jingle Blue Printing Machinery Co. Ltd.
Share on (1601220417461):
Product Overview
Description
Model | JZ320 |
Max feeding width | 320mm |
Printing width | 360mm |
Effective printing length | 222~622 (70Z~196Z) |
Speed | 10-150m/min |
Unwinding diameter | 800mm |
Rewinding diameter | 800mm |
Gear pitch | 1/8 CP, Z=3.175mm |
Plate thickness | 1.14 or 1.7 optional |
Double-sided thickness | 0.38mm |
Material weight | Paper 30-300 gsm, PET 12~60um, OPP 18~60um |
Secondary registration precision | +/- 0.15 mm |
Remote control | Equipped with remote diagnosis and remote service functions |
Anilox roller | 8 pcs (to be determined according to customer product specifications) |
Printing plate roller | 24 pcs (to be determined according to customer product specifications) |
Dimensions L*W*H | 10.83*1.56*1.52m |
Details as follows
1.from 1 to 10 COLOR PRINTING UNIT
2.from 1 to 10HIGH POWERFUL IR DRYING SYSTEMS
3.THREE SET (3) ZXT AUTO TENSION CONTROLLER
4.THREE SETS (3* depend how many colors) PRINTING PLATE ROLLERS
5.SET (1*depend on how many colors ) ANILOX ROLLER WITH MACHINE
6.ONE SET (1)BST WEB GUIDE SYSTEM
7.HELICAL GEAR
8.CAMERA INSPECT SYSTEM --- 1 SET
9.FOR PRINT UNIT---2KW
FOR UNWIND&REWIND DRAG & DIE CUT---3KW
FULL SYSTEM IS OMRON
10.PLC & TOUCH SCREEN CONTROLLER
11.AUTO COLOR REGISTER SYSTEM (IN FORWARD AND BACKWARD)
12.REMOTE SUPPORT SYSTEM
13. 800MM UNWIND AND REWIND DIAMETER WITH PNEUMATIC LIFT DEVICE
2.from 1 to 10HIGH POWERFUL IR DRYING SYSTEMS
3.THREE SET (3) ZXT AUTO TENSION CONTROLLER
4.THREE SETS (3* depend how many colors) PRINTING PLATE ROLLERS
5.SET (1*depend on how many colors ) ANILOX ROLLER WITH MACHINE
6.ONE SET (1)BST WEB GUIDE SYSTEM
7.HELICAL GEAR
8.CAMERA INSPECT SYSTEM --- 1 SET
9.FOR PRINT UNIT---2KW
FOR UNWIND&REWIND DRAG & DIE CUT---3KW
FULL SYSTEM IS OMRON
10.PLC & TOUCH SCREEN CONTROLLER
11.AUTO COLOR REGISTER SYSTEM (IN FORWARD AND BACKWARD)
12.REMOTE SUPPORT SYSTEM
13. 800MM UNWIND AND REWIND DIAMETER WITH PNEUMATIC LIFT DEVICE

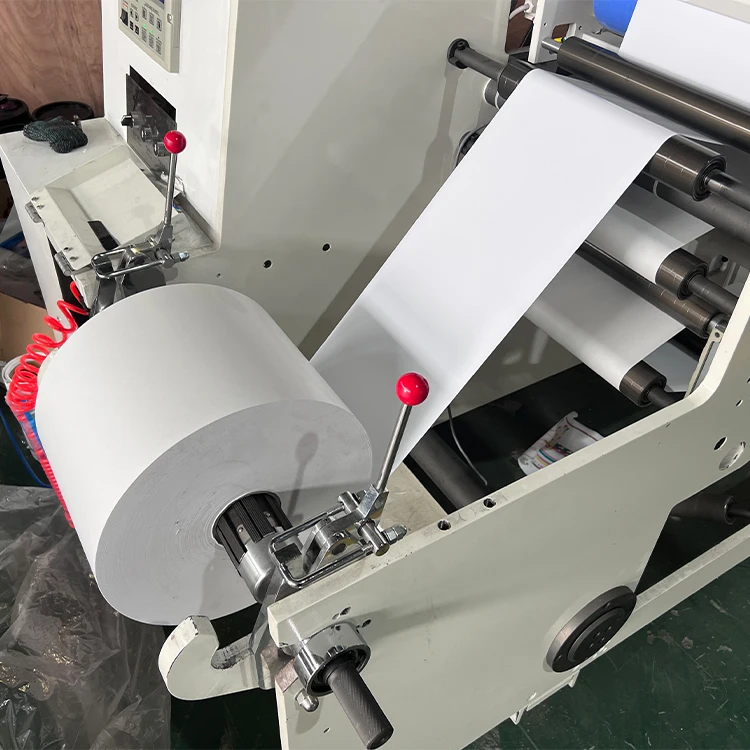

1. UNWINDER UNIT
2. REWINDER UNIT
3. TURN BAR
4. ELECTRIC LOAD
5. CORONA TREATER
6. BOTTOM BIG ROLLER
7. DELAM RELAM
8. COLD STAMPING
9. SHETTING UNIT
10. WEB GUIDING SYSTEM BST BRAND
