Factory Supply Adjustable Aluminum Work Platform
- Category: >>>
- Supplier: Hebei Jiuchuang Construction Machinery Technology Co. Ltd.
Share on (1601220518326):
Product Overview
Description
suspended platform platform with CE certificate/zlp 800 on hot sale
electric scaffolding
Product Description
The specification of suspended platformplatform:
Electric scaffolding psuspended platform platform.They have resonable structure and they are easy to operate.According to the actual needs,they are arbitrarily assembled and disassembled.suspended platform applies to exterior wall construction,decoration,cleaning and maintance of high-rise buildings.
Technical dates of suspended platform:
1 |
Suspension Machanism |
1 unit | Surface Treatment:Hot Galvanized FC Level Hot Galvanized | |||
Front beam 82*82*2100*3.75mm | ||||||
Middle beam 70*70*2100*3.5mm | ||||||
Back Beam 82*82*2100*3.75mm | ||||||
Cantilever Span No less than 1500mm | ||||||
2 | Platform | 1 unit | Size:6m=2m*3ea | |||
Surface treatment:Hot Galvanized | ||||||
Support wheels:4Ea Anti-vibration wheel | ||||||
Wall wheels:2Ea | ||||||
3 | Hoist | 2 units | Model: | LTD63 | ||
Lifting Speed: | 9-11m/min | |||||
Power: | 1.5Kw | |||||
Voltage: | 380V,50Hz,3 phase | |||||
Material: | 100% ADC Aluminium | |||||
Motor: | Tianjin Yong Heng | |||||
Control Cable | 4m | |||||
Warrenty | Box Shell | Whole Life | ||||
| Main Parts | 1 Year | ||||
4 | Safety Lock | 2 units | Model: | LSA30 | ||
Lock Distance: | 100mm | |||||
Locking Rope: | 3~8° | |||||
Allow Impulsive Force: | 30KN | |||||
5 | Electric Control Cabinet | 1 unit | Model: | Intelligent Type | ||
Voltage: | 380V,50Hz,3 phase | |||||
Pro.D: | IP54 | |||||
Standard: | Schneider brand | |||||
6 | Electric Cable | 1 unit | CE certificate Cable:3*3.0+2*2.0/100m | |||
7 | Wire rope | 1 unit | Fasten Brand:100m*4Ea*8.3mm | |||
8 | Hammer | 2units | Included | |||
9 | Counter Weight | 40pcs | Excluded | |||
The feature of suspended platform:
1.The length of suspended platform can be adjusted within 1m-10m.
2.The working height can be adjusted with customers' need.
3.The voltage can be adjusted with customer's requirement.
4.Materials 3 Types :1)Aluminum alloy 2)steel 3)steel with dipping zinc or galvanized

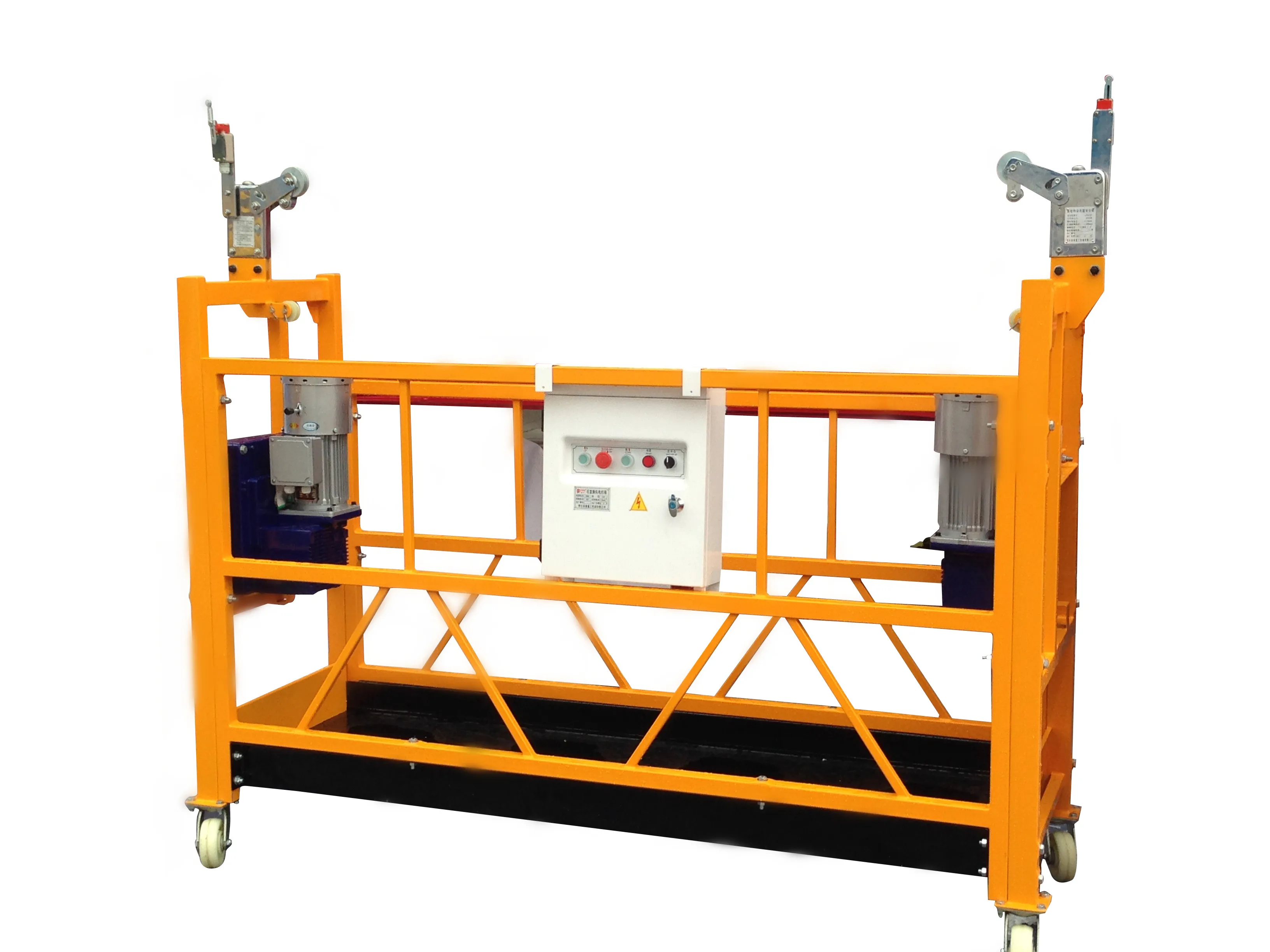

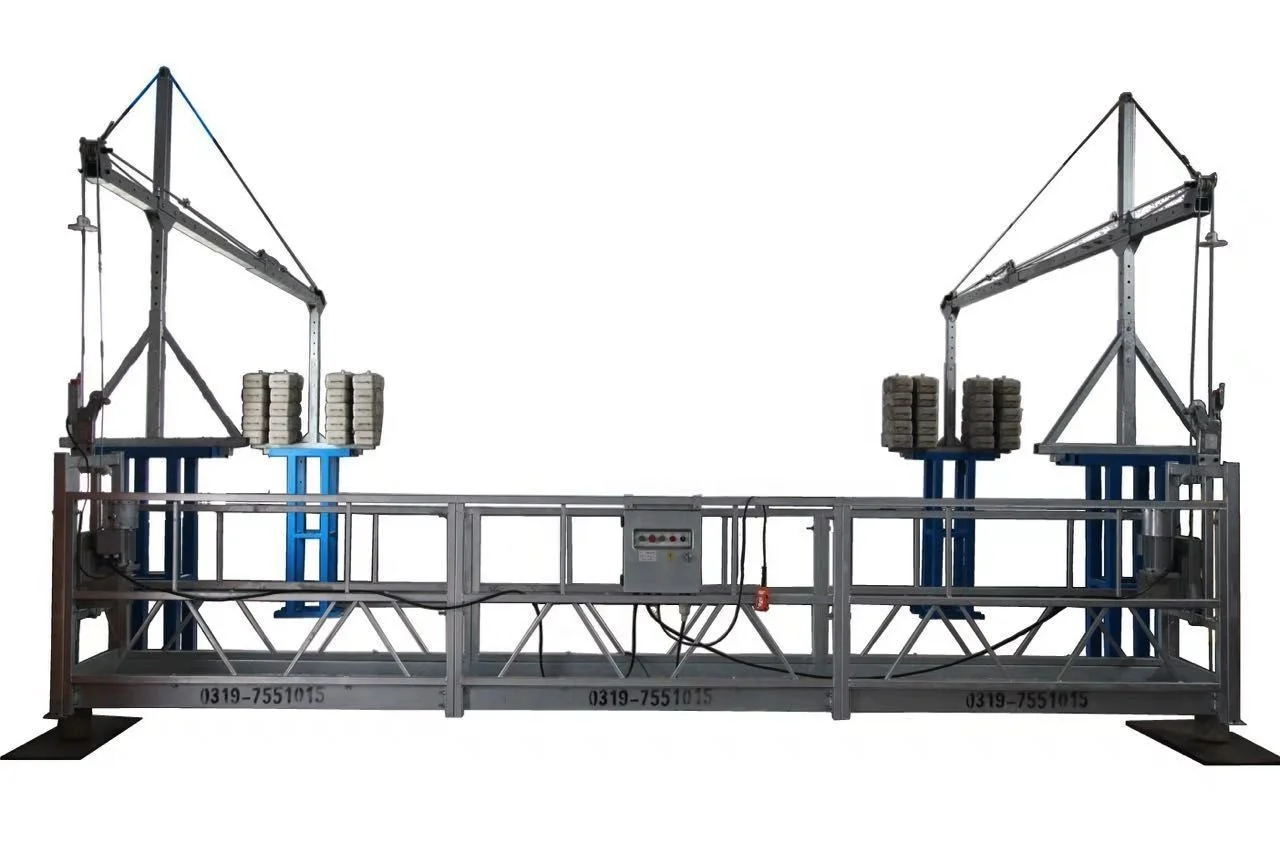

Photos of suspended platform:

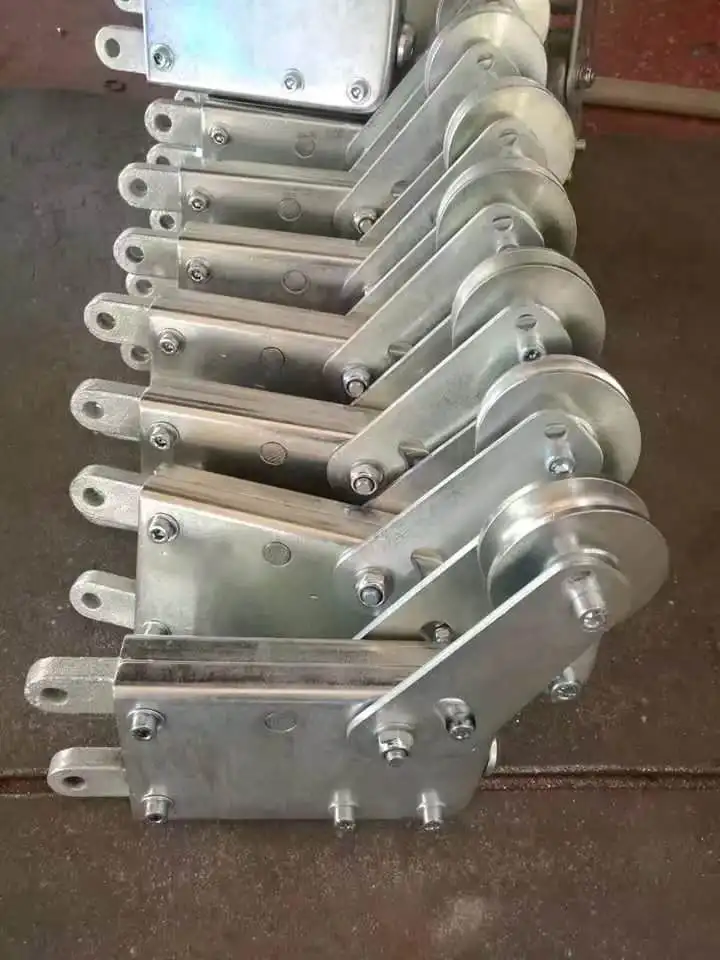

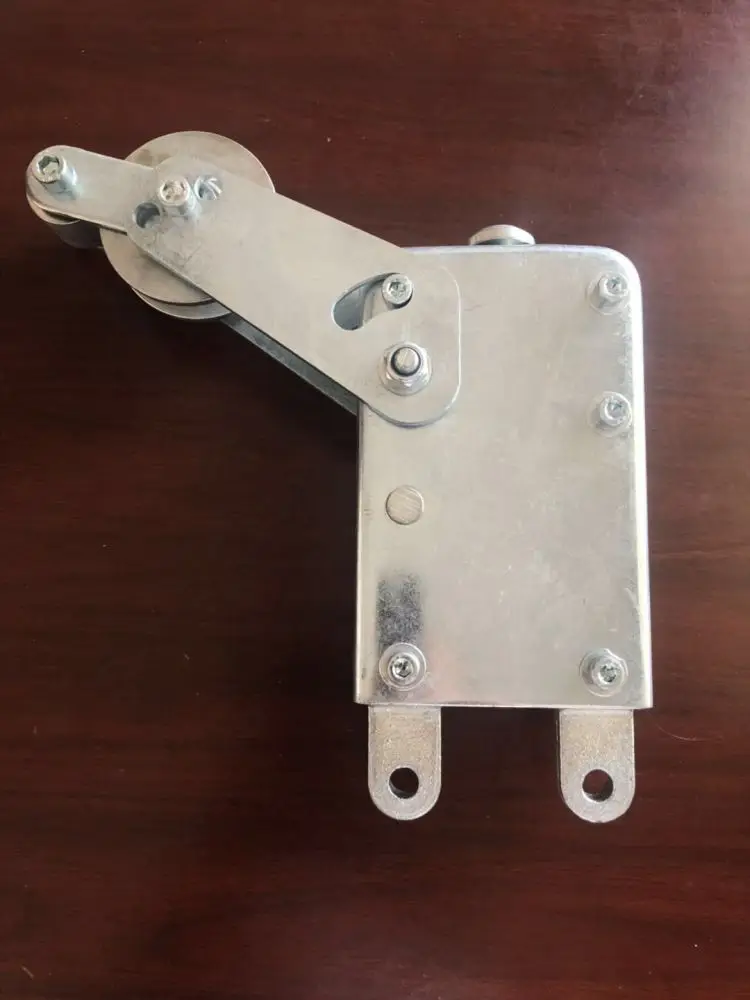

The spare parts of electric scaffolding platform:
