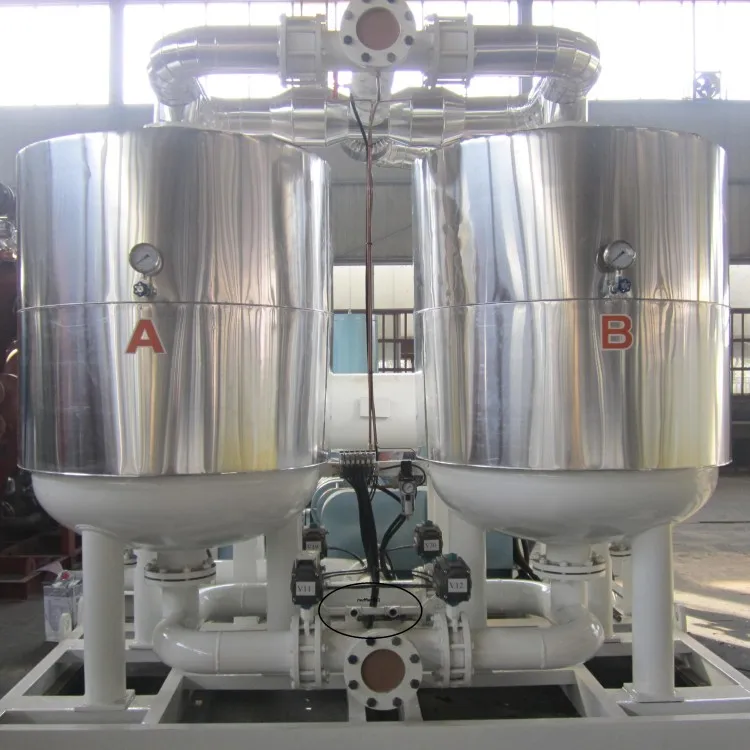

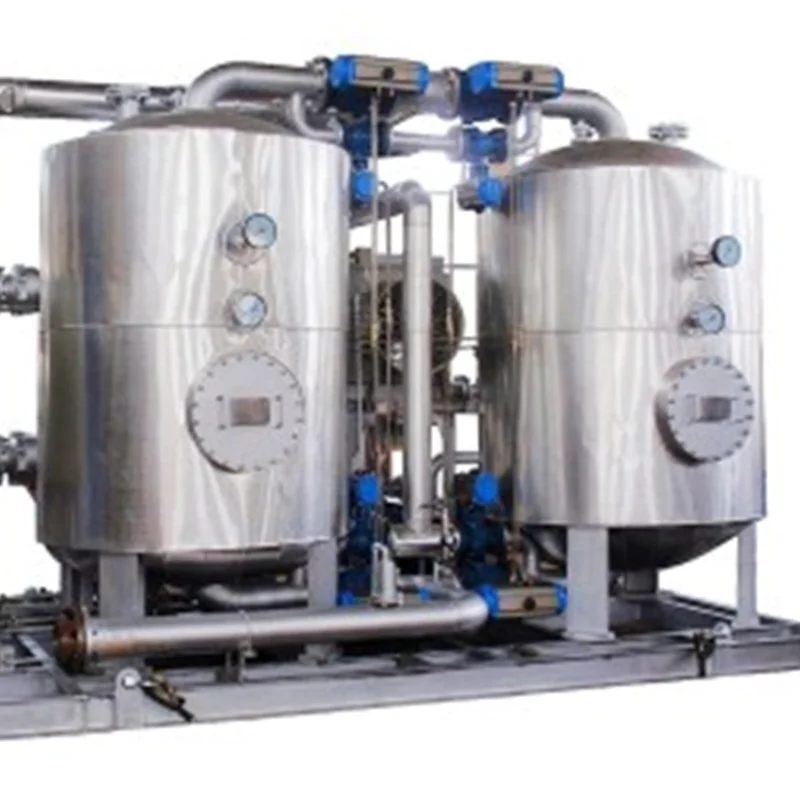

41007A GJ1 1400T/6 High Pressure Adsorption and Heat Regeneration
- Category: >>>
- Supplier: Jiangsu Wintek Industrial Technology Co. Ltd.
Share on (1601220519452):
Product Overview
Description
Tag No.:41007A
Model:GJ1-1400T/6
Name:High Pressure Adsorption and Heat Regeneration
1. Technical parameter
SN | Name | Parameter |
1.1 | Model | Micro heat regeneration dryer GJ1-1400T/6 |
1.2 | Processing medium | Natural gas (see composition table) |
1.3 | Processing flow | 84000 Nm3/h (1400 Nm3/min) |
1.4 | Regeneration air consumption | 5% rated gas processing capacity |
1.5 | Design pressure | 6 MPa |
1.6 | Work pressure | 4~5 MPa |
1.7 | Design temperature | 250℃ |
1.8 | Input temperature | ≤40℃ |
1.9 | Pressure loss | 3% inlet pressure |
1.10 | Regeneration mode | Heating regeneration |
1.11 | Dew point of finished gas (dehydration depth) | ≤ -60℃ |
1.12 | Solid particles of finished gas | ≤ 3 μM |
1.13 | Adsorbent | Molecular sieve+activated alumina |
1.14 | Adsorbent lifespan | ≥ 3 years |
1.15 | Adsorbent loading capacity | 4200kg (single tower) |
1.16 | Adsorbent loading structure | Compression type |
1.17 | Drying tower material | Q345R |
1.18 | Work mode | Fully automatic |
1.19 | Work cycle | 8 h (adjustable) |
1.20 | Power supply, power consumption | 220 V/50 Hz, 200 KW |
1.21 | Installation method and location | Overall prying installation |
1.22 | Unit noise | ≤ 80 dB (A) |
1.23 | Interface size | DN350, PN100 |
1.24 | External dimensions (mm) | L 5850×W 3200×H5900 |
WELCOME TO VISIT US
JIANGSU WINTEK INDUSTRIAL TECHNOLOGY CO., LTD.
is an innovative enterprise which focus on design, manufacture, engineering, service and trading for cryogenic industrial gas equipment and chemical energy machinery, etc. We adopt and develop the latest technology in our involved industries, and simply most advanced and cost economical plant and equipment to our valuable customers.
We are committed to package design, production and sales of cryogenic air separation equipment, as well as professional supply and export services of air separation equipment, oxygen generator, nitrogen generator, cryogenic liquid storage and transportation equipment, gasifier vaporizer, gas compressor, turbine expander, heat exchanger, natural gas treatment equipment, natural gas liquefaction equipment, carbon dioxide recovery equipment, air dryer, etc. We are the first level supplier in the field of industrial gas and stream equipment in China.
VIEW MORE »
Q1. What are your main involved products?
A: (1) Cryogenic air separation plant industry (including cryogenic oxygen/nitrogen/argon gas/liquid production plant, oxygen/nitrogen liquefier, and the configured self-cleaning air filter, air pre cooler/chiller, turbine expander, brazed aluminum plate fin heat exchanger(BAHX), cryogenic liquid pump, etc.), and startup/maintenance service
(2) Cryogenic liquid tanks and vaporizers (including stationary vacuum powder insulation tank, stationary large flat bottom tank, mobile vacuum multi-layer tank, water bath/ambient vaporizer, etc.
(3) LNG plant
(4) Hydrogen generator
(5) Heat exchangers (tube and shell type, brazed aluminum type, coil tube type)
(6) Valves and instruments (cryogenic valves, anti-corrosion valves, pressure/differential pressure transmitter, RTD, etc.)
(7) Air dryer
(8) Air blower (centrifugal type, roots type, etc.)
(9) Screw/reciprocating gas compressors
(10) Cryogenic liquid pump
(11) Other industrial gas/stream/energy relating equipment sourcing and purchasing service from China as per customers’ inquiry.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% T/T or L/C at sign before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 2-12 months after contract effect and depends on the order details.
Q5. Can you produce according to the client's request ?
A: Yes, most products are nonstandard products and designed/fabricated as per customers’ specific technical requirements.
Q6: Why work with us?
A : (1) Over 20 years’ technical experience in cryogenic air separation industry
(2) International latest technology and full supply chain for industrial gas equipment
(3) One-stop channel to China industrial gas equipment
(4) Reliable and trustable supply chain management and project implementation
