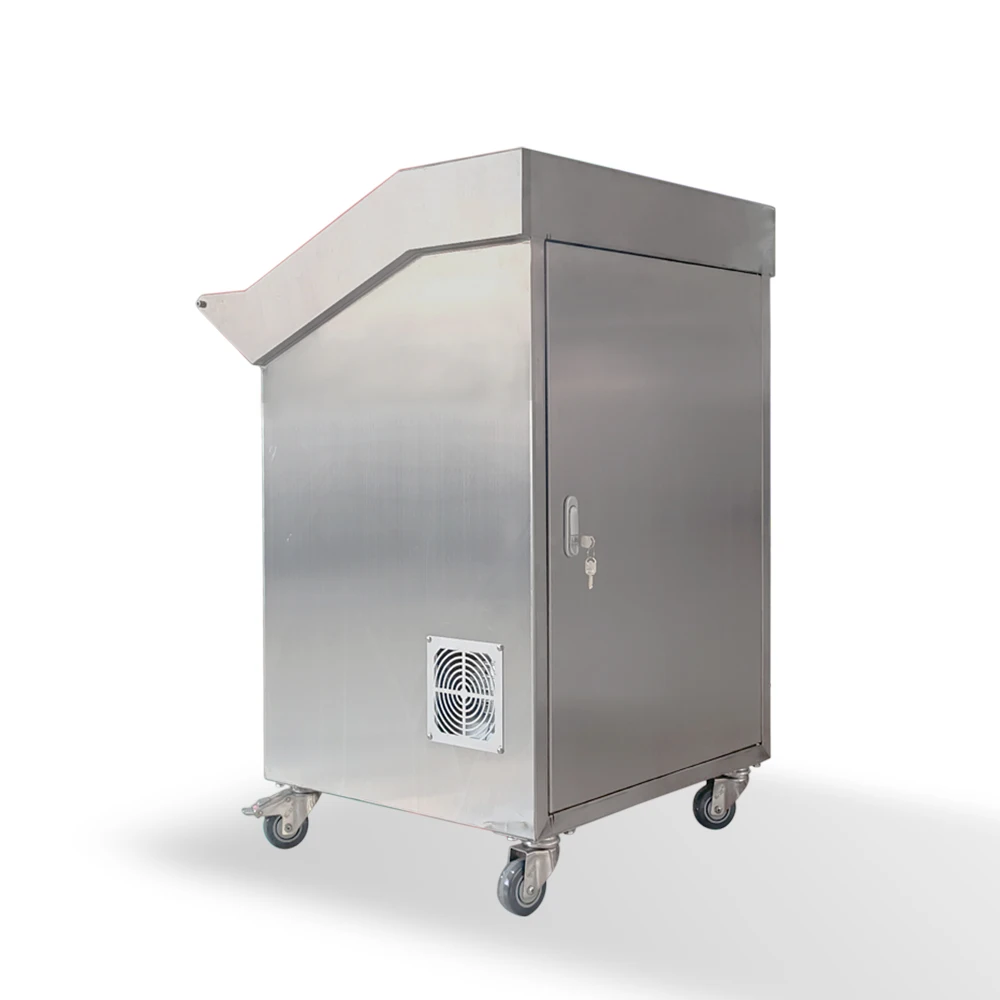

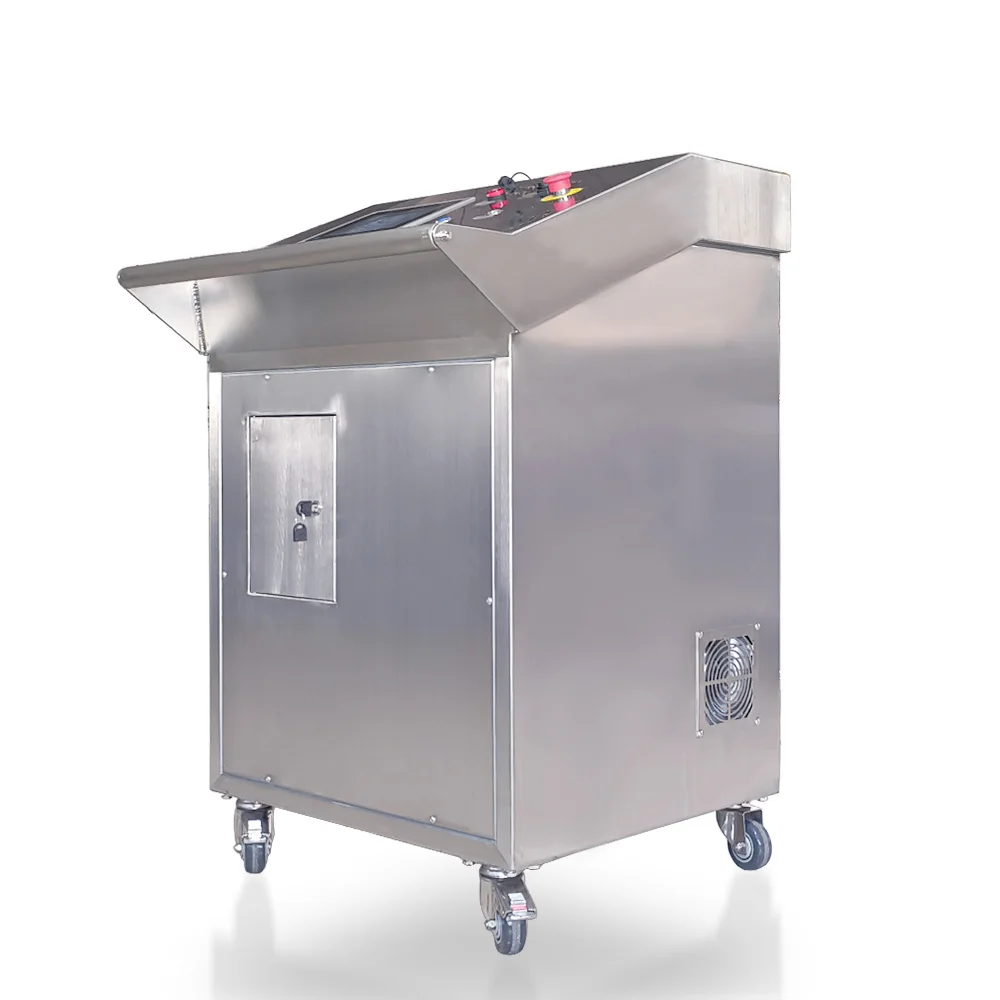

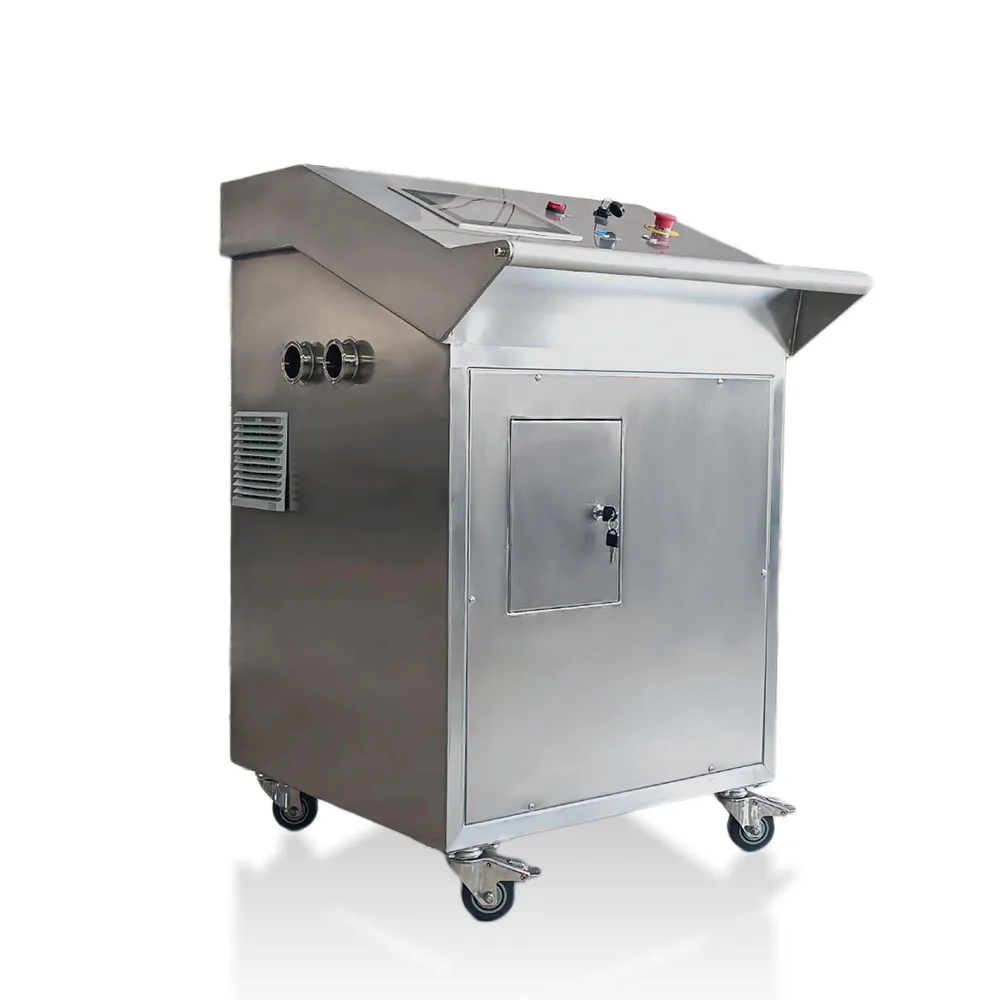

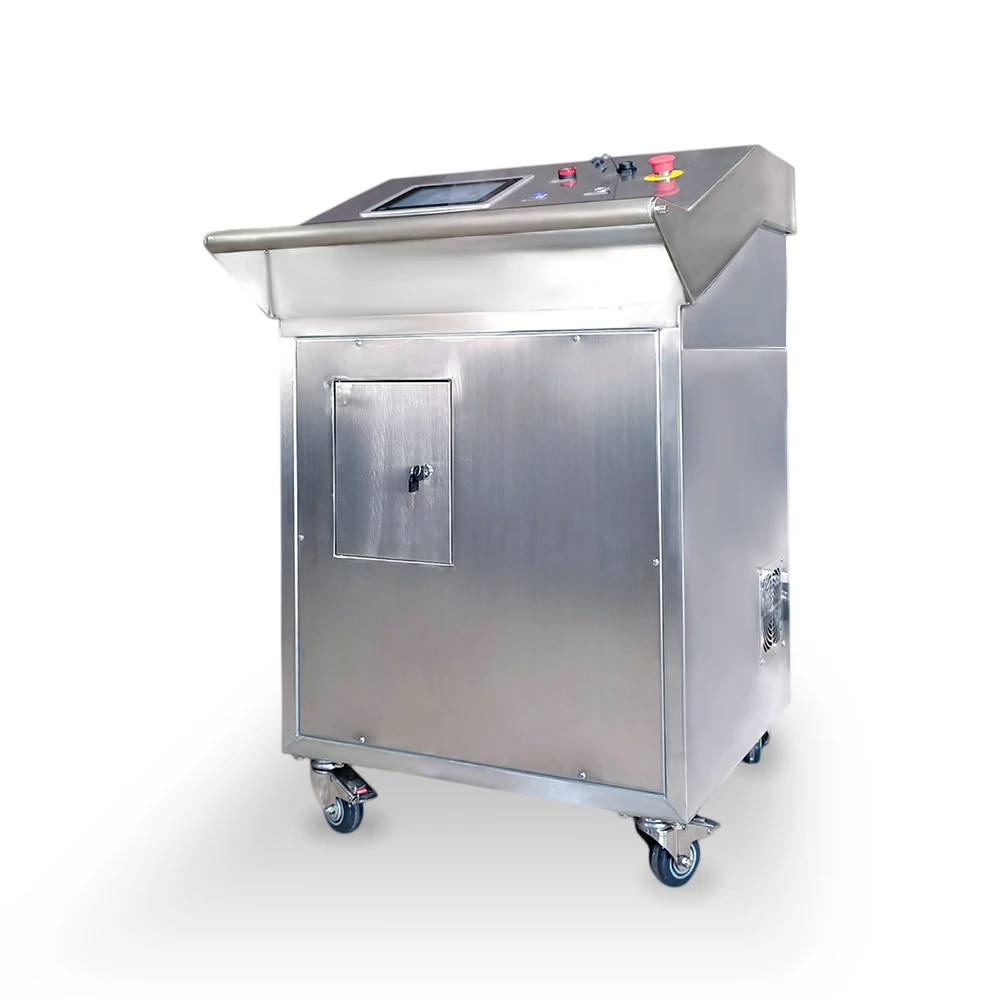

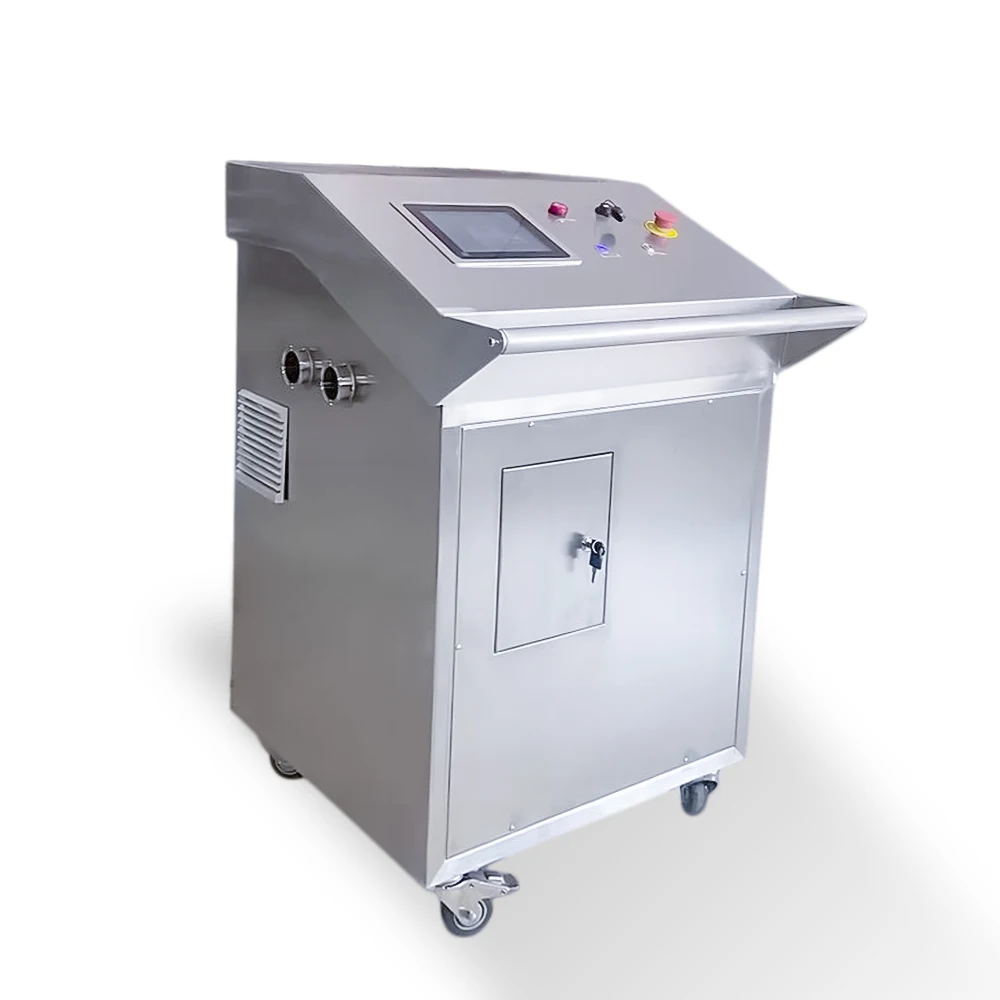

HJCLEAN TECH VHP Generator H2O2 Sterilizer with High temperature flash evaporation
- Category: >>>
- Supplier: Suzhou Hjclean Tech Co. Ltd.
Share on (1601220648337):
Product Overview
Description
Products Description
Product Introduction.
VHPS sterilizer is an equipment that forms hydrogen peroxide steam from H2O2 solution(i.e. hydrogen peroxide) through vaporizer,and then transmits it to the space to be sterilized through pipeline for biological decontamination. It is widely used for room temperature sterilization of confined space, including transfer tank,filing machine,freeze-drying machine, isolator,clean room, and other places.
Use environment.
·Ambient temperature: 10C~40 C;
·Relative humidity:0-85% RH;
·Voltage AC220V+10%;Frequency 50Hz± 1Hz;Effective grounding;
· No dust and smoke environment,
·The ambient dust concentration is not more than 100000 particles/ft3.
·Relative humidity:0-85% RH;
·Voltage AC220V+10%;Frequency 50Hz± 1Hz;Effective grounding;
· No dust and smoke environment,
·The ambient dust concentration is not more than 100000 particles/ft3.
Technical Features.
1. Four unique technologies:
High-precision flash temperature control technology and high-precision temperature control ensure that hydrogen peroxide will not decompose during evaporation and improve the sterilization efficiency of hydrogen peroxide.
Efficient biological decontamination capacity: due to the large air supply volume,the vaporized
VHP can be quickly sent into the space,so that the VHp can spread rapidly in the space,with short sterilization time and high sterilization efficiency. Unique residue removal function: the hydrogen peroxide remover can quickly reduce hydrogen
peroxide steam to water and oxygen,with short residue removal time and high efficiency.
Computerized validation software records the changes of VHP concentration,flash temperature, temperature and humidity parameters, hydrogen peroxide weight and other parameters in the sterilization process to form a report.
2. Functional features:
High-precision flash temperature control technology and high-precision temperature control ensure that hydrogen peroxide will not decompose during evaporation and improve the sterilization efficiency of hydrogen peroxide.
Efficient biological decontamination capacity: due to the large air supply volume,the vaporized
VHP can be quickly sent into the space,so that the VHp can spread rapidly in the space,with short sterilization time and high sterilization efficiency. Unique residue removal function: the hydrogen peroxide remover can quickly reduce hydrogen
peroxide steam to water and oxygen,with short residue removal time and high efficiency.
Computerized validation software records the changes of VHP concentration,flash temperature, temperature and humidity parameters, hydrogen peroxide weight and other parameters in the sterilization process to form a report.
2. Functional features:
The sterilization range is wide and the space is large, and the large space can be quickly and evenly sterilized;
Sterilization parameter memory storage function, which can be called directly during sterilization;
The residue is small,and finally decomposed into water and oxygen through the hydrogen peroxide decomposer;
Short sterilization time and low operation cost; Start the machine at a fixed time,reserve the time,and set the sterilization time. With networking function, it can control the sterilization process through the network, and multiple sets can form a LAN.
The residue is small,and finally decomposed into water and oxygen through the hydrogen peroxide decomposer;
Short sterilization time and low operation cost; Start the machine at a fixed time,reserve the time,and set the sterilization time. With networking function, it can control the sterilization process through the network, and multiple sets can form a LAN.

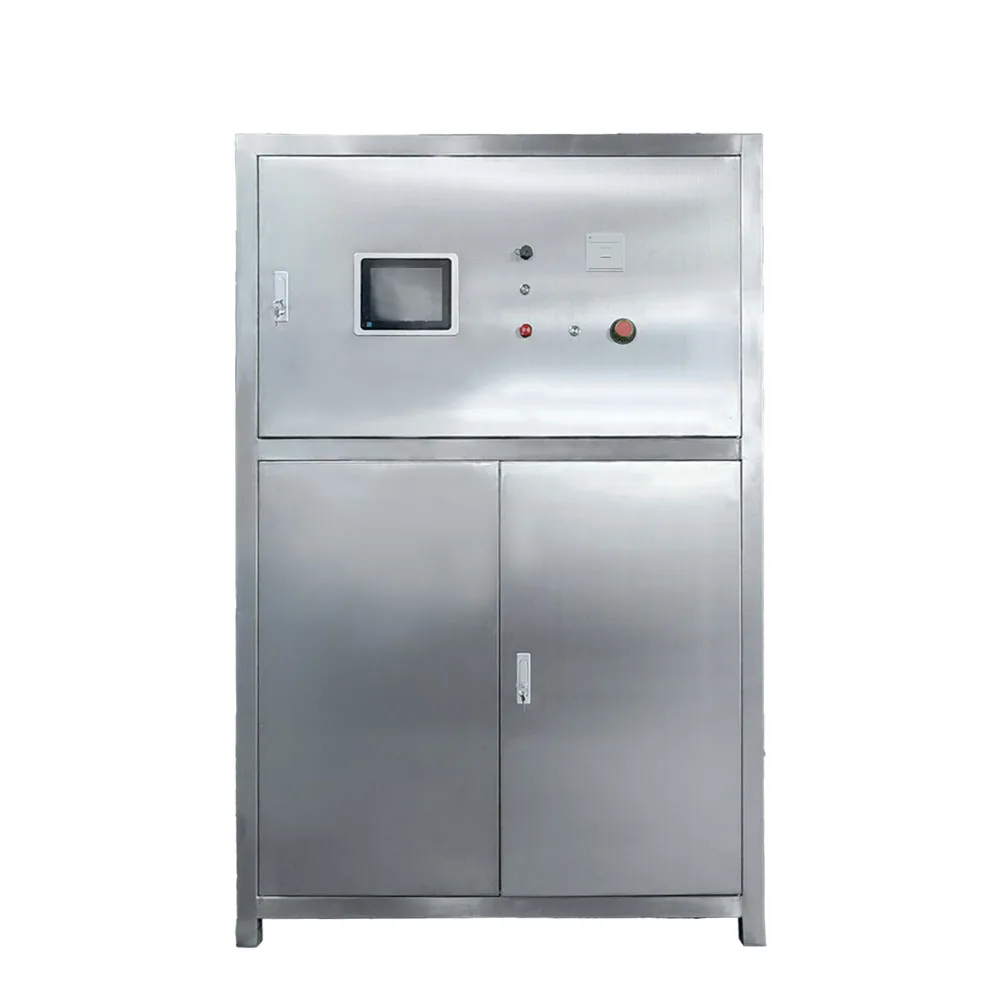

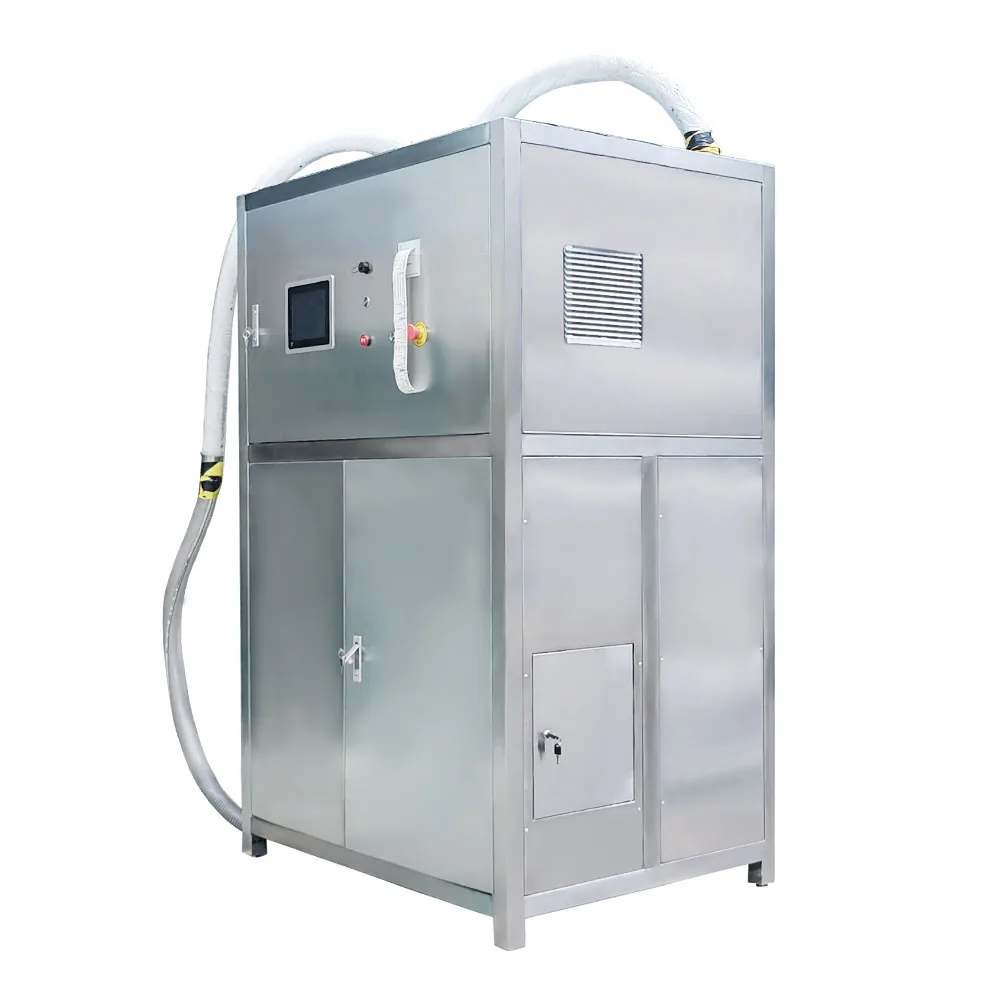

VHPS-50
VHPS-100
VHPS-200
Product Parameter
model / parameter | VHPS-50 | VHPS-100 | VHPS-200 | ||
Rated vaporization capacity | ≥5ml/min | ≥10ml/min | ≥20ml/min | ||
Air flow | ≥80m³/h | ≥120m³/h | ≥200m³/h | ||
Flash power | 1500W | 3000W | 5000W | ||
Maximum liquid storage capacity | 1L | 2L | 4L | ||
Continuous sterilization time | 200m³/h | W690*D850*H1240 | |||
concentration of hydrogen peroxide solution | 30% | 110kg | |||
Biological decontamination capacity | 6lg | AC220V/50Hz/2500W | |||
Power supply | AC220V,50Hz | ||||
Overall dimension (mm) | W700*D530*H1300 | W800*D650*H1350 | W850*D750*H1450 | ||
weight (kg) | 45 | 75 | 115 | ||
Maximum power consumption | 1.8kw | 3.5kw | 5.5kw | ||

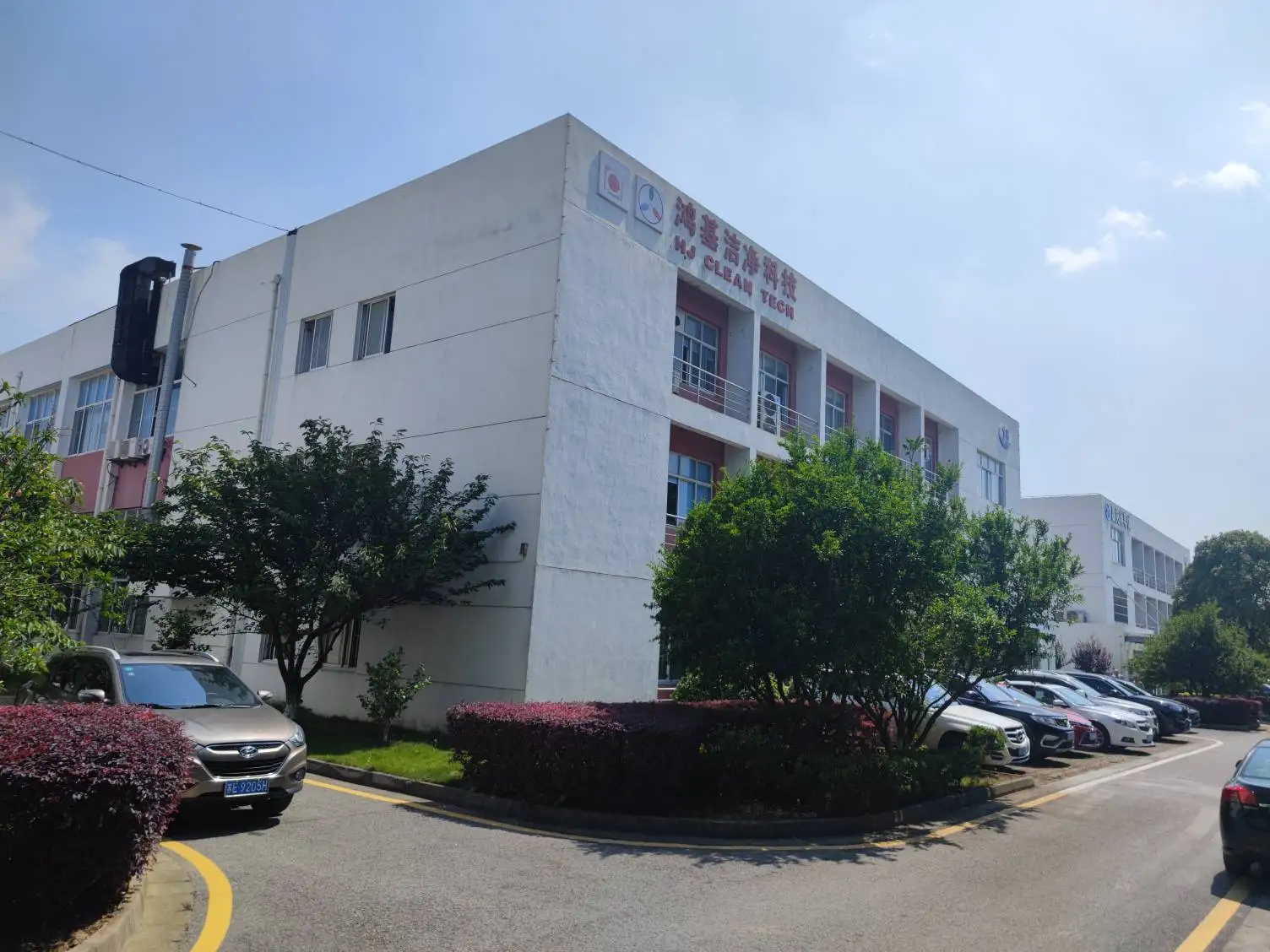

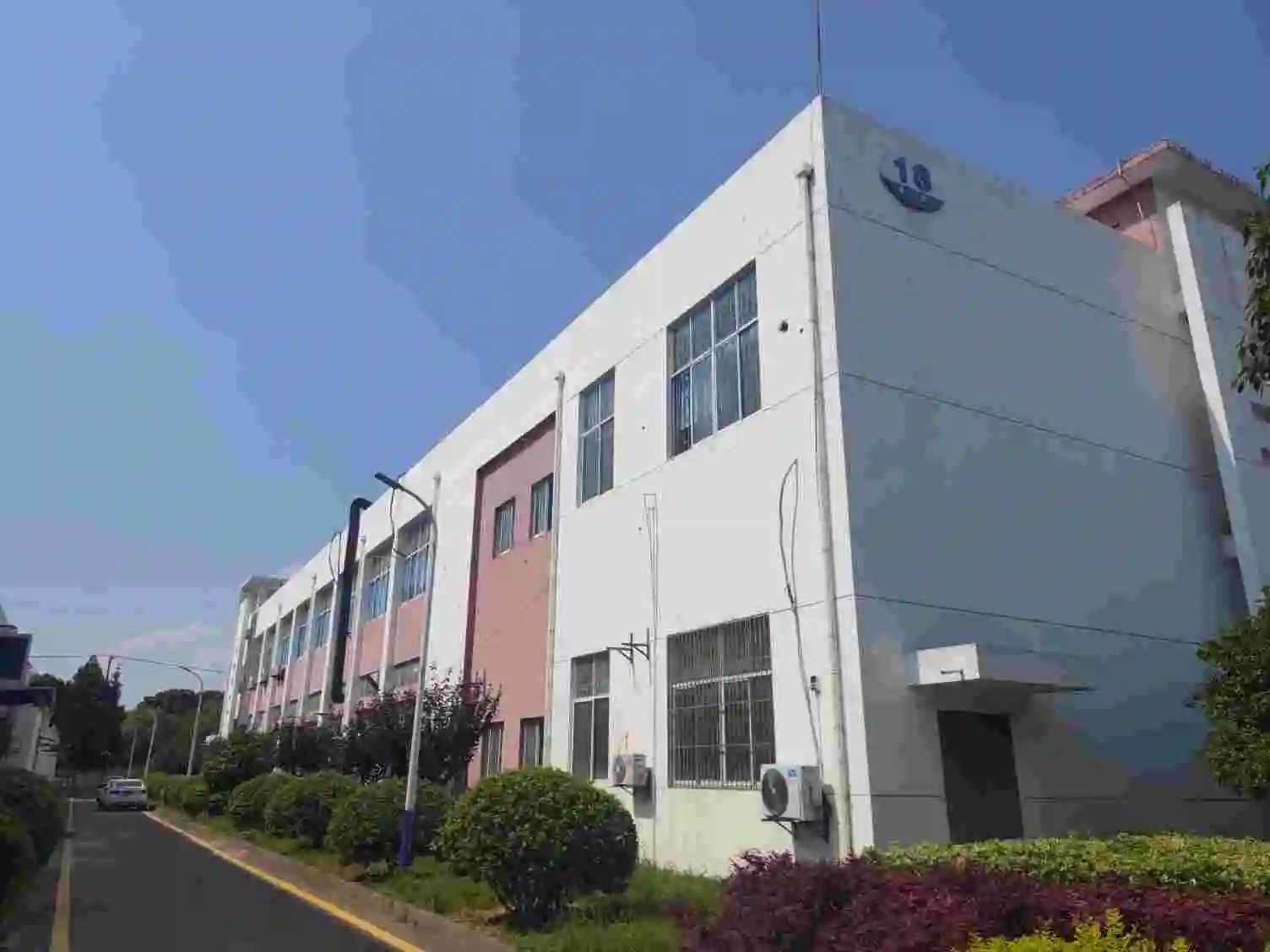

Company Profile
Suzhou HJClean.
SUZHOU HJCLEAN TECH CO,. LTD.was established in Suzhou, Jiangsu Province, the hometown of purification in China
in 2004.located in Building 18, Loufeng Venture Capital Industrial Park, Has been focusing on the research and
development, production, sales, and customized services of sterile ultra-clean equipment, testing instruments, and
cleaning engineering, The company has more than 30 patents, such as IS09001 certification, product CE certification, GMP
certification, etc, The company is a member of the China Clean Room Standards Committee, and has established the
Jjiangsu Engineering Technology Research Center. We are in a leading position in the field of clean rooms.
The company's products include suspended particle online monitoring system, airborne particle counter, air sampler,
online detection of plankton, air volume meter, aerosol generator and photometer, glove integrity tester, dispensing
booth, sterile isolator, negative pressure isolator, positive and negative pressure chamber, VHP sterilization pass box,
VHPS sterilizer, BIBO Bag in Bag Out Safe Replacement Filter Box, mist shower room, laminar flow hood, clean transfer
vehicle, ultra-clean bench, biological safety cabinet Mobile purifiers, air purification and disinfection machines, drying
boxes, clean wardrobes, FFU, dynamic pass box, static pass box, air shower room, and other products have been exported
to various countries around the world since their establishment.
in 2004.located in Building 18, Loufeng Venture Capital Industrial Park, Has been focusing on the research and
development, production, sales, and customized services of sterile ultra-clean equipment, testing instruments, and
cleaning engineering, The company has more than 30 patents, such as IS09001 certification, product CE certification, GMP
certification, etc, The company is a member of the China Clean Room Standards Committee, and has established the
Jjiangsu Engineering Technology Research Center. We are in a leading position in the field of clean rooms.
The company's products include suspended particle online monitoring system, airborne particle counter, air sampler,
online detection of plankton, air volume meter, aerosol generator and photometer, glove integrity tester, dispensing
booth, sterile isolator, negative pressure isolator, positive and negative pressure chamber, VHP sterilization pass box,
VHPS sterilizer, BIBO Bag in Bag Out Safe Replacement Filter Box, mist shower room, laminar flow hood, clean transfer
vehicle, ultra-clean bench, biological safety cabinet Mobile purifiers, air purification and disinfection machines, drying
boxes, clean wardrobes, FFU, dynamic pass box, static pass box, air shower room, and other products have been exported
to various countries around the world since their establishment.
The company has a professional research and development, design and experienced technical team, equipped with
advanced production equipment and testing instruments.In addition, the company has also introduced an advanced
management model, which gives us sufficient confidence to ensure to users that the products we provide to users are of
high quality and cost-effective.The company adheres to the tenet of customer first, technologyleading, service first, and
pioneering spirit, and wholeheartedly serves domestic and foreign enterprises.
advanced production equipment and testing instruments.In addition, the company has also introduced an advanced
management model, which gives us sufficient confidence to ensure to users that the products we provide to users are of
high quality and cost-effective.The company adheres to the tenet of customer first, technologyleading, service first, and
pioneering spirit, and wholeheartedly serves domestic and foreign enterprises.
