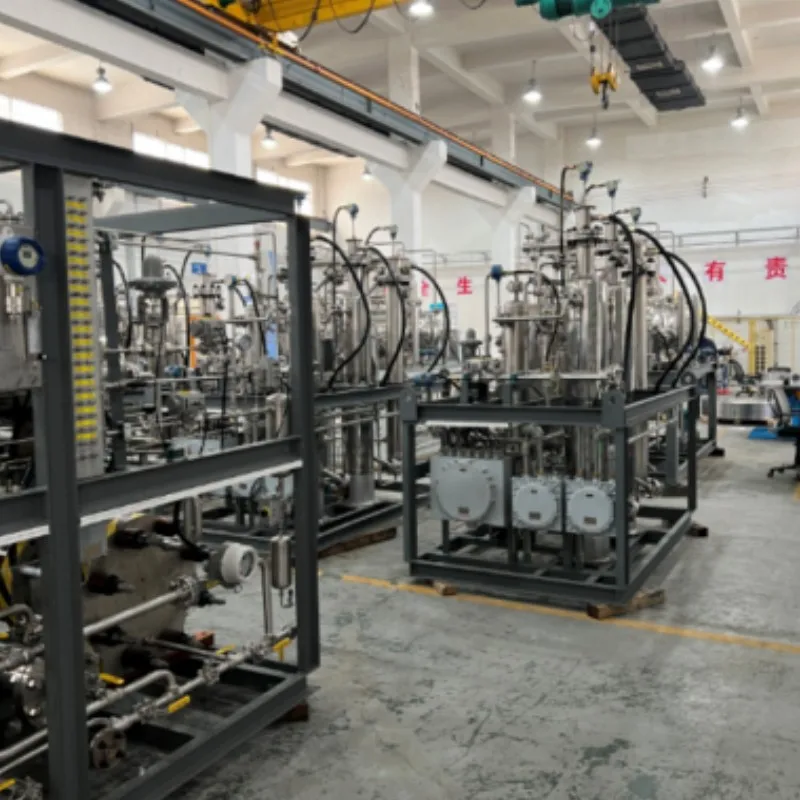

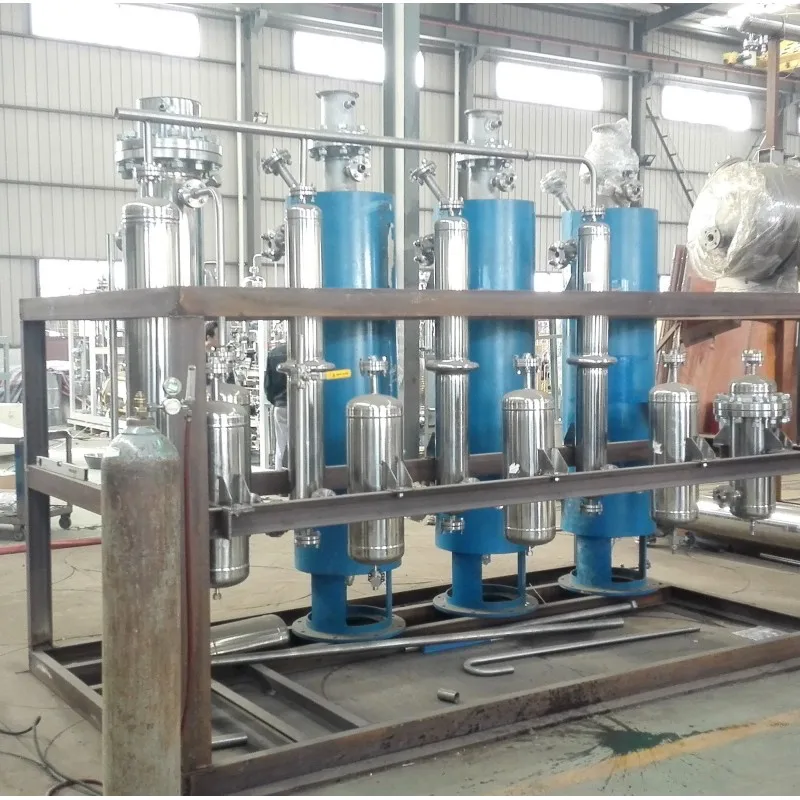

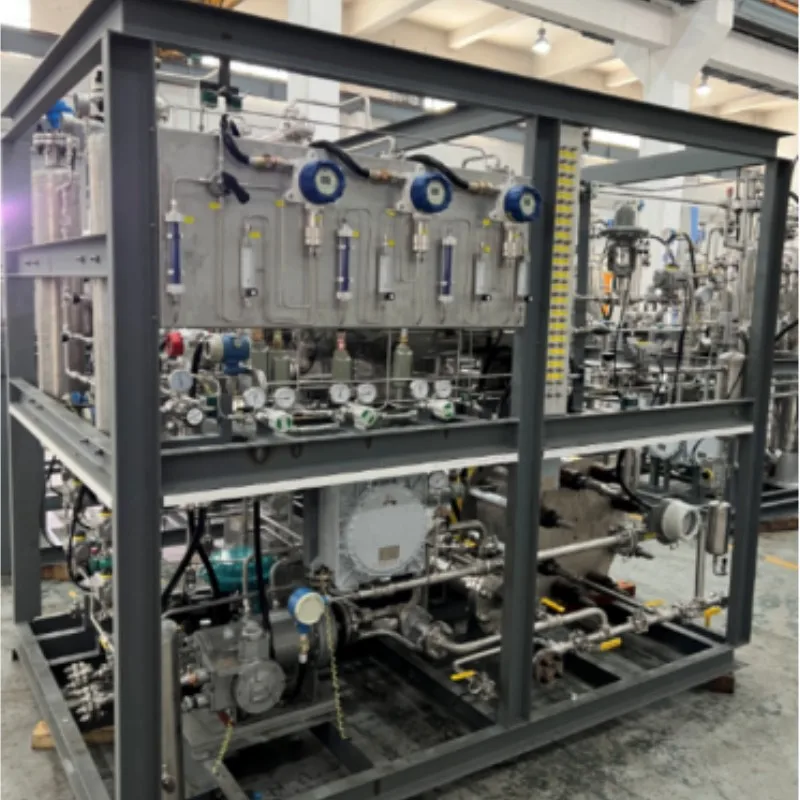

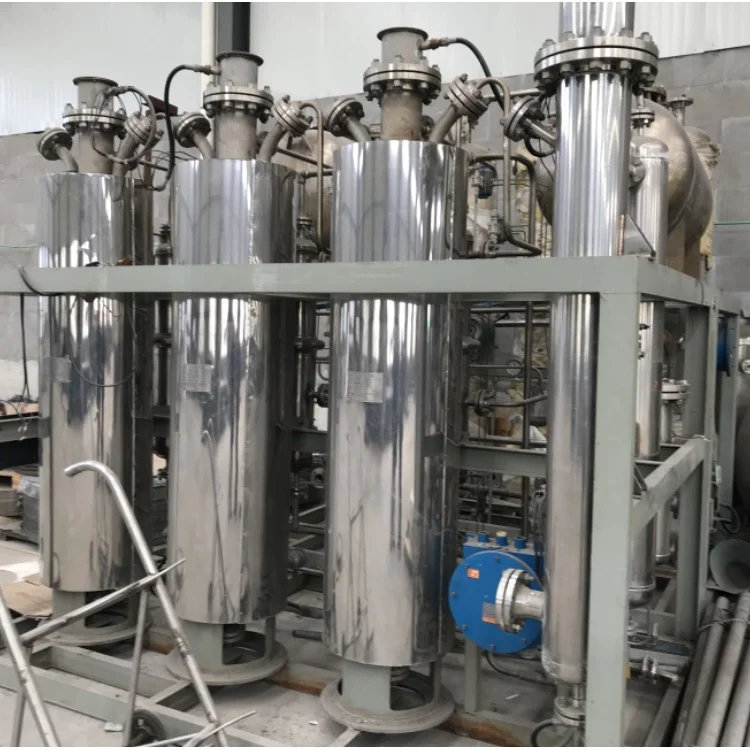

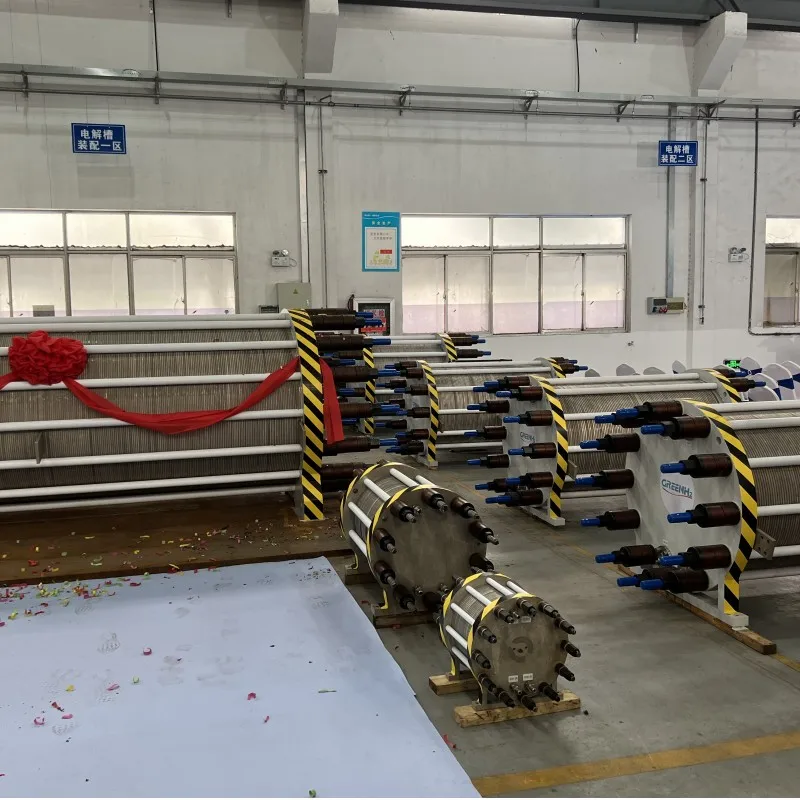

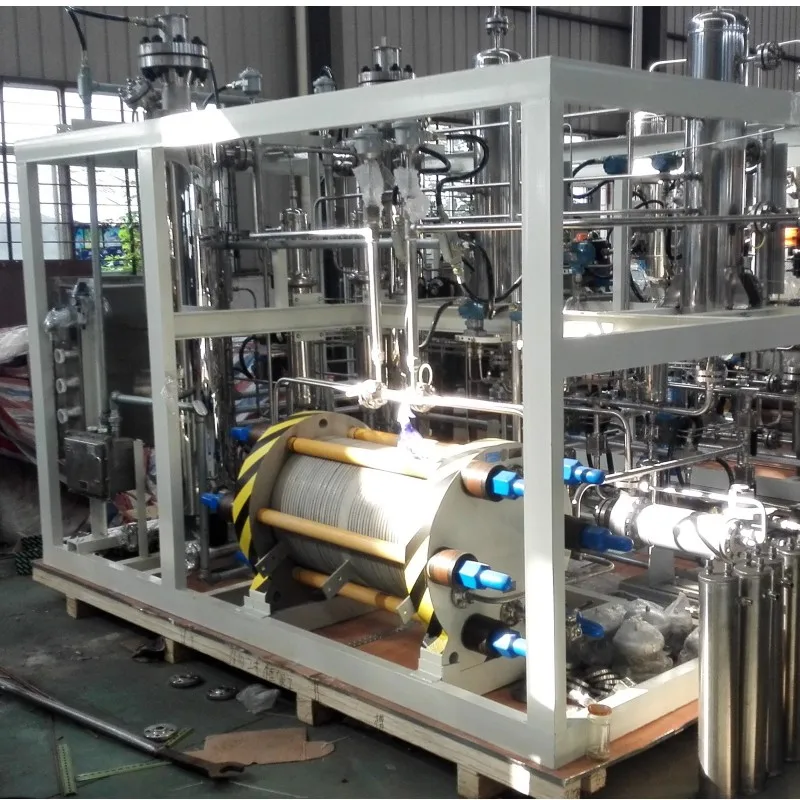

A004 H 3 Hydrogen Generator

Product Overview

Description

Tag No.:21009A

Model:H-500×2

Name:Hydrogen Generator



1. General performance and utilities/consumables consumption

1	General performance
	Description			Output	Purity		Pressure		Temperature	Dew Point
	Gas hydrogen			≥500Nm3/hr×2	≥99.999% H2		1.6MPa G		30~40°C	≤-60°C
	Gas oxygen			≥250Nm3/hr×2	≥99.5% O2		1.6MPa G		30~40°C	≤-60°C
	Note: 1.1The output flow Nm3 is volume under normal conditions (0°C, 0.1013 MPa A). 1.2 The performance is based on design basis of clause 1 in this technical annex.1.3 The output flow of the hydrogen/oxygen is adjustable between 30~100% of total installed power.
2	Electricity requirement
	SN		Equipment			Installed power/Shaft power, KW High Voltage		Installed power/Shaft power, KW Middle Voltage/Low Voltage

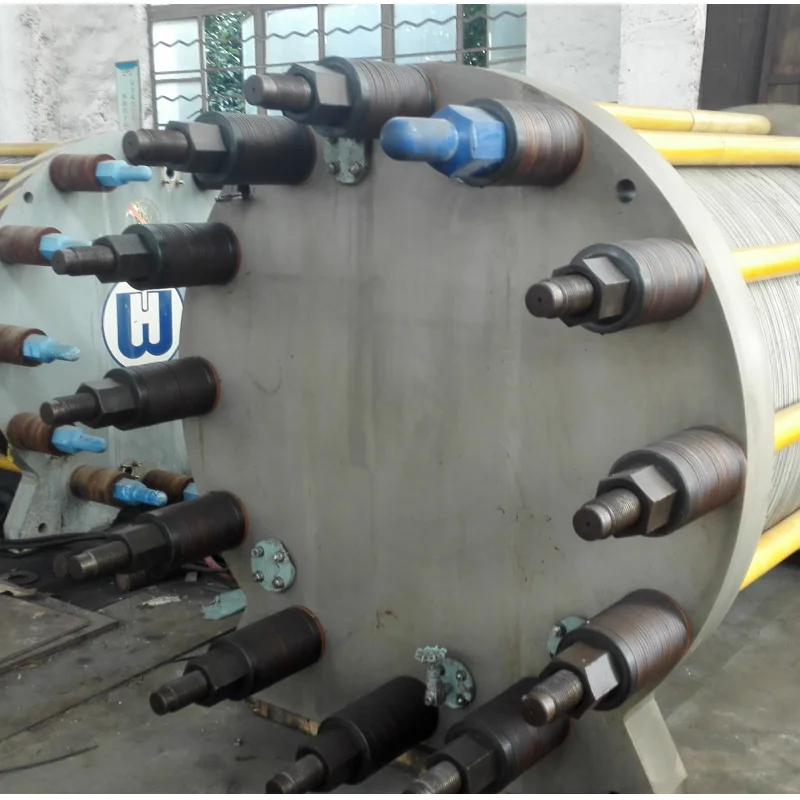

	2.1		Rectifier cabinet (Water electrolyzer)			3500×2/2300×2
	2.2		Lye pump					15
	2.3		Feed water pump					10
	2.4		De-oxygen tower					40
	2.5		Hydrogen dryer heater					100
	2.6		De-hydrogen tower					20
	2.7		Oxygen dryer heater					50
	2.8		Instrumentation control system					5
	2.9		Demineralized water machine					10×2
	2.10		Gas hydrogen compressor					(45+3+1+1.1) ×4
	2.11		Gas oxygen compressor					(45+3+1+1.1) ×2
	2.12		Water cooling system					90
	2.13		Water chiller					128.2
	2.14		Chilled water recycle pump					15
	2.15		Instrumental air system					6.5
			Total installed power			~7800.3
			Tentative total consumption power (Based on shaft power)			~5400.3
			Rated specific power consumption (DC)			4.4+/-0.2 KWH/Nm3 H2
			Note: N2.1: Standard industrial power consumption tolerance: + 4% N2.2: Preliminary for reference only, and may adjust during detail design stage.



WELCOME TO VISIT US









VIEW MORE »











Q1. What are your main involved products?

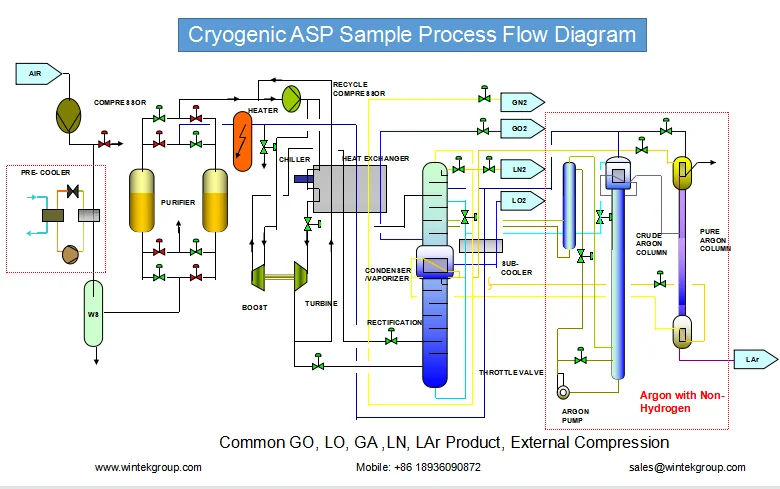

A: (1) Cryogenic air separation plant industry (including cryogenic oxygen/nitrogen/argon gas/liquid production plant, oxygen/nitrogen liquefier, and the configured self-cleaning air filter, air pre cooler/chiller, turbine expander, brazed aluminum plate fin heat exchanger(BAHX), cryogenic liquid pump, etc.), and startup/maintenance service
