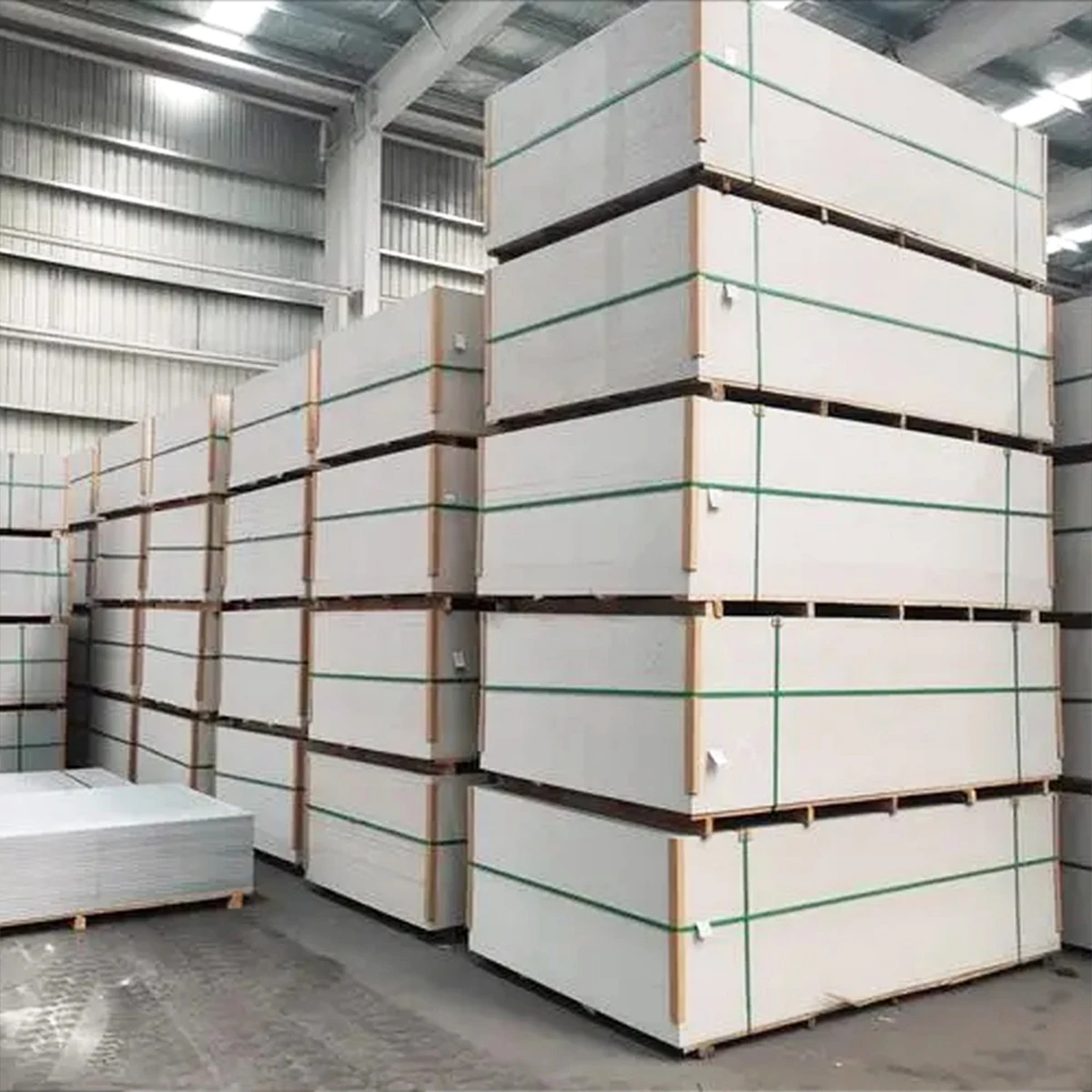

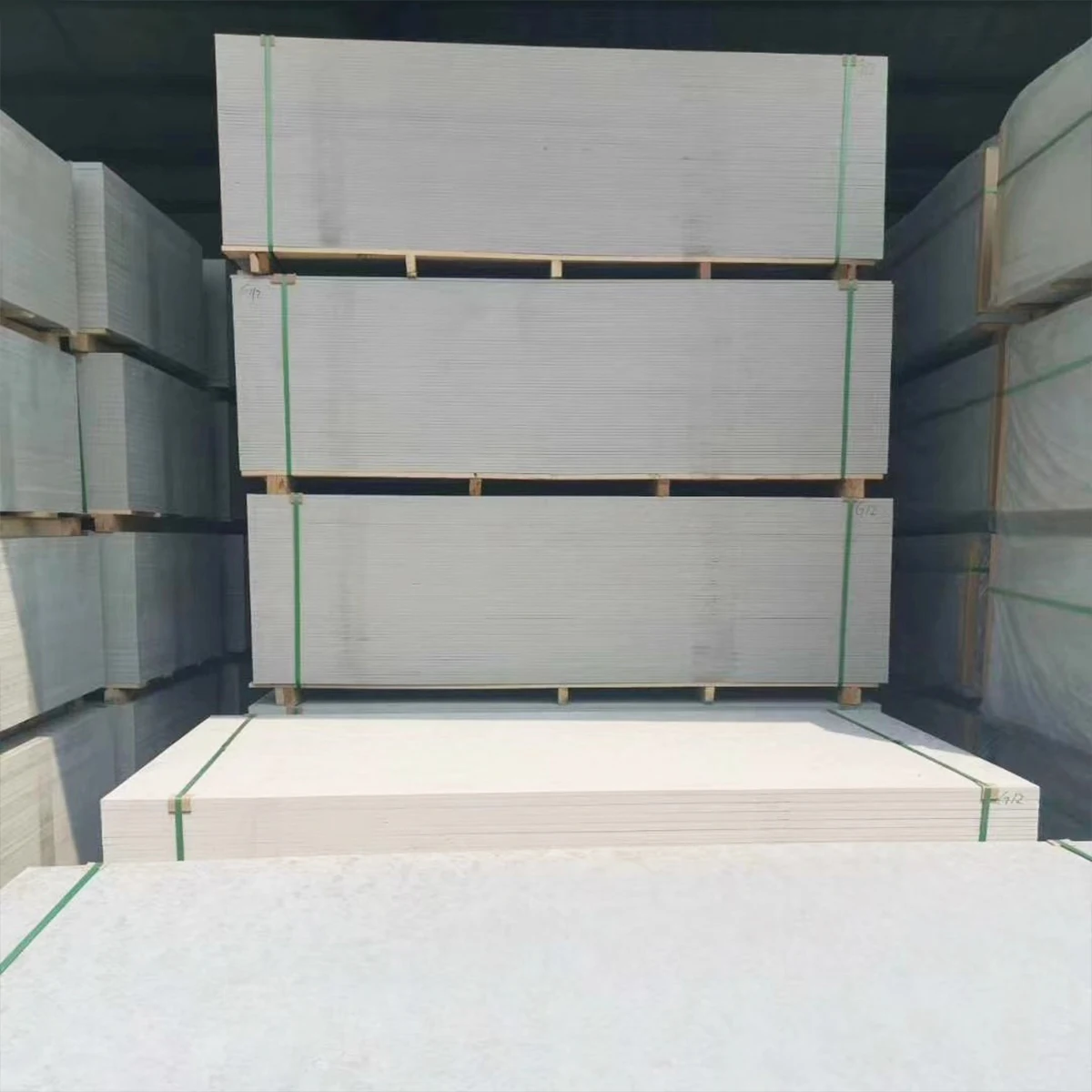

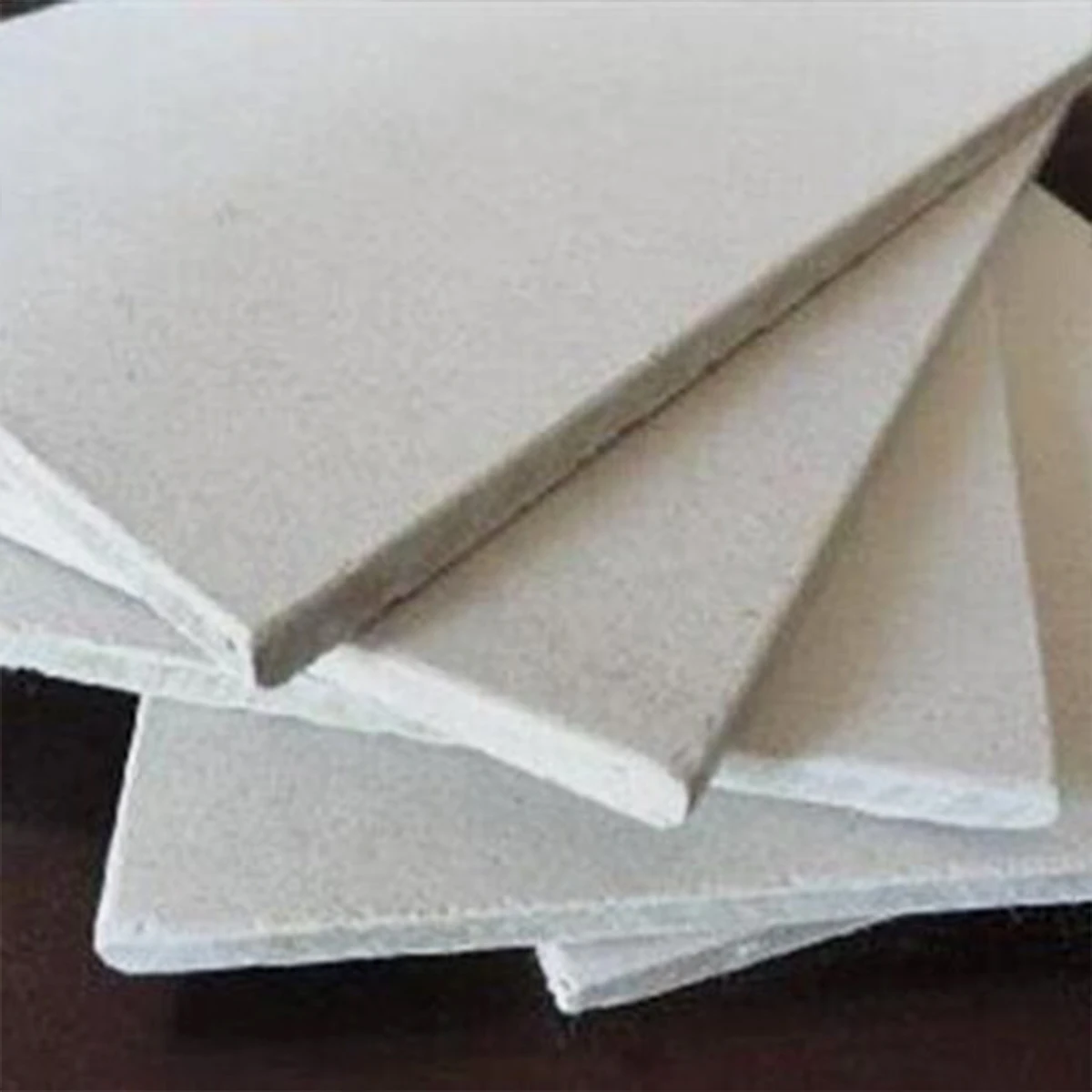

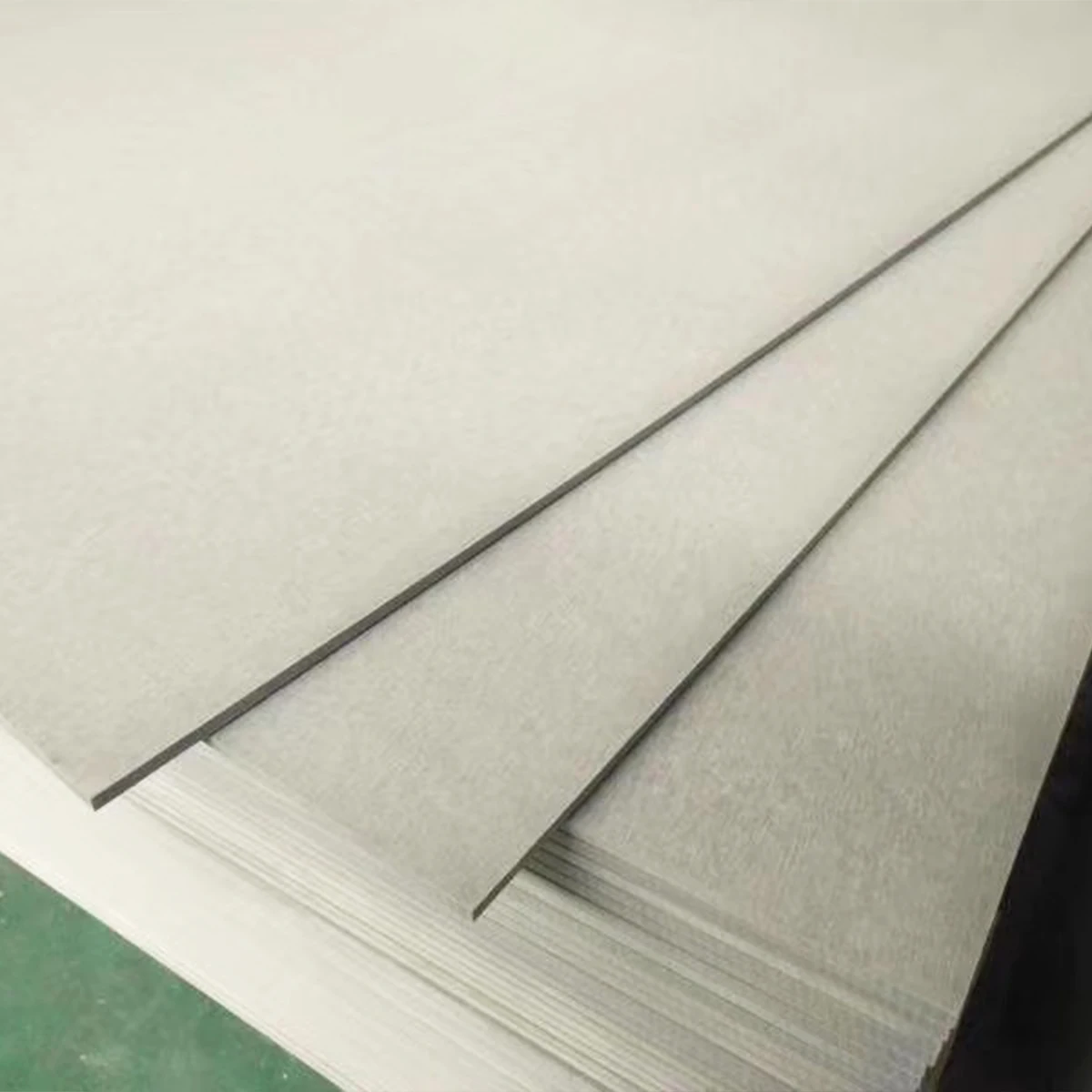

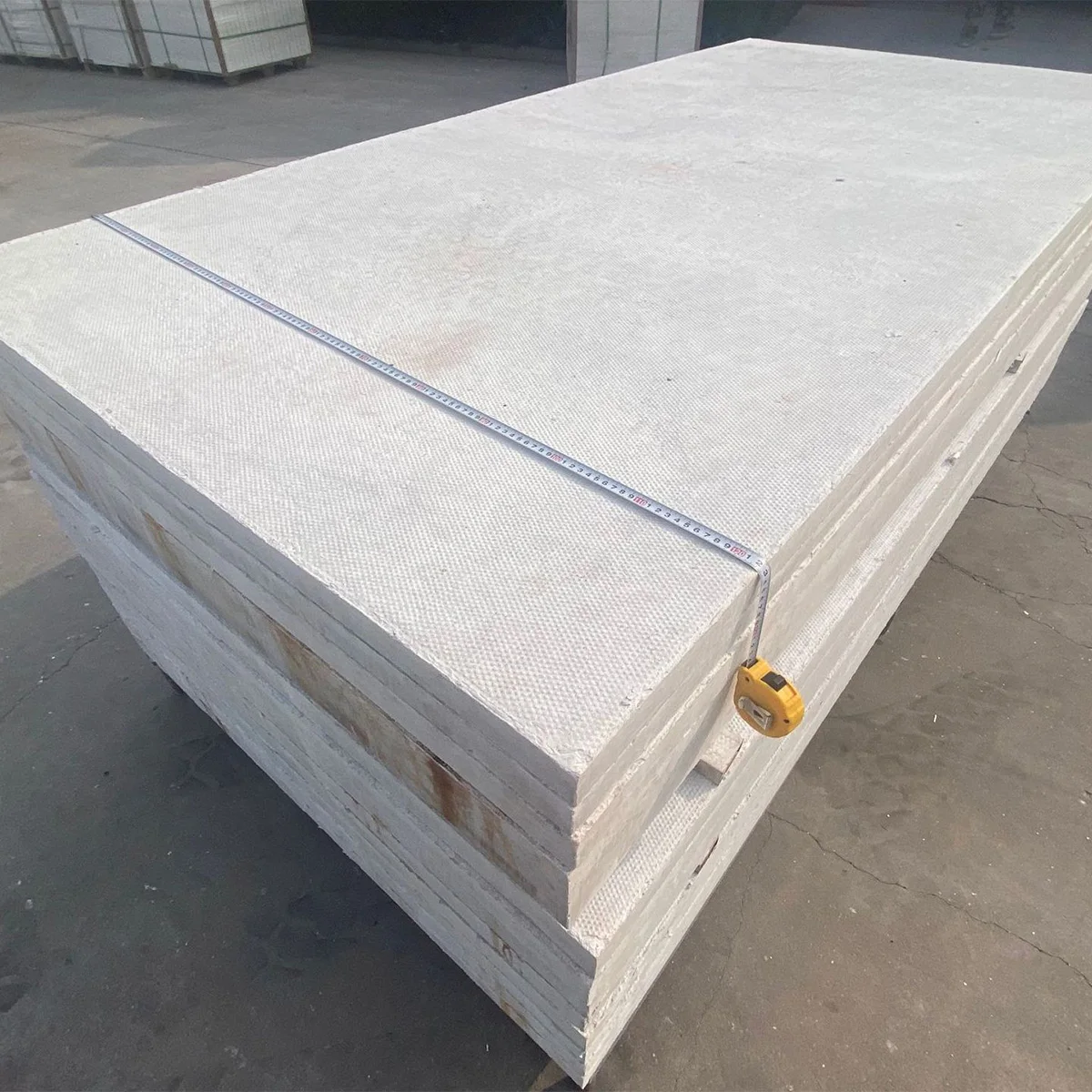

Calcium silicate board fireproof inorganic material lightweight high density air duct coating calcium silicate board
- Category: >>>
- Supplier: Shenyang Vhandy Technology Co. Ltd.
Share on (1601220807771):
Product Overview
Description
Product Description

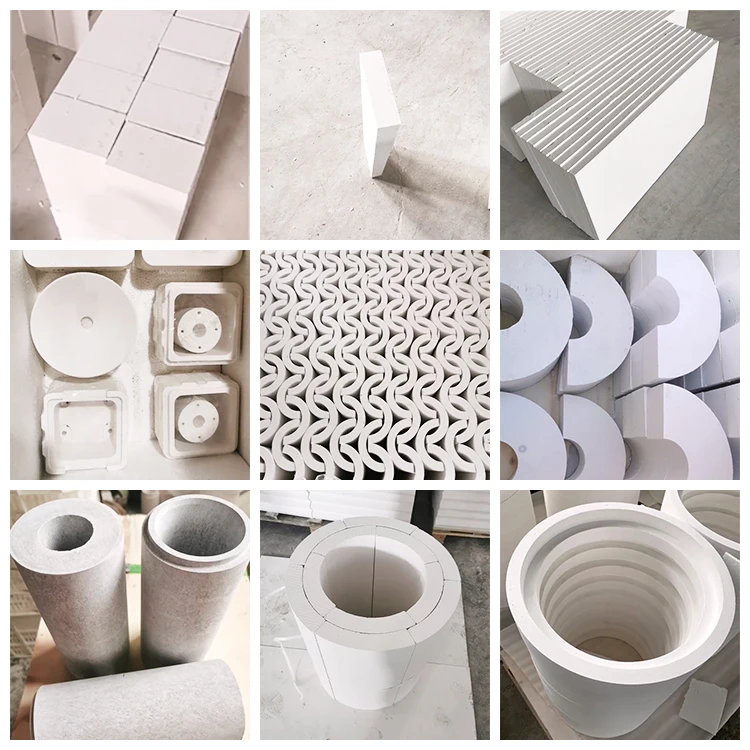

1. High density calcium silicate Carbon/Glass firber reinforced board
2. Non-stick liquid aluminum calcium silicate Special shaped parts
3. 1000℃/1100℃ High temperature calcium silicate board

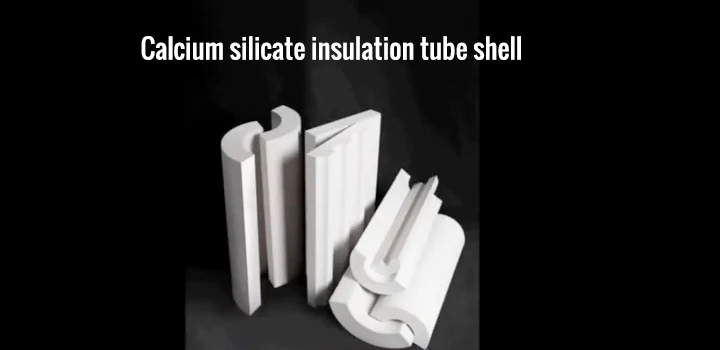

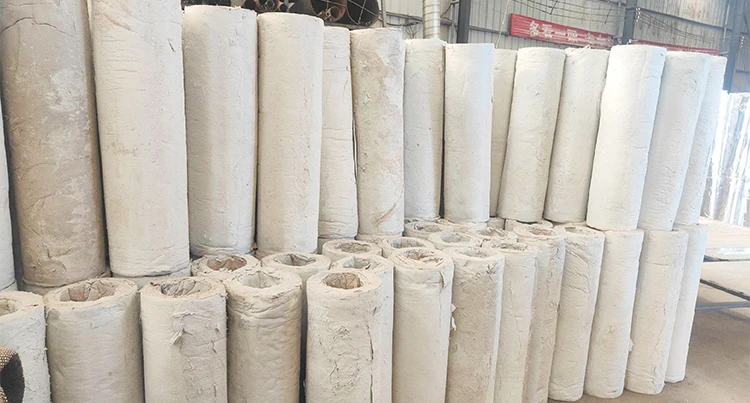

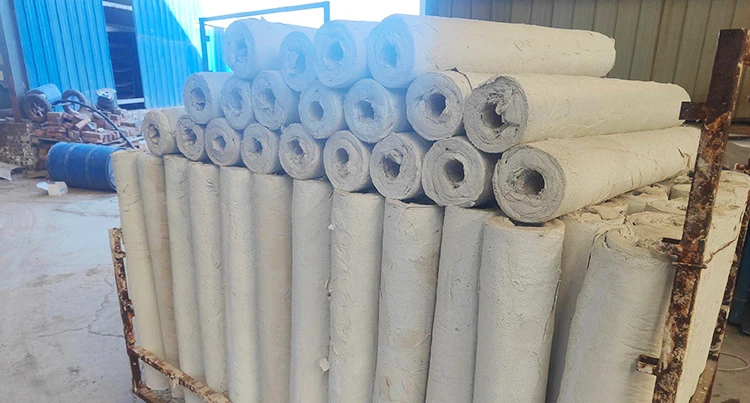

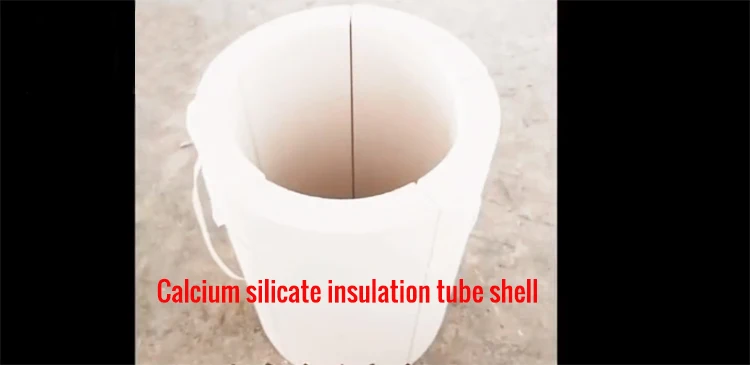

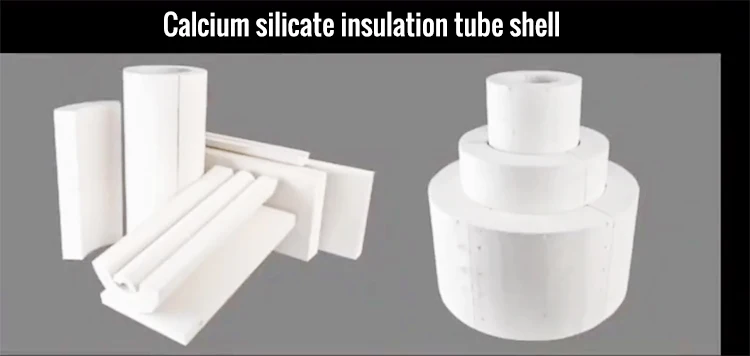

4. 650℃ Micropore calcium silicate insulation board/pipes
5. Calcium silicate fire-proof board for high temperature
6. Fire-proofing binder for calcium silicate boards
2. Non-stick liquid aluminum calcium silicate Special shaped parts
3. 1000℃/1100℃ High temperature calcium silicate board
4. 650℃ Micropore calcium silicate insulation board/pipes
5. Calcium silicate fire-proof board for high temperature
6. Fire-proofing binder for calcium silicate boards

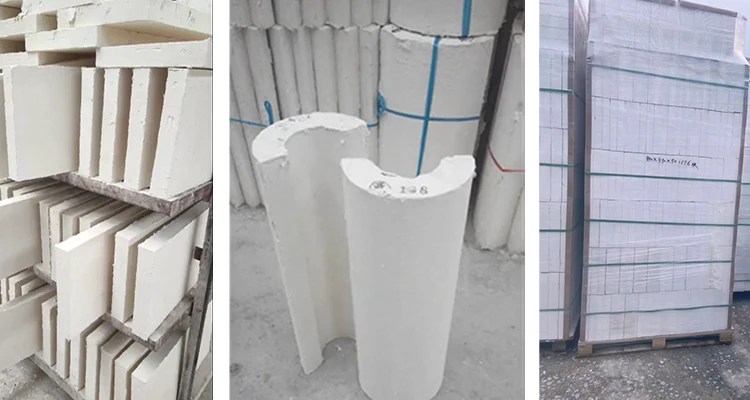

Middle low temperature type Calcium Silicate Products
650 ℃ of non-asbestos calcium silicate board/pipes is a kind of the siliceous material (the main composition is SiO2, such as quartz powder, fly ash, diatomite, etc.), calcium material (ingredient is CaO, such as lime, calcium carbide, cement, etc.), enhance fiber, additives according to certain proportion coordination, the copy or moulding, autoclaved curing processes such as made of a new type of inorganic materials.
PHYSICAL PROPERTY | ||||||
Physical index | item no | VH-230 | VH-250 | |||
Bulk density Tolerance | kg/m³ | 230(±10%) | 250(+10%) | |||
Pressure Strength | MPa | ≥0.50 | ≥0.60 | |||
Flexural Strength | MPa | ≥0.30 | ≥0.45 | |||
Thermal conductive | w/m.k | 0.06 | 0.062 | |||
Tem limit | ℃ | 650 | 650 | |||
Linear Shrinkage | % | ≤2 | ≤2 | |||
Block Sizes and Dimensional Tolerances | ||||||||
Name | lengtn(mm) | width(mm) | thickness( mm ) | inside diameter (ID) | ||||
Slab | 100~600 | 100~300 | 30~100 | - | ||||
Pipe | 100~600 | 100~300 | 30~100 | According to client request | ||||
Tolerances on dimensions: length ± 2MM: width ± 2MM; thickness ± 1.5MMM | ||||||||
FEATURES

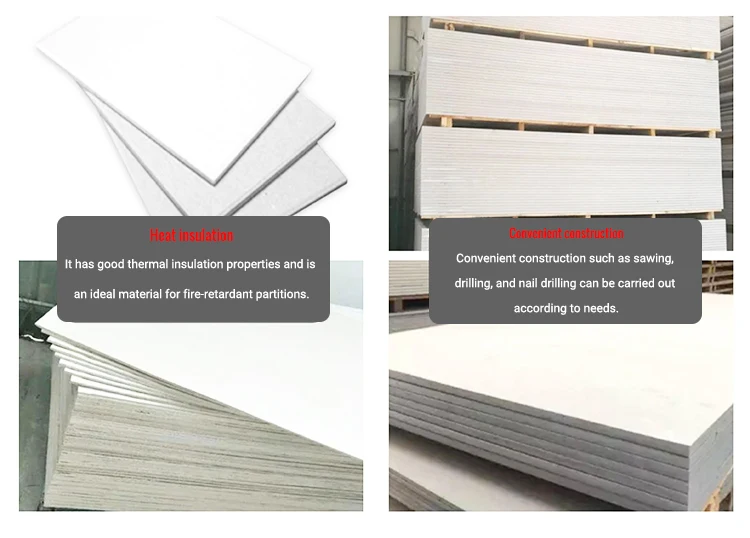

1. High mechanical strength, light in weight,Good adiabatic performance and it has machinability and nonflammability.
2. Thermal conductivity is much lower than other hard insulation materials and silicate insulation materials.
3. Non - toxic and non - odor, non - corrosive pipeline and equipment, long - term repeated use
4. The tube or plate made by high temperature steaming and pressing is not easy to be deformed in the range of temperature and is not afraid of water dampness.
5. Safe use temperature as high as 650℃, 300℃higher than the superfine glass wool products and more than 180℃the expanded perlite products
6. Stable performance, acid and alkali resistance, not easy to corrosion, nor by moisture or insects and ants damage, can have a long service life
APPLICATION

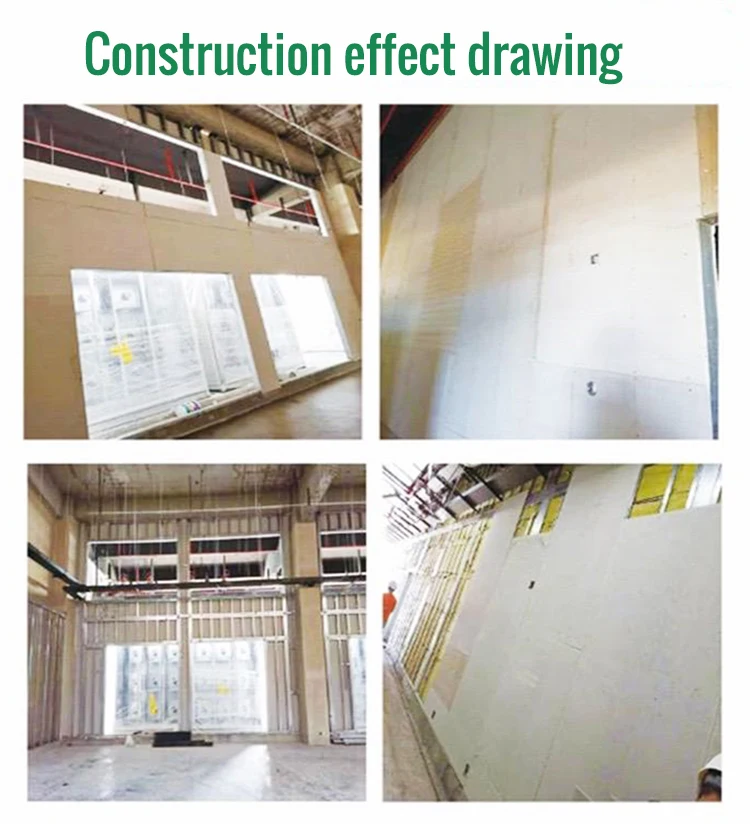

It is widely used in equipment, thermal pipelines, boiler bodies, kiln bodies and other parts of thermal pipelines, chemical industry, metallurgy, glass, cement, and other industries, as well as ship bulkheads, suspended ceilings, and non-load-bearing walls of buildings and many other fields. Thermal insulation and fire protection and sound insulation

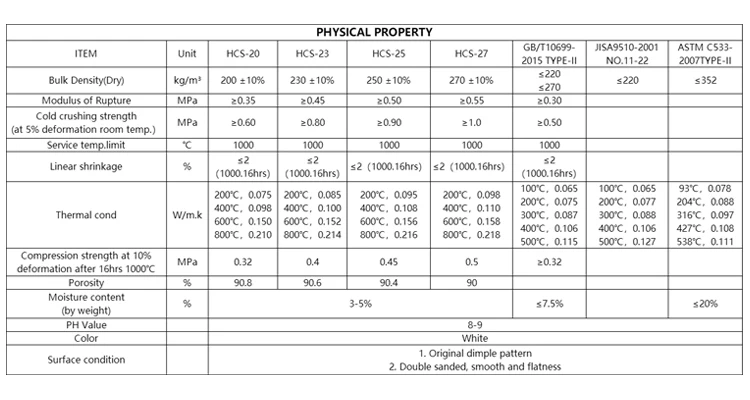

Standard Type Calcium Silicate Products
The main constituents of YD-standard type calcium silicate insulation boards is Xonotlite and reinforced glass fibre ,no asbestos. It is a kind of high efficient energy-saving material with temperature limited 1050 cent-degree.
PHYSICAL AND CHEMICAL MICROSTRUCTURE,PRODUCTION,TECHNOLOGY
1. Low thermal conductivity and superior heat resistance.
2. Light bulk density---low heat storage
3. Good thermal stability with small linear shrinkage.
4. mechanical strength, superior other shaped insulations.
5. Long service life---no pulverization such like ceramic fibre felt.
6. Safe and clean operation---Free from asbestos, sulphur and chloride ,no toxic carcinoge
High Temp. Type Calcium Silicate Products
On the basis 1000℃ YD-Standard Type boards, the temp. limit of this type is improved to 1100℃. As our paten, YD-High Temp. Type can be used for high temp. position of industry furnaces.
Features
1. The product is an inorganic material, the main crystal phase is xonotlite, and its physical and chemical indicators are stable.
2. A large number of micron and nanoscale voids are evenly distributed, with high porosity and excellent thermal insulation performance.
3. The product is a backing insulation material, which is determined by its performance. It cannot be used as a working layer where the furnace lining is in direct contact with the fire.
4. The product does not contain asbestos and other toxic and harmful ingredients; it has no biological nutrients, will not rot or mold, and has no danger of insect or rodent damage.
2. A large number of micron and nanoscale voids are evenly distributed, with high porosity and excellent thermal insulation performance.
3. The product is a backing insulation material, which is determined by its performance. It cannot be used as a working layer where the furnace lining is in direct contact with the fire.
4. The product does not contain asbestos and other toxic and harmful ingredients; it has no biological nutrients, will not rot or mold, and has no danger of insect or rodent damage.
Applications
1.As excellent back-up insulations materials, it can be widely used in high-temperature process equipmen
2.The calcium silicate boards can be used in bottom of pool, pool wall, breast wall and regenerative chamber for insulation.
2.The calcium silicate boards can be used in bottom of pool, pool wall, breast wall and regenerative chamber for insulation.

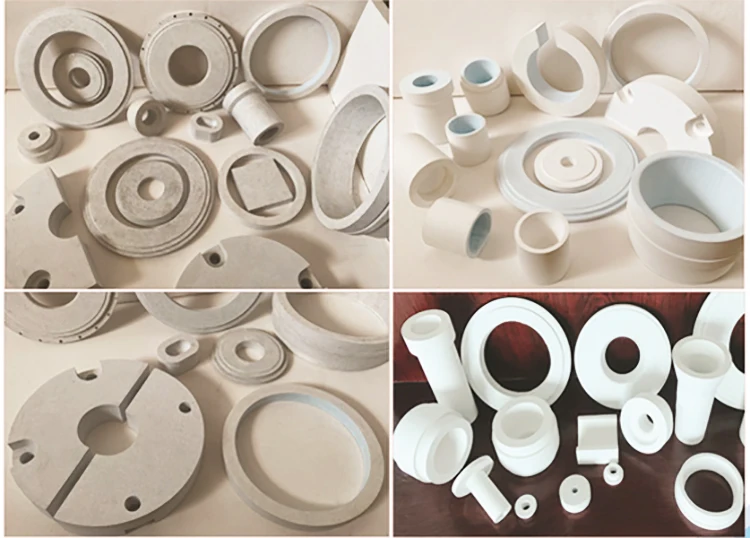

VH-800/VH-801 high-density and high-strength calcium silicate insulation board
It is a high-density and high-strength calcium silicate plate with a density of 800-1000kg/m³ specially developed for the non-ferrous metal industry. It does not contain asbestos, has high temperature resistance, high strength, low thermal conductivity, and resistance to molten metal infiltration. It has the characteristics of good thermal shock stability and excellent machining performance; it can easily cut various precision parts in processing plants, and is widely used in glass deep processing industries such as non-ferrous metal smelting, steel industry, casting industry, mirror making, etc. In addition to its own thermal insulation, Its non-stick aluminum and resistance to erosion by aluminum liquid have been greatly utilized.
There are two types, namely glass fiber reinforced type (VH-800) and carbon fiber reinforced type (VH-801).

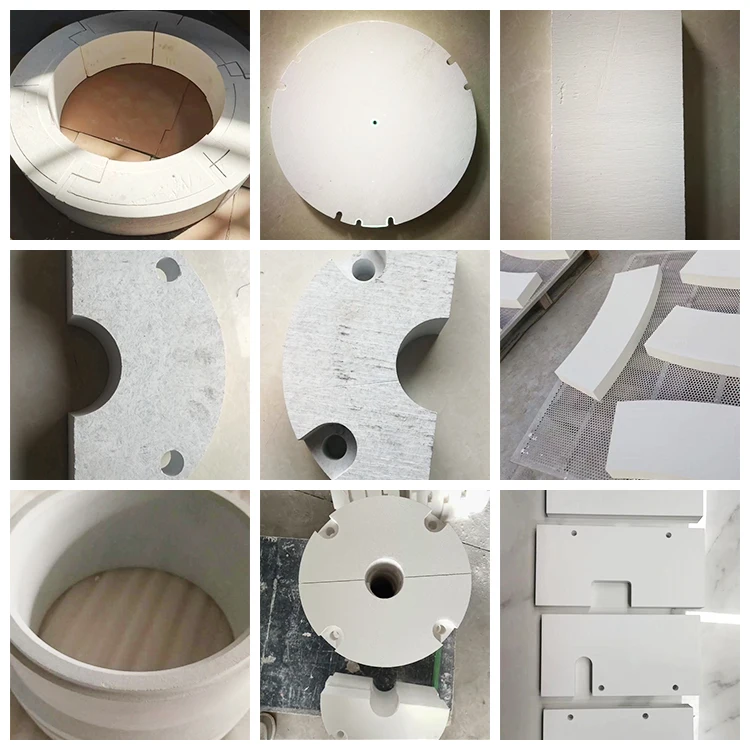

We provide plates with required sizes and specifications according to user needs, and can also process various special-shaped parts according to drawings.
There are two types, namely glass fiber reinforced type (VH-800) and carbon fiber reinforced type (VH-801).
We provide plates with required sizes and specifications according to user needs, and can also process various special-shaped parts according to drawings.
Features
◇ Low thermal conductivity, low heat losses at higher temperature
◇ Non wetted by molten aluminum
◇ Resistance to thermal shock
◇ Excellent machining
◇ Asbestos-free
◇ Non wetted by molten aluminum
◇ Resistance to thermal shock
◇ Excellent machining
◇ Asbestos-free
Application
1. Non-ferrous metal smelting and casting equipment for transportation, distribution and casting of continuous and cycle forming processes.
2. Chemical and process industries: collars, seals, insulation rings, intermediate rings, bushings, tubular columns and flow channels.
3. Ladle heat insulation board, automobile glass mold, dropper, hot top ring, guide tube, float, adapter plate
2. Chemical and process industries: collars, seals, insulation rings, intermediate rings, bushings, tubular columns and flow channels.
3. Ladle heat insulation board, automobile glass mold, dropper, hot top ring, guide tube, float, adapter plate

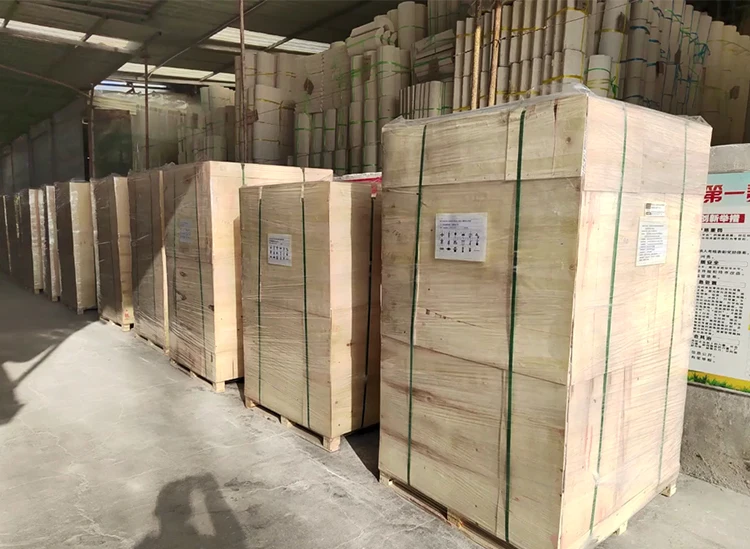

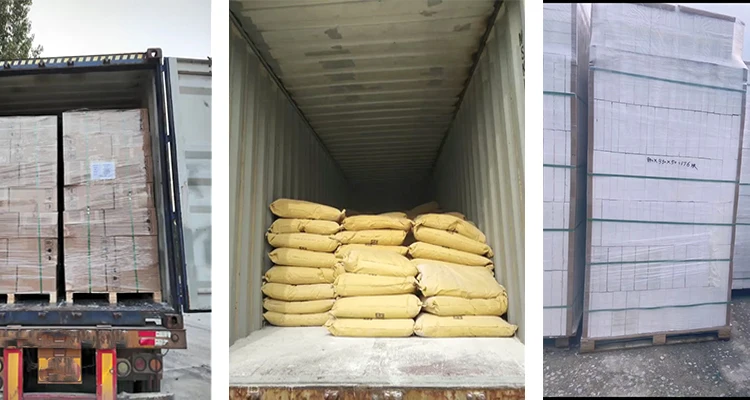

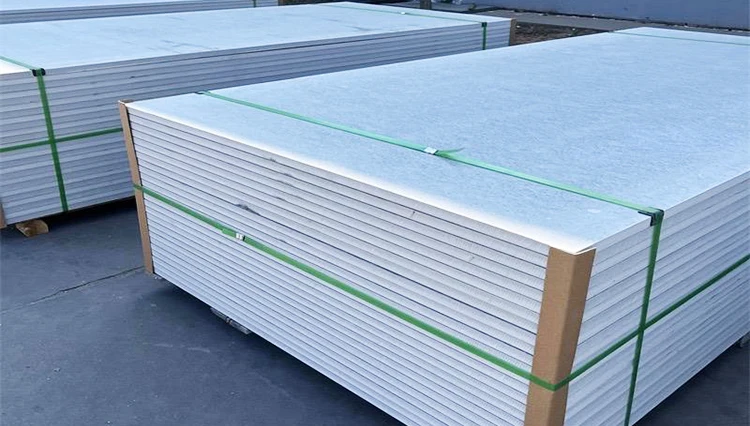

Packaging & Delivery
