Straight Auto Duct Work Pipe Forming Line 5/HVAC Rectangular Making Machine Line V/Auto Pipe Duct Production Machine Line 5
- Category: >>>
- Supplier: Nanjing Bosslaser CNC Technology Co. Ltd
Share on (1601220855561):
Product Overview
Description
Products Description

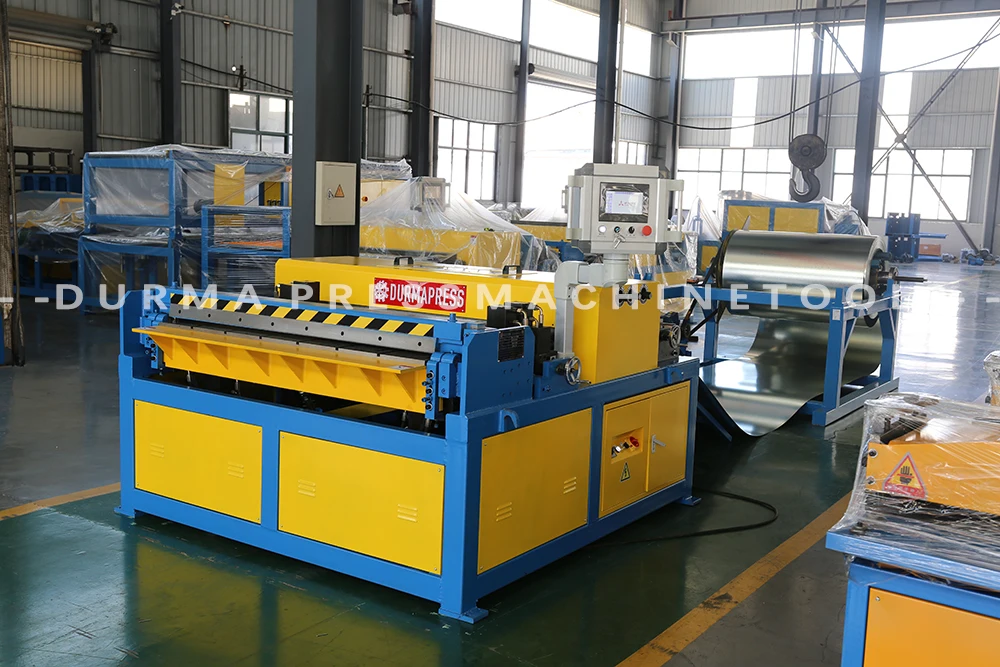

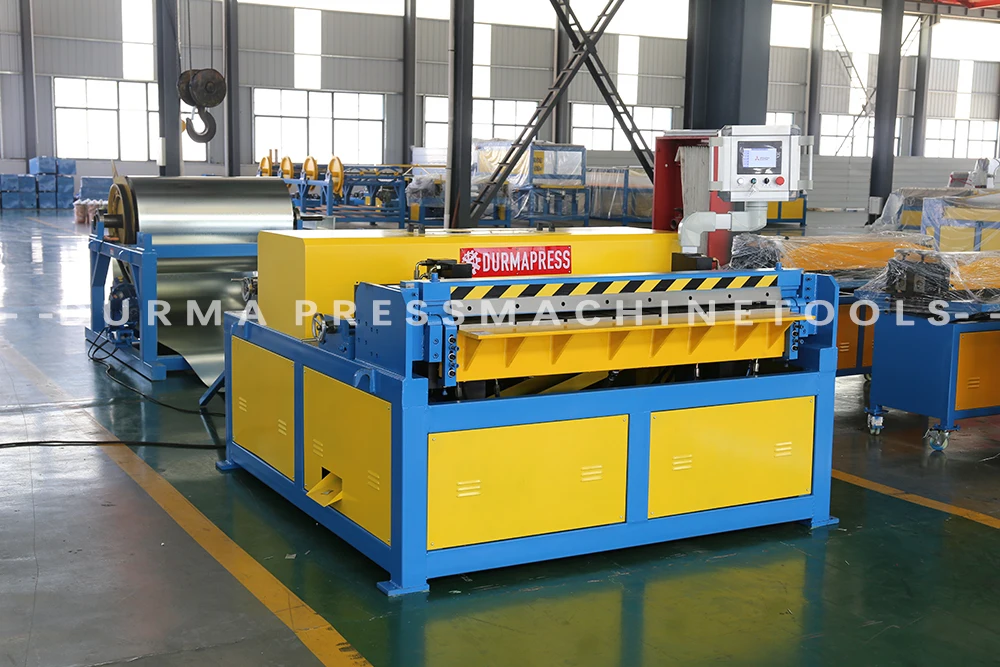

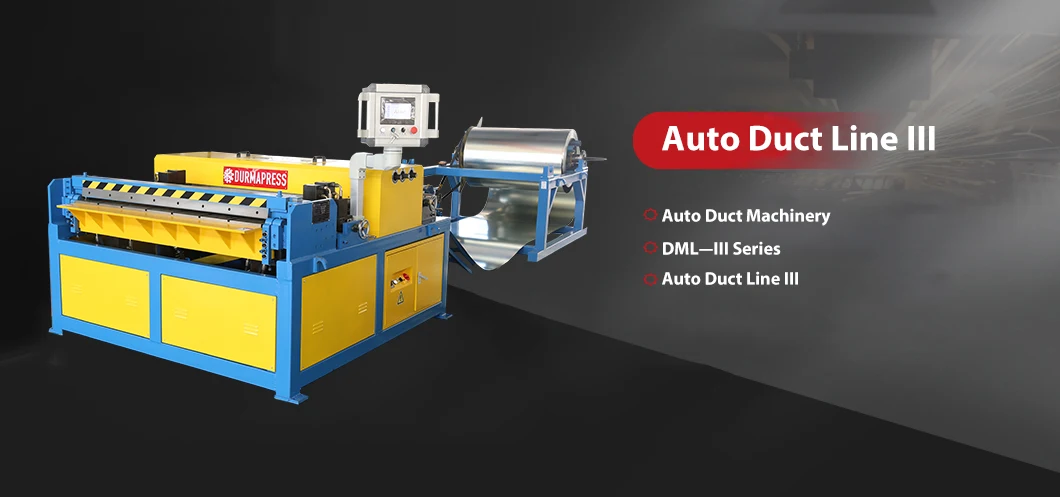

Auto Duct Line III
Automatic wind pipe production line III is a cost-effective equipment , very suitable for flange (TDF),and angle stee; flange (TDC) hybrid production. Angel flange and flange duct could automatically folded into square.System in English can be arbitrary conversion,The max feed rate is 15mm/min , the length error is ±0.5mm , the digital error is ±0.8mm.
Detailed Images
01

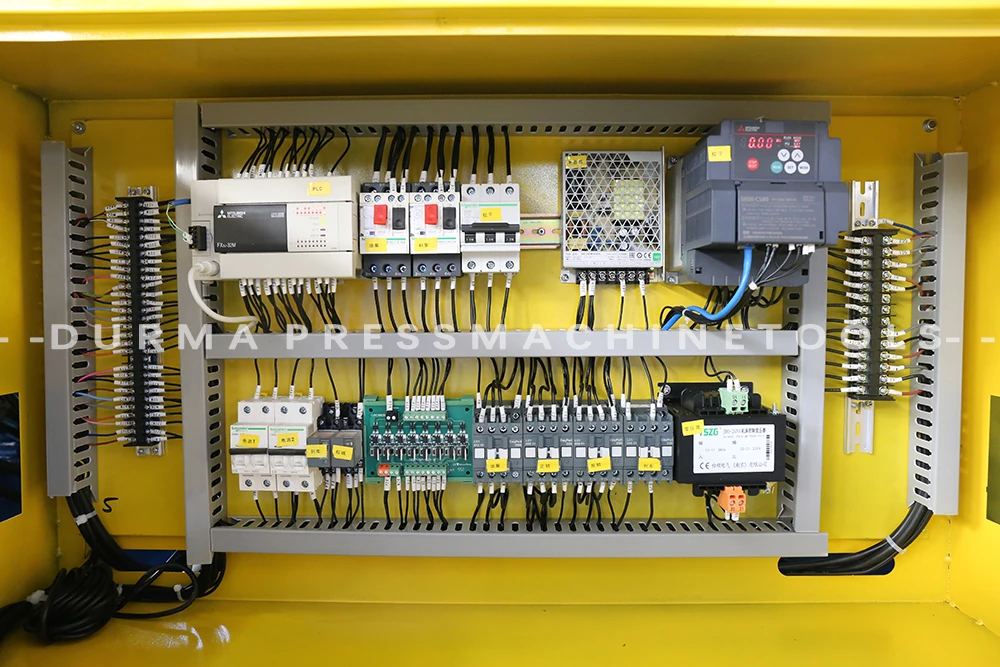

Electronic system
Schneider electrics,stable and reliable performance .Main motor is WN or Siemens brand,Japanese Omron encoder
02

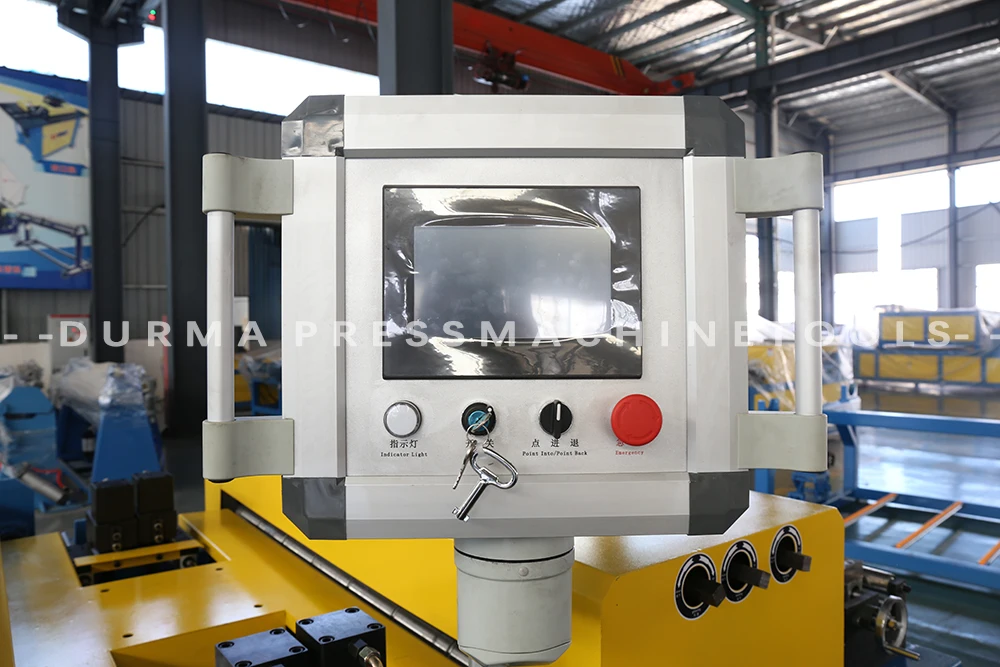

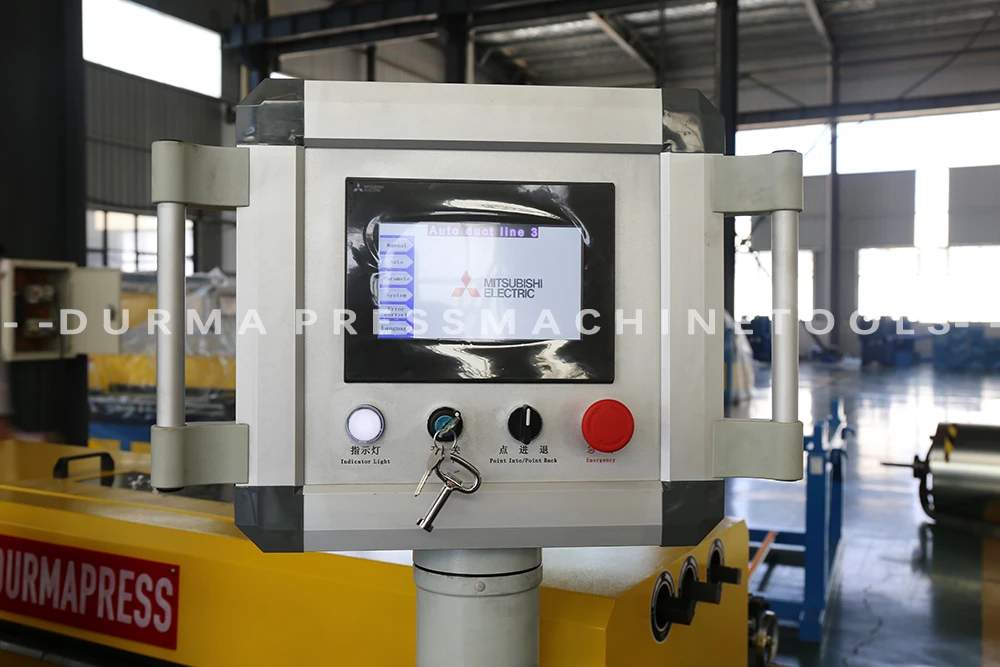

Control System
Control system mainly use Mitsubishi PLC and driver，but schneider PLC and driver is also optionally.

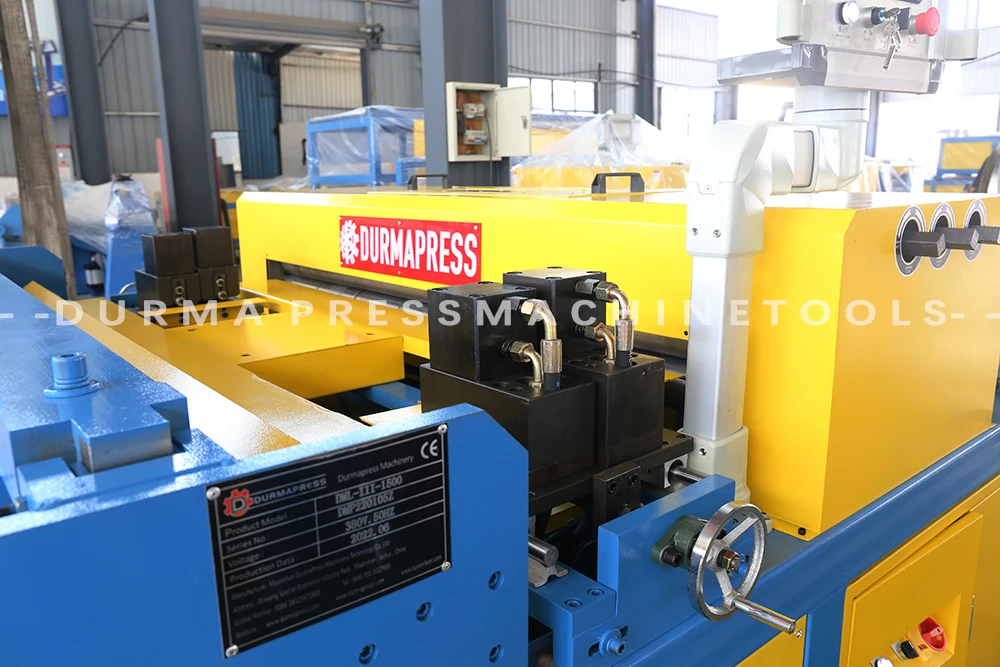

Shear Angel

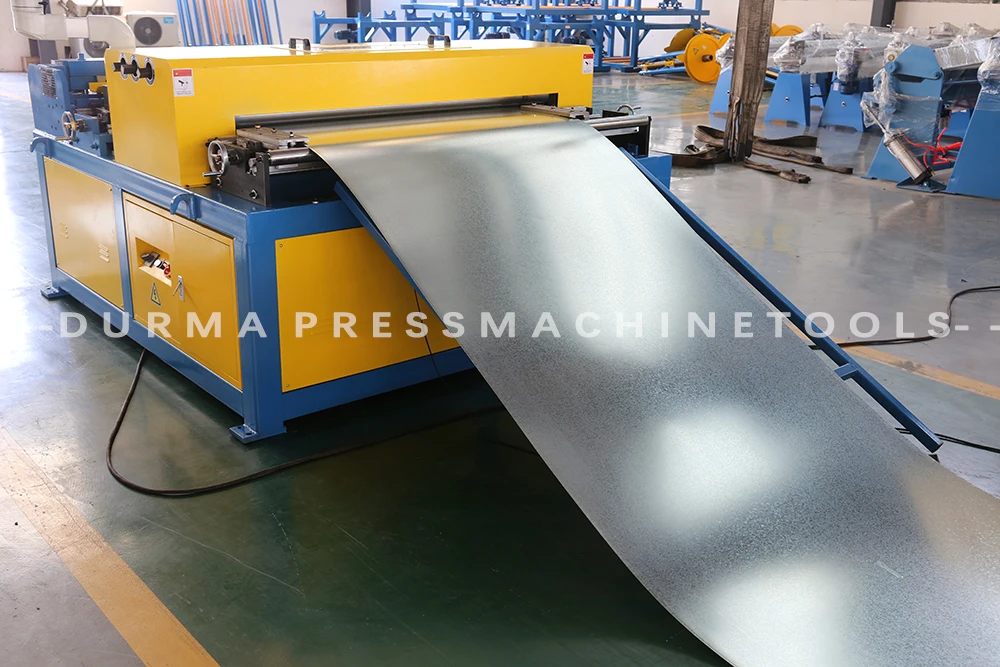

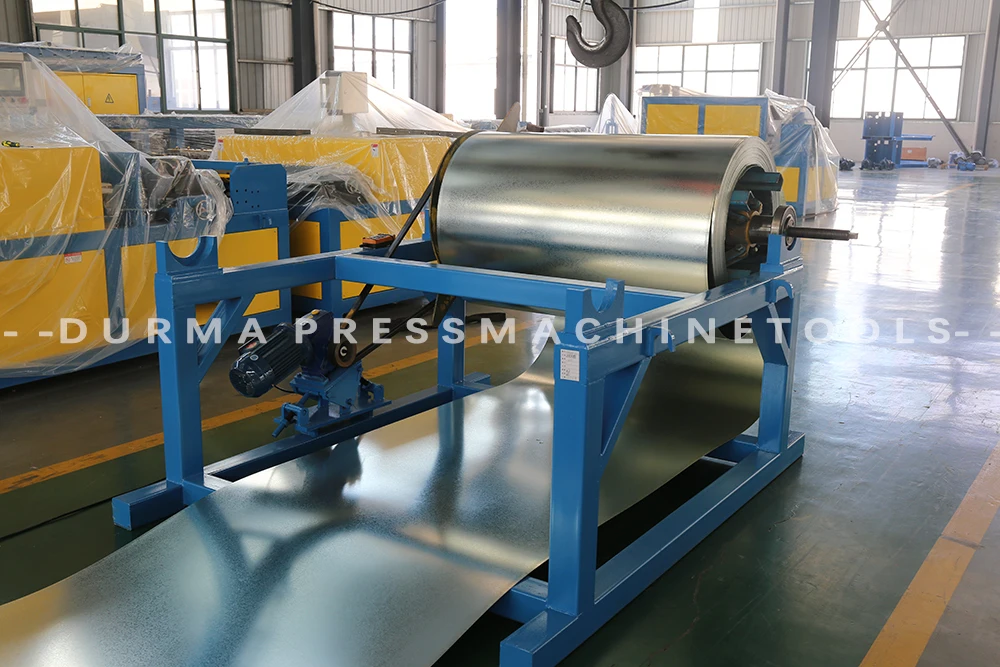

Feed port
Feed adjustment

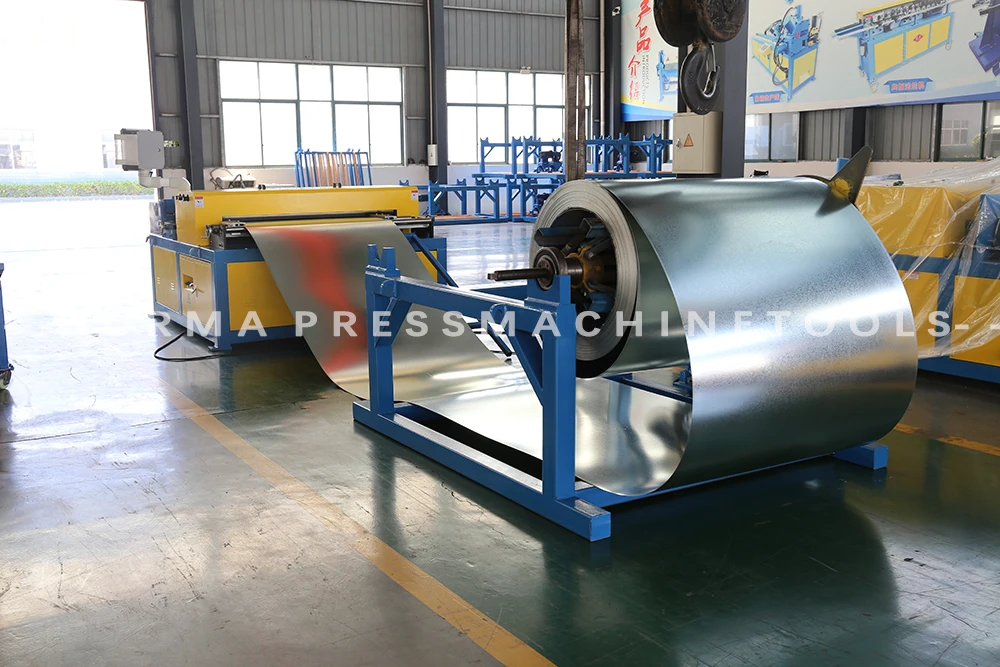

Support frame
Compression bar
Bead roller
Square duct
“L” shape duct

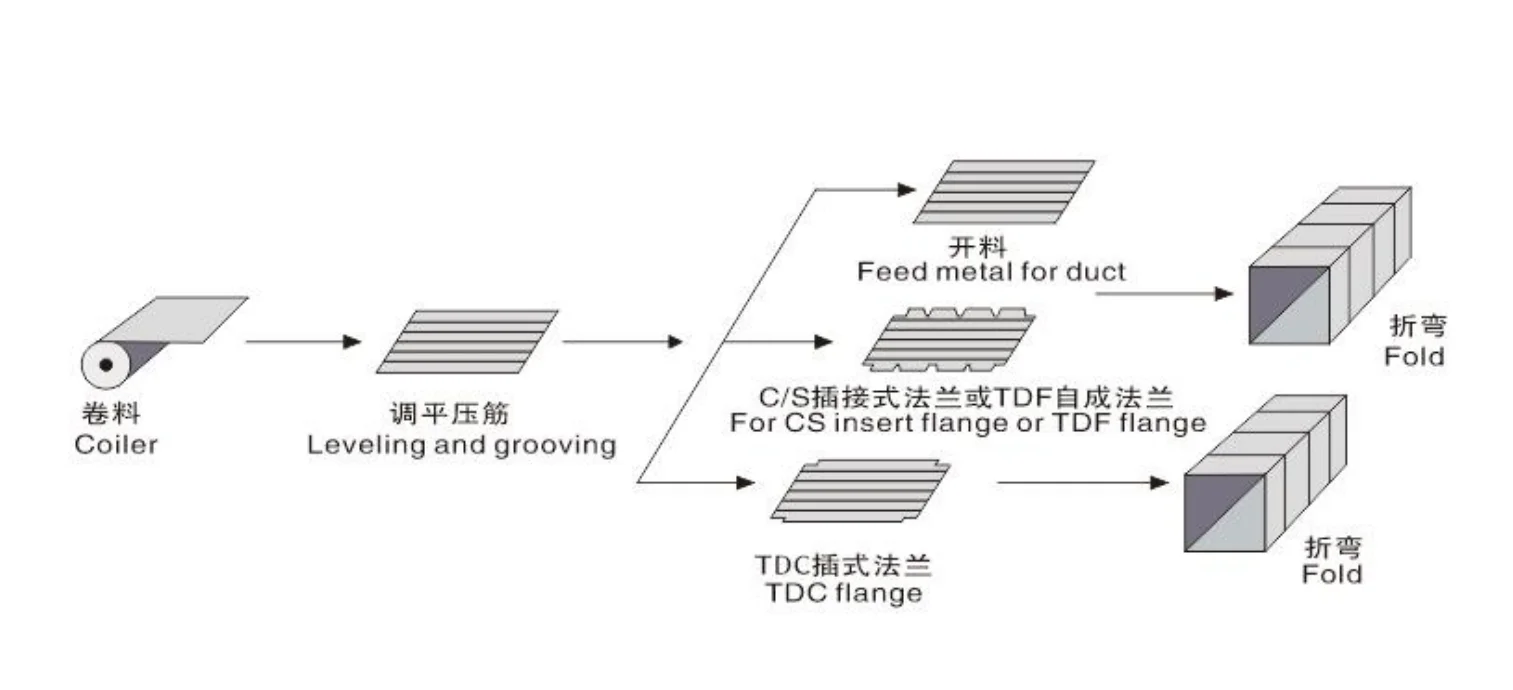

HVAC duct machine Working Schematic Diagram：
Advantage of Products:
* The latest design can resolve the problems like getting struck, too many repairs form roll-shearing displacements lock machine.
* The three-line bending function can crimp narrow edges and stably process 0.5-1.2mm galvanized sheet to avoid wasting.
* Mechanical arm clutching, locating and transferring platform
* Displacement lock machine · Line 3 host+ Single rack
Function:
It’s mainly for uncoiling, levelling, beading, punching, Folding. Because of its small space requirement and easy to install and operate the machine can upgrade to “super line 4”.
Performance Features:
* All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
* Under the material-saving mode of CNC system, machine can withdraw material automatically after finishing tasks.
* With production memory functions, the production orders can be tracked and checked.
Main Import Configuration:
* MITSUBISHI HMI Display And PLC
* MITSUBISHI Frequency Converter
* Japan NEMICON Inverter
* Taiwan Hydromax Pump
* Taiwan High Temperature Resistant Tubing
Basic Configuration:
NO. | Item | Date | ||
1 | Model | DML-III-1250 | DML-III-1500 | |
2 | Thickness | 0.4-1.2mm | 0.4-1.2mm | |
3 | Max.Coil Width | 1250mm | 1500mm | |
4 | Max.Working Speed | 18m/min | 18m/min | |
5 | Shearing tolerance | ±0.5mm | ±0.5mm | |
6 | Diggonal Tolerance | ±0.5mm | ±0.5mm | |
7 | Coil Maximum weight | 7000kg | 7000kg | |
8 | Main Motor Power | 7kw | 8.5kw | |
Recommend Products
View more products,you can click product keywords...

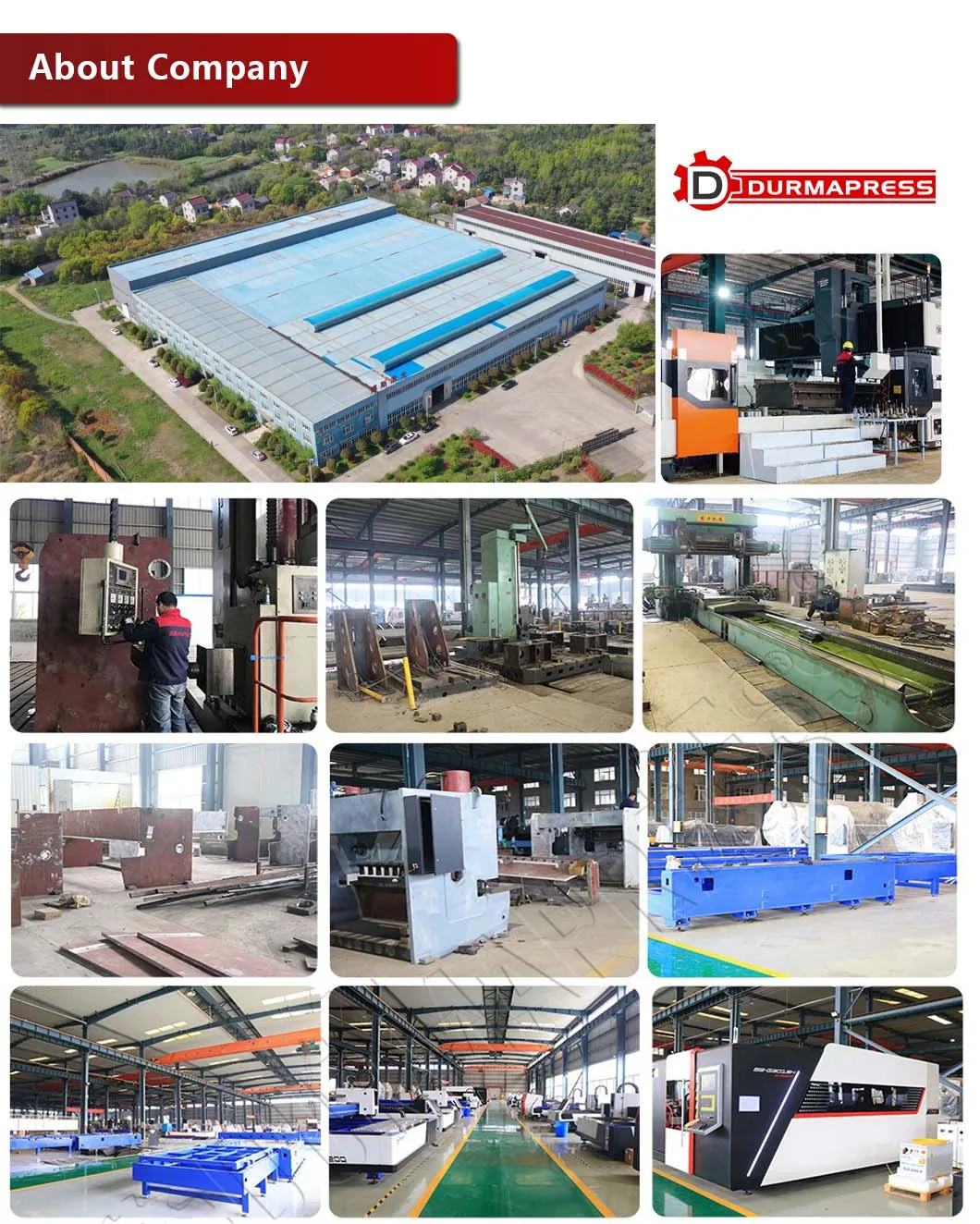

Factory Profile
