Product Overview
Description
We are the factory in DongGuan professionally produce transmission parts for machines simple listed here for your reference :
1. magnetic powder clutch and brake series
2. tension controller series : manual tension controller,automatic tension controller.
3. air shaft and air adaptor series
2. tension controller series : manual tension controller,automatic tension controller.
3. air shaft and air adaptor series
4. safety chuck series
5. Edge positioning system series
6. air brakeand clutch series
7. electromagnetic clutch and brake series
8. worm reducer and motor series
5. Edge positioning system series
6. air brakeand clutch series
7. electromagnetic clutch and brake series
8. worm reducer and motor series
Product Description

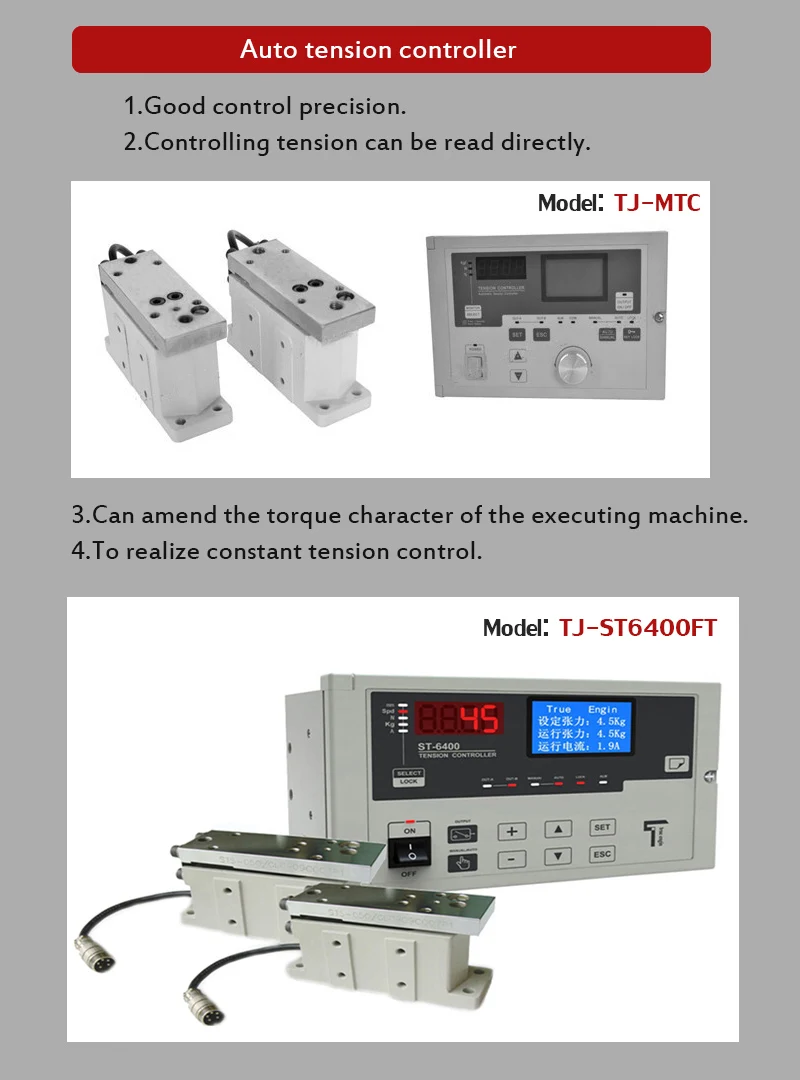

Auto Tension Controller Specialty:
Our automatic tension control technology uses interactional many vanguard technologies, adopts the microprocessor, high speed 18A/D switch, antijamming self-recovery tech-nology, and PID non-over modulation algorithm, thus achieve the permanent tension control. Widely applies in printing, the packing, the papermaking, the spinning and also also the weaving, the line cable and so on. According to the difference of signal, it divides into completely automatic and Semiau-tomatic.
The tension controller signal input may choose is comes from:
1,tension detector electric current either voltage output (mA or mV) completely automatic
2,encoder or close switch outputs signal(0-9V) ---Semisu-tomatic.
2,encoder or close switch outputs signal(0-9V) ---Semisu-tomatic.

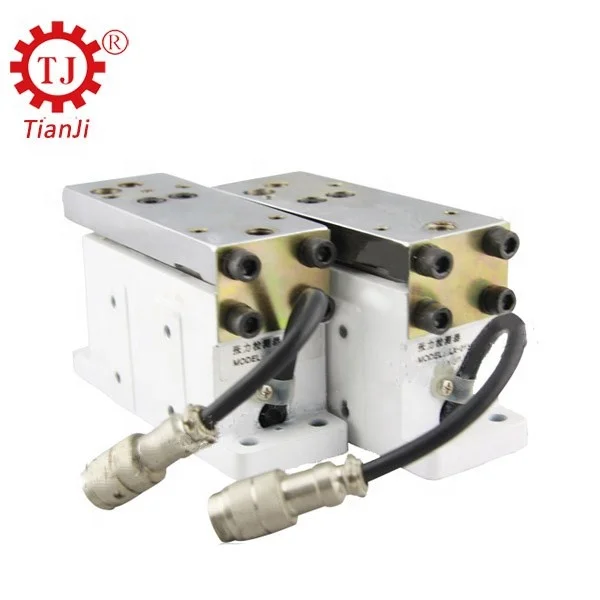

Tension Sensor (detector): | ||||||||||||
Model | 50N | 150N | 300N | 500N | 1000N | 2000N | ||||||
Rated Load | 50N | 150N | 300N | 500N | 1000N | 2000N | ||||||
Working load direction | Compression and tension in both directions | |||||||||||
Installation | Ground installation Hang up installation Suspended installation | |||||||||||
Exploitation conditions | -5~+40°C Vibration of the following 2m/s2 | |||||||||||
Weight | 1.8KG | |||||||||||

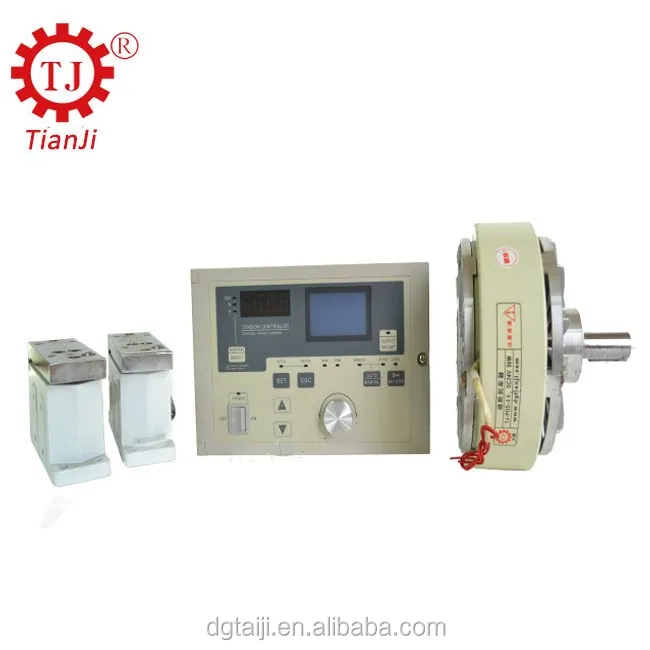

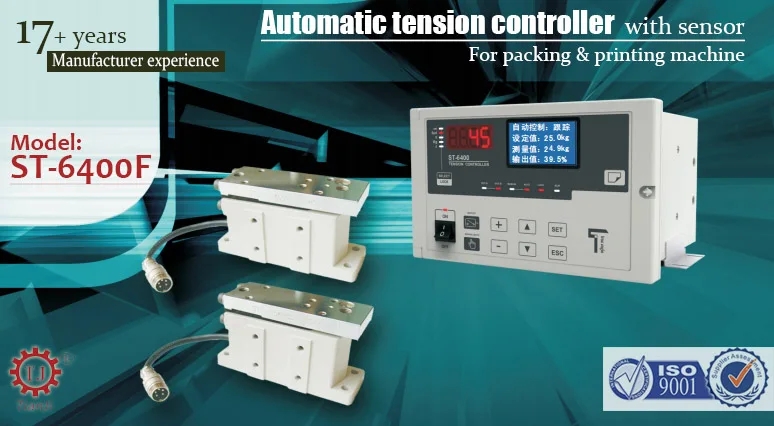

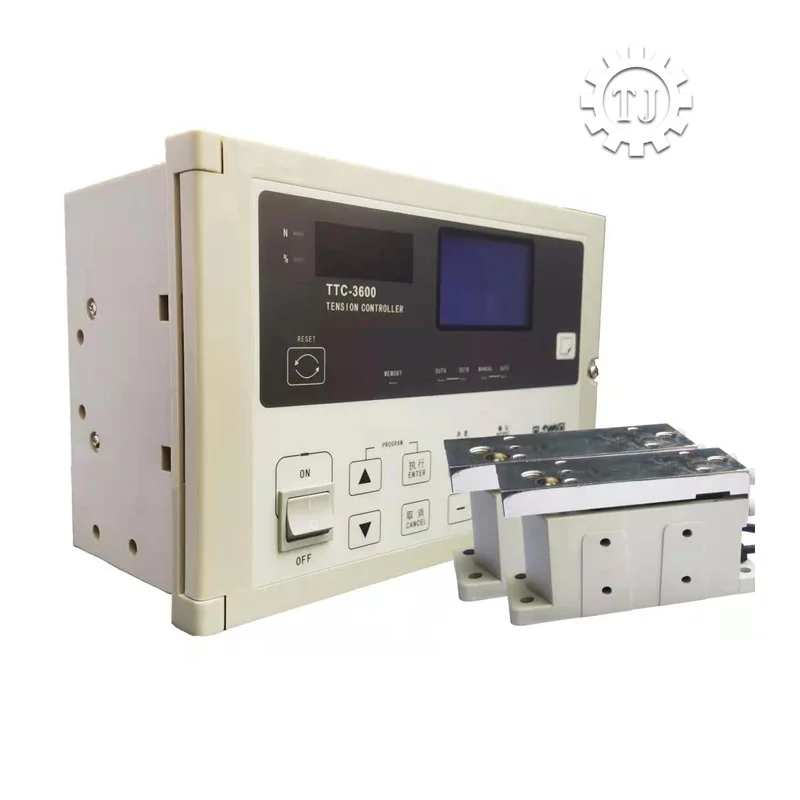

Auto Tension Controller with Tension Sensor :

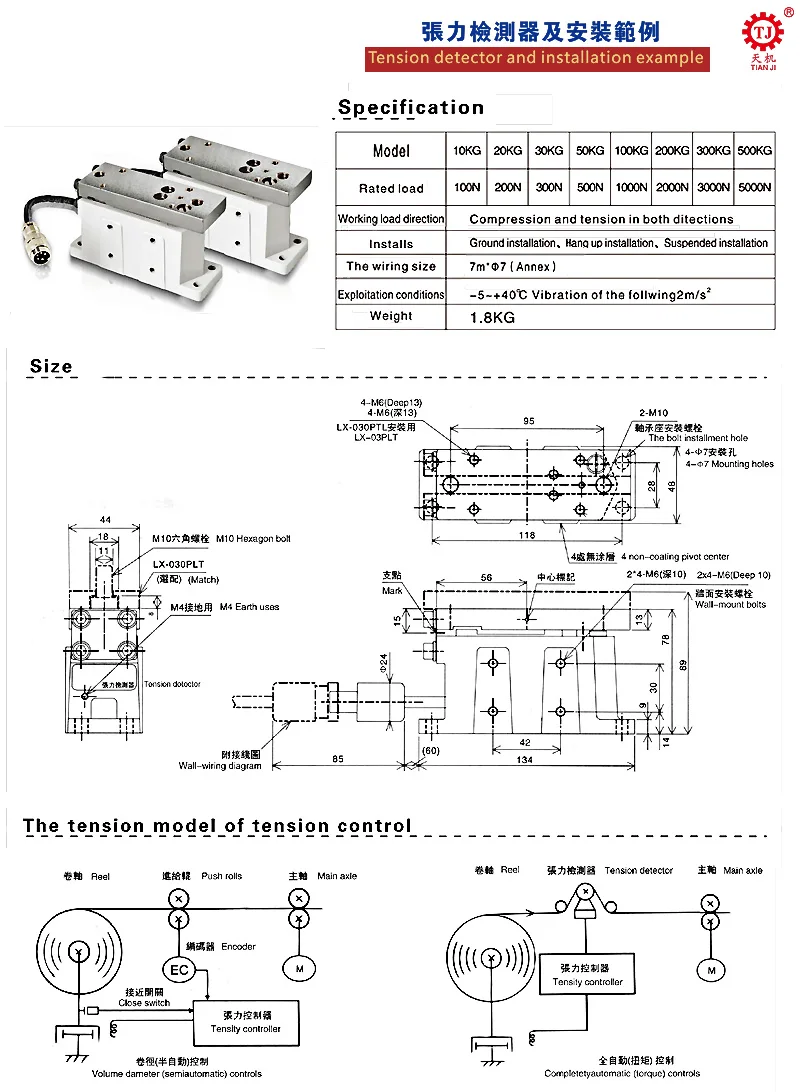

A complete set of schematic of tension control system
Specification

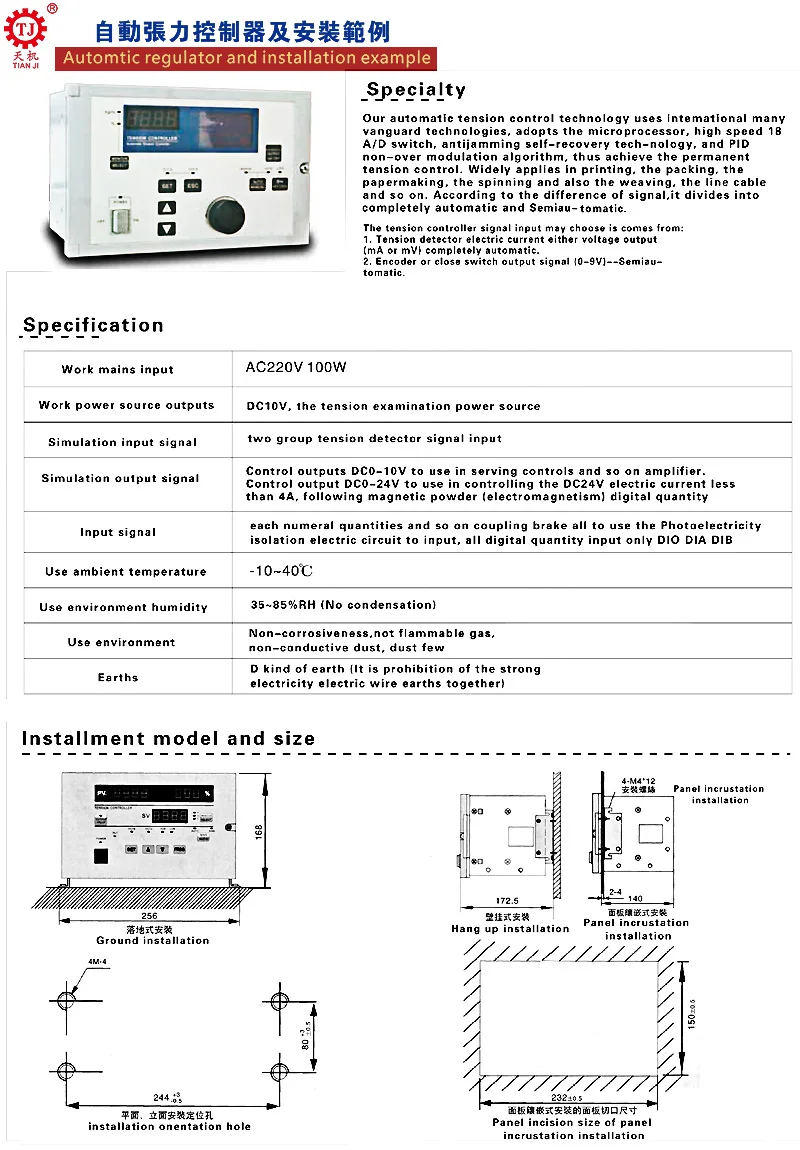

Auto Tension Controller Parameter: | ||
Work mains input | AC220V 100W | |
Work power source output | DC10V,the tension examination power source | |
Simulation input signal | Two group tension detector signal input | |
Simulation output signal | Control output DC0-10V to use in serving controls and so on amplifier. Control output DC0-24V to use in controlling the DC24Velectric current less than 4A, following magnetic powder (electromagnetism) digital quantity. | |
Input signal | Each numeral quantities and so on coupling brake all to use the Photoelectrictiy isolation electric circuit to input, all digital quantity input only DIO DIA DIB. | |
Use ambient temperature | -10~40degree | |
Use environment humidity | 35~85% RH( No condensation) | |
Use environment | Non-corrosiveness, not flammable gas,non-conductive dust, dust few | |
Earths | D kind of earth (It is prohibition of the strong electricity electric wire earths together) | |
