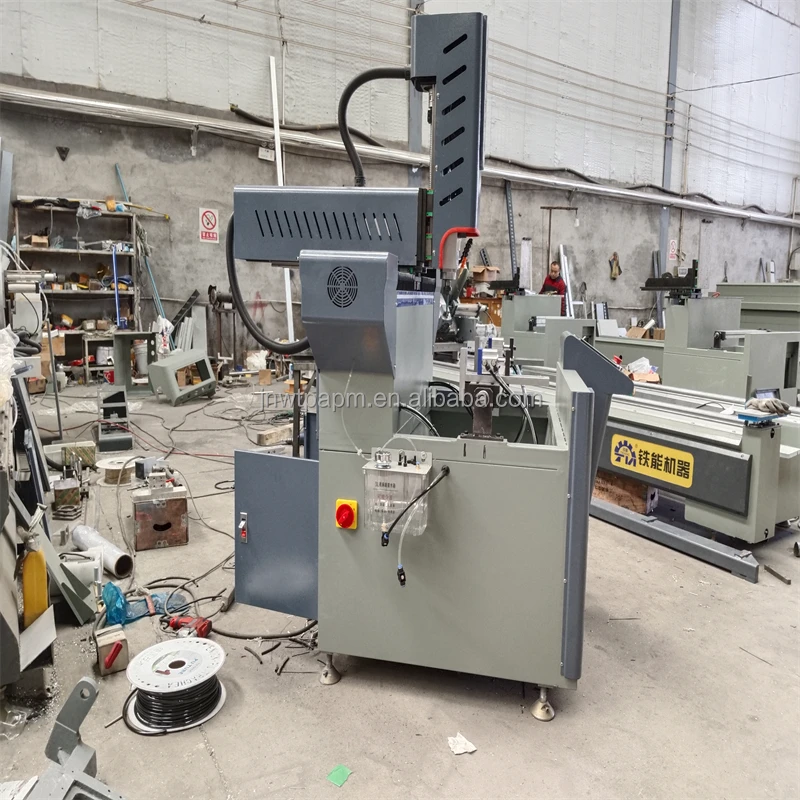

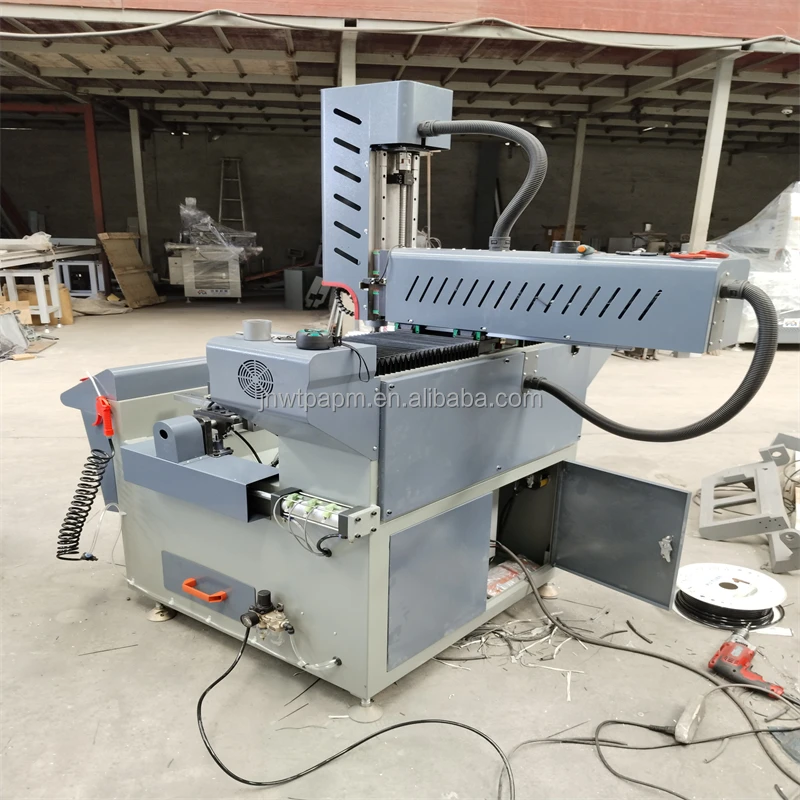

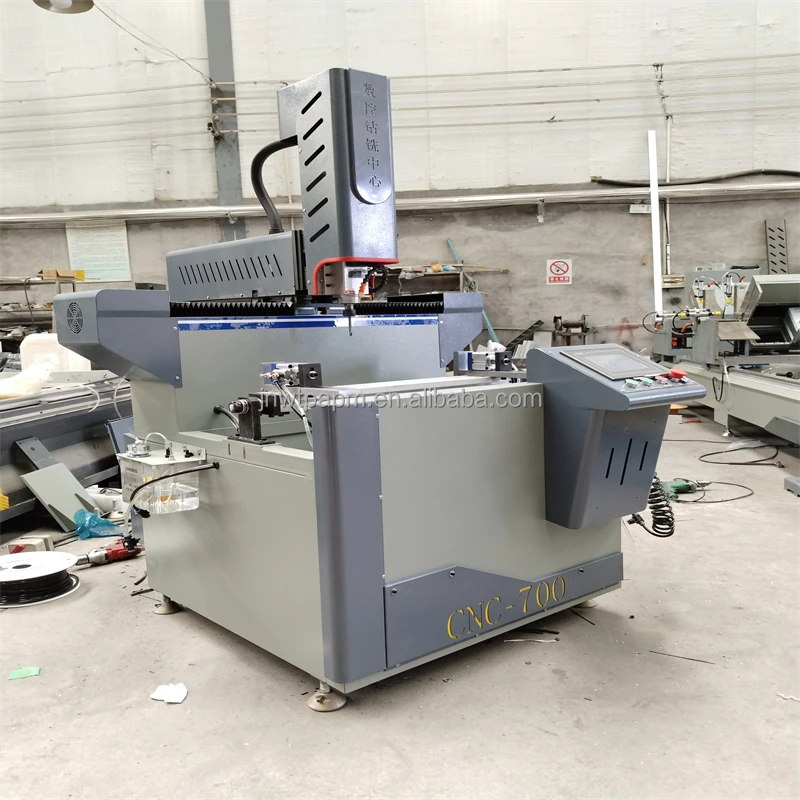

China manufacturer vertical drilling milling machine CNC router for door lock hole
- Category: >>>
- Supplier: Tieneng Intelligent Equipment (shandong) Co. Ltd.
Share on (1601220906151):
Product Overview
Description
FEATURES:
1. Used for Aluminumn profile &PVC profiles' shape holes,round holes ect. drilling &milling.
2. Adopts standard Triaxial System,easy operation.
3. Adopts electric spindle with high precision,good security,high stability.
4. X,Y and Z Axis adopts high precision ball bearing conveyor,runs stable.
5. ISO International Standard G code programming,easy to operate.
1. Used for Aluminumn profile &PVC profiles' shape holes,round holes ect. drilling &milling.
2. Adopts standard Triaxial System,easy operation.
3. Adopts electric spindle with high precision,good security,high stability.
4. X,Y and Z Axis adopts high precision ball bearing conveyor,runs stable.
5. ISO International Standard G code programming,easy to operate.
Specification
X-axis running speed | 0~60m/min |
Y-axis running speed | 0~15m/min |
Z axis running speed | 0~15m/min |
X-axis route | 700mm |
Y-axis route | 500mm |
Z-axis route | 330mm |
Processing range | 150*150mm |
Work Position | 90°0°-90°three side |
Handle Type | ER25 X Dia8mm |
Air source | 0.5~0.8MPa |
Power Supply | 380V 50Hz/220V 50HZ/CUSTOMIZED |
Total power | 3KW |
Dimension | 1100*1400*2200mm |
Weight | About 250Kg |
OTHER STYLES FOR YOUR CHOICE
China TOP 10 professional producer of aluminum profile processing machine,plastic profile processing machine and insulated glass processing machine.
Wintech machinery Co.,Ltd,also known as Tieneng Intelligent Equipment Co., Ltd.,in China,established in 2000,which is SGS-approved 5A credit company.
In the past 20 years, nearly 100 million machines have been sold, and our brand is well-known throughout world.We have exported to more than 1000 countries like Thailand, Germany,Guatemala,Oman,Russia,India and etc.
Wintech machinery Co.,Ltd,also known as Tieneng Intelligent Equipment Co., Ltd.,in China,established in 2000,which is SGS-approved 5A credit company.
In the past 20 years, nearly 100 million machines have been sold, and our brand is well-known throughout world.We have exported to more than 1000 countries like Thailand, Germany,Guatemala,Oman,Russia,India and etc.
