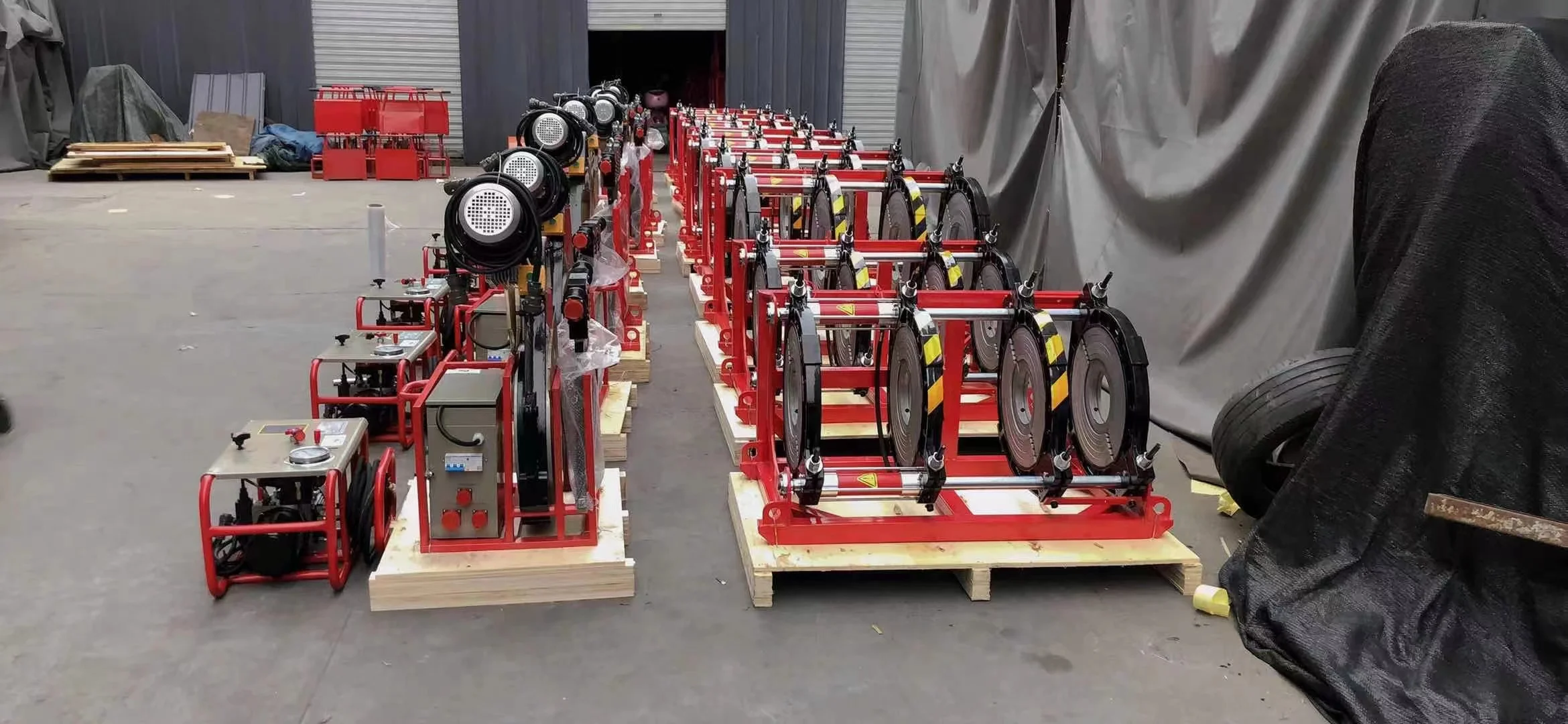

PF450 Hydraulic Butt Welding Machine fusion machine butt welding machine
- Category: >>>
- Supplier: Qingdao Polyfusion Machinery Co. Ltd.
Share on (1601220964618):
Product Overview
Description
Product Description
Specification
Brief:
Suitable for welding of plastic pipes and fittings made from PE，PP & PVDF.
Be made of Aluminum material, easy to carry and transport.

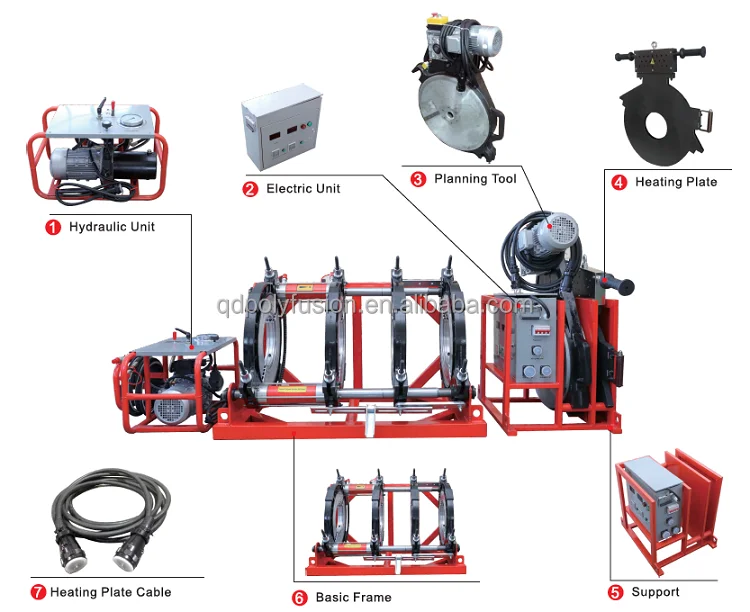

Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Be made of Aluminum material, easy to carry and transport.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature :
1.Removable PTFE coated heating plate with separate temperature control system.
1.Removable PTFE coated heating plate with separate temperature control system.
2. Electric planning tool with reversible double cutting edge blades.
3. Hydraulic unit provides welding machine with compressing power.
4. Be made of Aluminum material, easy to carry and transport.
5.Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the time and temperature.
3. Hydraulic unit provides welding machine with compressing power.
4. Be made of Aluminum material, easy to carry and transport.
5.Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the time and temperature.
Model | PF450 |
Welding Range | 250 280 315 355 400 450 mm |
Heating Plate Max.Temperature | 270℃ |
Temperature Deviation in Surface | ≤±7℃ |
Working Voltage | 380V 50/60HZ |
Total Power | 8.38KW |
Heating Plate Power | 5.38KW |
Planning Tool Power | 1.5KW |
Hydraulic Unit Power | 1.5KW |
Pressure Adjustable Ranges | 0-8Mpa |
Weight | 450KG |
Package | 3 WOODN BOXES |
Data Logger Port | Optional |
Details

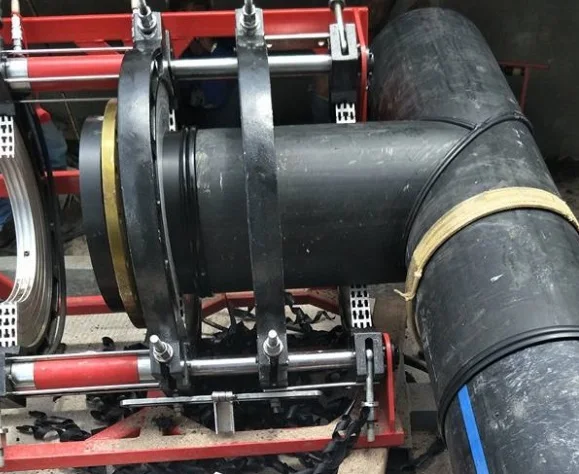

Basic Frame

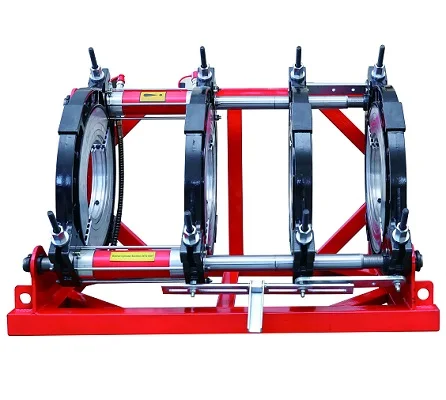

The basic frame support the plastic pipes or fittings by two fixed and two movable clamps.
Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps forward and backward and
supply the necessary movement for the welding process.
Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps forward and backward and
supply the necessary movement for the welding process.
A heating plate separator is installed on the basic frame, after the heating plate heats the pipe, the heating plate and the pipe can be separated well.
Planning Tool

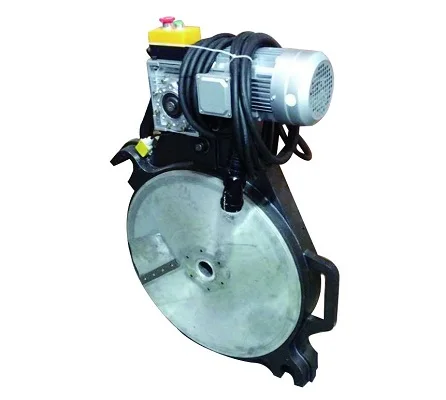

The planning Tool is the tool which clean and smooth the both ends of the pipes before the heating process .
There is an emergency stop switch on the planning tool. If a wrong operation occurs during construction, the emergency stop switch can be directly used to stop the operation.
PF1000 butt welding machine is designed for self aligning facer always produces parallel pipe faces.
There is an emergency stop switch on the planning tool. If a wrong operation occurs during construction, the emergency stop switch can be directly used to stop the operation.
The planning tools are driven by gears to avoid chain breaks when milling thick pipes.
PF1000 butt welding machine is designed for self aligning facer always produces parallel pipe faces.
Connect the planning tool and the electric unit with the hualun brand plug (with CE certificate), which is easy to operate and not easy to wear.

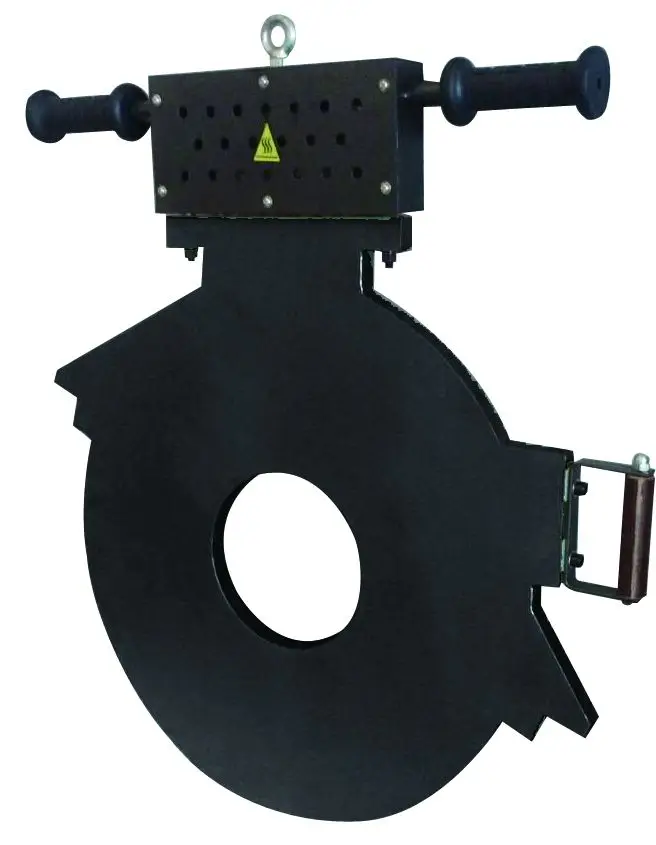

Heating Plate
The pipe ends will be heated by this heater before the welding process. The setting of the heater will be done by the thermostat
on the plates.
on the plates.
PF1000 butt welding machine adopts PTFE-coated heating element imported from Japan, the Daikin brand, with uniform surface temperature. The heating plate is connected to the sensor of PT100, which can be directly connected to the data logger.
Socket Connector: Hualun brand. High-quality material, insulation and flame retardant, CE certification, can quickly connect the interface (others use the connector which internal plug is threaded, can not be quickly connected, and is easy to damage).
Hydraulic Unit
Connect the hydraulic unit with the main frame to provide power for the welding of the connecting pipe or fittings.
The hydraulic unit can be connected to the data logger. It is completely researched and manufactured in Thailand and exported to all the world, which keeps our data logger have the highest quality and best service in the same industry.
The oil circuit module in the hydraulic unit is made of aluminum, which is corrosion resistant, light in weight and long in circulation.

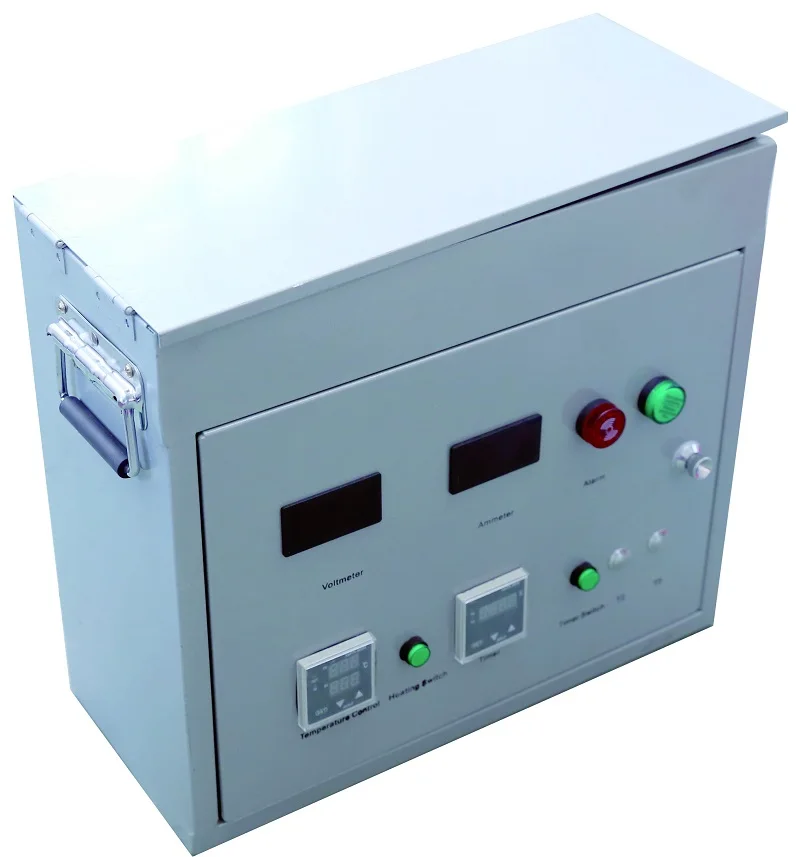

Electric Unit
The power box is connected to a generator set or power source. The milling cutter, heating plate and Crane are directly connected
to the power box to provide power for these three parts.
to the power box to provide power for these three parts.
Timer, Temperature Controller, Digital Ammeter, Digital Voltmeter and alarm system can all be seen directly on the power box.

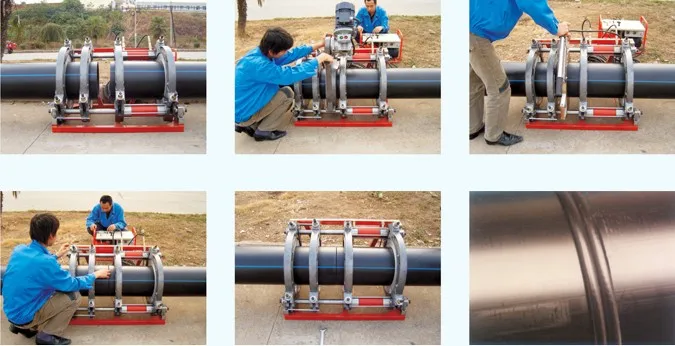

Welding Method

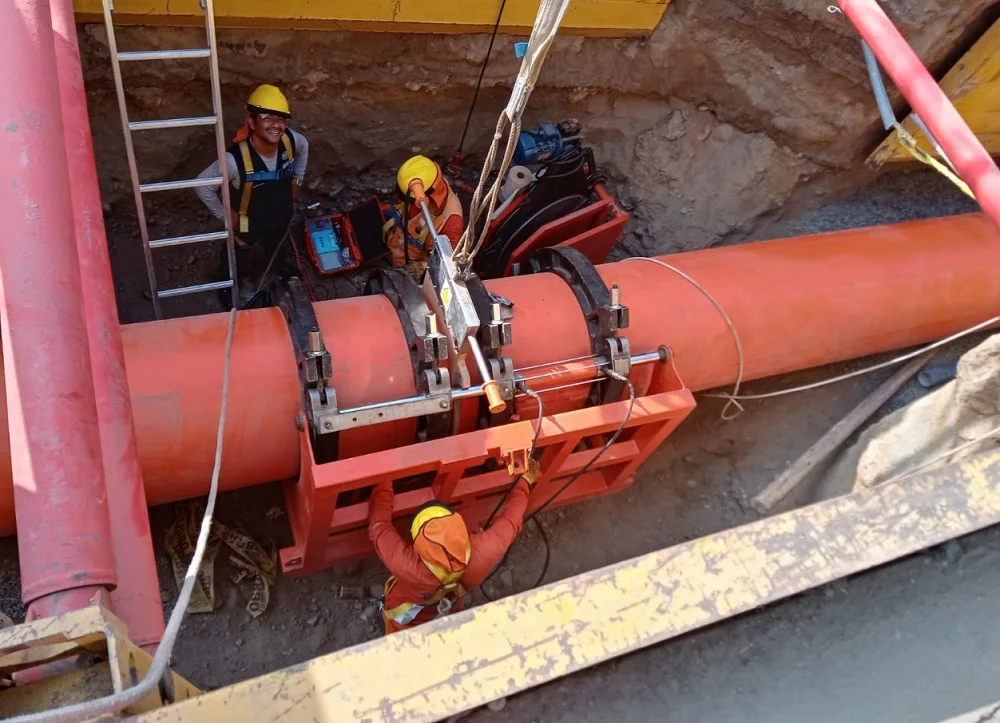

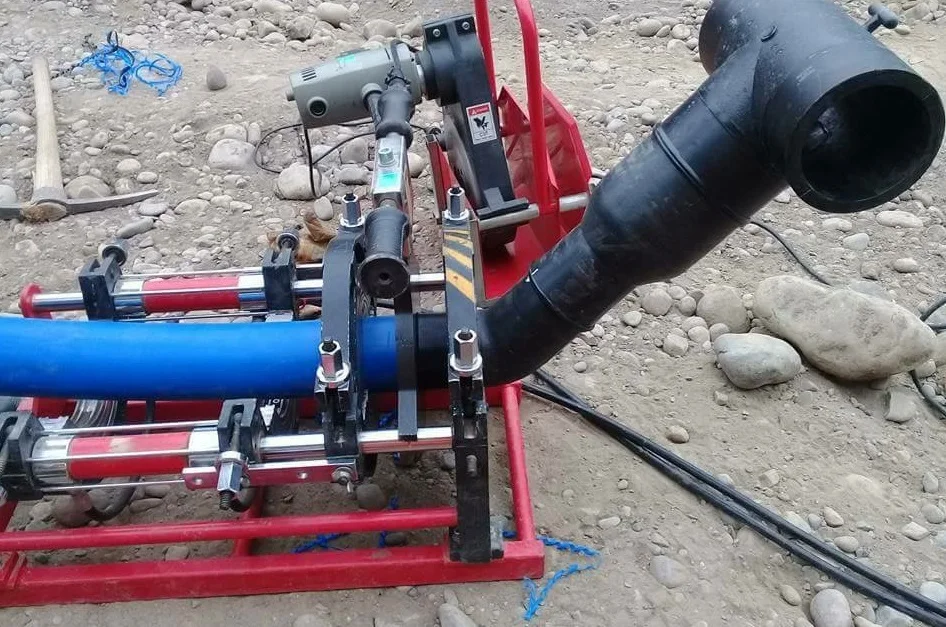

Application
