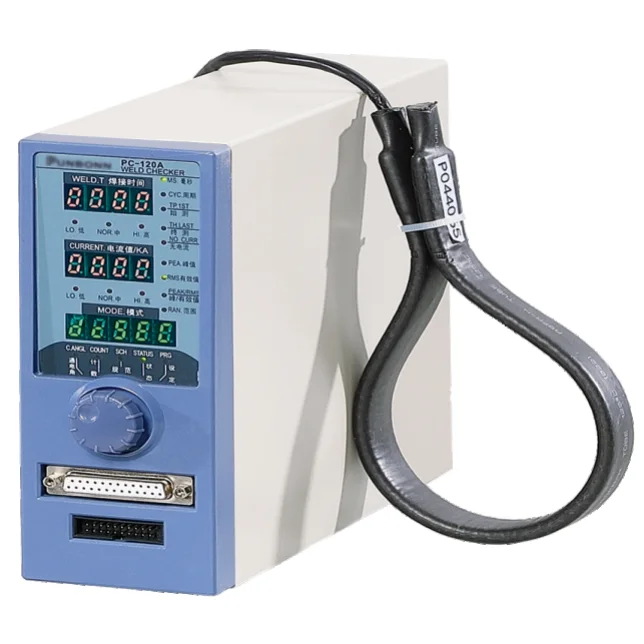

Multi Functional Detector Professional Resistance Welder Detector Weld Checker
- Category: >>>
- Supplier: Suzhou Sunergy Technology Co. Ltd.Suzhou Ltd.
Share on (1601220984665):
Product Overview
Description
Products Description
Welding Detector
Current, voltage, energization time, pressure, displacement measurement - ensuring welding quality characteristics: (1) Suitable for various types of welding power sources, including AC, DC, AC, transistor, capacitive energy storage, etc., all can be measured.
(2) Multiple measurement functions can measure current, voltage, welding time, welding pressure, welding displacement, and determine their upper and lower limits.

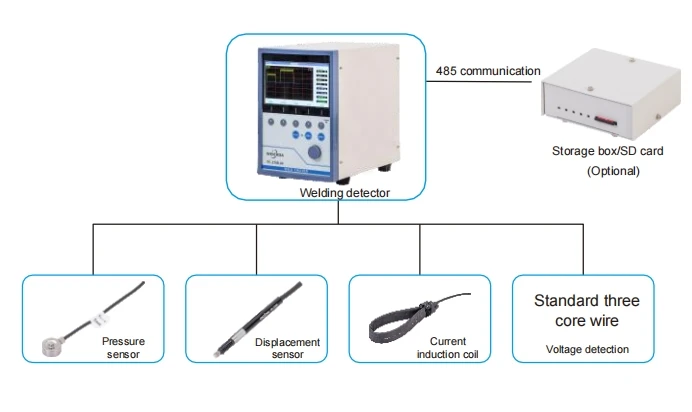

(3) Two channels of welding pressure signal can provide feedback on welding pressure, and one channel of welding
displacement signal. Pressure and displacement can be used as control signals to start or interrupt discharge, respectively.
(4) Rich I/O interfaces can be equipped with automation devices, external data storage boxes, or communicate with PCs and industrial control computers.

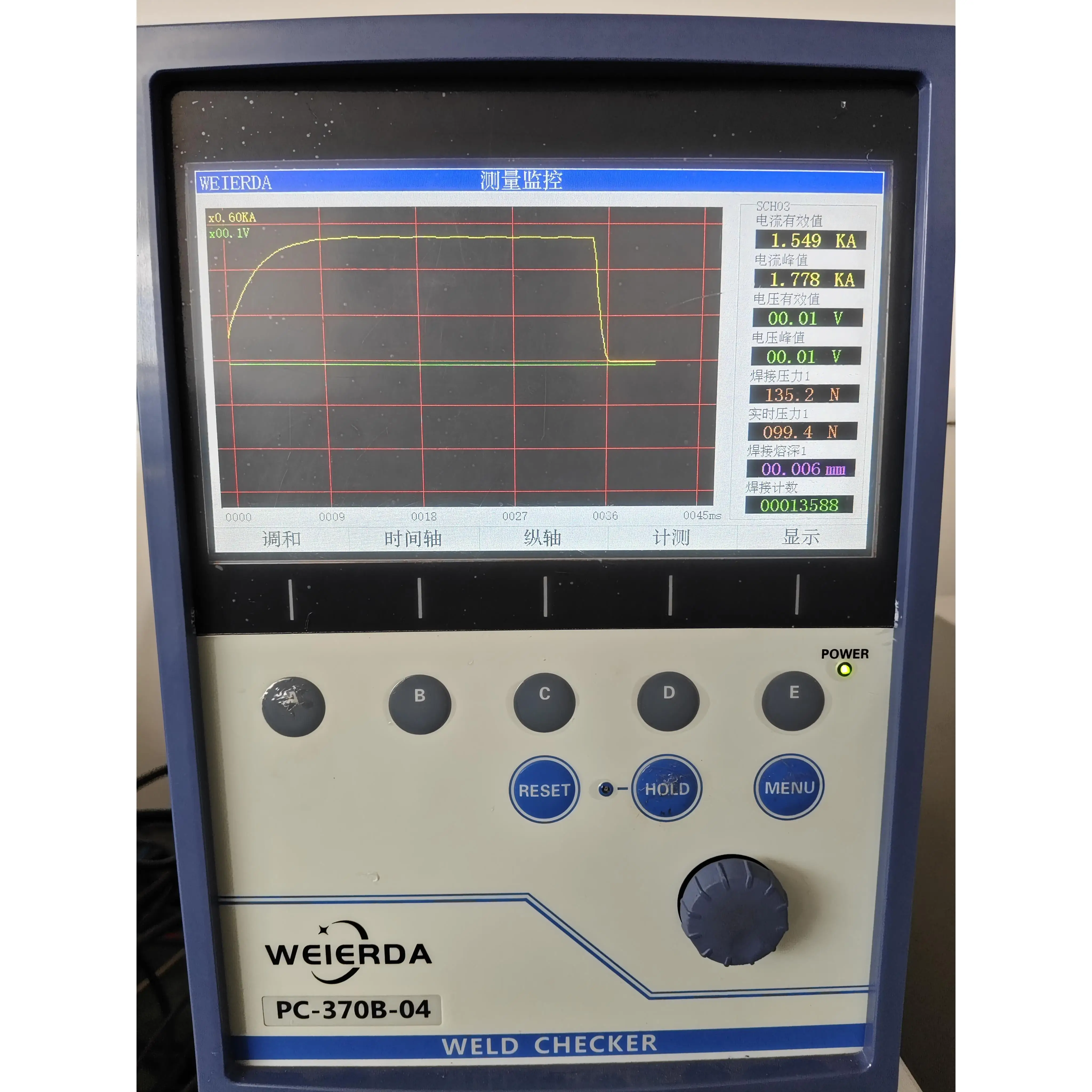

(5) The human-machine interface is friendly and supports real time dynamic waveform display.
(6) Currently supports Chinese or English.
model | PC-370B | ||
input voltage | Single AC220V(50/60Hz)±10% | ||
Current | measuring range | 0.1-2.000KA/0.3-6.0KA/1.0-20KA 3.0-60KA/10-200KA | |
Measurement items | Mean effective value/peak value | ||
voltage | measuring range | 0.3-6.0V/1.0-20V | |
Measurement items | Mean effective value/peak value | ||
Power on time | measuring range | Communicationmode:0.5-500CYC(50Hz)DC mode:2000ms | |
pressure measurement (Optional) | measuring range | 5N-9999N | |
Measurement items | Mean effective value/peak value | ||
Displacement (optional | measuring range | ±300mm(displacement sensorwith measurement accuracy of 0.001mm) | |
Measurement items | The displacement from the start of electrification to the completion of welding | ||
Measurementrange of electrification angle | 0-180°(communication mode) | ||
Number of preset conditions | 63 groups | ||
Communication methods | Single item (RS485 communication) | ||
size | 275mm(H)x 181mm (W)x 290mm(D)(excluding protrusions) | ||
weight | Approximately 5kg | ||
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: Do you have quality certificate?
A: Yes we have CE and other certificate for the products.
Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
A: Sure of that, it is our honor to work for you, and control the goods quality.
Q: What's the delivery time?
A: For standard machine, around 10-15 days, however, based on order.
A: For standard machine, around 10-15 days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 50% deposit, then 50% balance is paid before shipment, weusualy offer EXW/FOB SHANGHAI price, but we also accept other way likeL/C,western union, and do CFR&ClF etc.
Q: Does it easy to operate and what can l do if it doesn't work?
A: First, our machine is stable and easy to operate by one man, what you do is just learnsome basic thing like load the raw material, set some parameters, start the machine. Andwe will send you manual and video, we suggest you to come to visit our factory to learnmore thing by yourself, and if there is something goes wrong, you can call us by video.and email us. And we will give solution with in 24 hrs. Our engineer also can be distributedto overseas as you required.
Q: lf the machine's parts broken, where can l get?
A: We will give you the spare parts witch is vulerable, and some critical parts like motorour quality is good, in case it broken within one year, we will send you for free.
