Separation Equipment Drilling Fluids Desilter
- Category: >>>
- Supplier: Shandong Beyond Petroleum Equipment Co. Ltd.
Share on (1601221018250):
Product Overview
Description
Product Description

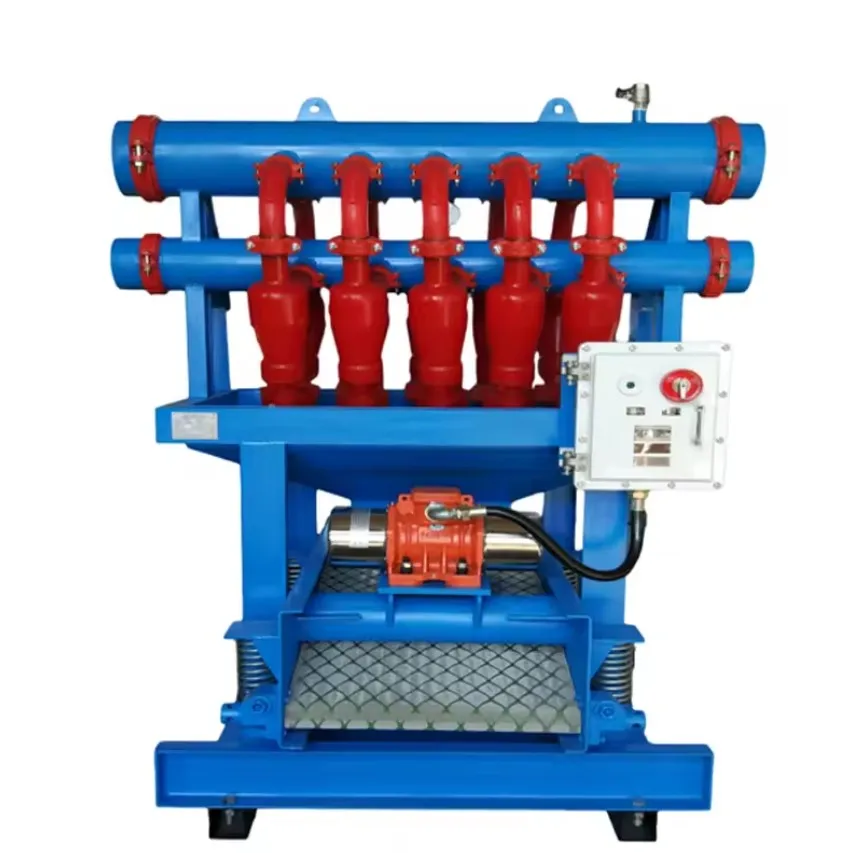

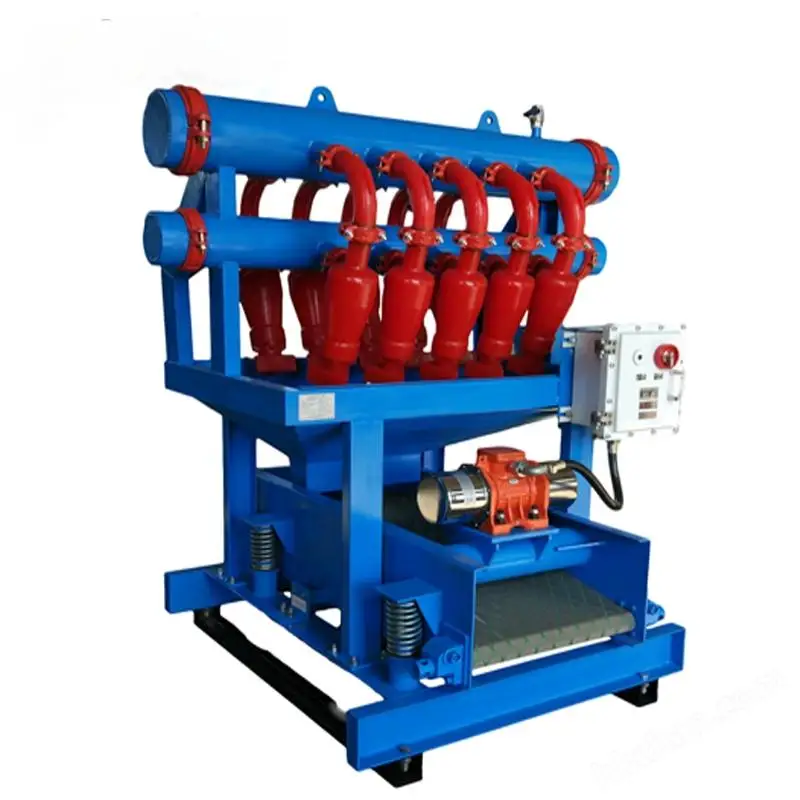

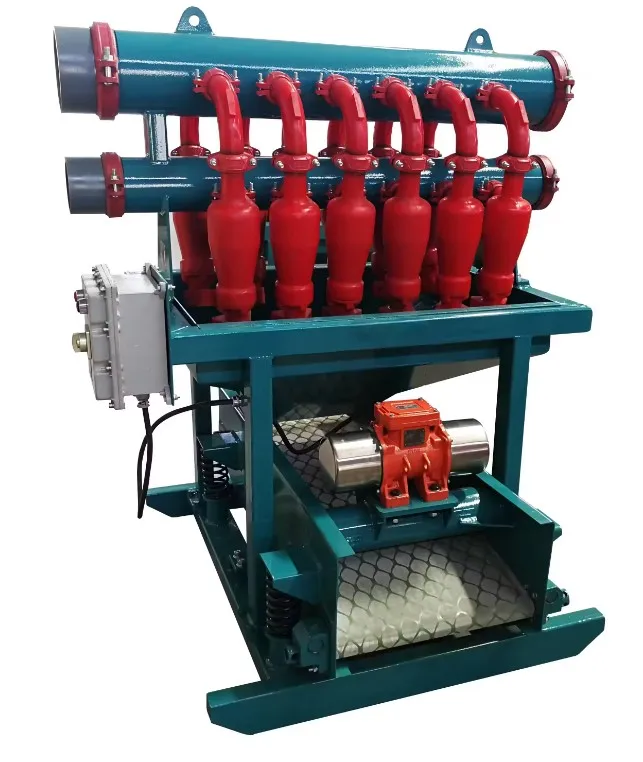

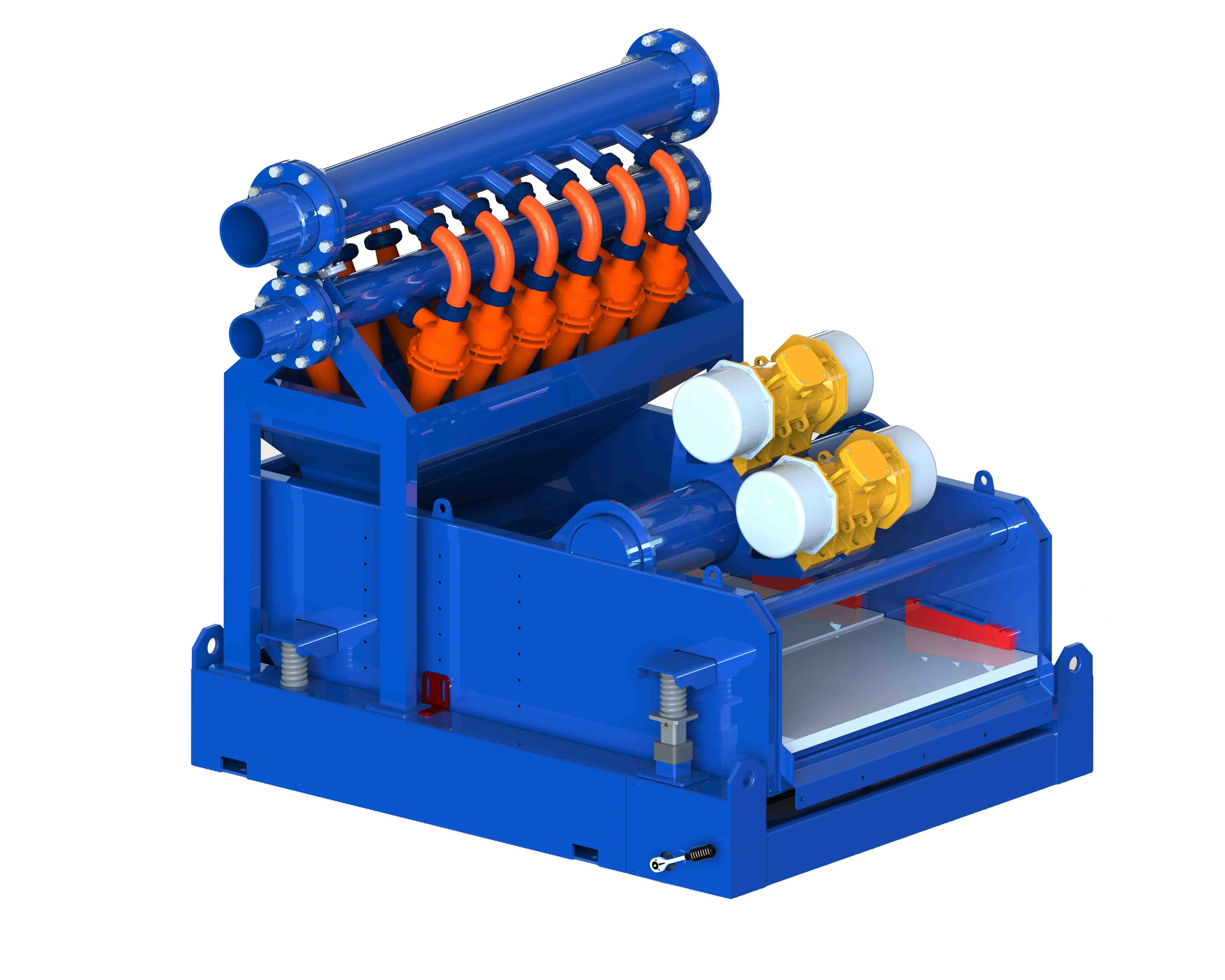

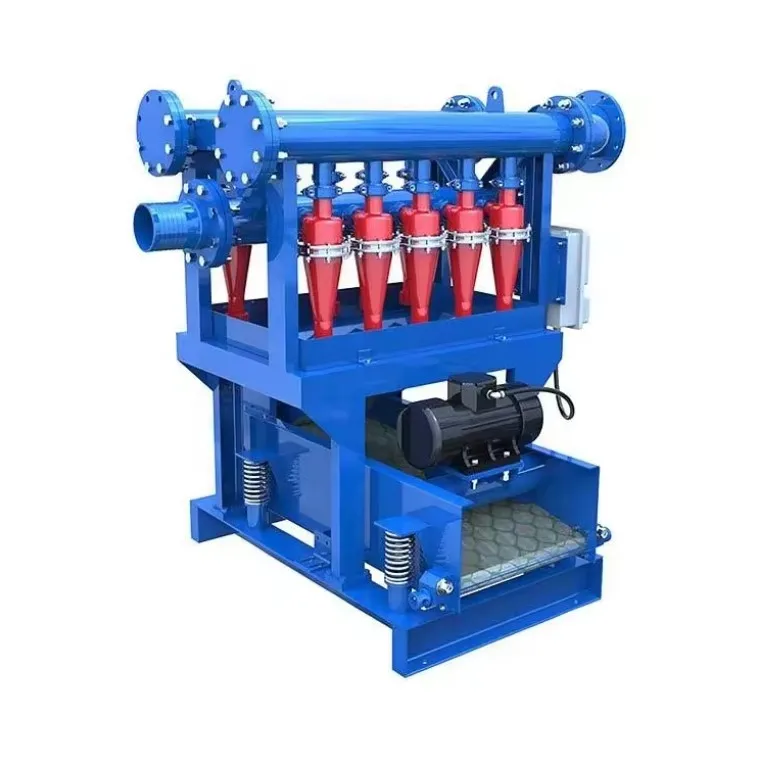

ZQJ Double Hydrocyclone Desander
* As a solids control equipment of the third stage in drilling operation, desilter is used to remove solid particles of 20ˉ 44 µm in drilling liquid.
* The desilter of this type that has been reformed many times on the applications for years is reliable in technical performance and provides very good treatment results.
* Its water cyclone is of long service life and stable performance.
* It is applicable to various kinds of drills in the oilfields.
* The inlet and outlet of water cyclone can be connected very quickly, which is convenient for replacement and maintenance.
* The inlet and outlet of water cyclone can be connected very quickly, which is convenient for replacement and maintenance.
Specification
Model | ZQJ100×10 | ZQJ100×12 | ZQJ100×14 | ZQJ100×16 |
Hydrocyclone diameter | 100mm | 100mm | 100mm | 100mm |
Working pressure | 0.2~0.45mpa | 0.2~0.45mpa | 0.2~0.45mpa | 0.2~0.45mpa |
Capacity | 120-160m3/h | 160-200m3/h | 200-220m3 /h | 200-240m3 /h |
Screen size | 1240×585mm | 1240×585mm | 1240×585mm | 1240×585mm |
Screen specification | 100-200mesh | 100-200mesh | 100-200mesh | 100-200mesh |
Inlet diameter | 6‘’ (150mm) | 6‘’ (150mm) | 6‘’ (150mm) | 6‘’ (150mm) |
Outlet diameter | 8‘’ (200mm) | 8‘’ (200mm) | 8‘’ (200mm) | 8‘’ (200mm) |
Motor power | 0.5kw | 0.5kw | 0.5kw | 0.5kw |
Weight | 680kgs | 720kgs | 740kgs | 780kgs |
Overall dimension | 2310×1136×2085mm | 2546×1136×2085mm | 2646×1136×2085mm | 2866×2018×2085 mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
