2500W 120v 220v 240v wind turbine electricity production wind turbine kit Full Kit
- Category: >>>
- Supplier: Daotian Hongye New Energy (shenzhen) Co. Ltd.
Share on (1601221138930):
Product Overview
Description
Product Description
Brand Name | AUSEUSA |
Model Number | DT-NE-2500L |
Rated power | 2500W |
Rated voltage | 120v/220v/240v |
2.5KW horizontal axis wind turbine system full kit | ||||||||
model | DTF-NE-2500L | |||||||
rated power | 2500W | |||||||
Maximum power | 2700W | |||||||
Rated voltage | 120V(Optional 220/240v) | |||||||
Start wind speed | 3m/s | |||||||
Rated wind speed | 12m/s | |||||||
maximum wind speed | 45m/s | |||||||
top weight | 85kg | |||||||
Wind wheel diameter | 3.7m | |||||||
Tower height | 9m | |||||||
Recommended battery | 150Ah*10 | |||||||
Number of blades | 3 | |||||||
Blade material | Reinforced Glass Fiber | |||||||
Motor | Three-phase AC permanent magnet synchronous generator | |||||||
Control System | Resistor unloading + automatic adjustment of windward angle | |||||||
Operating temperature | -40℃-80℃ | |||||||

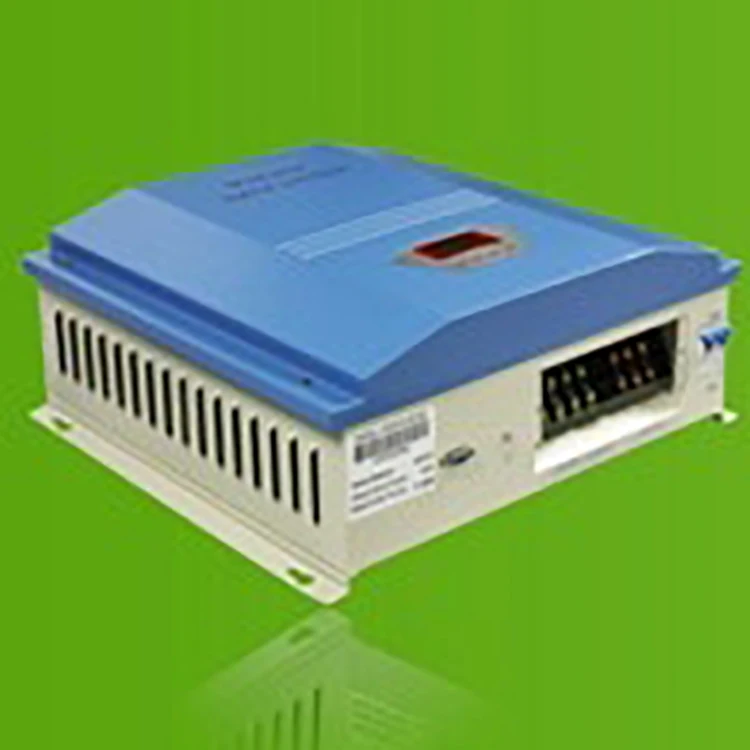

3KW Wind and Solar Hybrid Controller Parameters | ||||||||
Product number | WWS30-120-N | |||||||
Battery rated voltage | 120V | |||||||
Fan rated input power | 3kW | |||||||
Fan maximum input power | 4.5kW | |||||||
Fan brake current point | 25A | |||||||
Photovoltaic rated input power | 900W | |||||||
Float charging point | 145V | |||||||
Display method | LCD | |||||||
Quiescent Current | ≤20mA | |||||||
Operating temperature/humidity range | -20～+55℃/35～85%RH（But no condensation） | |||||||
Communication function (optional) | Optional RS232 、RS485、 RJ45、 GPRS | |||||||
Temperature compensation function (optional) | -4mV/℃/2V ,–35℃～+80℃, Accuracy：±1℃ | |||||||
Reference size (length × width × height) | 523×423×170mm | |||||||
reference weight | 16 kg | |||||||

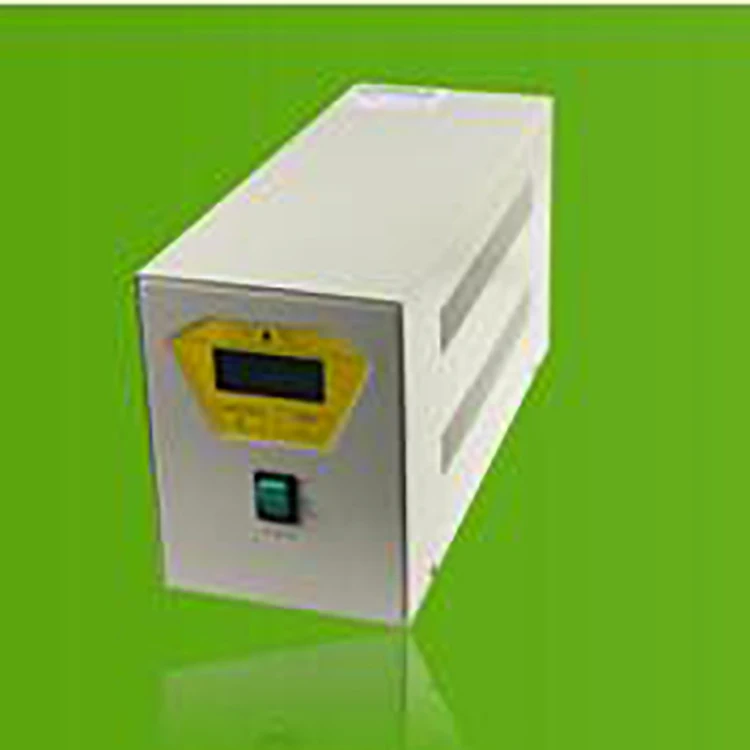

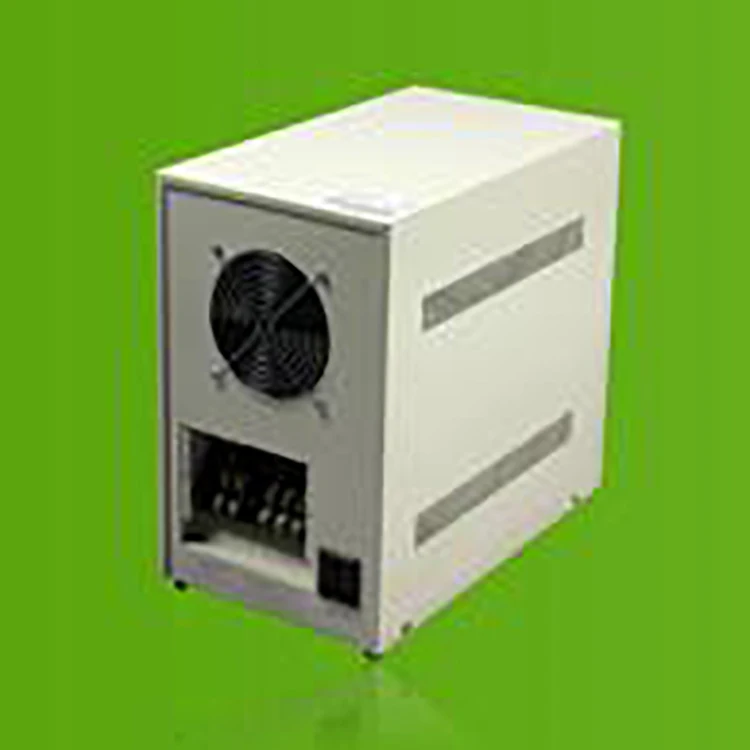

3KW Inverter Parameters | ||||||||
Product number | WI30-120 | |||||||
Rated output capacity | 3kVA | |||||||
Rated battery voltage | 120VDC | |||||||
Input overvoltage protection point | 170VDC | |||||||
Enter overvoltage recovery point | 165VDC | |||||||
Battery over-discharge protection point | 108VDC | |||||||
Battery over-discharge recovery point | 120VDC | |||||||
No-load current | ≤0.2A | |||||||
reference weight | 27kg | |||||||
Reference Size | 400×243×352mm | |||||||
Output waveform | pure sine wave | |||||||
Display method | LCD (liquid crystal display) | |||||||
Heat dissipation method | Fan cooling | |||||||
Rated output voltage | 110/120/220/230/240VAC | |||||||
Waveform distortion rate | ≤4％ | |||||||
Output frequency | 50/60Hz±0.5Hz | |||||||
Dynamic Response | 5% | |||||||
Power factor | ≥0.8 | |||||||
Overload capacity | 120% for 1 minute, 150% for 10 seconds | |||||||
Inverter efficiency | Maximum 90% | |||||||
Isolation method | Toroidal transformer | |||||||
Noise (1 meter) | ≤40dB | |||||||
Dielectric strength | 1500VAC,1 minute | |||||||
Protective function | Inverter input overvoltage protection, battery overdischarge protection, battery reverse connection protection, | |||||||
Use ambient temperature | -20～+55℃ | |||||||
Use altitude | ≤4000m | |||||||
environment humidity | 0~90%, no condensation | |||||||
Name | Product number | Quantity | Price | Remarks | ||||
Wind Turbines | 2.5KW120V | 1 | Generator, blades, tailplane | |||||
cable tower | 6m(3m*2) | 1 | galvanized pipe | |||||
Wind and solar hybrid controller | 3KW120V | 1 | Overcharge and overdischarge, infinite unloading | |||||
inverter | 3KW120V | 1 | sine wave | |||||
battery | 150Ah*12V | 10 | Lead-acid maintenance-free (customers can prepare their own) | |||||

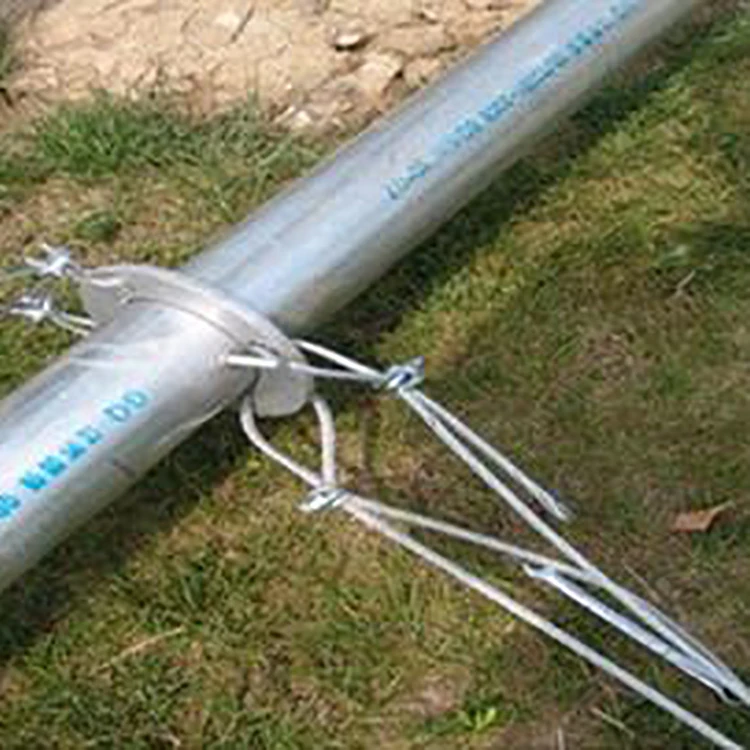

3KW Tower Parameters | ||||||||
Material | hot-dip galvanized iron pipe | |||||||
Size | 114*Φ4mm | |||||||
Connection | flange | |||||||
Gross weight | 148kg | |||||||
