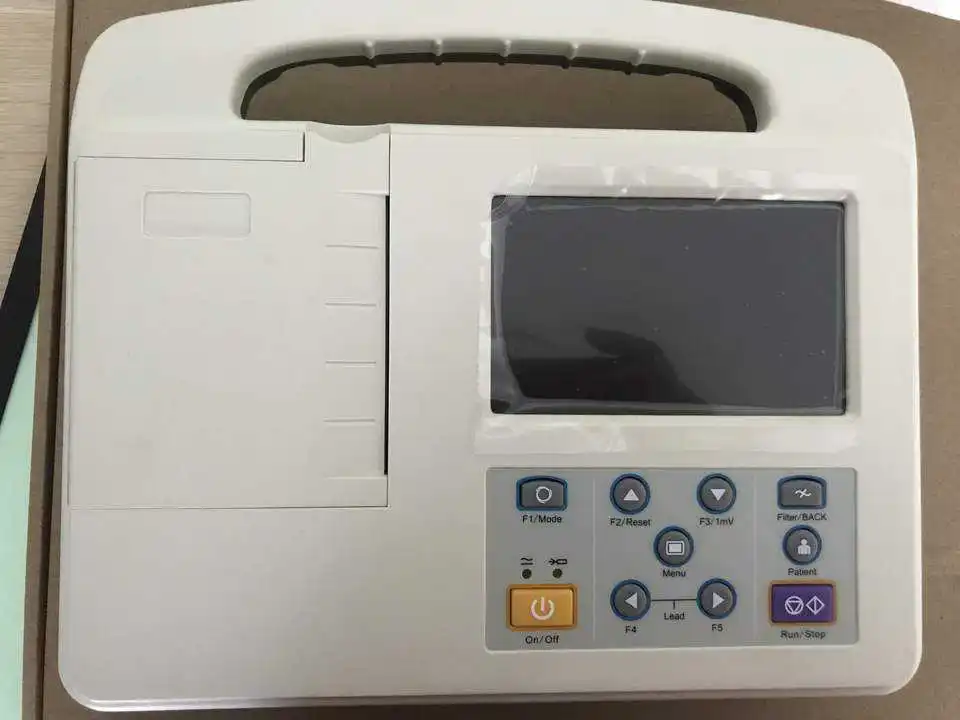

SUN 8032 Manufacturer High Quality 3 Channel 5 inch color screen Electrocardiograph Ecg Machine

Hot Picks

Features

3 channel ECG machine with interpretation

Manual/Auto/Arrhythmia Analysis Modes

80mm 3-ch recording with rhythm lead

Built in rechargeable Li-ion battery

Adaptor 110-230V, 50/60Hz AC power supply

Built in USB/RS232 interface (ECGNET software Optional)



Technical Specification

Lead:standard 12 leads

Calibrating voltage: 1mV±2%

Voltage tolerance: ≥±500mV

Time constant: ≥3.2s

Frequency response: 0.05~160Hz(-3db)

Noise level: <15μVp-p

Sensitivity valve: ≤20μV

Sensitivity: 2.5, 5, 10, 20mm/mV

Inter-channel Interference: ≤0.5mm

Paper speed: 6.25, 12.5, 25, 50mm/s(±3%)

Input dynamic range:±10Vpp

Filter: AC Filter : 50Hz / 60Hz



EMG Filter : 25Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

CMMR: ≥120dB (with AC filter)

Input Impedance: ≥50MΩ

Input circuit current: ≤0.05μA

Patient current leakage:<10μA

Lead acquisition: 12bit/1000Hz(synchronously 12 leads)

Work modes: MAN,AUTO,ANALYSIS modes

Input circuit: floating; protection circuit against defibrillator effect

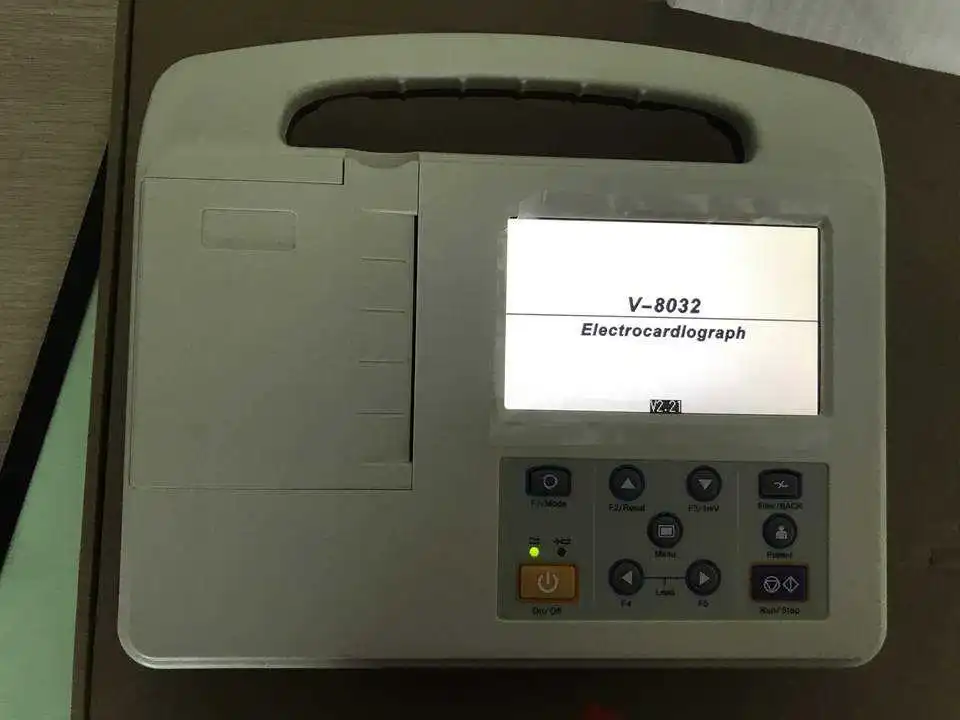

Display: 5 inch colour LCD

ECG waveform,100 patient save/replay

1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
