Construction cement 3 cubic meters Self Loading Concrete Mixer Truck Concrete Mixer Truck for Sale
- Category: >>>
- Supplier: Gaode Equipment Co. Ltd.Gaode Ltd.
Share on (1601221255972):
Product Overview
Description

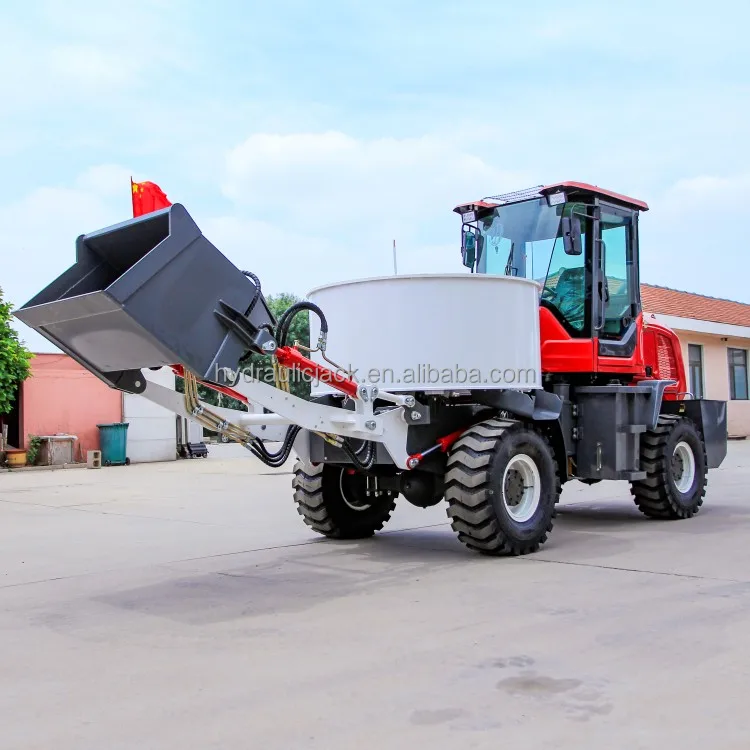

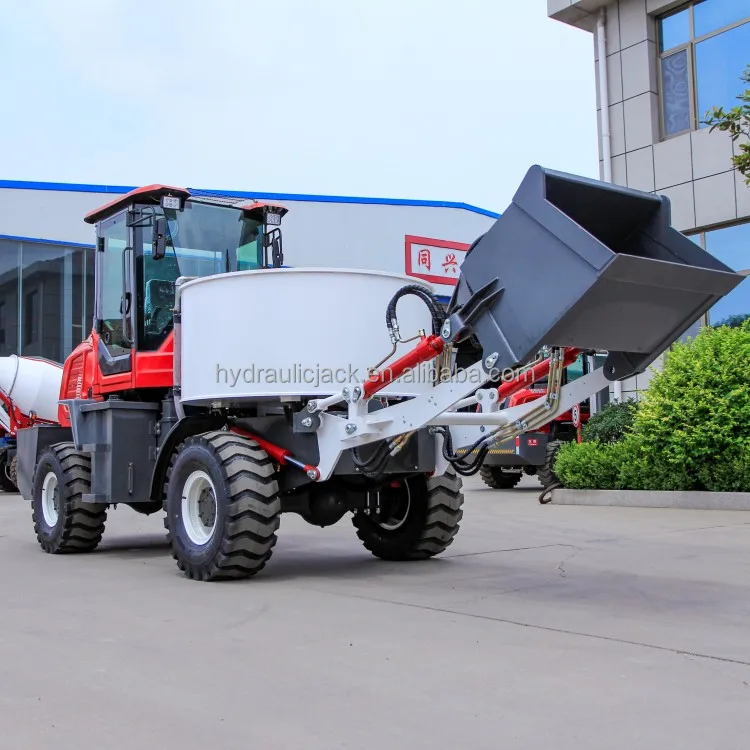

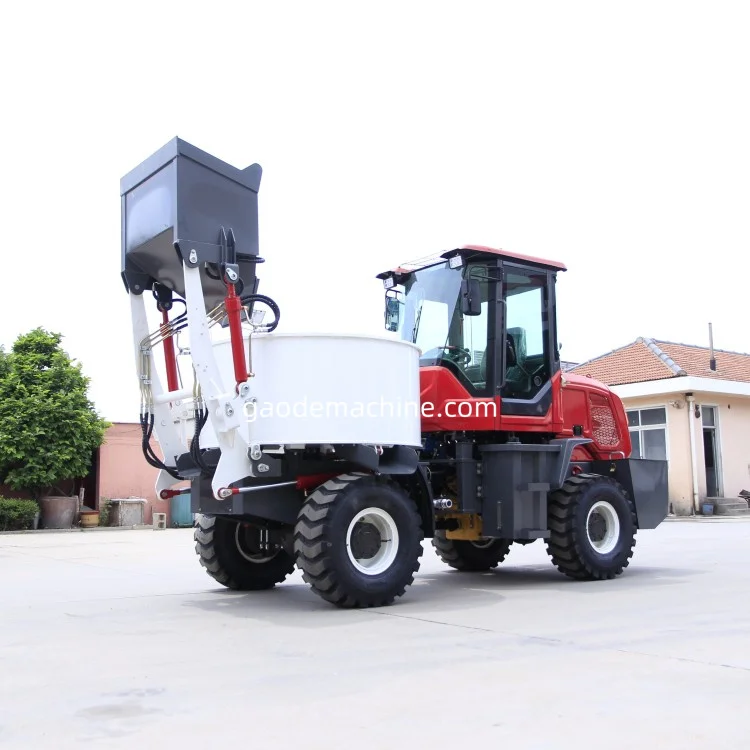

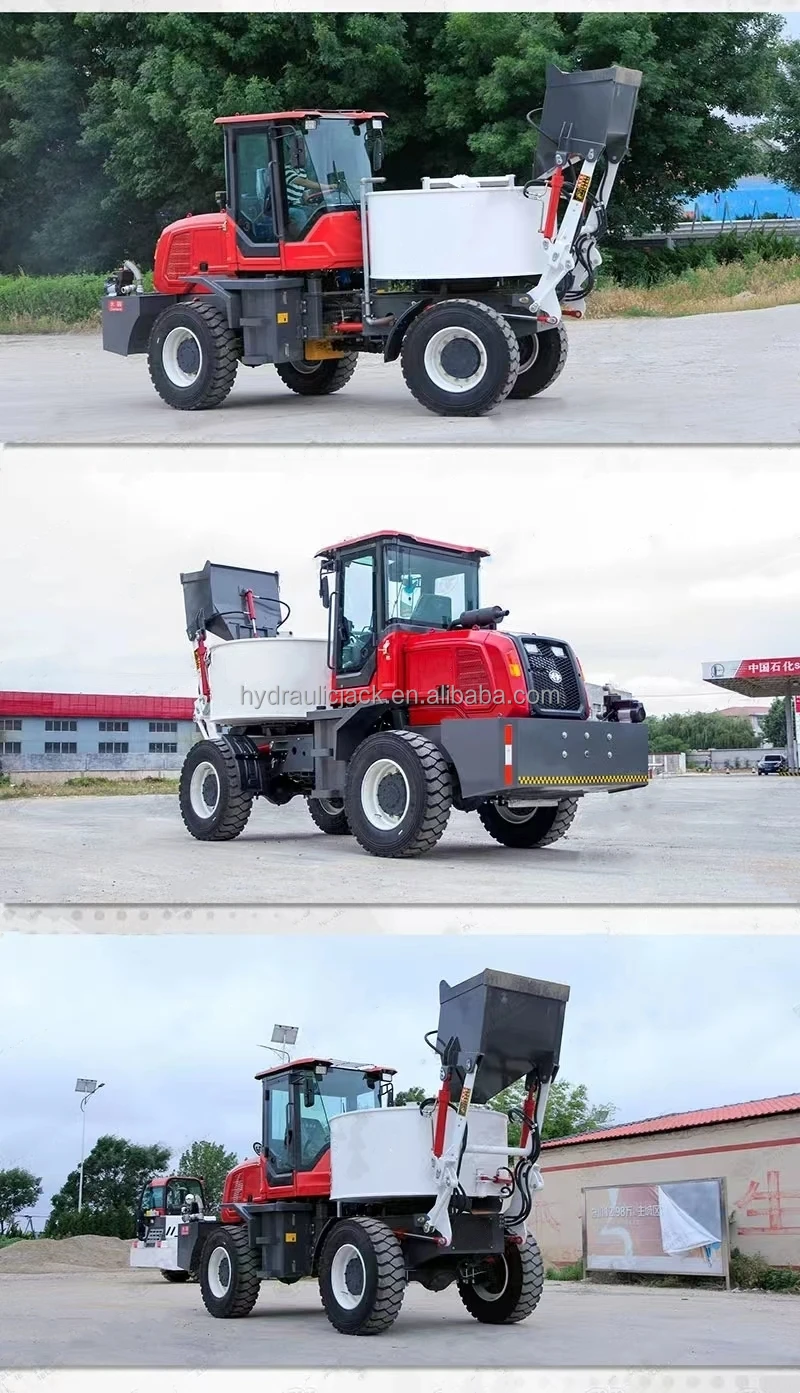

New upgraded flat mouth self-loading mixer truck
Three-in-one loader, mixer and transport vehicle
Product advantages: rapid discharge, precise proportioning, good sealing, high stability
Product advantages: rapid discharge, precise proportioning, good sealing, high stability
Products Description
Gaode flat self-loading mixer truck has independent intellectual property rights and invention patents. It is suitable for the production and transportation of various concretes, especially for the production of high-viscosity concrete such as permeable concrete and colored concrete.
It has functions such as automatic feeding, automatic stirring, automatic water supply, quantitative water addition, automatic unloading, fixed-point unloading, etc., with a high degree of automation, full-time four-wheel drive, and faster transportation. It can be a good replacement for loaders, mixers, and transport vehicles. It only needs to be equipped with one or two workers to start work at any time, which effectively saves labor costs and greatly improves production efficiency.
It has functions such as automatic feeding, automatic stirring, automatic water supply, quantitative water addition, automatic unloading, fixed-point unloading, etc., with a high degree of automation, full-time four-wheel drive, and faster transportation. It can be a good replacement for loaders, mixers, and transport vehicles. It only needs to be equipped with one or two workers to start work at any time, which effectively saves labor costs and greatly improves production efficiency.

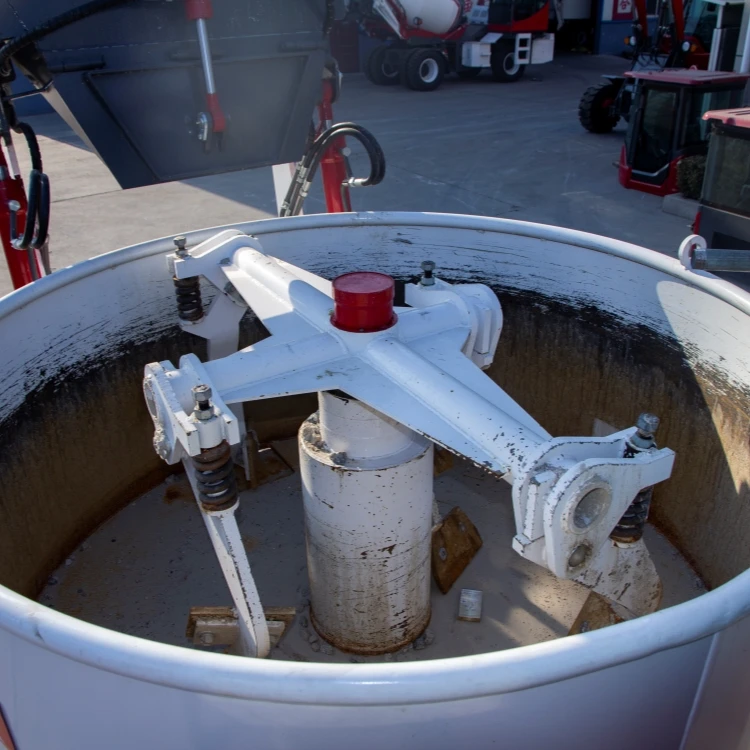

Gaode flat self-loading mixer truck has core patented technology, thickened stirring shaft, equipped with grease filling port, and its durability has been improved several times. The unique tensioned multi-directional stirring teeth can effectively reduce the impact force, make it stronger and more durable, and stir more evenly.

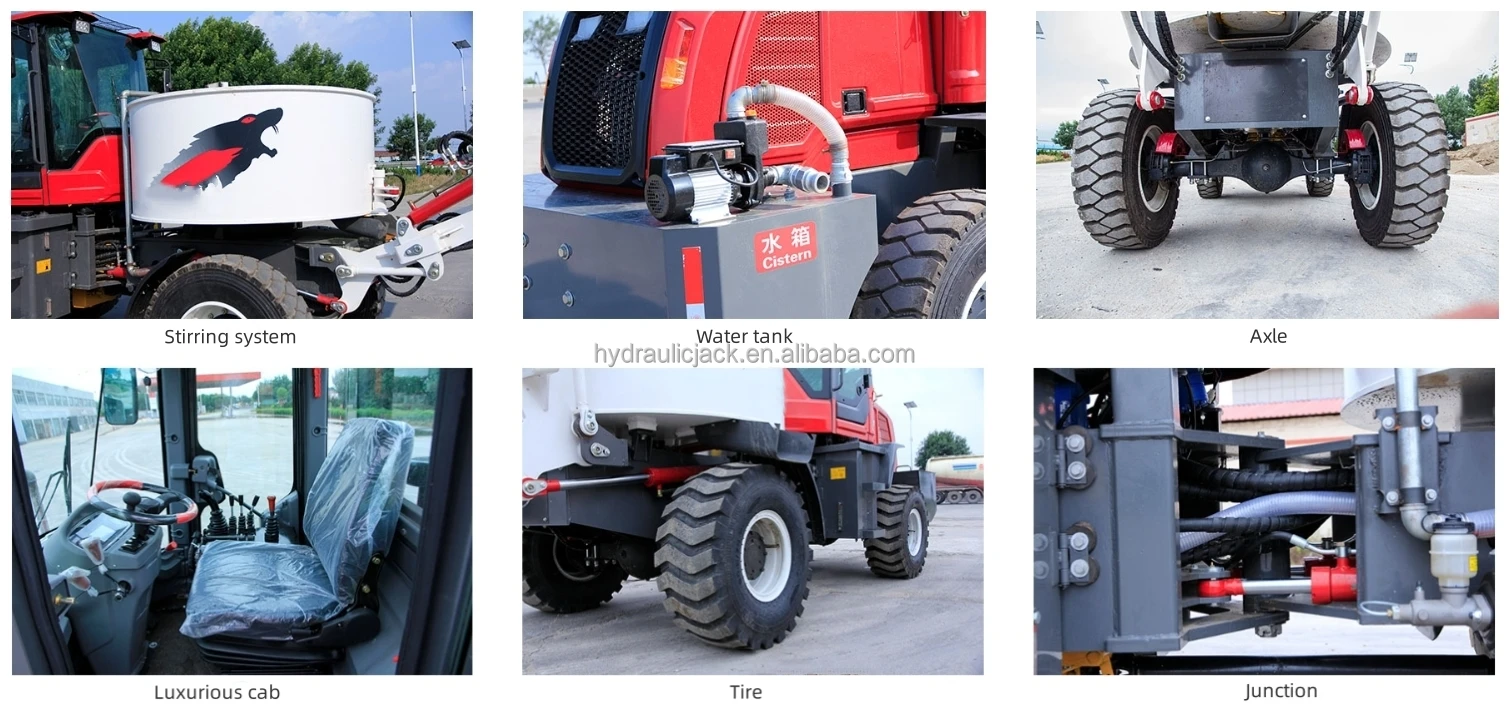

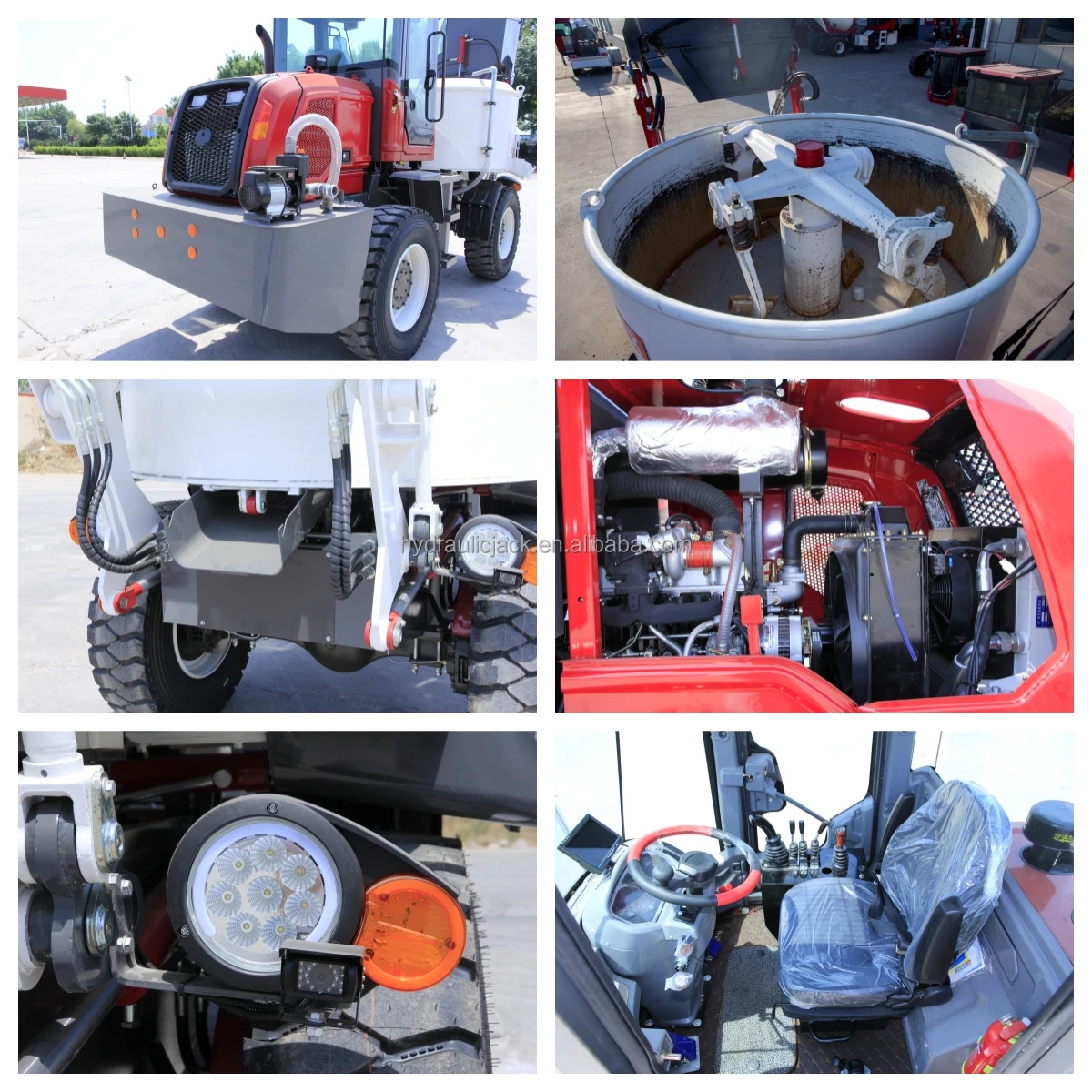

Product Features
1. Widened and heavier drive axles (thickened semi-axle bushings, four sets of brake calipers on one bridge), the whole vehicle adopts domestic first-line brand hoses, hydraulic pumps, hydraulic cylinders, and hydraulic oil, and its service life is longer than that of ordinary brands more than five times;
2. Large torque reducer, compact structure, small return clearance, high precision, three discharge ports can be customized according to user needs, and discharge quickly;
3. The speed per minute is ≥20 rpm, equipped with a large-capacity hopper, and the material is loaded quickly. The comprehensive discharge time is an average of one can of material every 10 minutes. Calculated on the basis of 8 hours of normal operation per day, the daily concrete output can reach more than 224 tons, 1-2 Individuals can easily operate.
2. Large torque reducer, compact structure, small return clearance, high precision, three discharge ports can be customized according to user needs, and discharge quickly;
3. The speed per minute is ≥20 rpm, equipped with a large-capacity hopper, and the material is loaded quickly. The comprehensive discharge time is an average of one can of material every 10 minutes. Calculated on the basis of 8 hours of normal operation per day, the daily concrete output can reach more than 224 tons, 1-2 Individuals can easily operate.
Technical Parameters
Vehicle type | GMT1500 | GMT2000 | GMT2000A | GMT3000 |
Overall dimensions (mm) | 5100x 1900x3100 | Lifting arm: 5350x2150x3280 Drop arm: 6800x2150x2800 | Lifting arm: 5350x2150x3380 Drop arm: 6800x2150x 2900 | Lifting arm: 5950x 2400x3350 Drop arm: 7100x 2400x2880 |
Wheel base (mm) | 2600 | 2850 | 2850 | 2900 |
Total weight (kg) | 4500 | 6000 | 6000 | 6500 |
Drive model | Four-wheel drive | Four-wheel drive | Four-wheel drive | Four-wheel drive |
Tyre | Forward gears 20.5-16 | 20.5-16 | 16/70 R22.5 | 16/70 R22.5 |
Drive axle | Small wheel side axle,Front wheel single pliers,Rear wheel double pliers | Small wheel side axle,Front wheel double pliers, Rear wheel double pliers | Big wheel side axle,Front wheel double pliers,Rear wheel double pliers | 2.0T wheel side axle,Front wheel double pliers,Rear wheel double pliers |

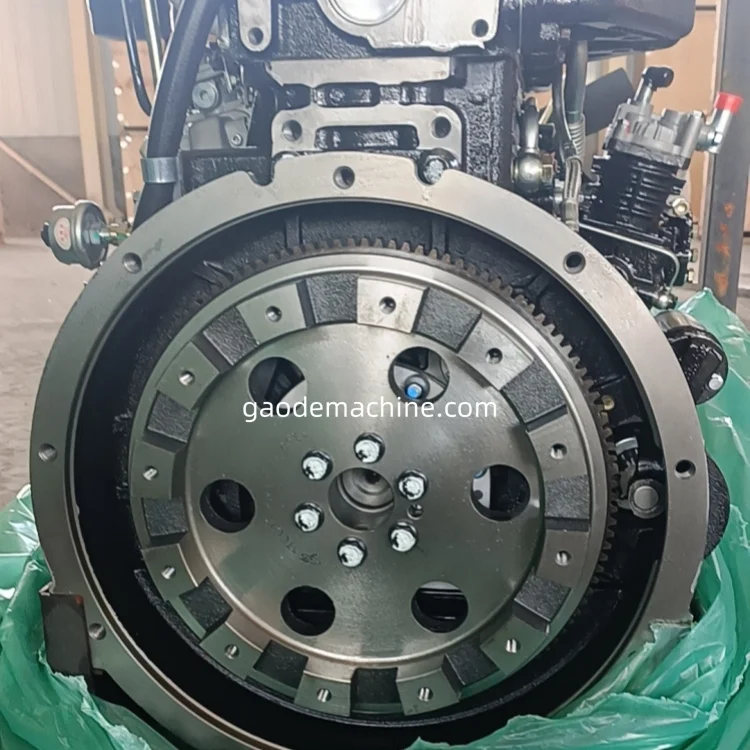

Engine model | East China 4102 turbo charger 4DHZY4 | 4102 turbo charger YCD4M22T-105 | YUCHAI 4102 turbo charger YCD4M22T-105 | YUCHAI 4105 turbo charger YCD4J22T-115 |
Engine power (kw) | 76 | 73 | 78 | 85 |
Gearbox mode | 265 | 265 | 280 | 280 |
Maximum speed (km/h) | 30 | 30 | 30 | 30 |
Maximum climbing slope (°) | 30 | 30 | 30 | 30 |
Minimum turning radius (mm) | 4000 | 5800 | 5800 | 5800 |
Mixing tank diameter (mm) | 1700 | 1800 | 1800 | 2100 |
Mixing tank depth (mm) | 750 | 800 | 800 | 800 |
Mixing tank capacity (m³) | 1.5 | 2 | 2 | 3 |
Bucket capacity (m³) | 0.4 | 0.5 | 0.5 | 0.5 |
Reduction ratio | 1:28 | 1:28 | 1:28 | 1:28 |
Speed (Laps/minute) | ≥15 | 20 | 20 | ≥20 |
Quantity of discharge port (pcs) | 2 | 2 | 2 | 2 |
Distance from the ground at the discharge port (mm) | 900 | 1100 | 1100 | 900 |
Water tank capacity (L) | 500 | 500 | 500 | 500 |
Mixing drive mode | Forced mixing | Forced mixing | Forced mixing | Forced mixing |
Mixing tank drive type | Hydraulic drive | Hydraulic drive | Hydraulic drive | Hydraulic drive |
Minimum ground clearance (mm) | 300 | 350 | 350 | 350 |
Application
It is suitable for general highways, power stations, damming projects, construction sites, roads, bridges, hydropower and large and medium-sized prefabrication plants and other projects.

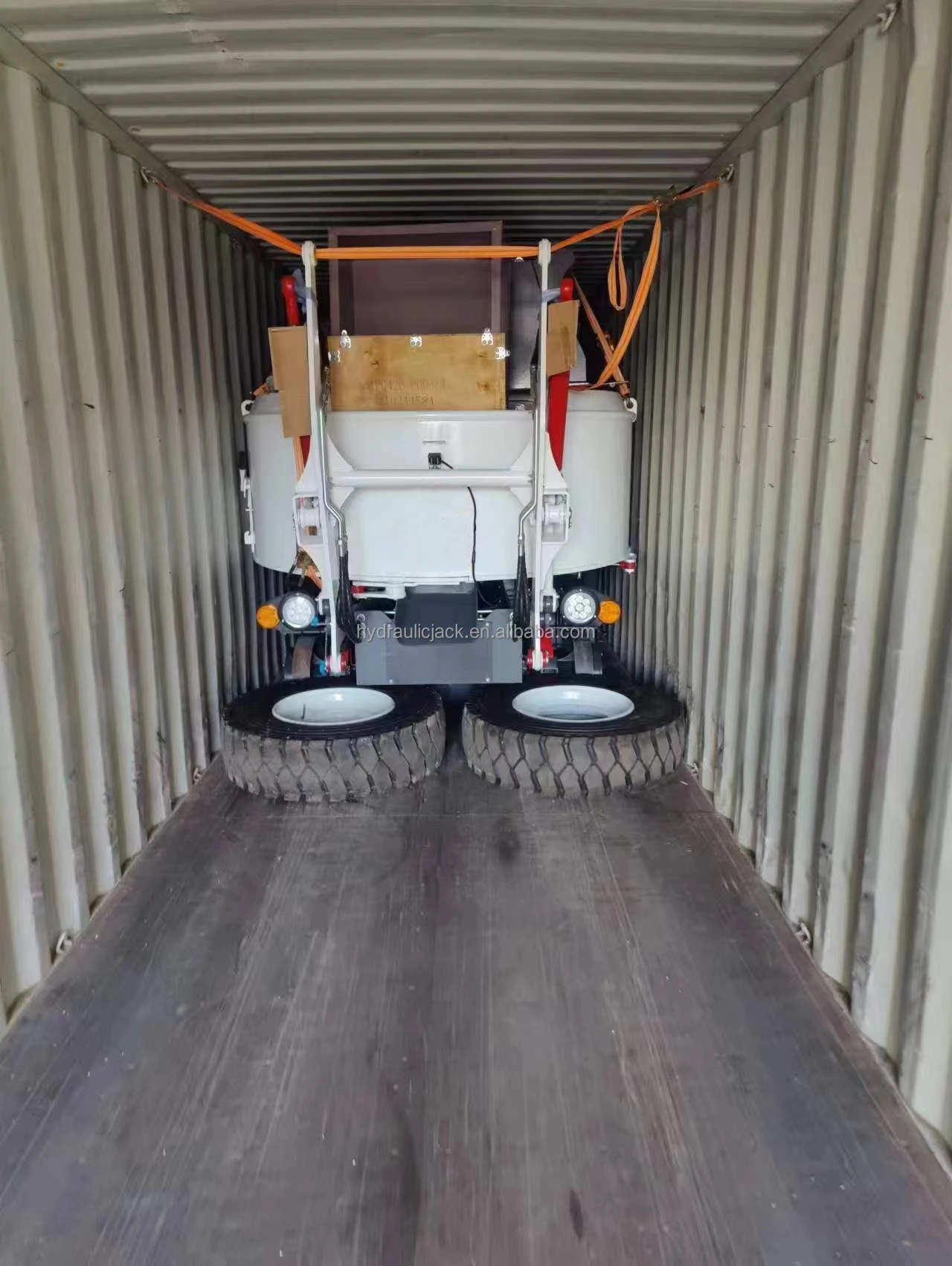

Packaging and shipping

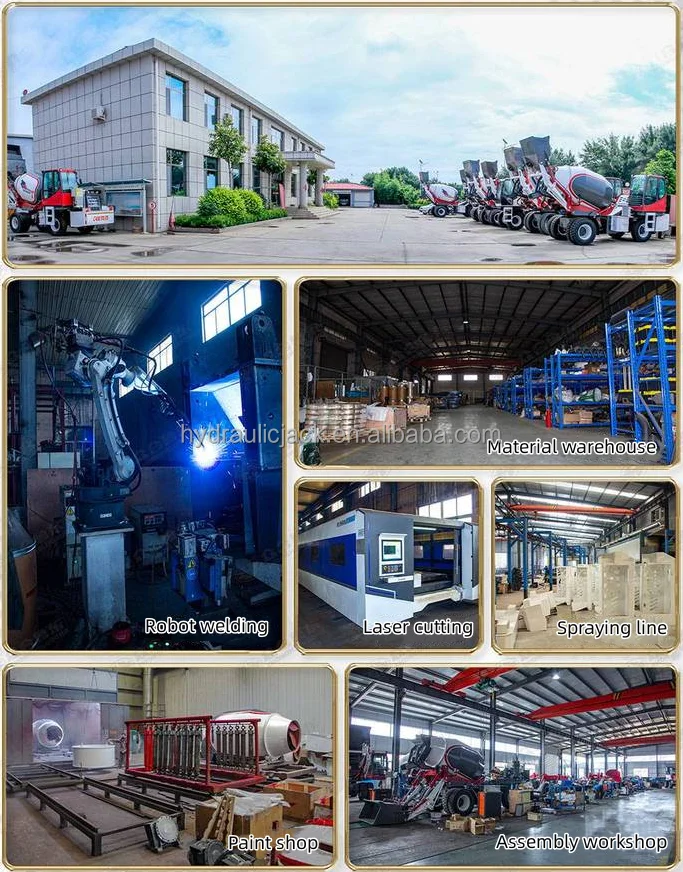

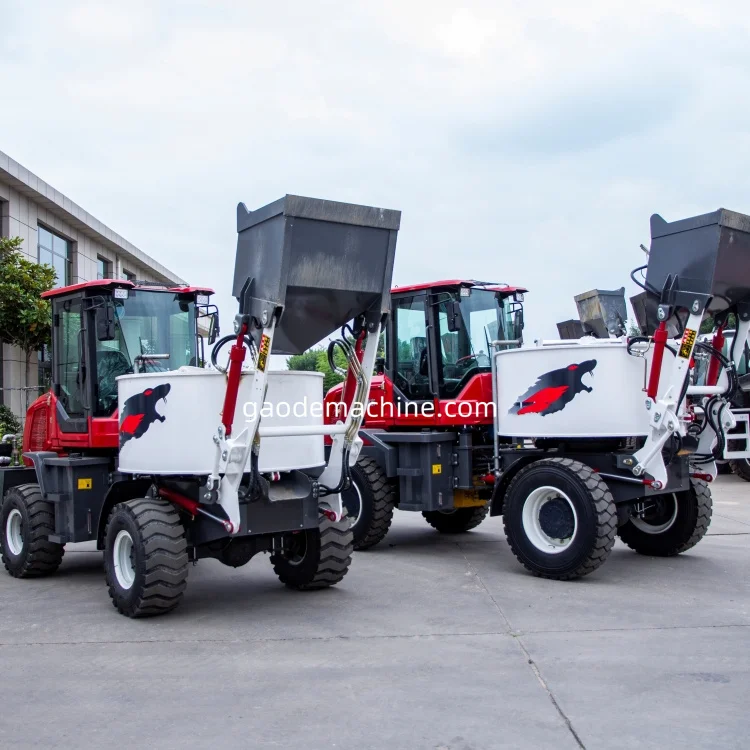

Factory Show
