GMD1NP2 series KINGTEX Overlock machine Multi function type Needle Position Energy Saving DD Motor | GRAND sewing machine motor

Share on (1601221289161):


Price:$40.00 - $55.00

Quantity:


Product Overview

Description



Product Description

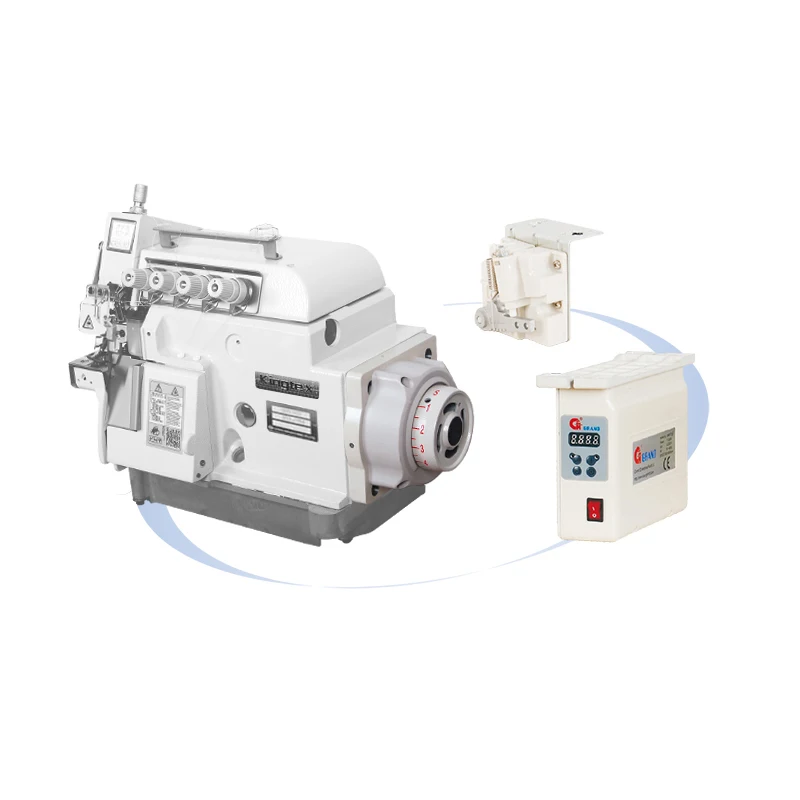

GMD1NP2-KINGTEX multi-function Needle Position Energy Saving DD Motor with KINGTEX overlock machine series (For example: light|\\foot lifte|\\sensor|suction etc..control functions):

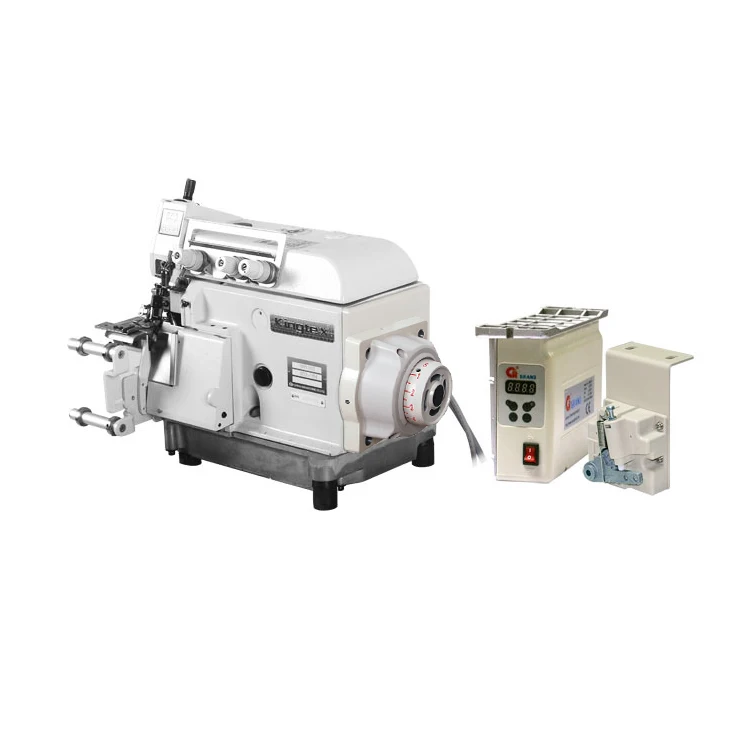

 GMD1NP2-kingtex2GMD1NP2-kingtex1GMD1N-





Product Features:

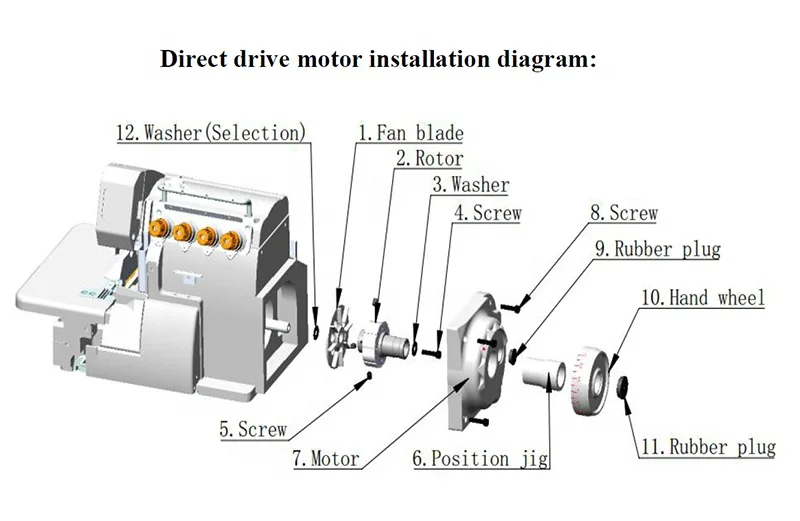

1, with automatic stop pin , automatic presser foot from the many other features , small size, high output power, low heat , look more simple and beautiful ; applicable to all manufacturers supporting the use of sewing machines ( direct drive installation package detailed in the table ) .

2, brushless motor design , no sparks security , long-term use without replacing any parts ; run outside during the interference of other small electronic devices .

3, energy efficient , safe and environmentally friendly , the electric sewing machine to keep pace work, namely that the stop, no load power consumption, compared with clutch motor power saving more than 60-85 % ; work efficiency increased by more than 30% , and low noise , less heat .

4, the maximum speed adjustable motor support between 300 ~ 7000RPM, can skip a grade level per speed between 100RPM.

5, the product through the CNC drive brushless motor speed control system directly drag the sewing machine speed convenient , sensitive , comfortable operation and stable performance .

6, the motor speed is determined by the speed governor control box output stroke motor power, running only when the electricity , just 2W of power when in standby .

7, wide application , you can replace all of the following power levels of 550W clutch and motor, suitable clothing, leather handbags , shoes, bags , sofa, toys and other industries , the absolute energy saving, environmental protection, safety , green products.

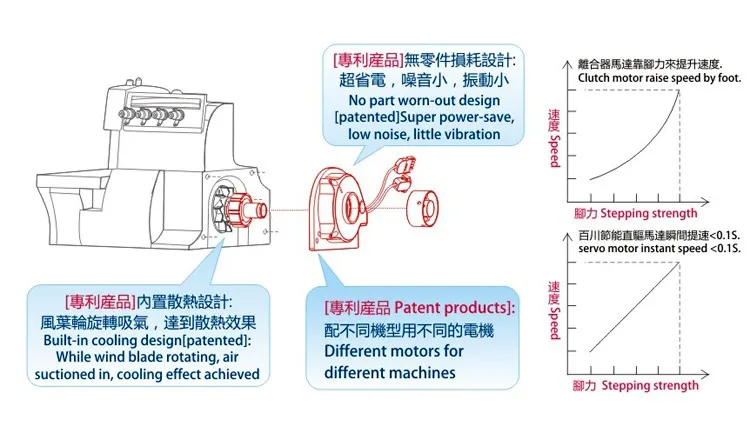

Motor SpecificationsDirect drive servo motor and clutch motor power consumption comparison
Rated voltage:AC220VVoltage Range:AC160V-240V In standbyContinuous operationEfficiencyTemperature Rise
Rated power:2~550WCurrent Rating:2AGRAND Servo DD motor2W<160W>90%1~20℃
Rated speed:6000rpmSpeed range:300-6000rpmCommon 1/3 clutch motor150W>250W<68%>30℃

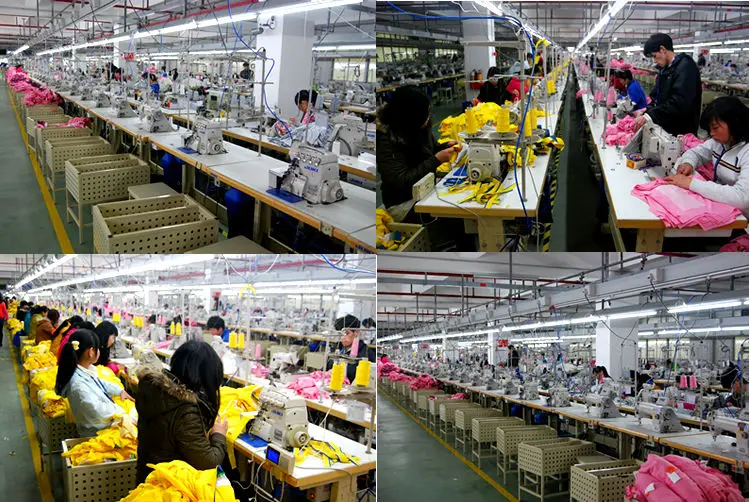

Factory instance:



































Return On Investment(The factory actual testing record)
 Over-lock QuantityWorking hrs / day Clutch motor Power consumptionGrand DD servo motor Power consumption

Workingmonth


(day)


Electricity rate (CNY)

Daily saving


(CNY



Monthly saving


(CNY)


100 sets9hrs160KW27kw261.00133.003458.00
Compared to clutch motor, using Grand energy-saving DD servo motor can increase work efficiency by 10%~25%. Presumably, if the monthly wage of a sewing worker is rmb 2500, a rough saving of rmb 250~500 will be achieved each month. The investments for motors can be earned back in a short term.






Packaging & Shipping


Under normal circumstances, the main components are separately identified and packaged with transparent bags, placed in anti-collision foam boxes, and assembled in cartons to ensure that the products will not be collided during transportation.





Usually, a complete set of products consists of one to two cardboard boxes, with relevant product information (such as model, place of origin, and name) marked on the outer surface of the cardboard boxes.






After packaging, we will carefully load the goods and then send them to the nearby port (zhongshan//guanzhou/shengzhen/hongkong). Most of them are based on sea transportation.





If you have special needs, or you can provide your own logistics mode, welcome to negotiate and communicate with our salesman.















Our Services


1. One year warranty for the entire machine (excluding vulnerable parts);
2. If you purchase a large quantity of complete machines, you can send engineers to provide on-site installation guidance;
3. Remote online guidance for equipment installation and maintenance;
4. The final interpretation of the warranty for the above products belongs to GRAND Company











FAQ


1. Who are we?
We are based in Guangdong China, start from 2003,sell to Domestic Market(30.00%),Southeast Asia(20.00%), SouthAmerica(10.00%), Eastern Europe(10.00%), North America(10.00%), Eastern Europe(10.00%), Western Europe(5.00%), Africa(5.00%),
There are total about 21-50 people in our office.


2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


3.What can you buy from us?
Automatic sewing equipment, suction thread cutting&tape cutting deivce, elastic metering device, circular collar setter, puller attachment, energy-saving servo DD motor, thread trimmer machine ets..


4. Why should you buy from us not from other suppliers?
Zhongshan Grand Precision Industrial Ltd.is one of the modern companies that specialized in manufacturing all kinds of sewing machines. we have advanced production line, processing center and many precision parts supplier, GRAND produce focus on excellen machine.


5. Ehat services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,Western Union;
Language Spoken:English,Chinese











Exhibition


In the past ten years, we have participated in many international sewing machine exhibitions, and won the trust of customers from many countries, and have maintained good cooperative relations with them. Our boss says: The customer is both God and friend. We've always been responsible for that.














Company Information


GRAND PRODUCTS (USA) GROUP is a group company specialized in sewing equipment and related products. It is integrated with design, developmnet, production, installmnet and service, The company was founded in 1989 in NEW YORK.





With the spirit of introducing the America’most advanced technology of clothing manufacturing to every clothing manufacturing base in the world, Grand launched its first branch in Central America in 1997 and became a multinational company. Later Hongkong branch Grand Enterprise (Asia) Ltd was established and Grand Precision Industrial Ltd which is located in Zhongshan, Mainland China, as an assembly and manufacturing base, was also set up to produce thread trimmer and suction devices with automatic cutting system. Grand has a galaxy of technical professionals and successfully developed brushless DC motors, servo motors for sewing machines and microcomputer controlled tape feeder in 2005. Dedicating in applying high-tech and latest materials in sewing equipment, Grand has earned 50 patents and received the approval and certificate of ISO9001:2015. Grand products are widely sold to Europe, the US, Africa, Southeast Asia and other parts of the world. Many large chain corporations, such as Wal-Mart, K-Mart and HK Laws Textile Group, have all requested their suppliers to use Grand’s Thread Trimmer, Suction Devices and Brushless DC Motors so as to guarantee good quality of clothing.





Keep Consistent Good Quality as First Priority and Satisfy the Needs of Customers is the goal that Grand pursues. Work with Grand to Create a Better Future is the hope that Grand maintains. We warmly welcome any inquiry of Grand’s products.
