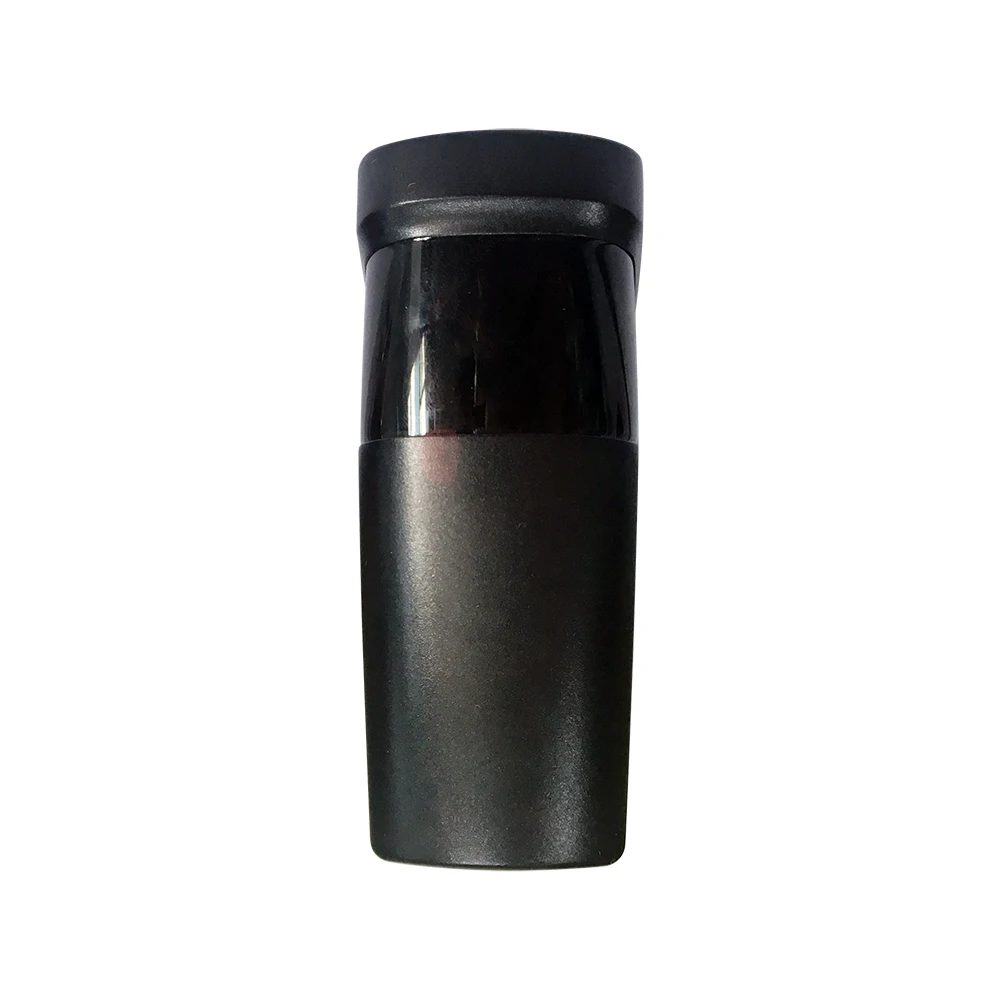

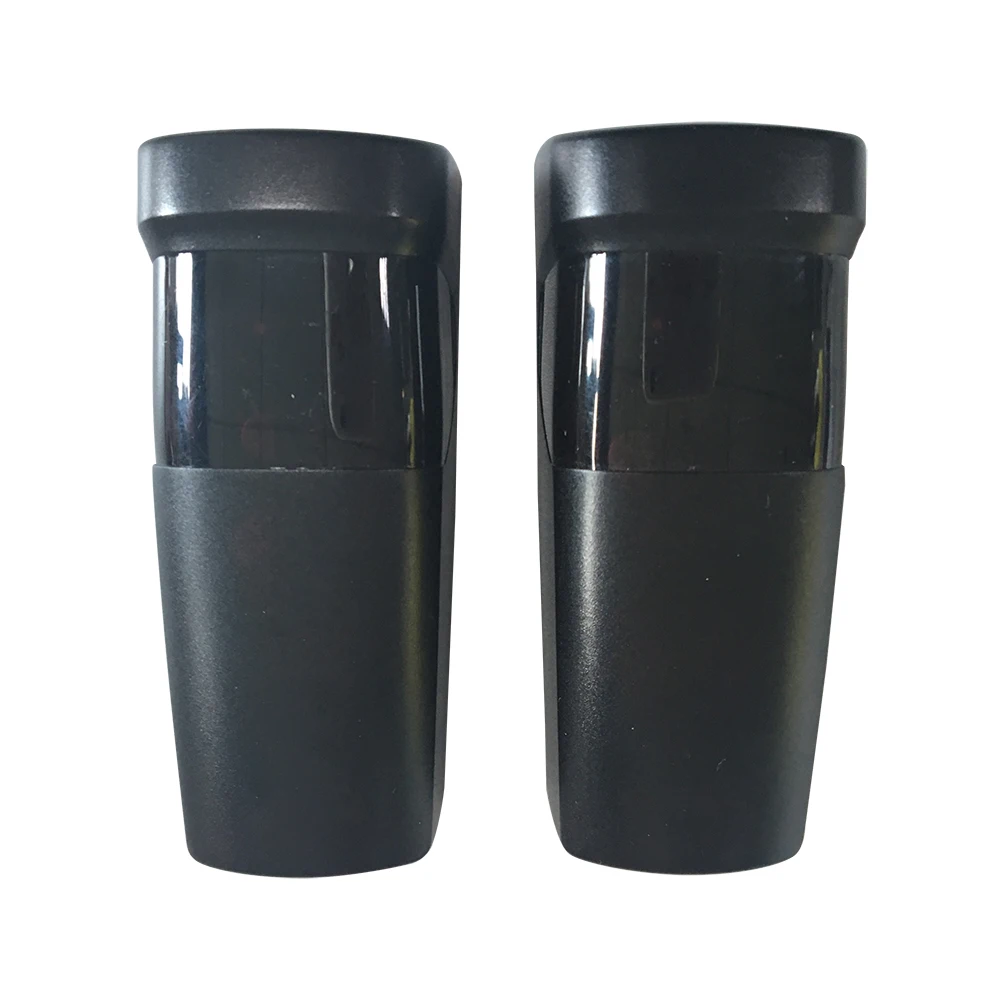

YET610 Automatic Sliding Door Garage Door Photocell Infrared Beam Safety Beam Sensor
- Category: >>>
- Supplier: Shenzhen Chuangyao Science & Technology Co.; LtdShenzhen Ltd
Share on (1601221436062):
Product Overview
Description
Product Description
Infrared Frequancy : 1.92khz
Power supply : 12 to 24 VDC /AC
Wave length :940nm
Input : r*15ma - t*30ma
operating temperature : -20 degrees to 180degrees
Relay output : 1 a max *36 v
Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc

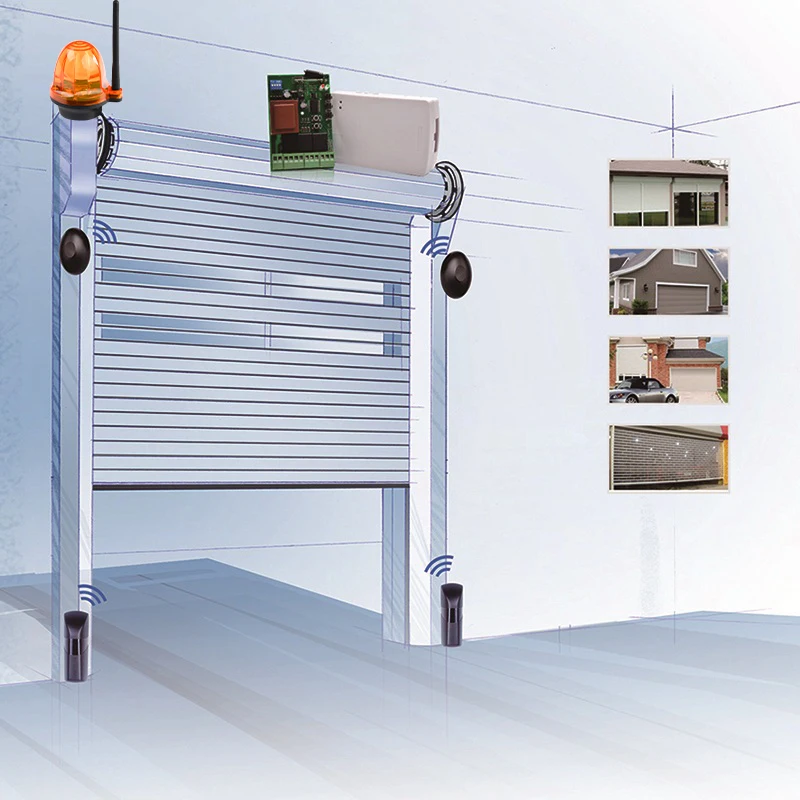

Single beam photocell sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.

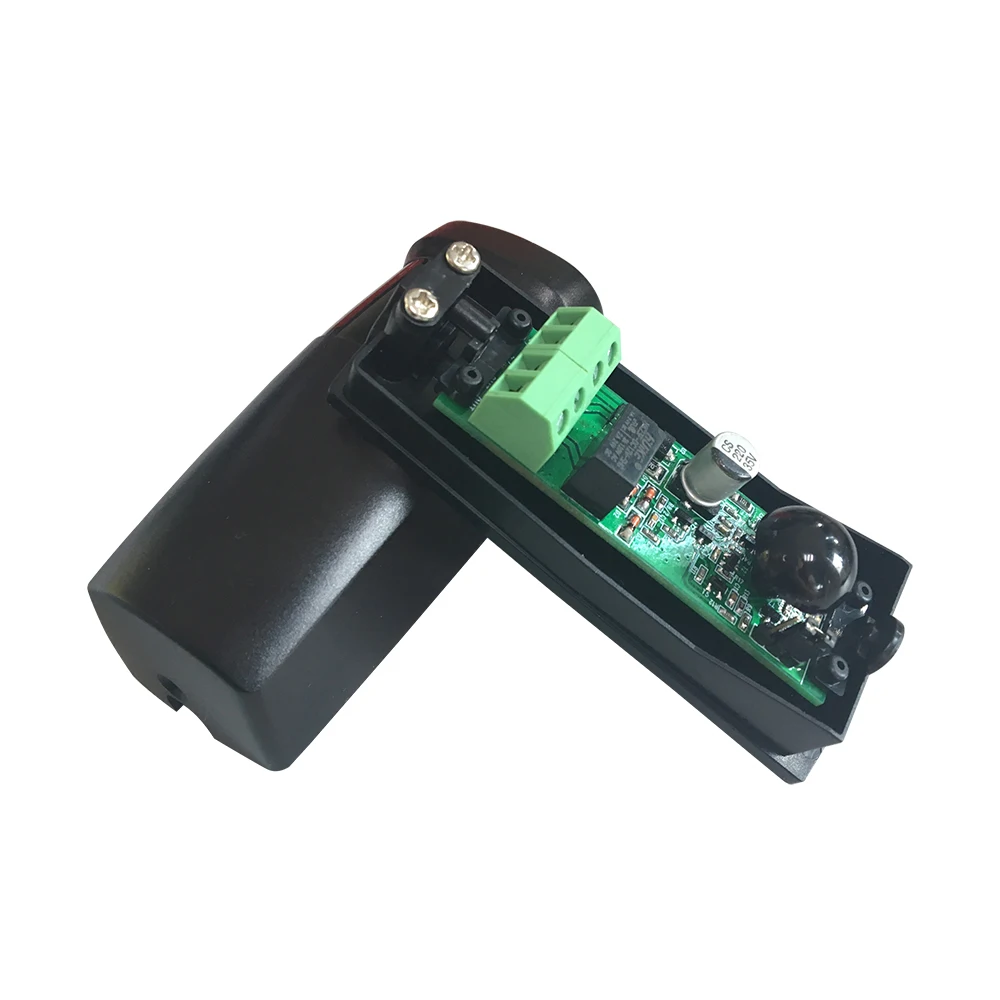

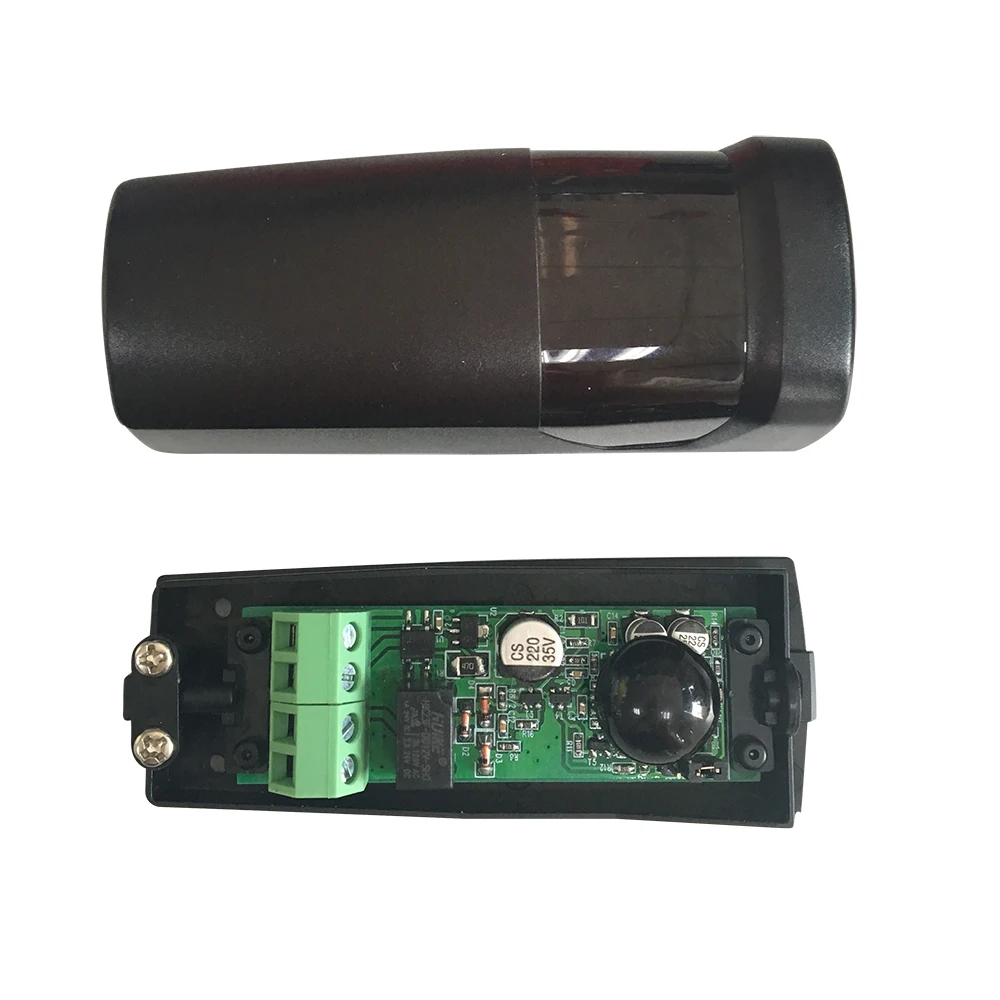

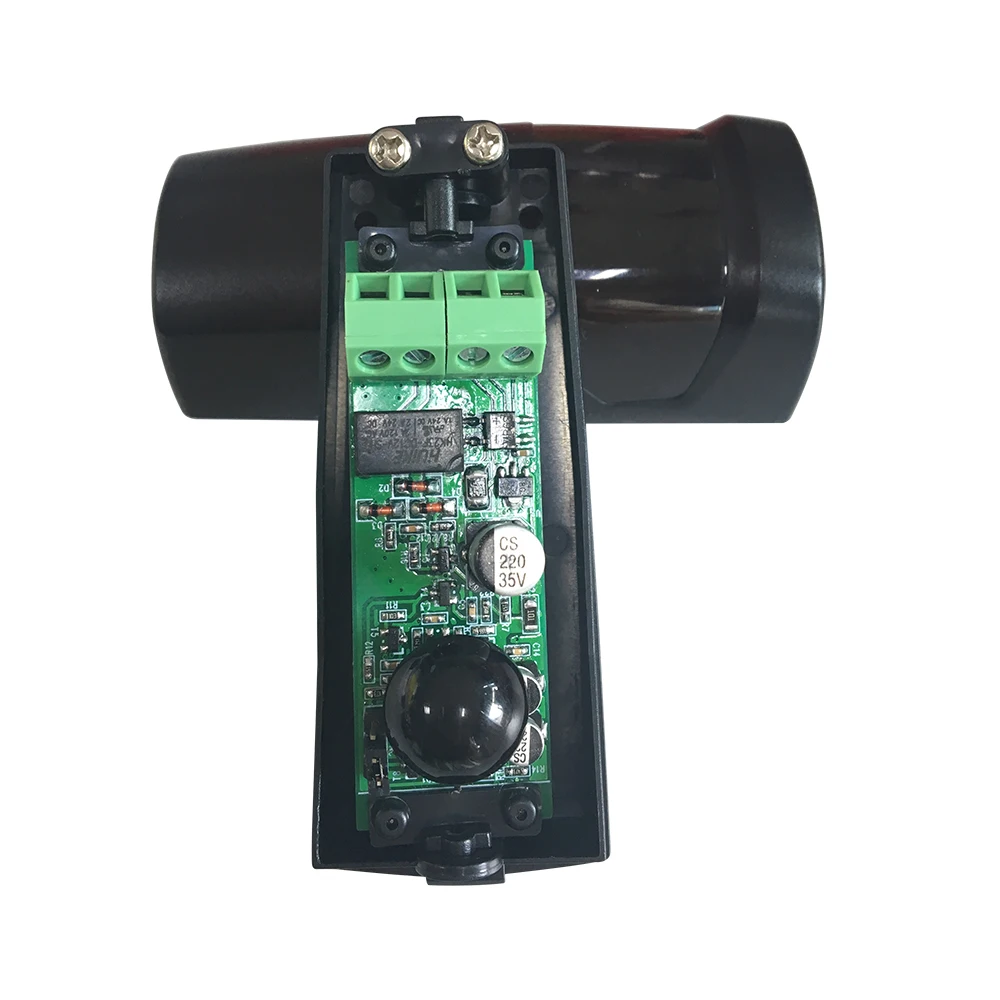

Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.
Narrow infrared beam (I or II) can avoid interruption by external light.
Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is
interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.
Power supply : 12 to 24 VDC /AC
Wave length :940nm
Input : r*15ma - t*30ma
operating temperature : -20 degrees to 180degrees
Relay output : 1 a max *36 v
Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc
Single beam photocell sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.
Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.
Narrow infrared beam (I or II) can avoid interruption by external light.
Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is
interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.

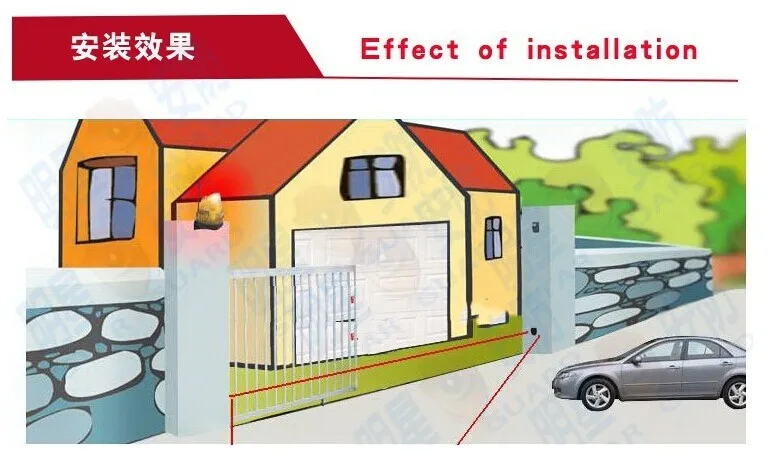

Installation Instructions
Specification
Model number | YET610 |
Working voltsage | AC/DC 12-24V |

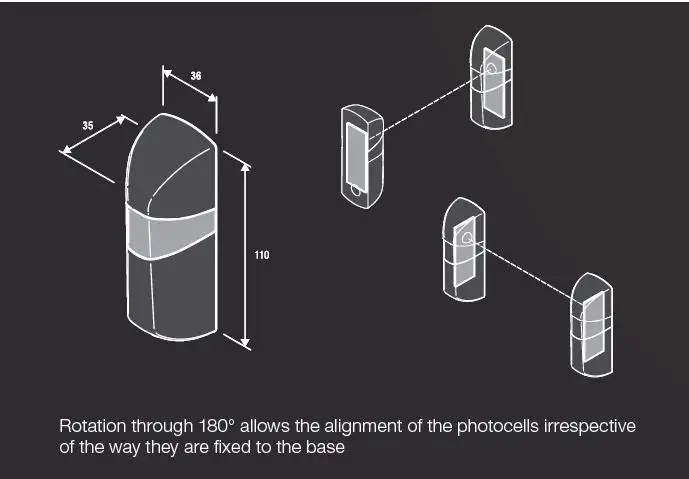

Angle | Support 180 degree rotation |
Working distance | 10-15m |
Beam | One beam |
Packing & Delivery

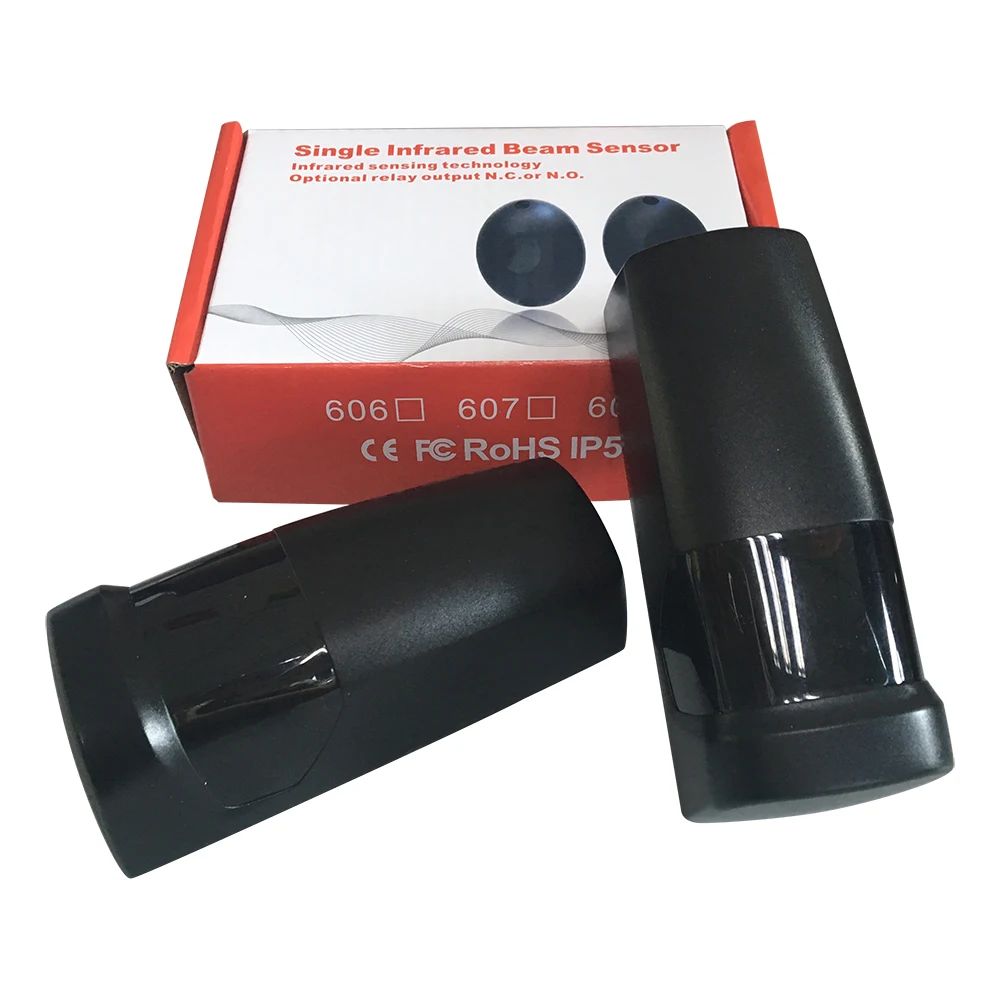

Red color box packing with standard install screw, manual inside. 12.5KG, 100pcs/carton, carton dimension 46.7*37.1*24.8cm
Company Profile
Established in 2005, Shenzhen yaoertai Technology Co., Ltd. specialized in intelligent home furnishing, remote control,
controller, door controller and accessory.
Located in Shenzhen, we enjoy convenient transportation. Our company occupies an area of 2600 M2,backed up with advanced
facilities & strong R & D team. In recent years, our company has possessed five production flows including Reflow Soldering ,Parts
Inserting, Post Soldering ,assembly and Packing. Our annual production capacity is 4,000,000 pcs .
Our products have won CE,ROHS Certification and Our products gain wide praises from domestic and abroad. Strict quality control is
performed in every procedure from material sourcing, processing and testing to packing .
We welcome OEM and ODM orders. Professional engineer are available t assist you further. Please contact us for possible project.
controller, door controller and accessory.
Located in Shenzhen, we enjoy convenient transportation. Our company occupies an area of 2600 M2,backed up with advanced
facilities & strong R & D team. In recent years, our company has possessed five production flows including Reflow Soldering ,Parts
Inserting, Post Soldering ,assembly and Packing. Our annual production capacity is 4,000,000 pcs .
Our products have won CE,ROHS Certification and Our products gain wide praises from domestic and abroad. Strict quality control is
performed in every procedure from material sourcing, processing and testing to packing .
We welcome OEM and ODM orders. Professional engineer are available t assist you further. Please contact us for possible project.
