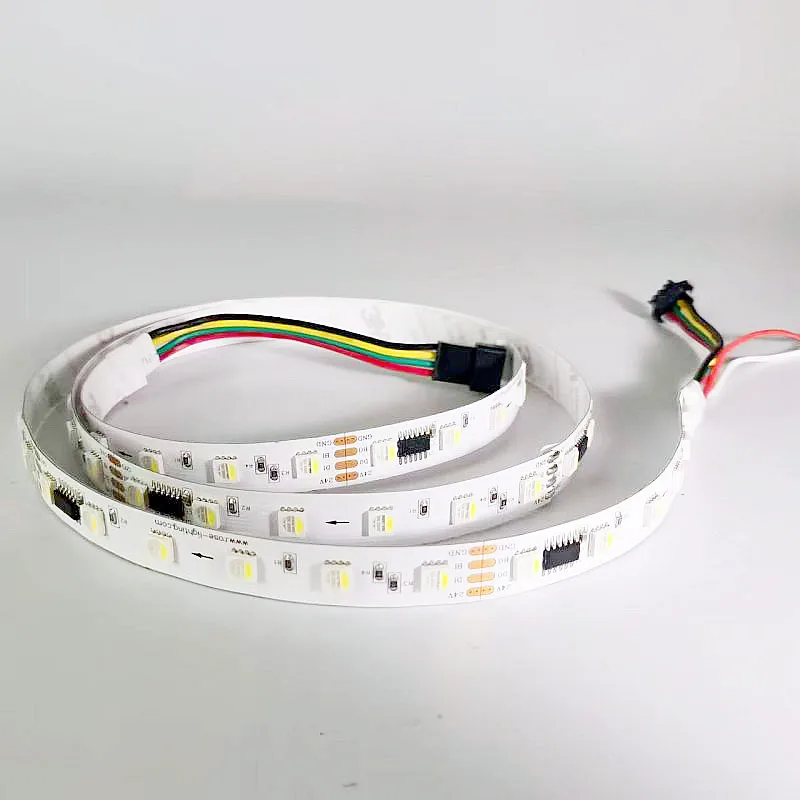

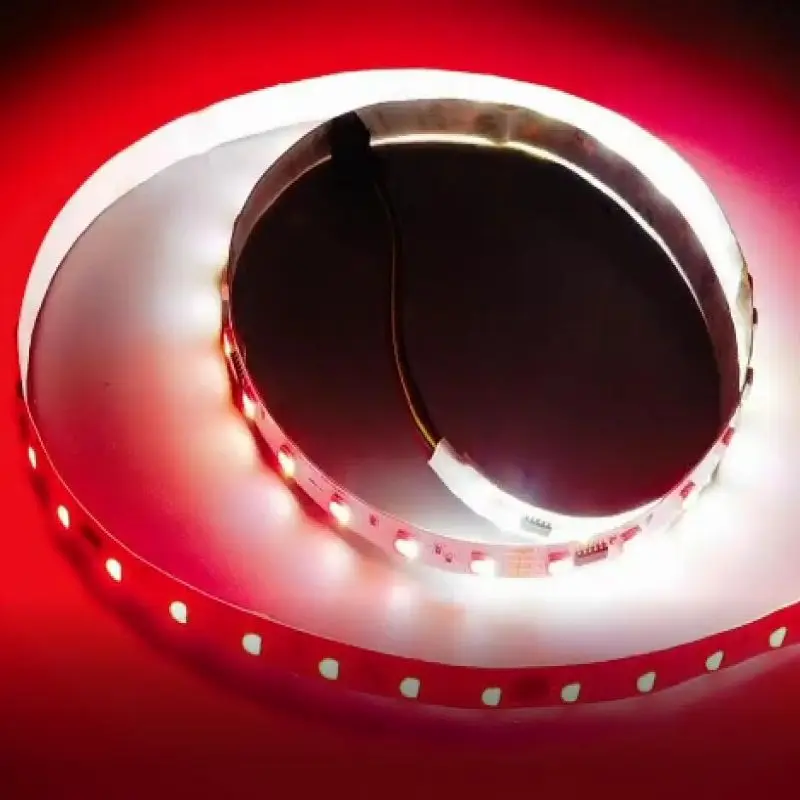

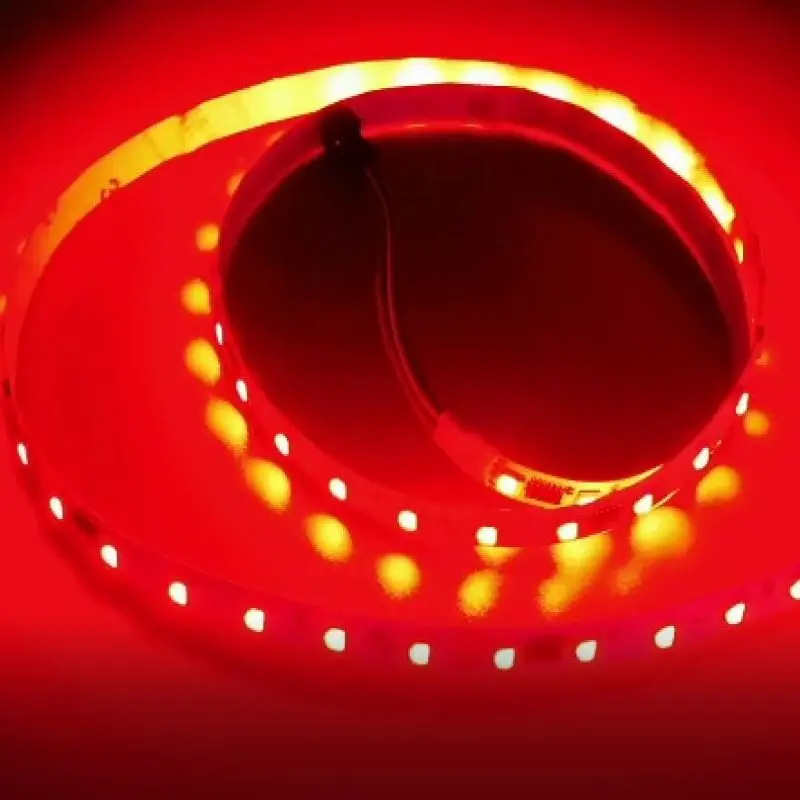

DC24V 60 led ws2814 IC dual signal wire signal break continuous 5050 RGBW rgbww 2 wire digital 6500K 3000K rgbcw led strip
- Category: >>>
- Supplier: Shenzhen Rose Lighting Technology Co. Ltd.
Share on (1601221472456):
Product Overview
Description
Product Description
Specification
Input voltage:..............DC24V
Power:.........................19 watt each meter,
LED resource:............. ws2814 rgbw (similar as TM1834)
Q'ty of LED: ............... 60 leds/meter,Pixel control
IC Type: ......................WS2814IC(outside ic, 6 led per IC)
Q'ty of IC: ....................10 IC per meter (6 IC drives 1 led chip);
FPC size: ....................Width: 10mm, High: 2.5mm;
FPC color: ...................BLACK / white PCB
Colors: .........................Full color RGBW, dream color changing;
Cuttable:.......................every 6 LED is cuttable
Package: ......................5meters/reel in anti-static bag
Power:.........................19 watt each meter,
LED resource:............. ws2814 rgbw (similar as TM1834)
Q'ty of LED: ............... 60 leds/meter,Pixel control
IC Type: ......................WS2814IC(outside ic, 6 led per IC)
Q'ty of IC: ....................10 IC per meter (6 IC drives 1 led chip);
FPC size: ....................Width: 10mm, High: 2.5mm;
FPC color: ...................BLACK / white PCB
Colors: .........................Full color RGBW, dream color changing;
Cuttable:.......................every 6 LED is cuttable
Package: ......................5meters/reel in anti-static bag
IP20 IP65 IP67 IP68 all avaialble.
And we support customized length like 4.90M , able to cut them here and send you finished products.
Support controller and technology support!
Provide good quality power supply like Meanwell

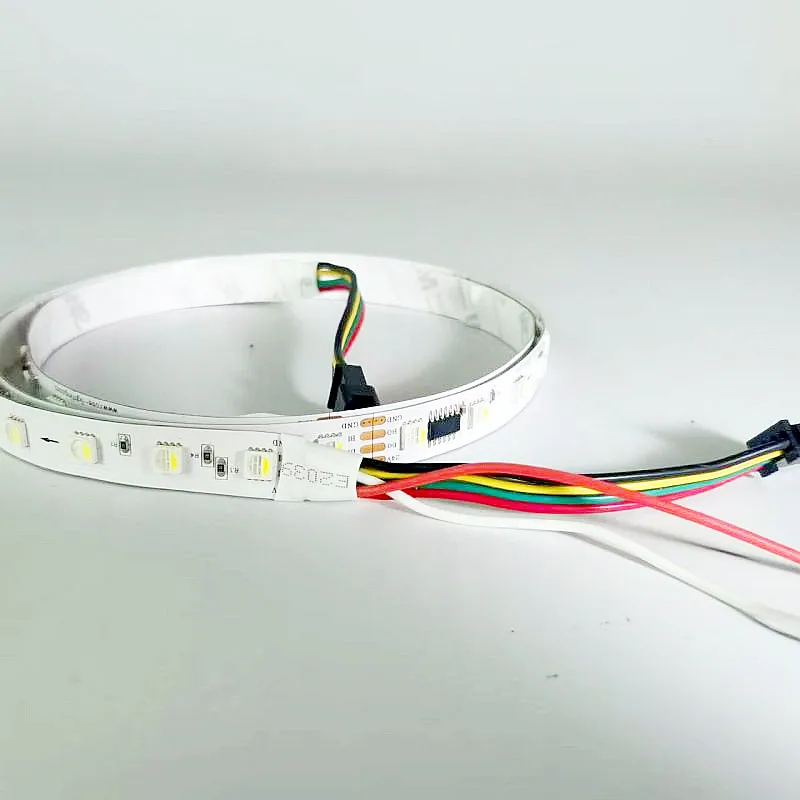

Detailed Images
We use all really 2OZ/3OZ PCB board , and sanan or epistar leds too make sure the led strip good quality .
And 3M 300 LSP adhesive in backside .
Standard 20 awg wire for connection , not thin 22awg wire to save material costs.

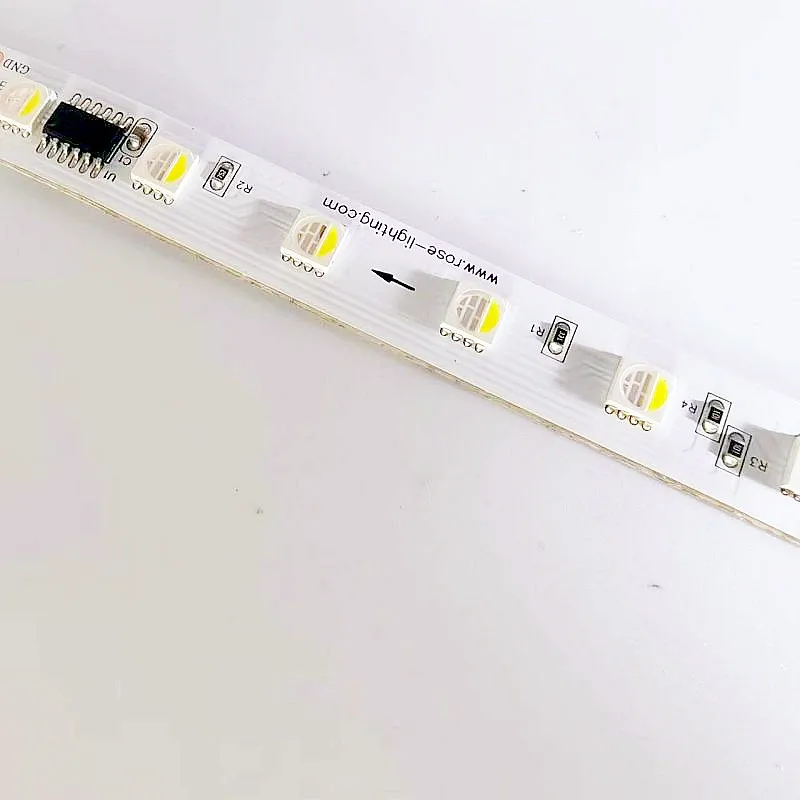

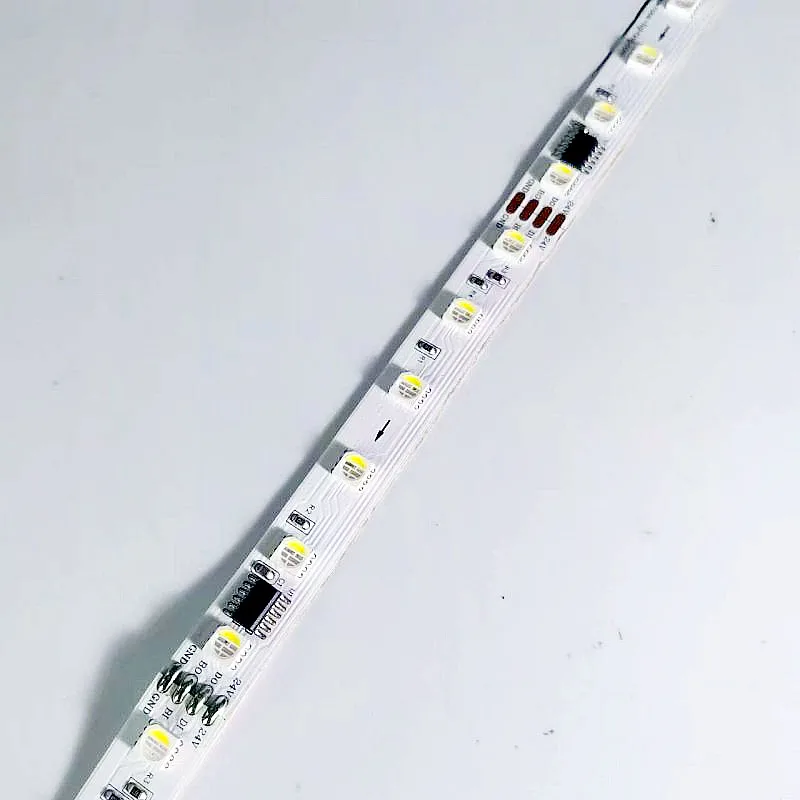

6 led one IC chip
We have 60 led strip for reference .If you need 30led or 144 led , we could do that.

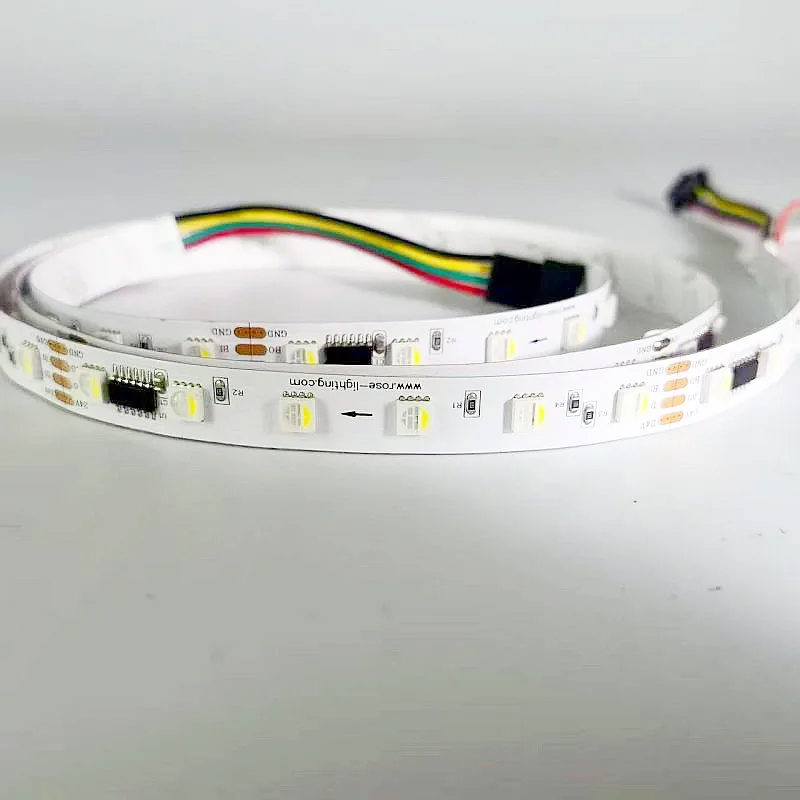

We could see the 4 pin copper pad in strip , you could cut it there.
Addresssable magic color ,2 signal wire
It is digital RGBW color, could display all colorful programs.
And it is 2 signal wire, if one led is broken , others led wont be affected .
So it is mucb safer than ws2811,sk6812,ucs1903,etc.
10mm PCB width
For this led strips it is 10mm width.As it need wide pcb for heat dissipate, so can not do 5mm or 7mm like sk6812 4020 or 3535 led.
If need narrow pcb width products, all available,too.
IP20/IP67/IP68 available.
Both indoor and outdoor use are ok.
Even for your pool , need IP68 low voltage strips. ws2814 is a good choice as it is very stable ,this ic chip hotselling in market for many years. And we use gold wire leds .
If you need neon effects, available,too.
Send me message, i will share catalog.
Product Presentation
Application
1).Architectural decorative lighting
2). Indoor and outdoor Decoration
3). Auditorium walkway lighting
4). Stairway lighting & Decoration
5). Border/contour lighting
6). Channel letter lighting
7). Emergency & Security lighting
8). Cove lighting
9). Shop-window decoration.
2). Indoor and outdoor Decoration
3). Auditorium walkway lighting
4). Stairway lighting & Decoration
5). Border/contour lighting
6). Channel letter lighting
7). Emergency & Security lighting
8). Cove lighting
9). Shop-window decoration.
WS2814 | |
SPI 2 signal wire | |
E channel per IC | |
RGBW/White customized | |
Voltage | 24V |
0.32W MAXper led | |
Waranty | 2 Years |

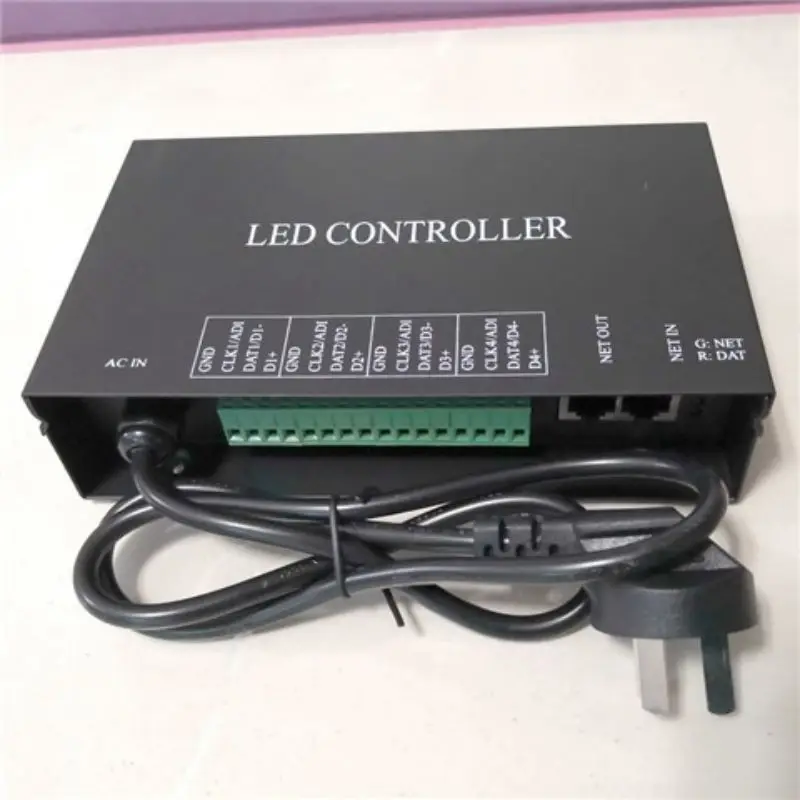

For application, it needs controllers and DC5V power supply .
And a decoder if you need work with standard DMX512 software .
We could provide all accessories for you , and support and technology support !
Certificate
We have CE ,RoHs to help you in customs , and make sure the good quality .
Related Products

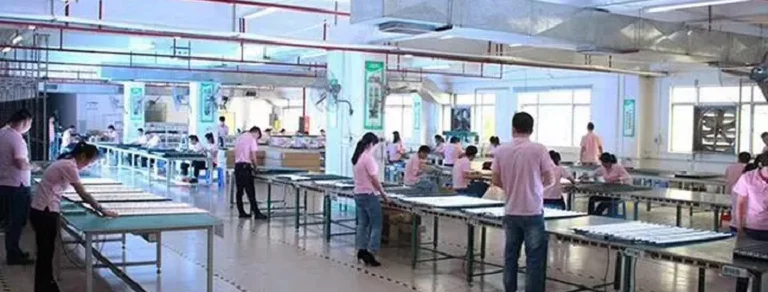

Company Introduction
Rose Lighting is a professional suppliers focus on Pixel led Since 2012,
Main series as follow:
Fastet Digital LED strip HD107s (PWM refresh rate: 28kHz and transmission Rate:40M HZ )
Pixel RGB *RGBW led chip
Pixel digital 5V 12V 24v led strip
Silicone Neon LED strip
DMX512 led strip
High CRI led strip
RGB&RGBW&CCT dimmable &normal led strip
DIY Pixel led kit
we support for customized special specifications of products to meet the different needs of customers,
Product are widely used in home decoration, garden landscape, stadiums, exhibition hall, game machine , hotel, buildings, upscale clubs etc..
And we are exported to America, Europe, Asia, Oceania, and other market.With well-trained sales and experienced engineer,we would be cable to offer you a completely led project lighting solution and provide our best suggestion and options.
Main series as follow:
Fastet Digital LED strip HD107s (PWM refresh rate: 28kHz and transmission Rate:40M HZ )
Pixel RGB *RGBW led chip
Pixel digital 5V 12V 24v led strip
Silicone Neon LED strip
DMX512 led strip
High CRI led strip
RGB&RGBW&CCT dimmable &normal led strip
DIY Pixel led kit
we support for customized special specifications of products to meet the different needs of customers,
Product are widely used in home decoration, garden landscape, stadiums, exhibition hall, game machine , hotel, buildings, upscale clubs etc..
And we are exported to America, Europe, Asia, Oceania, and other market.With well-trained sales and experienced engineer,we would be cable to offer you a completely led project lighting solution and provide our best suggestion and options.
Packing&Shipping
If have agent in China, we could send products to him and we afford the freight as our sincerity.
And welcome third party worker to test quality before shipping !
