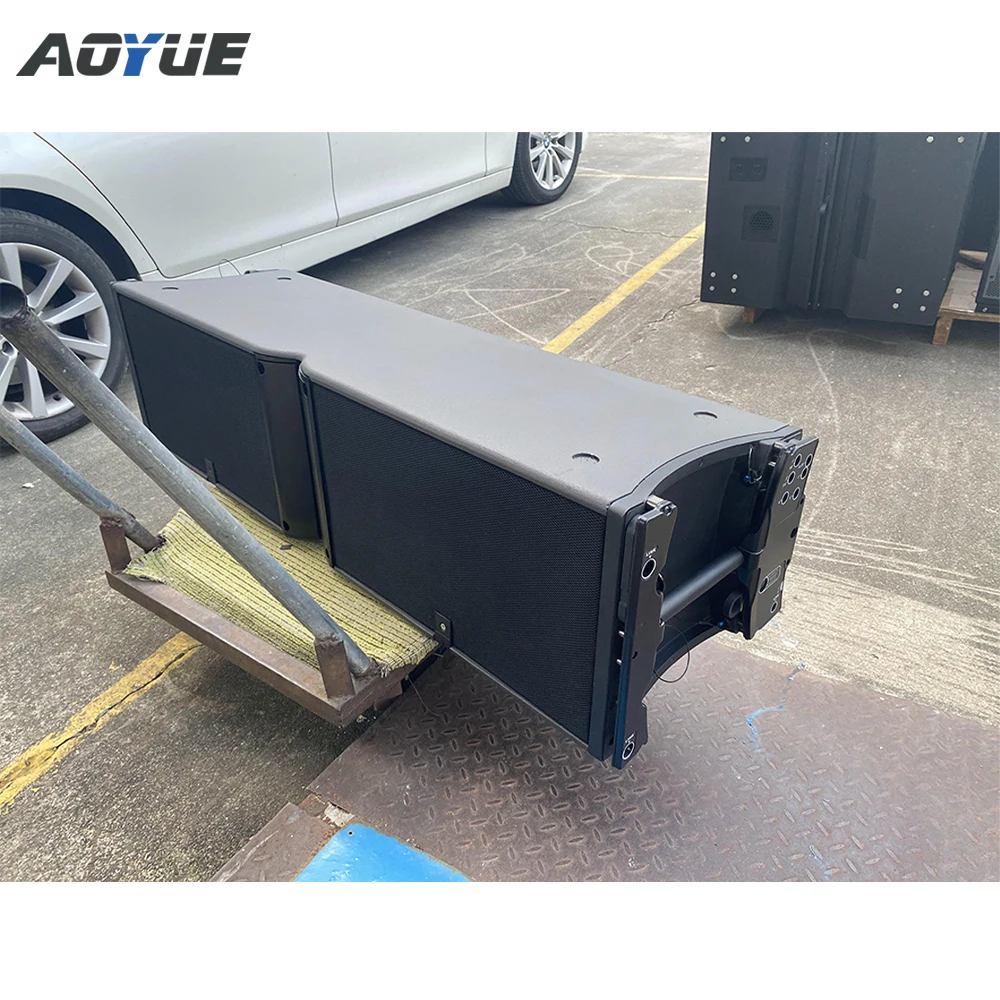

KA 2 line array ground outdoor neodymium magnet sound system 3 way passive 12 inch line array
- Category: >>>
- Supplier: Guangzhou Xinbaosheng Audio Equipment Factory
Share on (1601221499991):
Product Overview
Description
KA-2 dual 15 inch dj speaker sound professional music loud speaker
Product Paramenters
Type | KA-2 3 way audio line array system | ||||||
Usable bandwidth (-10 dB) | 35 Hz – 20 kHz | ||||||
Maximum SPL1 | 147 dB | ||||||
Nominal directivity (-6 dB) | Horizontal : 110° / 70° symmetric ; 90° asymmetric (35°/55° or 55°/33°) | ||||||
Vertical : depends on the number of elements and array curvature. | |||||||
Transducers | LF: 2 × 12″ cone drivers | ||||||
MF: 4 × 6.5″ cone drivers | |||||||
HF: 2 × 3″ diaphragm compression drivers | |||||||
Acoustical load | LF: bass-reflex, L-Vents | ||||||
MF: bass-reflex | |||||||
HF: DOSC waveguide, Panflex | |||||||
Rigging and handling | Captive 4-points rigging system | ||||||
2 large side handles | |||||||
Inter-enclosure angles : 0.25, 1, 2, 3, 4, 5, 7.5 or 10° | |||||||
Dimension | 1338 x 354/286 x 400 mm 52.7 x 14/11.3 x 15.8 in | ||||||
Weight (net) | 56kg / 123lb | ||||||
Manufacturing Technique
KA-2 dual 12inch 3 way audio line array system
Made from enclosure with Russia's level of birch plywood.
Surface polyurea paint, waterproof, anti-corrosion, scratch and wear resistant.
Rigging components:high grade steel with anti-corrosion coating.

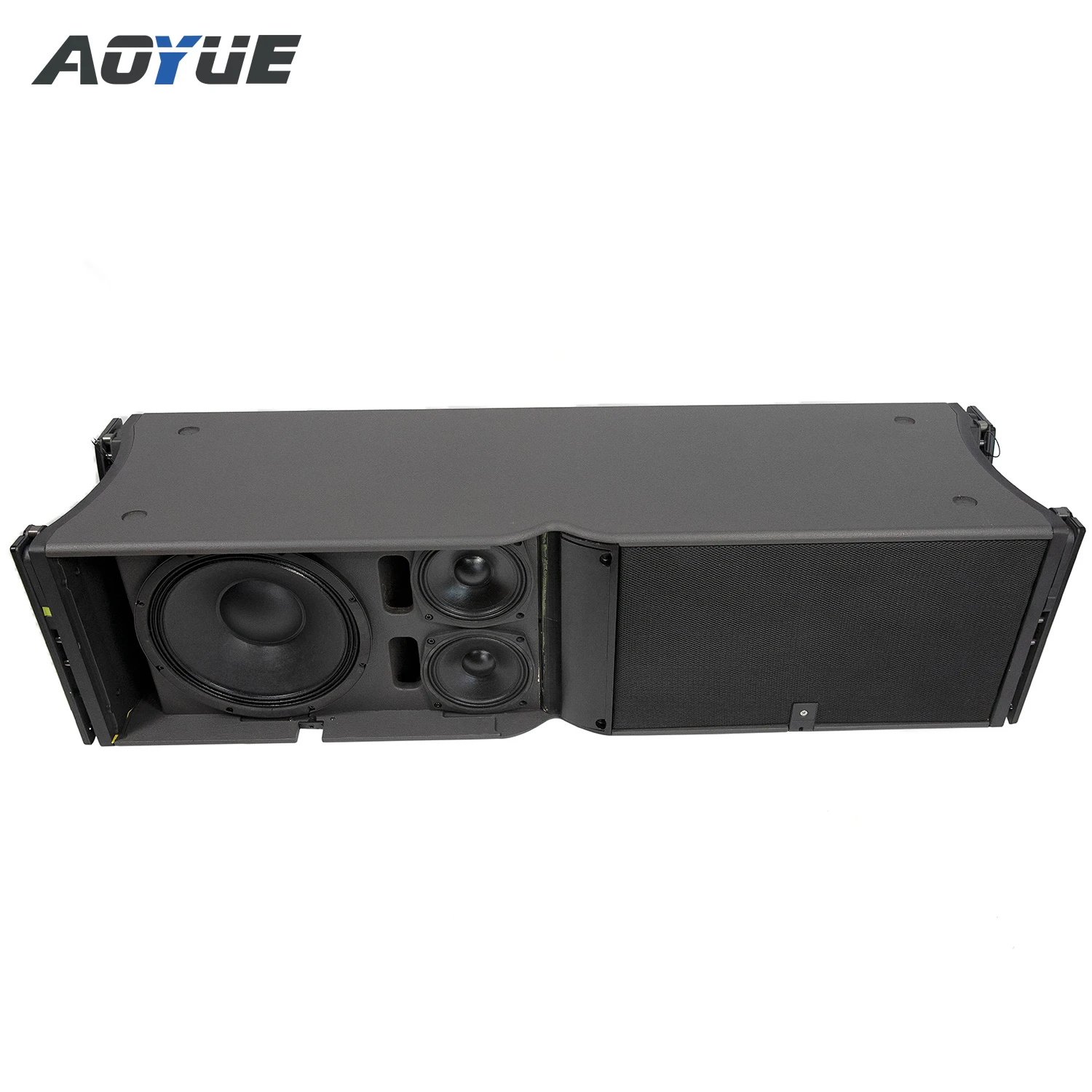

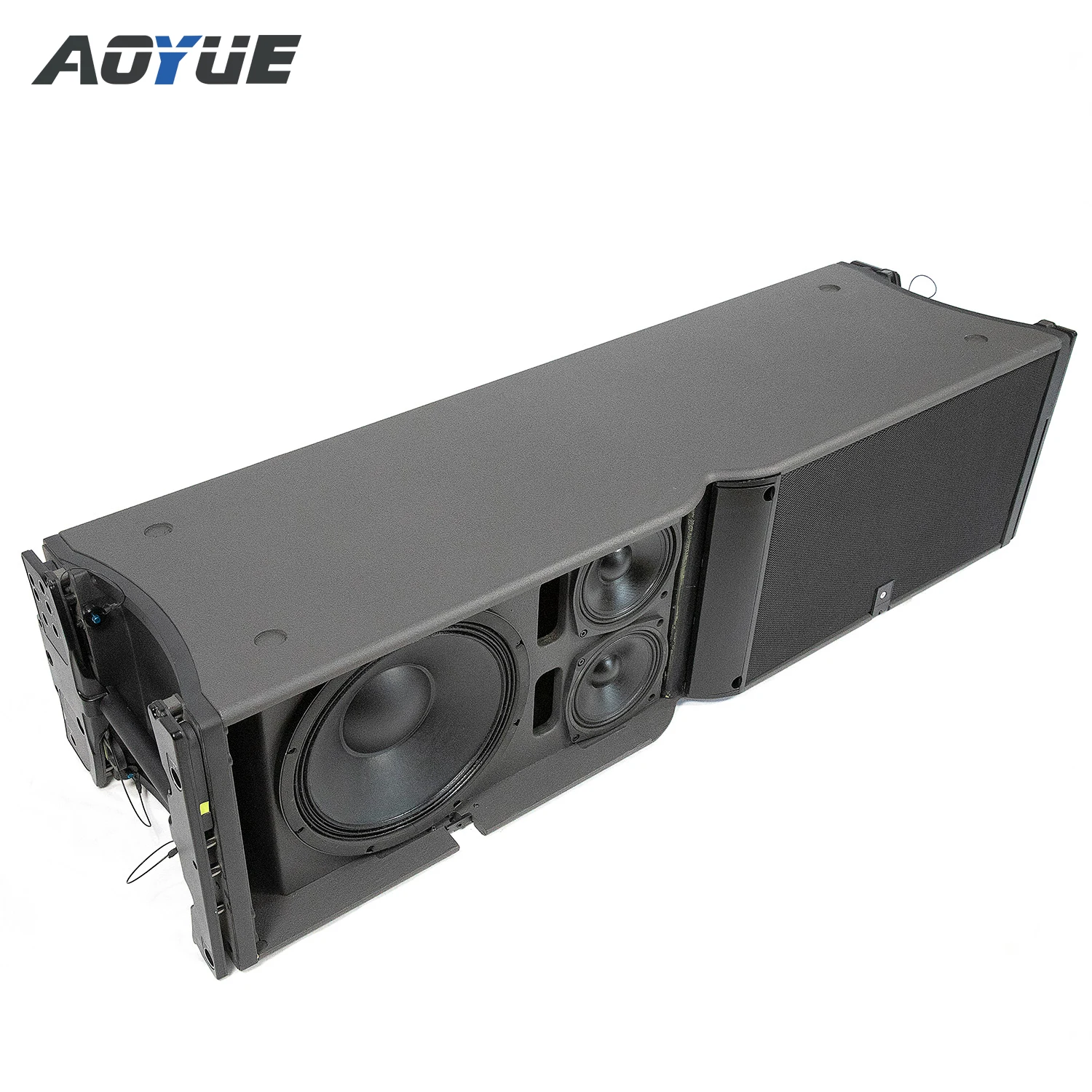

Built-in two 12-inch woofers, four 6.5-inch midrange speakers, and two 3-inch tweeters.
2 × 12″ cone drivers

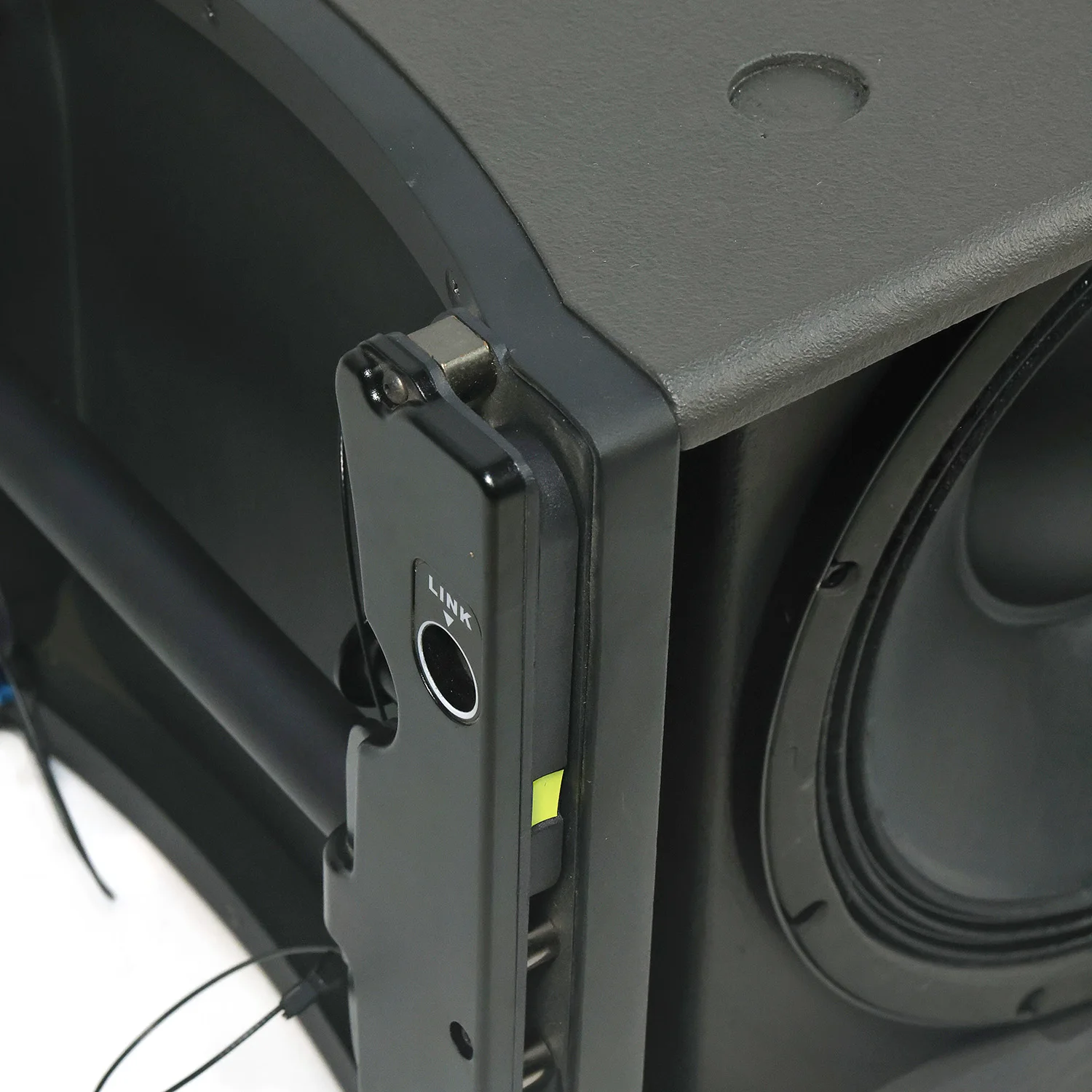

If installed correctly, you will not see this yellow label. If the installation is not correct, you will see the yellow label.
Angle pin insertion will automatically adjust the Angle.
Factory production（1）
Factory production（2）
Factory production（3）
Factory production（4）
Factory production（5）
Factory production（6）
