Product Description
Description
Power :30-240W

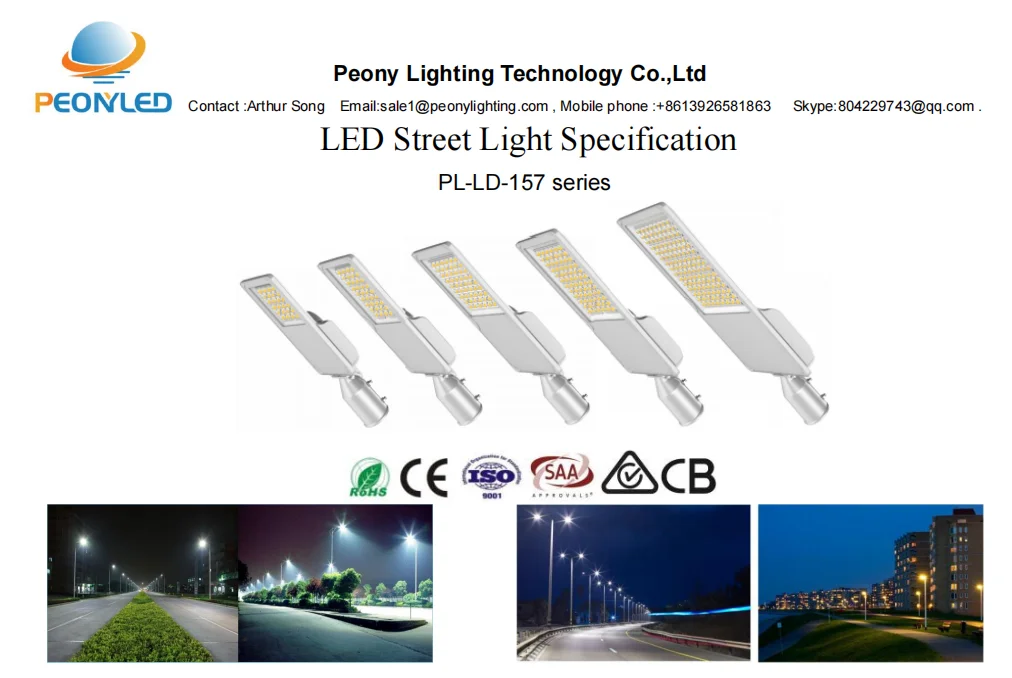

PL-LD-157S series street light Adopt professional anti-glare lens:
PC lens angle T2S,T2M,T3M.

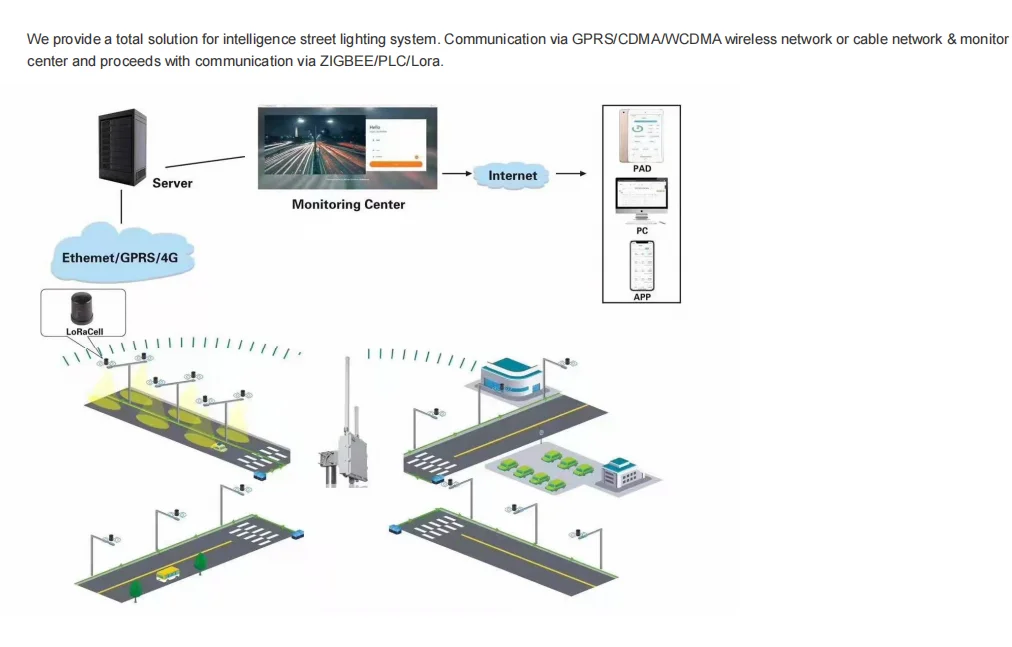

0/1-10V dimming, time control, light sensing, IoT control and other functions are optional.

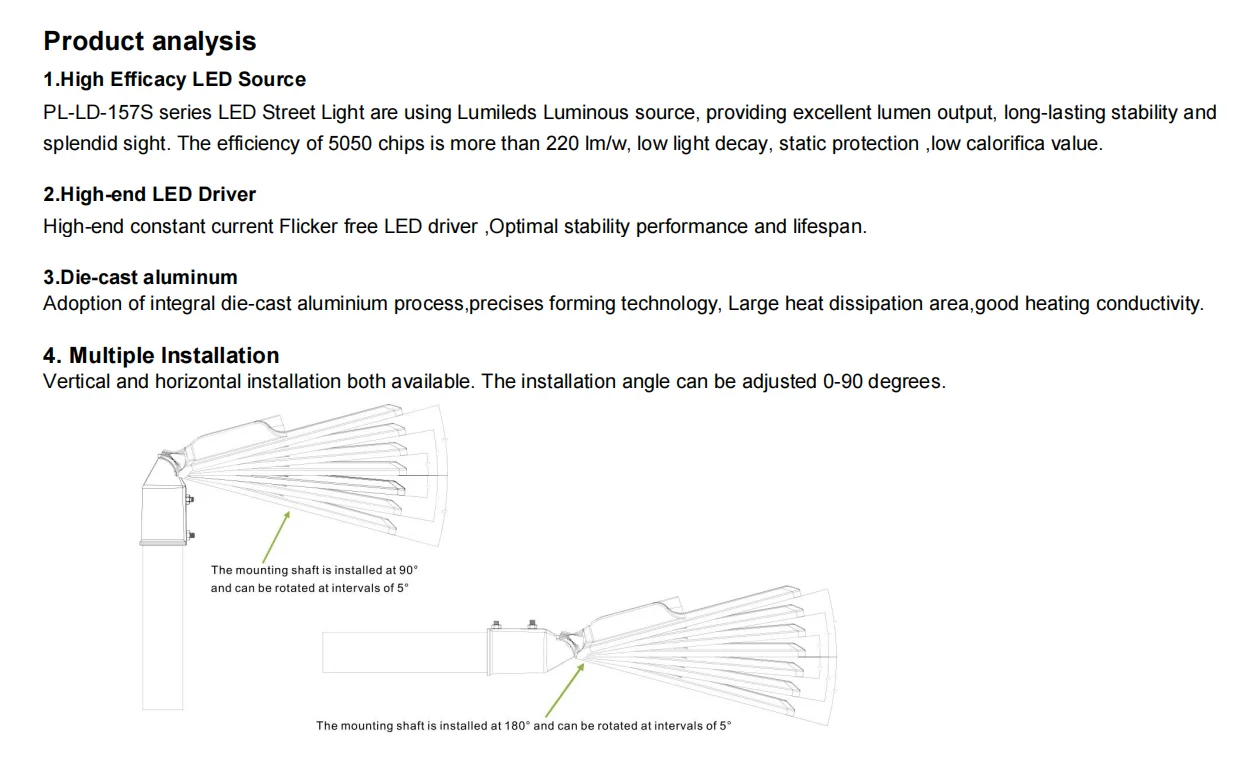

Horizontal position er for easy installation.

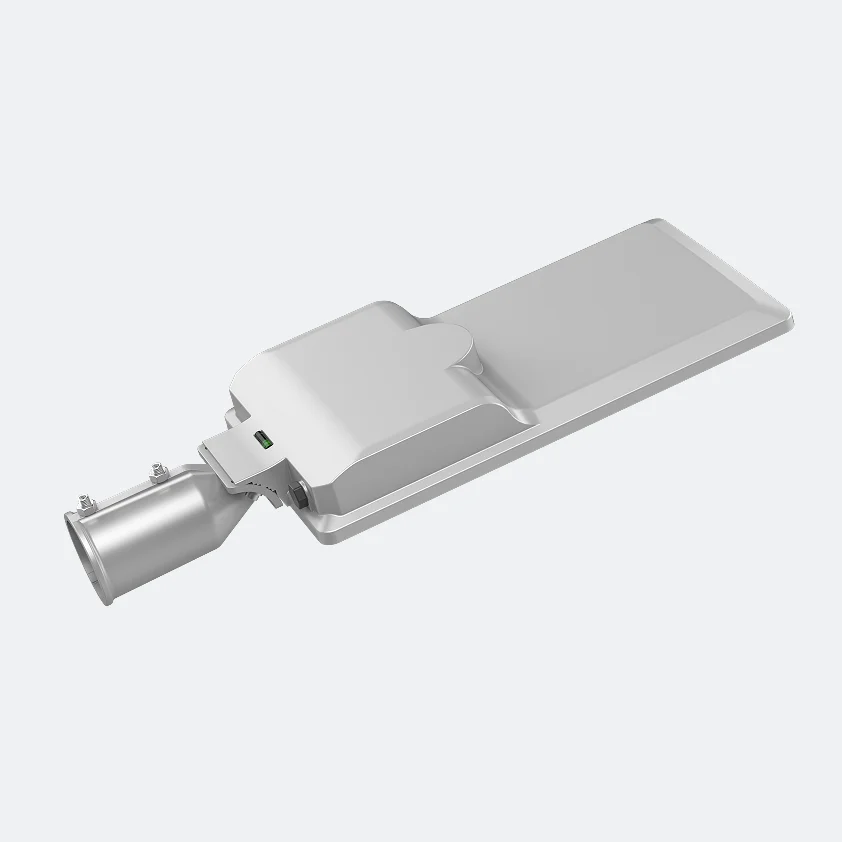

Patented private mold, integrated die-cast aluminum shell.
High light efficiency, light intensity up to 160lm/w.
The protection level reaches IP66/IK09.
Technical parameter
Model | PL-LD-157S | ||||

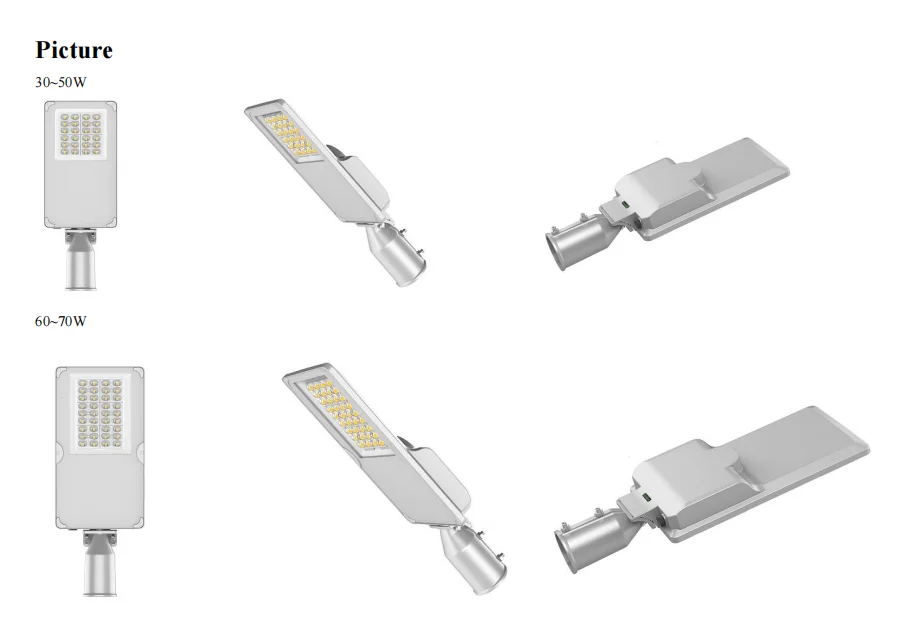

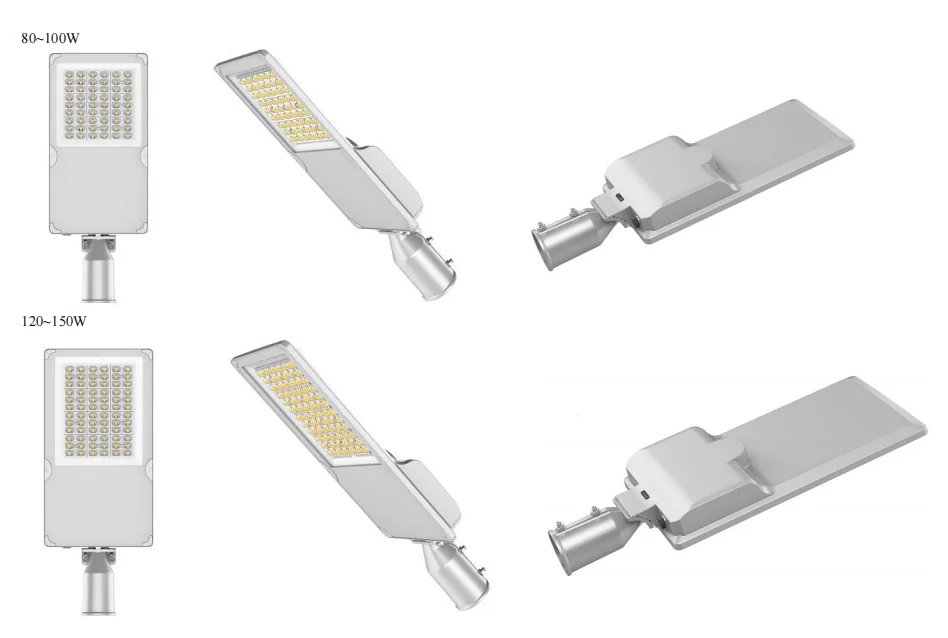

Power | 30~50W | 60~70W | 80~100W | 120~150W | 200~240W |

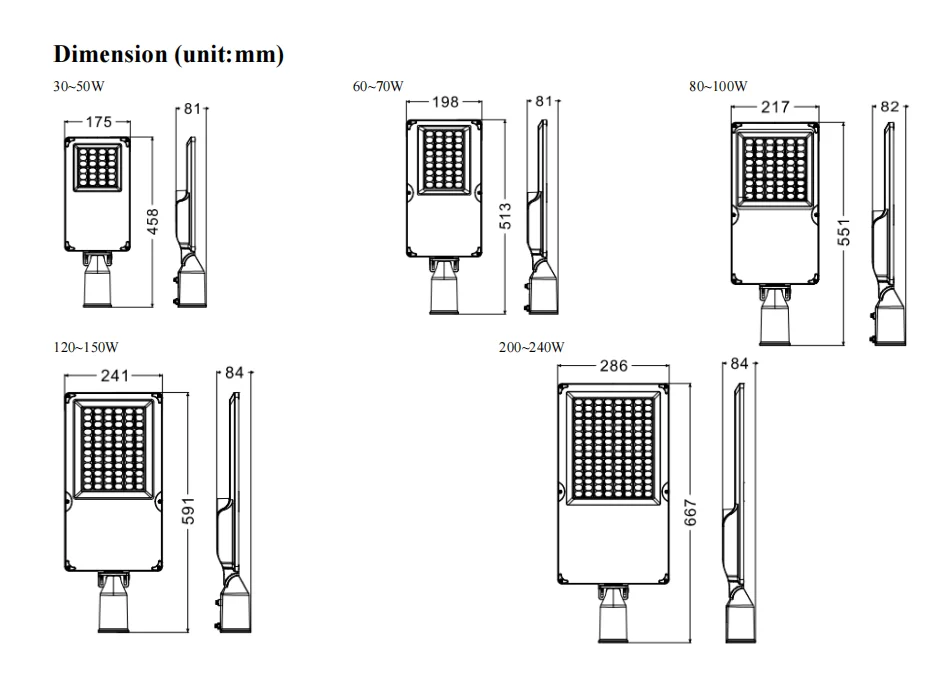

Dimension(mm) | 458X175X81 | 513X198X81 | 551X217X82 | 591X241X84 | 667X286X84 |
Luminous Flux±5% | 160lm/w | ||||

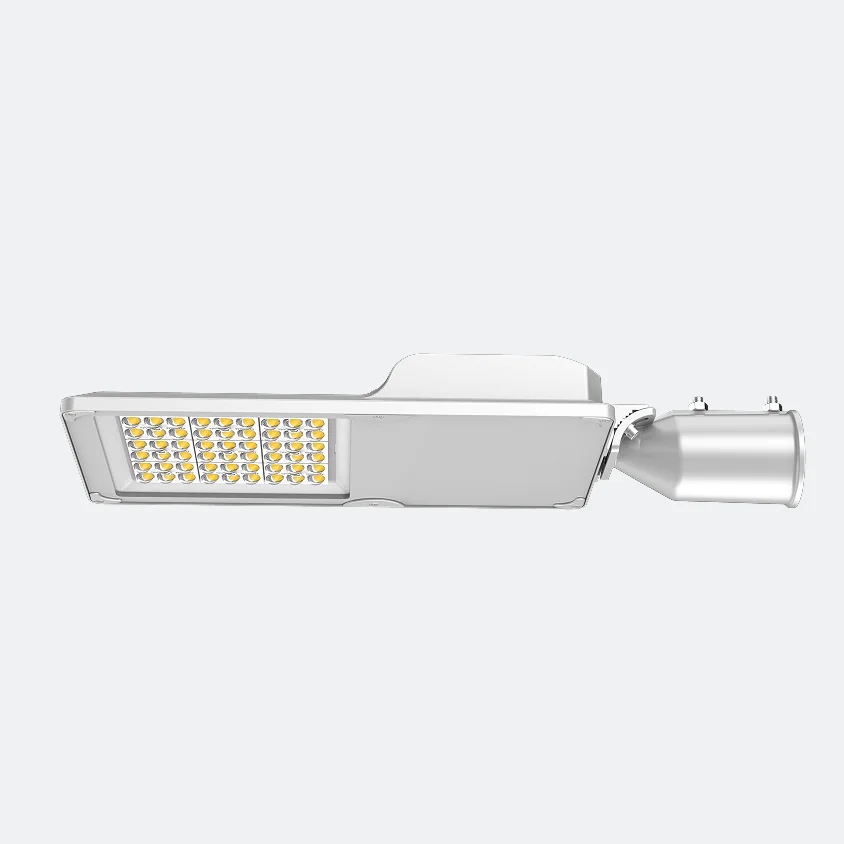

LED Source | 24PCS Lumileds SMD5050 | 36PCS Lumileds SMD5050 | 54PCS Lumileds SMD5050 | 72PCS Lumileds SMD5050 | 120PCS Lumileds SMD5050 |
Input Voltage | AC100-277V | ||||
Frequency Range | 50~60Hz | ||||
Total Harmonic Distortion | <20% (Typical : 10%) | ||||
Color Temperature | 2700K-6500K | ||||
Color Rendering Index | CRI>70/80 | ||||
IP&IK Rating | IP66&IK09 | ||||

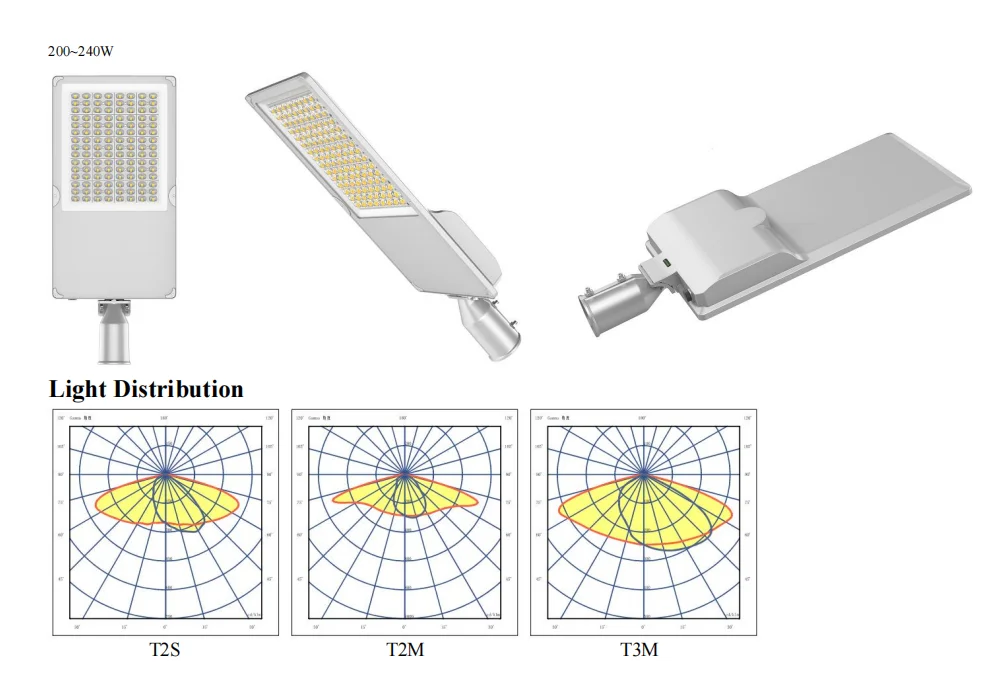

Beam Angle | T2S,T2M,T3M | ||||
Holder | 40/60mm | ||||
Housing Color | Gray | ||||
Working Life | (L80B10)100,000 hours | ||||
Control | Photocell,0/1-10V,dimming range,PLC,Lora,Nema,DALI | ||||
Class of insulation | Class I(Class II optional) | ||||
Warranty | 5 years | ||||
Working temperature | -40ºC~+50ºC, 20%~90% RH | ||||
Storage temperature | -40ºC~+85ºC, 10%~90% RH | ||||
Body & Shade Material | Die-casting Aluminum housing & lens & Glass | ||||
Where Can Use | Arterial road; high ways; elevated road; city street; bridge; sidewalks road lighting; the square, school, residential areas, industrial areas, parks and other outdoor lighting places need. | ||||
