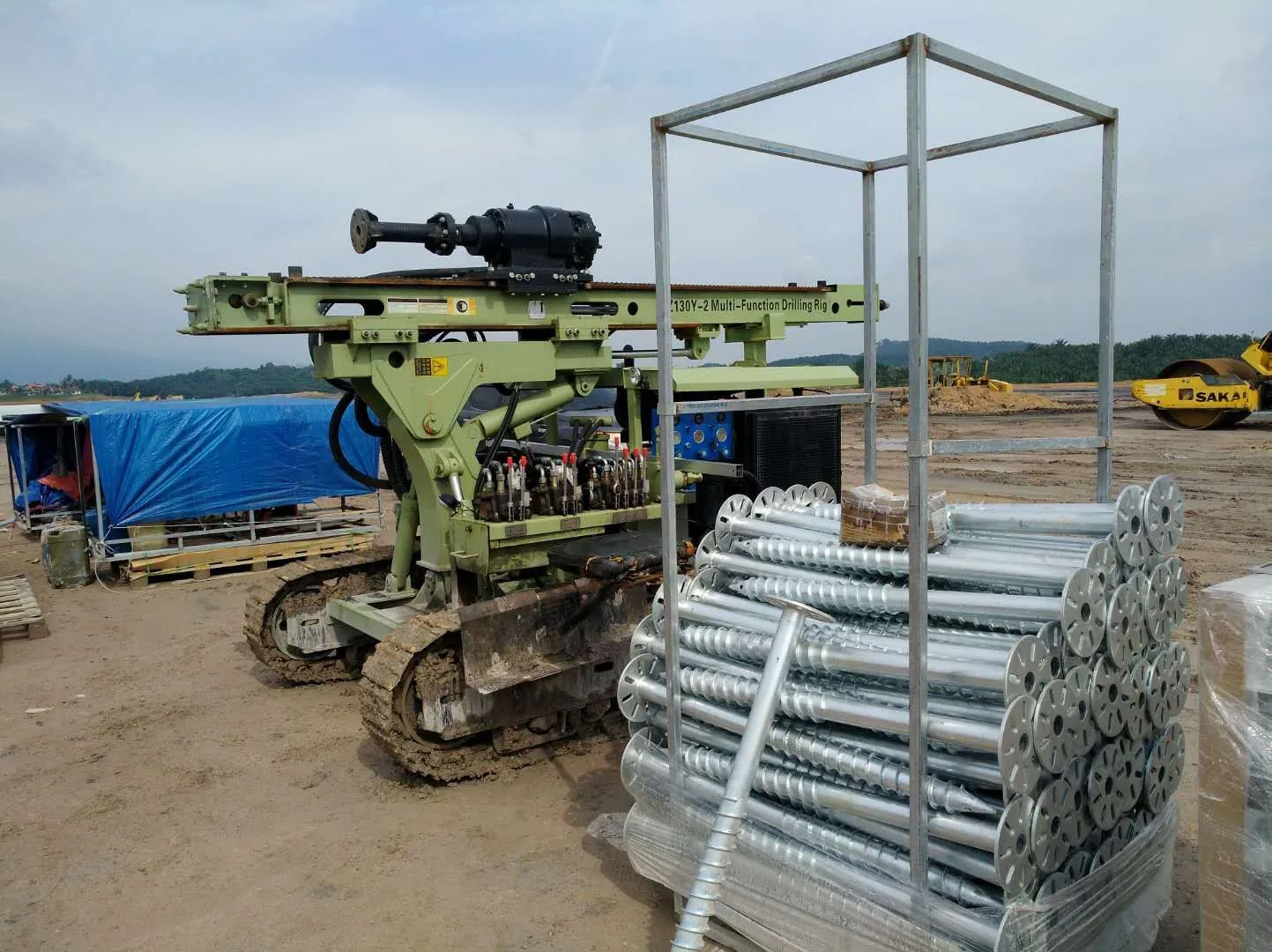

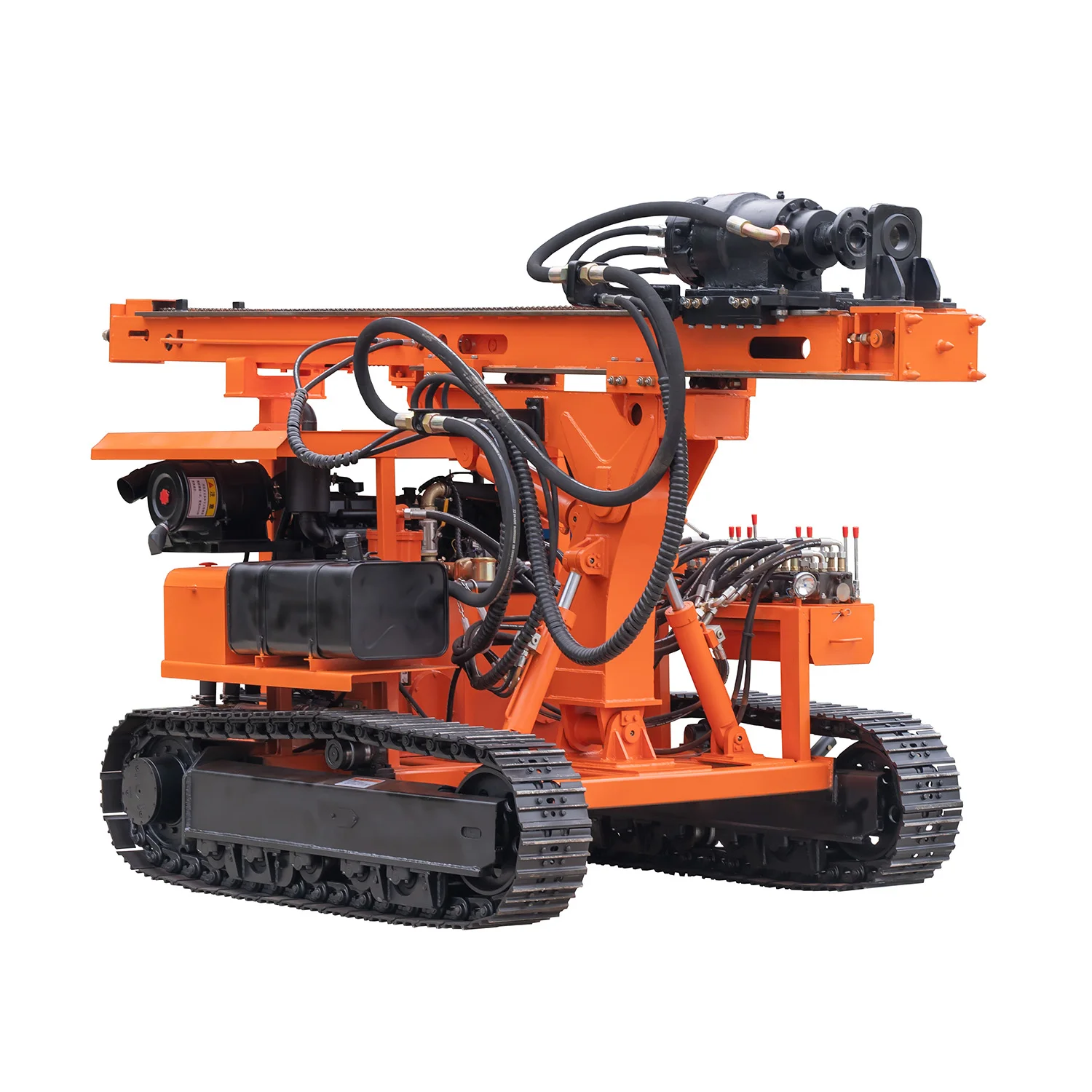

Solar pile machine longye solar ramming machine MZ130Y 2
- Category: >>>
- Supplier: Shandong Longye Machinary Co. Ltd.
Share on (1601221683993):
Product Overview
Description
Product Description
drilling rig superiority:

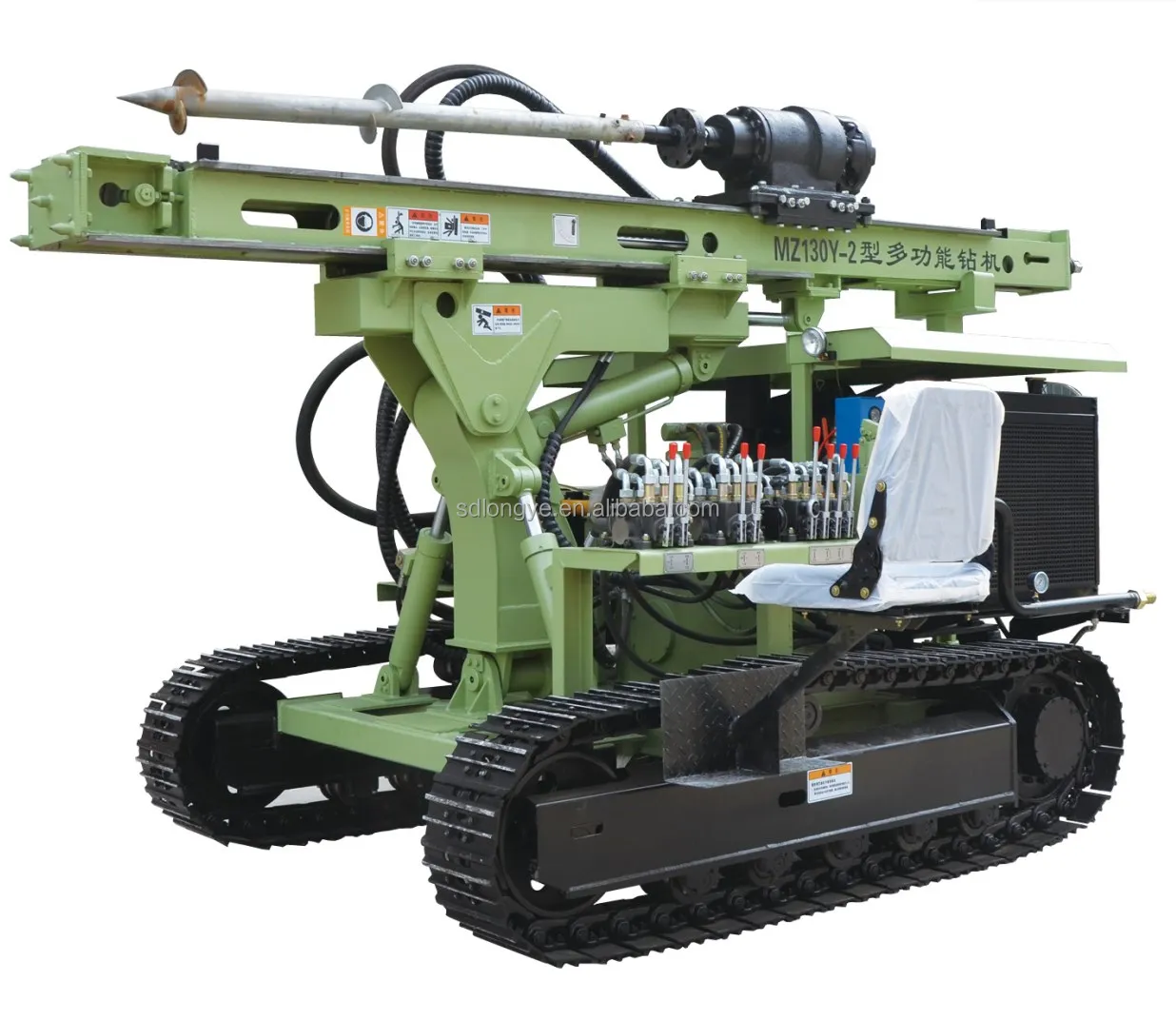

MZ130Y-2 ground screw drilling machine can :

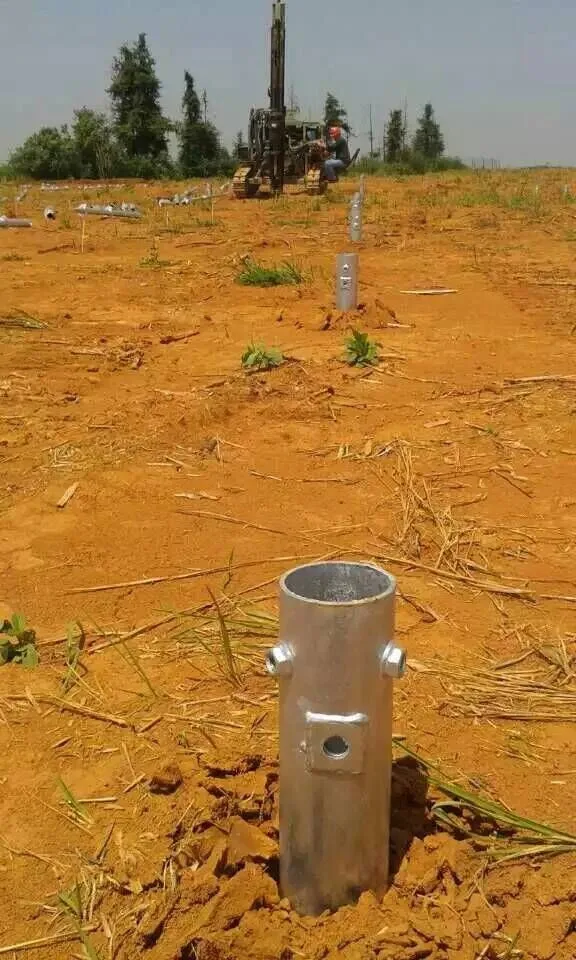

- Drill maximum 3m long ground screw piles.
- Drill 130-400mm diameter auger spiral soil holes.
- Drill 90-350mm diameter DTH stone rocky ground holes .
- Working on flat ground or maximum 15 degree slope ground

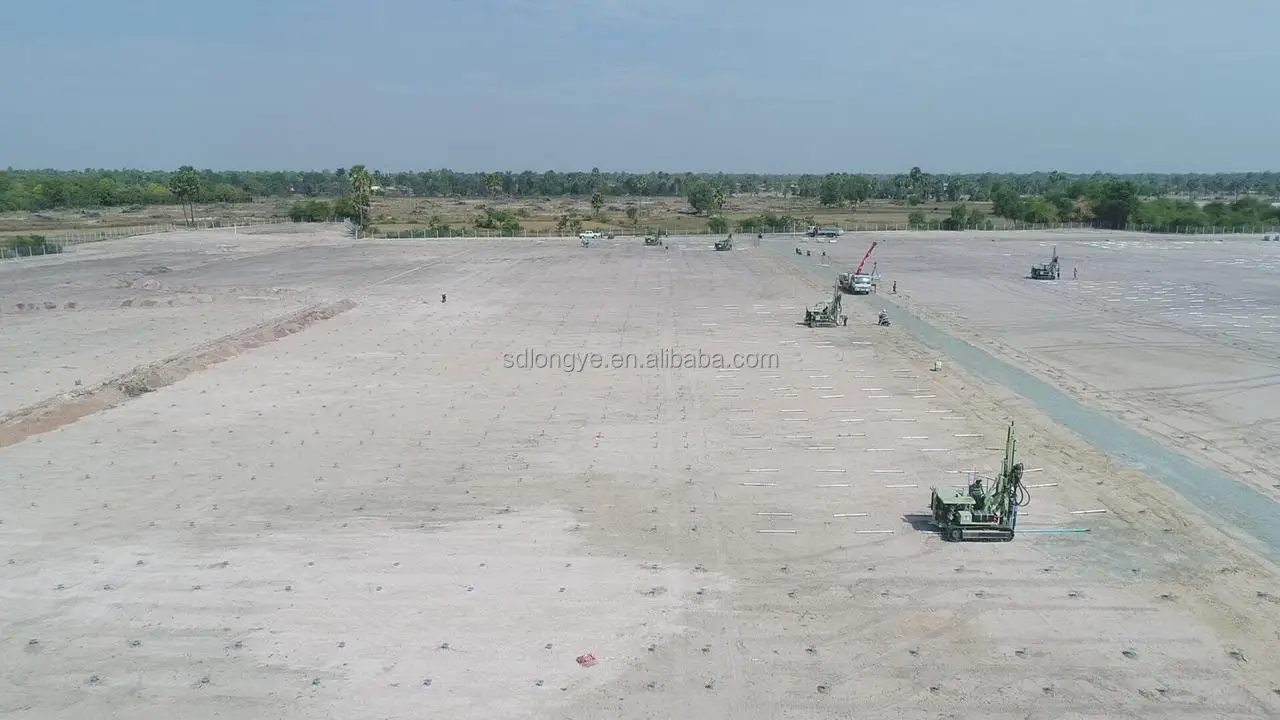

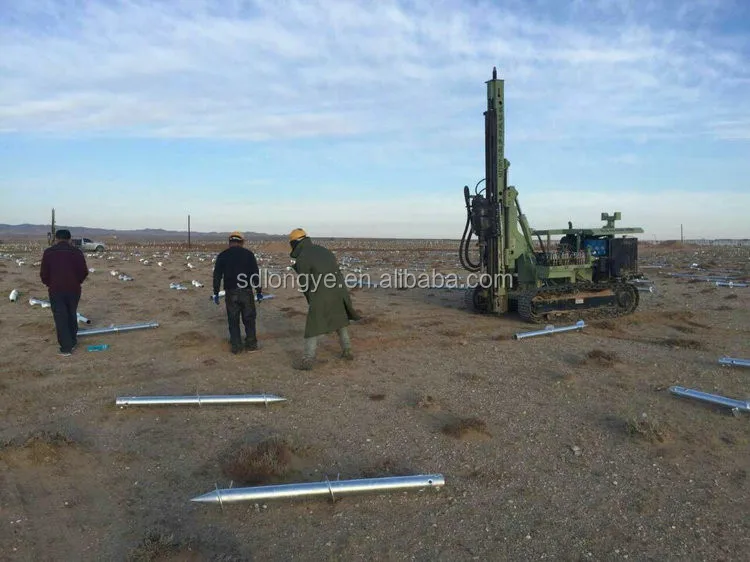

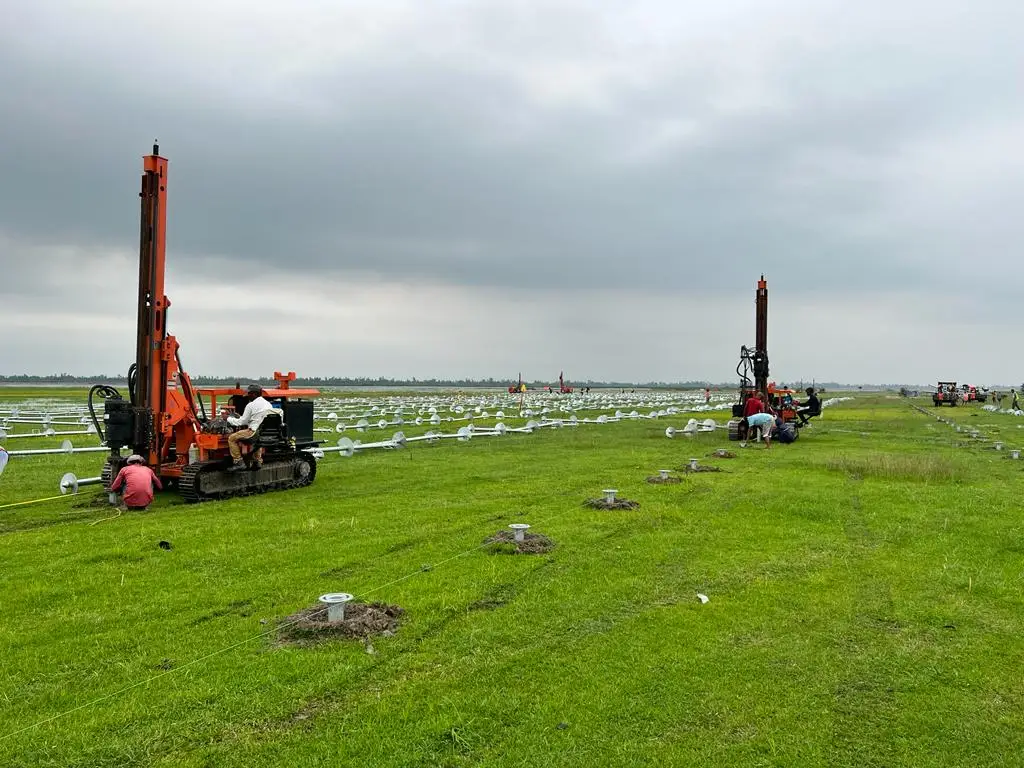

The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc.
technical parameters
Air pressure (Mpa) | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
Air consumption (m3/min) | 10-26 |
Bore diameter(hammer) (mm) | 90-300mm |
Bore depth (m) | 20-100 |
Once promotion(mm) | 2000 |
Screw pipe diameter (mm) | 76/89 |
For rock | F=6-20 |
Bore diameter(screw)(mm) | Max 400mm |
Skid pitch(.) | 100 |
Swinging angle of skid(.) | Left and right total 40° |
Bore depth(m) | 0-30 |
Screw pipe diameter(mm) | 130-400 |
Rotation speed<=""> | 0-70 |
Host power(kw) | 56 |
Climb ability(.) | 35 |
Walk speed(kw/h) | 0-2.5 |
weight(Kg) | 4360 |
Dimension(L*W*H)mm | 4460*1950*2460 |
Company Information

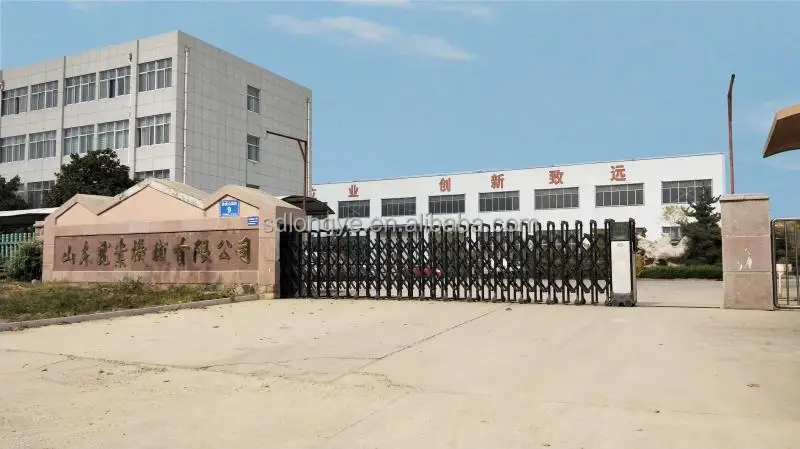

About ShanDong LongYe Machinary Co.,Ltd. is specialized in manufacturing the production of hydraulic presure
down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.
We pride ourselves in our ability to offer the right product at the right price.
We develop long term relationships with our suppliers and buyers.
We have a professional attitude and will offer the best service.
Dear solar partner,

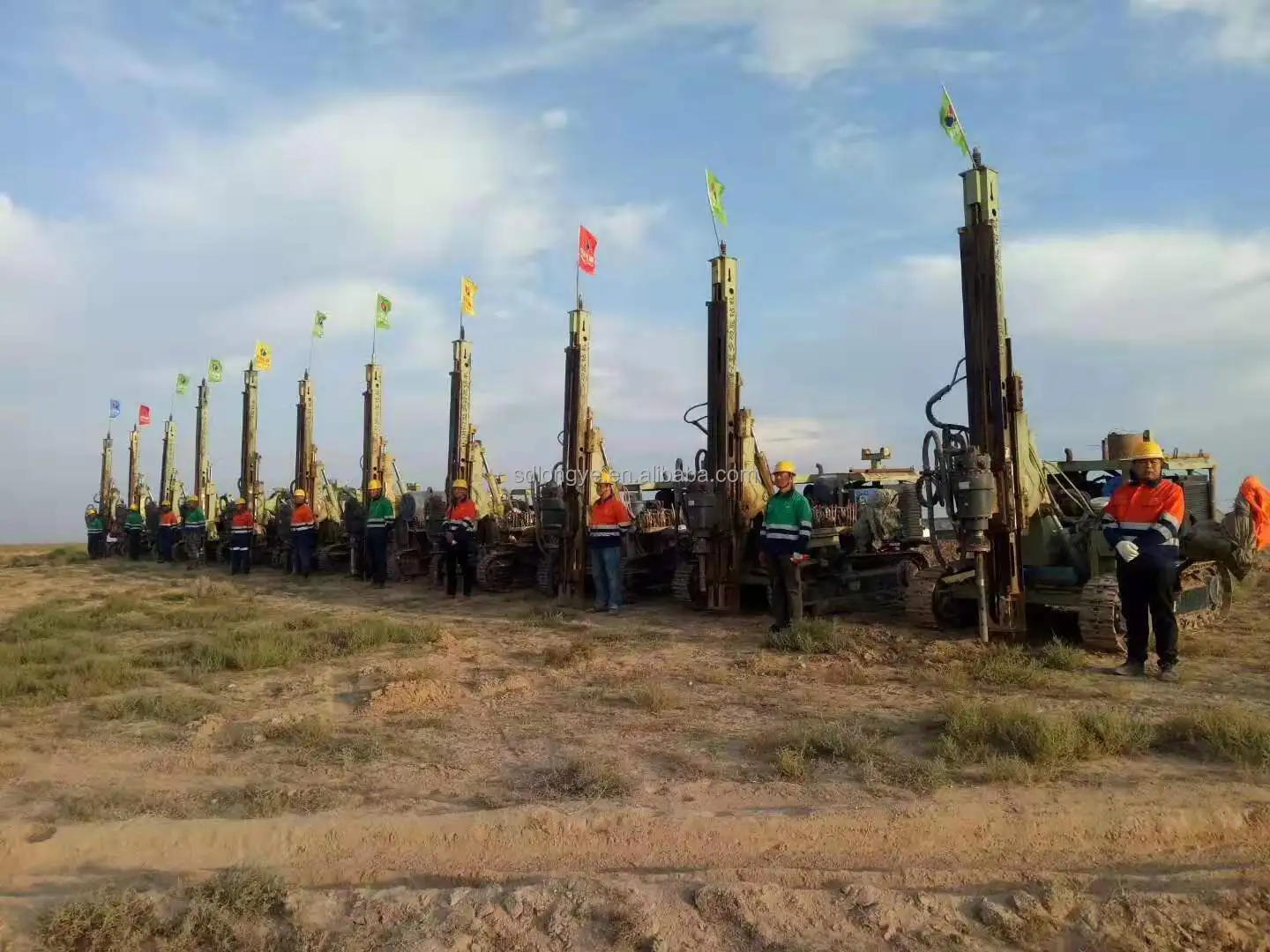

We ShanDong LongYe is China No.1 solar ground pile piling machines manufacturer that cover more than 60% in Chinese solar market, and we exported to over 70 countries !
Hope we can cooperate in future.
Tao
Add: TaiAn city, ShanDong province, China.
