Mining Tunnel Mine Underground 3 Ton Off Road Vehicle 3 Ton Heavy Dump Truck Mining Dump Wheel Cargo Transport Truck
- Category: >>>
- Supplier: Henan Sinman Mechanical Equipment Co. Ltd.
Share on (1601221767586):
Product Overview
Description
Product Description

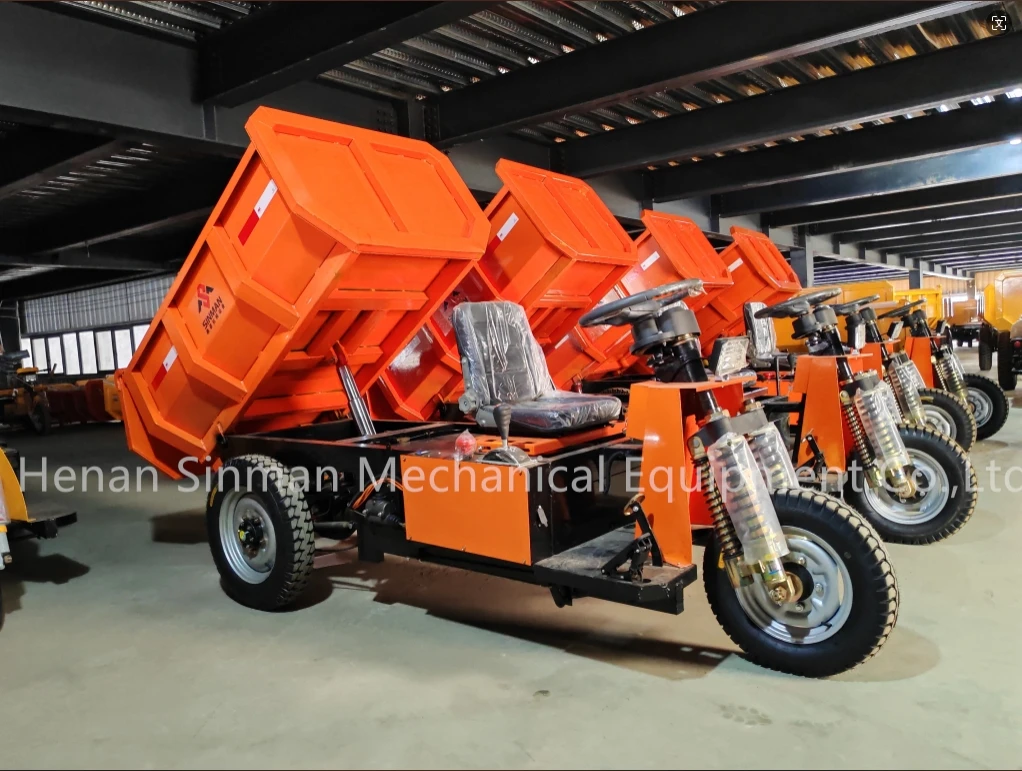

With the development of the times, electricity has been applied to all aspects of human life. Due to environmental protection, human transportation and means of transportation are gradually becoming electrified. Electric mining transport vehicles, as an environmentally friendly vehicle, are used in agriculture, engineering, construction, and mining. Our company's electric tricycle is a heavy-duty 3t Three Wheels Dump Tricycle with strong load-bearing capacity, which can transport ores, stones, grain crops, construction waste, and other materials.
Specification
Technical parameters | Details | |
1 | Load | 3000kg |
2 | Weight | 1100 Kg |
3 | Voltage | 72V(dry battery 120A) |
4 | Lifting Motor Power | 1300w |
5 | 5Driving Motor Power | 5500w (AC motor) |
6 | Overall Sizes | 3600×1200×1400mm |
7 | Cargo Box Sizes | 2000×1200×500mm |
8 | Work platform Height | 700mm |
9 | Tire(front/rear) | 500-14/700-16 |
10 | Brake type | Oil brake |
11 | Light | LED big light |
12 | Seat | Luxury seat |
13 | Shocker | Double shocker(Shifeng brand) |
14 | Axle | High and Low Speed, direct coupling, heavy duty |
15 | Lifting system | Hydraulic lifting(3 sections) |
16 | Steering method | Turboprop steering gear |
Product Details

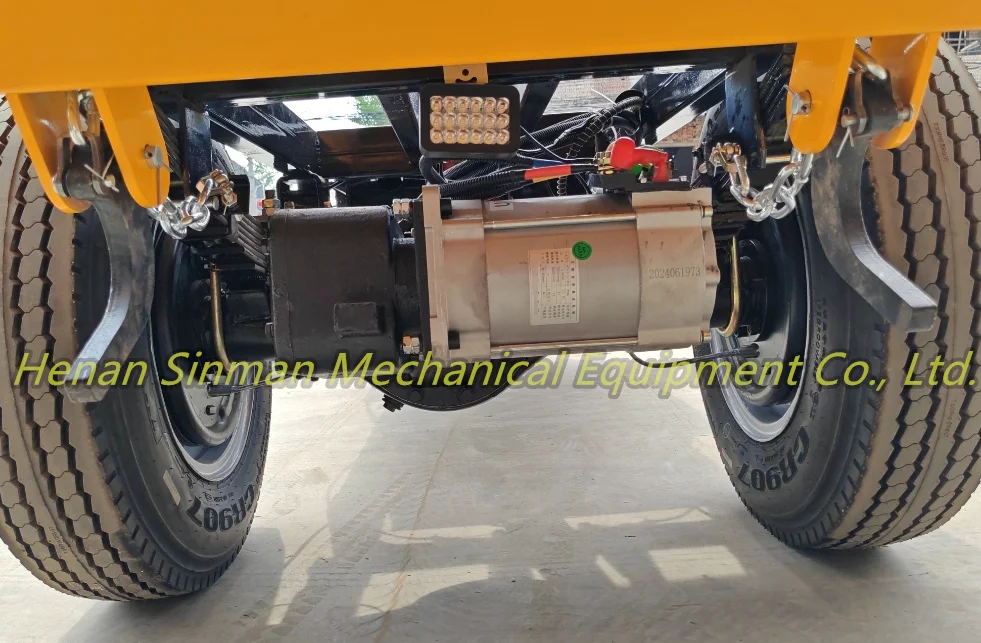

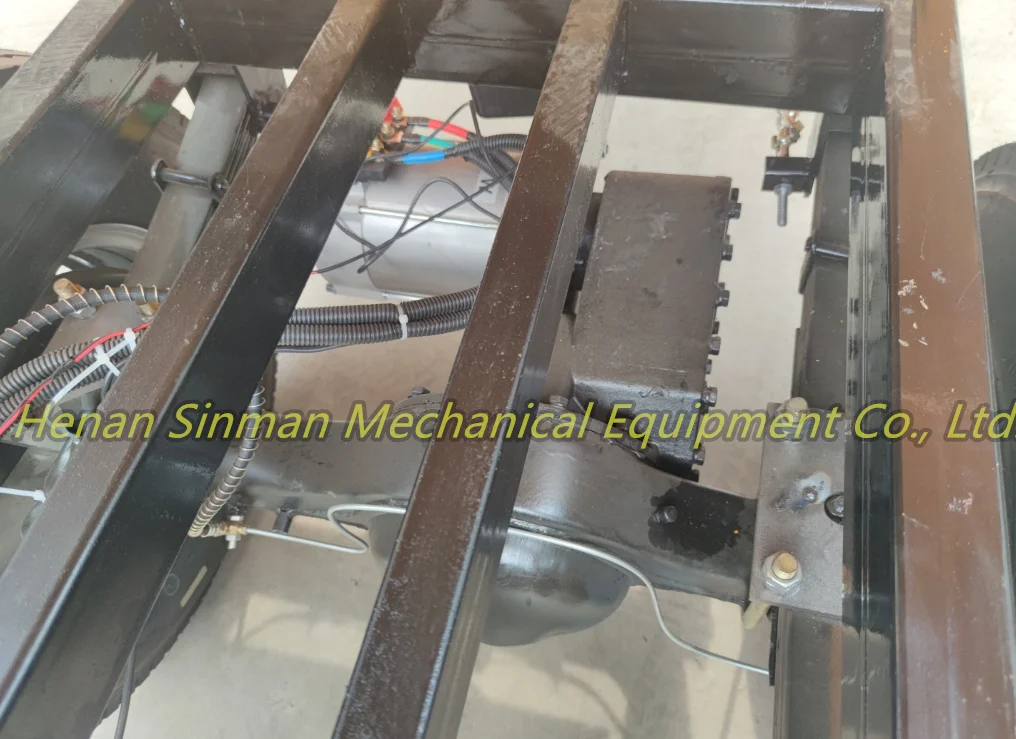

Rear Axle
Adopting 130 direct coupling full floating rear axle, which is heavy duty. the width of the rear axle can be 1.1 -1.3m. This rear axle has an advantage of large loading capacity and reinforced heavy type. Compared to the same load-bearing rear axle, it is more durable.

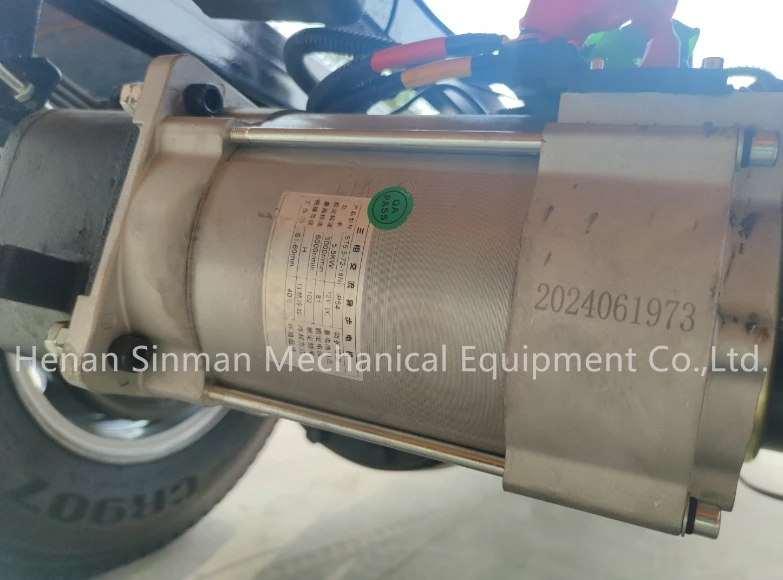

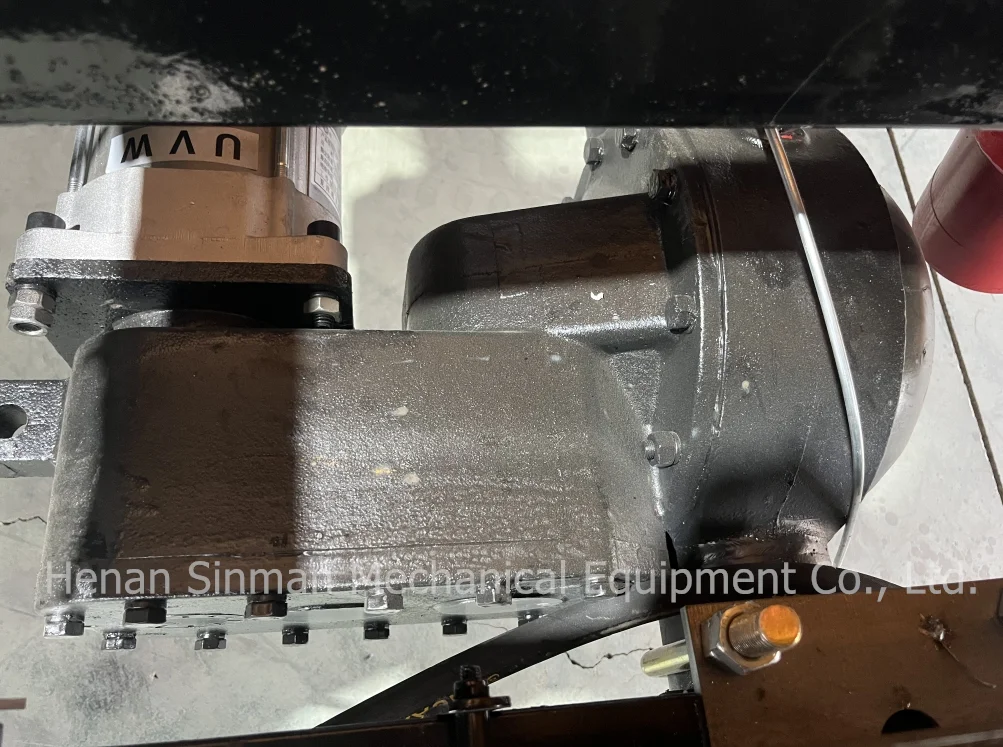

Driving motor: 5500w AC motor
We use a 5500 watt AC motor as the walking motor for the Mini dumper, which has the characteristics of simple structure, reliable operation, easy maintenance, and durability.
Double shock absorbers (shifeng brand) can cushion road bumps, protect the vehicle, and improve comfort.
Spring steel plates are thickened and heavy-duty, reducing the impact of the tricycle during driving.
The hand brake and hydraulic lifting lever.
The hydraulic lifting system, hydraulic cylinder
(3 sections)
Reverse switch lever and air switch at the upper part of the control box.
The main circuit switch and heavy power socket are located on the front side of the control cabinet.
Foot brake
Foot accelerator

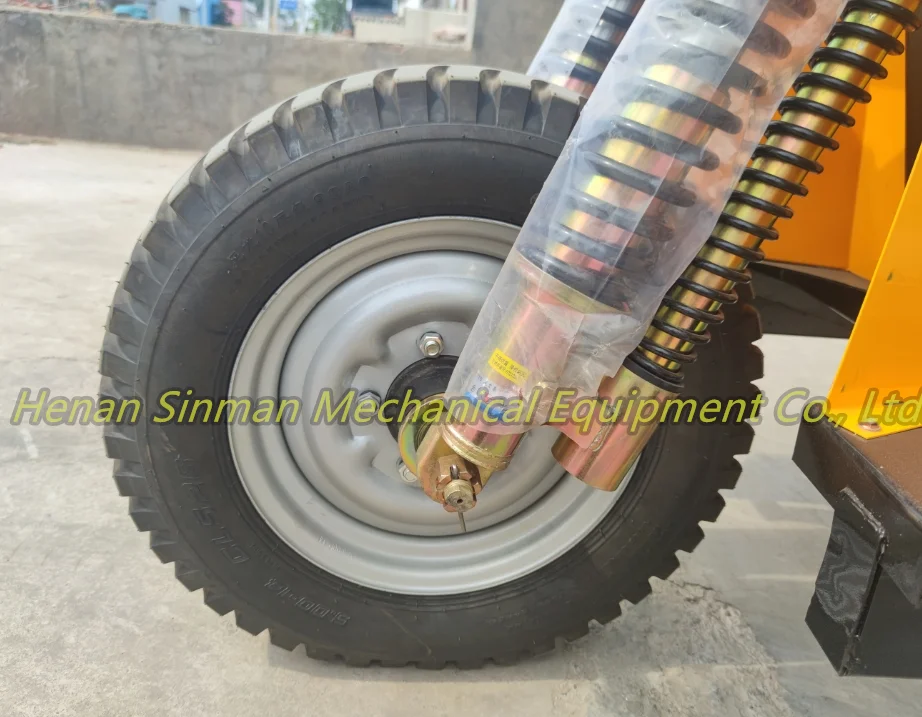

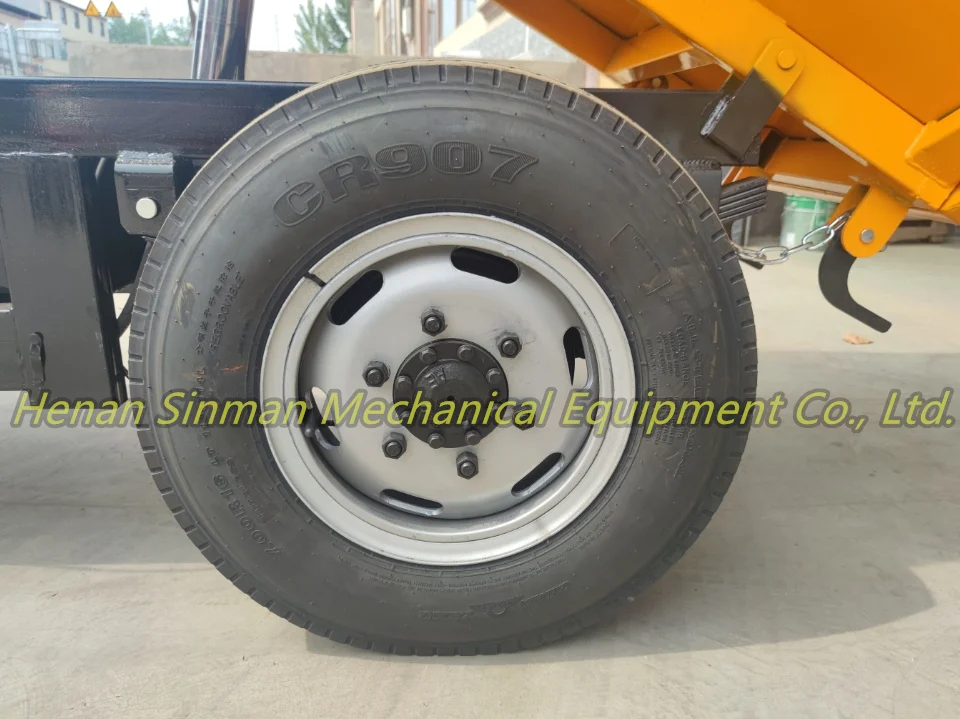

Front tire/ rear tire: 500-14/700-16
Using first tier brand tires with good wear resistance and impact resistance
The integrated control panel includes:
power display, horn switch, ignition switch, headlight switch
Turboprop steering gear
Compared to mechanical steering, it is more convenient to operate and has a more flexible direction of rotation.
Fully covered battery frame to protect the battery
LED big light
Reinforced cargo box hook

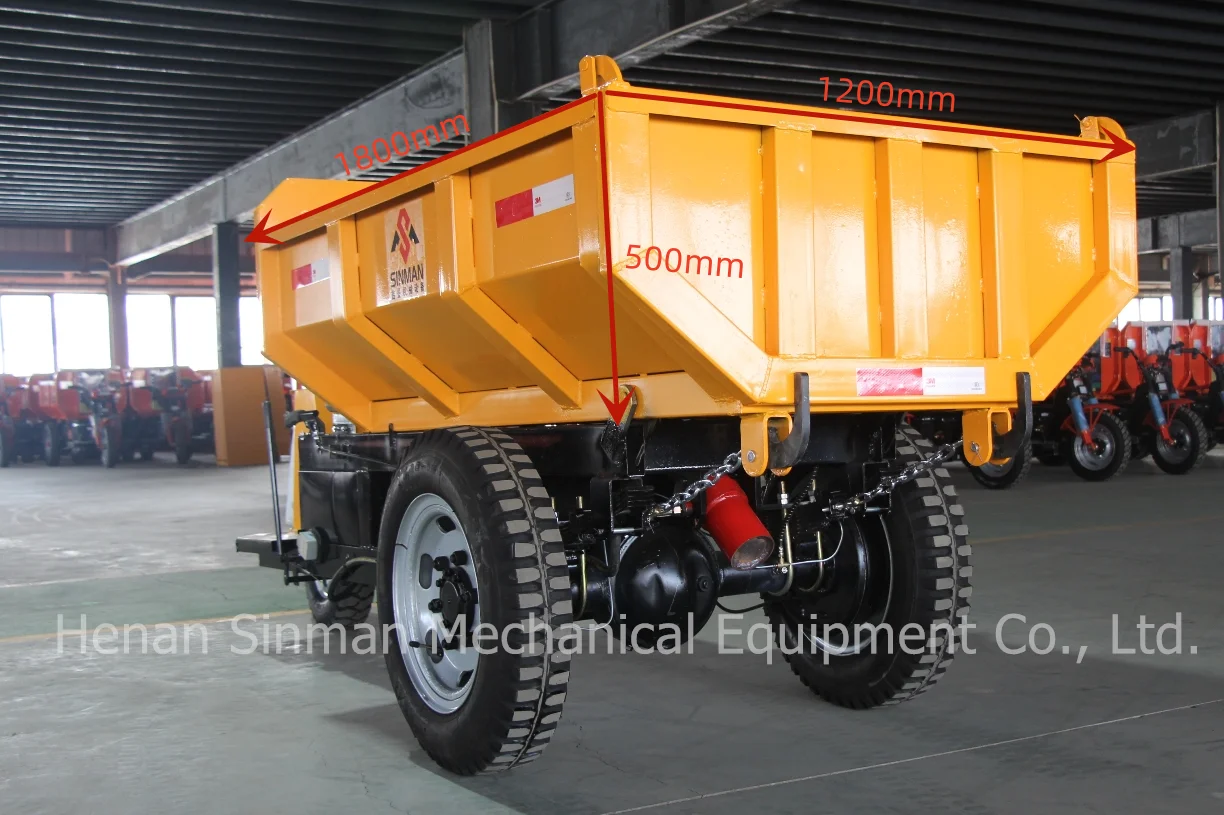

Cargo Box size: 1800/2000*1200/1300*500mm. (can be customized)
333

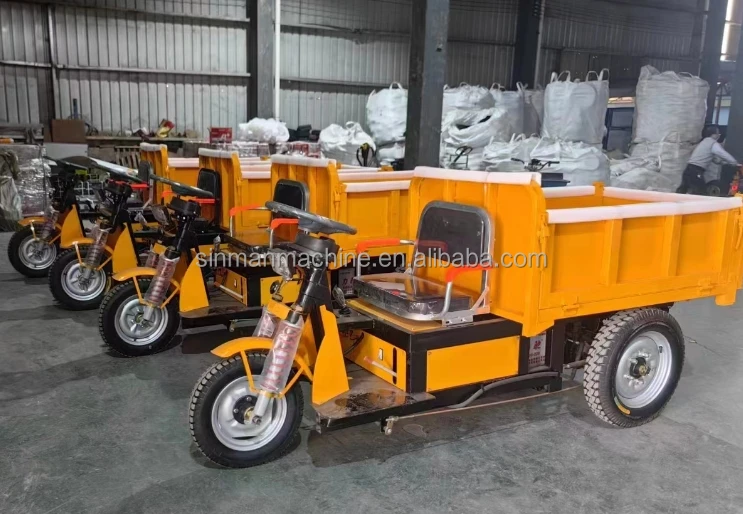

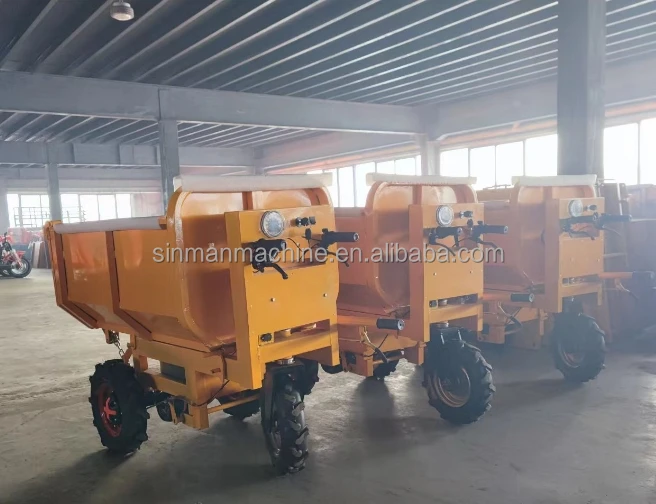

The following two types of tricycle bodies are available for selection.
