1575.42Mhz 25DBI Gps Antenna Small External Antenna
- Category: >>>
- Supplier: FANLIN CO. LIMITED
Share on (1601221769404):
Product Overview
Description

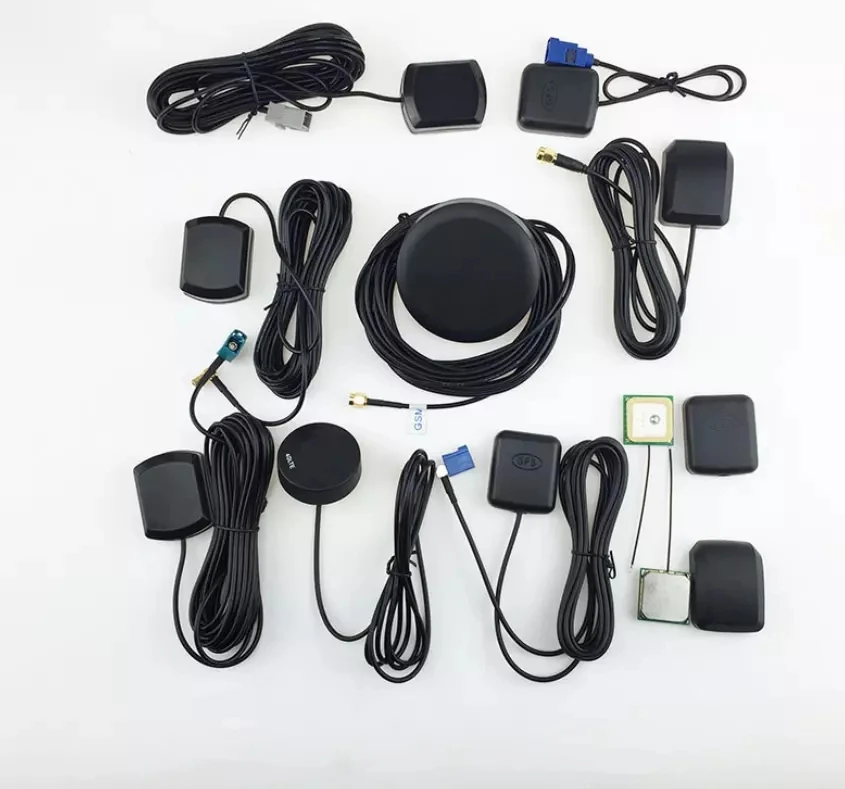

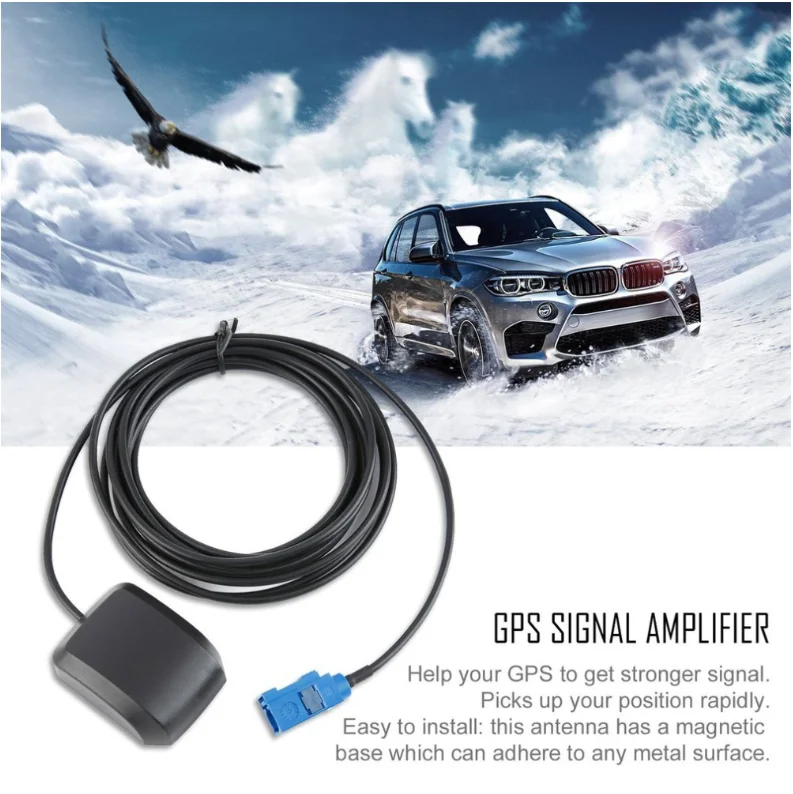

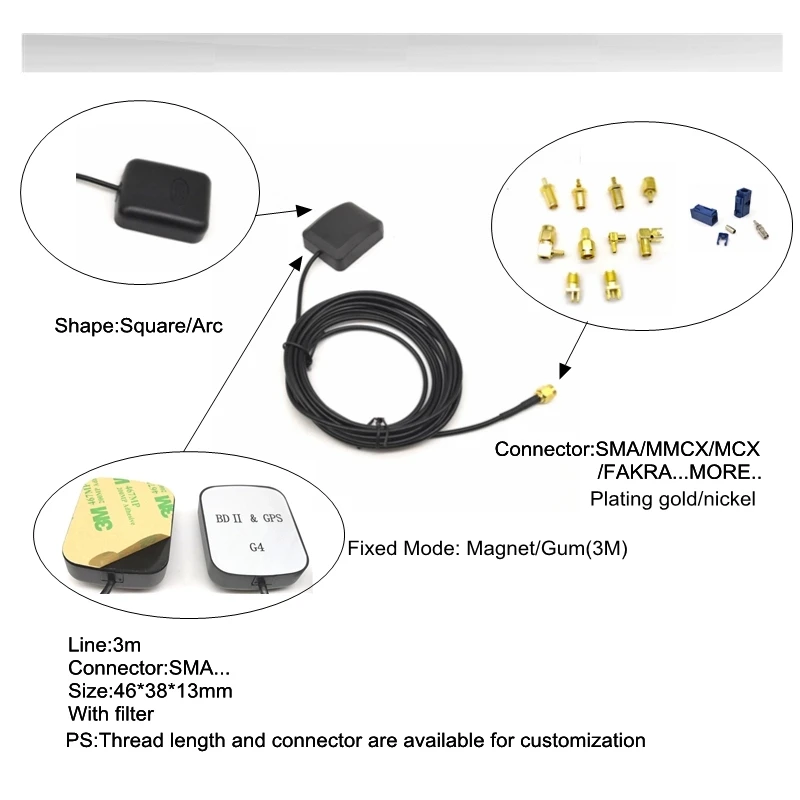

1575.42Mhz 25DBI Gps Antenna Small External Antenna
Product Description
product data:
| Electrical Specifications | |
| Frequency Range | 1575.42mhz |
| VSWR | ≤1.5 |
| Gain | 5 DBI |
| Input Impedance | 50 Ω |
| Maximum Input Power | 50W |
| Mechanical Specifications | |
| Antenna Color | Black |
| Cable length | 3m |
| Working Temperature | -40℃~+85℃ |
| Working Humidity | 20~80% |
| Environment performance test | ||
| Project | Test condition | Test results |
| Storage environment | Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃~+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa | Electrical and mechanical performance normal |
| High and low temperature test | Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
| Resistance constant hot and humid test | Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
| Vibration test | Vibrate Frequency:10-55HZ; Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times | Vibration test |
| Fall test | From 1m height fall down 3 times freely (vertical direction) | Electrical and mechanical performance normal |

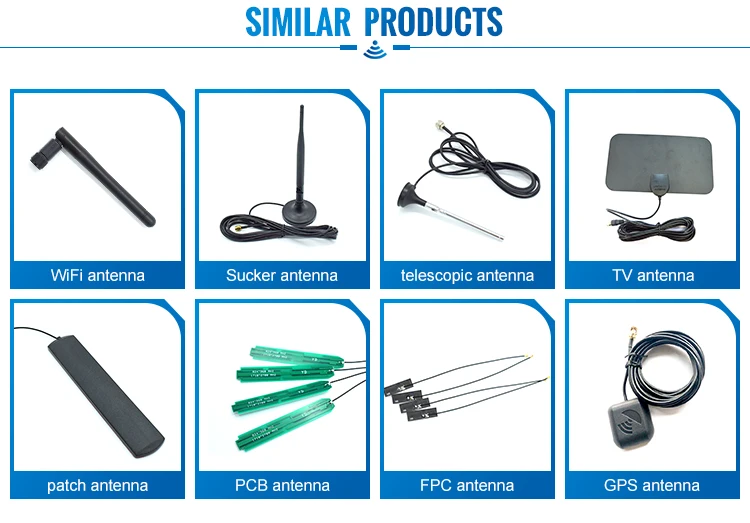

Similar Products

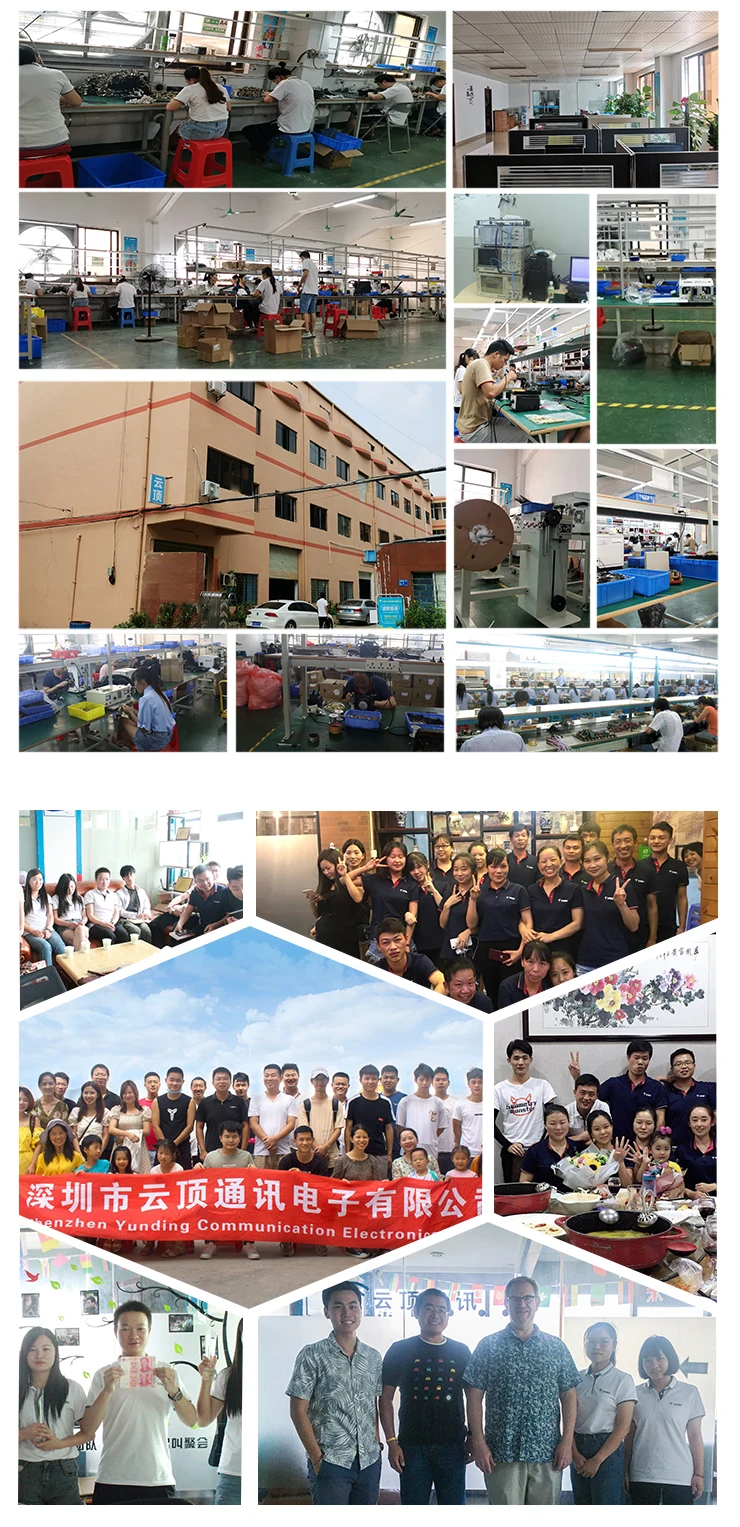

company introduction
Shenzhen yunding Communication Electronics Co., Ltd. was established in September, 2005, mainly specializing in the research, development, produce and selling of multiple wireless terminal antenna.
As a customer-oriented production enterprise, we focus on providing our customers with One-Stop solution including R&D,test,production, inspection, shipment, and after-sales service as well. Our strong R&D strength, professional manufacturingcapacity,strict quality control system, excellent management team and dedicated sales force, enable us to fulfill our commitment in highquality products and outstanding services.
We are a leading supplier of antenna and related products and services for Mobile Phone, wearable device, Wireless vehicle equipment, Intelligent household appliance and so on. We are now striving to be:
1.The leader of industrial and technical evolution
2.The pacesetter and formulator of corresponding standards
3.The supplier of high-quality products and services

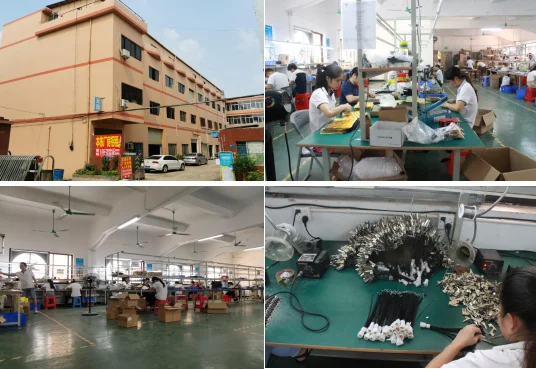

We have our own production plant, professional assembly line combined with automated machines, which has greatly increased product output. Large-scale production can supply customer needs in a timely manner.
Technical innovation:

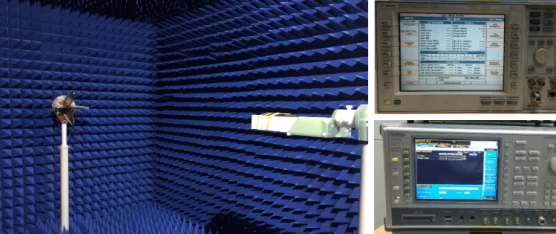

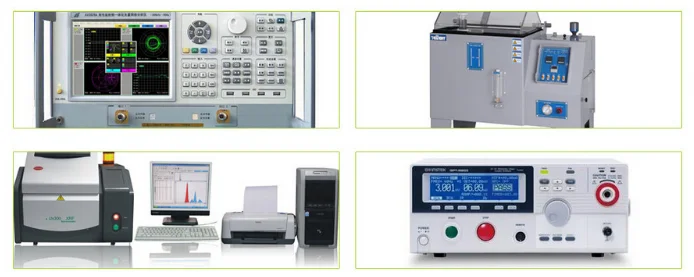

We boast a huge technical innovation capacity and an abundant reserve of knowledge on antenna. Moreover, we are featured by great innovation capacity in technical fields of high-low temperature test chamber, salt spray cabinet, Satimo Chamber and OTA Chamber, and all of which have notably helped us fulfill product development in an efficient way.
Our Services
Our Services:
All the specifications bellow were customized by customers, we provide OEM service.
1. 100% high quality, all failed parts get free warranty within 30 days after received.
2. Accept 10 years warranty upon customer requirement.
3. Repairs parts are available within 10years; we will inform the EOL products to you from time to time
4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.
5. Unique designed package for you can be provided upon customer requirement.
6. Special feature and service can be provided upon requirement.

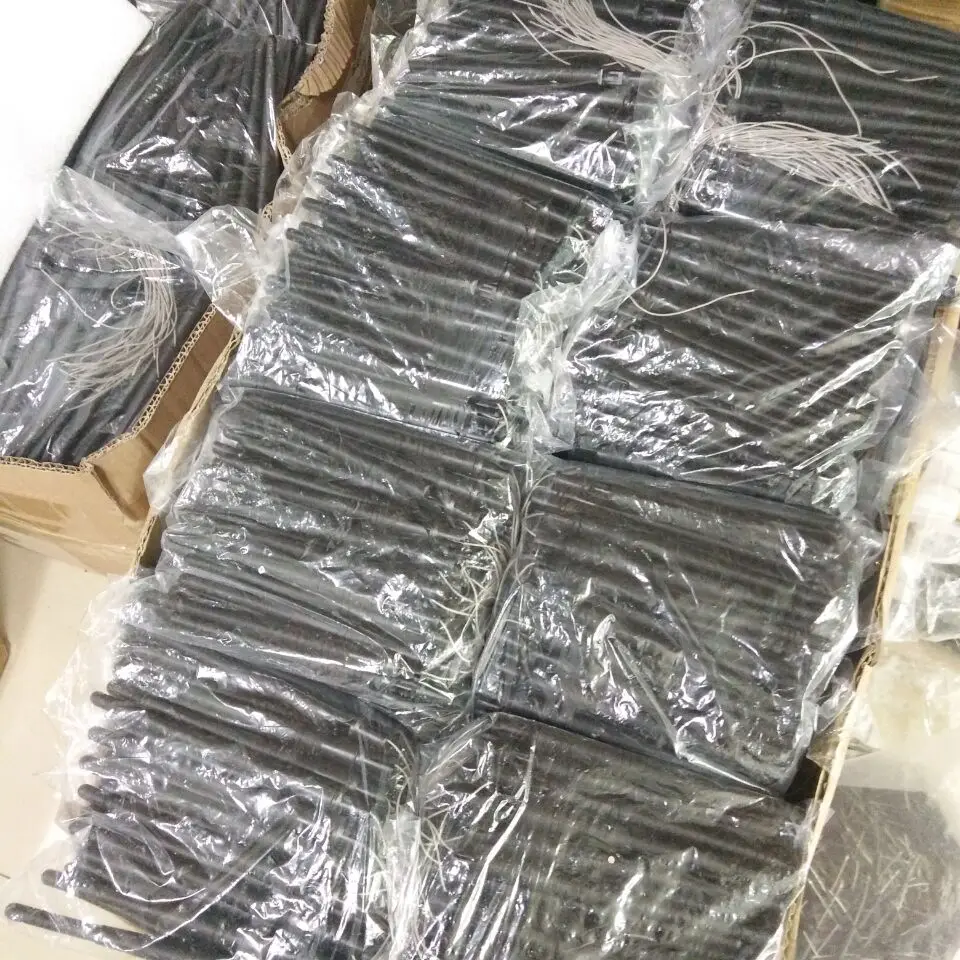

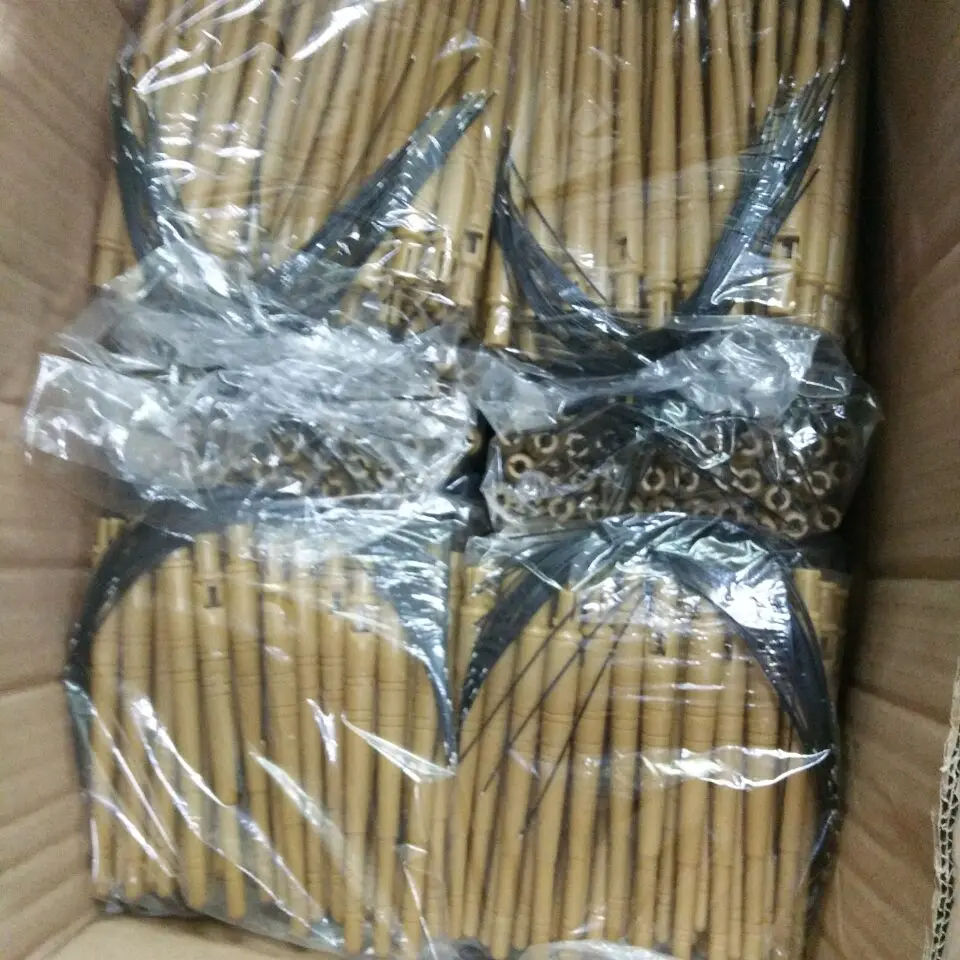

Packaging & Shipping
Shipping & Payment:
| MOQ: | 2pcs for sample, 100pcs for OEM |
| Packaging: | Color box packing, 20pcs per carton |
| Loading port: | Shenzhen |
| Delivery date: | Within 5 days after payment confirmed |
| Terms of Payment: | T/T, Western Union, Paypal, Escrow |
Delivery details:
1. The lead time for samples is 7~10 days, 10~20 days for the production.
2. For the shipping, the goods can be shipping by client's international express account like DHL,TNT,UPS,Fedex, or shipping by our forwarder.
FAQ
Q :How can I get the sample to check your quality?
A :After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
Q :What can I get the price?
A :We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q :What is your term of delivery?
A :For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. You can also select shipping by Air, but freight charge will be more expensive.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order.
