Product Overview
Description
spray booth ! ! !
We have professional technical team to provide 3D renderings for your customized special-shaped spray booth.Below is the 3D animation of the custom paint booth
If you need it, we can design and customize for you ! ! !
Specification
Type | car spray booth |
Place of origin | Shandong,China |
Brand Name | Xinghuo |
Model Number | X-500 |
External Size | 7000mmx5300mmx3300mm |
Internal Size | 6900mmx3900mmx2600mm |
Entrance door | 3000mmx2500mm(3folds; 1000mm×2500mm) |
Emergency Door | 650mm×1800mm. |
Lighting System | LED light |
Heating System | electrical heating(diesel heating,natural gas heating) |
Filters | high efficiency filter |
Wall panel | rock wool |
Baking temperature | spray paint baking 60~80 |
Air fan type | YDW |
Power | 42KW |
Voltage | 380V50hz |
No Load Speed | 0.25-0.35m/s |
Warranty | 12 months |

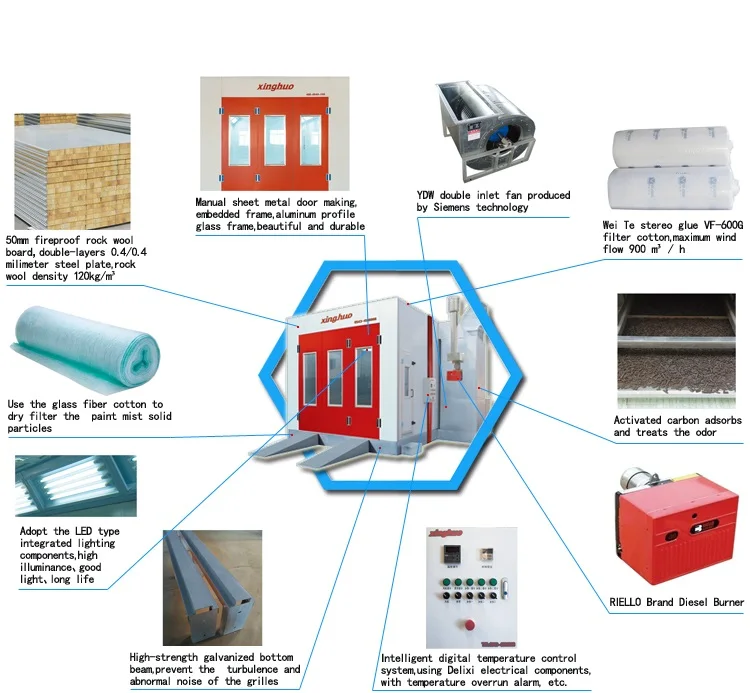

Products Detail
House System
1.wall panel:
3.The slot and wrap angle:
bent with δ0.8 mm galvanized sheet.
50 mm rock wool board ,100 kg/cubic; insulation board: 50 mm;
single-layer color steel plate: 0.4 mm;
2.The roof:
0.6 mm color plate,and the top skeleton is welded with 40*60 square tube.
single-layer color steel plate: 0.4 mm;
2.The roof:
0.6 mm color plate,and the top skeleton is welded with 40*60 square tube.
3.The slot and wrap angle:
bent with δ0.8 mm galvanized sheet.
Gate system
Gate width: W:3000 mm×H : 2500 mm;
Entrance door:folding three-sheet metal large glass door,W: 1000 mm × H: 2500 mm;
safety door: W:650 mm×H:1800 mm. It's on one side of the room, and equipped with a glass observation window.
safety door: W:650 mm×H:1800 mm. It's on one side of the room, and equipped with a glass observation window.
Air Filtration System
①The air inlet of the fan adopts the primary filter of the special air inlet cotton;
②The top of the static pressure chamber adopts CC-800 XU advanced filter cotton for high-efficiency filtration;
②The top of the static pressure chamber adopts CC-800 XU advanced filter cotton for high-efficiency filtration;
③The bottom of the steel grille is equipped with bottom cotton paint mist filter felt for efficient filtration;
⑤The exhaust box body adopts 2 layers of paint mist filter cotton.
Fan system
①Intake fans:
2 sets of 3 kw Jiangsu YDW double-inlet fans.
②Outtake fans:
1 set of 5.5 KW Jiangsu YDW type double inlet fan,and the exhaust air volume of each fan is 15500 m³/h, with a total of 5.5 KW.

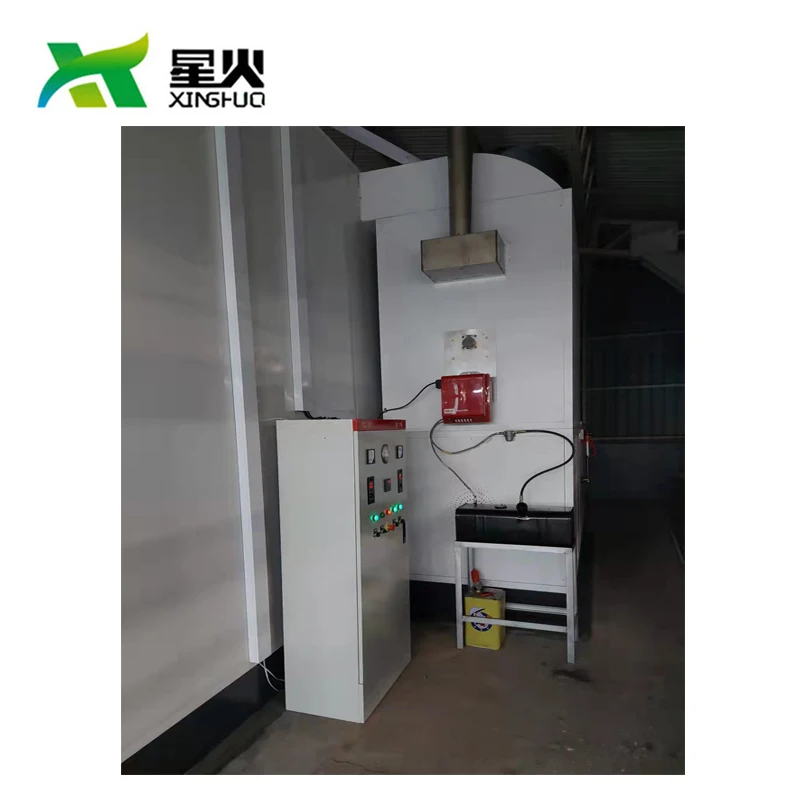

Heating system
Diesel heating
Italian G20 diesel burner, heat exchanger made of SUS304 high-quality stainless steel.
electrical heating
A total of 10 sets of side-by-side heating and baking lamps are configured, each set of 3kw, a total of 30kw.
Natural gas heating
Italian FS20 natural gas burner, heat exchanger made of SUS304 high-quality stainless steel.
Base system
③The steel grating :
30*4 mm flat iron and 6# thread welding;
④The checkered plate :1.8mm steel plate.
①The front and lower skirts of the house:
1.2 mm galvanized sheet;
the other skirts: 0.8 mm galvanized sheet;
②The connecting legs : 1.8 mm galvanized sheet bent ;
Company Profile
Zouping Xinghuo coating equipment limited company born in 1991. It is located in Mingjing Development Zone, Zouping County,Shandong Province . And we have a variety of advanced professional processing equipment such as large - scale shearing,CNC bending,punching machine tools.And we have been engaged in foreign trade for six years.Our products sell well all over the country, won the praise of the majority of users. Xinghuo is a modern enterprise with a professional technique team and young sales team.We extremely focus on the quality and the service,that is why we can attract so many customers all over the world.
If you contact us, you will fall in love with such a lovely team.
If you contact us, you will fall in love with such a lovely team.
