Tobee Effluent Handling
$12,600

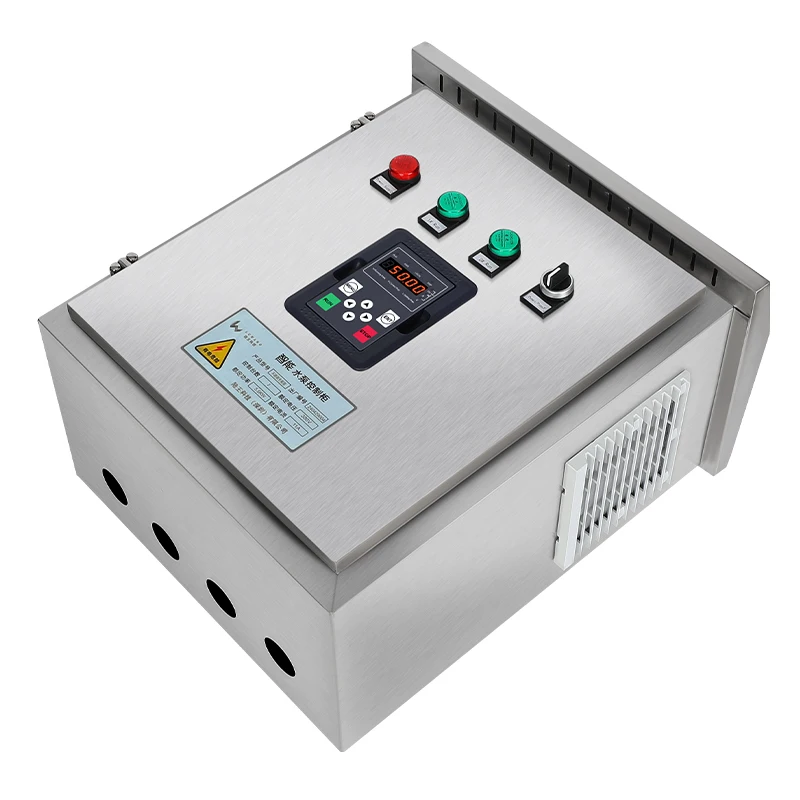

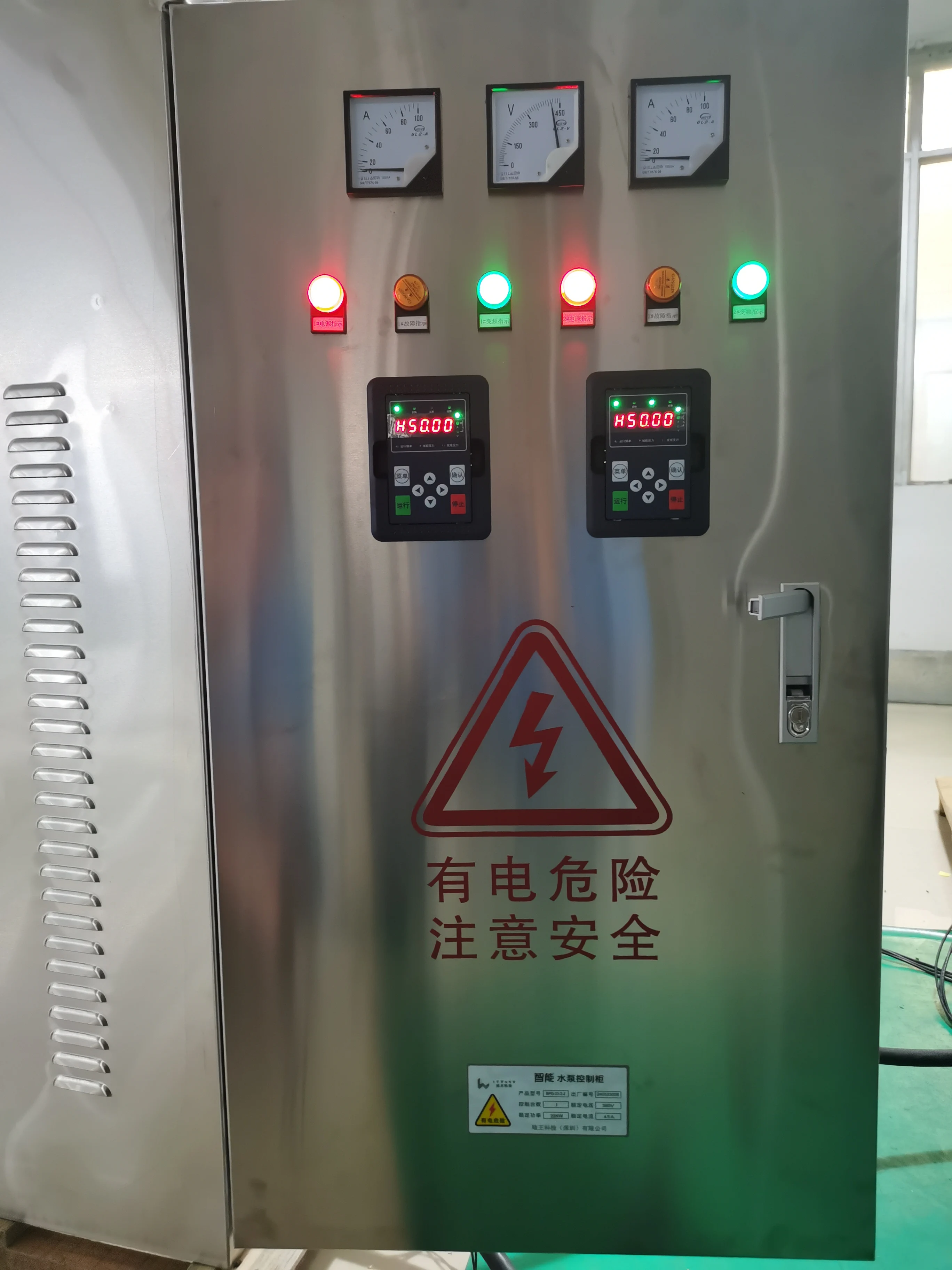

Duplex VFD Pump Controller Cabinet 380VAC Variable Speed Drive VSD VFD Variable Frequency Drive
- Category: >>>
- Supplier: Yueqing Haiyin Electric Co. Ltd.
Share on (1601221856591):
Product Overview
Description

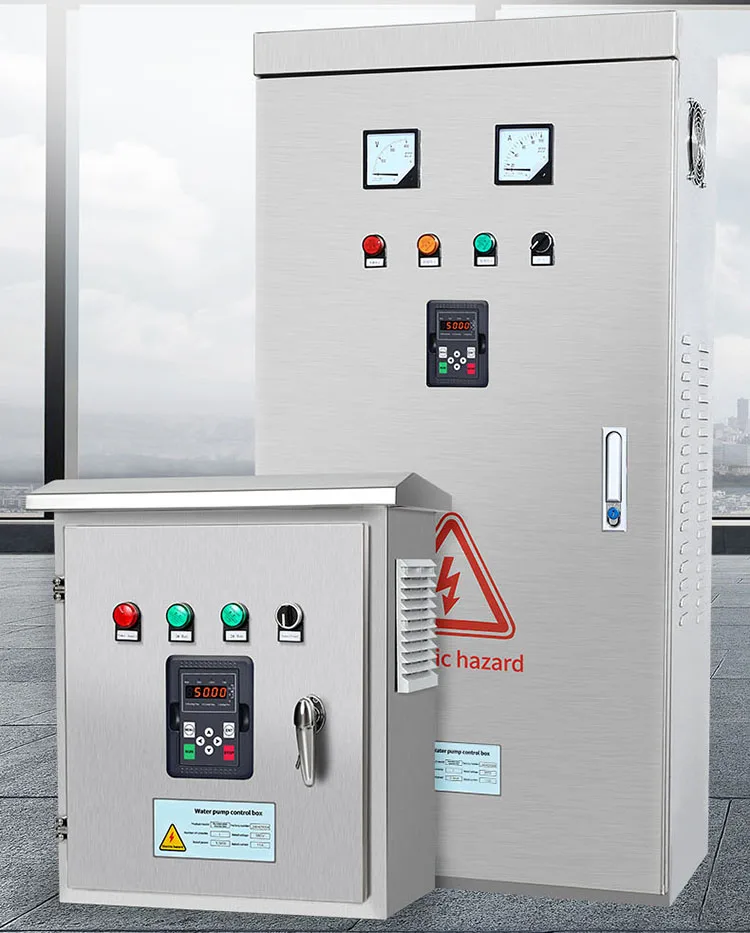

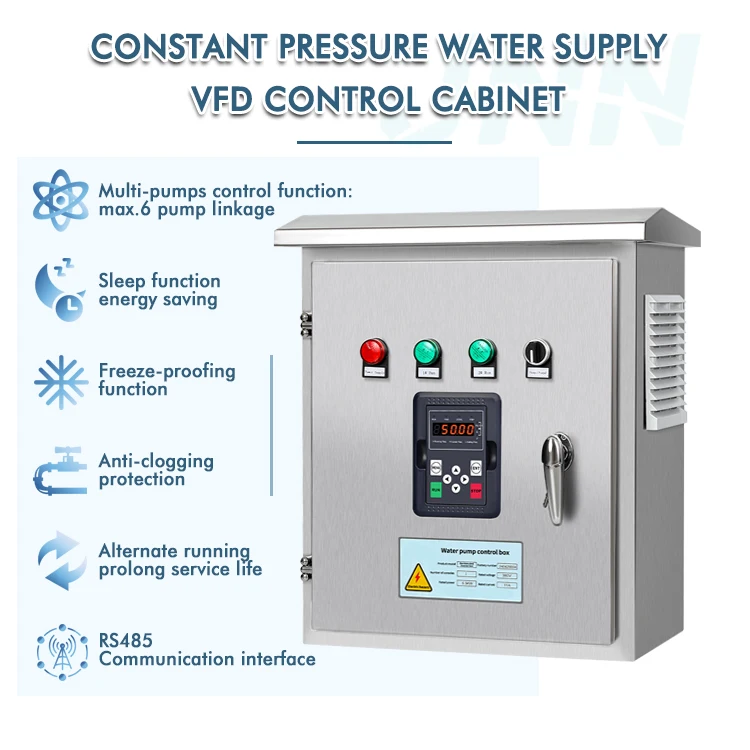

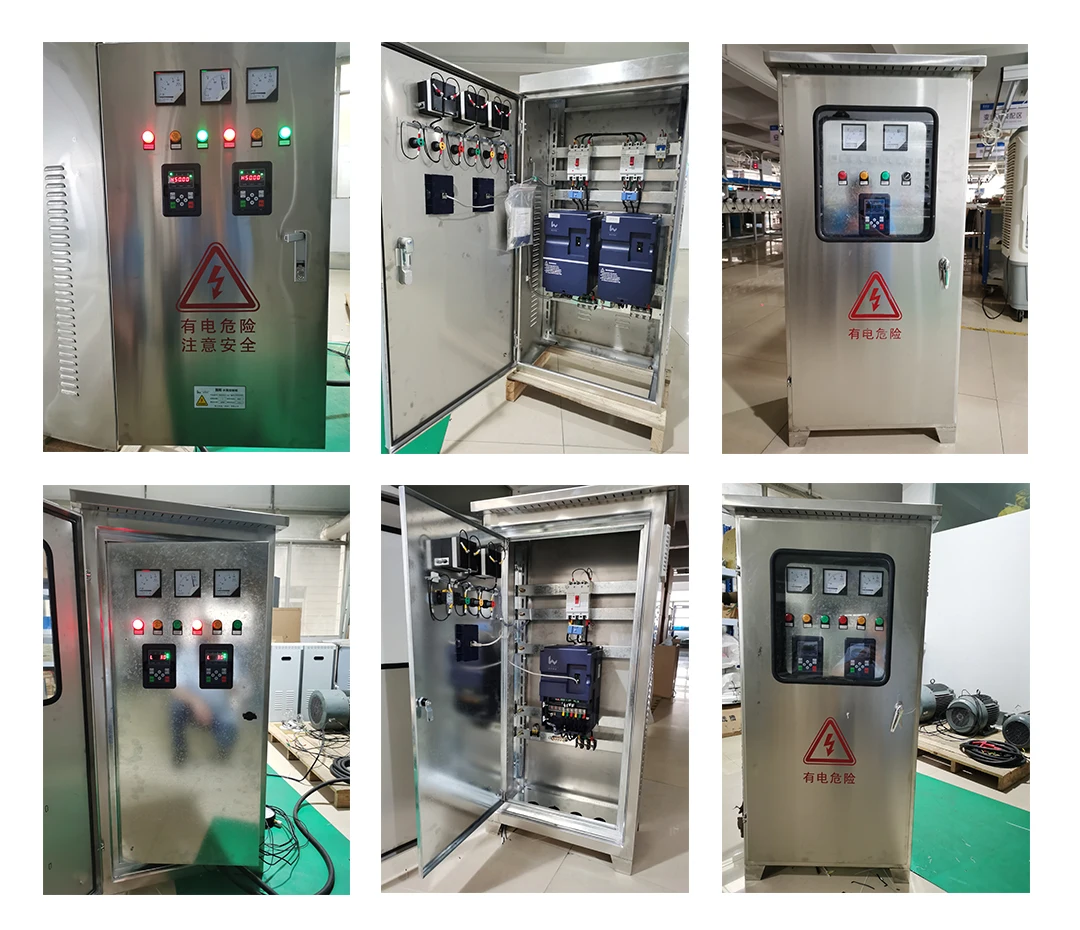

Stainless steel Variable frequency drive control cabinet / Constant pressure water supply frequency converter
Six Adavantages of
Frequency conversion
Energy saving up to 25-50% electricity
Pressure setting
Accurate pressure adjustment with error below 5%
Saving manpower
Main Features
▘Protective functions: Over current,over-voltage,low-voltage,over heat,phase failure,and overload,and no load.
▘Control Mode: Constant pressure,constant differential pressure,manual
▘Power On Restart: Running automatically when power on
▘Power On Restart: Running automatically when power on
▘Master Fault Shift Automatically: keep on working when the master breaks down
▘Alternate Running: Balance every pump's running time,prolong service life of the whole unit machine
▘Linkage Mode: Synchronize,master-slave,big-small pump combination,one duty one standby
▘Terminal Control Mode: Electronic contact gauge control,manual/auto control,terminal run/stop,automatic water level control
▘One Duty One Standby Day-part Function: 3 independent day-part time section control
▘Various of Water Supply Fault Alarm Function: High-pressure,low-pressure,low-level,transducer error etc.
▘Many Fault Protection Function: Over-current,over-voltage,low-voltage,phase-failure,overload etc.

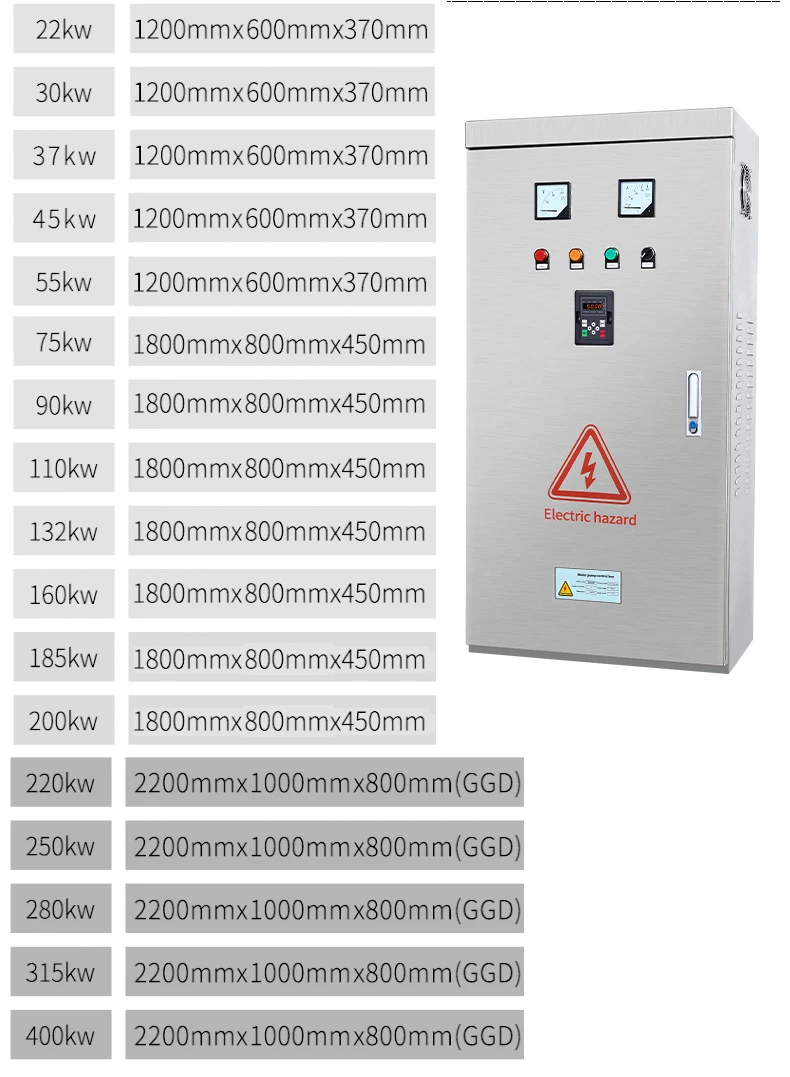

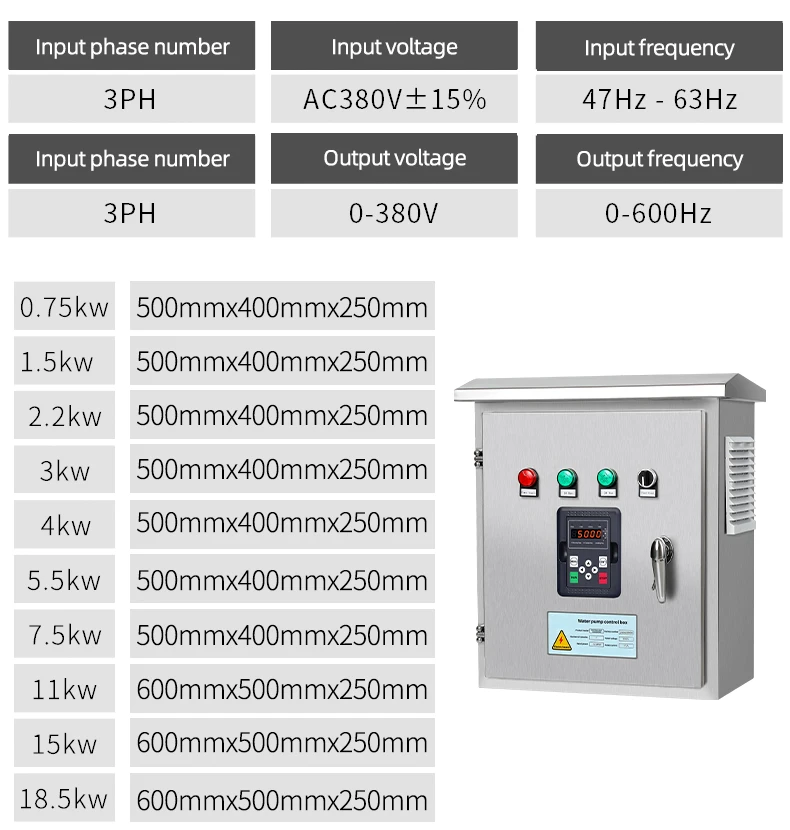

Parameters
Type | Model | Rated Power | Type | Model | Rated Power |
1VFD for One Pump 380V-415VAC | LZ001-4T0022-12 | 2.2KW | 380V-415VAC | LZ001-4T0022-22 | 2.2KW |
LZ001-4T0040-12 | 4KW | LZ001-4T0040-22 | 4KW | ||
LZ001-4T0055-12 | 5.5KW | LZ001-4T0055-22 | 5.5KW | ||
LZ001-4T0075-12 | 7.5 | LZ001-4T0075-22 | 7.5KW | ||
LZ001-4T0110-12 | 11 | LZ001-4T0110-22 | 11KW | ||
LZ001-4T0150-12 | 15 | LZ001-4T0150-22 | 15KW | ||
LZ001-4T0185-12 | 18.5 | LZ001-4T0185-22 | 18.5KW | ||
LZ001-4T0220-12 | 22 | LZ001-4T0220-22 | 22KW | ||
LZ001-4T0300-12 | 30 | LZ001-4T0300-22 | 30KW | ||
LZ001-4T0370-12 | 37 | LZ001-4T0370-22 | 37KW | ||
LZ001-4T0450-12 | 45 | LZ001-4T0450-22 | 45KW | ||
LZ001-4T0550-12 | 55 | LZ001-4T0550-22 | 55KW |

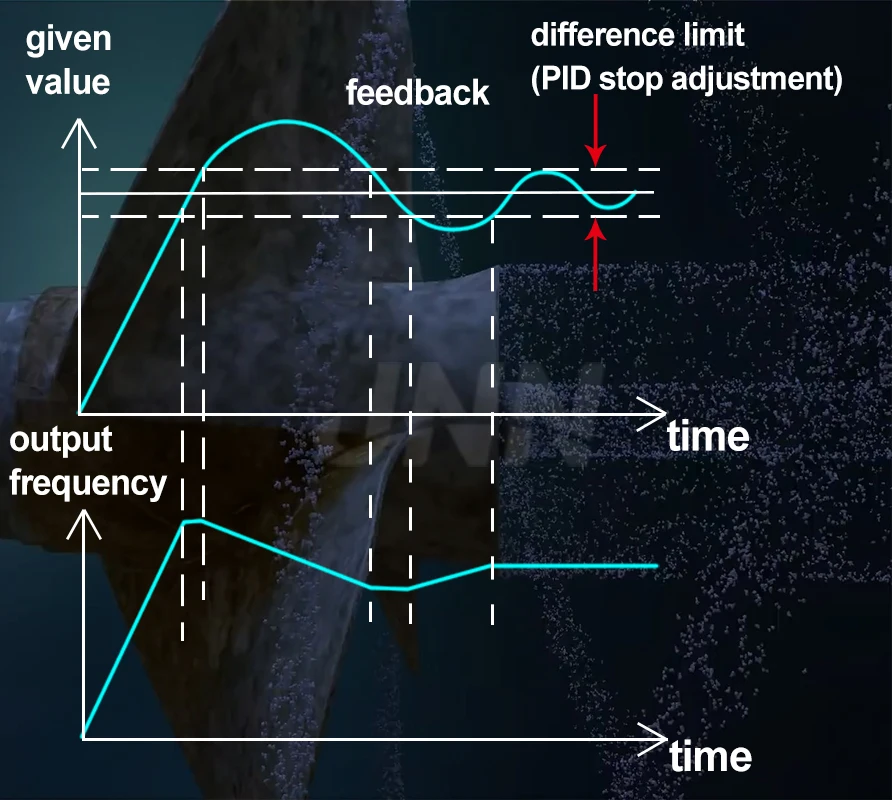

Built-in PID algorithm control
more stable water replenishment control

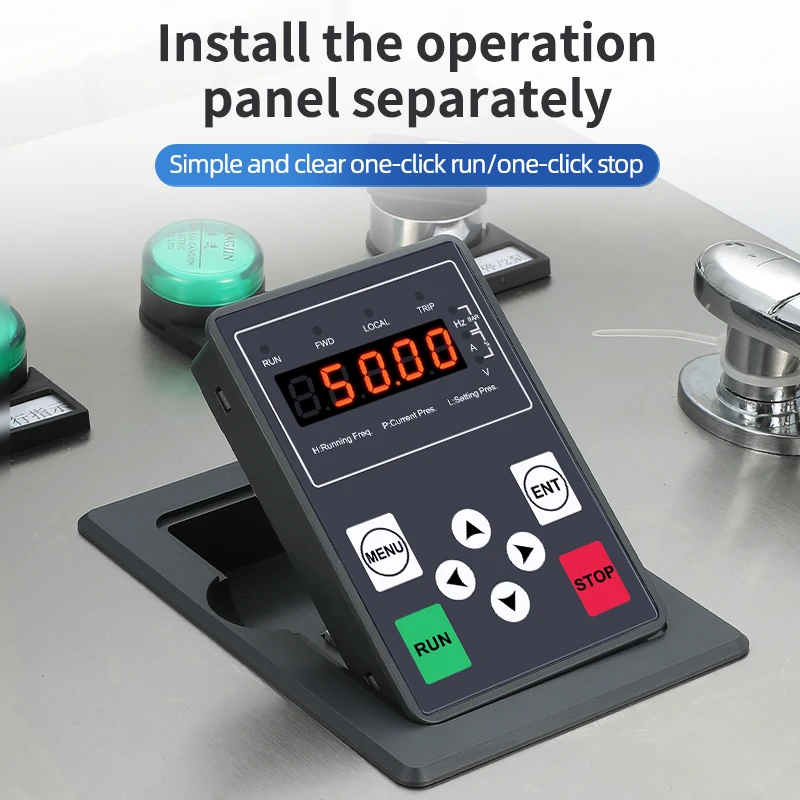

Operation panel separately installed
One key for run/stop

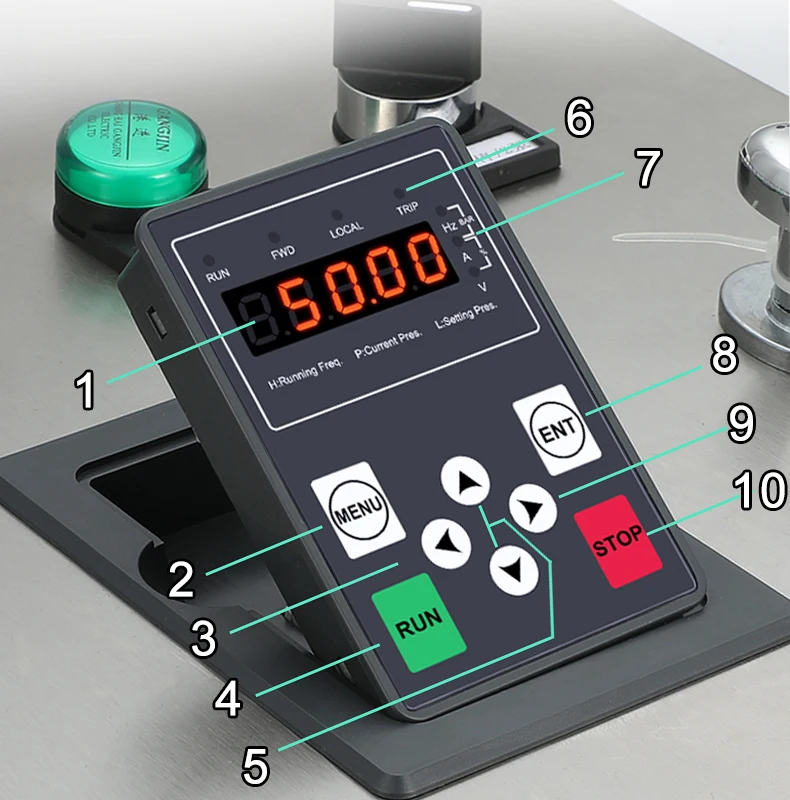

Button Description
1.Digital display
2.Program/Escape
3.Left shift key
4.Run key
5.Digital modify key
6.Function indicator light
7.Unit indicator light
8.Data enter key
9.Right shift key
10.Stop key/Fault reset key

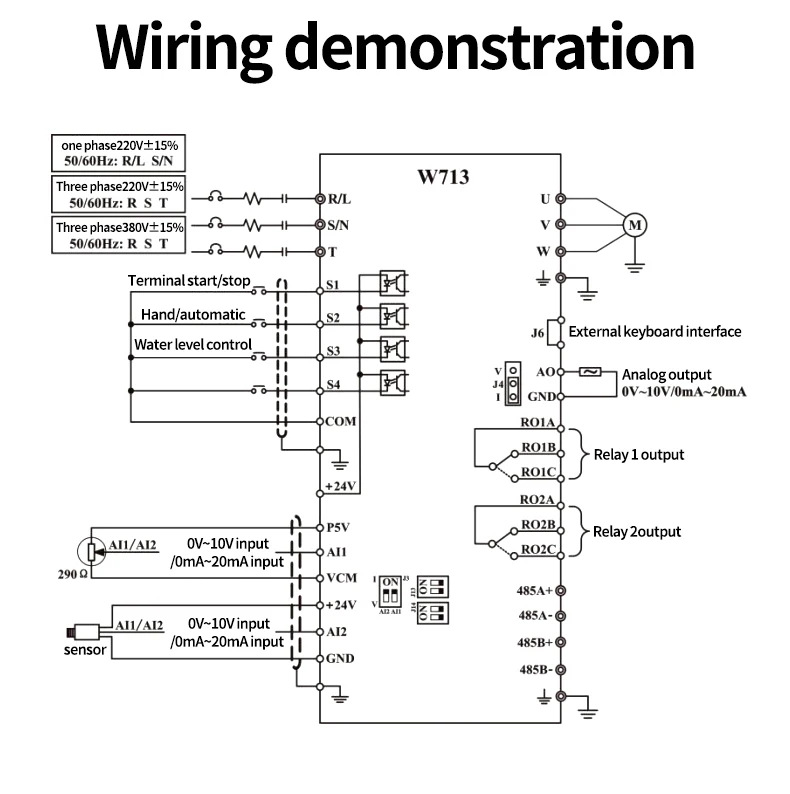

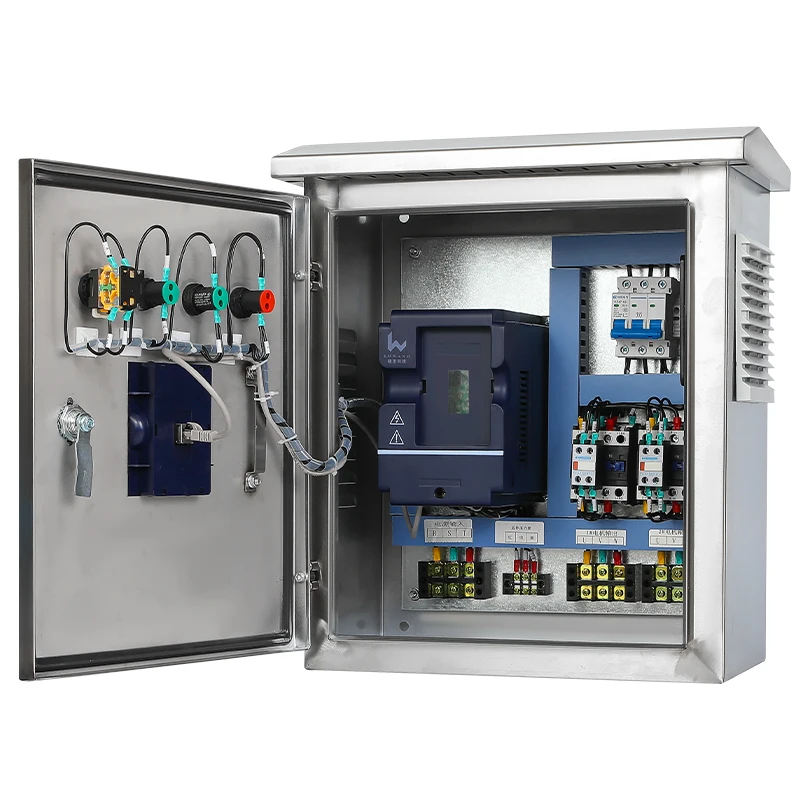

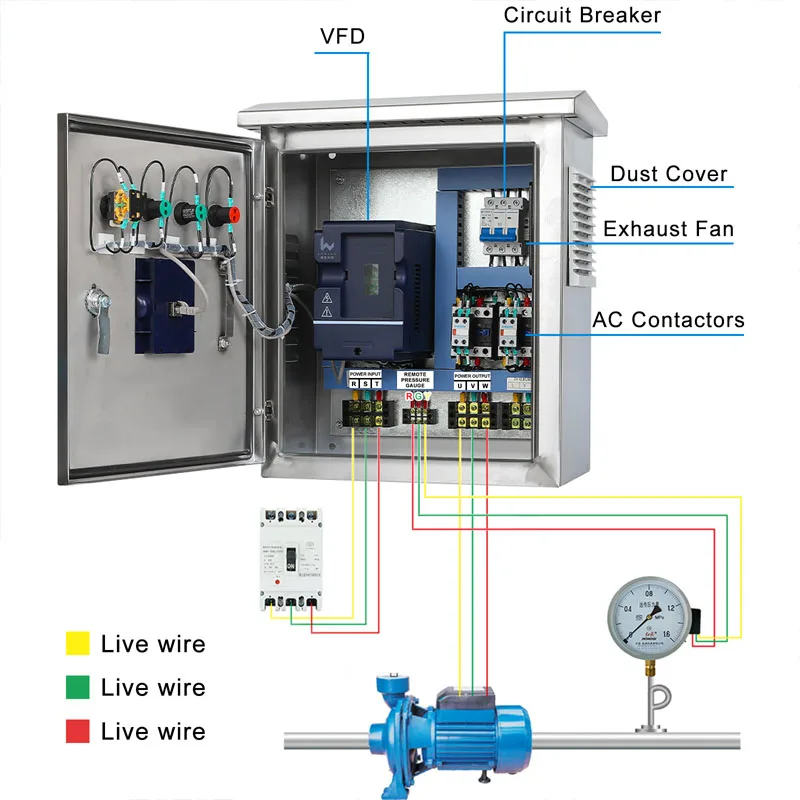

Wiring diagram and Inner Components
WIDE APPLICATIONS
CUSTOMIZABLE SERVICE ACCEPTABLE
FAQ
_____
Q : How do you control quality ?
A : Our production strictly follow ISO9001 quality control system. Our QC department will do full IQC, IPQC, FQC. All models are traceable. We also have mature ERP system with more convenient management & delivery control.
Q : Do you accept OEM business ?
A : We accept OEM & ODM & OBM with your authorization.
Q : How's the delivery time ?
A : We have most of models in stock and can arrange rush order. For Quantity below 1000 pcs, we can finish in 15 days. And we can arrange rush order.
Q : What's the warranty of your VFD?
A : Our warranty is 18 months and technical assistance is supported forever.In warranty, if small problems happen, we will change parts freely, and if large problems happen, we send you a new one freely. Support extension of warranty.
Q : What payment method do you accept ?
A : We accept T/T, L/C, Paypal, Western union, Trade Assurance, cash.
Q : Do you accept OEM business ?
A : We accept OEM & ODM & OBM with your authorization.
Q : How's the delivery time ?
A : We have most of models in stock and can arrange rush order. For Quantity below 1000 pcs, we can finish in 15 days. And we can arrange rush order.
Q : What's the warranty of your VFD?
A : Our warranty is 18 months and technical assistance is supported forever.In warranty, if small problems happen, we will change parts freely, and if large problems happen, we send you a new one freely. Support extension of warranty.
Q : What payment method do you accept ?
A : We accept T/T, L/C, Paypal, Western union, Trade Assurance, cash.
