10 Tph Rock Gold Plant Complete Production Gravity Separation Processing Line
- Category: >>>
- Supplier: Zhengzhou Sinolion Machinery Co. Ltd.
Share on (1601221869447):
Product Overview
Description

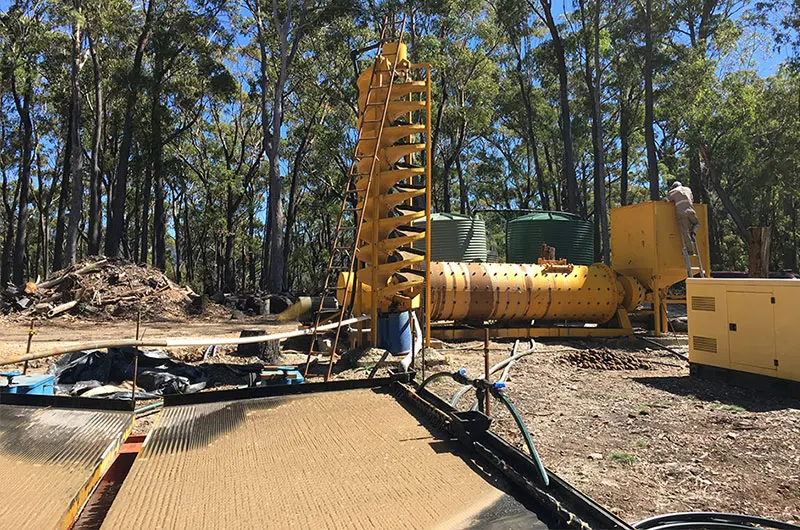

Tanzania 10 TPH rock gold processing plant
The material processed by the Tanzanian gold processing plant is rock gold, which is a kind of oxidized gold ore. The gold particle size of the rock is very fine. The production capacity is 10 tons/hour. The feed size is 0-125 mm.
The plant uses the gravity method. The equipment is configured as a jaw crusher+ hammer crusher + ball mill +SPIRAL CLASSIFIER+ shaking table. The result is that the free gold recovery rate is 97%. This plant is very popular with African gold miners, as it has the lowest cost and fastest return compared with the flotation plant.

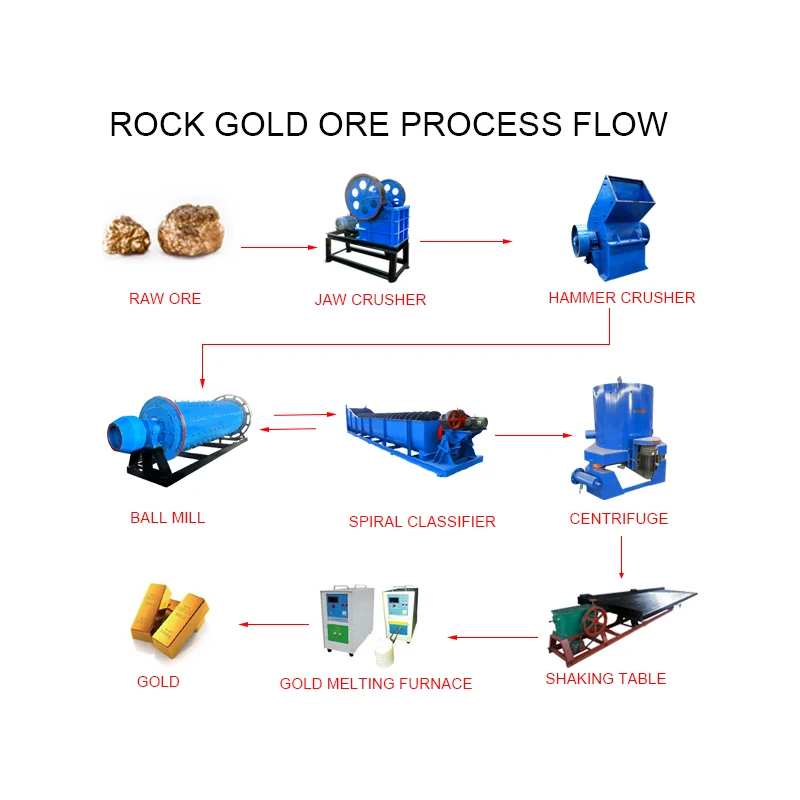

Gold processing steps:
1.Two-stage crushing
Large gold ore is first crushed by a jaw crusher, then crushed by a hammer crusher.
Jaw crusher
Hammer crusher
2. Grinding
The material coming out of the ball mill enters the spiral washing machine, and the larger size material is determined based on the output and re enters the ball mill for grinding, while the smaller size material enters the centrifuge
Ball Mill
Spiral Classifier
3.Gold extraction
The materials ground by the ball mill enter the centrifuge concentrator. The centrifuge concentrator separates materials of different particle sizes through centrifugal force and gravity. The separated concentrate enters the shaking table for further collection to obtain the final concentrate.

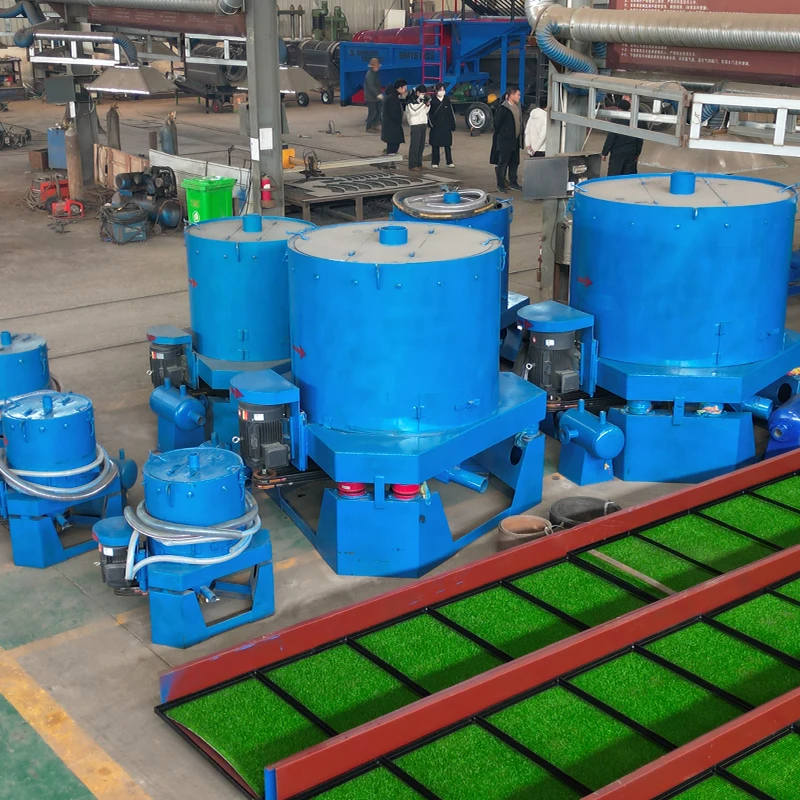

Gold centrifuge

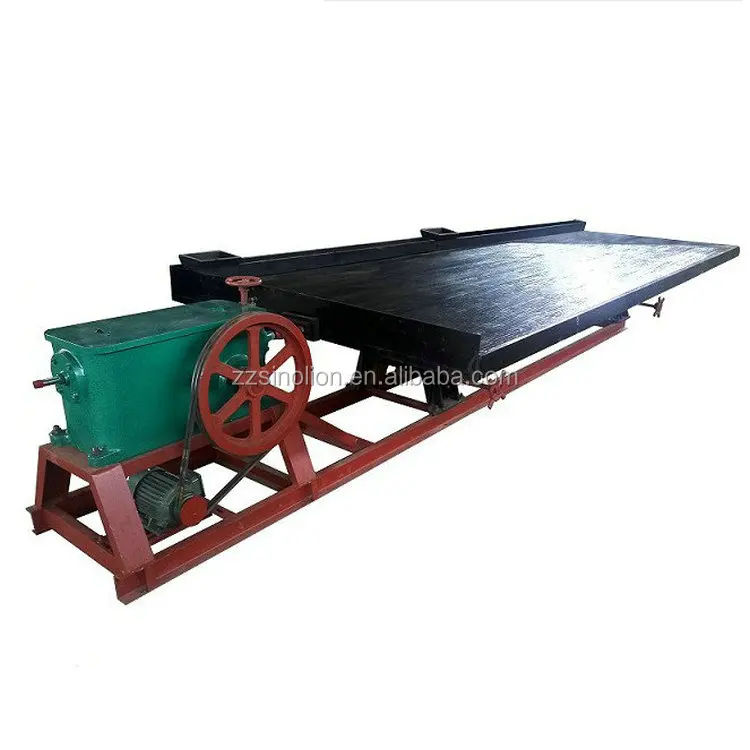

Shaking Table
4.Processing gold
GOLD MELTING FURNACE
Gold
Q. What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q: Whats the capacity of the gold /diamond mining equipment?
A: From 5TPH to 500 TPH.
Q: What brand engine / diesel generator do you use?
A: Cummins, Weichai, Yuchai or as required.
Q: Are you mining machinery manufacturer?
A:Yes, we can also provide samples test, mine design, equipment manufacture, after-sale service, etc.
Q: Is it possible to produce customized products ?
A: Yes, we supply customized product service as required.
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q: Whats the capacity of the gold /diamond mining equipment?
A: From 5TPH to 500 TPH.
Q: What brand engine / diesel generator do you use?
A: Cummins, Weichai, Yuchai or as required.
Q: Are you mining machinery manufacturer?
A:Yes, we can also provide samples test, mine design, equipment manufacture, after-sale service, etc.
Q: Is it possible to produce customized products ?
A: Yes, we supply customized product service as required.
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
If you want to know more details, please contact me |
