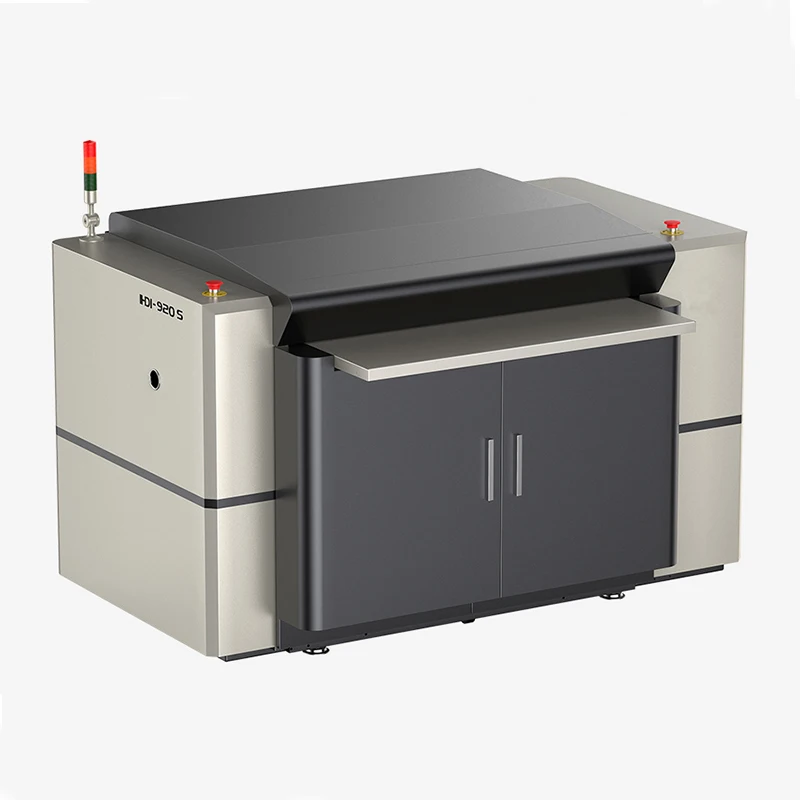

HDI 920H Highly Flexible Flexo CTP Machine For Label Printing,Paper Cups,Carton
- Category: >>>
- Supplier: Anhui Innovo Bochen Machinery Manufacturing Co. Ltd.
Share on (1601222016813):
Product Overview
Description
Products Description
HDI Flexo 920 is a highly flexible CTP for narrow and medium formats such as label printing, paper cups and
cartons. The HDI Flexo 920 offers superior quality, high productivity and cost efficiency on a very compact footprint, making it a smart choice for all packaging converters.
The HDI Flexo 920 features a slide-back lid for easy, semi-automated loading of thermal film, digital polyester-back flexo and letterpress plates, and a head and tail clamp to facilitate reliable imaging onto thermal offset plates and dry offset metal-back plates.
With an open 1-bit TIFF interface compatible with almost all third-party software solutions, the HDI Flexo 920 is an excellent low-cost solution for high-quality plate production.
cartons. The HDI Flexo 920 offers superior quality, high productivity and cost efficiency on a very compact footprint, making it a smart choice for all packaging converters.
The HDI Flexo 920 features a slide-back lid for easy, semi-automated loading of thermal film, digital polyester-back flexo and letterpress plates, and a head and tail clamp to facilitate reliable imaging onto thermal offset plates and dry offset metal-back plates.
With an open 1-bit TIFF interface compatible with almost all third-party software solutions, the HDI Flexo 920 is an excellent low-cost solution for high-quality plate production.
Parameter
Model | HDI-920H+ |
Max. size | 920x675mm（36×26 in） |
Min. size | 100x130mm（4×5 in） |
Plate type | Digital flexo plate, Polyester letterpress,Ablative film,Thermal offset plate,Metal base letter press plate* Note: * Metal base letter press plate， base |
Plate thickness | 0.11mm ~ 3.94mm |
Automatic detection of thick plate | Standard |
Plate loading | Manual mounting, Auto loading |
Resolution | 2000/4000/8000dpi 2400/4800/9600dpi 2540/5080dpi |
Plate making speed | 2400dpi 6.30m2/h 4800dpi 4.63m2/h 9600dpi 2.31m2/h Note: The above mentioned plate making speed is calculated based on 2.5j/cm2 of plate exposure energy; plate making speed might vary according to plate exposure energy, resolution, plate size and plate thickness. |
Offset plate making speed | About 40 sheets per hour(510×400mm) 2400dpi |
Net weight | 880 kg |
Power supply | Single-phase 220V ± 5% 50/60 Hz |
Rated power | 5.6KW |
Dimensions | (L x W x H) 1650 × 1300 × 1100 mm |
Environment | 18~28℃; RH: 40%~60% |
Product packaging
Certifications
Company Profile
Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. is a global business enterprise engaged in the manufacture, marketing,research and development of machinery. Our firm also provides import and export operations and technical training. We are a professional firm which manufactures and sells printing machines and Office Equipment. Our high quality products and perfect service have enjoyed a high reputation in the industry. Moreover, they sell well all over the world. Our products include all kinds of offset machines, cutting machines, binding machines, bill printing machines, digital stencil duplicator machines, digital print machines, spray printing machines, print finishing machines and other kinds of printing, packing, advertisement and office equipment. We sincerely hope to establish business relationships and cooperate with you.
*With 10 years' Experience
*Having ISO 9001-Certified Factory
*Strong R&D capability
*High Quality Guaranteed
*First Class Service And Best Prices
*Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
Welcome to visit our factory!
*With 10 years' Experience
*Having ISO 9001-Certified Factory
*Strong R&D capability
*High Quality Guaranteed
*First Class Service And Best Prices
*Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
Welcome to visit our factory!
Why Choose Us
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing,
except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay
100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our
customers.
except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay
100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our
customers.
FAQ
1.What is Innovo company machine warranty?----one year.
2.Does your machine with CE certificate?----Yes.
3.What is the production time while placing order?----Arounding 7-30 days
4.What is the delivery time?----Within 7-30 days after get the payment.
5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can check the shipping
charge and arrange shipping for your order)
6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to export
packing standard.
7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your problem as
soon as possible.
8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.
9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality
products and excellent services.
10.Do you have stock product to sell?----Maybe, It depends on which machine you like.
11.Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department
before shipping.
12.What’s the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via West Union too.
You can choose as you like.
We are professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.
Innovo China
2.Does your machine with CE certificate?----Yes.
3.What is the production time while placing order?----Arounding 7-30 days
4.What is the delivery time?----Within 7-30 days after get the payment.
5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can check the shipping
charge and arrange shipping for your order)
6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to export
packing standard.
7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your problem as
soon as possible.
8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.
9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality
products and excellent services.
10.Do you have stock product to sell?----Maybe, It depends on which machine you like.
11.Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department
before shipping.
12.What’s the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via West Union too.
You can choose as you like.
We are professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.
Innovo China
