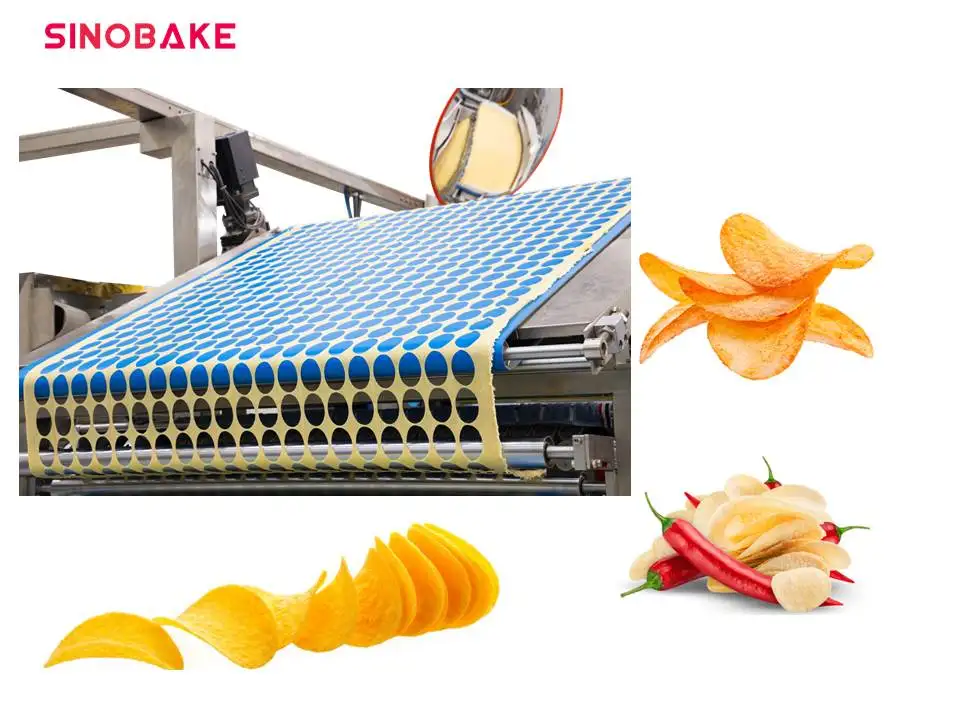

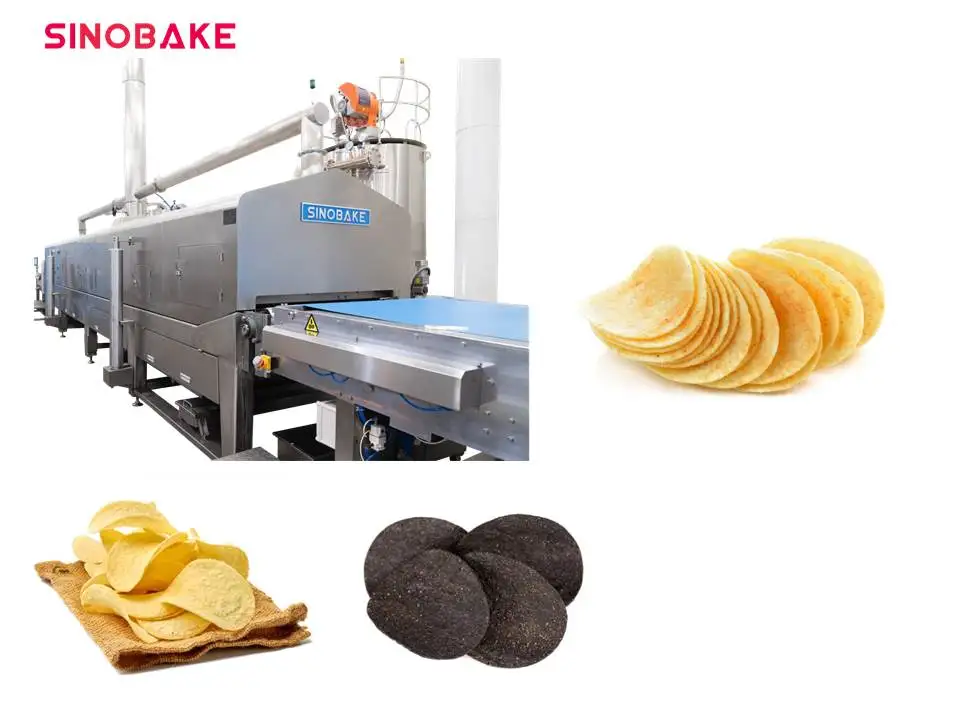

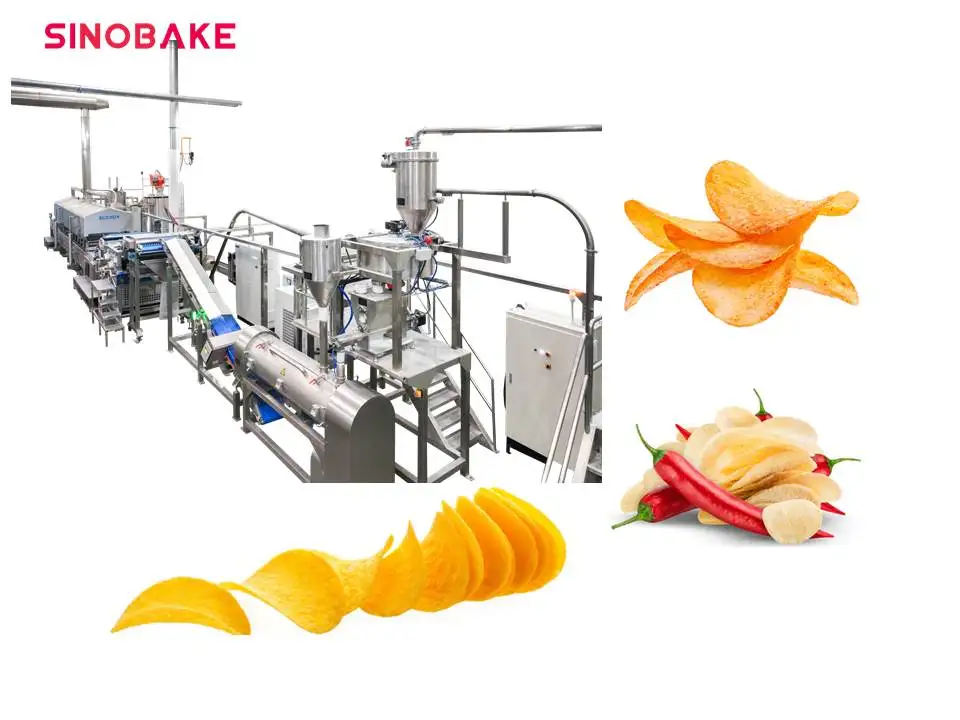

Automatic Potato Chips Frying Line SINOBAKE Potato Chips Snack Food Cookies Pieces Full Automatic
- Category: >>>
- Supplier: Guangdong Shunde Huaji Machinery Industrial Co. Ltd.
Share on (1601222095046):
Product Overview
Description
Product Details
Optimal Automation
It is an economy line in which all major operations are automated

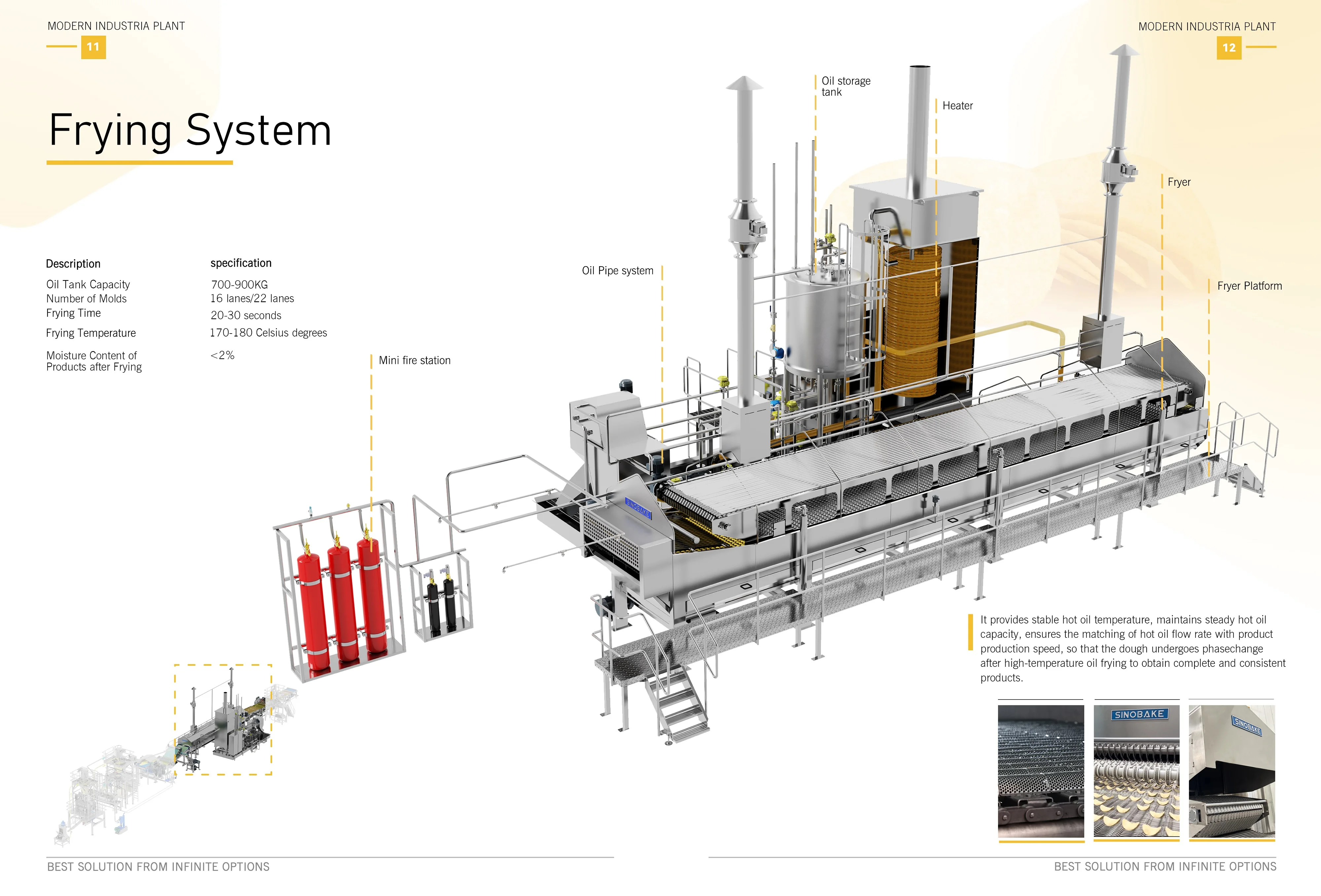

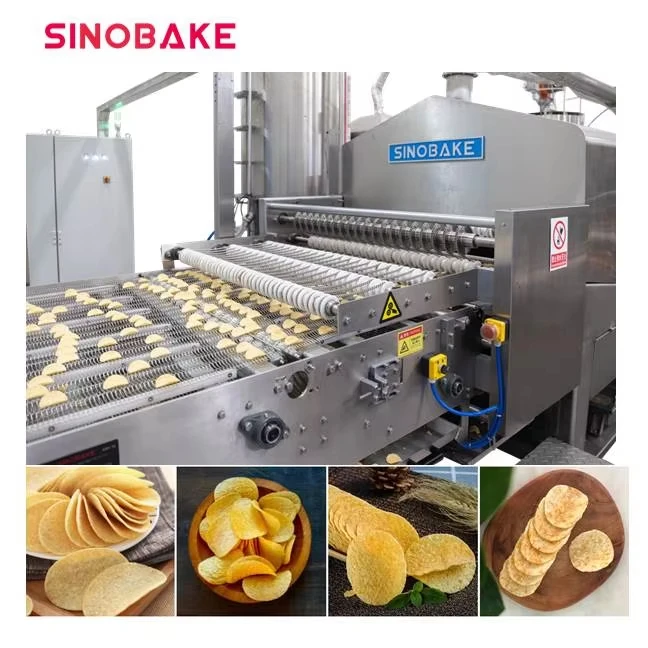

Frying Control
Specially engineered multi oil inlets maintain positive oil flow to clear the product infeed area & provide precise control of
temperature & rapid adjustment to feed change.
temperature & rapid adjustment to feed change.
Oil Quality
Low oil volume and rapid oil turnover assure fresh product with a long shelf life. Optimal level is automatically maintained.
Capacity | 490kg | 411kg |
potato chip weight | 1.65g | 2.04 |
Mold width | 1200mm | 1200mm |
Number of rows | 21rows | 16rows |
Fry time | 30s | 30s |
1 second frying speed | 16.8m | 16.8m |
Potato chip output in 1 second | 294 | 200 |
Function

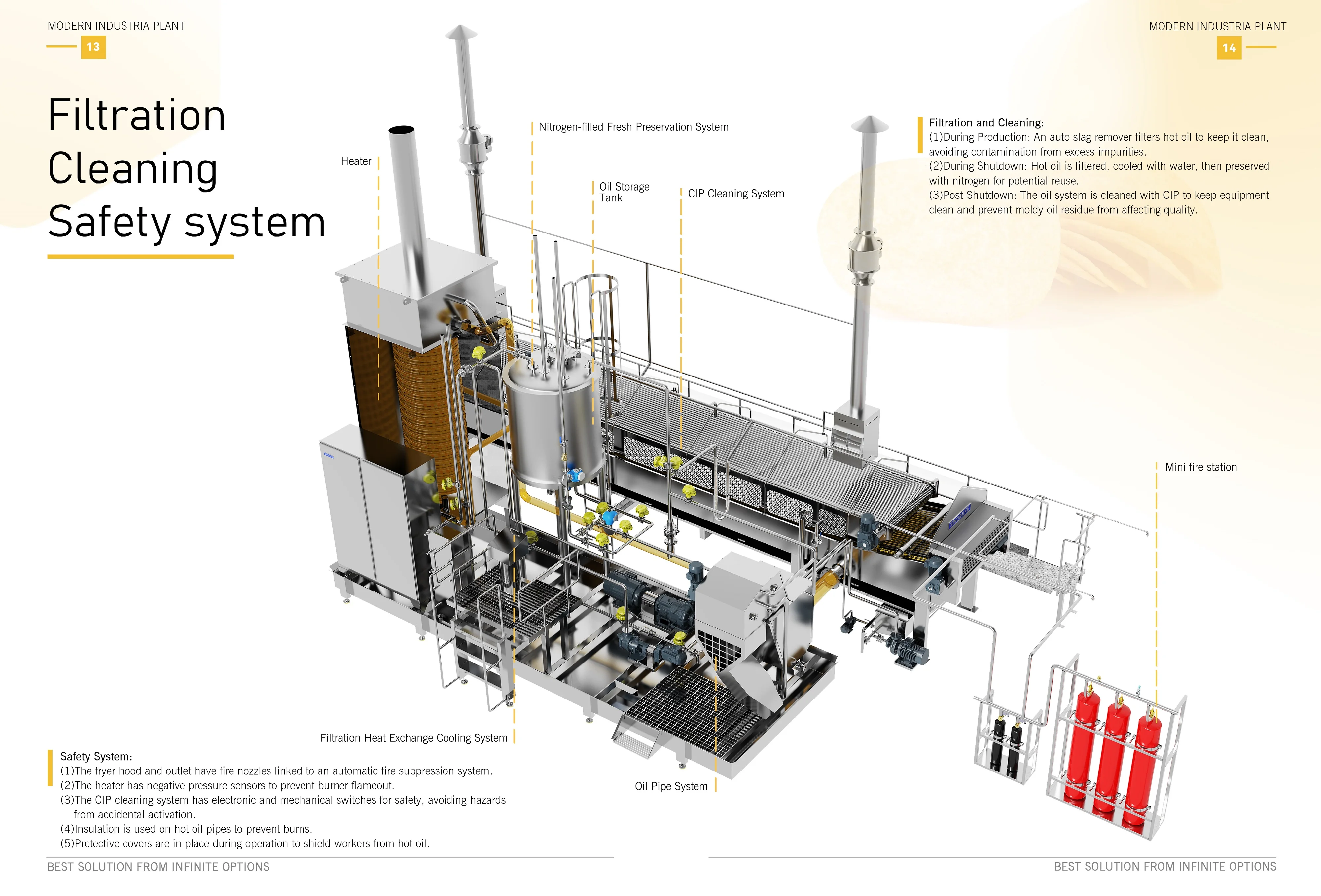

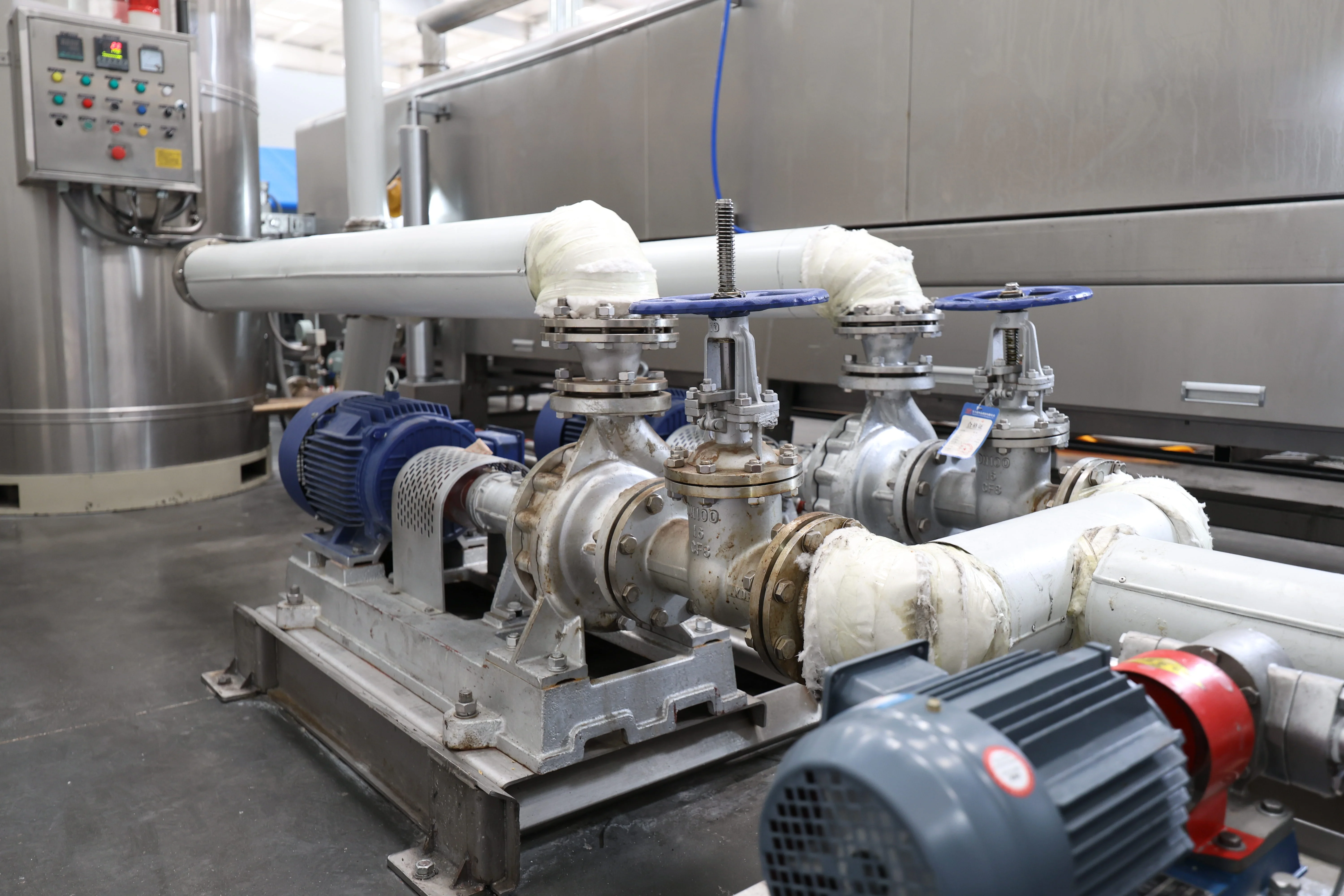

The circulating oil circuit is equipped with an automatic slag discharge device and a double-layer filter.The oil circuit is equipped with a heat exchange oil cooling system, a nitrogen-filled insurance system, and a cleaning system.The frying machine is equipped with a vibration demoulding device and a pneumatic demoulding device.To prevent the product from sticking to the mold and causing oil contamination. The bottom of the stove frame adopts a suspended design to reduce oil accumulation and facilitate floor cleaning.
RELENTTLESS PURSUIT OF PERFECTION
MACHINES CAN BE ART ALSO
LET'S MAKE THE MACHINES BETTER
WE HOPE WHERE THERE IS COOKIE,
THERE IS SINOBAKE

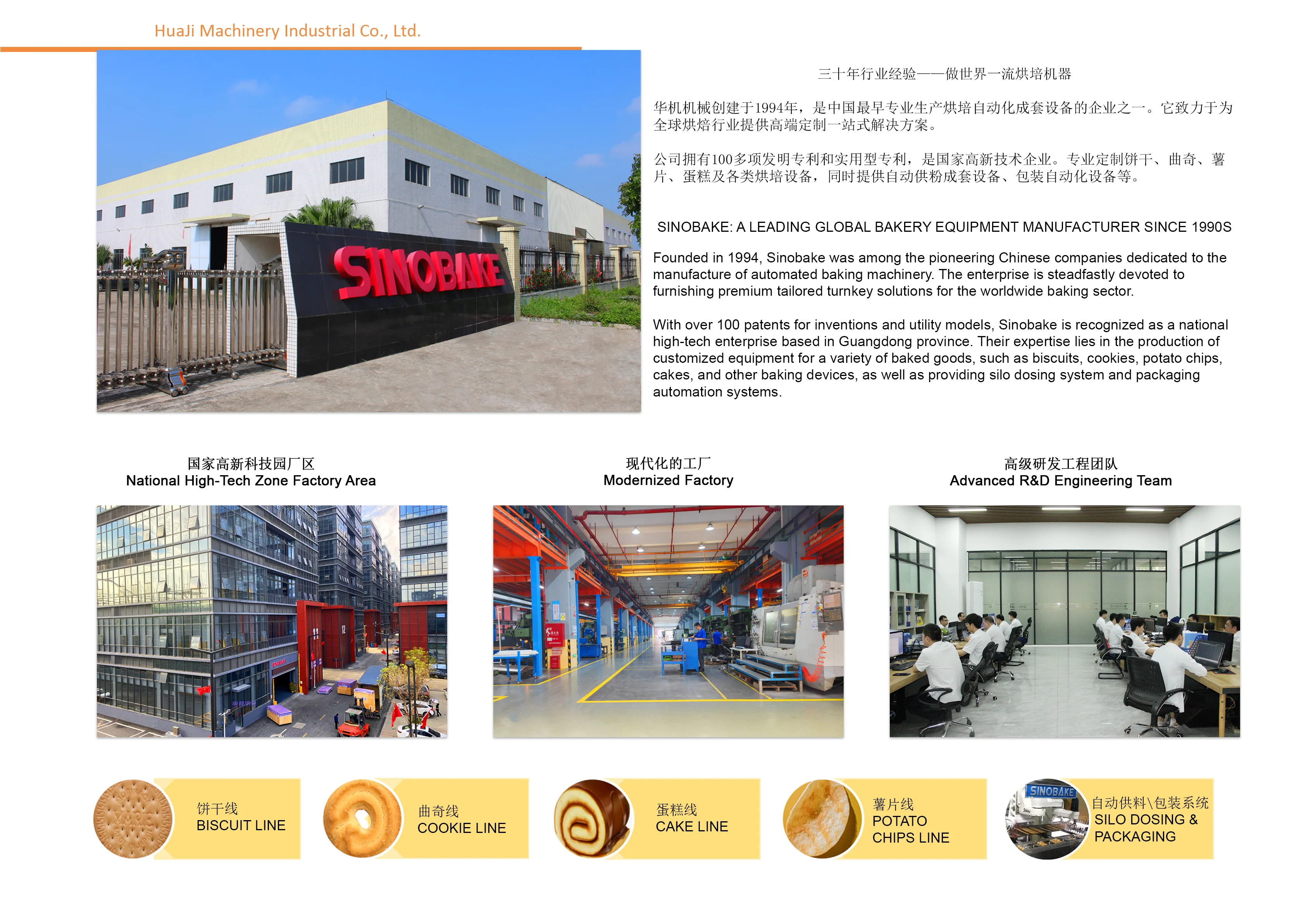

Company Profile
