Muck car cement tank car logistics car remote video positioning monitoring
- Category: >>>
- Supplier: Shandong Youqian Information Technology Co. Ltd.
Share on (1601222213079):
Product Overview
Description
Product Description
Please contact us for full catalog and discounted prices!!!

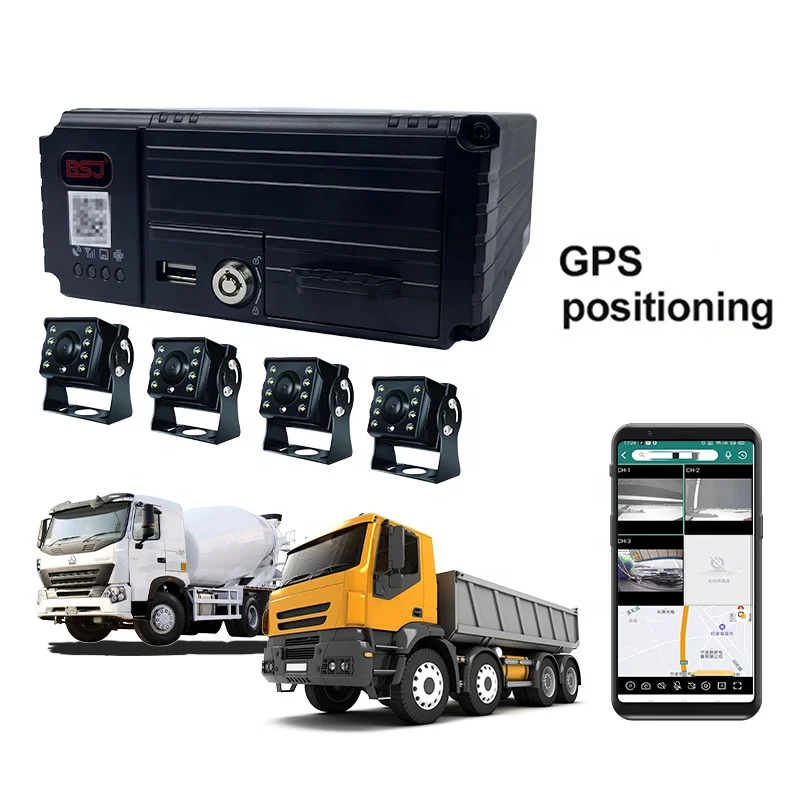

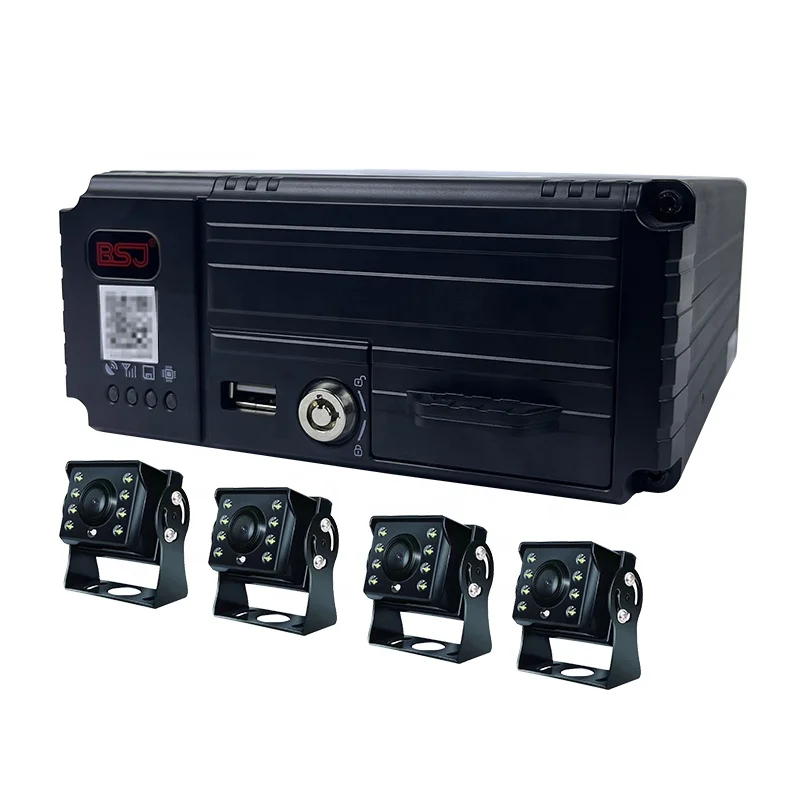

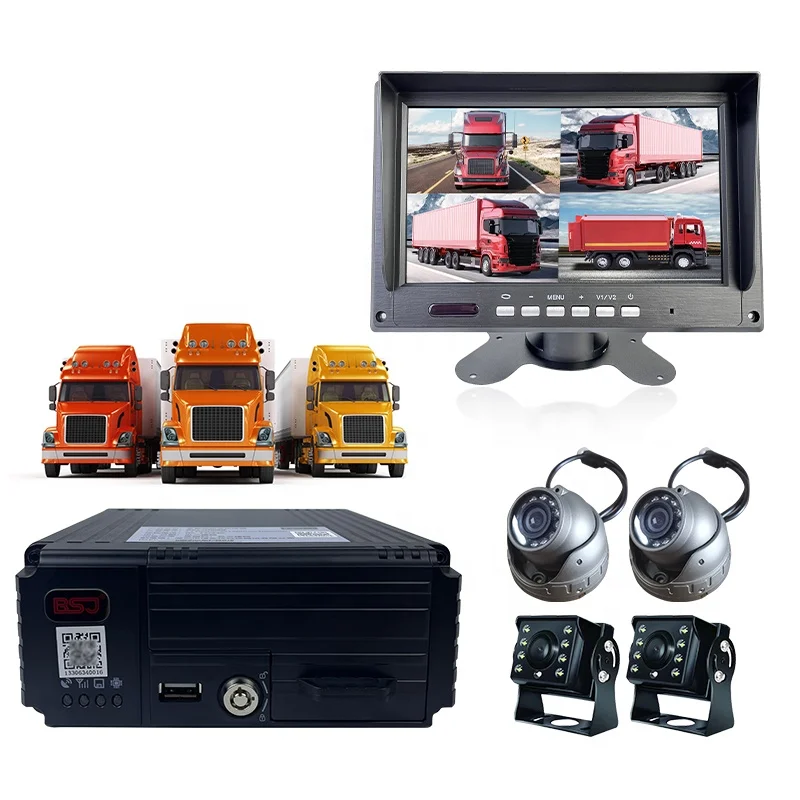

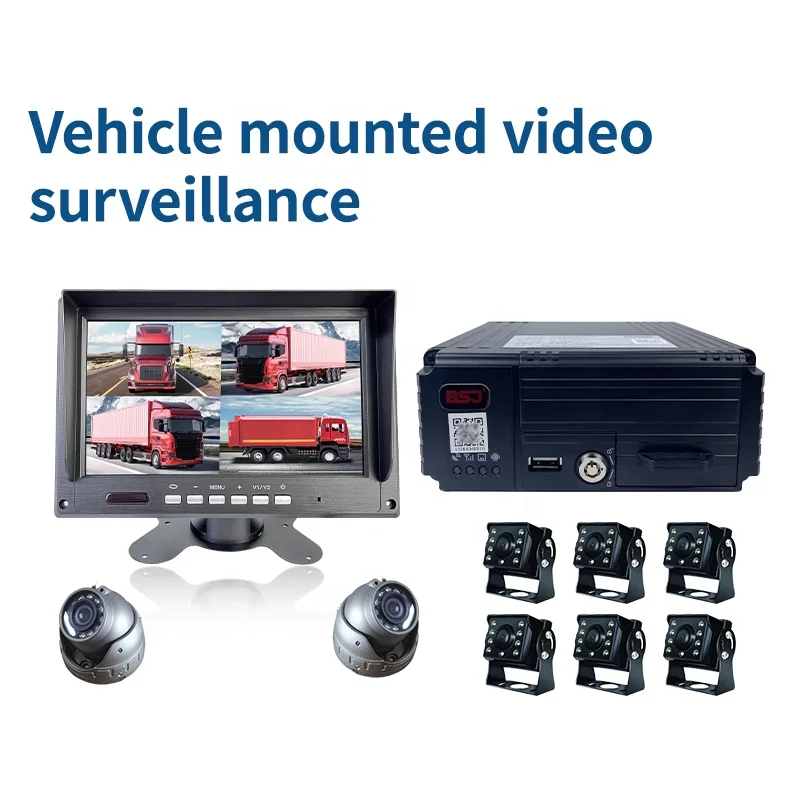

The vehicle-mounted video surveillance terminal integrates 4G communication, GNSS positioning, ADAS advanced driving assistance system, DMS driver monitoring system, supports 8-channel audio and video recording, SD card and hard disk storage, driving data recording, two-way calls initiated by the monitoring end, real-time monitoring and other functions, and supports seamless connection with customer monitoring systems;
Widely used in taxis, online car-hailing, small trucks, engineering vehicles and other industries.
Widely used in taxis, online car-hailing, small trucks, engineering vehicles and other industries.
Technical items | Technical indicators | |||
location | GPS | Built in GPS module, capable of wireless upload | ||
Operation system | Operating system | Linux | ||
Microprocessor | 4-core A7 | |||
Video | AHD720P/1080P | 8-way 720P or 1080P | ||
Output | 1 VGA channel | |||
Audio frequency | Input | 7-channel audio,AV3-AV8, microphone | ||
Output | 2-channel audio,speaker, and Al reminder speaker | |||
Videotape | lmage resolution | 720P/1080P | ||
Real time recording | Route 8 | |||
Playback channel | Local8-channel synchronous playback，monitoring end single channel playback | |||
Storage | Hard drive | 1 hard drive, with a maximum expandable capacity of 2TB | ||
SD | Single SD card, supports up to 256GB | |||

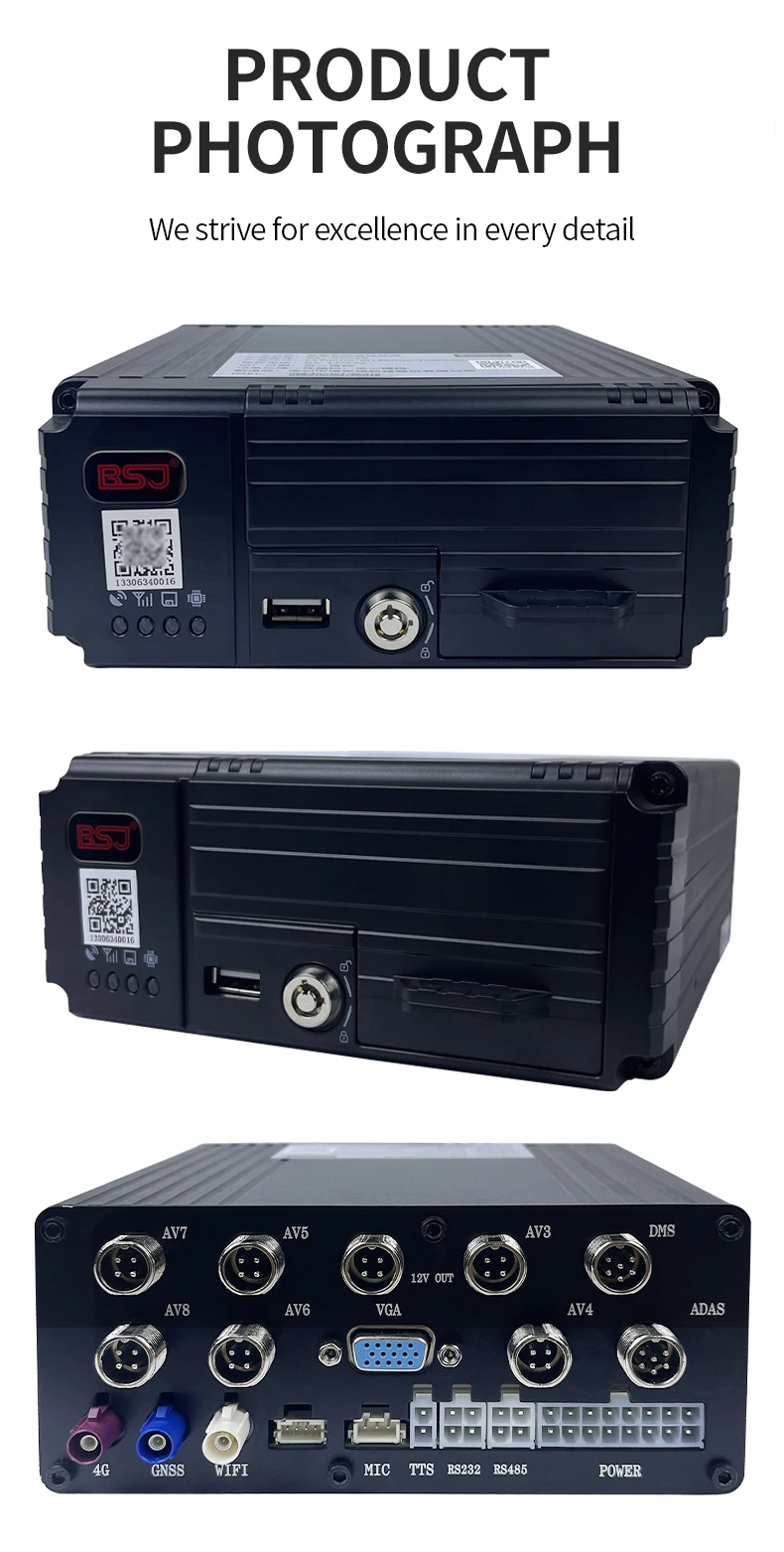

Communica-tion interface | Interface | RS485 interface,RS232interface | ||
Software kit | Video analysis software | When playing back videos on the Pc, vehicle information analysis can be performed | ||

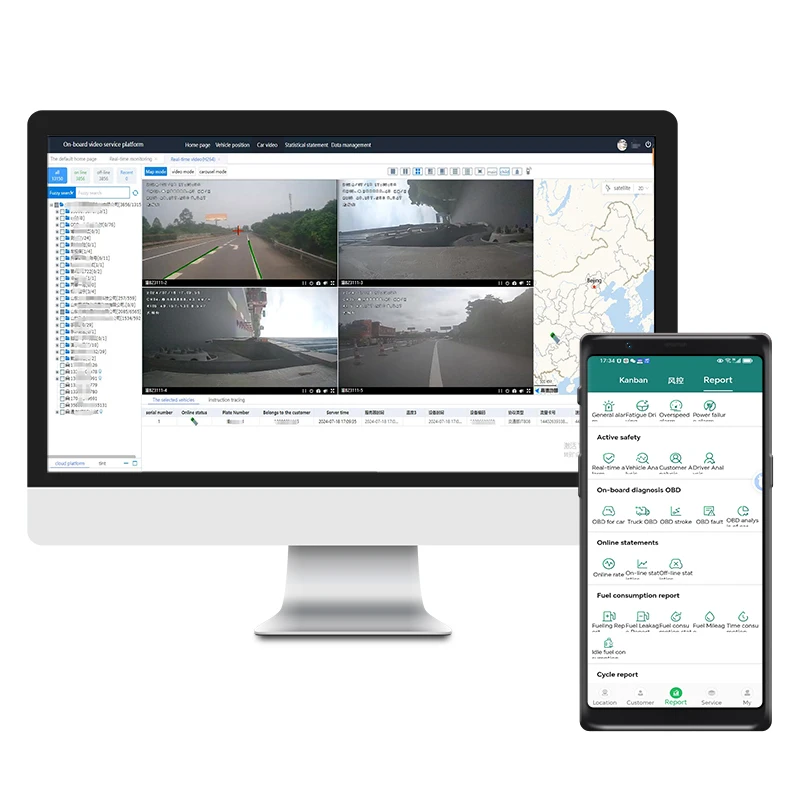

Remote monitoring platform | Realize video preview and GPS upload throughwireless network.Alarm upload and central command issuance,parameter configuration,etc | |||
Project | Working parameters | |||
Project | Working voltage | DC 9-36V | ||
Working current | 600mA@12V,300mA@24V | |||
Spare battery | Can work for 15 seconds after the device loses power | |||
Host size | L170*W150*H65mm | |||
Host weight | About 1260g | |||
Working temperature | -25°C-+80°C | |||
Storage temperature | -40°C~+85°C | |||
Note: Some data is for reference only, and standard parameters are subjectto the instructions. | ||||
Shandong Youqian Information Technology's main business includes Internet of Vehicles and smart transportation information systems. Through the use of cloud computing, big data, the Internet of Things, GPS positioning, sensor networks and other technologies, it provides logistics informationization, GPS location services, transportation safety, financial technology and smart hardware professional solutions for the transportation and logistics industry.
It can provide independent platform deployment and platform customization development, and can provide API interfaces. It supports computer, Android/Apple terminals, real-time video monitoring, real-time positioning, mileage, trajectory, electronic fence, remote intercom, fuel consumption, lane departure warning, anti-collision warning, detection of driver fatigue, monitoring of dangerous driving behavior, blind spot detection and warning, cold chain vehicle temperature control detection, box cargo door opening and closing detection, load detection, forward and reverse detection, closed lifting detection, tire pressure detection, personnel positioning, attendance punching, Internet of Things card, fixed place monitoring and other functions.
It can provide independent platform deployment and platform customization development, and can provide API interfaces. It supports computer, Android/Apple terminals, real-time video monitoring, real-time positioning, mileage, trajectory, electronic fence, remote intercom, fuel consumption, lane departure warning, anti-collision warning, detection of driver fatigue, monitoring of dangerous driving behavior, blind spot detection and warning, cold chain vehicle temperature control detection, box cargo door opening and closing detection, load detection, forward and reverse detection, closed lifting detection, tire pressure detection, personnel positioning, attendance punching, Internet of Things card, fixed place monitoring and other functions.
FAQ
1. Does the platform support API data docking?
Yes.
2. How do we ensure quality?
Pre-production samples are always carried out before mass production;
Final inspection is always carried out before shipment;
Final inspection is always carried out before shipment;
3. How long is the warranty of the equipment?
Our equipment provides a 12-month warranty, but we actually provide lifetime maintenance services. Beyond the warranty period, you only need to pay for the replacement of parts, and other maintenance services are free.
4. Do you provide free samples?
Yes, we provide free samples. But you need to pay the sample fee first, and the sample fee will be refunded when a large number of orders are placed.
5. Product MOQ
5. Product MOQ
1 Pcs.
6. Delivery time
①Sample orders can be shipped within 3 working days;
②General orders can be shipped within 3-5 working days;
③Large orders can be shipped from the factory within 15-35 working days at most.
7. Technical support
We have a strong R&D and after-sales team to serve our customers. If you have any questions about our products, please contact us.
