Good prices hand milling tools table copy router multi hole drilling machine for window
- Category: >>>
- Supplier: Tieneng Intelligent Equipment (shandong) Co. Ltd.
Share on (1601222431834):
Product Overview
Description

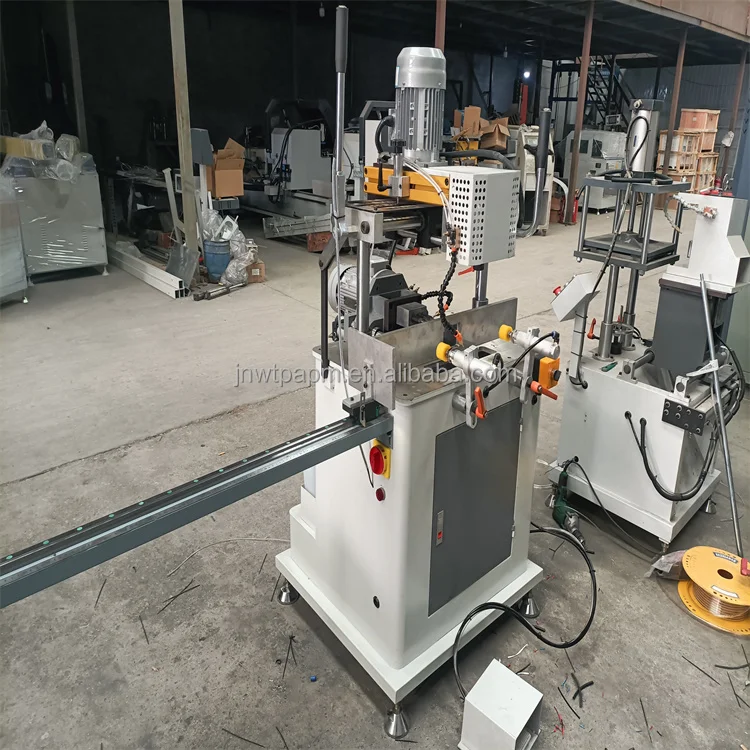

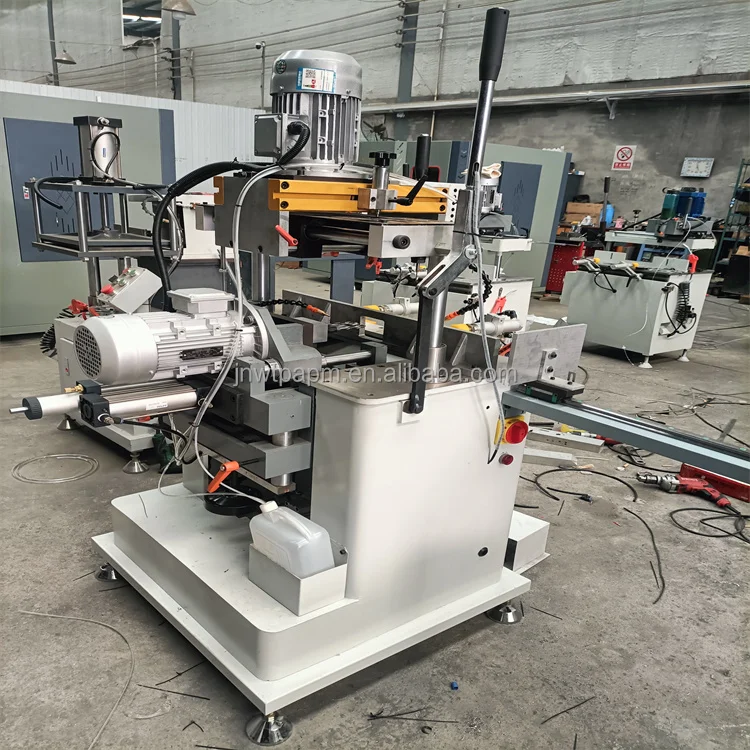

ALUMINUM HAND MILLING MACHINE----
COPY ROUTER
--FEATURES
*Suitable for duplicating complicated section holes in aluminum profiles.
*The mould board is used to copy a shape of holes on aluminum profile as per 1:1 ratio.
Section holes in orthogonal faces of aluminum.

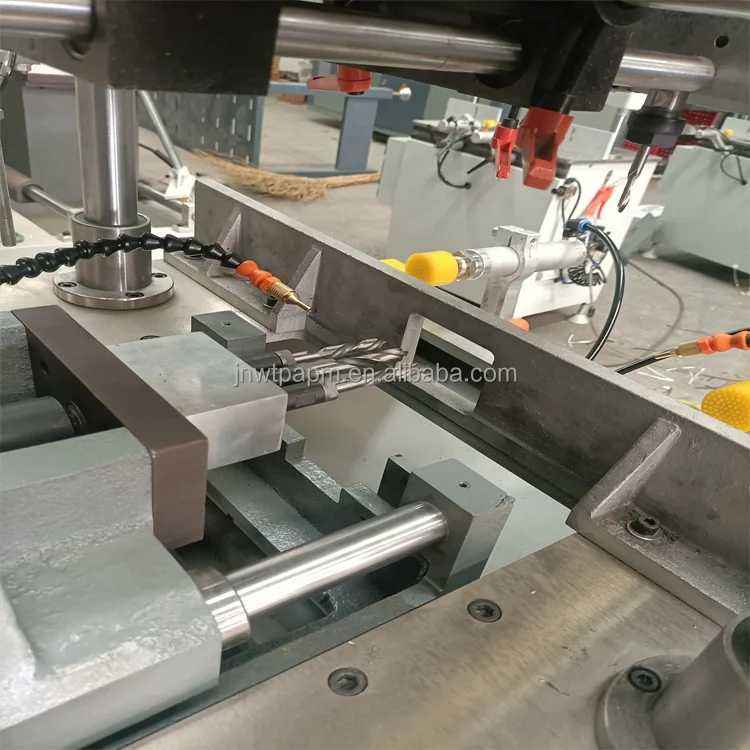

*Profiles can be processed in one clamping by using two individual milling beads. imported milling cutter is used for increasing productivity and providing good quality on processing material's surface.
*Suitable for duplicating complicated section holes in aluminum profiles.
*The mould board is used to copy a shape of holes on aluminum profile as per 1:1 ratio.
Section holes in orthogonal faces of aluminum.
*Profiles can be processed in one clamping by using two individual milling beads. imported milling cutter is used for increasing productivity and providing good quality on processing material's surface.
--SPECIFICATIONS
Power supply | 220V 50HZ/380V 50HZ/220V 60HZ/380V 60HZ |
Total power | 2*1.5KW |
Air pressure | 0.6-0.8Mpa |
Air consumption | 10L/min |
Main-shaft Revolution | 12000r/min |
Cutter Diameter | 5/8mm/Customized |
Copy-routing range | 235X100mm |
Overall Dimension | 880X1150X1580mm |
Standard Accessory | ||
Solenoid Valve | STNC | |
Cylinder | Huatong | |
Motor | Anhui Sanyang | |
Air Filter Device | STNC | |
Electrical | Schneider and CHINT | |
AC Contactor and Circuit Breaker | Schneider | |
Air Gun | 1pc | |
Operation Manual | 1pc | |
Complete tooling | 1set | |
Certificate | 1pc | |
Coolant Device | 1pc | |
--OTHER STYLES FOR CHOICE
China TOP 10 professional producer of aluminum profile processing machine,plastic profile processing machine and insulated glass processing machine.
Wintech machinery Co.,Ltd,also known as Tieneng Intelligent Equipment Co., Ltd.,in China,established in 2000,which is SGS-approved 5A credit company.
In the past 20 years, nearly 100 million machines have been sold, and our brand is well-known throughout world.We have exported to more than 1000 countries like Thailand, Germany,Guatemala,Oman,Russia,India and etc.
Wintech machinery Co.,Ltd,also known as Tieneng Intelligent Equipment Co., Ltd.,in China,established in 2000,which is SGS-approved 5A credit company.
In the past 20 years, nearly 100 million machines have been sold, and our brand is well-known throughout world.We have exported to more than 1000 countries like Thailand, Germany,Guatemala,Oman,Russia,India and etc.
