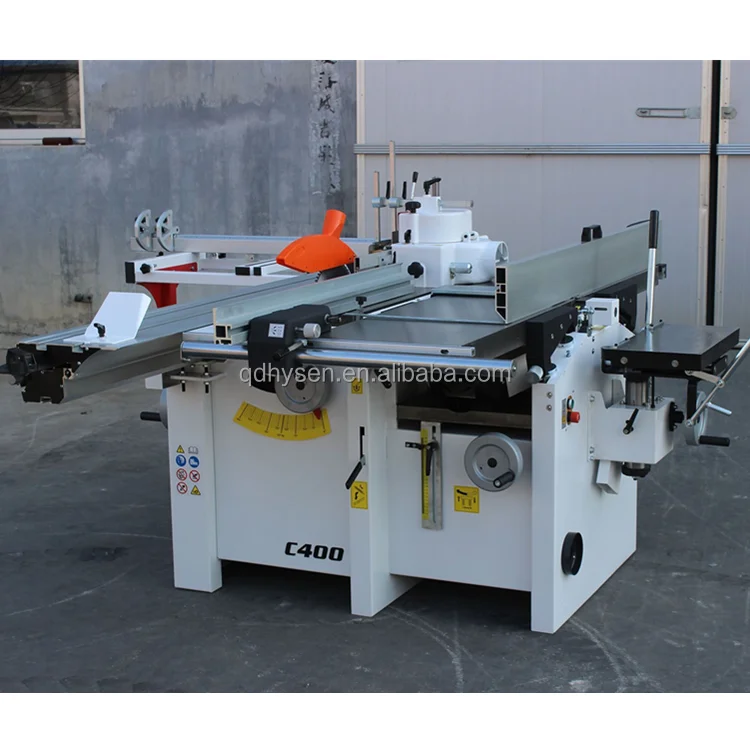

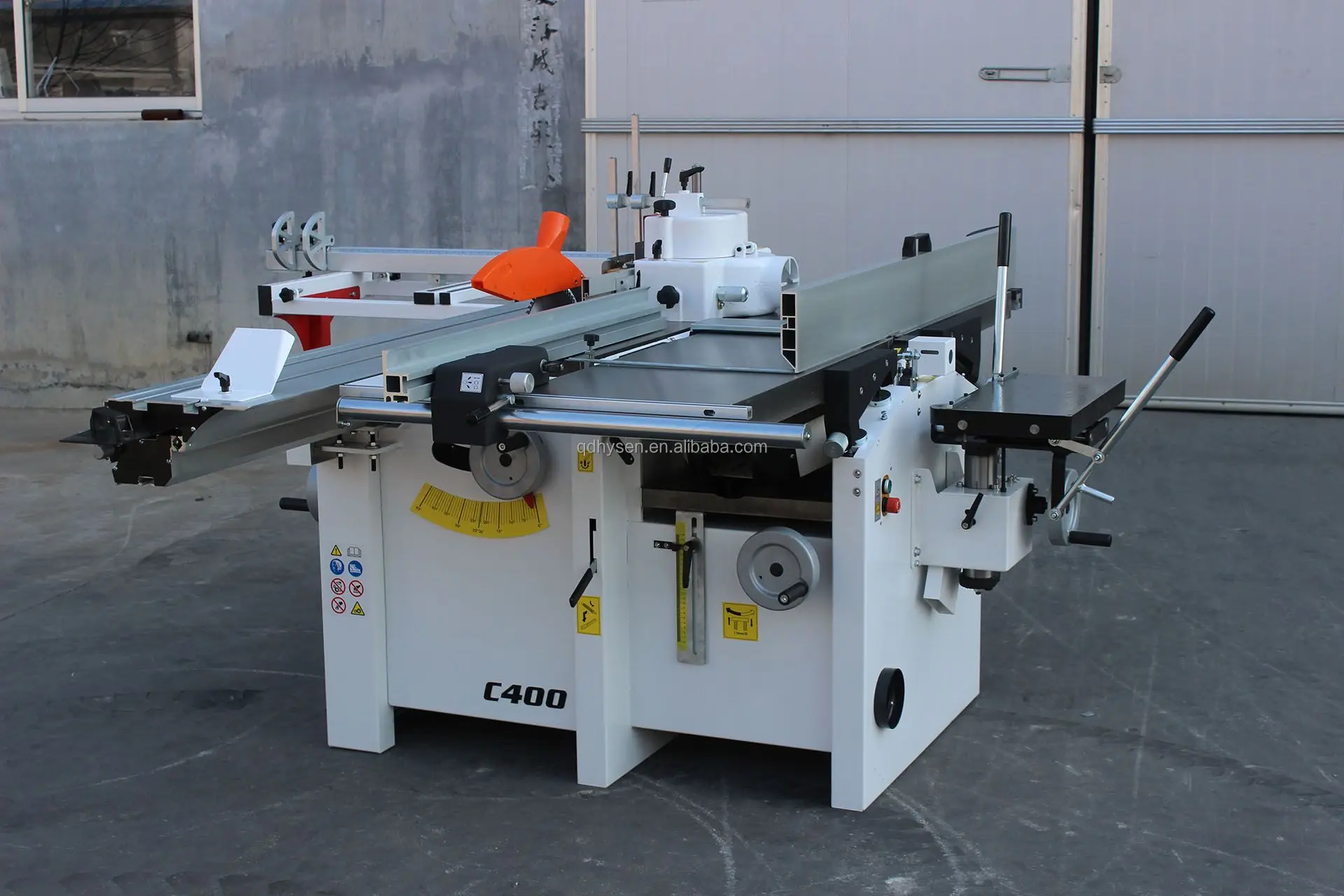

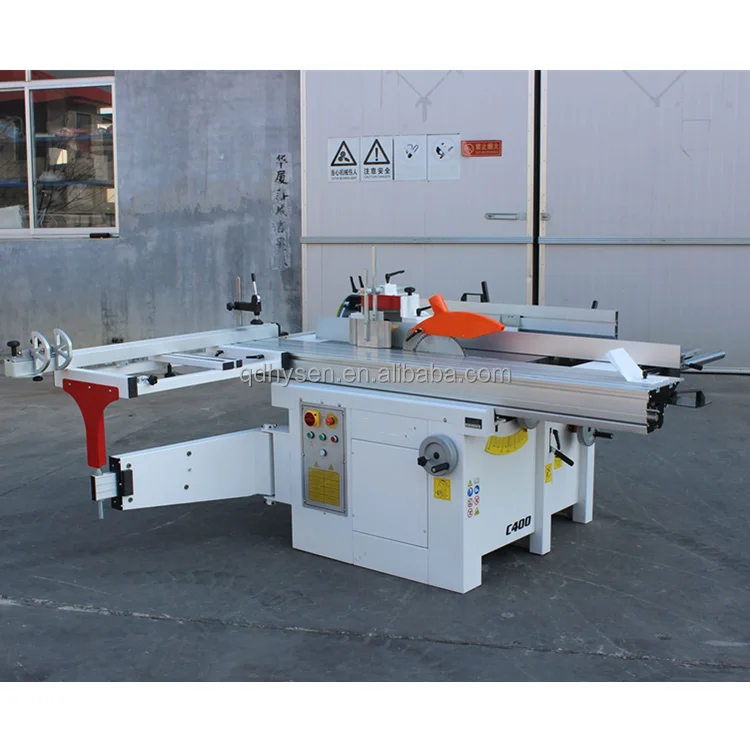

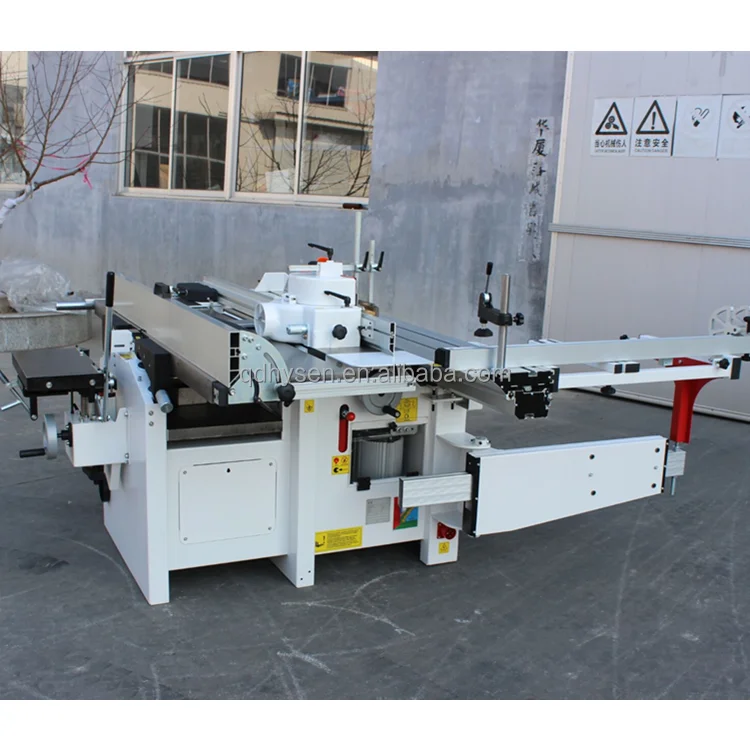

SICAR Automatic 5 in 1 Combined Woodworking Machine for Processing Wooden Furniture
- Category: >>>
- Supplier: Qingdao Hysen Import And Export Co. Ltd.
Share on (1601222464552):
Product Overview
Description

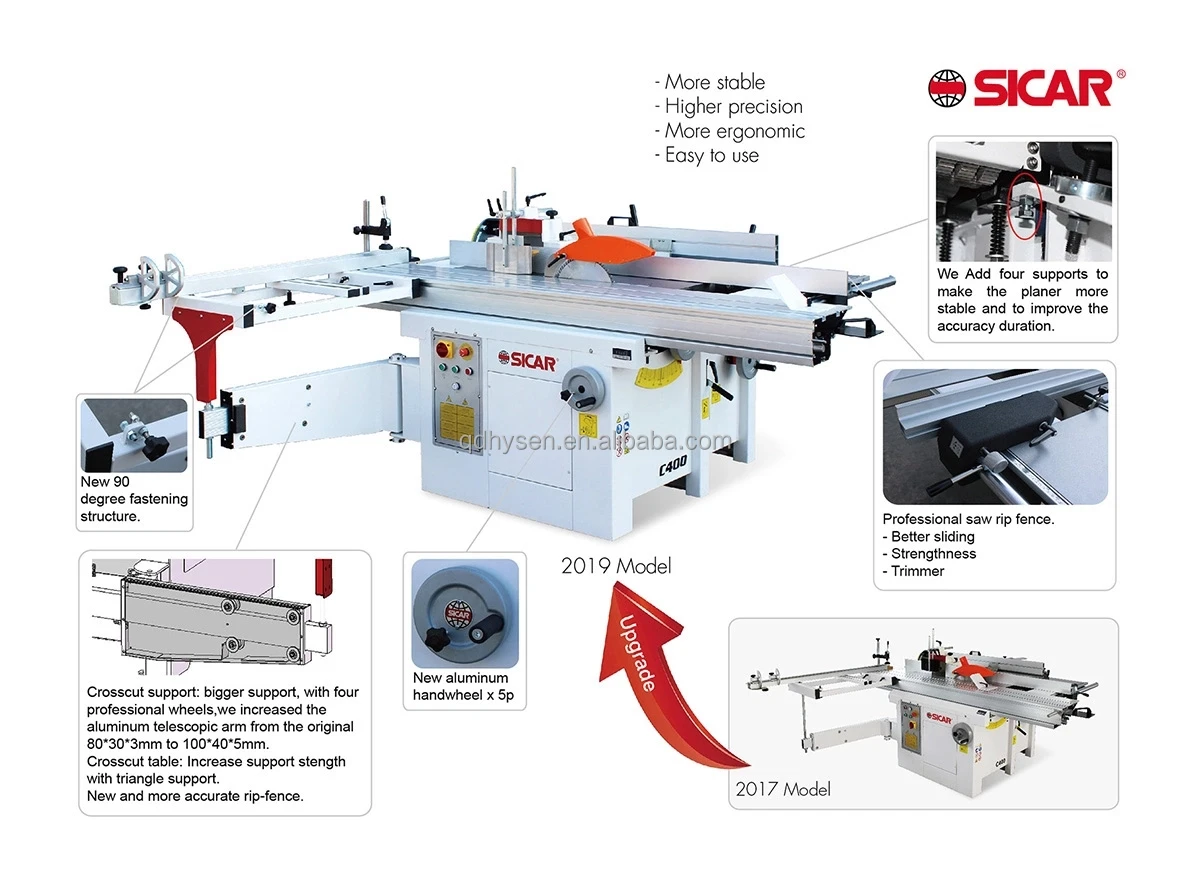

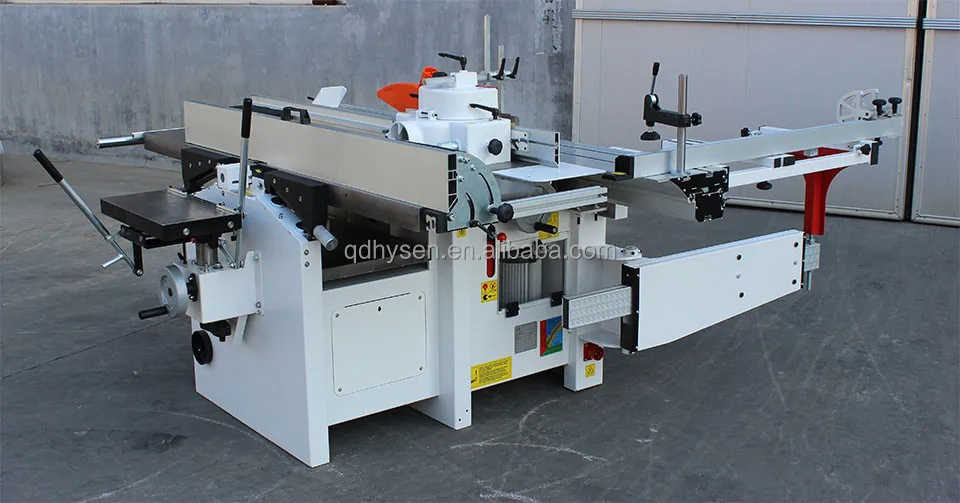

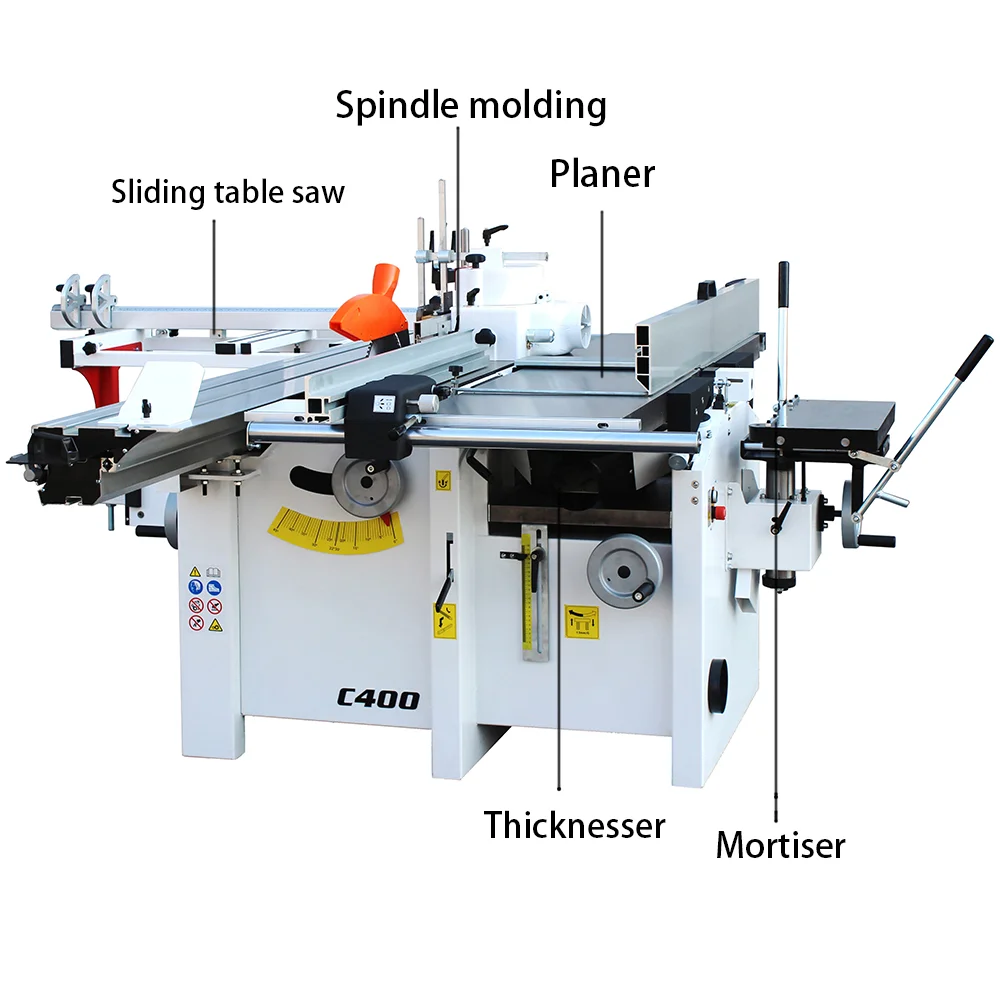

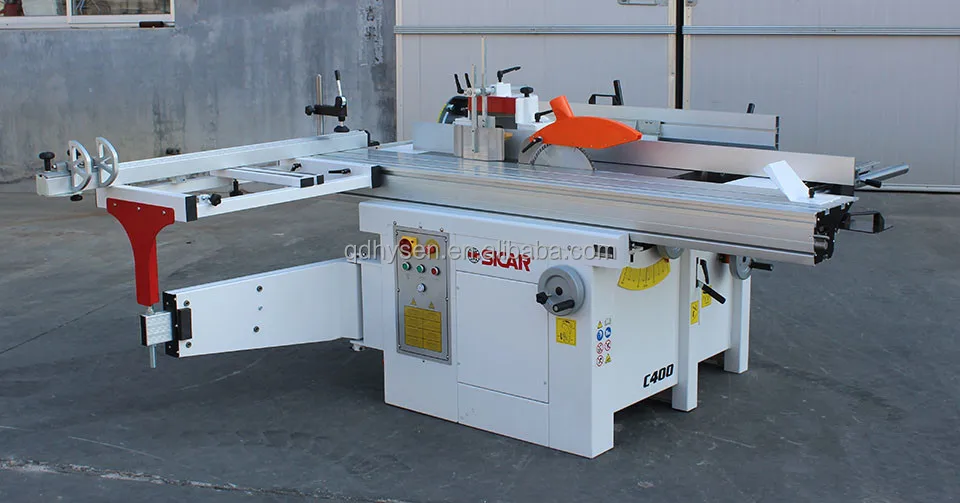

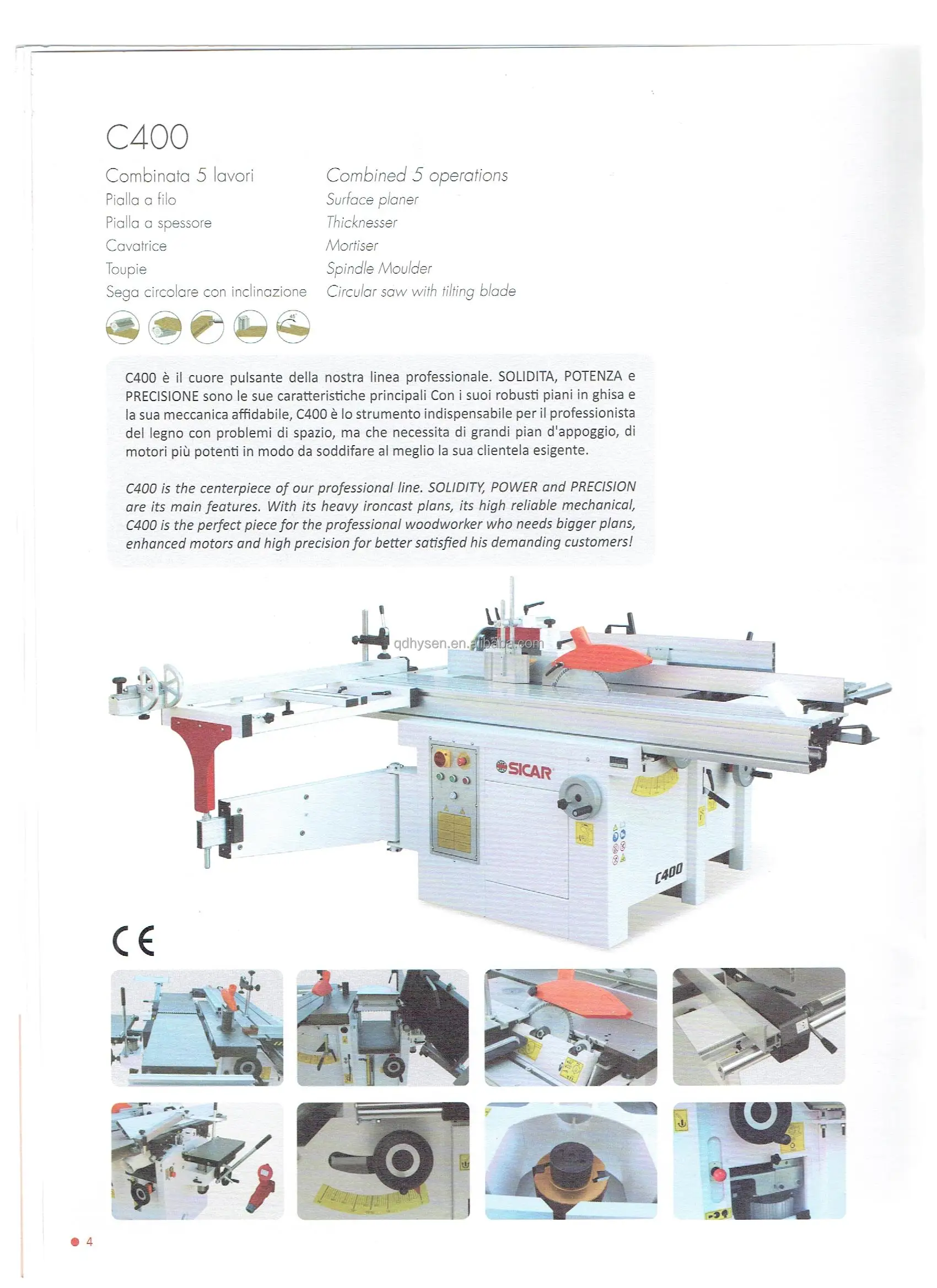

SICAR Combined Woodworking Machine

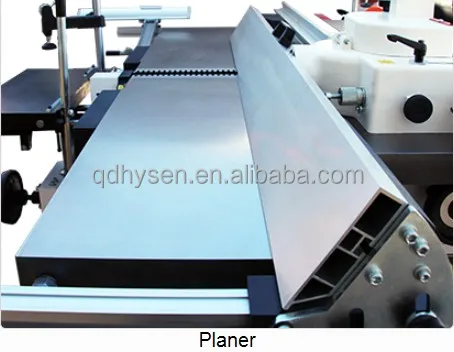

Planer | C400 |
Working Table | 400*1800 mm |
Cutter block diameter | 70 mm |
Cutter block rotation speed | 5700 r. p. m |
Dimension knives(3 knives) | 400*25*3 mm |
Max table adjustment | 4 mm |

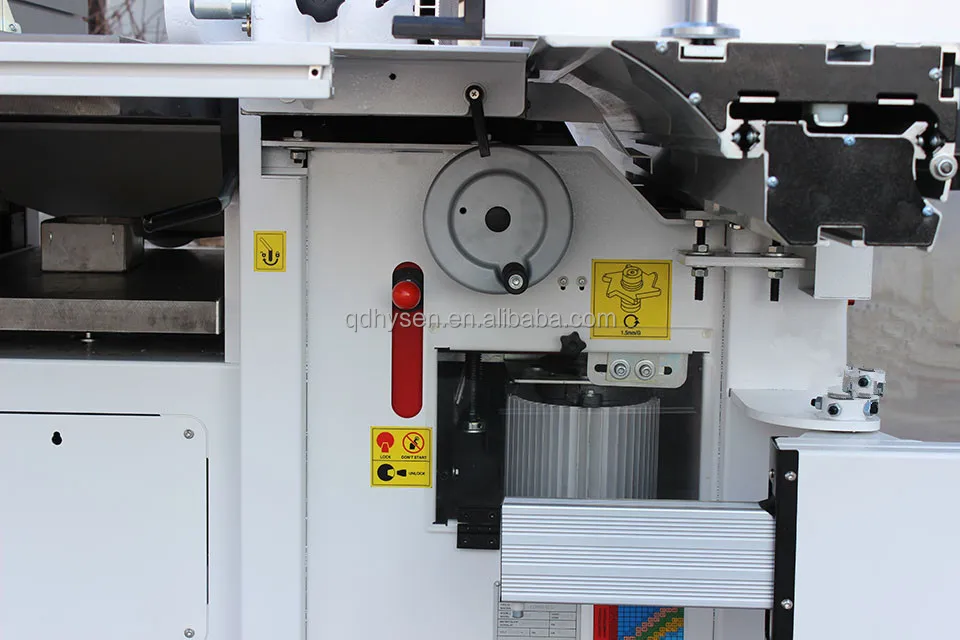

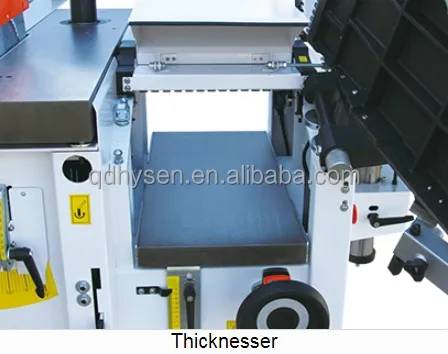

Thickness | C400 |
Working Table | 300*660 mm |
Feeding Speed | 7 m/1’ |
Working Height | 4-220 mm |
Cutter block Rotation Speed | 5700 r. p. m |
Max. Cutting Depth | 4mm |

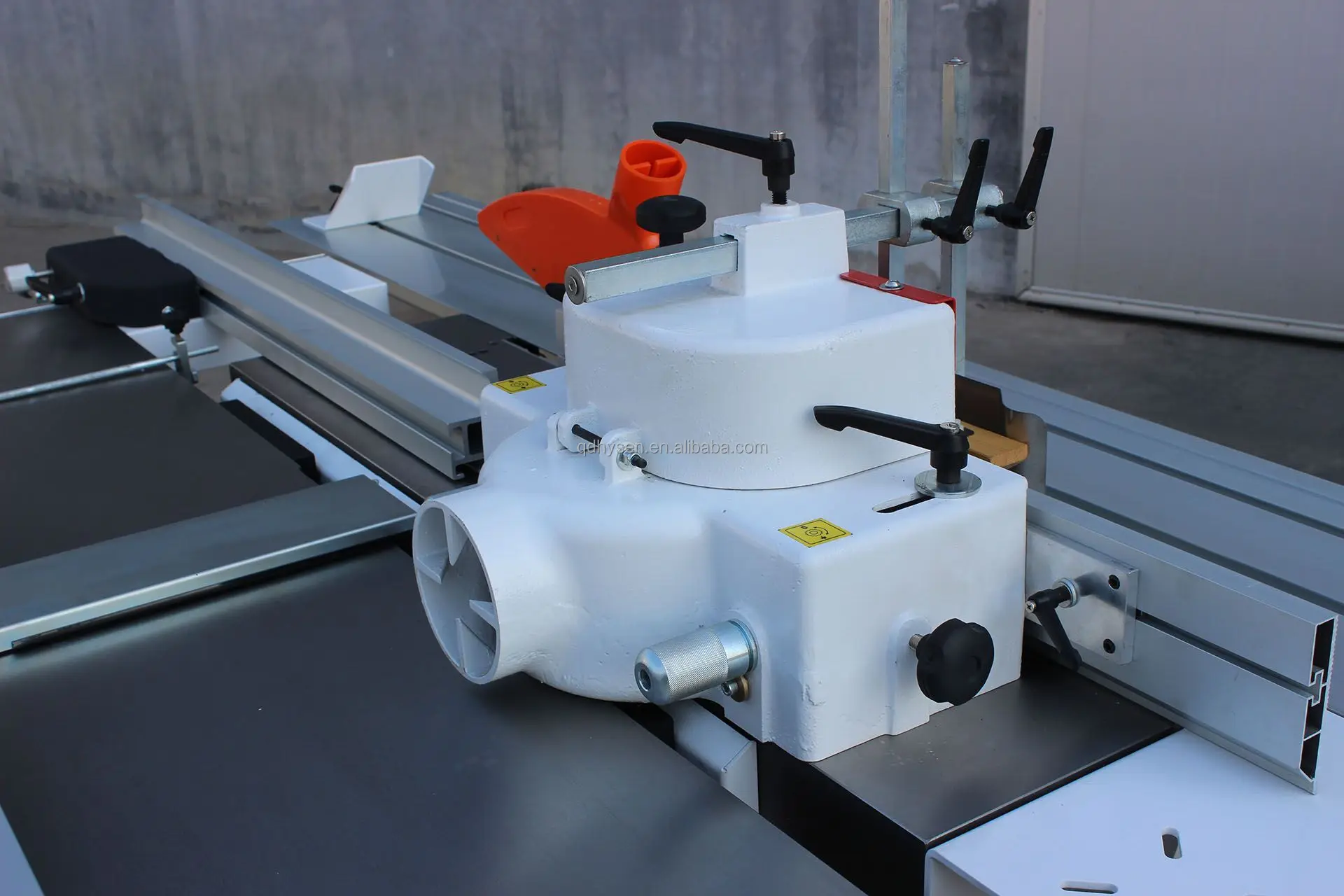

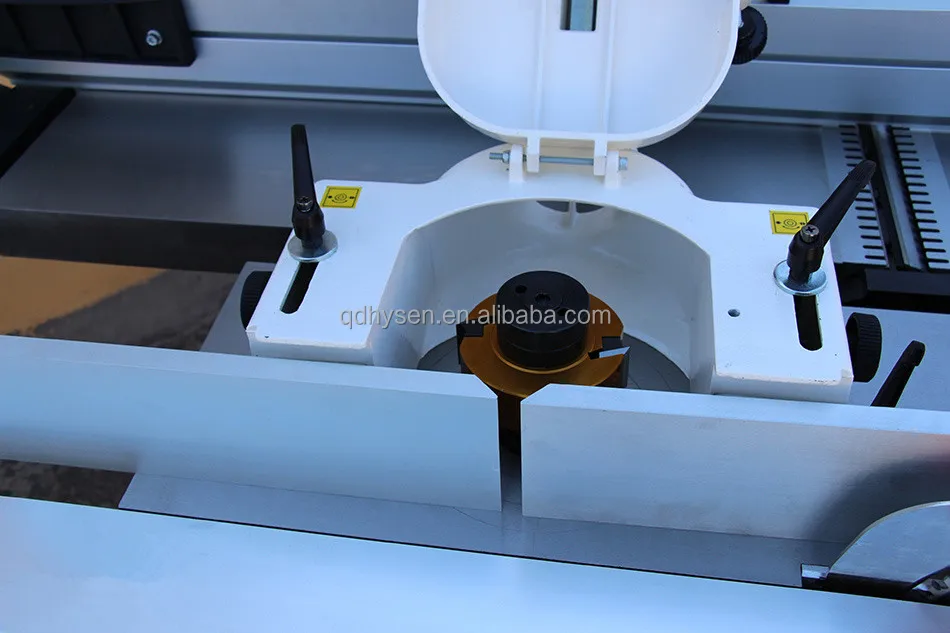

spindle moulder
Shaper | C400 |
Working tables | 326x1112 mm |
Shaft rotation speeds | 2000/3100/4400/7000 r. p. m |
Standard shaft diameter | 30 mm |
Spindle lenght | 105 mm |
Shaft vertical stroke | 115 mm |
Max. tool diameter | 180 mm |
Max. tenoning depth | 65 mm |

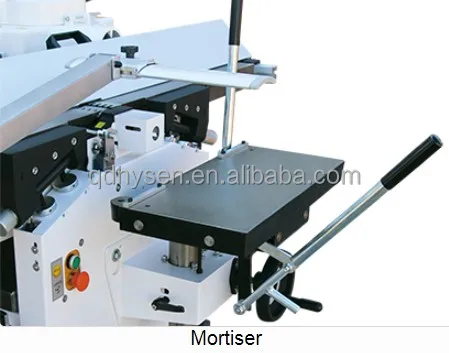

Mortiser | C400 |
Working Table | 250*500 mm |
Longitudinal /Trasversal /Vertical Stroke | 205/95/90 mm |
Churck ( M18*1.5-S) | 0-16 mm |
Churck Rotation speed | 5700 r. p. m |
Thickness | C400 |
Working Table | 400*760 mm |
Feeding Speed | 7 m/1’ |
Working Height | 4-220 mm |
Cutter block Rotation Speed | 5700 r. p. m |
Max. Cutting Depth | 4mm |
