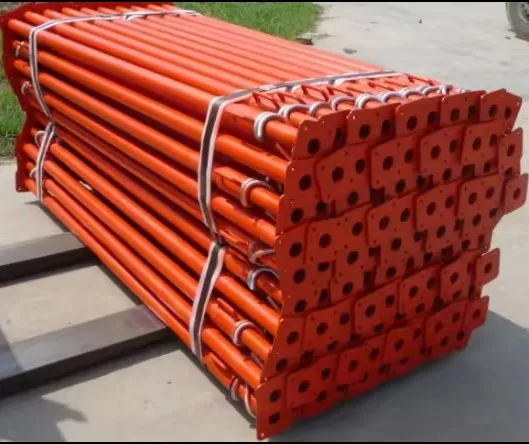

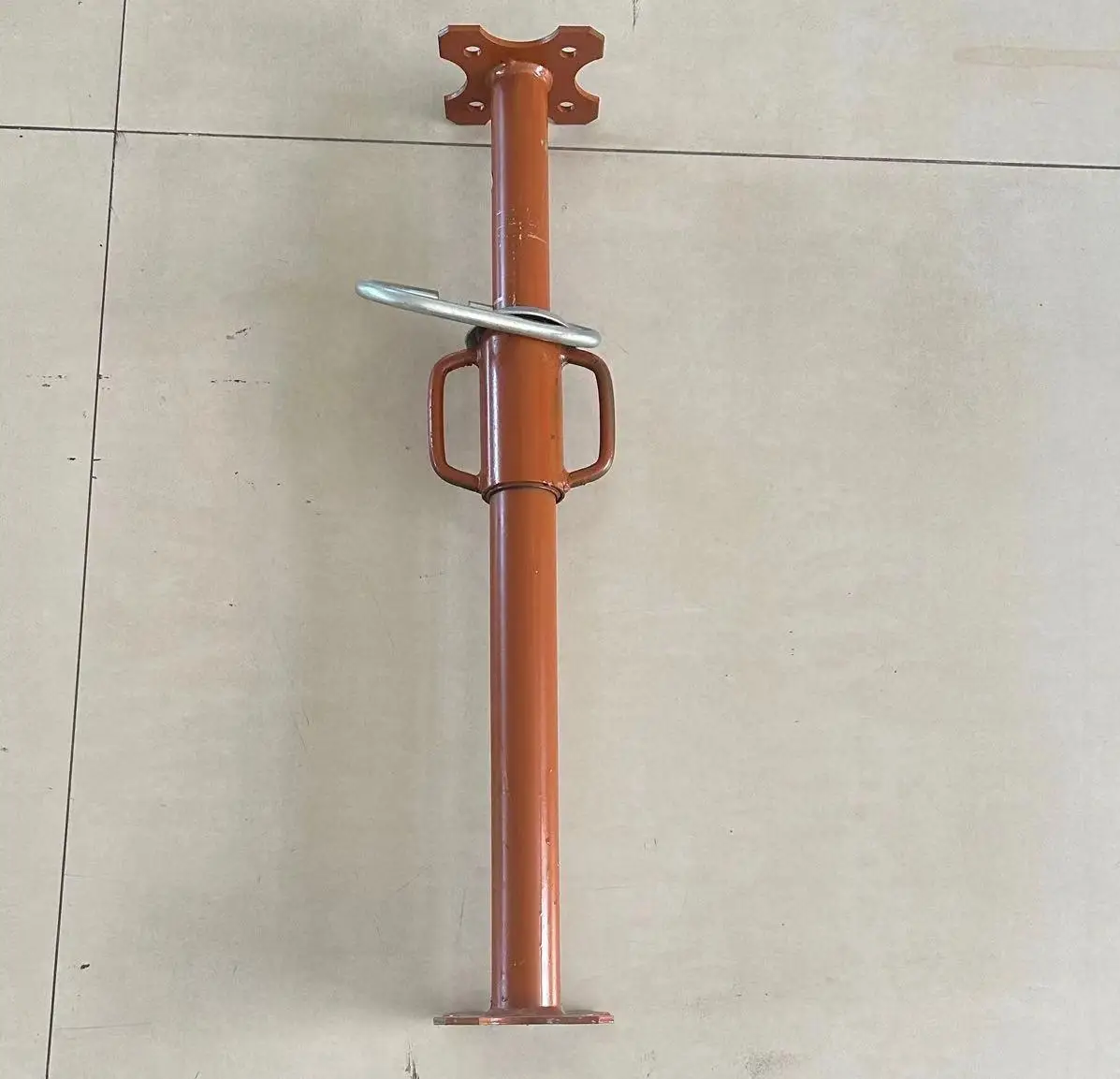

wholesale Support Jack Post Shore Powder Coated Adjustable Steel Props Construction Shoring Acrow Scaffolding Acro Props

Product Overview

Description

Specifications are as following:

1) Height: 1m-1.8m, 1.6m-2.5m, 1.6m-2.9m, 1.6m-3.0m, 1.7m- 3.1m, 1.8m-3.2m, 2.0m-3.5m, 2.0m-3.6m, 2.2m-4.0m, 2.6m-4.8m, 2.8m-5.0m, etc.

2) Diameter of tube: 60/48mm, 56/48mm, 48/40mm.

3) Type: Light duty(48/40mm, 56/48mm), Heavy duty(60/48mm).

4) Thickness: From 1.2mm to 3.0mm.

5) Surface treatment: color painted, powder coated, electro galvanized.

6) Customized types’ scaffold props are available, pls consult with us.

7) Part of specification:

Adjustable	External	Internal	Theoretical	20 ft Container
length(m)	tube(mm)	tube(mm)	Weight(kgs)	can load(pcs/bulk)
0.8-1.4	48× 1.6× 765	40× 1.8× 835	4.74	3500
1.6-3.0	48× 1.6× 1600	40× 1.8× 1600	7.57	2200
2.0-3.5	48× 1.6× 1710	40× 1.8× 2000	8.45	2000
2.2-4.0	48× 1.6× 2000	40× 1.8× 2200	9.32	1750
1.6-2.9	56× 1.6× 1510	48× 1.8× 1600	8.95	2200
1.8-3.1	56× 1.6× 1510	48× 1.8× 1800	9.36	2100
2.0-3.6	56× 1.6× 1750	48× 1.8× 2000	10.29	2000
2.2-4.0	56× 1.6× 2010	48× 1.8× 2200	11.26	1750
1.4-2.7	60× 2.0× 1340	48× 2.0× 1400	9.45	2300
2.0-3.5	60× 2.0× 1540	48× 2.0× 2000	11.38	2000
2.2-4.0	60× 2.0× 1840	48× 2.0× 2200	12.7	1750
3.0-5.5	60× 2.0× 2540	48× 2.0× 3000	16.51	1500(40ft/in bulk)

We also produce SCAFFOLDING FRAME(Door type, Ladder/"H" type. Width*Height:1219*1930, 1219*1700, 1219*1524, 1219*1219, 917*1700, 917*1219mm.).

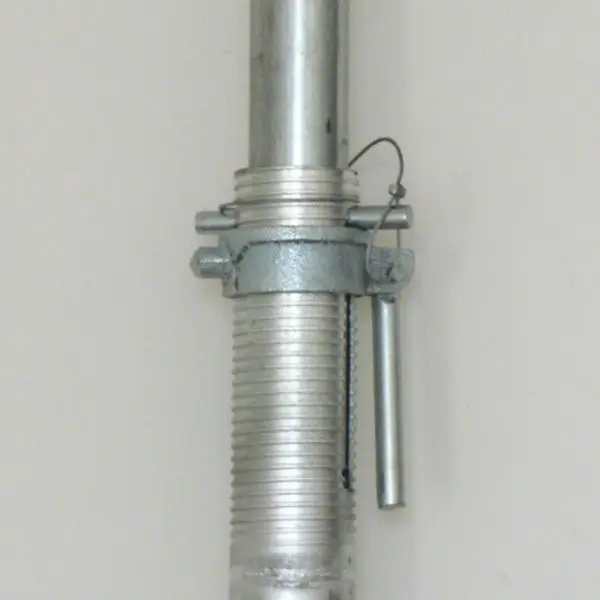

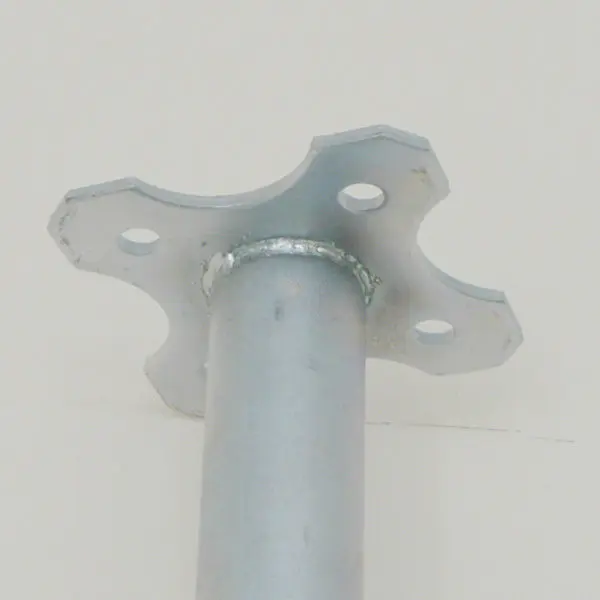

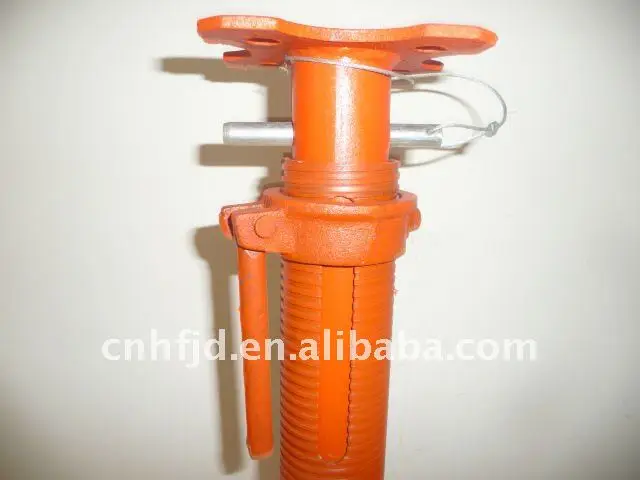

 HEAVY TYPE

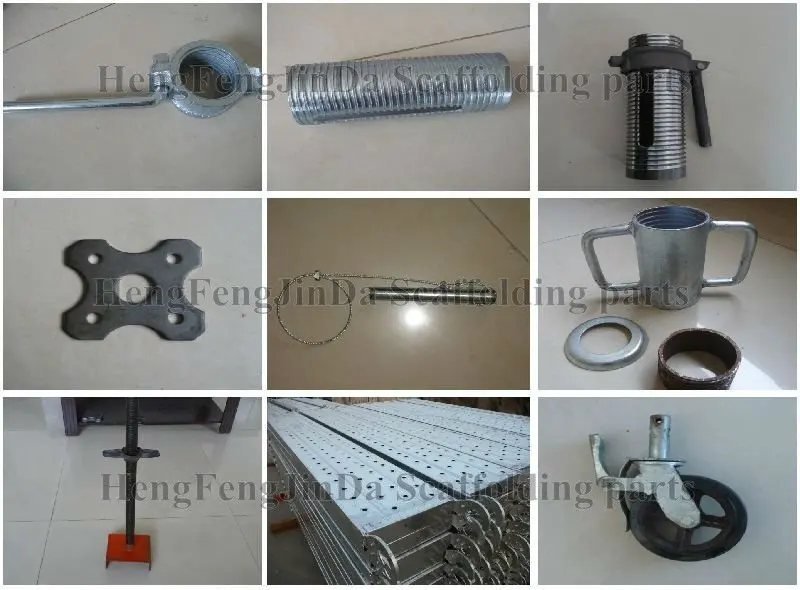

Parts

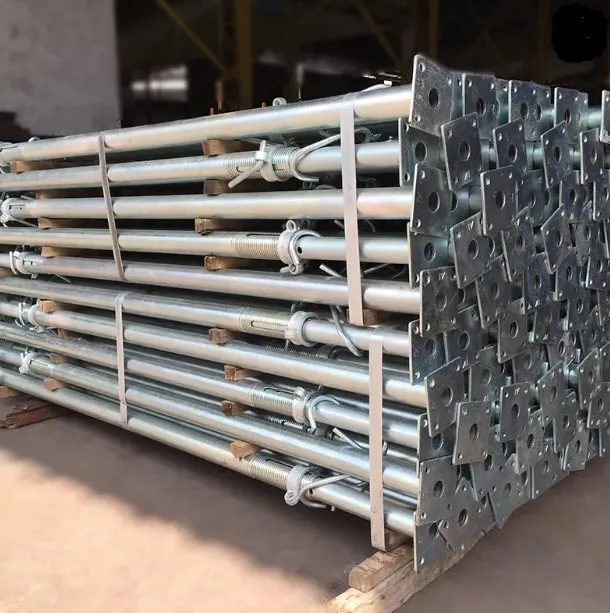

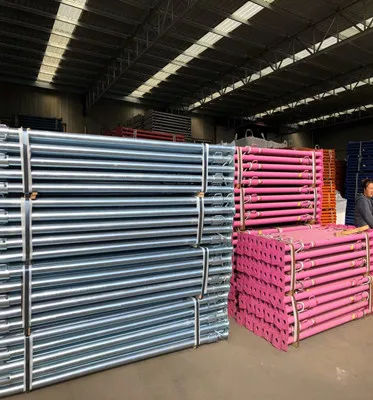

Loading





Certificate:

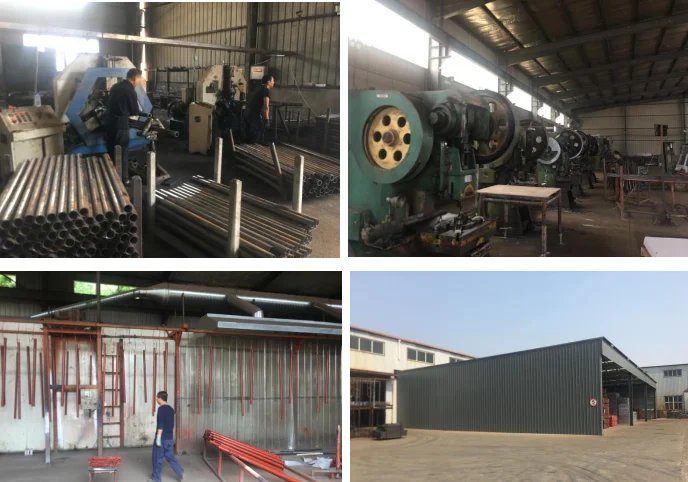

OUR FACTORY
