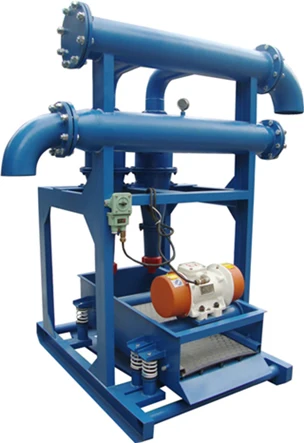

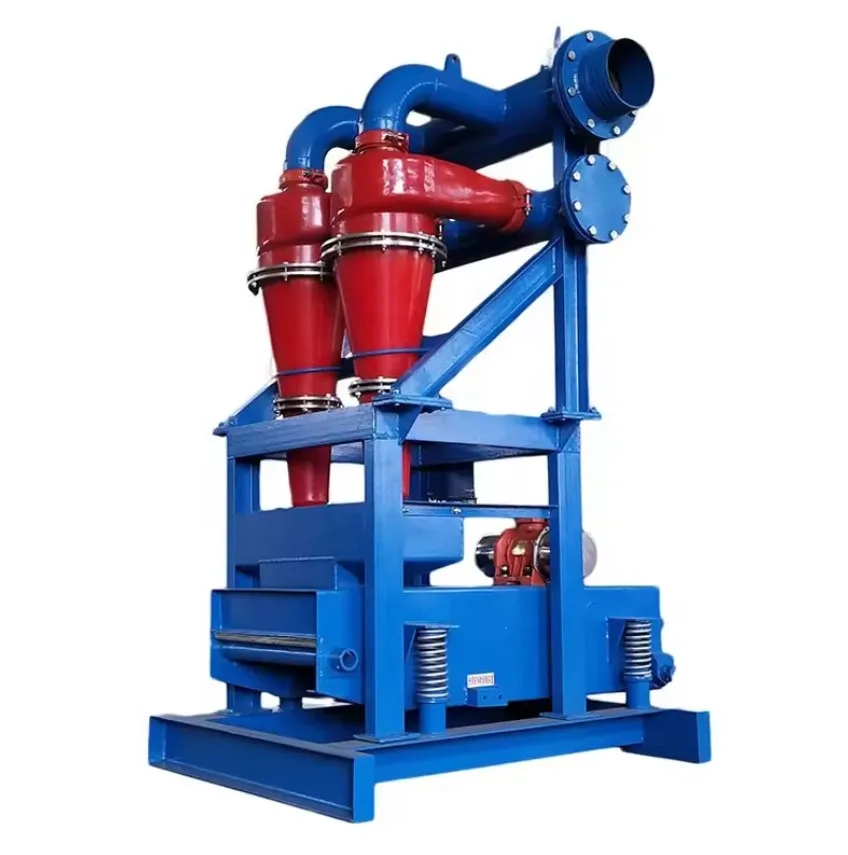

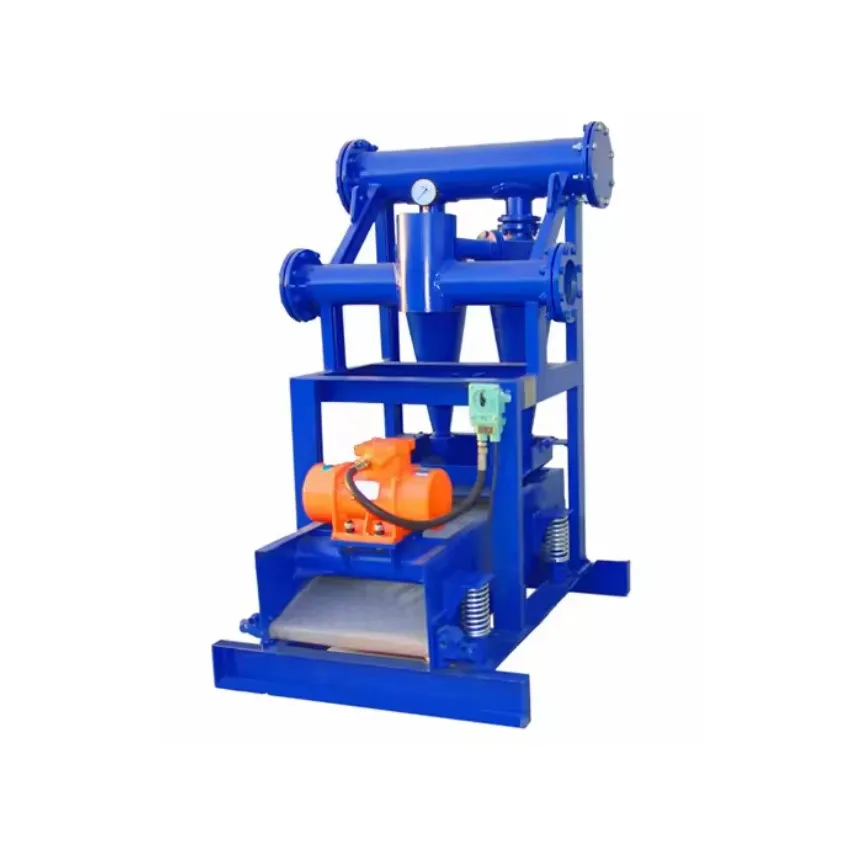

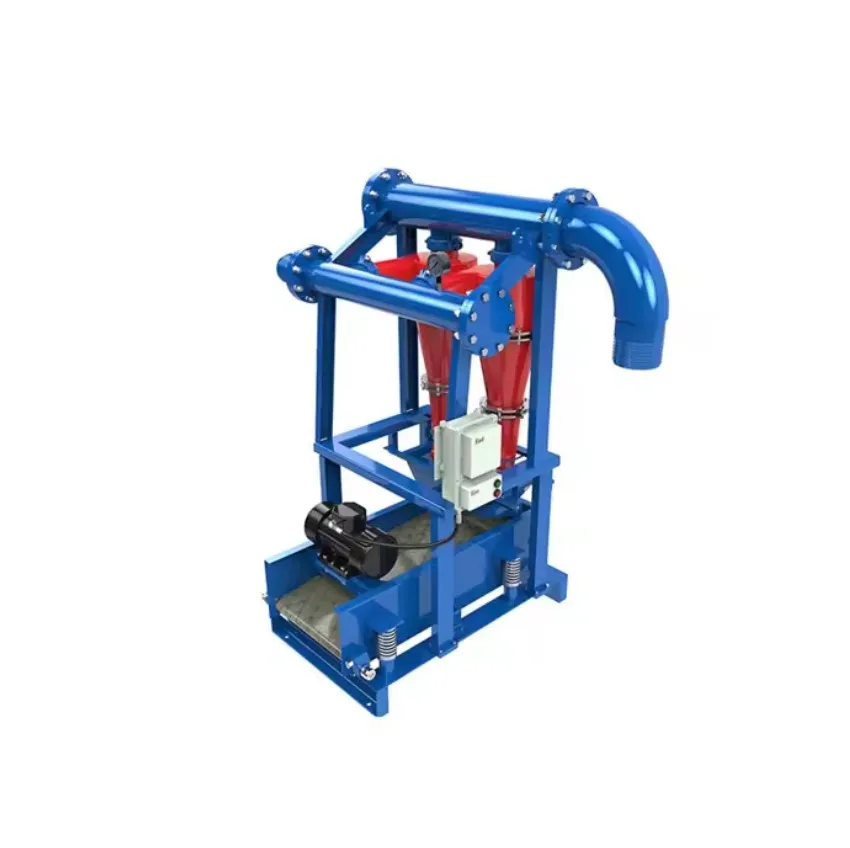

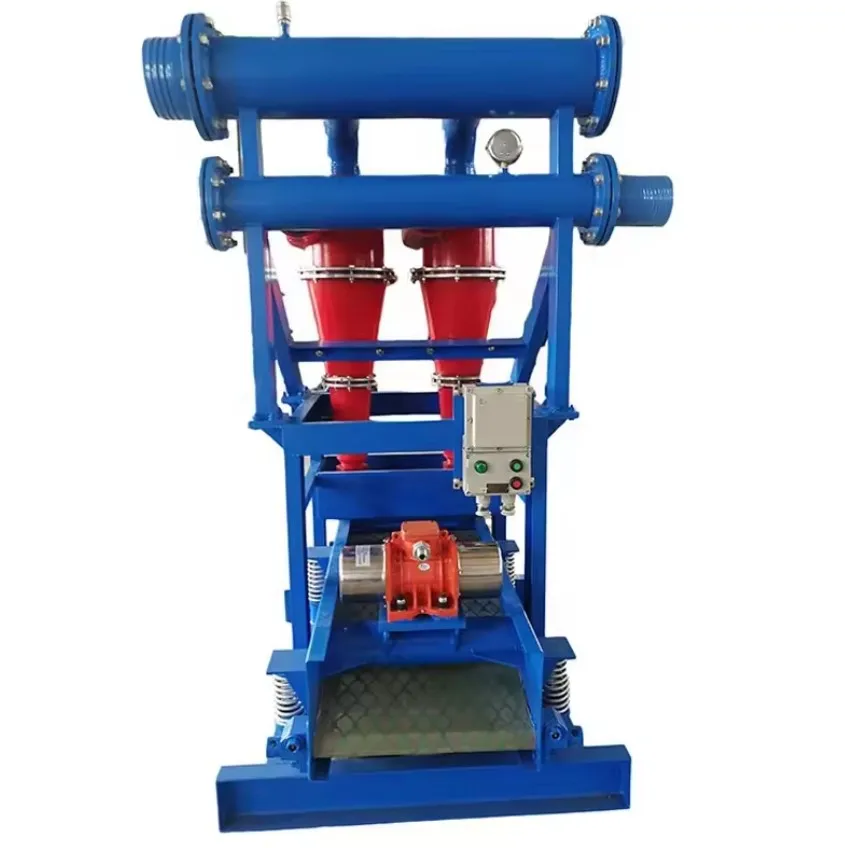

API Certified Desander Machine for Oilfield Use
- Category: >>>
- Supplier: Shandong Beyond Petroleum Equipment Co. Ltd.
Share on (1601222575669):
Product Overview
Description
Product Description

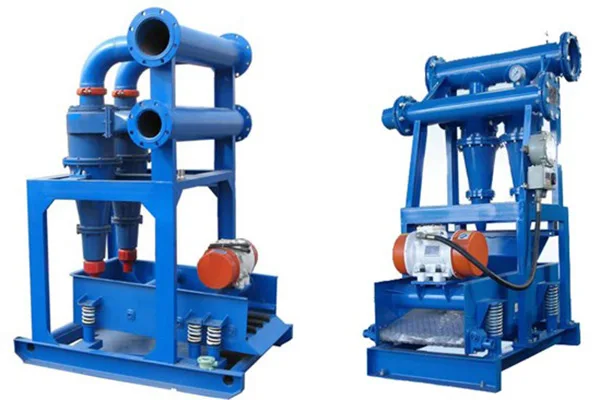

ZQJ Double Hydrocyclone Desander
* As a solid control equipment of the second stage in drilling operation, desander is used to remove harmful solid particles of 40-74μm in drilling liquid.
* Suspending particles can be separated from the liquid under the centrifugal acceleration, by use of working principle of centrifugal subsidence.
* At present time, six types, ZQJ300×2, ZQJ250×2, ZQJ200×2 and ZQJ300×1, ZQJ250×1, ZQJ200×1 are available.
* The former applies to over 3000-meter-long dills, and the latter applies to small drills of less than 3000meters and service rig.
Specification
Model | ZQJ300×2 | ZQJ250×2 | ZQJ200×2 |
Hydrocyclone diameter | 300mm | 250mm | 200mm |
Working pressure | 0.2~0.45mpa | 0.2~0.45mpa | 0.2~0.45mpa |
Capacity | 240m3/h | 200m3/h | 160m3 /h |
Screen size | 1240×585mm | 1240×585mm | 1240×585mm |
Screen specification | 100-200mesh | 100-200mesh | 100-200mesh |
Inlet diameter | 6‘’ (150mm) | 6‘’ (150mm) | 3‘’ (75mm) |
Outlet diameter | 8‘’ (200mm) | 8‘’ (200mm) | 6‘’ (150mm) |
Motor power | 0.5kw | 0.5kw | 0.5kw |
Weight | 780kgs | 740kgs | 700kgs |
Overall dimension | 1630×2018×2280mm | 1630×2018×2215mm | 1630×1875×2045mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
