Building Materials 610mm Metal Rib Lath
US $6.00-$10.00
Prestressed concrete beam 12.7mm 15.2mm asphalt wedge anchors for sink
- Category: >>>
- Supplier: EXA International Trading (Tianjin) Co. Ltd.
Share on (1601222644745):
Product Overview
Description
Type | Anchor plate ΦA×B×ΦC | inner diameter of ductΦD | Anchor ring ΦE×F | Spiral reinforcement | Anchor plate | Tension jack supporting models | |||||
ΦG×ΦH×L | laps | spacing of mounting holeΦK | diameter of mounting hole | ||||||||
(YDC240Q) | |||||||||||
YJM15-1 | 1 | 80×8O×Φ12 | Φ45×45 | Φ70×Φ6×30 | 4 | ||||||
YJM15-2 | 2 | 135×70×Φ58 | Φ50 | Φ78×45 | 100×Φ8×40 | 4 | 113 | M10 | |||
YJM15-3 | 3 | 135×70×Φ58 | Φ50 | Φ83×45 | 100×Φ8×40 | 4 | 113 | M10 | YCW100B | ||
YJM15-4 | 4 | 136×80×Φ62 | Φ55 | Φ93×45 | 130×Φ10×40 | 4 | 115 | M10 | YCW100B | ||
YJM15-5 | 5 | 146×80×Φ62 | Φ55 | Φ103×45 | 140×Φ10×50 | 4 | 126 | M10 | YCW100B YCW150B | ||
YJM15-6 | 6 | 162×100×Φ78 | Φ70 | Φ117×47 | 160×Φ12×50 | 4 | 140 | M10 | YCW150B | ||
YJM15-7 | 7 | 162×100×Φ78 | Φ70 | Φ117×47 | 160×Φ12×50 | 4 | 140 | M10 | YCW150B YCW250B | ||
YJM1S-8 | 8 | 176×120×Φ88 | Φ80 | Φ127×50 | 170×Φ14×50 | 5 | 153 | M10 | YCW250B | ||
YJM15-9 | 9 | 183×120×Φ90 | Φ80 | Φ137×50 | 180×Φ14×50 | 5 | 162 | M10 | YCW250B | ||
YJM15-10 | 10 | 210×120×Φ100 | Φ90 | Φ147×50 | 210×Φ14×60 | 5 | 180 | M10 | YCW250B | ||
YJM15-11 | 11 | 210×140×Φ100 | Φ90 | Φ157×50 | 210×Φ14×60 | 5 | 185 | M10 | YCW250B | ||
YJM15-12 | 12 | 210×140×Φ100 | Φ90 | Φ157×50 | 210×Φ14×60 | 5 | 185 | M10 | YCW250B | ||
YJM15-13 | 13 | 210×140×Φ100 | Φ90 | Φ157×55 | 210×Φ14×60 | 5 | 185 | M10 | YCW350B | ||
YJM15-14 | 14 | 234×160×Φ100 | Φ90 | Φ167×60 | 230×Φ16×60 | 5 | 200 | M10 | YCW350B | ||
YJM15-15 | 15 | 234×160×Φ100 | Φ90 | Φ167×60 | 230×Φ14×60 | 5 | 200 | M10 | YCW350B | ||
YJM15-16 | 16 | 244×180×Φ100 | Φ-90 | Φ177×60 | 230×Φ16×60 | 5 | 210 | M10 | YCW350B YCW400B | ||
YJM15-17 | 17 | 250×180×Φ100 | Φ90 | Φ187×65 | 230×Φ16×60 | 5 | 218 | M10 | YCW350B YCW400B | ||
YJM15-18 | 18 | 265×200×Φ110 | Φ100 | Φ187×65 | 250×Φ16×60 | 5 | 228 | M10 | YCW400B | ||
YJM15-19 | 19 | 265×200×Φ110 | Φ100 | Φ187×65 | 250×Φ16×60 | 6 | 228 | M10 | YCW400B YCW500A | ||
YJM15-20/21/22 | 21/22 | 310×240×Φ130 | Φ120 | Φ215×70 | 300×Φ18×60 | 6 | 260 | M10 | YCW500A | ||
YJM15-23 | 23 | 310×240×Φ140 | Φ130 | Φ217×70 | 300×Φ22×60 | 6 | 270 | M10 | YCW650A | ||
YJM15-25/26/27 | 25/26/27 | 350×290×Φ140 | Φ130 | Φ260×90 | 310×Φ16×60 | 7 | 290 | M10 | YCW650A | ||
YJM15-30/31 | 30/31 | 370×290×Φ150 | Φ140 | Φ290×105 | 400×Φ20×60 | 8 | 350 | M10 | YCW900A | ||
YJM15-34/37 | 34/37 | 465×340×Φ170 | Φ160 | Φ320×112 | 450×Φ20×60 | 8 | 376 | M10 | YCW900A | ||
YJMI5-43/44 | 43/44 | 500×450×Φ170 | Φ160 | Φ345×130 | 470×Φ20×60 | 8 | 400 | M10 | YCW1200A | ||
YJM15-54/55 | 54/55 | 500×510×Φ170 | Φ160 | ||||||||
Q1: What is your payment terms:
A1: TT FOB: 30% deposite, balance before shipment. TT CIF: 30% deposite, balance based on scanned
BL.LC 100% at sight
Q2: Can you supply stocks? Can you deal small orders?
A2: Yes, we can.Small orders can also be accepted.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we can offer samples free of charge. But the express cost should be on buyer's account.
Q4: If found the product with substardard quality. How can you solve it?
A4: The buyer will be required to submit proof file, picture, video of the said substandard cargo to
us first. We can also send our engineer to your field to check it directly, if necessary.
Q5: If accept OEM service to made product as per buyer offering drawing?
A5: Yes, we can offer OEM service. manufacture product as per buyer's offering drawing.
A1: TT FOB: 30% deposite, balance before shipment. TT CIF: 30% deposite, balance based on scanned
BL.LC 100% at sight
Q2: Can you supply stocks? Can you deal small orders?
A2: Yes, we can.Small orders can also be accepted.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we can offer samples free of charge. But the express cost should be on buyer's account.
Q4: If found the product with substardard quality. How can you solve it?
A4: The buyer will be required to submit proof file, picture, video of the said substandard cargo to
us first. We can also send our engineer to your field to check it directly, if necessary.
Q5: If accept OEM service to made product as per buyer offering drawing?
A5: Yes, we can offer OEM service. manufacture product as per buyer's offering drawing.

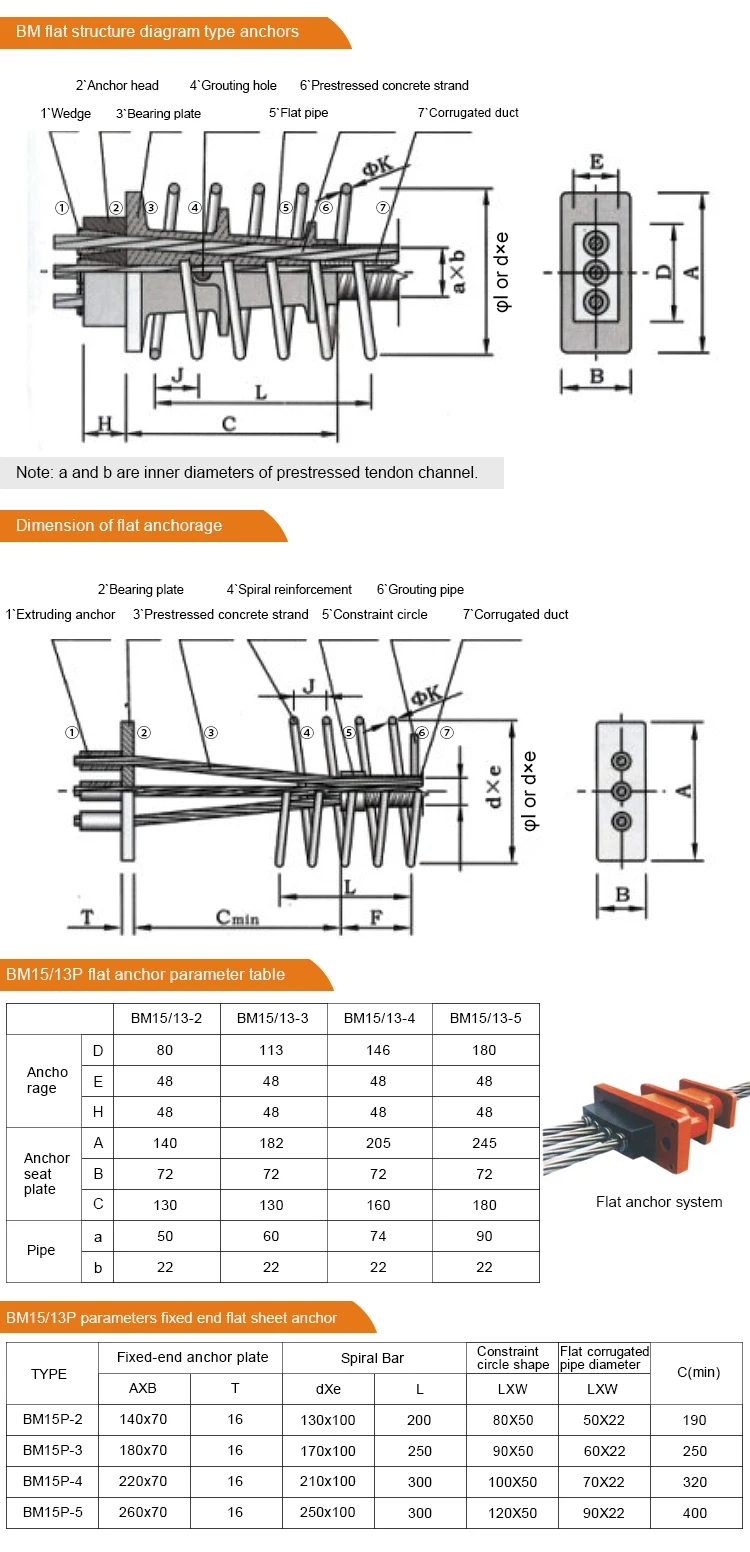

BM15/13-2 | BM15/13-3 | BM15/13-4 | BM15/13-5 | ||
Anchorage | D | 80 | 113 | 146 | 180 |
E | 48 | 48 | 48 | 48 | |
H | 48 | 48 | 48 | 48 | |
Anchor seat plate | A | 140 | 182 | 205 | 245 |
B | 72 | 72 | 72 | 72 | |
C | 130 | 130 | 160 | 180 | |
Pipe | a | 50 | 60 | 74 | 90 |
b | 22 | 22 | 22 | 22 |

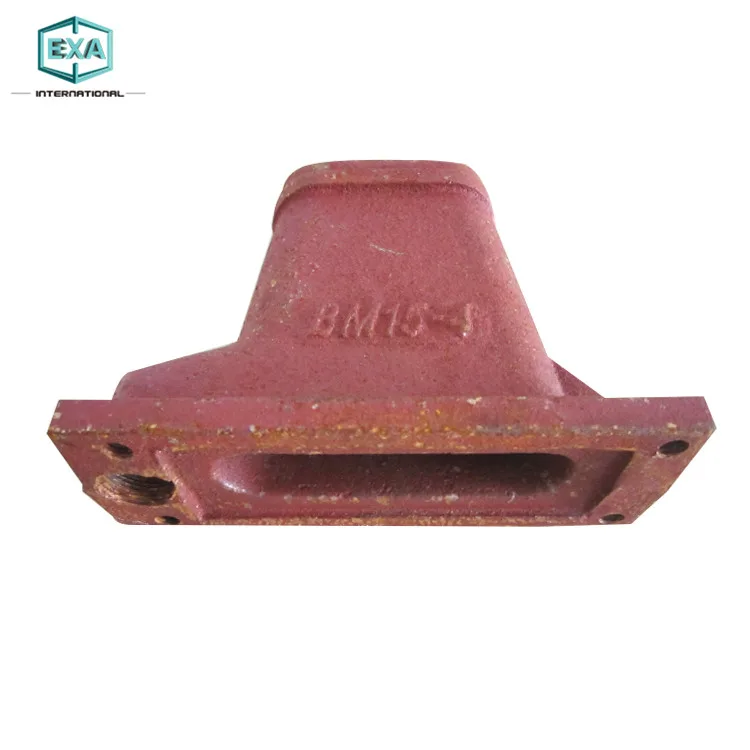

BM15/13 Flat-type Anchor

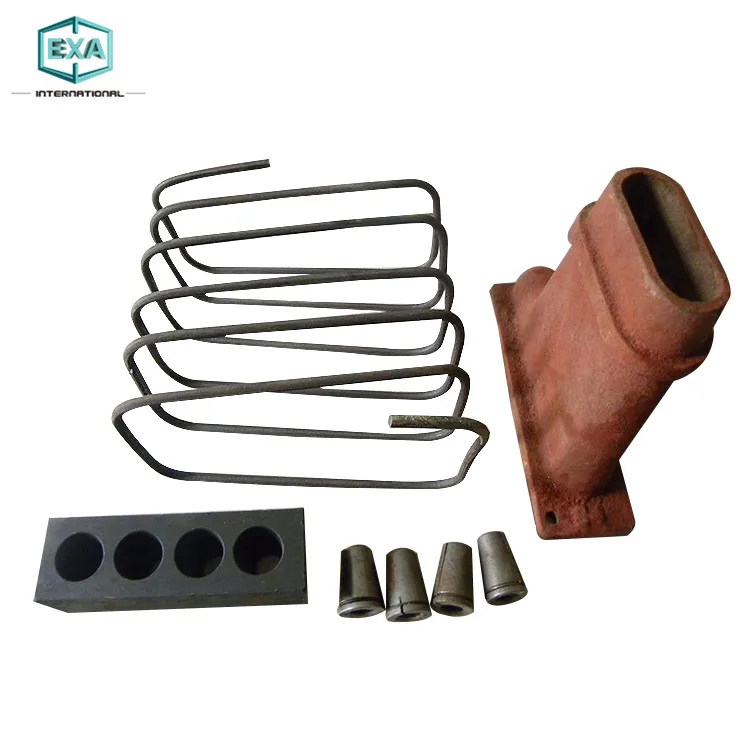

BM 15/13 flat-type anchor is applicable to Ф15.2-Ф15.7 and Ф12.7-Ф12.9MM prestressed concrete strands and used in pre-tensioned and post-tensioned prestressed concrete slabs, girderless floor or girders the height of which needs to be lowered. BM flat-type anchor includes flat anchor, working-clip and flat anchor plate.
BM 15/13 flat-type anchor is applicable to Ф15.2-Ф15.7 and Ф12.7-Ф12.9MM prestressed concrete strands and used in pre-tensioned and post-tensioned prestressed concrete slabs, girderless floor or girders the height of which needs to be lowered. BM flat-type anchor includes flat anchor, working-clip and flat anchor plate.
TYPE | Constraint circle shape | Flat corrugated pipe diameter | |||||||
A×B | T | d×e | L | L×W | L×W | ||||
BM15P-2 | 140×70 | 16 | 130×100 | 200 | 80×50 | 50×22 | 190 | ||
BM15P-3 | 180×70 | 16 | 170×100 | 250 | 90×50 | 60×22 | 250 | ||
BM15P-4 | 220×70 | 16 | 210×100 | 300 | 100×50 | 70×22 | 320 | ||
BM15P-5 | 260×70 | 16 | 250×100 | 300 | 120×50 | 90×22 | 400 | ||
