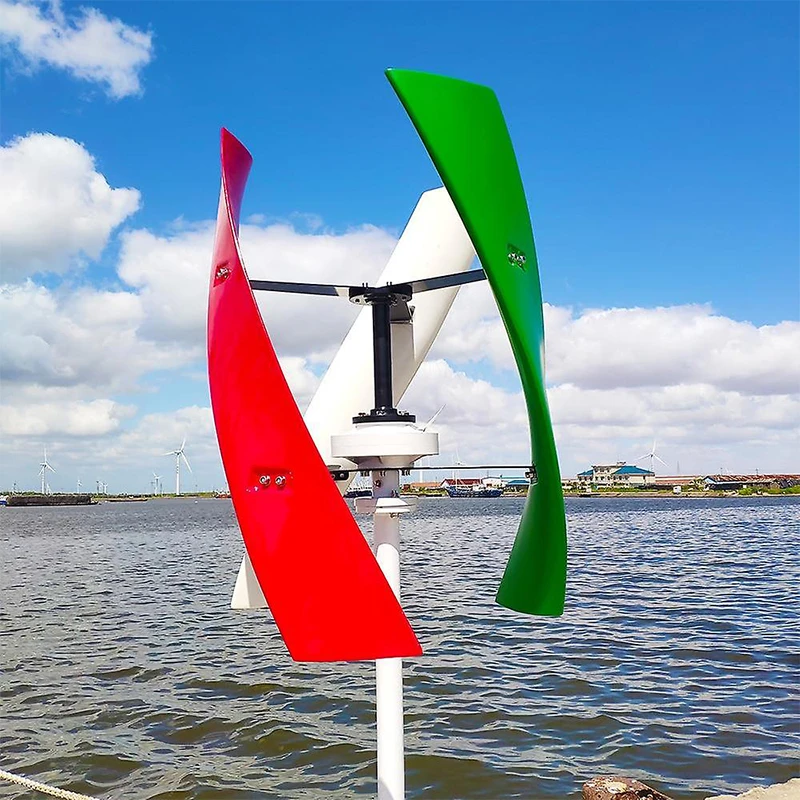

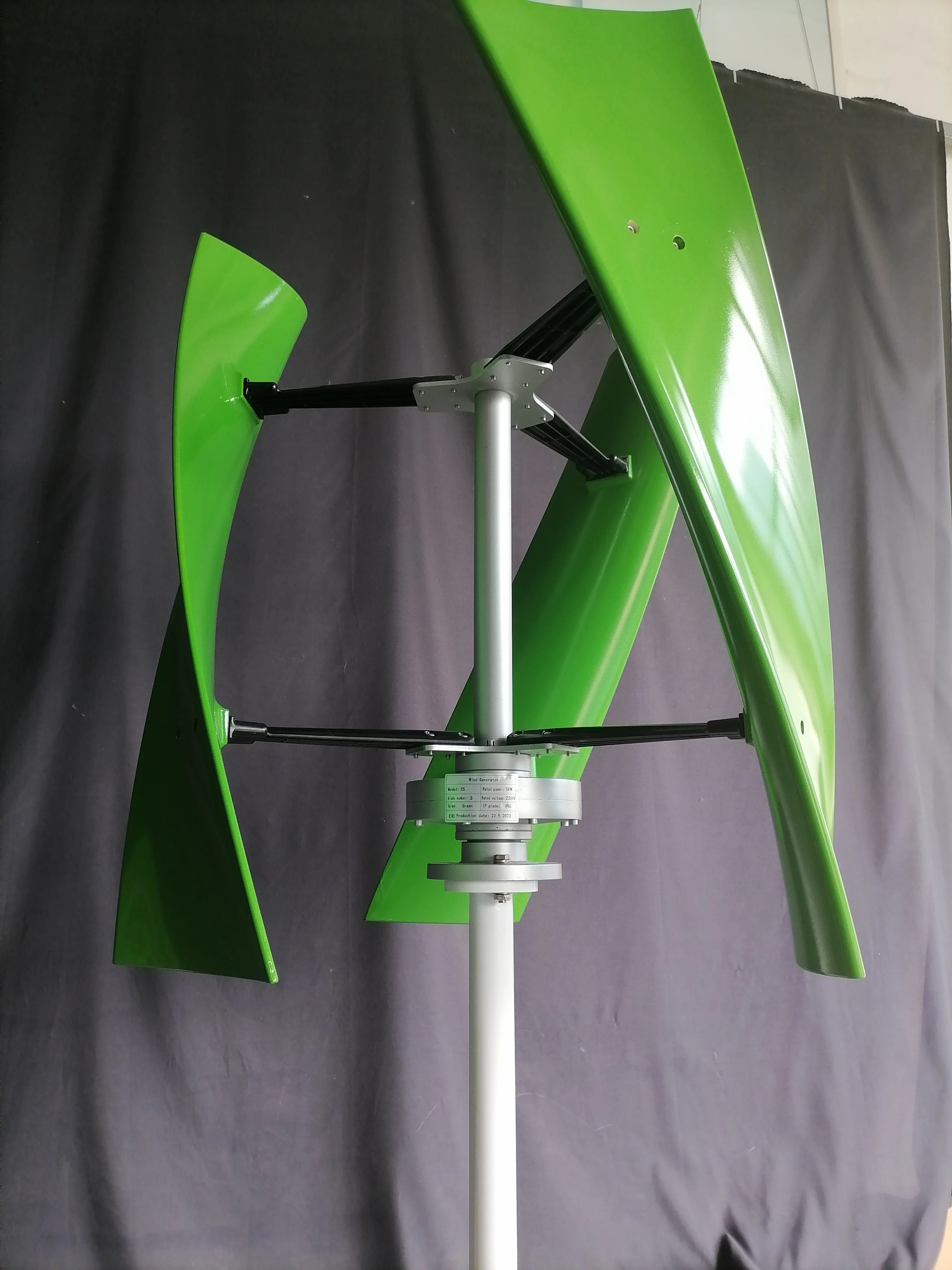

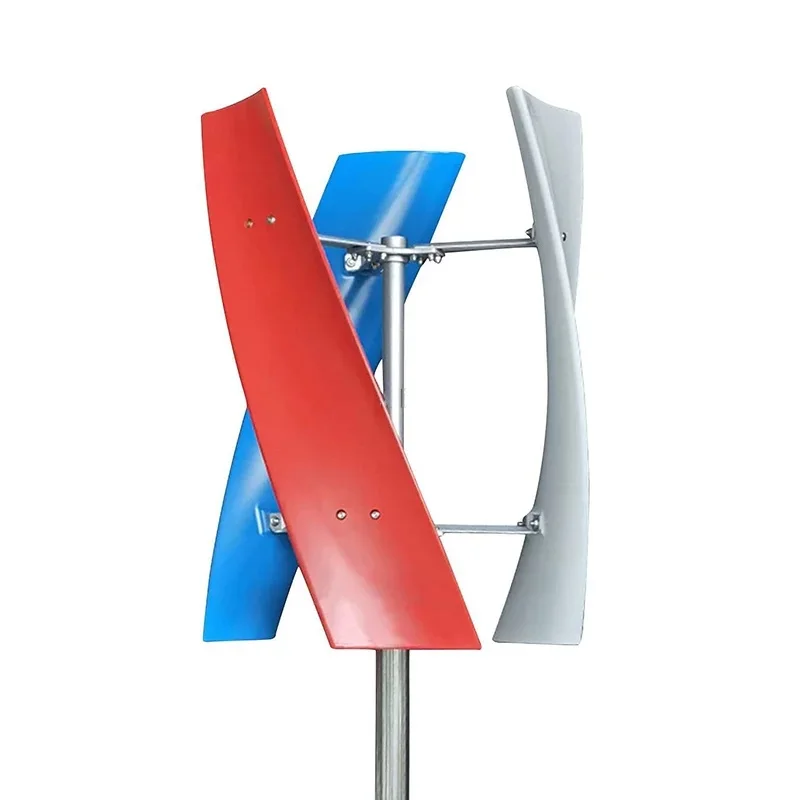

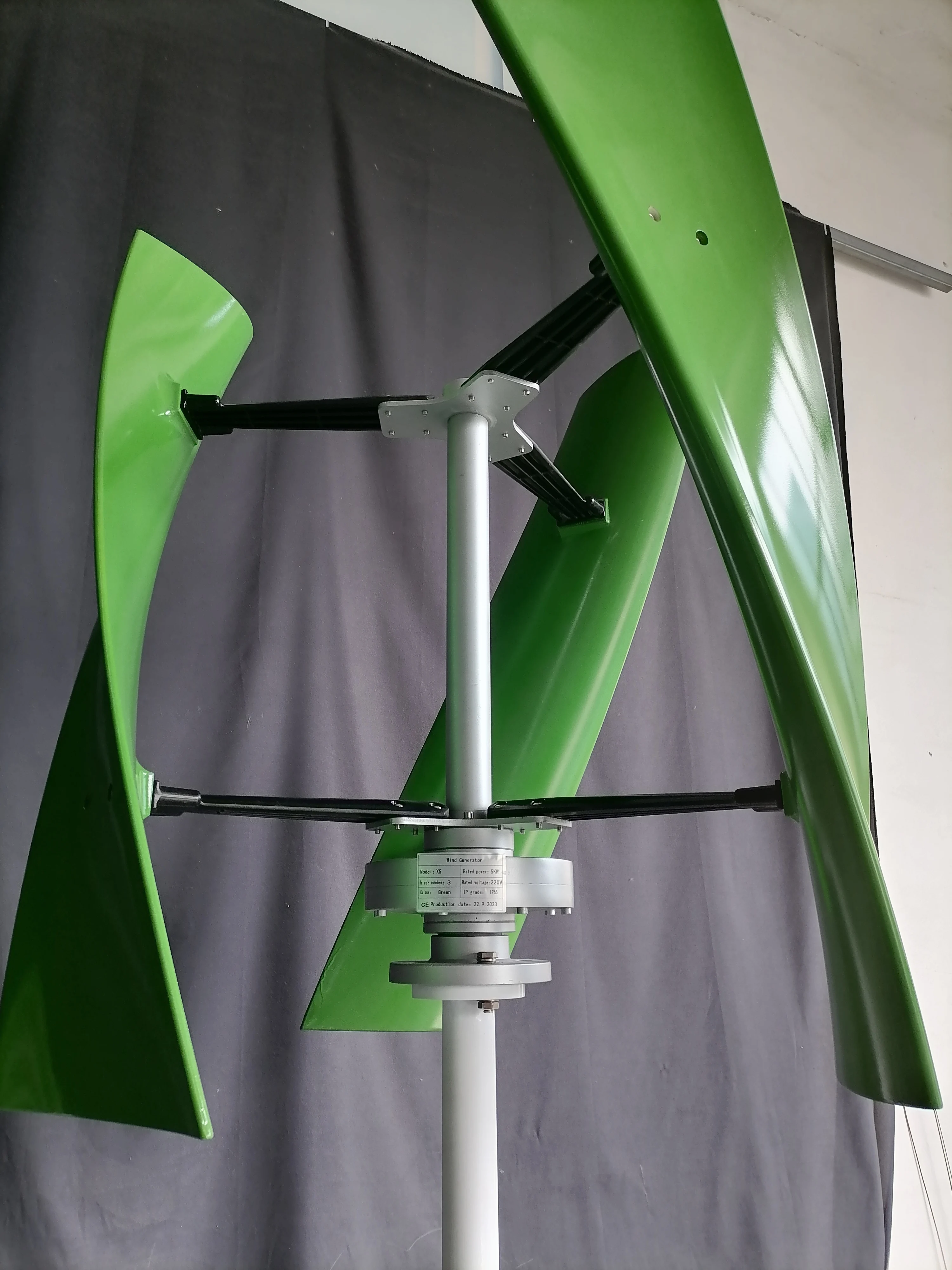

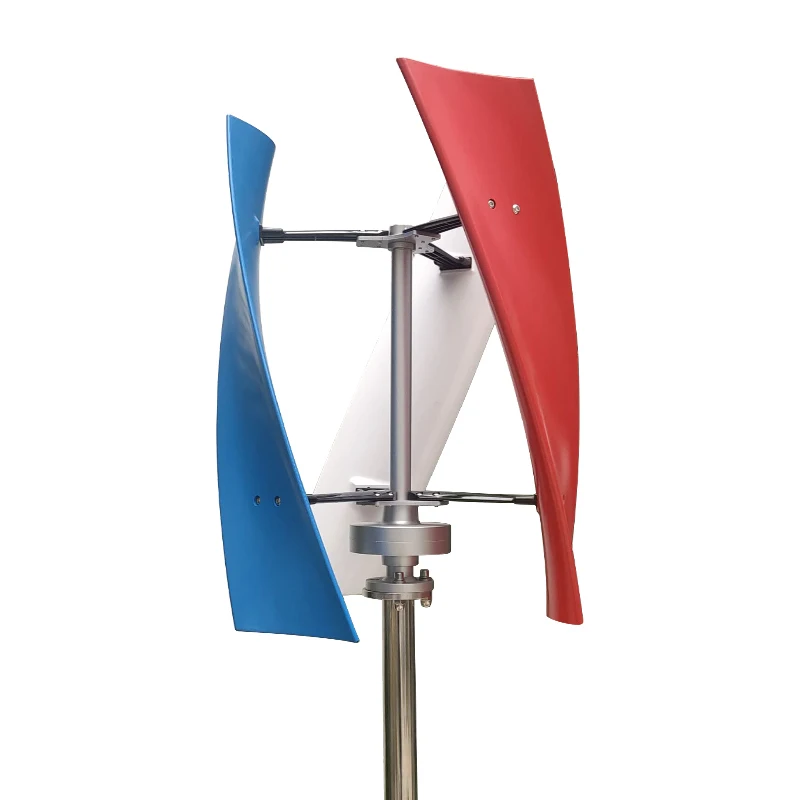

1kw 2kw 3kw 5kw 96V Low Rpm Maglev Generator Vertical Axis Wind Turbine Generator
- Category: >>>
- Supplier: Yangzhou Bessent Trading Co. Ltd.Yangzhou Ltd.
Share on (1601222646441):
Product Overview
Description
Specification
Type | NE-1000FH | NE-2000FH | NE-3000FH | NE-5000FH | NE-10000FH | ||||
Rated power | 1KW | 2KW | 3KW | 5KW | 10KW | ||||
Max power | 1.5KW | 2.5KW | 3.5KW | 6KW | 12KW | ||||
Rated voltage | 96V/120V | 96V/120V | 96V/120V | 120V/220V | 220V/380V | ||||
Start up wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | ||||
Rated wind speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | ||||
Survival wind speed | 40m/s | 40m/s | 45m/s | 45m/s | 45m/s | ||||
Weight | 85kg | 120kg | 165kg | 360kg | 950kg | ||||
Wheel diameter | 1.5m | 1.67m | 2.1m | 2.5m | 4m | ||||
Blades height | 2m | 2.4m | 2.8m | 4m | 5.6m | ||||
Blades material | Aluminum alloy | ||||||||
Blades number | 3/5 | ||||||||
Generator | Three phase permanent magnet AC generator/maglev generator | ||||||||
Control system | Electromagnet | ||||||||
Speed regulation | Automatically adjust windward | ||||||||
Working temperature | -40°C~80℃ | ||||||||
