Product Overview
Description

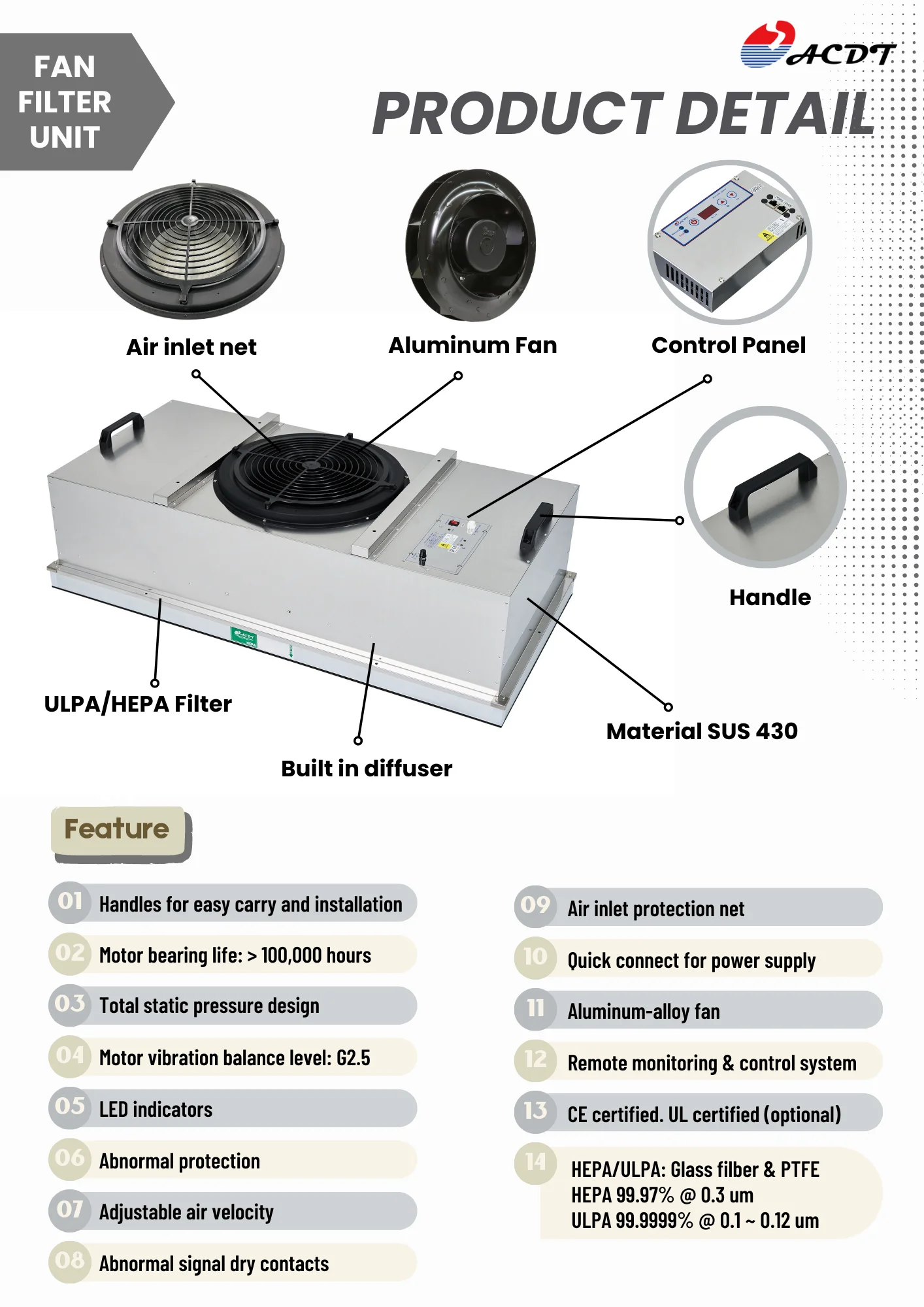

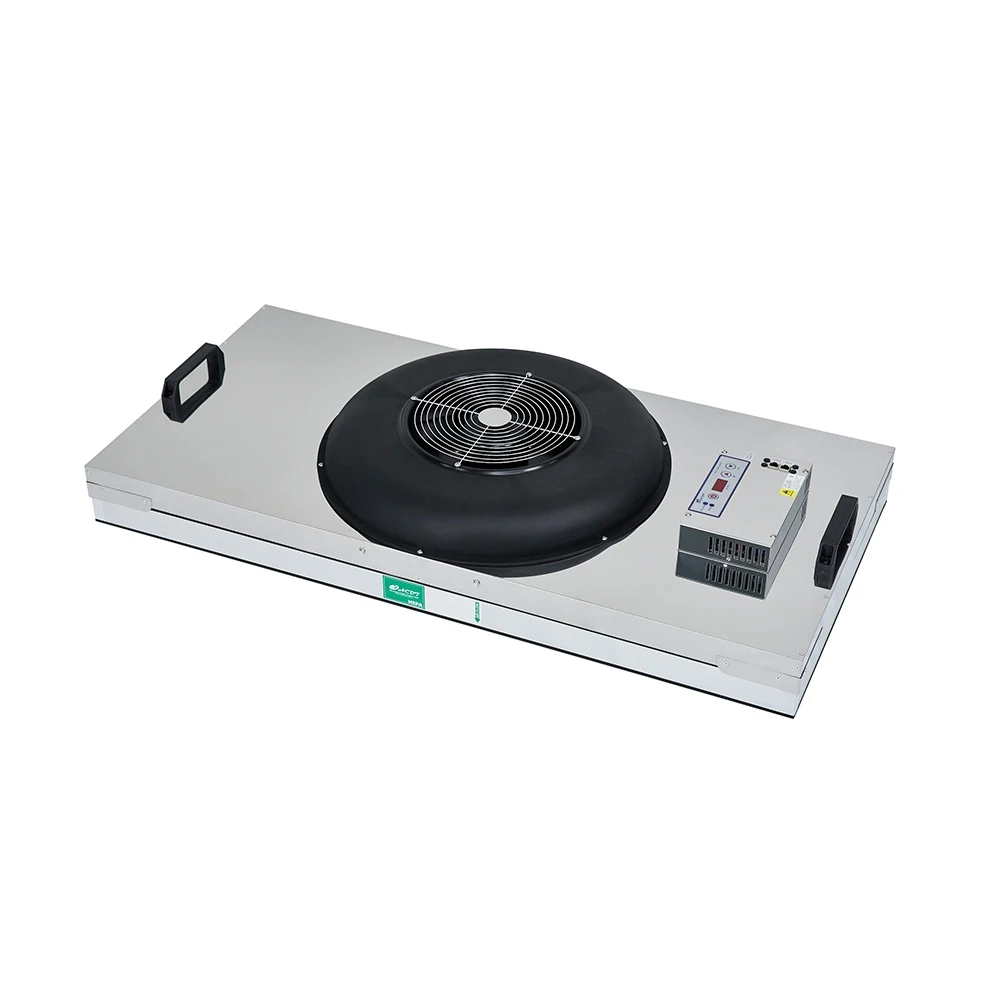

FAN FILTER UNIT (FFU)
FFU is an air filter equipment that can supply purified air to a cleanroom
manufacturing photo-electronics, semi-conductor, liquid crystals, etc.
Feature
FFUs can be used in various industries, including semiconductors, electronics, medical, pharmaceuticals, biotechnology, and more. Our products can be customized to meet customers' air filtration requirements.

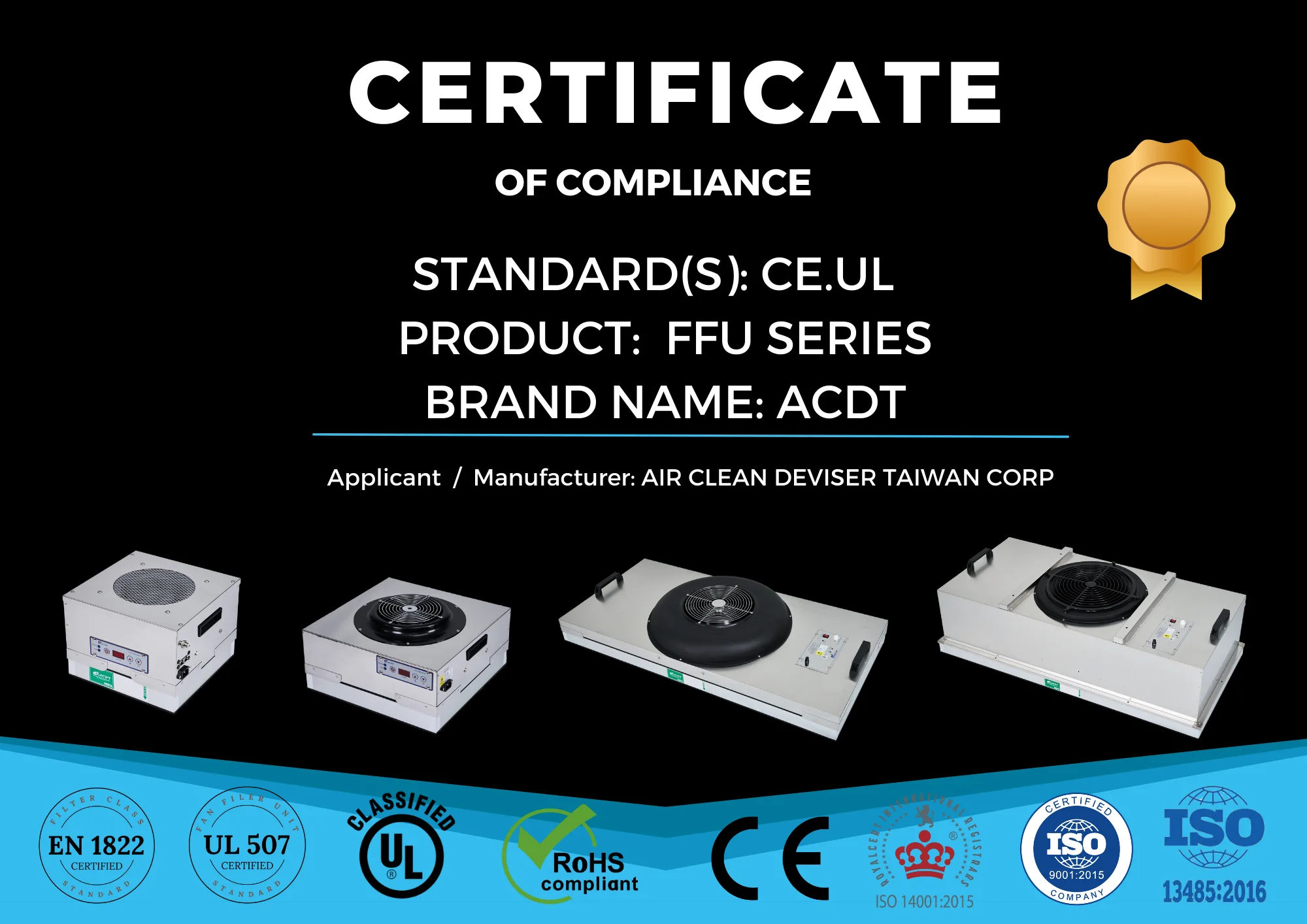

Certificate of Compliance
ACDT's FFUs have not only the UL certification but also CE and RoHS certifications. Additionally, our company has passed ISO 9001, ISO 13485, and ISO 14001 international standard certifications! This indicates that our quality management system, medical device quality management system, and environmental management have met international standards while taking responsibility for environmental protection and actively reducing the impact during operation.
Product Paramenters
FFU FOR AIR CONDITIONING
◉ Energy-saving EC brushless frequency converter motor with a low noise level
(compared to AC motor)
(compared to AC motor)
◉ Can be customized to meet customers' air filtration requirements
◉ Standard Certification: CE, RoHs, EN1822
◉ Optional Certification: UL, SEMI
◉ Optional Filter: ULPA Filter, Pre-filter
◉ Standard Certification: CE, RoHs, EN1822
◉ Optional Certification: UL, SEMI
◉ Optional Filter: ULPA Filter, Pre-filter
EC Motor FFU Standard Type | ||||||||||||
Item / Model | SD420S | SD220S | SD430S | SD525 | SD440S | |||||||
External Dimension (mm) | W D H | 1175 575 350 | 575 575 350 | 1173 873 350 | 1473 723 350 | 1175 1175 350 | ||||||
Body Construction | SUS 430 / AL-Zn | |||||||||||
HEPA Filter | Size (mm) | 1170*570*50 | 570x570x50 | 1170*870*50 | 1470*720*50 | 1170*1170*50 | ||||||
Feature | Aluminum frame, Filtration efficiency 99.99 at 0.3um (Optional: ULPA Filter) | |||||||||||
ESP (Pa) | 160 | |||||||||||
Air Velocity (m/s) | 0.35 ~ 0.5 | |||||||||||
Air Volume (cmm) | 15 ~ 20 | 7 ~ 10 | 23 ~ 30 | 23 ~ 30 | 30 ~ 40 | |||||||
Noise Level (dB) | 52 ~ 59 | 50 ~ 57 | 50 ~ 58 | 50 ~ 58 | 55 ~ 60 | |||||||
Current (A) | 0.43 ~ 0.55 | 0.30 ~ 0.34 | 0.64 ~ 0.84 | 0.66 ~ 0.89 | 0.87 ~ 1.05 | |||||||
Power Consumption (W) | 89 ~ 115 | 65 ~ 75 | 140 ~ 170 | 140 ~ 170 | 180 ~ 235 | |||||||
Power Supply | AC 1Ø 220V 50/60Hz | |||||||||||
Motor | EC brushless frequency converter motor | |||||||||||
Total Weight (kg) | 26 | 18 | 31.5 | 34 | 43.5 | |||||||
EC Motor FFU Super Thin Type | ||||||||||||
Item / Model | MS-SD220S | MS-SD320S | MS-SD420S | MS-SD430S | MS-SD440S | |||||||
External Dimension (mm) | W D H | 573 573 180 | 918 573 180 | 1173 573 180 | 1173 873 180 | 1173 1173 180 | ||||||
Body Construction | SUS 430 / AL-Zn | |||||||||||
HEPA Filter | Size (mm) | 570*570*50 | 915*570*50 | 1170*570*50 | 1170*870*50 | 1170*1170*50 | ||||||
Feature | Aluminum frame, Filtration efficiency 99.99 at 0.3um (Optional: ULPA Filter) | |||||||||||
ESP (Pa) | 160 | |||||||||||
Air Velocity (m/s) | 0.35 ~ 0.5 | |||||||||||
Air Volume (cmm) | 7 ~ 10 | 12 ~ 16 | 15 ~ 20 | 23 ~ 30 | 30 ~ 40 | |||||||
Power Consumption (W) | 60 ~ 70 | 80 ~ 100 | 95 ~ 140 | 160 ~ 190 | 190 ~ 280 | |||||||
Power Supply | AC 1Ø 220V 50/60Hz | |||||||||||
Motor | EC brushless frequency converter motor | |||||||||||
Total Weight (kg) | 14 | 16 | 18 | 31 | 35.5 | |||||||
FFU FOR EQUIPMENT
◉ Energy-saving EC brushless frequency converter motor with a low noise level
(compared to AC motor)
(compared to AC motor)
◉ Can be customized to meet customers' air filtration requirements
◉ Standard Certification: CE, RoHs, EN1822
◉ Optional Certification: UL, SEMI
◉ Optional Filter: ULPA Filter, Pre-filter
◉ Standard Certification: CE, RoHs, EN1822
◉ Optional Certification: UL, SEMI
◉ Optional Filter: ULPA Filter, Pre-filter
EC Motor FFU Standard Type | ||||||||||
Item / Model | SD420Si | SD430Si | SD525i | SD440Si | ||||||
External Dimension (mm) | W D H | 1175 575 350 | 1173 873 350 | 1473 723 350 | 1175 1175 350 | |||||
Body Construction | SUS 430 / SUS 304 | |||||||||
HEPA Filter | Size (mm) | 1170*570*50 | 1170*870*50 | 1470*720*50 | 1170*1170*50 | |||||
Feature | Aluminum frame, Filtration efficiency 99.99 at 0.3um (Optional: ULPA Filter) | |||||||||
Air Velocity (m/s) | 0.35 ~ 0.5 | |||||||||
Air Volume (cmm) | 15 ~ 20 | 23 ~ 30 | 23 ~ 30 | 30 ~ 40 | ||||||
Current (A) | 0.28 ~ 0.44 | 0.37 ~ 0.66 | 0.37 ~ 0.66 | 0.59 ~ 0.98 | ||||||
Power Consumption (W) | 60 ~ 195 | 80 ~ 145 | 80 ~ 145 | 115 ~ 210 | ||||||
Power Supply | AC 1Ø 220V 50/60Hz | |||||||||
Motor | EC brushless frequency converter motor | |||||||||
Total Weight (kg) | 28 | 33.5 | 36 | 45.5 | ||||||
EC Motor FFU Thin Type | ||||||||||||
Item / Model | M-SD220Si | M-SD320Si | M-SD420Si | M-SD430Si | M-SD440Si | |||||||
External Dimension (mm) | W D H | 573 573 200 | 918 573 200 | 1173 573 200 | 1173 873 200 | 1173 1173 200 | ||||||
Body Construction | SUS 430 / SUS 304 | |||||||||||
HEPA Filter | Size (mm) | 570*570*50 | 915*570*50 | 1170*570*50 | 1170*870*50 | 1170*1170*50 | ||||||
Feature | Aluminum frame, Filtration efficiency 99.99 at 0.3um (Optional: ULPA Filter) | |||||||||||
Air Velocity (m/s) | 0.35 ~ 0.5 | |||||||||||
Air Volume (cmm) | 7 ~ 10 | 12 ~ 16 | 15 ~ 20 | 23 ~ 30 | 30 ~ 40 | |||||||
Power Consumption (W) | 45 ~ 60 | 60 ~ 90 | 80 ~ 120 | 100 ~ 170 | 150 ~ 240 | |||||||
Power Supply | AC 1Ø 220V 50/60Hz | |||||||||||
Motor | EC brushless frequency converter motor | |||||||||||
Total Weight (kg) | 16 | 18 | 20 | 35 | 39.5 | |||||||

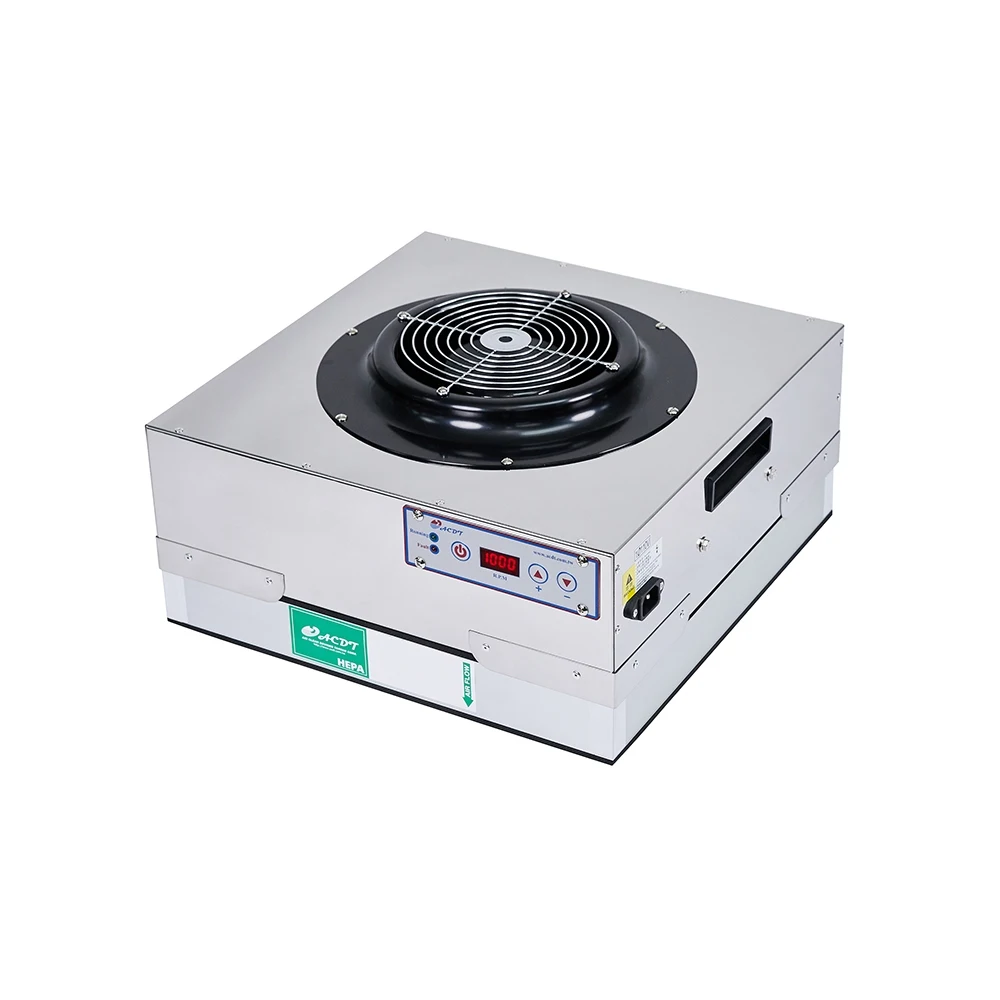

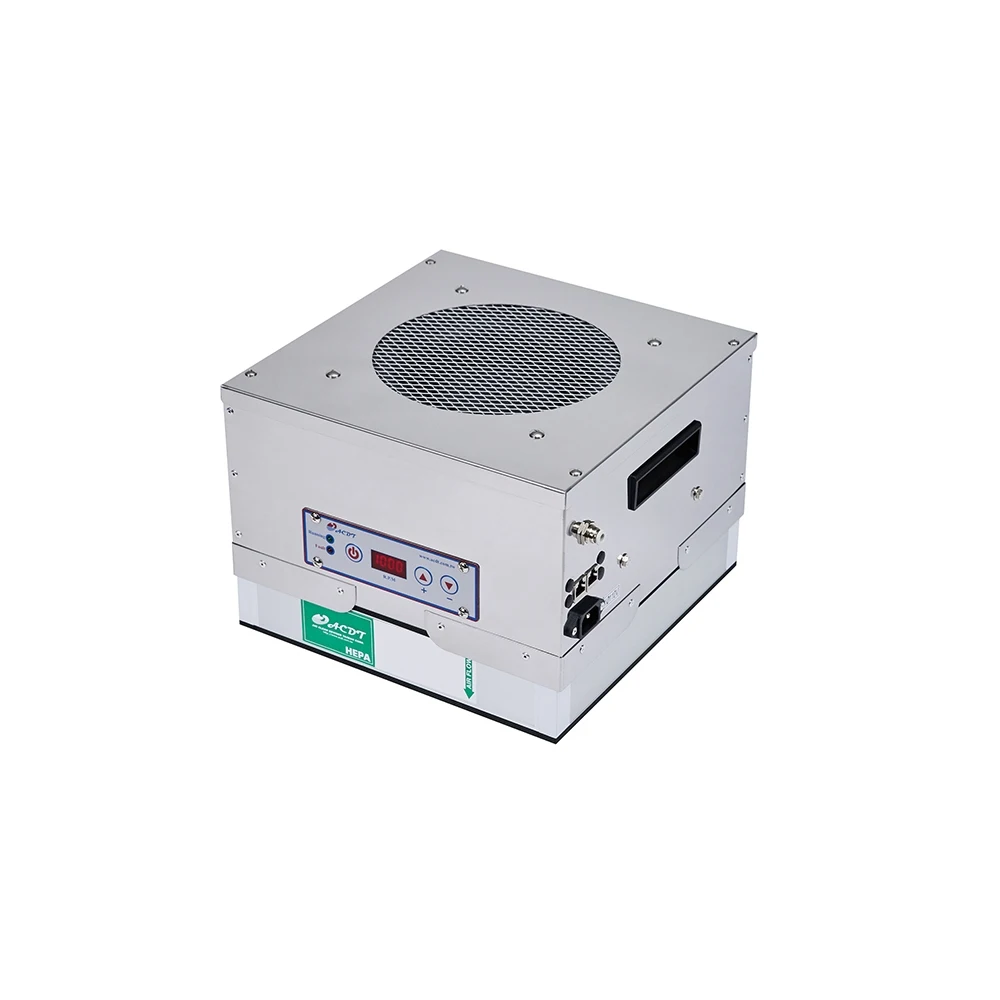

EC Motor FFU MAC Type | ||||||||
Item / Model | MAC-SD3i | MAC-SD5i | MAC-SD7i | |||||
External Dimension (mm) | W D H | 303 303 220 | 403 403 210 | 503 503 210 | ||||
Body Construction | SUS 430 / SUS 304 | |||||||
HEPA Filter | Size (mm) | 300*300*50 | 400*400*50 | 500*500*50 | ||||
Feature | Aluminum frame, Filtration efficiency 99.99 at 0.3um (Optional: ULPA Filter) | |||||||
Air Velocity (m/s) | 0.5 | |||||||
Air Volume (cmm) | 3 | 5 | 7 | |||||
Power Consumption (W) | 38 | 45 | 53 | |||||
Power Supply | AC 1Ø 220V 50/60Hz | |||||||
Motor | EC brushless frequency converter motor | |||||||
Total Weight (kg) | 9 | 10 | 12 | |||||
EC Motor FFU Large Air Volume Type | ||||||||||
Item / Model | B-SD420S | B-SD430S | B-SD525 | B-SD440S | ||||||
External Dimension (mm) | W D H | 1175 575 350 | 1173 873 350 | 1473 723 350 | 1175 1175 350 | |||||
Body Construction | SUS 430 / SUS 304 | |||||||||
HEPA Filter | Size (mm) | 1170*570*50 | 1170*870*50 | 1470*720*50 | 1170*1170*50 | |||||
Feature | Aluminum frame, Filtration efficiency 99.99 at 0.3um (Optional: ULPA Filter) | |||||||||
Air Velocity (m/s) | 0.35 ~ 0.90 | 0.38 ~ 0.90 | 0.38 ~ 0.90 | 0.35 ~ 0.80 | ||||||
Air Volume (cmm) | 15 ~ 36 | 23 ~ 55 | 23 ~ 55 | 31 ~ 66 | ||||||
Current (A) | 0.41 ~ 1.32 | 0.50 ~ 1.91 | 0.50 ~ 1.91 | 0.59 ~ 2.00 | ||||||
Power Consumption (W) | 90 ~ 290 | 100 ~ 420 | 100 ~ 420 | 130 ~ 440 | ||||||
Power Supply | AC 1Ø 220V 50/60Hz | |||||||||
Motor | EC brushless frequency converter motor | |||||||||
Total Weight (kg) | 33 | 41 | 44 | 50 | ||||||

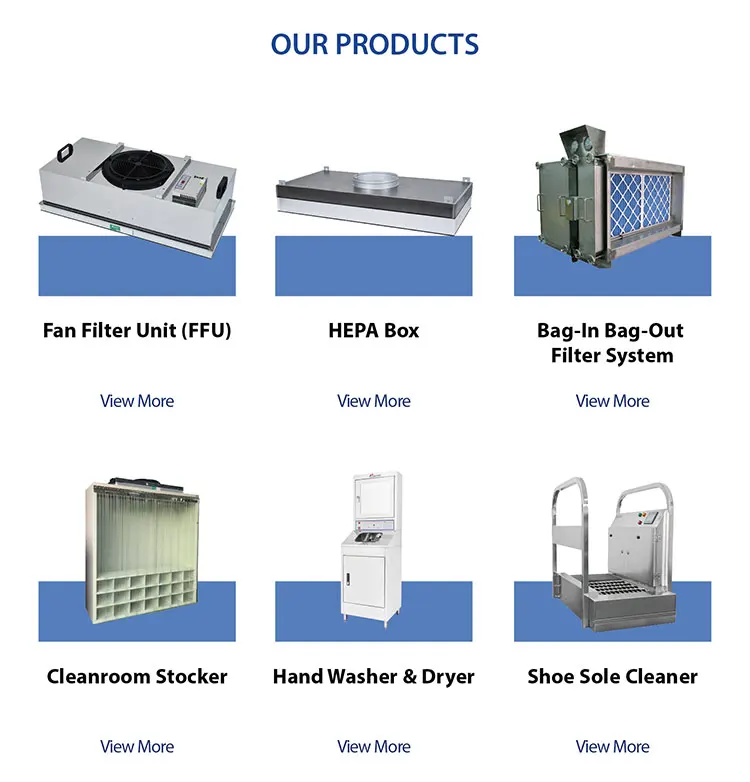

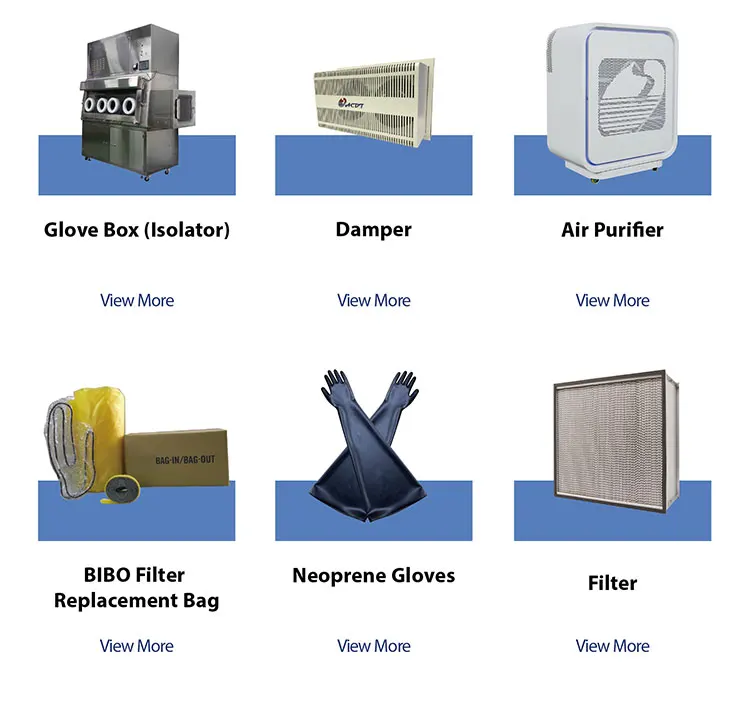

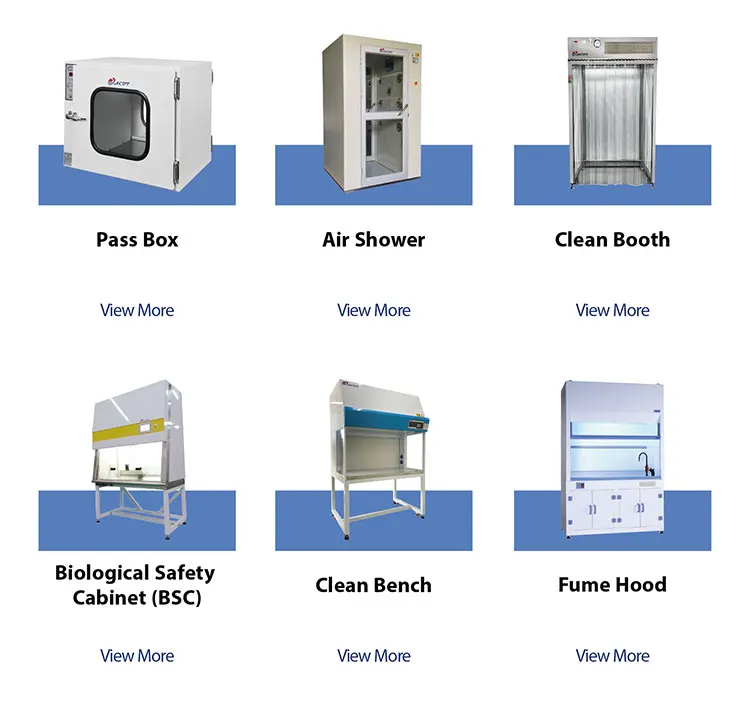

Our Products
Company Profile
About Us
Air Clean Deviser Taiwan Corp. is a professional designer & manufacturer of cleanroom equipment.
Our services include product & project engineering design, consultant & inquiries, project planning & management, and professional cleanroom equipment & facilities manufacturing.
We have clients from all industries, such as IC Electronics, TFT Institutes, IAQ Environmental, Auto Packing & Material Handling Equipment, Biological, Biochemical, Biotechnology, Food, Optics, Medical & Pharmaceuticals, and Laboratories.
The motto of ACDT is to serve with the best quality and guarantee every employee carries it out.
Our services include product & project engineering design, consultant & inquiries, project planning & management, and professional cleanroom equipment & facilities manufacturing.
We have clients from all industries, such as IC Electronics, TFT Institutes, IAQ Environmental, Auto Packing & Material Handling Equipment, Biological, Biochemical, Biotechnology, Food, Optics, Medical & Pharmaceuticals, and Laboratories.
The motto of ACDT is to serve with the best quality and guarantee every employee carries it out.

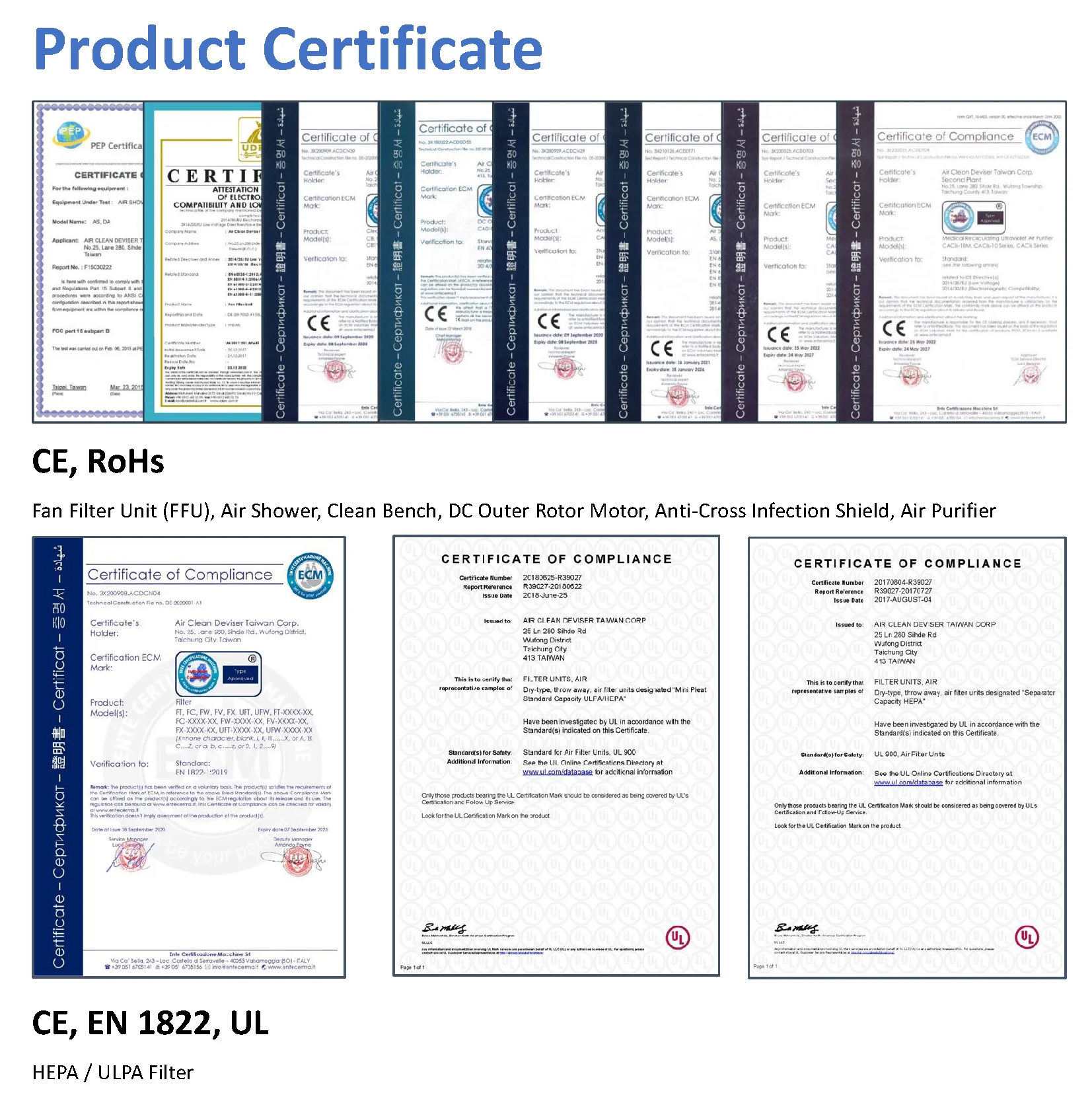

Certificate
Manufacturing license of the medical devices
License No. QMS2094
In order to get the manufacturing license, our company has passed the inspection against the Medical Device Quality Management
System Regulations.
QMS, Quality Management System also known as GMP.
It is to ensure our device is able to be consistently produced and controlled by the proper quality standards.
We are the only Taiwan company in our industry to pass the QMS inspection.
In order to get the manufacturing license, our company has passed the inspection against the Medical Device Quality Management
System Regulations.
QMS, Quality Management System also known as GMP.
It is to ensure our device is able to be consistently produced and controlled by the proper quality standards.
We are the only Taiwan company in our industry to pass the QMS inspection.

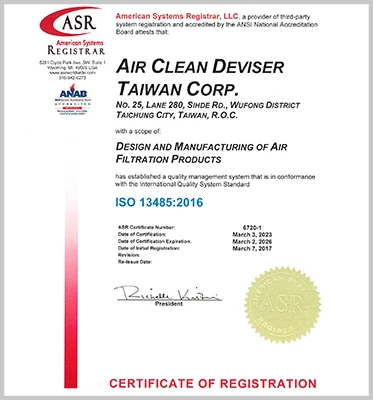

ISO 13485: 2016
ISO 13485 is an international standard that specifies requirements for quality management systems for manufacturers.
The purpose is to ensure the we can provide high standards of quality assurance and product safety for our products and services,
increase consumer trust and loyalty, and enhance corporate image and market competitiveness.
Less than 1% of Taiwan companies in our industry register.
The purpose is to ensure the we can provide high standards of quality assurance and product safety for our products and services,
increase consumer trust and loyalty, and enhance corporate image and market competitiveness.
Less than 1% of Taiwan companies in our industry register.
ISO 9001: 2015
ISO 9001 is an international standard that specifies requirements for quality management system.
This standard helps us to provide products and services with consistent quality.
This standard helps us to provide products and services with consistent quality.

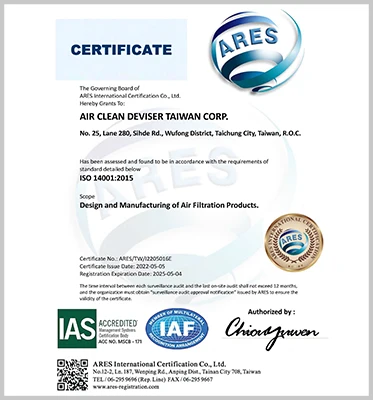

ISO 14001: 2015
ISO 14001 is an international standard that focuses on how businesses and organizations manage their environmental impacts.
The standard provides a framework for establishing an effective Environmental Management System (EMS) to help us achieving
environmental objectives and reduce the impact on the environment.
The standard provides a framework for establishing an effective Environmental Management System (EMS) to help us achieving
environmental objectives and reduce the impact on the environment.
UL 507
UL 507 is a standard issued by Underwriters Laboratories for electric fans and electric fan accessories.
Our FFU is a critical product widely used in cleanroom environments, such as medical, semiconductor, and other high-purity
applications.
By achieving this certification, our FFU proves that it meets the strictest safety and performance requirements, providing
customers with higher quality and more reliable products.
Our customers can confidently use our product, knowing that it meets the highest safety and performance standards.
Our FFU is a critical product widely used in cleanroom environments, such as medical, semiconductor, and other high-purity
applications.
By achieving this certification, our FFU proves that it meets the strictest safety and performance requirements, providing
customers with higher quality and more reliable products.
Our customers can confidently use our product, knowing that it meets the highest safety and performance standards.

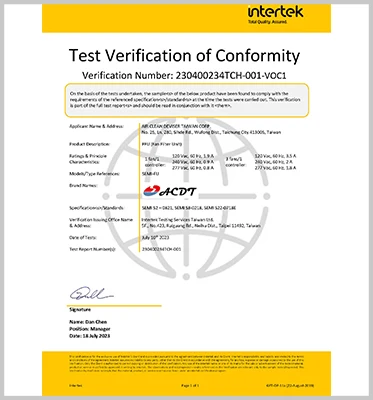

SEMI
The SEMI Standard is internationally used in aspects of semiconductor, photovoltaic (PV), LED, MEMS, and flat panel display (FPD) manufacturing industries. By achieving this standard, it ensures our reliability and productivity.
SEMI S8 - Safety Guideline for Ergonomics Engineering of Semiconductor Manufacturing Equipment
SEMI S22 - Safety Guideline for the Electrical Design of Semiconductor Manufacturing Equipment

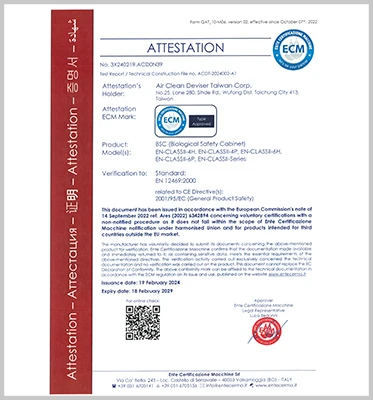

EN 12469
In laboratories, safety is very important. EN 12469 is an international standard to ensure our equipment meet the safety regulations. This standard makes sure that our Biological Safety Cabinets provide a safe and controlled environment for working with dangerous biological agents.

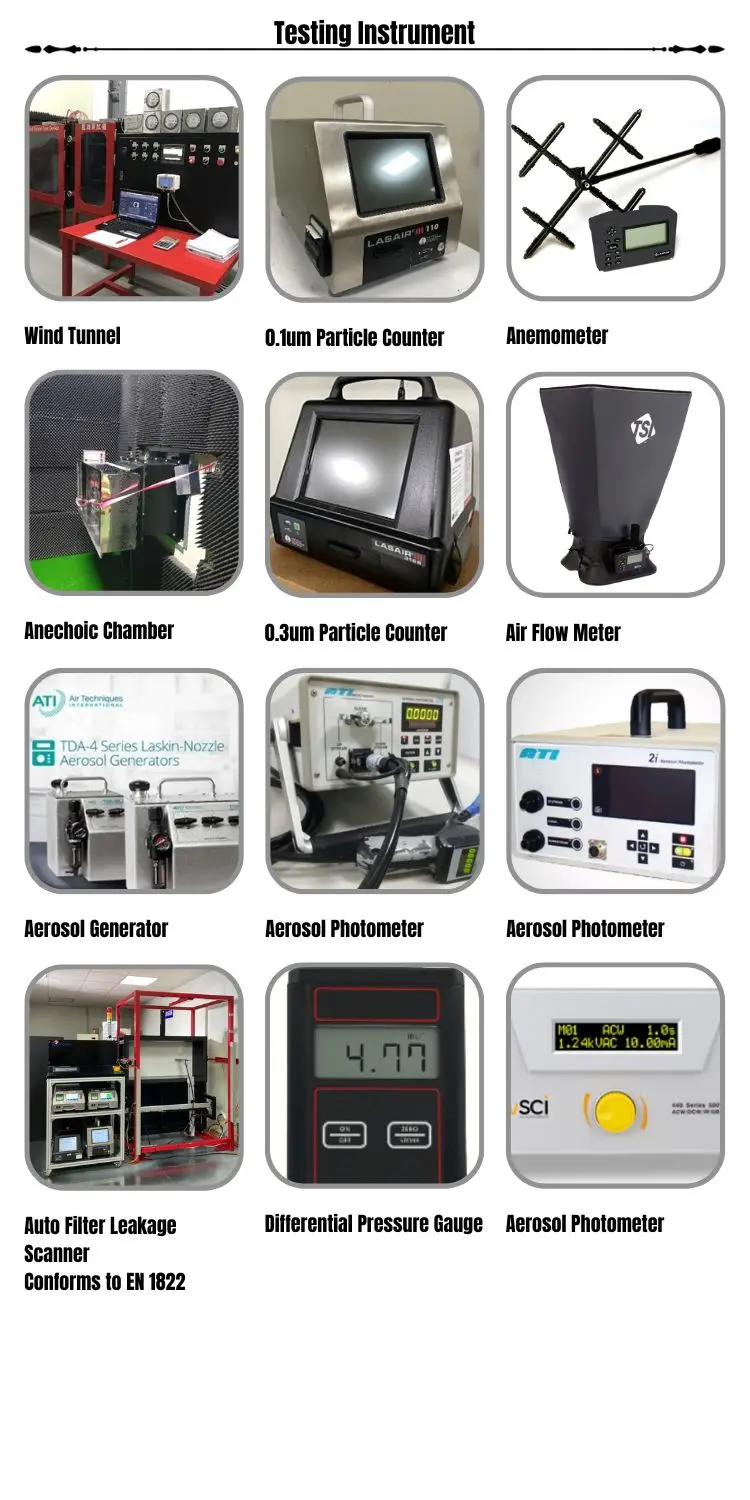

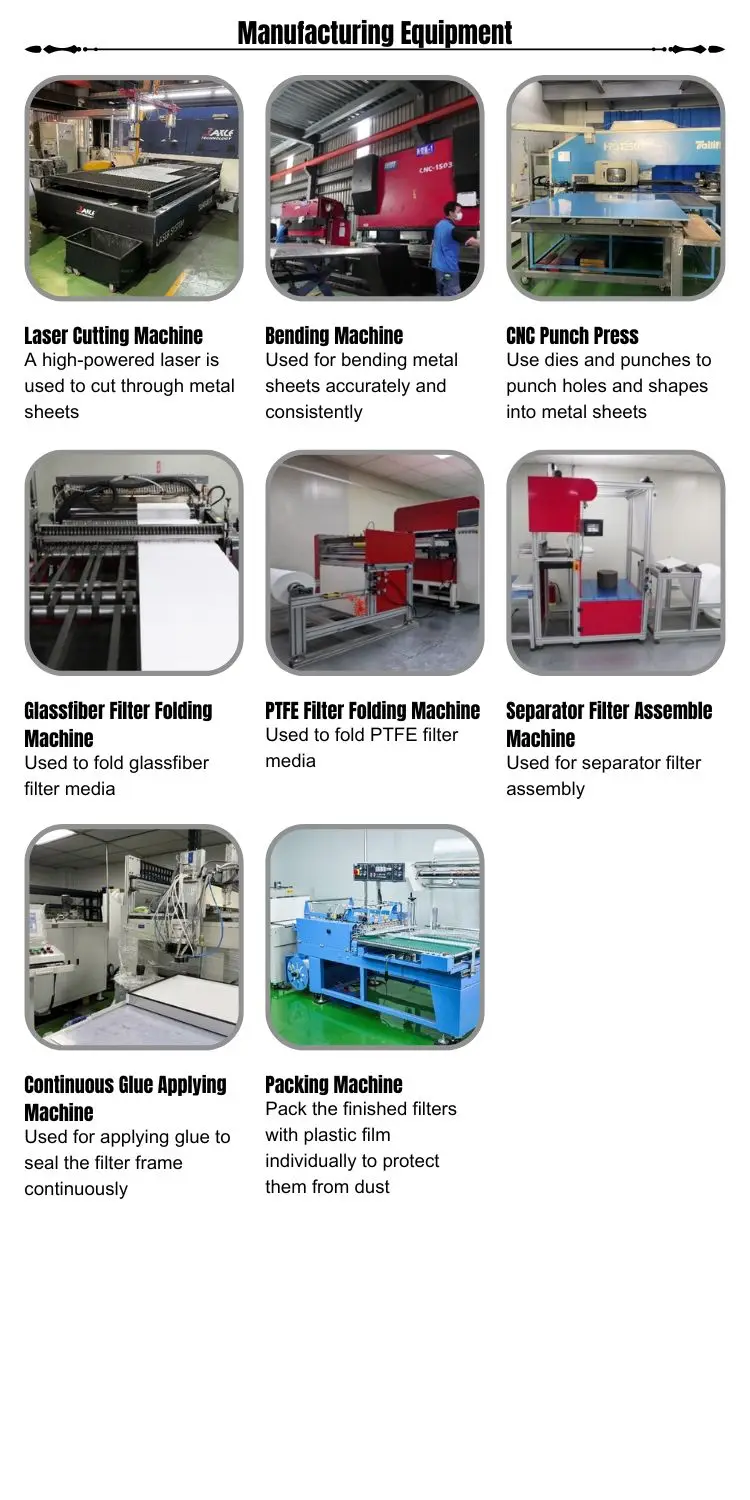

Equipment & Technique
