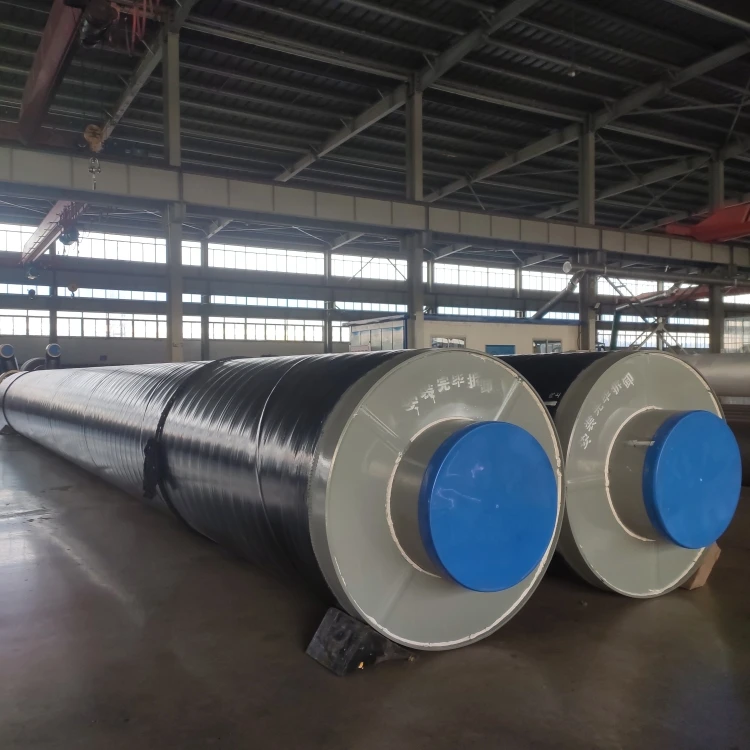

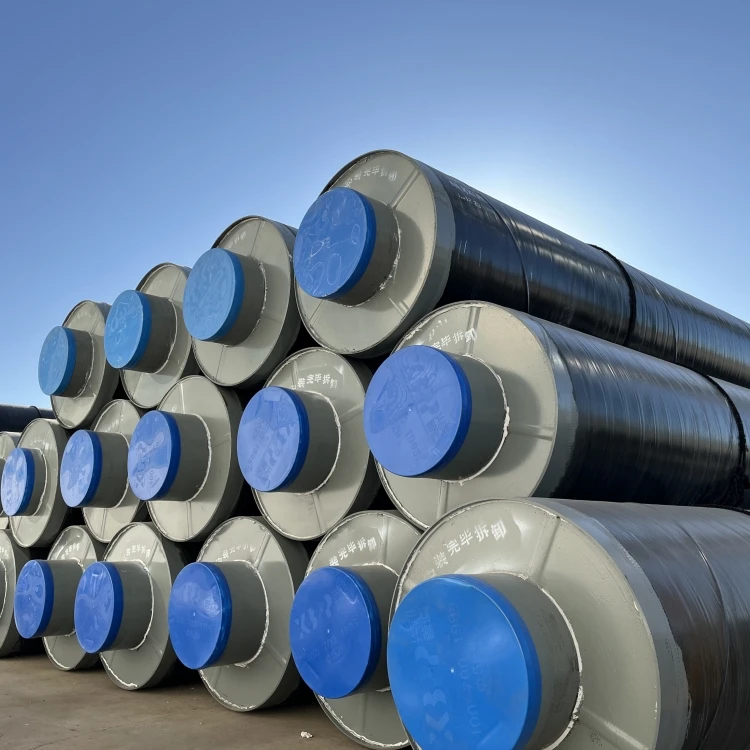

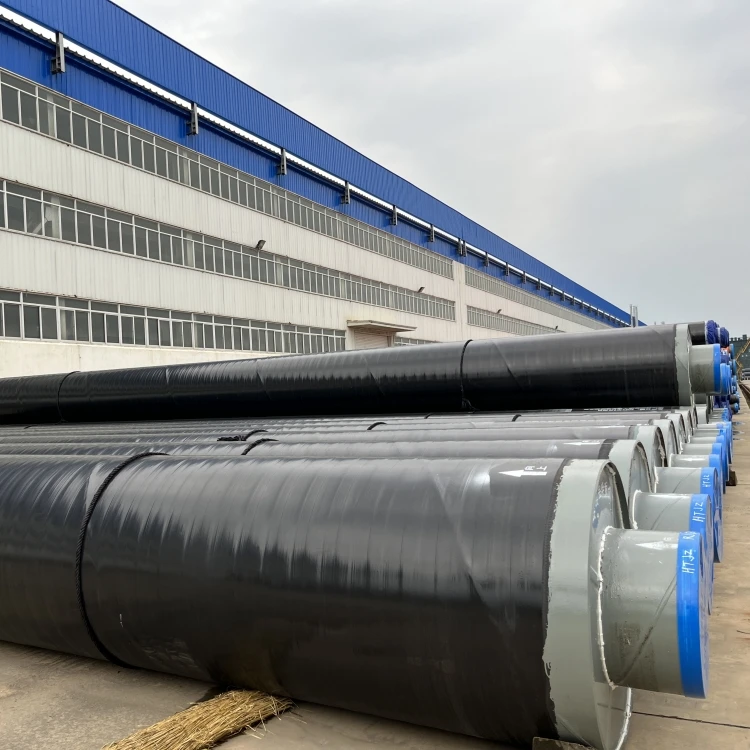

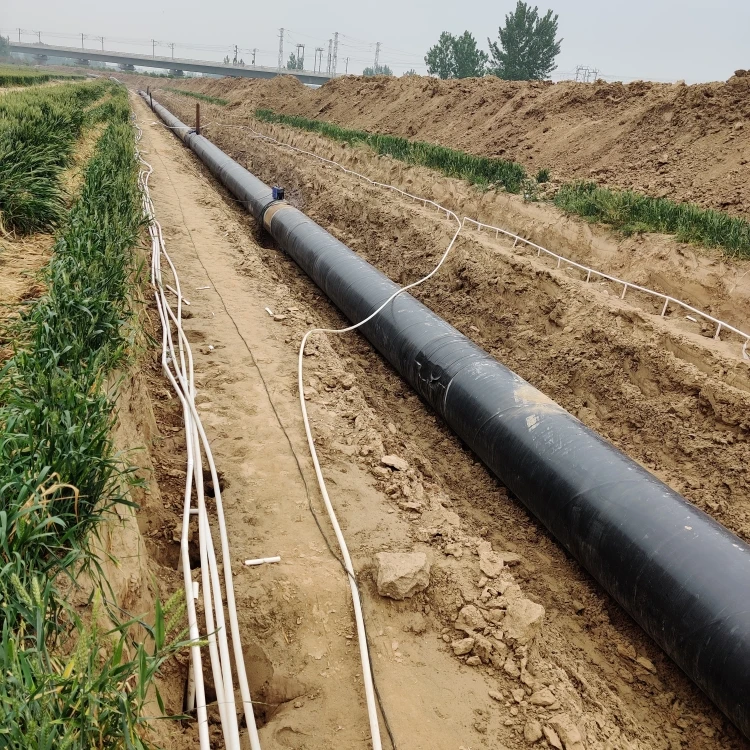

API 5L steel jacketed metal clad steam glass wool thermal insulation spiral steel pipe for high temperature medium supply
- Category: >>>
- Supplier: Tangshan Xingbang Pipeline Engineering Equipment Co. Ltd.
Share on (1601222718436):
Product Overview
Description
Products Description
Structure | Steel pipe-- insulation layer--steel jacket pipe |
Pre-insulated pipe standard | 1. CJ/T200-2004 2. CJ/T246-2007 3. CJ/T104-2014 |
Steel pipe standard and material | 1. GB 20#, Q235B 2. ASTM A53 GrB 3. API Spec 5L 16Mn, X42-X80 |
Steel pipe process | 1. Seamless, 2. Spiral steel pipe( SAW) 3. Straight steel pipe(ERW) |

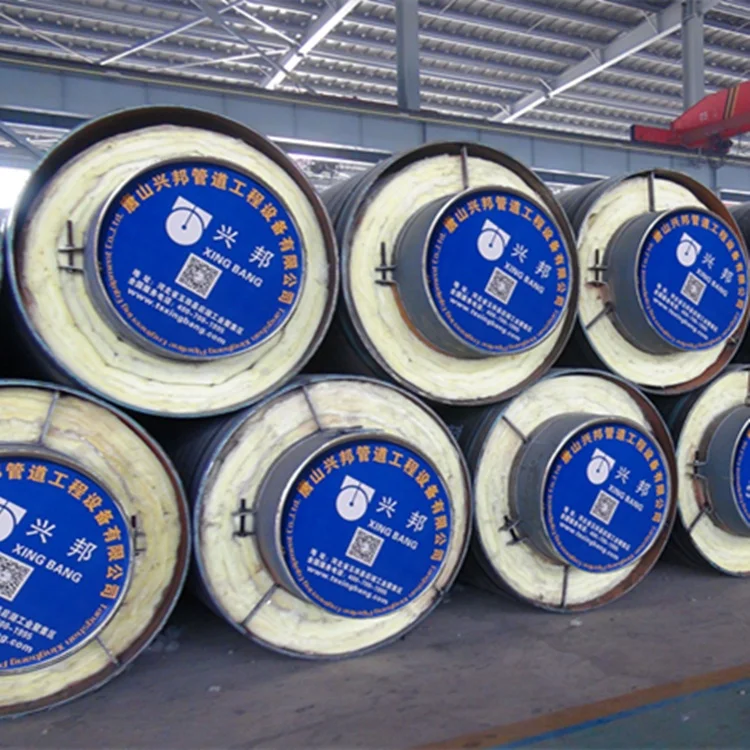

Insulation layer of external sliding type | Fiberglass wool or rock wool |
Insulation layer of internal sliding type | 1. Calcium silicate insulation material 2. Polyurethane insulation material |
Application | 1. Steam 2. Hot oil 3. Hot material |
Laying mode | Mainly used for direct buried, and can be used in trenches. |
Specification | DN57-1020mm(1 inch-64 inch) |
Medium temperature | 150-350℃ |
Medium pressure | Less than 2.5MPa |
Advantages | 1. The heat-insulating material has the advantages of light, durability, excellent heat preservation performance, low heat consumption and maximum utilization of heat energy. 2. Vacuum extraction technology can be used to effectively prevent the corrosion of internal and external steel pipes. 3. Special material heat insulation is adopted between the sliding bracket and the steel pipe to effectively solve the heat bridge problem in the pipe network, and the heat loss of the pipeline is reduced |
Related products | 1. Joint materials(steel sleeve, insulation material) 2. Fittings（tee, elbow, reducer,adapter） |
Main Technical Parameter of High Temperature Resistant Glass wool | ||||
Item | Unit | Index | ||
Density | kg/m3 | ≥48 | ||
Average diameter of fiber | mm | ≤8 | ||
Shot content | % | ≥ 0.3 | ||
Water content | % | <1 | ||
Moisture rate | % | ≤2 | ||
Thermal conductivity | W/M.k | ≥ 0.043 | ||
Max working temperature | ℃ | 454 | ||
Related Products
Engineering case
Steam pipeline for underground
Location: Korea
Project demand: 350℃，2.5MPa
Service life: 30 years
Quantity:5864 Meters
Crude oil transportation project
Location: African Congo
Diameter: DN65-350MM
Project demand: anticorrosive
Service life: 30 years
Quantity:1450 Meters
Quantity:1450 Meters
District cooling project
Location: Chilean Santiago Airport
Diameter: DN50-600MM
Project demand: 10℃，1.6MPa
Service life: 30 years
Quantity: 5602Meters
Project demand: 10℃，1.6MPa
Service life: 30 years
Quantity: 5602Meters
Oil transportation project
Location: Uganda
Diameter: DN65-450MM
Project demand: 60℃，1.6MPa
Service life: 30 years
Quantity: 50000Meters
Project demand: 60℃，1.6MPa
Service life: 30 years
Quantity: 50000Meters
Chemical material transportation
Location: Korea
Diameter: DN168MM
Project demand: 65℃，smooth inner wall
Quantity: 1600Meters
Project demand: 65℃，smooth inner wall
Quantity: 1600Meters
District cooling project
Location: Cambodia
Project demand: 10℃，1.6MPa
Service life:30 years
Quantity: 3692Meters
Quantity: 3692Meters

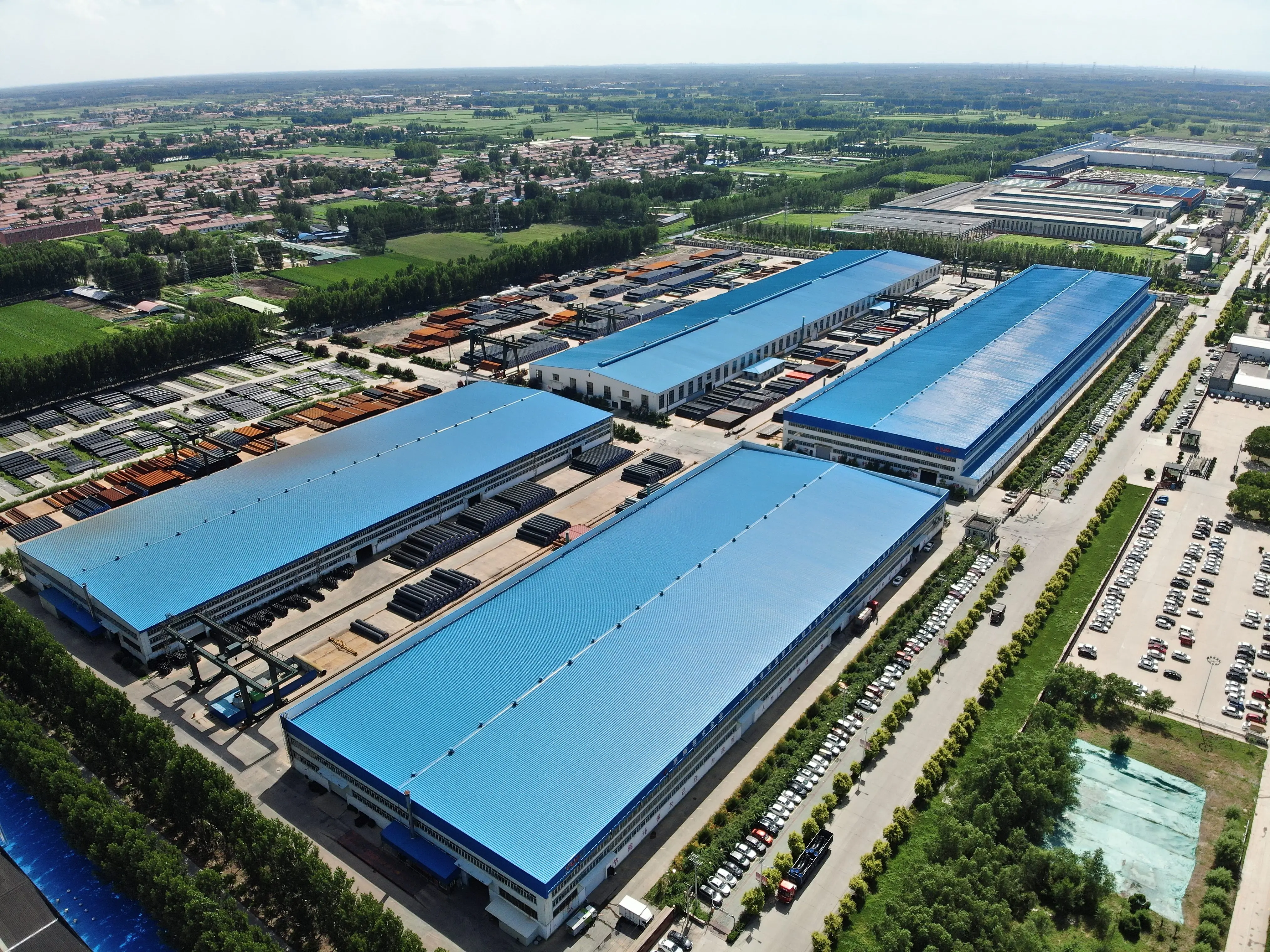

Company Introduction
Tangshan Xingbang Pipeline Engineering Equipment Co., Ltd. is located in Yutian County, Tangshan City, Hebei Province. The company was founded in January 1995, with a registered capital of 190 million yuan and a total area of 230000 square meters.
Xingbang Company is a professional provider of pipeline insulation and anti-corrosion coating solutions. We have developed and produced over 300 different products, such as anti-corrosion pipes, pre insulation pipes, steam insulation pipes and intelligent monitoring systems. Our products are widely used in various fields including central heating, central cooling, petroleum, chemical, LNG, gas, water conservancy, etc.
Xingbang Company is a professional provider of pipeline insulation and anti-corrosion coating solutions. We have developed and produced over 300 different products, such as anti-corrosion pipes, pre insulation pipes, steam insulation pipes and intelligent monitoring systems. Our products are widely used in various fields including central heating, central cooling, petroleum, chemical, LNG, gas, water conservancy, etc.

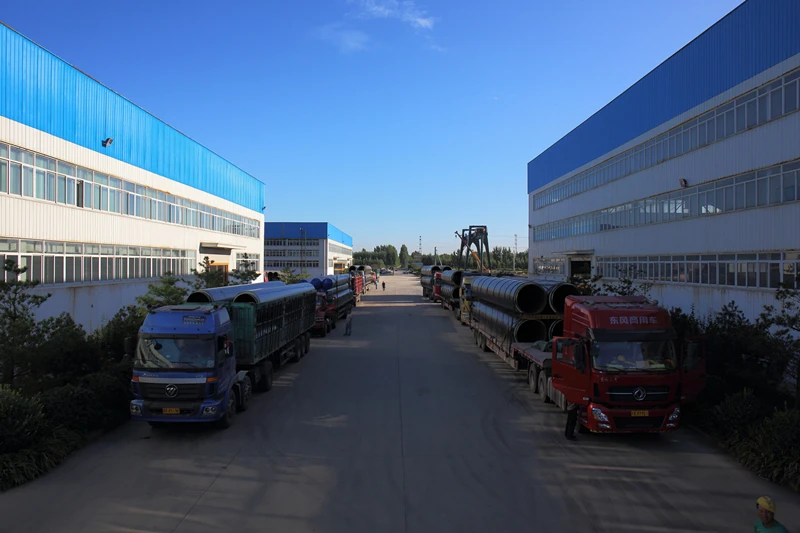

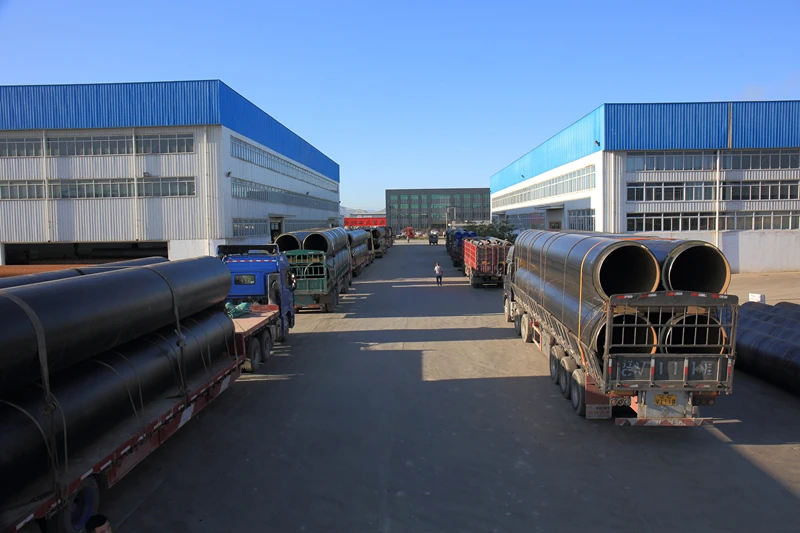

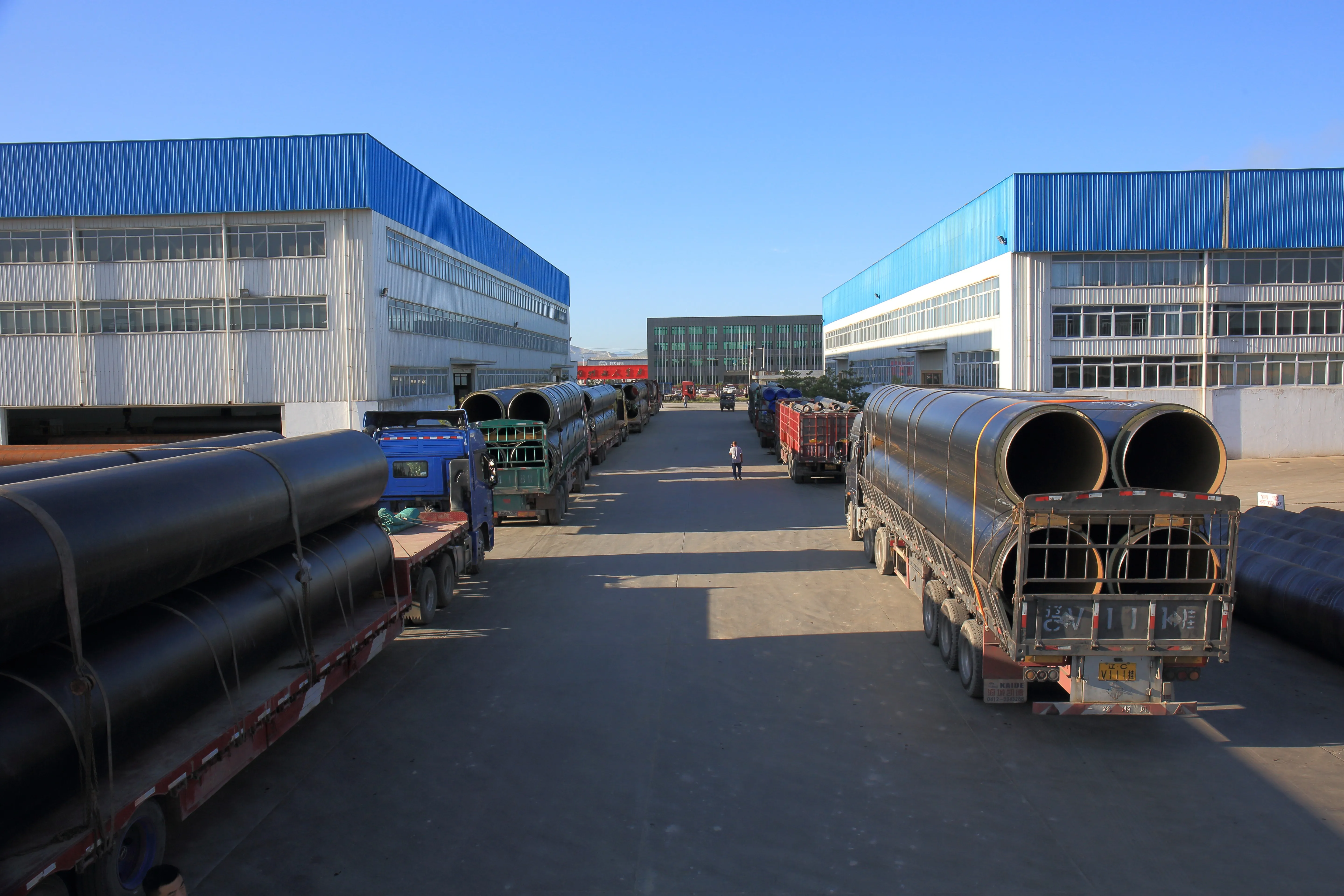

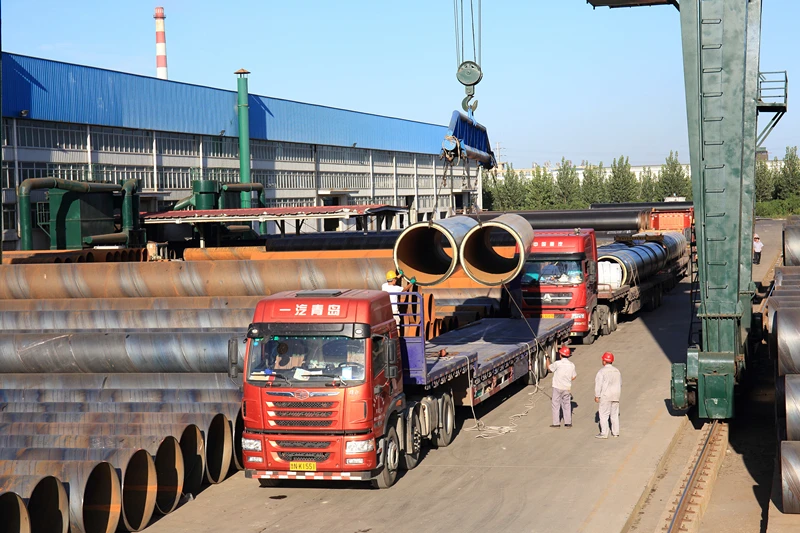

Transportation
Speedy Efficiency Rigorous Flexible
We have our own logistics team we have our own loading and unloading team
Exhibition
Our Team
Spirit: Harding working and enterprising as well as harmonious and innovative.
Goal: Prosperity of our industry, maintaining a high standard of integrity
FAQ
1: Are you a manufacturer or a trading company?
We are a insulation and anti-corrosive manufacturer which has more than 28 years' history.
We are a insulation and anti-corrosive manufacturer which has more than 28 years' history.
Lcated in Yutian industry Zone,Tangshan City, Hebei Province, China.
100KM from Beijing Airport;
110KM from Tianjin Airport;
125KM from Tianjin seaport.
2: How do you control the products' quality?
a. Use good-qualityauxiliary materials
b. Establishing and perfecting supplier examination mechanism.
c. Effectively controls the product quality by implementing the verification method of the "three-inspection system"
d. Chinese people's insurance insured products
3: Can I customize some other sizes of products?
Yes! We can produce according to the customer's request.
100KM from Beijing Airport;
110KM from Tianjin Airport;
125KM from Tianjin seaport.
2: How do you control the products' quality?
a. Use good-qualityauxiliary materials
b. Establishing and perfecting supplier examination mechanism.
c. Effectively controls the product quality by implementing the verification method of the "three-inspection system"
d. Chinese people's insurance insured products
3: Can I customize some other sizes of products?
Yes! We can produce according to the customer's request.
We provide OEM/ODM.
4:Can we get a sample? how to pay?
If you need some samples to test, we can make as per your request .You should pay for the transportation freight of samples and our samples cost, while the samples cost can be refundable after you place the order if the amount meets our requirement.
4:Can we get a sample? how to pay?
If you need some samples to test, we can make as per your request .You should pay for the transportation freight of samples and our samples cost, while the samples cost can be refundable after you place the order if the amount meets our requirement.
