BTE Non Pressurirzed Evacuated Tubes Solar Water Heater for Home and Project
- Category: >>>
- Supplier: Dezhou Bte Solar Co. Ltd.
Share on (1601222760818):
Product Overview
Description
Product Overview

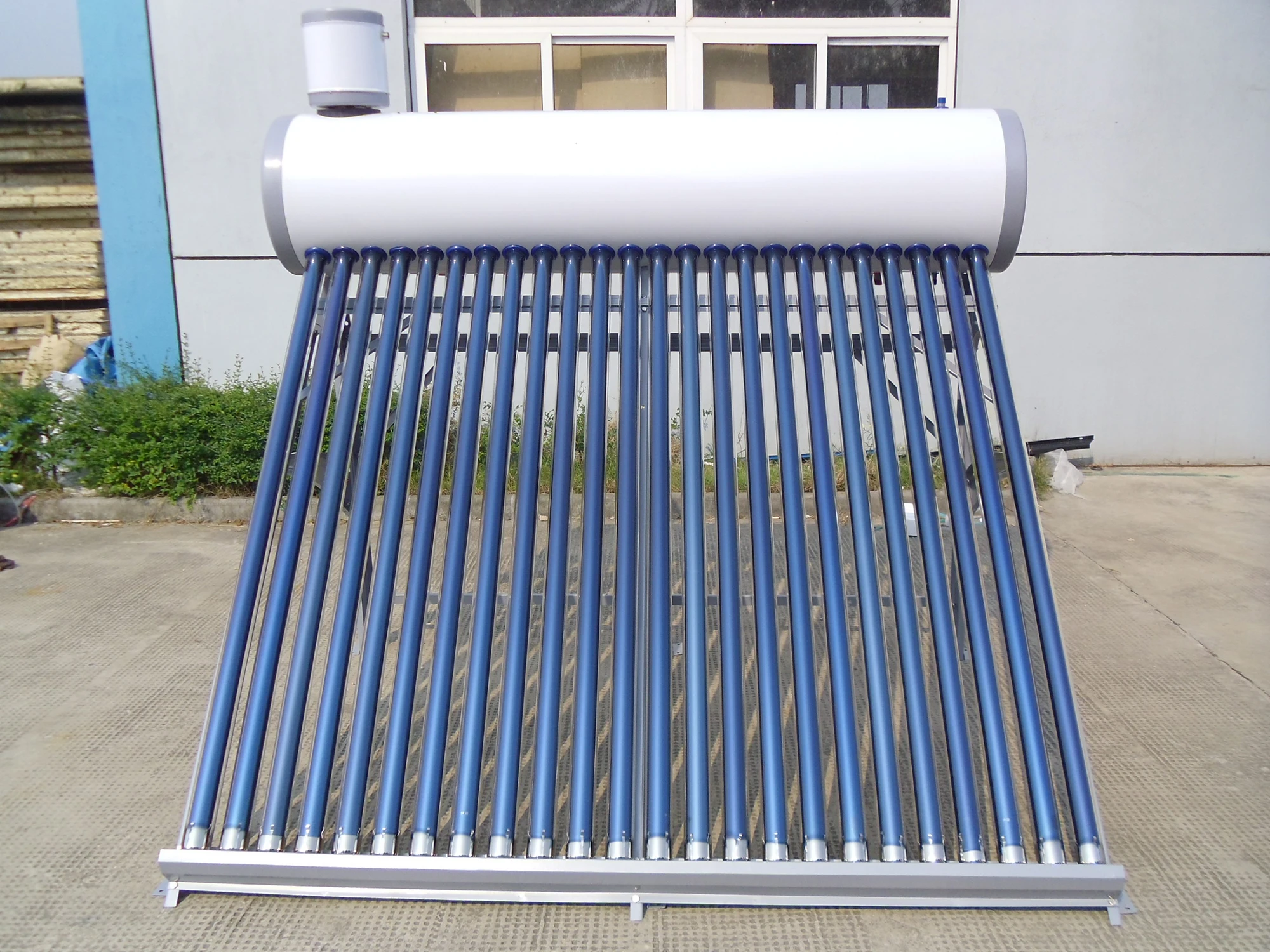

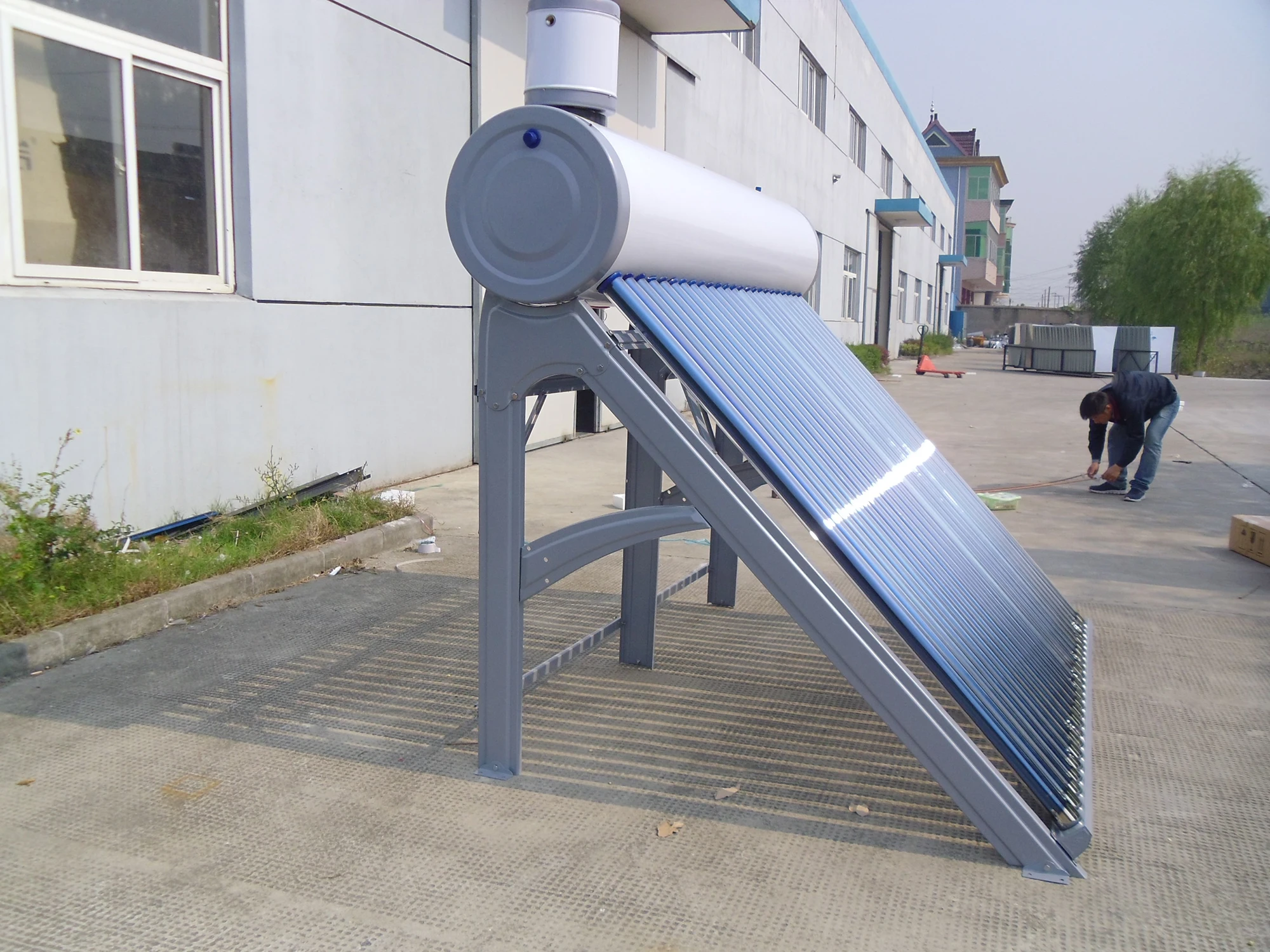

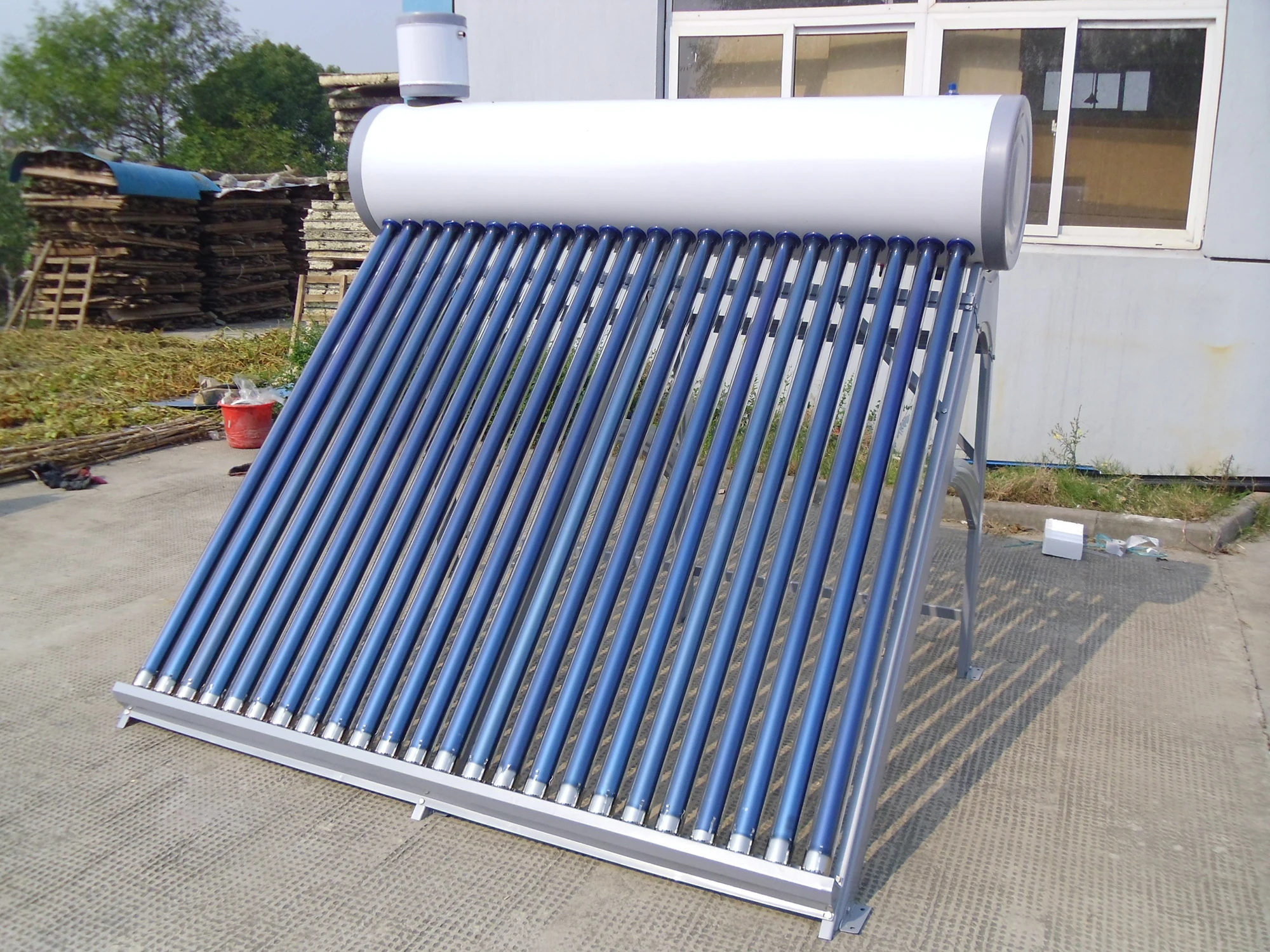

Non Pressurirzed Evacuated Tubes Solar Water Heater
Evacuated Tube Collector (ETC) acts as an absorber in the solar water heater. Each evacuated tube consists of two glass tubes having vacuum in between which is an excellent insulator.

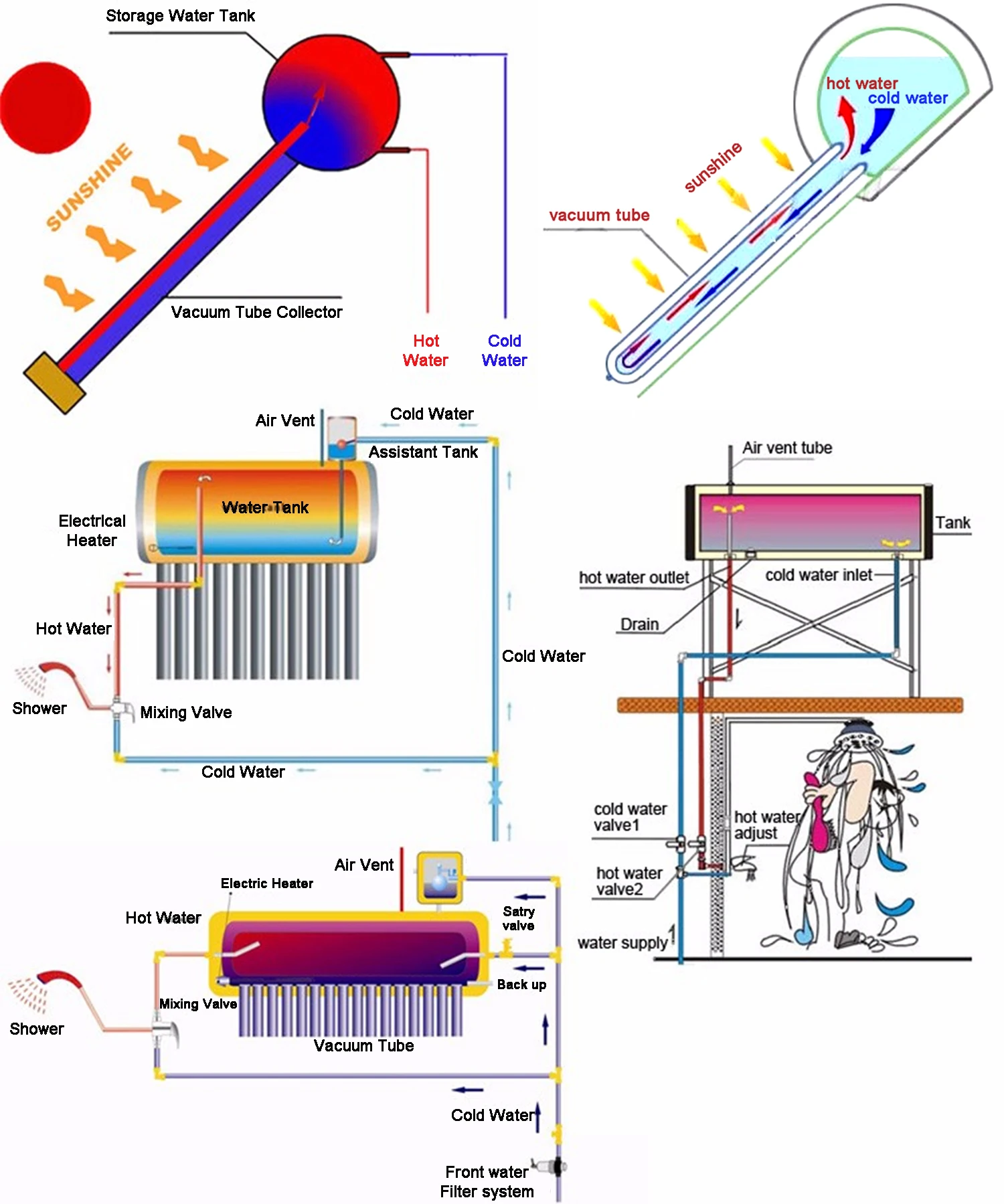

The incident solar radiation falling on the tube passes through the outer transparent tube and strikes the outer of inner tube. It absorbs heat energy and then passes to the cold water flowing in the tube.
An evacuated tube technology based solar water heating system is most energy efficient and cost effective. Suitable for domestic use. Polyurethane insulation water tank for hot water storage up to 72 hours.
Stainless Steel inner tank for longer system life. Triple layer coated vacuum tubes for higher efficiency.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model1 | BTE5818-12 | BTE5818-16 | BTE5818-20 | BTE5818-25 | BTE5818-30 | ||||
Model2 with Floating tank | BTF5818-12 | BTF5818-16 | BTF5818-20 | BTF5818-25 | BTF5818-30 | ||||
Absorbing area(m2) | 1.66 | 2.21 | 2.76 | 2.76 | 2.76 | ||||
Tank capacity | 120L | 150L | 200L | 250L | 300L | ||||
Vacuum tube | 58*1800mm/three layer film/5.2x10-4Pa/thickness of glass 1.6mm | ||||||||
Tube quantity PCS | 12 | 16 | 20 | 25 | 30 | ||||
Inner tank | Stainless steel SUS304/316L | ||||||||
Outer tank | Hot galvanized Plate/Stainless steel | ||||||||
Insulation | Polyurethane/Thickness50mm-62.5mm | ||||||||
Support | Hot galvanized Plate/Stainless steel/Aluminum | ||||||||
Tilt angle | 21°/27°/33°/45°/50° | ||||||||
Electrical heating | Optional | ||||||||
Controller | Optional | ||||||||
Filling tank | Optional | ||||||||
Empty weight Kg | 46 | 54 | 62 | 79 | 98 | ||||
Qty. 20'/40’/ | 48/100/116 | 40/80/88 | 32/68/72 | 28/56/64 | |||||

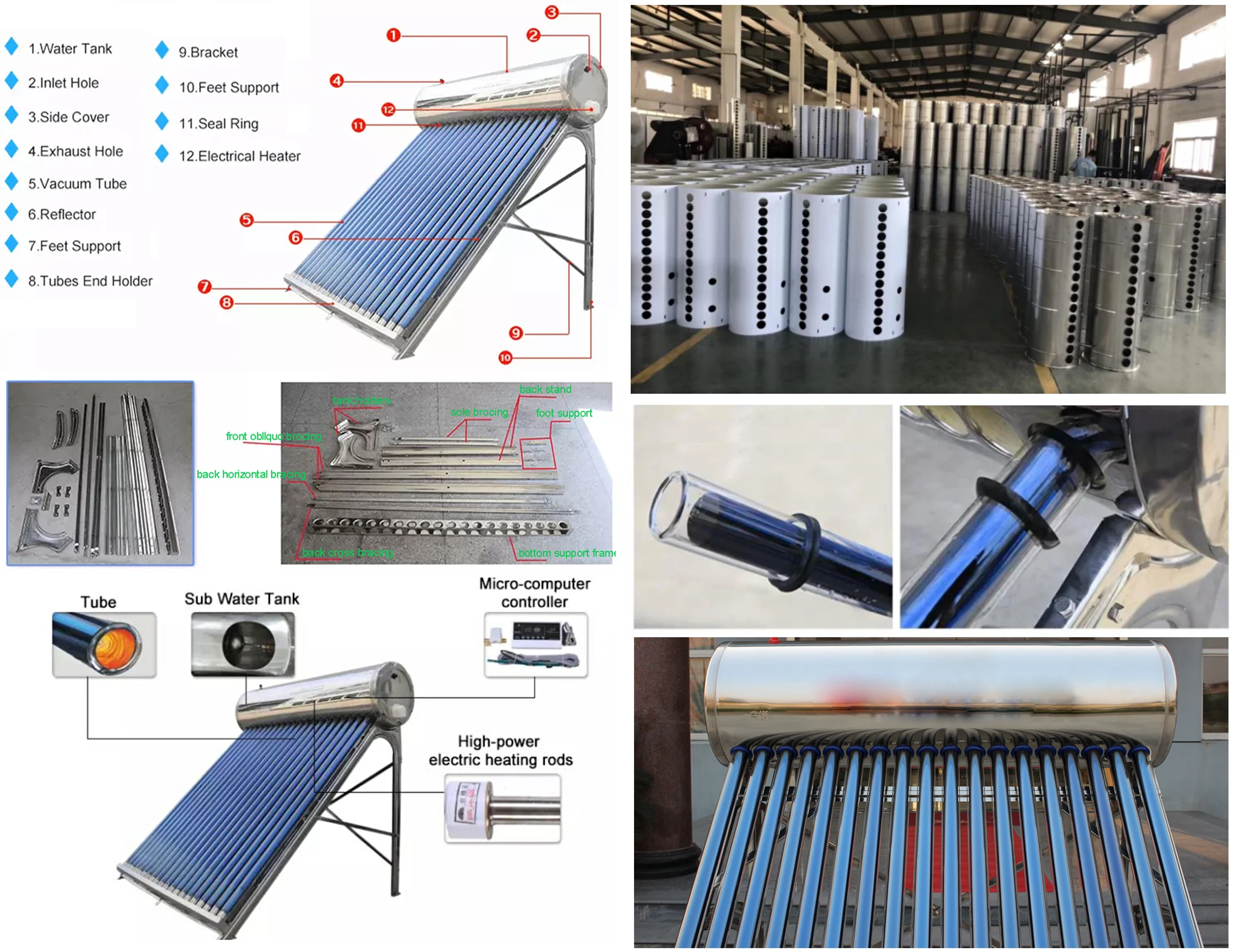

PRODUCT CONFIGURATION

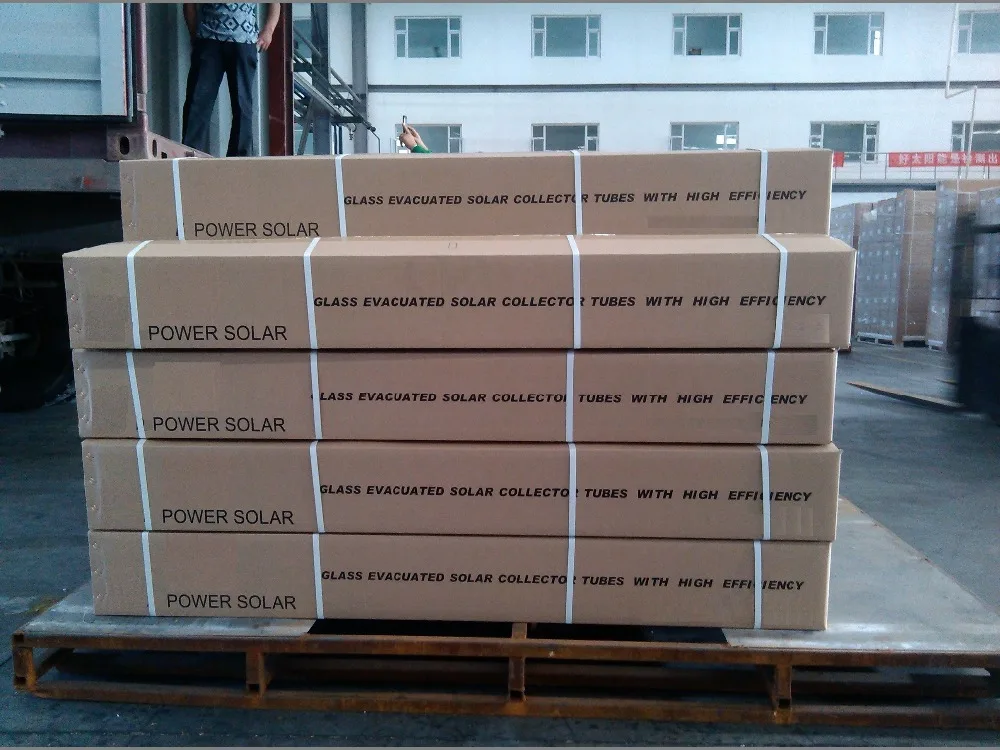

Packaging
Project Case
Vacuum Tube Solar Collector Heating System
The advantages of this collector are: Simple structure, convenient manufacturing, strong reliability; High heat collection efficiency, good heat preservation performance;
It can operate in medium and high temperature, and can also operate in winter in cold areas; Long service life, can be used throughout the year.
Vacuum Tube Air Solar Collector Heating System
The working process is that the sunlight heats the heat collecting core by using the vacuum tube, and the heat is transferred to the cooling fin through the heat collecting core, and the air flows in the box body to take away the heat on the surface of the fin, thus heating the air.
Solar water heater
The flat plate collector is matched with a water tank and bracket to form a solar water heater for use.
Hot water project
Multiple flat plate collectors form a heat collection array. Provide plenty of hot water for hotels, hospitals and schools.
SIMILAR PRODUCTS
Dezhou BTE Solar Co.,ltd
Dezhou BTE Solar Co.,ltd was founded in 2009,located in sun city-Dezhou, which is an innovative company focused on the field of solar thermal applications and has a number of independently intellectual property rights of core technology.Relying on strong technical strength, the company has independently developed the high intelligent automatic production lines,and production efficiency has reached the international leading level.Based on the idea of industrial 4.0,it has built a global professional production line of flat plate solar collector and solar water heater,the efficiency of the whole production line can achieve on average speed of 55s/pc,reaching the international leading level.
FAQ
1. Is your company a trading company or factory?
We have own factory,Welcome to visit our factory.
2. What is your Delivery Time?
LCL order/Sample order:10days. Full container order:14days.
LCL order/Sample order:10days. Full container order:14days.
3. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome
and accept.
and accept.
4. What is your MOQ?
1 set.
5. What is your Packing?
LCL order/Sample order in woden case. Full container order in high quality export carton.
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.
7. What is your Monthly Production Capacity?
24000PCS.
