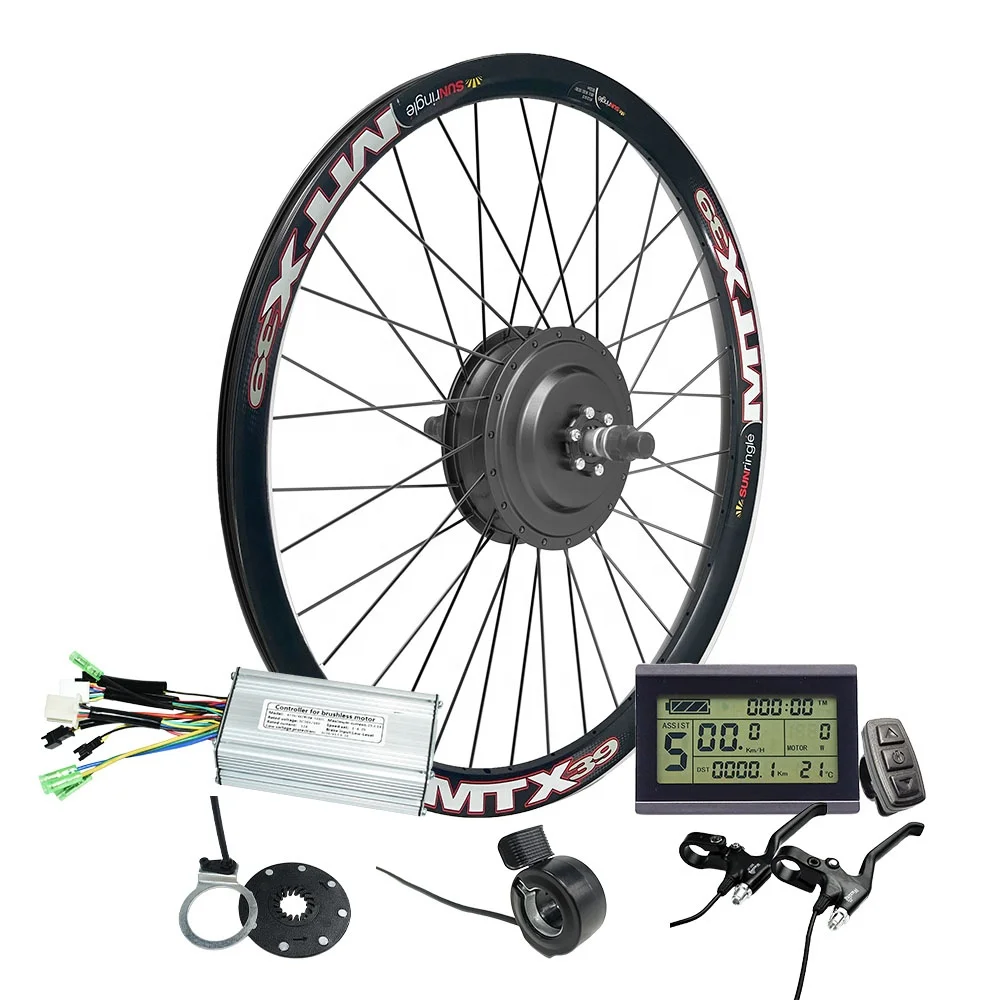

off road electric mountain e bike hub motor e bike mtx 500w 27.5 ebike conversion kit with battery optional
- Category: >>>
- Supplier: Changzhou Suring Motor Technology Co. Ltd.
Share on (1601222828494):
Product Overview
Description
Products Description
500W GEAR MOTOR PARAMETER | ||||||
POWER | 48V 500W | COLOR | Black | |||
STYLE | Brushless and gear | WEIGHT | 3.7kg | |||
MAX SPEED | 45km/h | DROPOUT | 100MM / 135MM / 142MM Cassette | |||
MAX TORQUE | 60Nm | EFFICIENCY | ≥85% | |||
CERTIFICATION | CE, EN15194, Rohs | WARRANTY | 3 years | |||
Battery | 48V lithium-ion battery, All battery including fuse and BMS （optional） | |||||
Charger | AC 100V -240V 2amps smart charger （optional） | |||||
Controller | 48V/25A intelligent brushless controller | |||||
PAS | 1:1 intelligent pedal assistant system | |||||
Display | LED /LCD Display for option | |||||
Throttle | Thumb throttle/Twist throttle for option | |||||

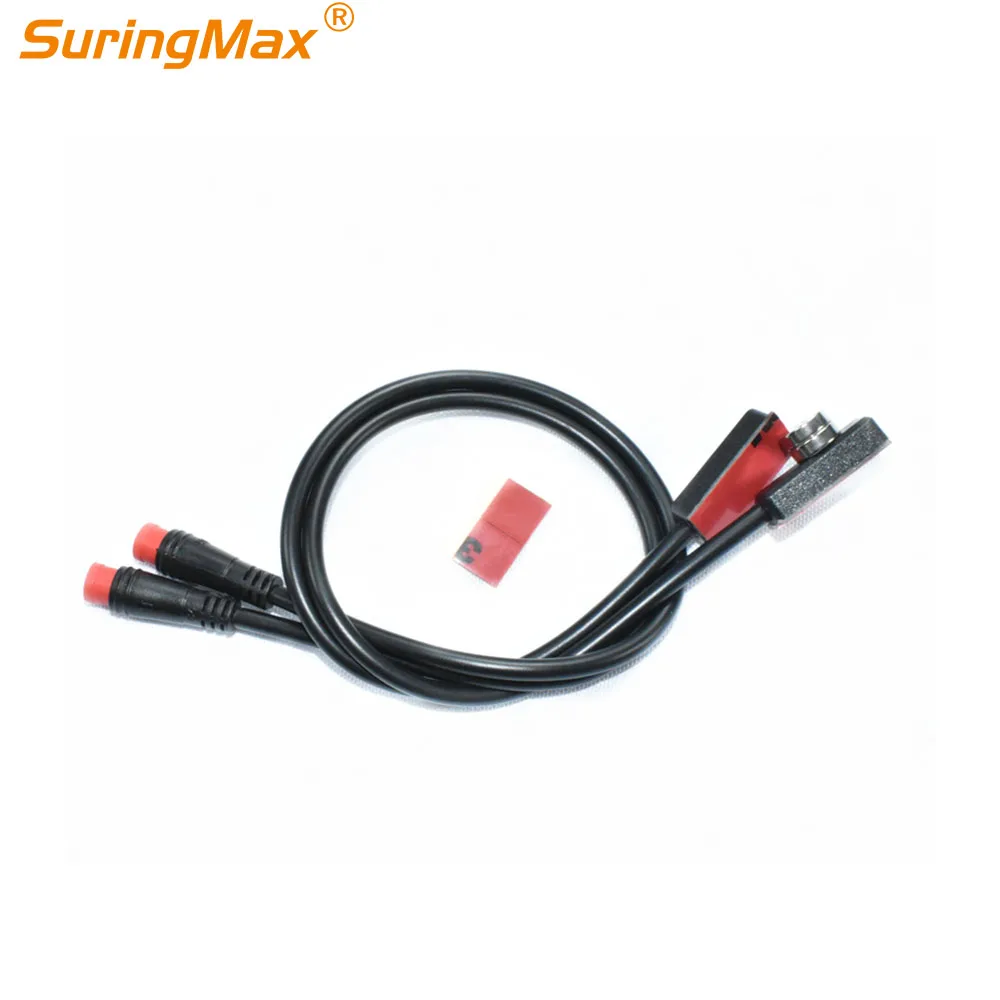

Braking | E-brakes levers OR E-brake sensor for motor power cut off | |||||

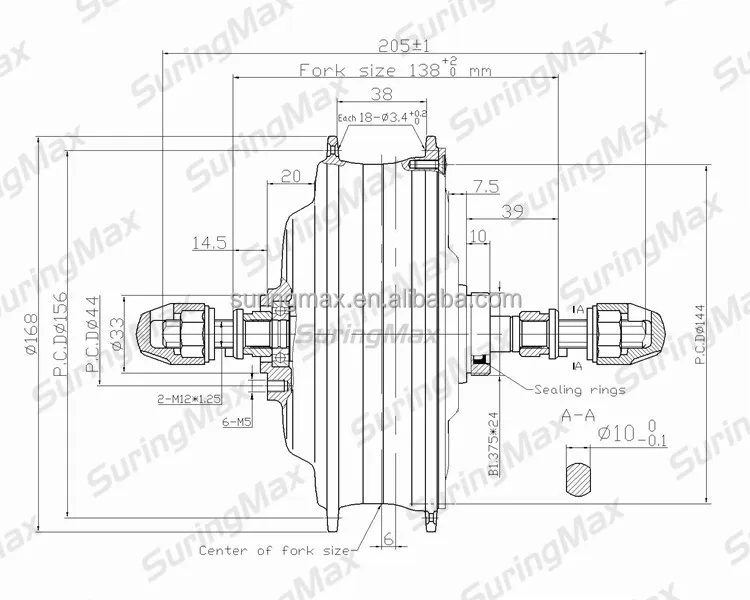

The drawing of motor
SR35H-135mm-DR
Details Images

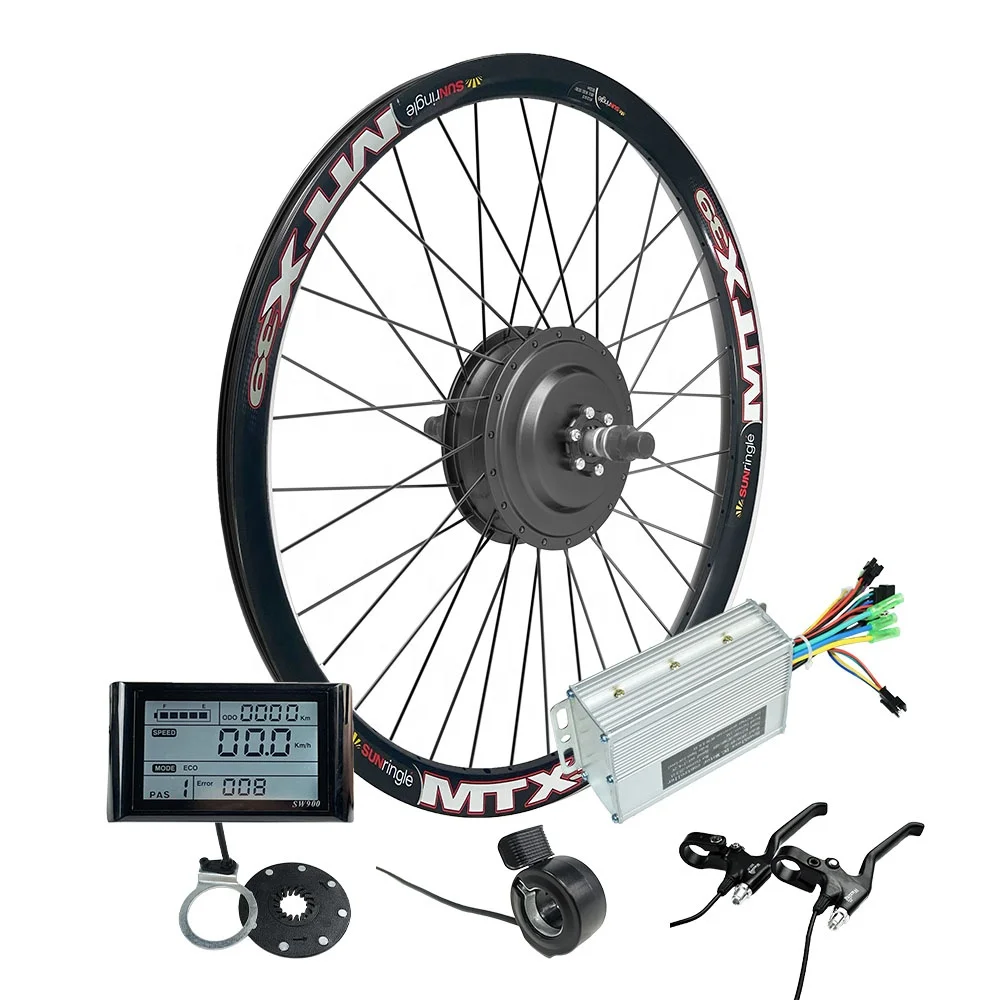

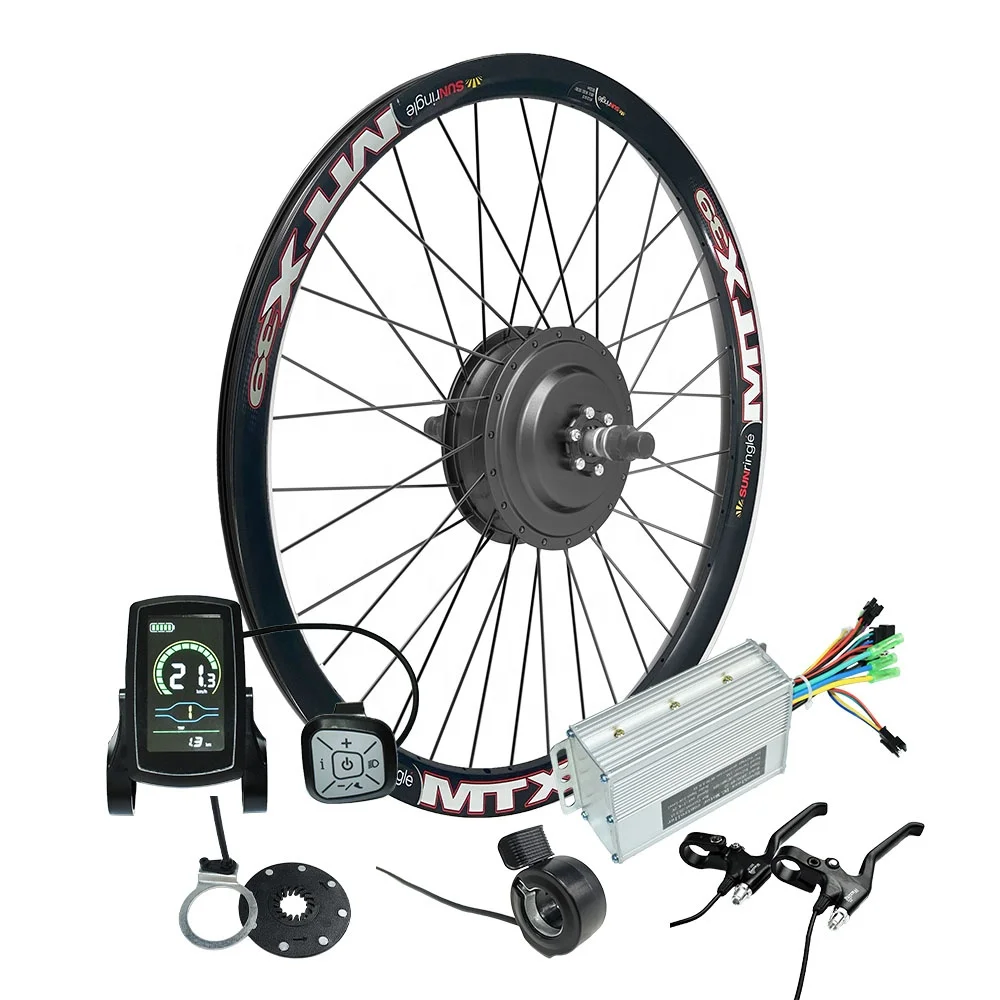

1. 500w 135MM hub motor
2. 48v 25A Smart controller
3. G51U/SW900/S830/YL80C display for choosing

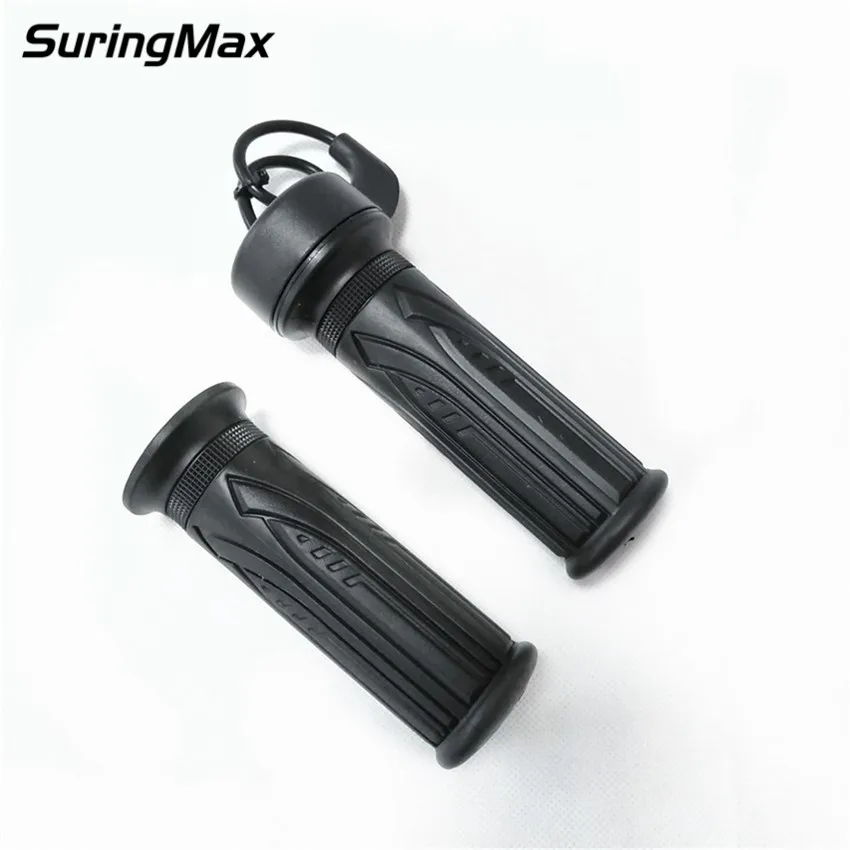

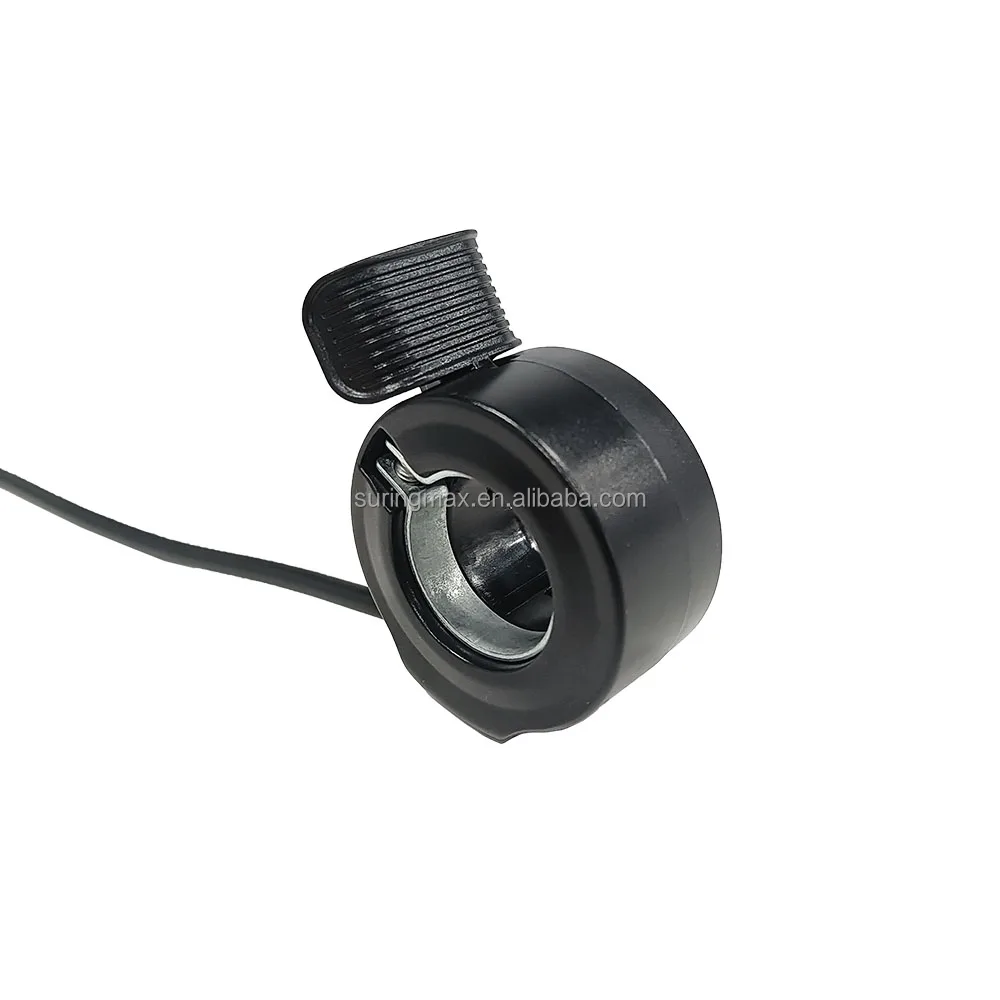

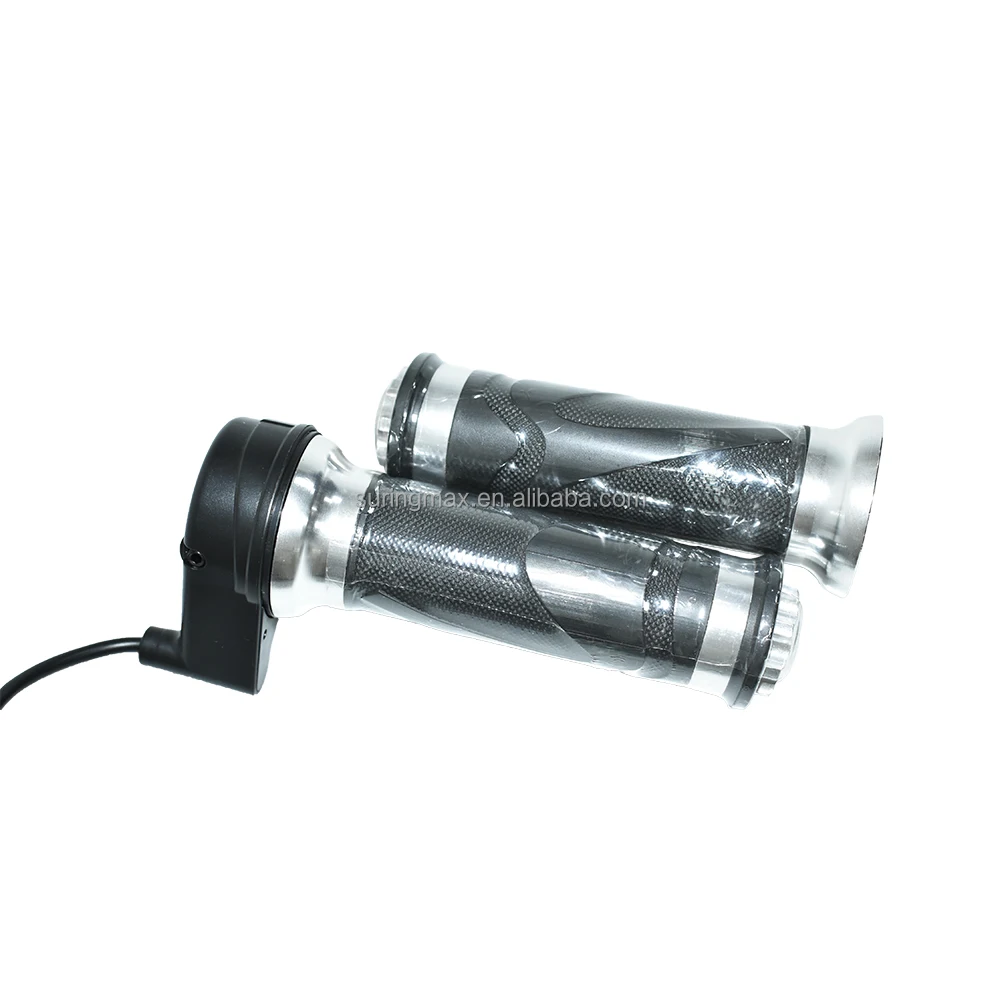

4. twist throttle / thumb throttle for choosing
5. 8/12 PAS for choosing
6. 47PDD ebrake levers
7. 27.5" 12G MTX bicycle rim

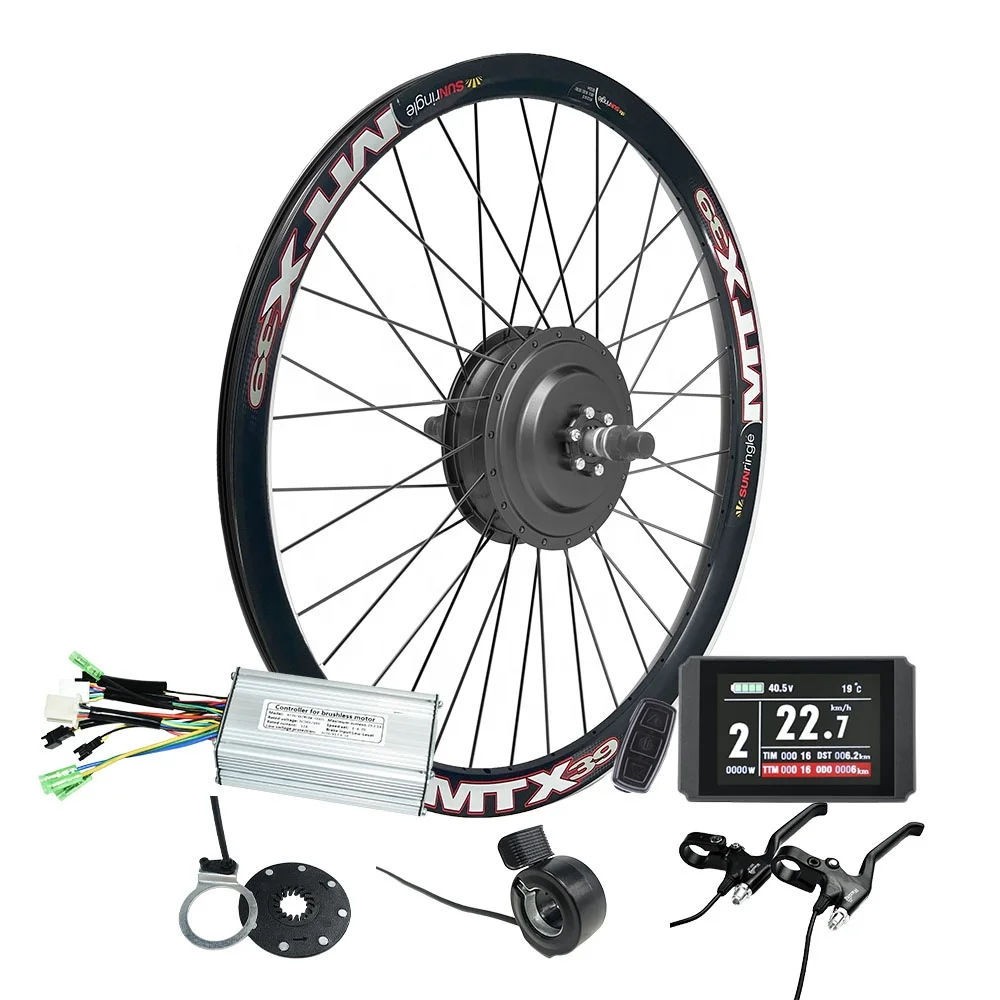

1. 500w 135MM hub motor
2. 48v 25A Smart controller
3. LCD3/LCD5/LCD8 display for choosing
4. twist throttle / thumb throttle for choosing
5. 8/12 PAS for choosing
6. 47PDD ebrake levers
7. 27.5" 12G MTX bicycle rim
3. LCD3/LCD5/LCD8 display for choosing
4. twist throttle / thumb throttle for choosing
5. 8/12 PAS for choosing
6. 47PDD ebrake levers
7. 27.5" 12G MTX bicycle rim
LCD3
LCD5
LCD8HP

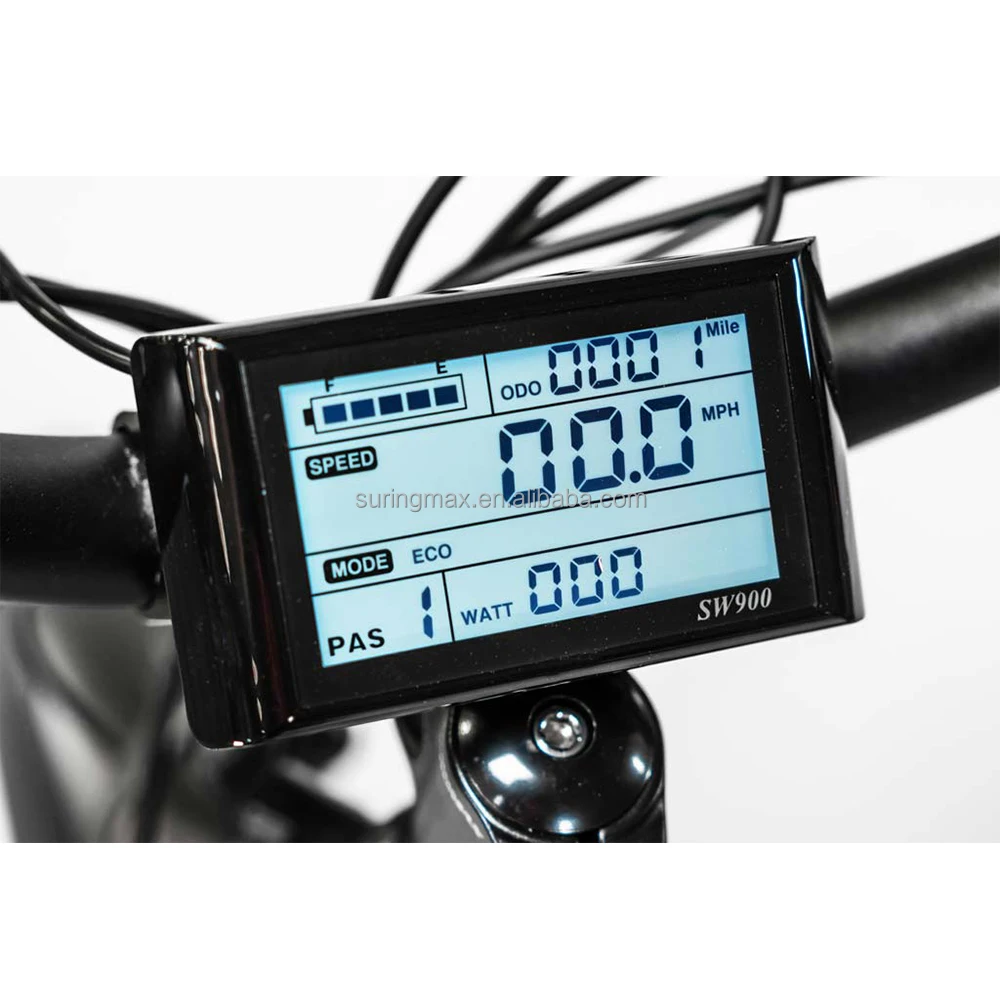

SW900
Colorful screen for option

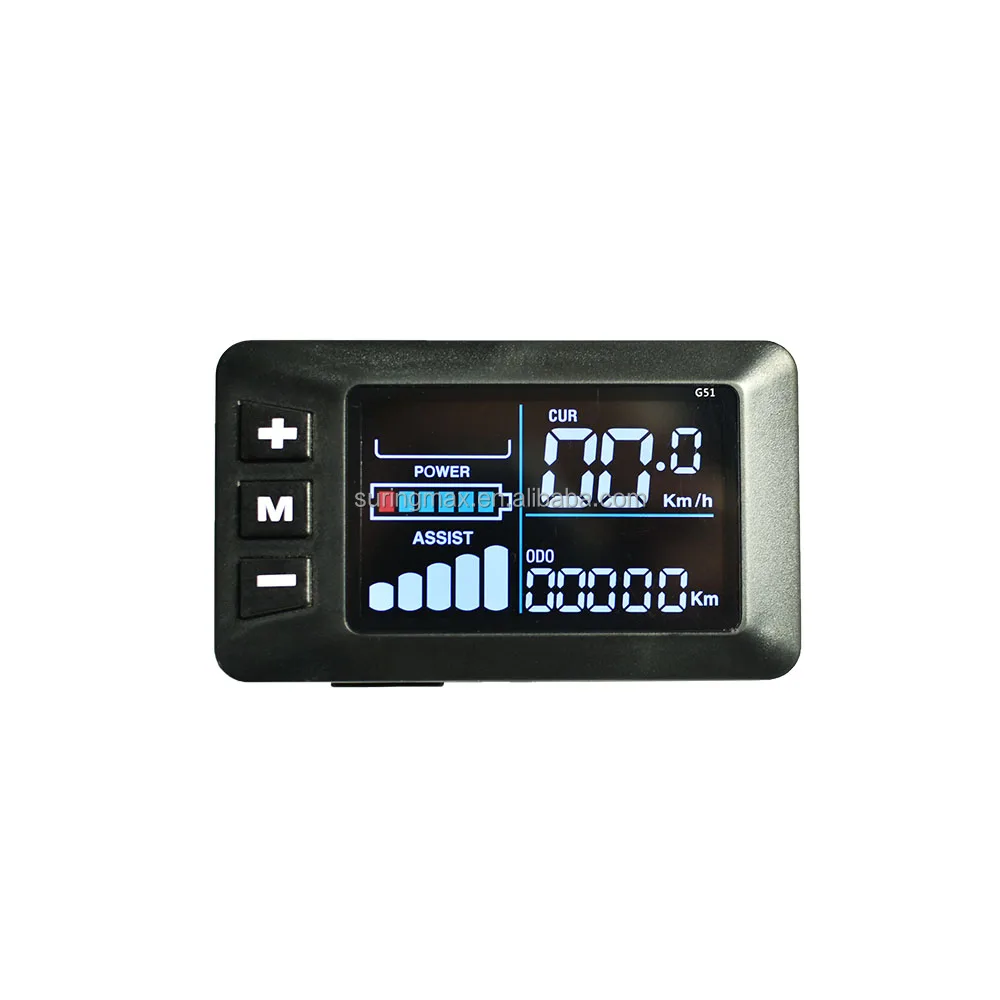

G51U
Regular screen for option

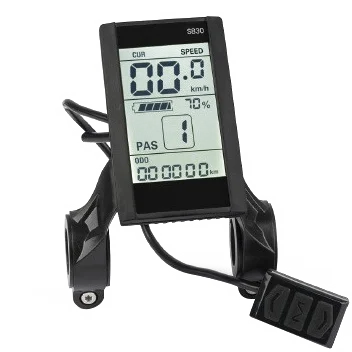

S830
Customer Photos
Company Profile
Other products
Product packaging
FAQ
1.Can we place a small order before the batch order?
--Yes.
2.Do you have stocks for a quick order?
--We only have some for the spare parts like throttle and brakes. Cause the controller and Motor belongs to the OEM products, different customers have the different request.
3.What is the estimate prepare time?
Motors: 3-15 days .
Battery /Controllers: 25-35 days.
Other spare parts: 10-20 days.
4.Do you provide any OEM?
Yes, we can design motor for some special request.
5.What is the guarantee?
3 years for motor.2 years for battery, 1 year for the other spare parts.
--Yes.
2.Do you have stocks for a quick order?
--We only have some for the spare parts like throttle and brakes. Cause the controller and Motor belongs to the OEM products, different customers have the different request.
3.What is the estimate prepare time?
Motors: 3-15 days .
Battery /Controllers: 25-35 days.
Other spare parts: 10-20 days.
4.Do you provide any OEM?
Yes, we can design motor for some special request.
5.What is the guarantee?
3 years for motor.2 years for battery, 1 year for the other spare parts.
