Russia extruded core cream chocolate filling snacks food machine core filling snacks chocolate making machinery
- Category: >>>
- Supplier: Jinan Dayi Extrusion Machinery Co. Ltd.Jinan Ltd.
Share on (1601222837158):
Product Overview
Description
Product Description

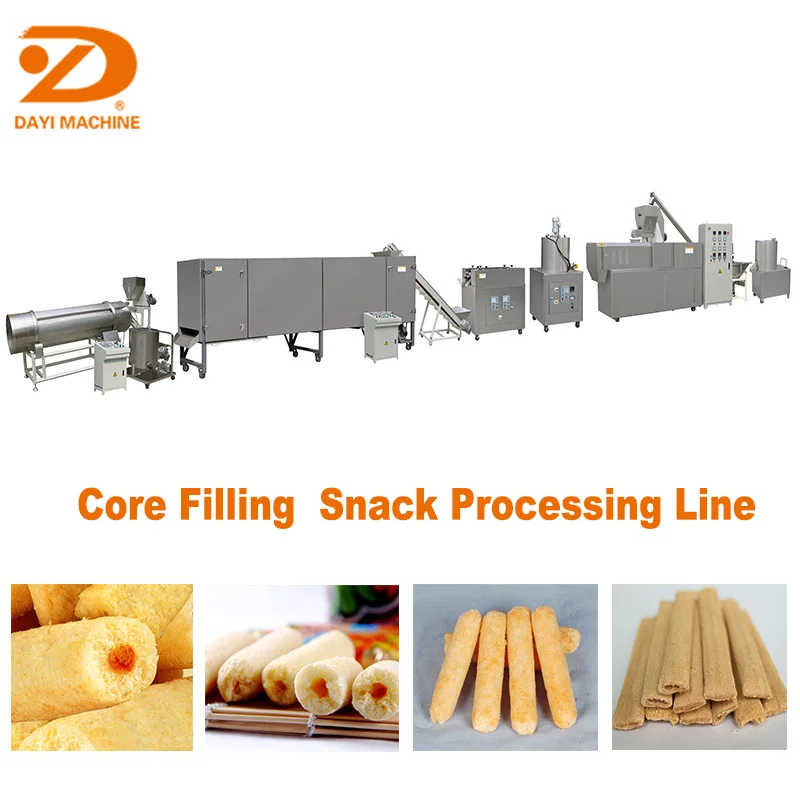

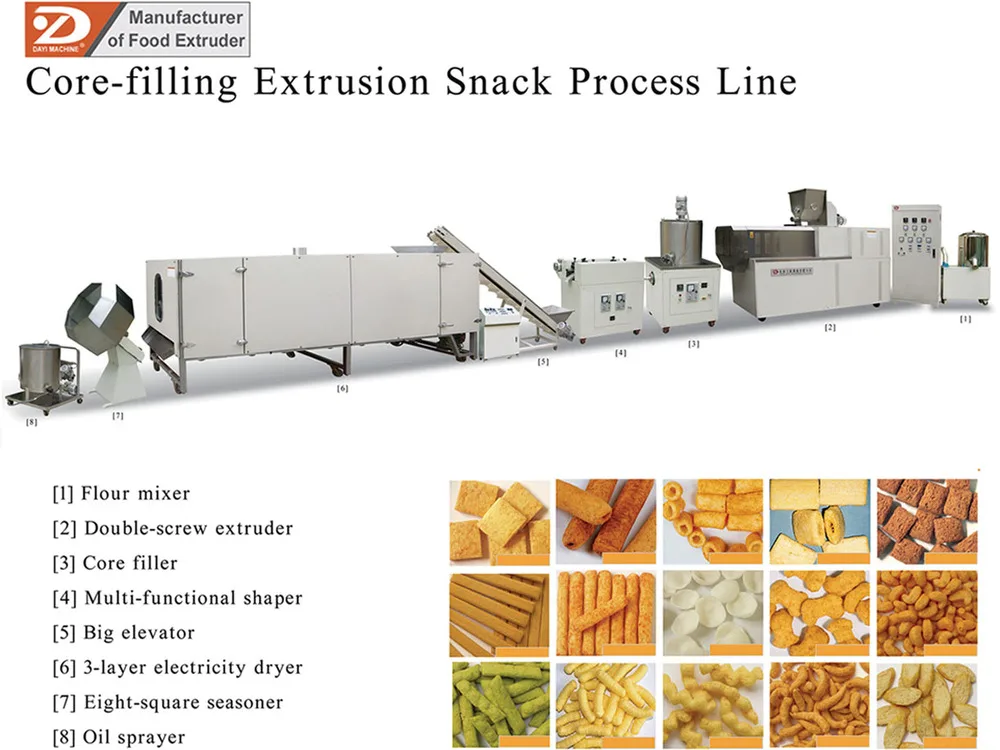

This is fully automatic core filling snacks process line,This line adopt advanced extrusion technology,Include mixing, extrusion, core filling,shaping, drying ,coating and cooling process.with PLC control system which makes easy operation and better performance.For puffed snacks, we can use different ingredients as raw materials, such as rice flour, corn flour, wheat flour, starch and so on. With this line, we can make different shape such as rings, balls, nuggets, core filling tubes and so on. With bigger expansion, the snacks are crispy and tasty.
Technical parameters of core filling snacks process line
Model | Installed Power | Power Consumption | Capacity | Dimension |
SLG65-C | 63.41kw | 41kw | 100~150kg/h | 18000*1200*2000mm |
SLG70-A | 86.06kw | 56kw | 250~300kg/h | 23000*2000*3000mm |
SLG85-A | 131.06kw | 98kw | 350~400kg/h | 31000*2000*3000mm |

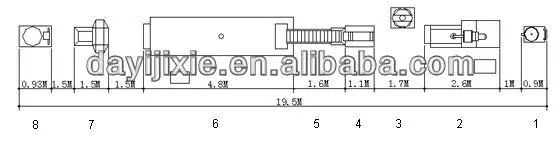

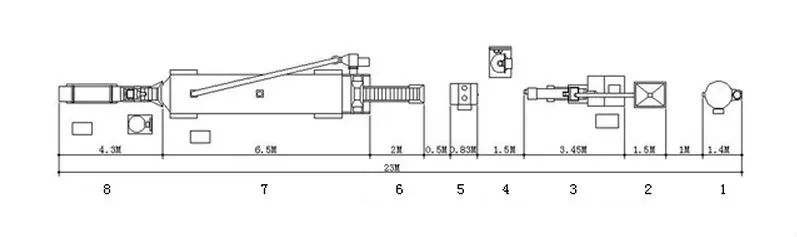

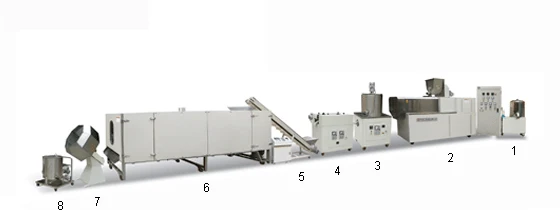

Production Line Plan Diagram
1) Direct transmission betwe en motor and gear box,reducing energy consumption.
2) Feeding,main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.
3) Screw is made of alloy steel with long life.Segmental assembled screws are applied tomore kinds of materials and products.
4) Automatic lubrication system can lower down power consumption and prolong the life.
5) Double screws feed equal materials forcibly.
6) Hanging mould and knives seat and bearing knife adjusting system can adjust the kniver exactly and swiftly.
2) Feeding,main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.
3) Screw is made of alloy steel with long life.Segmental assembled screws are applied tomore kinds of materials and products.
4) Automatic lubrication system can lower down power consumption and prolong the life.
5) Double screws feed equal materials forcibly.
6) Hanging mould and knives seat and bearing knife adjusting system can adjust the kniver exactly and swiftly.
Details Images

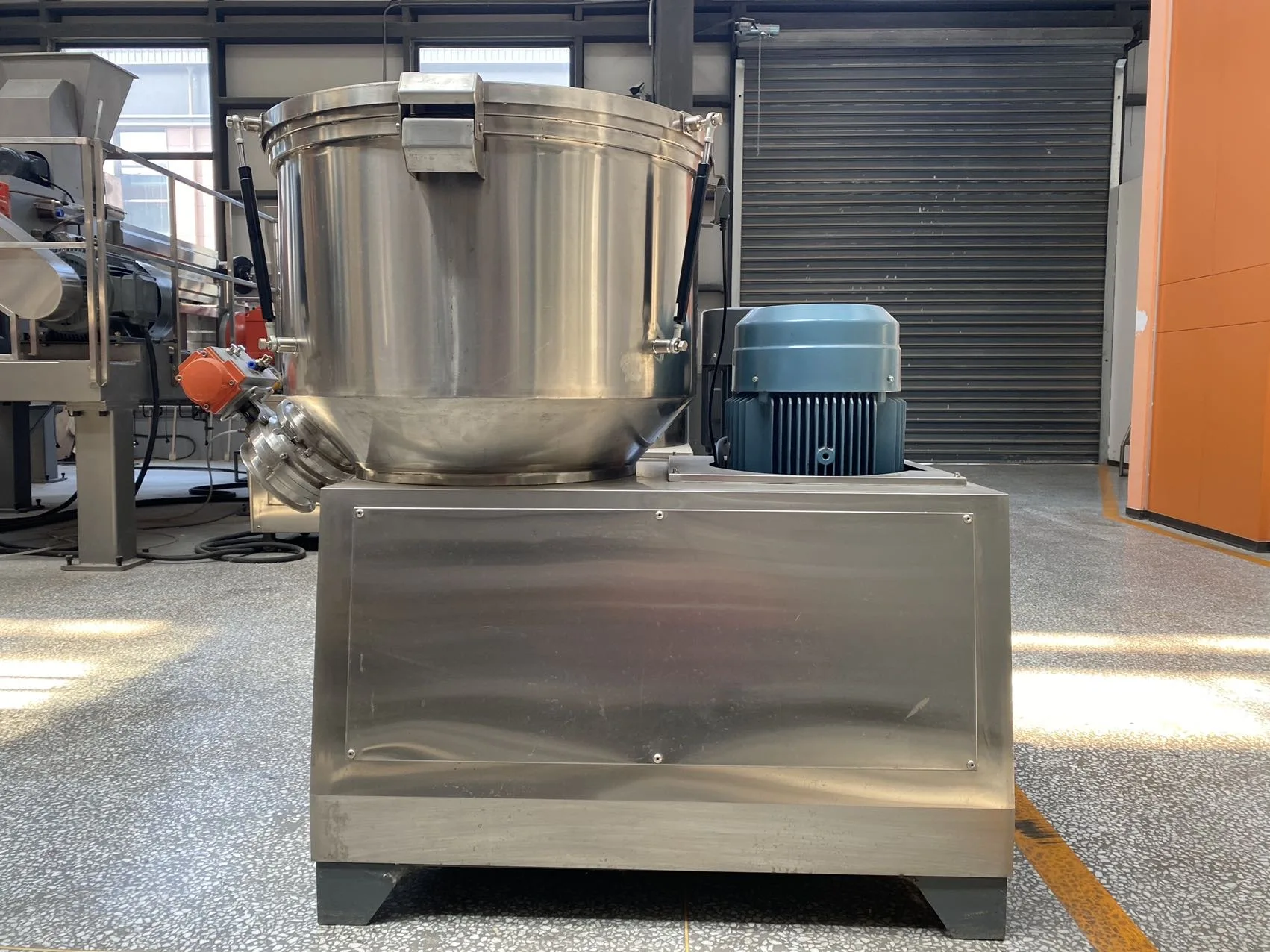

Name | Flour Mixe |
Model | BF-III |
Motor | 5kw |
Capacity | 100kg/batch |
Original: | Jinan,Shandong,China To Mix up the raw material like wheat flour, potato powder,oil. |
Name | Pellet Extruder |
Model | SLG70-A |
Motor | 250~300kg/h |
Capacity | 86.06kw |
Original | Jinan,Shandong,China Cook the raw material and form into different shapes. |
Name | Pattern Machine |
Model | JX-I |
Motor | 0.55kw |
Capacity | With extruder |
Original | Jinan,Shandong,China To make the pattern in the pellet. |
Name | Compound Shape Machine |
Model | QF-III |
Motor | 1.5kw |
Capacity | With extruder |
Original | Jinan,Shandong,China To make the 3d compound shape. |
Name | Multi-layer Diesel/Gas Dryer |
Model | WXH |
Motor | 6kw |
Capacity | 300-400kg/h |
Original | Jinan,Shandong,China To dry out the extra moisture inside of pellet snack. |

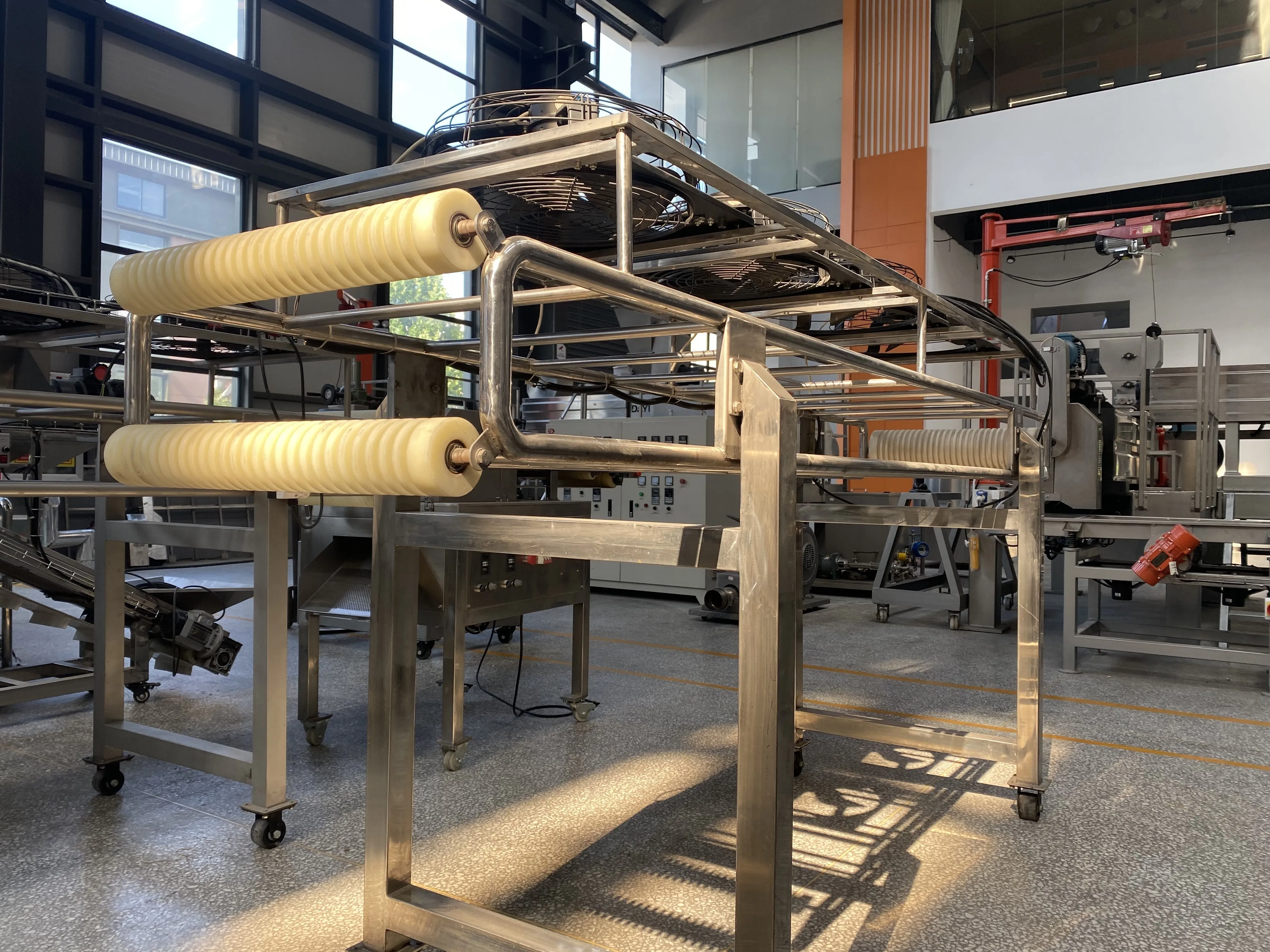

Equipment Real Time Shooting
Company Introduction
Jinan Dayi Extrusion Machinery Co., Ltd. was established in 1996 and has always been a professional manufacturer and leader of advanced and efficient extrusion food machinery in this field in the world. The freshman company has gathered a team of experts with over 20 years of experience in the extrusion machinery industry, striving not only to continuously research extrusion technology, but also to explore food processing processes to benefit our customers who produce creative food.
A corner of the factory area
After years of exploration and research, our screw extrusion technology has been widely used in the production of the following products: casual snacks, breakfast cereal and corn flakes, fried flour food, granular food, bread crumbs, soy protein and vegetarian, pet food, etc. More than 20 production lines can be selected. We can also provide customized services for special requirements.
Customer testing
Many influential large food companies and agent have chosen us as and set up worthy fellowship with us over 20 years, especially Oishi Foods Company in Japan, Ai Nasim food industries Co.,LTD in Jordan, Pt mayora indah tbk in Indonesia, Kinh Do Corporation in Vietnam, Universal robina corporation in Philippines, and the many agents like Vs tecnologia industrial in Brazil, Pakistan etc. Meantime.
Customer Visit
Packing&Shipping
Package
1.Firstly packed with plastic bags
2.Secondly wooden packing cases
3.Finally putting the wooden cases into the container
4.Ten Days after Full Payment
Our Service
Before sale service
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
After sale services
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Operation/ Service/ Maintenance Manual: Provided In English.
4. 1-2 engineers will be arranged for customer
2. Train the first-line operator.
3. Operation/ Service/ Maintenance Manual: Provided In English.
4. 1-2 engineers will be arranged for customer
Our Advantages
We can keep product design in the same level with internationally advanced technology consistently.We can guarantee customers superior quality machines up to design requirements and perfect working state.
We have high diathesis staff and excellent processing equipment, and quality control runs through the whole production process from parts stock to the beginning of production.
Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.We provide 1 year complete Guarantee and life-time maintenance service.
FAQ
1.Does your product support international transportation?
Answer: Yes, we support international transportation. Our products can be shipped globally. The transportation method and cost will depend on your order and destination. At checkout, you can choose the shipping option that suits you.
2. Does your product have quality assurance?
Answer: Yes, we have high requirements for the quality of our products and provide quality assurance to support pre factory inspection. You can click here to Contact Us.
3. What’s your Guarantee?
Answer:We provide 1 year complete Guarantee and life-time maintenance service
4. How about the installation?
Answer:We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.
