1MW single axis solar tracker mounting system ground mounted solar tracking kit ground solar tracker 1 axes
- Category: >>>
- Supplier: Xiamen Kseng New Energy Co. Ltd.
Share on (1601222838252):
Product Overview
Description
Products Description
Main Structural Parts
① Fully fit for 210 larger modules.
② Intelligent AI algorithm,can increase 15%-30% yield gain
③ Adopt ion to various terrains allowing a north-south slope up to 10%-20%.
④ Easy installation and easy maintenance. ⑤ Stable and reliable operation.

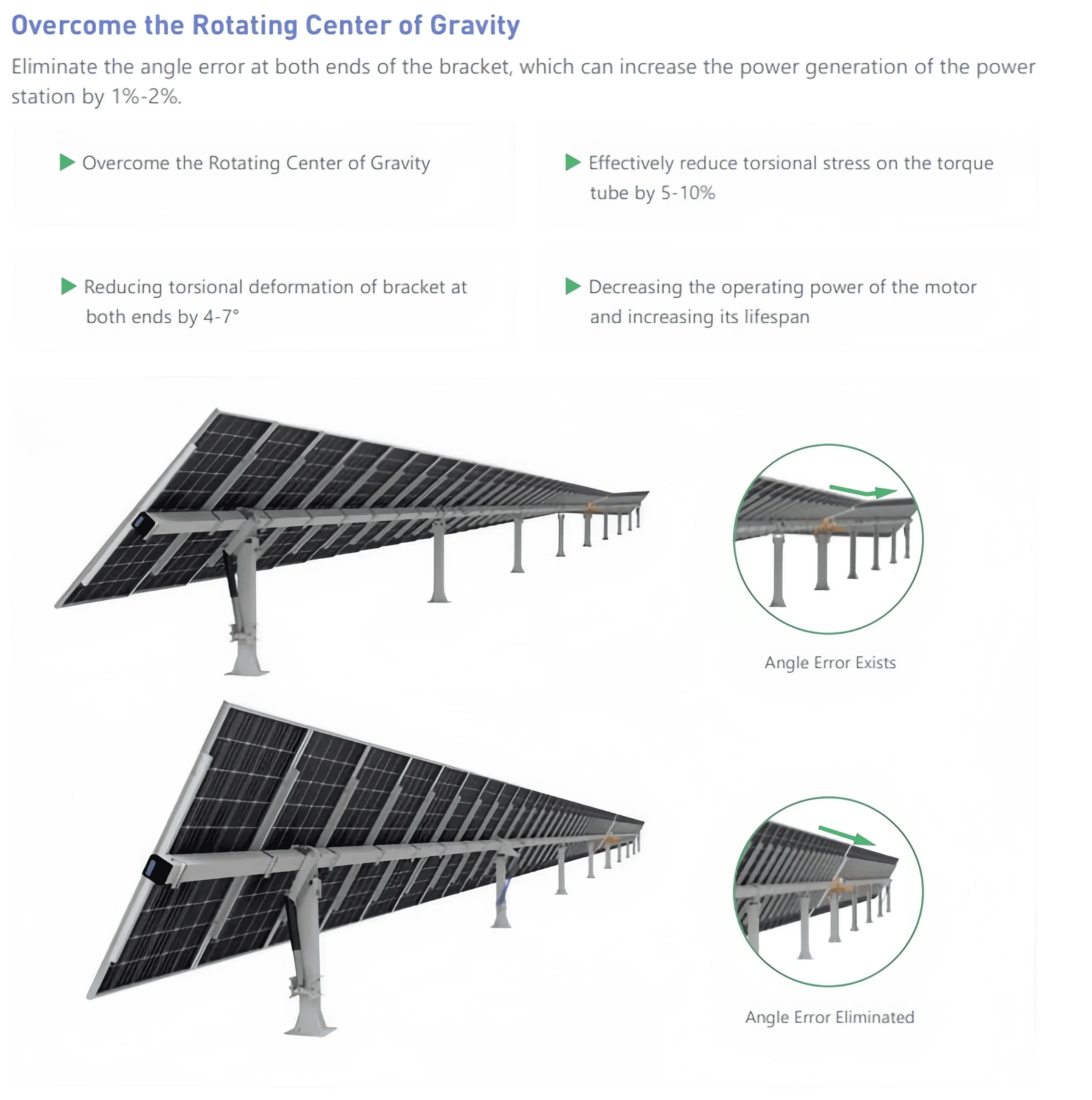

Kseng Solar Tracking System Advantages
3. Reduce the force on the drive column by 50%.
4. Reduce spindle torsion angle by 60%.
5. Better system wind resistance.

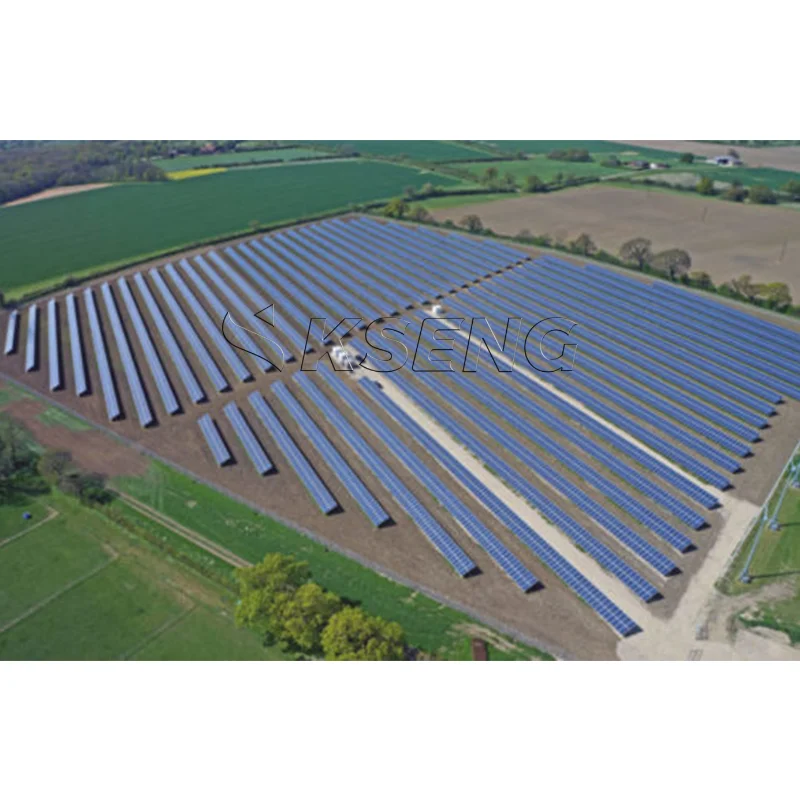

Terrain adaptability
1. Flexible arrangement, make full use of irregular land and can improve land utilization.
2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.
3. Unlimited slope in the east-west.
CPP Wind Tunnel Test
Kseng established a partnership with CPP WIND ENGINEERING，the first American company to provide wind engineering services to
architects and engineers. Combining the frequency and characteristics of damping ratio of the KS-tracker tracking system, study
the results caused by the KS-tracker system under the action of aerodynamics, and analyze the influence and instability during the
operation of the system.
architects and engineers. Combining the frequency and characteristics of damping ratio of the KS-tracker tracking system, study
the results caused by the KS-tracker system under the action of aerodynamics, and analyze the influence and instability during the
operation of the system.
Component arrangement scheme
Why Choose Kseng Solar Tracking System
Pre-project
Technical support；
Layout optimization；
Full set of construction drawings；
Recommendations of pile foundations；
Feasibility evaluation of international installations；
Design and implementation guidance for anti-pull force test；
Layout optimization；
Full set of construction drawings；
Recommendations of pile foundations；
Feasibility evaluation of international installations；
Design and implementation guidance for anti-pull force test；
On-site guidance
On-site installation training；
Solar tracker commissioning；
Commissioning training & guidance；
Detailed step-by-step manuals for installation；
Data remote commissioning, monitoring, and analysis；
Solar tracker commissioning；
Commissioning training & guidance；
Detailed step-by-step manuals for installation；
Data remote commissioning, monitoring, and analysis；
After installation
24/7 immediate response；
Assistance with purchasing spare parts；
SCADA system and efficient O8M advice；
Remote guidance for system cmormsioring；
Solution provided for after-sales issues within 15 days；
Assistance with purchasing spare parts；
SCADA system and efficient O8M advice；
Remote guidance for system cmormsioring；
Solution provided for after-sales issues within 15 days；
Tracking Structure Parameters | ||||||||
Tracking Technology | Dual-Portrait Horizontal flat single-axis tracking system | Maximum capacity per row | 72KWp(3 or 4 Strings of 210 Type Module) | |||||
PV-Modules quantity per row | 45PCS (2Px45) or 60PCS (2PX60) | Tracking range | ±45°to ±60° | |||||
Tracking accuracy | ±1° | Terrain Adaptability | 10°north-south, east -west unlimited | |||||
Protection of wind speed | 18m/s | Foundation form | Concrete (customizable all steel foundation) | |||||

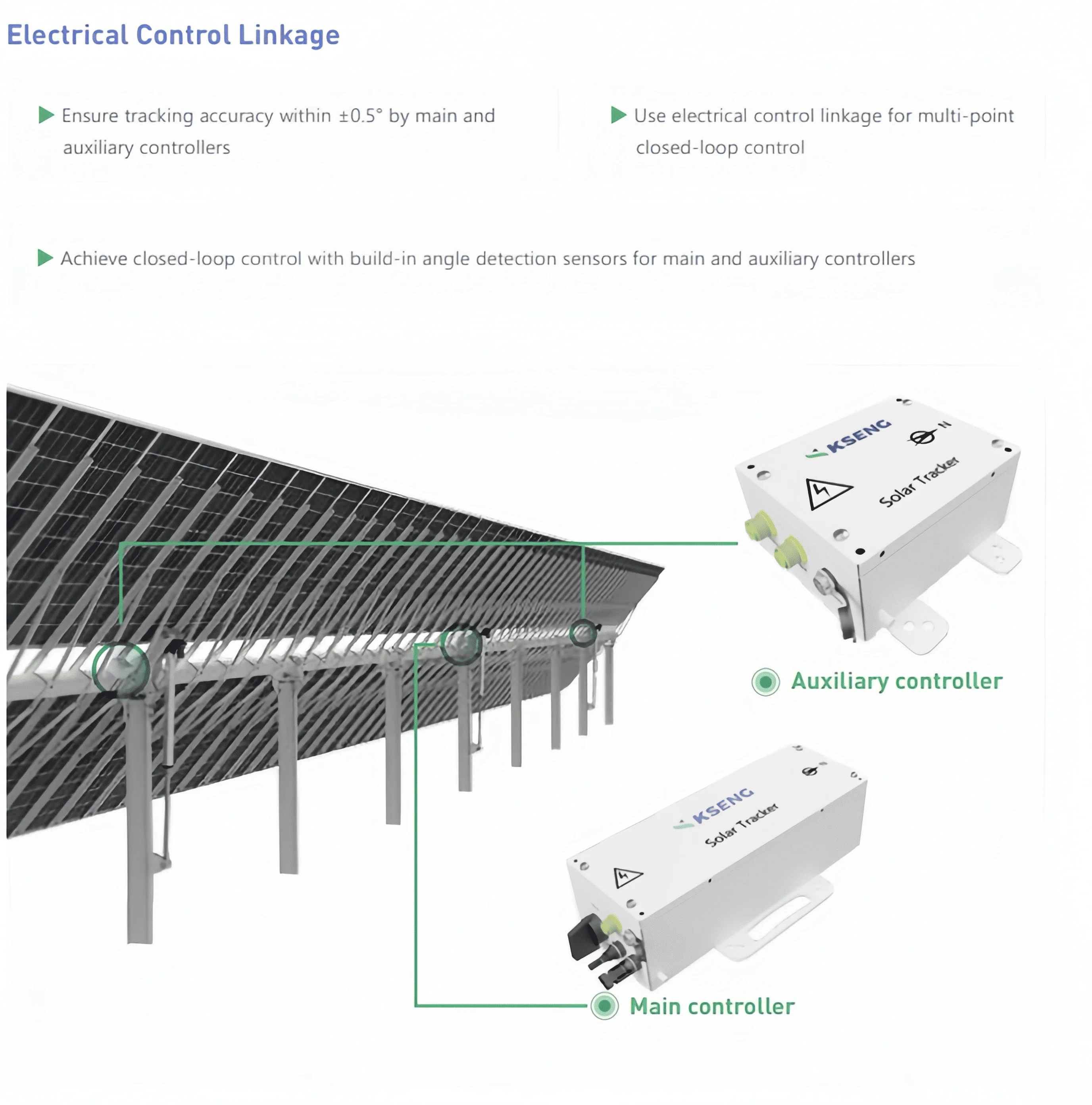

Tracking Controller Parameters | ||||||||
Control system | MCU | Communication type | RS485 or wireless Zigbee | |||||
Night stow mode | Have | Backtracking algorithm | Have | |||||
Overload prevention | Have | Self trouble checking Function | Have | |||||
System voltage | DC24 | Drive System | Linear Motor | |||||
Power Acquisition Mode | External Supply/Self-Powered supply | Control algorithm | Astronomical Multi-point algorithm + closed loop（AI Control） | |||||

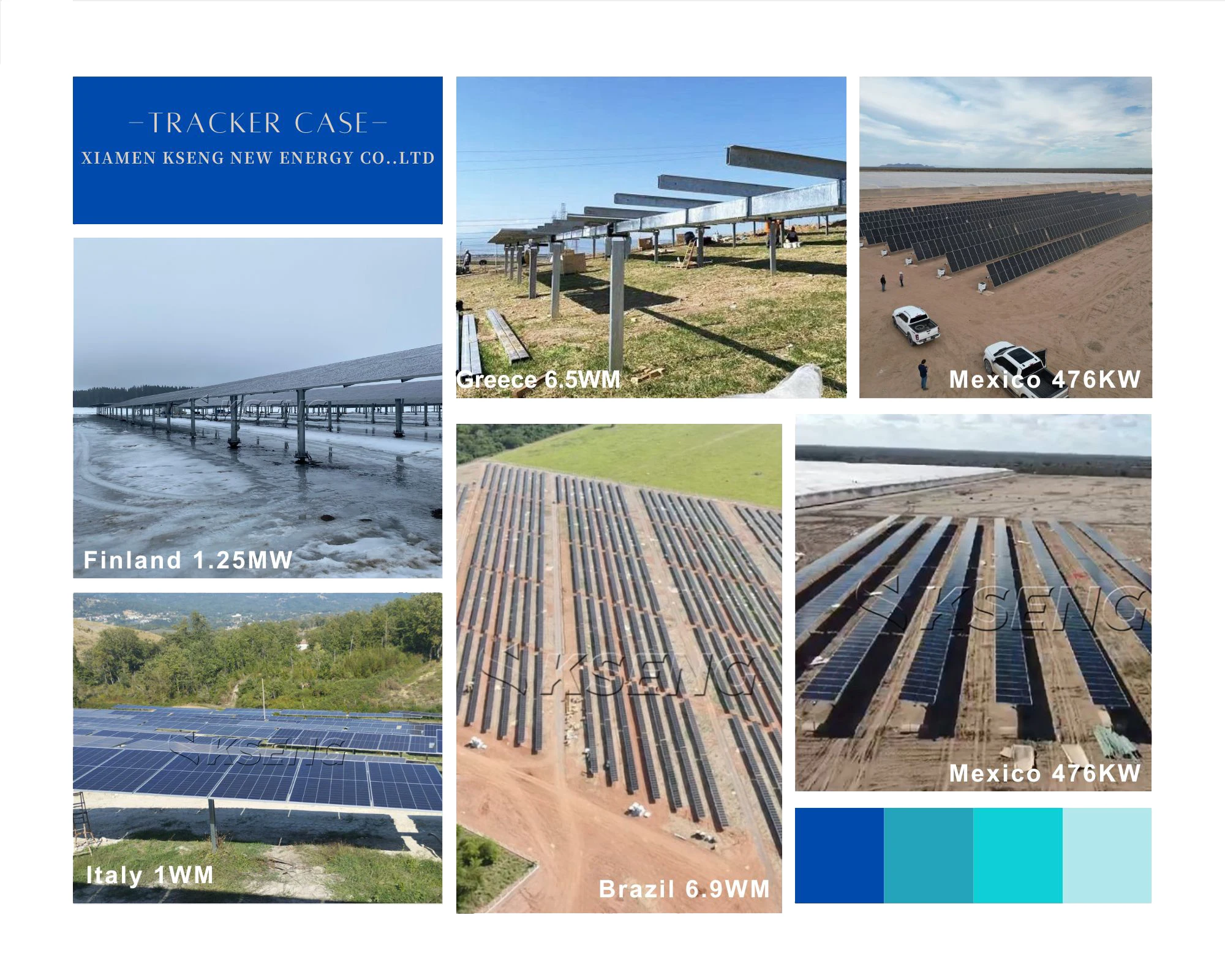

Project Gallery

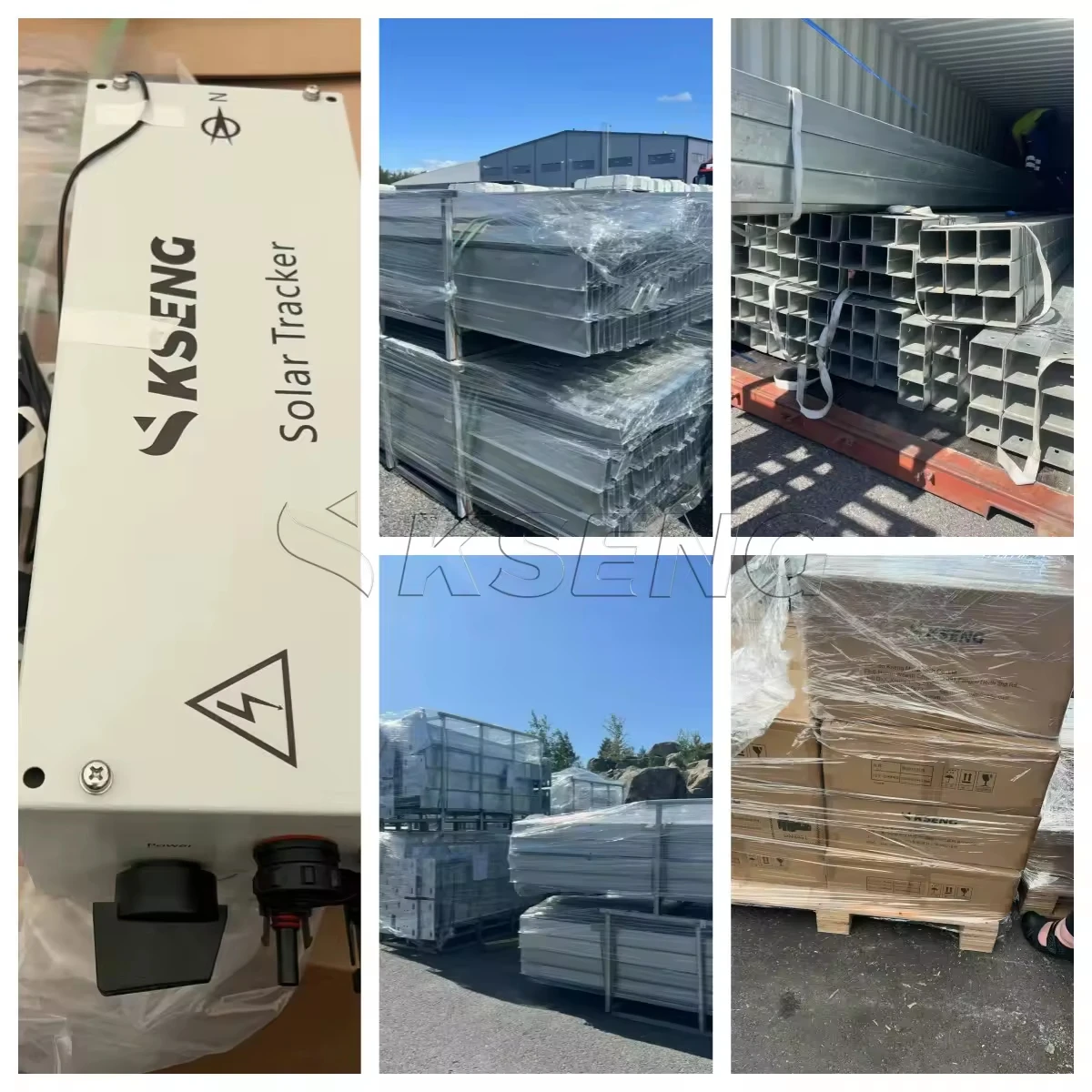

Product packaging
