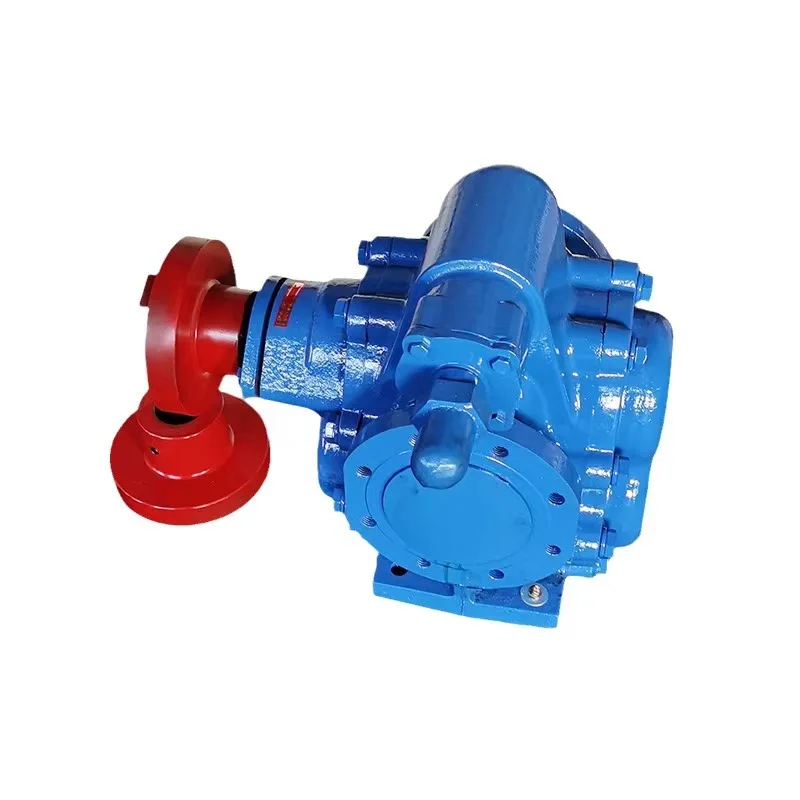

Cheap Botou honghai Pump kcb rotary gear lube oil pump kcb 300 gear oil pump KCB960 kcb1200
Cheap Botou honghai Pump kcb rotary gear lube oil pump kcb 300 gear oil pump KCB960 kcb1200
Cheap Botou honghai Pump kcb rotary gear lube oil pump kcb 300 gear oil pump KCB960 kcb1200
Cheap Botou honghai Pump kcb rotary gear lube oil pump kcb 300 gear oil pump KCB960 kcb1200
Cheap Botou honghai Pump kcb rotary gear lube oil pump kcb 300 gear oil pump KCB960 kcb1200
Cheap Botou honghai Pump kcb rotary gear lube oil pump kcb 300 gear oil pump KCB960 kcb1200
Cheap Botou honghai Pump kcb rotary gear lube oil pump kcb 300 gear oil pump KCB960 kcb1200

Cheap Botou honghai Pump kcb rotary gear lube oil pump kcb 300 gear oil pump KCB960 kcb1200

Share on (1601222956432):


Price:$148.00 - $150.00

Quantity:


Product Overview

Description





Company profile
Botou Honghai Pump Co., Ltd.is the development, manufacture all kinds of gear pumps, heat pumps, three screw pump, centrifugal pump based professional manufacturers, set Branch, engineering, trade and services in one, well-equipped, the design level advanced production and testing means complete. My company has a strong research and development capabilities, gear pump product design using CAD and CAPP and international standards, the products are widely used in areas of national petroleum, chemicals, shipbuilding, electric power and so on. My company has a complete production system and quality assurance system, has won the trust of domestic and foreign customers.

MORE>>


KCB18.3-83.3
Flow rate:1.5-5m3/h
Pressure:0.33-1.45mpa
Inlet and outlet diameter：20/25/40mm
Material:cast iron/SS304/316 with Copper wheel
Seal:packing seal /mechanical seal
Motor:EXproof /General
KCB135-960
Flow rate:8-58m3/h
Pressure:0.28-0.33mpa
Inlet and outlet diameter：50/70/100mm
Material:cast iron/SS304/316 with Copper wheel
Seal:packing seal /mechanical seal
Motor:EXproof /General
KCB1200-9600
Flow rate:72-570m3/h
pressure:0.6mpa
Inlet and outlet diameter：150200/250/350mm
Material:cast iron/SS304/316 with Copper wheel
Seal:packing seal /mechanical seal
Motor:EXproof /General


Application:

KCB series big capacity booster pump is applies to delivering non-corrosive lubricating oil or equivalent liquid without solid
paraticles and fibres at temperature below 200 C, and with the viscosity of 5-1500 cSt.
Reducing the speed, the pump can delivery the liquid that the viscosity can be up to 50000 cSt.

Application Scope:

It can give performance as transfer pump or booster pump in oil deliver system.
It can be also applied as fuel pump sor delivery system, pressurization and injection in fuel supply system and in all industry
fields as lubricating.




Technical parameter



Model
Capacity Q

Speed r/min

Pressure Mpa

NPSH
m
Efficiency η
%
Motor

m3/h

L/min
Power
KW

Model
KCB-18.3

1.1

18.3

1400

1.45

5

59

1.5

Y90L-4
2CY-1.1/1.45
KCB-33.3

2

33.3

1420

1.45

5

59

2.2

Y100L1-4
2CY-2/1.45
KCB-55

3.3

55

1400

0.33

7

41

1.5

Y90L-4
2CY-3.3/0.33
KCB-83.3

5

83.3

1420

0.33

7

43

2.2

Y100L1-4
2CY-5/0.33

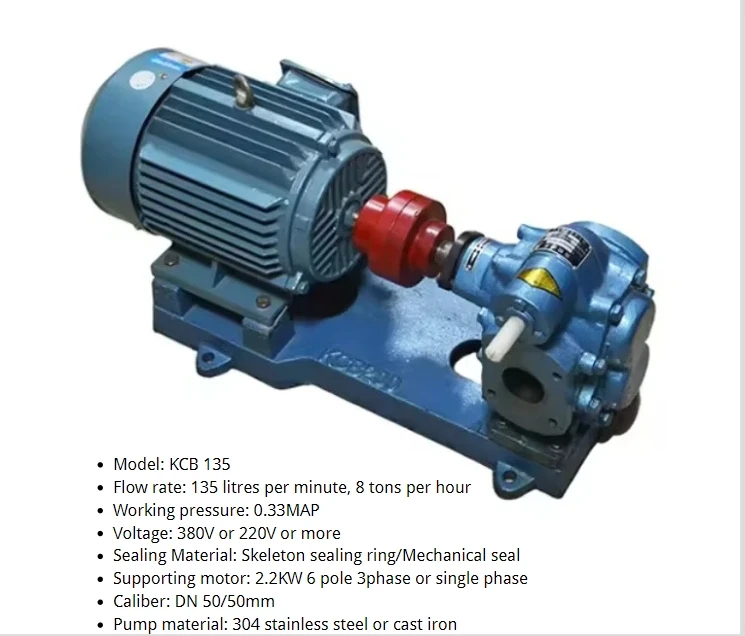

KCB-135

8

135

940

0.33

5

46

2.2

Y112M-6
2CY-8/0.33
KCB-200

12

200

1440

0.33

5

46

4

Y112M-4
2CY-12/0.33
KCB-300

18

300

960

0.36

5

42

5.5

Y132M2-6
2CY-18/0.36
KCB-483.3

29

483.3

1440

0.36

5.5

42

11

Y160M-4
2CY-29/0.36
KCB-633

38

633

970

0.28

6

43

11

Y160L-6
2CY-38/0.28
KCB-960

58

960

1470

0.28

6.5

43

18.5

Y180M-4
2CY-58/0.28
KCB-1200
72
1200
740

0.6

7

43
37
Y280S-8
KCB-1600
95
1600
980
45
Y280S-6
KCB-1800
112
1800
740

0.6

7.5

43
55
Y315S-8
KCB-2500
150
2500
985
75
Y315S-6
KCB-2850
170
2850
740

0.6

8

44
90
Y315L1-8
KCB-3800
230
3800
989
110
Y315L1-6
KCB-4100
245
4100
743

0.6

8

44
132
Y355M1-8
KCB-5400
325
5400
989
160
Y355M1-6
KCB-5600
330
5600
744

0.6

8

44
160
Y355M2-8
KCB-7600
460
7600
989
200
Y355M3-6
KCB-7000
420
7000
744

0.6

8

44
185
Y355L1-8
KCB-9600
570
9600
989
250
Y355L2-6






Type of transportation


RFQ
1. How about your price?
Although we are brand name products,but our prices are very favorable and competitive. Customer from all over the world to purchase our products, because our best price.
2. What's your payment?Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
3. What is your payment method?
L/C D/A D/P T/T Western Union MoneyGram
4. Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
5. Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
